JAPANESE ENGLISH
JY997D50301D
FX3U SERIES PROGRAMMABLE
CONTROLLERS
HARDWARE MANUAL
Manual Number JY997D50301
Revision D
Date December 2017
This manual describes the part names, dimensions, mounting,
cabling and specifications for the product. This manual is extracted
3U Series User's Manual - Hardware Edition. Refer to FX3U
from FX
Series User's Manual - Hardware Edition for more details. Before
use, read this manual and manuals of relevant products fully to
acquire proficiency in the handling and operating the product. Make
sure to learn all the product information, safety information, and
precautions.
And, store this manual in a safe place so that you can take it out and
read it whenever necessary. Always forward it to the end user.
Registration
The company name and the product name to be described in this
manual are the registered trad emarks or trademarks of each
company.
Effective December 2017
Specifications are subject to change without notice.
Safety Precaution
If the equipment is used in a manner not specified by the
manufacturer, the protection provided by the equipment may be
impaired.
This manual classifies the safety precautions into two categories:
and .
Depending on the cir cumstances, procedur es indicated by
It is important to follow all precautions for personal safety.
STARTUP AND
MAINTENANCE
PRECAUTIONS
Do not touch any terminal while the PLC's power is on.
may also cause severe injury.
Doing so may cause electric shock or malfunctions.
© 2013 Mitsubishi Electric Corporation
(Read these precautions before use.)
Indicates that incorrect handling may cause
hazardous conditions, resulting in death or
severe injury.
Indicates that incorrect handling may cause
hazardous conditions, resulting in medium or
slight personal injury or physical damage.
STARTUP AND
MAINTENANCE
PRECAUTIONS
Before cleaning or retightening terminals, cut off all phases of
the power supply externally.
Failure to do so may cause electric shock.
Before modifying or disrupting the program in operation or
running the PLC, carefully read through this manual and the
associated manuals and ensure the safety of the operation.
An operation error may damage the machinery or cause
accidents.
Do not change the program in the PLC from two or more
peripheral equipment devices at the same time. (i.e. from a
programming tool and a GOT)
Doing so may cause destruction or malfunction of the PLC
program.
Use the battery for memory backup correctly in FX3U Series
User's Manual - Hardware Edition.
- Use the battery only for the specified purpose.
- Connect the battery correctly.
- Do not charge, disassemble, heat, put in fire, short-circuit,
connect reversely, weld, swallow or burn the battery, or apply
excessive forces (vibration, impact, drop, etc.) to the battery.
- Do not store or use the battery at high temperatures or
expose to direct sunlight.
- Do not expose to water, bring near fire or touch liquid
leakage or other contents directly.
- Incorrect handling of the battery may cause heat excessive
generation, bursting, ignition, liquid leakage or deformation,
and lead to injury, fire or failures and malfunctions of facilities
and other equipment.
- When replacing the battery, make sure to use our specified
product (FX3U-32BL).
- When a battery error occurs ("BATT" LED is lit in red), follow
the description in FX3U Series User's Manual - Hardware
Edition.
STARTUP AND
MAINTENANCE
PRECAUTIONS
Turn off the power to the PLC before attaching or detaching the
memory cassette. If the memory cassette is attached or
detached while the PLC's power is on, the data in the memory
may be destroyed, or the memory cassette may be damaged.
Do not disassemble or modify the PLC.
Doing so may cause fire, equipment failures, or malfunctions.
For repair, contact your local Mitsubishi Electric distributor.
Turn off the power to the PLC before connecting or
disconnecting any extension cable.
Failure to do so may cause equipment failures or malfunctions.
Turn off the power to the PLC before attaching or detaching the
following devices.
Failure to do so may cause equipment failures or malfunctions.
- Display module, peripheral devices, expansion boards, and
special adapters
- Connector conversion adapter, extension blocks, and FX
Series terminal blocks
- Battery and memory cassette
Do not use the chemicals for cleaning.
If there is the possibility of touching the PLC inside a control
panel in maintenance, make sure to discharge to avoid the
influence of static electricity.
Since there are risks such as burn injuries, please do not touch
the surface of the equipment with bare hands when it is
operating in an environment which exceeds ambient
temperature of 50°C.
TRANSPORTATION
AND STORAGE
PRECAUTIONS
Please contact a certified electronic waste disposal company
for the environmentally safe recycling and disposal of your
device.
When disposing of batteries, separate them from other waste
according to local regulations.
(For details of the Battery Directive in EU countries, refer to
3U Series User's Manual - Hardware Edition.)
FX
Before transporting the PLC, turn on the power to the PLC to
check that the BATT LED is off.
If the PLC is transported with the BATT LED on or the battery
exhausted, the battery-backed data may be unstable during
transportation.
The PLC is a precision instrument. During transportation, avoid
impacts larger than those specified in Section 2.1 by using
dedicated packaging boxes and shock-absorbing palettes.
Failure to do so may cause failures in the PLC.
After transportation, verify operation of the PLC and check for
damage of the mounting part, etc.
When transporting lithium batteries, follow required
transportation regulations.
(For details of the regulated products, refer to FX3U Series
User's Manual - Hardware Edition.)
Associated manuals
How to obtain manuals
For the necessary product manuals or documents, consult with
your local Mitsubishi Electric representative.
Associated manuals
FX3U Series PLC (main unit) comes with this document (hardware
manual).
For a detailed explanation of the FX3U Series hardware and
information on instructions for PLC programming and special
extension unit/block, refer to the relevant documents.
Manual name Manual No. Description
FX3U Series
User's Manual
- Hardware Edition
FX3S/FX3G/FX3GC/
FX3U/FX3UC Series
Programming Manual
- Basic & Applied
Instruction Edition
MELSEC-Q/L/F
Structured
Programming Manual
(Fundamentals)
FXCPU Structured
Programming Manual
[Device & Common]
FXCPU Structured
Programming Manual
[Basic & Applied
Instruction]
FXCPU Structured
Programming Manual
[Application
Functions]
JY997D16501
MODEL CODE:
09R516
JY997D16601
MODEL CODE:
09R517
SH-080782
MODEL CODE:
13JW06
JY997D26001
MODEL CODE:
09R925
JY997D34701
MODEL CODE:
09R926
JY997D34801
MODEL CODE:
09R927
Explains FX3U Series
PLC specification details
for I/O, wiring, installation,
and maintenance.
Describes PLC
programming for basic/
applied instructions STL/
SFC programming and
devices.
Programming methods,
specifications, functions,
etc. required to create
structured programs.
Devices, parameters, etc.
provided in structured
projects of GX Works2.
Sequence instructions
provided in structured
projects of GX Works2.
Application functions
provided in structured
projects of GX Works2.
Manual name Manual No. Description
FX Series User’s
Manual - Data
Communication
Edition
3S/FX3G/FX3GC/
FX
FX
3U/FX3UC Series
User's Manual
- Analog Control
Edition
3S/FX3G/FX3GC/
FX
FX3U/FX3UC Series
User's Manual
- Positioning Control
Edition
JY997D16901
MODEL CODE:
09R715
JY997D16701
MODEL CODE:
09R619
JY997D16801
MODEL CODE:
09R620
Explains N:N link, parallel
link, computer link, no
protocol communication
by RS instructions/FX
232IF.
Describes specifications
for analog control and
programming methods for
FX3S/FX3G/FX
FX
3UC
Series PLC.
Explains the specifications
for positioning control of
FX3S/FX3G/FX
FX
3UC
Series and
programming procedures
3GC
3GC
2N-
/FX3U/
/FX3U/
Marine standard
Please consult with Mitsubishi Electric for the information on marine
standard practices and the corresponding types of equipment.
Certification of UL, cUL standards
FX3U series main units, FX3U series special adapters and FX2N
series input/output extension units/blocks supporting UL, cUL
standards are as follows:
UL, cUL file number: E95239
Models: MELSEC FX3U series manufactured
Models: MELSEC FX2N series manufactured
FX3U-MR/ES(-A) FX3U-MT/ES(-A)
FX3U-MT/ESS
Where indicates: 16, 32, 48, 64, 80, 128
FX3U-MR/DS FX3U-MT/DS
FX3U-MT/DSS
Where indicates: 16, 32, 48, 64, 80
FX3U-MR/UA1 FX3U-MS/ES
Where indicates: 32, 64
FX3U-232ADP(-MB) FX3U-485ADP(-MB)
FX3U-4AD-ADP FX3U-4DA-ADP
FX3U-3A-ADP FX3U-4AD-PT-ADP
FX3U-4AD-PTW-ADP FX3U-4AD-PNK-ADP
FX3U-4AD-TC-ADP
FX3U-4HSX-ADP FX3U-2HSY-ADP
FX3U-CF-ADP FX3U-ENET-ADP
FX2N-ER-ES/UL FX2N-ET-ESS/UL
Where indicates: 32, 48
FX2N-48ER-DS FX2N-48ET-DSS
FX2N-48ER-UA1/UL
FX2N-8ER-ES/UL FX2N-8EX-ES/UL
FX2N-8EYR-ES/UL FX2N-8EYR-S-ES/UL
FX2N-8EYT-ESS/UL FX2N-8EX-UA1/UL
FX2N-16EX-ES/UL FX2N-16EYR-ES/UL
FX2N-16EYT-ESS/UL FX2N-16EYS
Compliance with EC directive (CE Marking)
This product complies with EC directive, however, this document
does not guarantee that a mechanical system including this product
will comply with EC directive.
Compliance to EMC directive and LVD directive of the entire
mechanical system should be checked by the user/manufacturer.
For more details please contact the local Mitsubishi Electric sales
site.
Caution for compliance with EC Directive
Please use the FX3U Series programmable controllers while
installed in conductive shielded control panels under a general
industrial environment.
Programmable controllers are open-type devices that must be
installed and used within conductive control panels. Please
secure the control box lid to the control box (for conduction).
Installation within a control box greatly affects the safety of the
system and aids in shielding noise from the programmable
controller.
For the control panel, use the product having sufficient strength,
fire protectiveness and shielding property to an installation
environment.
24 V DC of the power supply must be supplied from the circuit
double/reinforced insulated from the main power supply (MAINS).
Caution for compliance with the LVD directive (EN61010-2201:2013) (*1)
To an external connection port other than AC power supply
terminal and AC input/output terminal, connect the circuit
separated from a dangerous voltage by a double/reinforced
insulation.
Between the commons having the adjacent relay output
terminals, if an external power supply is higher than 120 V AC,
the insulation is basic. Therefore, when using 120 V AC or higher
external power supply and 30 V DC/AC or lower external power
supply between the adjacent commons, do not handle 30 V DC/
AC or lower external power supply as a touchable part, (When
handling 30 V DC/AC or lower extern al power supply as a
touchable part, add a basic insulation.)
Do not wire two or more crimp terminals to one terminal. (If the
wiring with two or more wires is needed, take an appropriate
action such as adding an external terminal.)
For crimp terminals to be used for the wiring applied with 30 V AC
or higher, use the products with insulating sleeves.
Cutoff device such as a breaker or a circuit protector should be
installed in accordance with the following precautions.
- Use EN60947-1 or EN60947-3 standards.
- Place the cutoff device so that it can be operated easily.
- Specify that the cutoff device is for this equipment.
(*1) For the time of compliance with the LVD directive (EN61010-
2-201:2013), refer to FX3U Series User's Manual - Hardware
Edition.
Caution for Analog Products in use
The analog special adapters have been found to be compliant to the
European standards in the aforesaid manual and directive. However,
for the very best performa nce from what are in fact delicate
measuring and controlled output device Mitsubishi Electric would like
to make the following points;
As analog devices are sensitive by nature, their use should be
considered carefully. For users of proprietary cables (integral with
sensors or actuators), these users should follow those
manufacturers installation requirements.
Mitsubishi Electric recommend that shielded cables should be used.
If NO other EMC protection is provided, then users may experience
temporary induced errors not exceeding +10 %/-10 % in very heavy
industrial areas.
However, Mitsubishi Electric suggest that if adequate EMC
precautions are followed with general good EMC practice for the
users complete control system, users should expect normal errors
as specified in this manual.
- Sensitive analog cable should not be laid in the same trunking
or cable conduit as hig h voltage cabling. Where possible users
should run analog cables separately.
- Good cable shielding should be used. When terminating the
shield at Earth - ensure that no earth loops are accidentally
created.
- When reading analog values, EMC induced errors can be
smoothed out by avera ging the readings. This can be achieved
either through functions on the analog special adapter/block or
through a users program in the FX3U Series PLC main unit.
Incorporated Items
Check if the following product and items are included in the package:
Included Items
Main units
FX3U-16M to
FX3U-128M
Input/output extension units
FX2N-32E,
FX2N-48E
Input/output extension blocks
FX2N-8E,
FX2N-16E
(*1) The FX3U-M/ES-A becomes Chinese version.
Product 1 unit
Dust proof protection sheet 1 sheet
Manuals [Japanese (*1)/English]
Product 1 unit
Extension cable 1 cable
Input/output number lab el 1 sheet
Product 1 unit
Input/output number lab el 1 sheet
1 manual
1. Outline
1.1 Part names
[1]
[2]
[3]
[4]
[5]
[6]
[7]
No. Name
[1] Top cover
[2] Battery cover
[3] Special adapter connecting hooks (2 places)
[4] Expansion board dummy cover
[5] RUN/STOP switch
[6] Peripheral device co nnecting connector
[7] DIN rail mounting hooks
[8] Model name (abbreviation)
[9] Input display LEDs (Red)
[10] Terminal block covers
[11] Extension device connecting connector cover
Operation status display LEDs
POWER Green On while power is on the PLC.
RUN Green On while the PLC is running.
[12]
BATT Red Lights when the battery voltage drops.
ERROR
[13] Output display LEDs (Red)
Nameplate printing
[14]
appropriate temperature rating (80C or more) for wiring.
[8]
Red Flashing when a program error occurs.
Red Lights when a CPU error occurs.
is a mark that instructs to use the cable with an
[9]
[10]
[11]
[12] [14]
[13]
With terminal cover open
[1]
No. Name
[1] Protective terminal covers (FX
[2] Power supply, Input (X) terminals
Terminal block mounting screws
[3]
(FX3U-16M terminal block cannot be installed/removed)
Terminal names
[4]
shows a function grounding terminal.
[5] Output (Y) terminals
3U-M/-A is excluded)
[2]
[3]
[4]
[3]
[5]
1.2 External dimensions and weight
1
(
)
*
Unit: mm (inches)
*
90 (3.55")
80 (3.15")
*
22
(0.87")
(*1) 2- 4.5-diam mounting holes: FX3U-16M, FX3U-32M
4- 4.5-diam mounting holes: FX3U-48M, FX3U-64M,
FX3U-16M and FX3U-32M (except FX3U-32MR/UA1) do
not have the (*)-marked mounting holes.
Model name
FX3U-16M 130 (5.12”) 103 (4.06”) 0.6 (1.32lbs)
FX3U-32M
FX3U-48M 182 (7.17”) 155 (6.11”) 0.85 (1.87lbs)
FX3U-64M (
FX3U-80M 285 (11.23”) 258 (10.16”) 1.20 (2.64lbs)
FX3U-128M 350 (13.78”) 323 (12.72”) 1.80 (3.96lbs)
(*2) FX3U-32MR/UA1 is equivalent to FX3U-48M.
(*3) FX3U-64MR/UA1 is equivalent to FX3U-80M.
Installation
35-mm-wide DIN rail or Direct (screw) mounting (M4)
W1
W
W:
mm (inches)
(*2)
150 (5.91”) 123 (4.85”) 0.65 (1.43lbs)
3)
220 (8.67”) 193 (7.6”) 1.00 (2.2lbs)
*
Mounting hole pitches
(except FX3U-32MR/UA1)
FX3U-80M, FX3U-128M,
FX3U-32MR/UA1
W1:
mm (inches)
Direct mounting
hole pitches
9 (0.36")
86 (3.39")
MASS
(Weight)
kg (lbs)
:
2. Installation (general specifications)
≥ 50 mm (1.97")
A
A
A
A
A
FX
3U
Series
main
unit
FX
2N
-16EX
-ES/UL
FX
2N
-16EYT
-ESS/UL
Configuration without extension cable
As for installation of the input/output extension units/blocks, special
adapters and expansion boards, refer to FX
- Hardware Edition.
INSTALLATION
PRECAUTIONS
Use the product within the generic environment specifications
described in section 2.1 of this manual.
Never use the product in areas with excessive dust, oily smoke,
conductive dusts, corrosive gas (salt air, Cl2, H2S, SO2 or
NO
2), flammable gas, vibration or impacts, or expose it to high
temperature, condensation, or rain and wind.
If the product is used in such conditions, electric shock, fire,
malfunctions, deterioration or damage may occur.
Do not touch the conductive parts of the product directly. Doing
so may cause device failure or malfunctions.
Install the product securely using a DIN rail or mounting screws.
Install the product on a flat surface.
If the mounting surface is rough, undue force will be applied to
the PC board, thereby causing nonconformities.
INSTALLATION
PRECAUTIONS
When drilling screw holes or wiring, make sure cutting or wire
debris does not enter the ventilation slits.
Failure to do so may cause fire , equipment failures or
malfunctions.
Be sure to remove the dust proof sheet from the PLC's
ventilation port when installation work is completed. Fail ure to
do so may cause fire, equipment failures or malfunctions.
Connect the extension cables, peripheral device cables, input/
output cables and battery connecting cable securely to their
designated connectors.
Loose connections may cause malfunctions.
Turn off the power to the PLC before attaching or detaching the
following devices.
Failure to do so may cause device failures or malfunctions.
- Peripheral devices, display modules, expansion boards and
special adapters
- Extension units/blocks and the FX Series terminal block
- Battery and memory cassette
Notes
When a dust proof sheet is supplied with an unit, keep the
sheet applied to the ventilation slits during installation and
wiring work.
To prevent temperature rise, do not install the PLC on a floor, a
ceiling or a vertical surface.
Install it horizontally on a wall as shown in section 2.2.
Keep a space of 50 mm (1.97”) or more between the unit main
body and another device or structure (part A). Install the unit as
far away as possible from high-voltage lines, high-voltage
devices and power equipment.
Failure to do so may cause fire , equipment failures or
malfunctions.
WIRING
PRECAUTIONS
Cut off all phases of the power supply externally before
installation or wiring work in order to avoid damage to the
product or electric shock.
3U Series User's Manual
2.1 Generic specifications
Item Specification
Ambient
temperature
Ambient
humidity
Vibration
resistance
(*1)
Shock
resistance
(*1)
Noise
resistance
Dielectric
withstand
voltage (*2)
Insulation
resistance
(*2)
Grounding
Working
atmosphere
Working
altitude
Installation
location
Over
voltage
category
Pollution
degree
0 to 55 C (32 to 131 F) when operating and -25 to
75 C (-13 to 167 F) when stored
5 to 95 %RH (no condensation) when op erating
Accele-
Fre-
ration
quency
(Hz)
When
installed
on DIN
rail
When
installed
directly
2
Acceleration, Action time: 11 ms, 3 times by
147 m/s
half-sine pulse in each direction X, Y, and Z
By noise simulator at noise voltage of 1,000 Vp-p,
noise width of 1 s, rise time of 1 ns and period of 30
to 100 Hz
1.5 kV AC for one
minute
500 V AC for one
minute
5 M or higher by
500 V DC insulation
resistance tester
Class D grounding (grounding resistance: 100 or
less) <Common grounding with a heavy electrical
system is not allowed.> (
Free from corrosive or flammable gas and excessive
conductive dusts
<2000 m (*4)
Inside a control panel (
or less
2 or less
(m/s2)
10 to 57 - 0.035
57 to
150
10 to 57 - 0.075
57 to
150
Between each terminals and
ground terminal
amplitude
4.9 -
9.8 -
3)
*
)
5
*
Half
(mm)
Sweep Count
for X, Y, Z: 10
times
(80 min in
each
direction)
(*1) The criterion is shown in IEC61131-2.
2) Dielectric withstand voltage and insulation resistance are
(
*
shown in the following table.
Terminal
Main units, Input/output extension units/blocks
Between power supply terminal
(AC power) and ground
terminal
Between power supply terminal
(DC power) and ground
terminal
Between 24 V DC service
power supply connected to
input terminal (24 V DC) and
ground terminal
Between input terminal (100 V
AC) and ground terminal
Between output terminal (relay)
and ground terminal
Between output terminal
(transistor) and ground terminal
Between output terminal (triac)
and ground terminal
Expansion boards, Special adapters,
Special function units/blocks
Between terminal of expansion
board and ground terminal
Between terminal of special
adapter and ground terminal
Special function unit/block Each manual
For dielectric with stand voltage test and insulation resistance
test of each product, refer to the following manual.
Refer to FX3U Series User's Manual - Hardware Edition.
(*3) For common grounding, refer to section 3.3.
(*4) The PLC cannot be used at a pressure higher than the
atmospheric pressure to avoid damage.
(*5) The programmable controller is assumed to be installed in an
environment equivalent to indoor.
Dielectric
strength
1.5 kV AC for
one minute
500 V AC for
one minute
500 V AC for
one minute
1.5 kV AC for
one minute
1.5 kV AC for
one minute
500 V AC for
one minute
1.5 kV AC for
one minute
Not allowed Not allowed
500 V AC for
1 min
Insulation
resistance
5 M or higher by
500 V DC insulation
resistance tester
5 M or higher by
500 V DC insulation
resistance tester
2.2 Installation location
Install the PLC in an environment conforming to the generic
specifications (section 2.1), install ation precautions and notes.
For more details, refer to FX3U Series User's Manual - Hardware
Edition.
Installation location in enclosure
Space in enclosure
Extension devices can be connected on the left and right sides of the
main unit of the PLC.
If you intend to add extension devices in the future, keep necessary
spaces on the left and right sides.
Configuration in 2 stages with extension cable
A
A
Another
equipment
A
FX2N-CNV-BC
Another equipment
FX3U Series
main unit
FX3U-4AD-ADP
Input/output
powered
extension
FX2N-16EX
-ES/UL
A
A
unit
FX2N-16EX-ES/UL
FX2N-16EYT-ESS/UL
FX2N-10PG
FX2N-8AD
A
A
FX2N-4AD
FX2N-16EYR-ES/UL
Extension
cable
0N-65EC
·FX
0N-30EC
·FX
A
Another
equipment
≥ 50 mm (1.97")
2.2.1 Affixing the dust proof sheet
The dust proof sheet should be affixed to the ventilation port before
beginning the installation and wiring work.
For the affixing procedure, refer to the instructions on the
Be sure to remove the dust proof sheet when the installation and
wiring work is completed.
dust proof sheet.
2.3 Procedures for installing to and detaching from
B
C
4)
C
4)
6.3 mm (0.25")
or more
6.3 mm (0.25")
or more
6.2 mm (0.24")
or less
6.2 mm (0.24")
or less
φ3.2 (0.13")
φ3.2 (0.13")
Terminal
Terminal
screw
Solderless
terminal
DIN rail
The products can be installed on a DIN46277 rail [35 mm (1.38”)
wide]. This section explains the installations of the main units.
For the input/output extension units/blocks and special adapters,
refer to the following manual.
Refer to FX3U Series User’s Manual - Hardware Edition.
2.3.1 Installation
1) Connect the expansion boards and special adapters to the main
unit.
2) Push out all DIN rail mounting hooks (below fig.A)
2)2)
A
3) Fit the upper edge of the DIN rail
mounting groove (right fig.B)
onto the DIN rail.
4) Lock the DIN rail mounting hooks (below fig.C) while pressing the
PLC against the DIN rail.
B
2)
2.4 Procedures for installing directly (with M4
screws)
The product can be installed directly on the panel (with screws).
This section explains the installation of the main units.
As for the details of the installation/detaching for input extension
units/blocks and special adapters, refer to the following manual.
Refer to FX3U Series User's Manual - Hardware Edition.
2.4.1 Mounting hole pitches
Refer to the External Dimensions (section 1.2) for t he product's
mounting hole pitch information.
As for the details of the mounting hole pitches for extension unit/
block and special adapters, refer to the following manual.
Refer to FX3U Series User's Manual - Hardware Edition.
2)
A
2.4.2 Installation
1) Make mounting holes in the
mounting surface referring to
the external dimensions
diagram.
2) Fit the main unit (A in the right
figure) based on the holes, and
secure it with M4 screws ( B in
the right figure).
The mounting hole pitches and
number of screws depend on
the product. Refer to the
external dimensions diagram.
B
A
B
3. Power supply/input/output specifications
and examples of external wiring
As for the details of the power supply wiring and input/output wiring,
3U Series User's Manual - Hardware Edition.
refer to FX
DESIGN
PRECAUTIONS
Make sure to have the following safety circuits outside of the
PLC to ensure safe system operation even during external
power supply problems or PLC failure.
Otherwise, malfunctions may cause serious accidents.
1) Most importantly, have the following: an emergency stop
circuit, a protection circui t, an interlock circuit for op posite
movements (such as normal vs. reverse rotation), and an
interlock circuit (to prevent damage to the equipment at the
upper and lower positioning limits).
2) Note that when the PLC CPU detects an error, such as a
watchdog timer error, during self-diagnosis, all outputs are
turned off. Also, when an error that cannot be detected by
the PLC CPU occurs in an input/output control block,
output control may be disabled.
External circuits and mechanisms should be designed to
ensure safe machinery operation in such a case.
3) Note that the output current of the 24 V DC service power
supply varies depending on the model and the absence/
presence of extension blocks. If an overload occurs, the
voltage automatically drops, inputs in the PLC are
disabled, and all outputs are turned off.
External circuits and mechanisms should be designed to
ensure safe machinery operation in such a case.
4) Note that when an error occurs in a relay, triac or transistor
output device, the output could be held either on or off.
For output signals that may lead to serious accidents,
external circuits and mechanisms should be designed to
ensure safe machinery operation in such a case.
DESIGN
PRECAUTIONS
Do not bundle the control line together with or lay it close to the
main circuit or power line. As a guideline, lay the control li ne at
least 100 mm (3.94") or more away from the main circuit or
power line.
Noise may cause malfunctions.
Install module so that excessive force will not be applied to
peripheral device connectors.
Failure to do so may result in wire damage/breakage or PLC
failure.
Notes
Simultaneously turn on and off the power supplies of the main
unit and extension devices.
Even if the AC power supply causes an instantaneous power
failure for less than 10 ms, the PLC can continue to operate.
Even if the DC power supply causes an instantaneous power
failure for less than 5ms, the PLC can continue to operate.
If a long-time power failure or an abnormal voltage drop occurs,
the PLC stops, and output is turned off. When the power
supply is restored, it will automatically restart (when the RUN
input is on).
WIRING
PRECAUTIONS
Make sure to cut off all phases of the power supply externally
before installation or wiring work.
Failure to do so may cause electric shock or damage to the
product.
The temperature rating of the cable should be 80C or more.
WIRING
PRECAUTIONS
Connect the AC power supply to the dedicated terminals
described in this manual.
If an AC power supply is connected to a DC input/output
terminal or DC power supply terminal, the PLC will burn out.
Do not wire vacant terminals externally.
Doing so may damage the product.
Perform class D grounding (grounding resistance: 100 or
less) to the grounding terminal on the FX3U PLC main unit with
a wire 2 mm2 or thicker.
Do not use common grounding with heavy electrical systems
(refer to section 3.3).
When drilling screw holes or wiring, make sure cutting or wire
debris does not enter the ventilation slits.
Failure to do so may cause fire, equipment failures or
malfunctions.
Make sure to properly wire to the terminal in accordance with
the following precautions.
Failure to do so may cause electric shock, equipment failures, a
short-circuit, wire breakage, malfunctions, or damage to the
product.
- The disposal size of the cable end should follow the
dimensions described in the manual.
- Tightening torque should follow the specifications in the
manual.
Notes
Input/output wiring 50 to 100 m (164’1” to 328’1”) long will
cause almost no problems of noise, but, generally, the wiring
length should be less than 20 m (65’7”) to ensure the safety.
Extension cables are easily affected by noise. Lay the cables
at a distance of at least 30 to 50 mm (1.19” to 1.97”) away from
the PLC output and other power lines.
3.1 Wiring
3.1.1 Cable end treatment and tightening torque
For the terminals of FX3U series PLC, M3 screws are used.
The electric wire ends should be treated as shown below.
Tighten the screws to a torque of 0.5 to 0.8 Nm.
Do not tighten terminal screws with a torque outside the above-
mentioned range.
Failure to do so may cause equipment failures or malfunctions.
When one wire is connected to one terminal
Type No.
Type No.
φ3.2 (0.13")
φ3.2 (0.13")
Applicable
cable
Applicable
cable
6.2 mm (0.24")
or less
6.2 mm (0.24")
or less
<Reference>
Terminal
manufacturer
J.S.T. Mfg. Co.,
Ltd.
When two wires are connected to one terminal(*1)
<Reference>
Terminal
manufacturer
J.S.T. Mfg. Co.,
Ltd.
(*1) To adapt the LVD directive (EN61010-2-201:2013) of the
3.1.2 Removal and installation of quick-release terminal
Removal Unscrew the terminal block mounting screw [both right
Installation Place the terminal block in the specified position, and
FV1.25-B3A AWG22 to 16
FV2-MS3 AWG16 to 14
FV1.25-B3A AWG22 to 16 UL Listed
EC directive, avoid the wiring with two wi res to the built-in
terminal, and take an appropriate action such as adding an
external terminal.
For the time of compliance with the LVD directive (EN610102-201:2013), refer to FX3U Series User's Manual - Hardware
Edition.
block
and left screws] evenly, and remove the terminal block.
tighten the terminal block mounting screw evenly [both
right and left screws].
Tightening torque 0.4 to 0.5 Nm
Do not tighten the terminal block mounting screws
exceeding with a torque outside the above-mentioned
range.
Failure to do so may cause equipment failures or
malfunctions.
(*) Pay attention so that the center of the terminal block
is not lifted.
Terminal
screw
Terminal
Certification
UL Listed
Certification
Solderless
terminal
Pressure
bonding tool
YA-1 (J.S.T.
Mfg. Co., Ltd.)
Pressure
bonding tool
YA-1 (J.S.T.
Mfg. Co., Ltd.)
3.2 Power supply specifications and example of external wiring
As for the details of the power supply specifications and example of
external wiring, refer to the following manual.
Refer to FX3U Series User's Manual - Hardware Edition.
3.2.1 Power supply specifications
[Main unit, Input/output extension units]
Item
Supply voltage 100 to 240 V AC 24 V DC
Voltage
fluctuation
range
Rated frequency 50/60 Hz -
Allowable instantaneous
power failure time
Power
fuse
Rush
current
Power
consumption
(*1)
24 V DC
service
power
supply (*2)
5 V DC
builtin
power
supply (*3)
Main unit
FX2N-32E,
FX
2N-48E
FX3U-16M to
32M (*7)
FX3U-48M to
128M
FX2N-32E 250 V 3.15 A -
FX2N-48E 250 V 5 A 250 V 5 A
Main unit
FX2N-32E,
FX2N-48E
FX3U-16M 30 W 25 W
FX3U-32M 35 W 30 W
FX3U-48M 40 W 35 W
FX3U-64M 45 W 40 W
FX3U-80M 50 W 45 W
FX3U-128M 65 W -
FX2N-32E 30 W -
FX2N-48E 35 W 30 W
FX3U-16M to
32M
FX3U-48M to
128M
FX2N-32E 250 mA -
FX2N-48E 460 mA -
Main unit 500 mA or less
FX2N-32E
FX2N-48E
-15%, +10%
Operation can be
continued upon
occurrence of
instantaneous
power failure for
10 ms or less.
(*4)
250 V 3.15 A
250 V 5 A
30 A max. 5 ms
or less/100 V AC
65 A max. 5 ms
or less/200 V AC
40 A max. 5 ms
or less/100 V AC
60 A max. 5 ms
or less/200 V AC
400 mA or less -
600 mA or less -
690 mA or less
Specification
AC power type
DC power type
(*6)
-30%, +20% (
-30%, +20%
Operation can be
continued upon
occurrence of
instantaneous
power failure for 5
ms or less.
35 A max. 0.5 ms
or less/24 V DC
5)
*
-
(*1) Does not include the power consumption of extension units/
special extension units, and of the extension blocks/special
extension blocks connected to those units.
For the power (current) consumed by the extension units/
blocks for input/output, refer to FX3U Series User's Manual Hardware Edition.
For the power consumed by the special extension units/
blocks, refer to the appropriate manual.
2) When input/output extension blocks are connected, the 24 V
(
*
DC service power supply is consumed by the blocks, and the
current value to be used by the main unit is reduced.
The AC power (AC input) type and DC power type do not have
a service power supply.
(*3) Cannot be used to supply power to an external destination.
The power is supplied to input/output extension blocks,
special extension blocks, special adapters and expansion
boards.
The following manual shows further information.
Refer to FX3U Series User’s Manual - Hardware Edition.
(
4) When the supply voltage is 200 V AC, the time can be
*
changed to 10 to 100 ms by editing the user program.
(*5) When supply voltage is 16.8-19.2 V DC, the connectable
extension equipment decreases. The following manual shows
further information.
Refer to FX
(*6) When attaching high-speed input/output special adapter
(FX3U-4HSX-ADP, FX3U-2HSY-ADP) and special function
block (FX0N-3A, FX2N-2AD, FX2N-2DA), the number of
connectable modules to the main unit is limited, due to the
current consumption (internal 24 V DC) at startup. The
following manual shows further information.
Refer to FX3U Series User’s Manual - Hardware Edition.
(*7) 250 V 5 A is specified for the power fuse of FX3U-32MR/UA1.
3U Series User’s Manual - Hardware Edition.
3.2.2 Example of external wiring (AC power type)
100 to 240 V AC power is supplied to the main unit and input/output
extension units. For the details of wiring work, refer to section 3.1.
PLC
Main unit
L
N
Input/output
extension
unit
(*)
L
N
Class D grounding
See section 3.3 for
details.
(*)
Fuse
100 to 240 V AC
Breaker
Power on
Emer-
MC
DC
power
supply
gency
PL
MC
DC AC
Power supply for loads connected
to PLC output terminals
MCMC
3.2.3 Example of external wiring (DC power type)
24 V DC power is supplied to the main unit and input/output
extension unit. For the details of wiring work, refer to section 3.1.
PLC
Main unit
Input/output
extension
unit
(*)
Class D grounding
See section 3.3 for
details.
(*)
Fuse
Power supply for loads connected
to PLC output terminals
24 V DC
Circuit protector
Power on
PL
MC
MC
Emergency
MCMC
3.3 Grounding
Ground the PLC as stated below.
Perform class D grounding. (Grounding resistance: 100 or
less)
Ground the PLC independently if possible.
If it cannot be grounded independently, ground it jointly as shown
below.
Another
PLC
equipment
Independent grounding
(Best condition)
Use ground wires thicker than AWG14 (2 mm2).
Position the grounding point as close to the PLC as possible to
decrease the length of the ground wire.
Another
PLC
equipment
Shared grounding
(Good condition)
Another
PLC
equipment
Common grounding
(Not allowed)
3.4 Input specifications and external wiring
As for the details of the input specifications and external wiring, refer
to the following manual.
Refer to FX3U Series User's Manual - Hardware Edition.
3.4.1 Input specifications (24 V DC input type)
Item Specification
4 points (8 points) (*1)
8 points
16 points
24 points
Number of
input
points
FX2N-8ER
FX3U-16M,
FX2N-8EX
FX3U-32M,
FX2N-16EX,
FX2N-32E
FX3U-48M,
FX2N-48E
FX3U-64M 32 points
FX3U-80M 40 points
FX3U-128M 64 points
Item Specification
Input connecting type Refer to FX3U Series User's
Input form
AC power
Main units
Input
signal
voltage
Input
impedance
Input
signal
current
ON input
sensitivity
current
OFF input sensitivity current 1.5 mA or less
Input response time Approx. 10 ms
Input signal form
(Input sensor form)
Input circuit insulation Photocoupler insulation
Input operation display
(*1) Each value inside ( ) indicates the number of occupied points.
Input/
output
extension
unit
Main units
Input/output
extension unit/block
Main units
Input/output
extension unit/block
Main units
Input/output
extension unit/block
Type
DC power
Type
AC power
Type
DC power
Type
X000 to
X005
X006,
X007
X010 or
more
X000 to
X005
X006,
X007
X010 or
more
X000 to
X005
X006,
X007
X010 or
more
Manual Hardware Edition
24 V DC 10 %, -10 %
24 V DC 20 %, -30 %
24 V DC 10 %, -10 %
24 V DC 20 %, -30 %
3.9 k
3.3 k
4.3 k
(Does not apply to FX
.)
16M
4.3 k
6 mA/24 V DC
7 mA/24 V DC
5 mA/24 V DC
(Does not apply to FX3U16M.)
5 mA/24 V DC
3.5 mA or more
4.5 mA or more
3.5 mA or more
(Does not apply to FX3U16M.)
3.5 mA or more/24 V DC
Sink input:
No-voltage contact input
NPN open
collector transistor
Source input:
No-voltage contact input
PNP open
collector transistor
LED on panel lights when
photocoupler is driven.
3U-
3.4.2 Examples of 24 V DC input wiring [AC power type]
L
N
S/S
0V
24V
X000
X001
X002
X003
L
N
S/S
0V
24V
X000
X001
X002
X003
1. Sink input type 2. Source input type
S/S
X000
S/S
X000
(*)(
*
)
100 to 240 V AC
Fuse
3-wire type
sensor
100 to 240 V AC
Fuse
3-wire type
sensor
(*)
Class D grounding
See section 3.3 for details.
[1] [1]
[2] [2]
[1]: Main unit, Input/output extension unit
(Common to both sink and source inputs)
[2]: Input/output extension block
(Common to both sink and source inputs)
X
0V
LED
24V
S/S
Sink input
X
24V
LED
0V
S/S
Source input
X
24V
0V
S/S
Source input
Rp
Rb
X
0V
24V
S/S
Rp
Rb
Sink input
15 kΩ
or more
15 kΩ
or more
Rb
4Rp
15-Rp
(kΩ)
Ι
3.4.3 Examples of 24 V DC input wiring [DC power type]
1. Sink input type 2. Source input type
[1] [1]
Fuse
(
1) (*1)
*
S/S
(0V)
(
2) (*2)
*
(24V)
X000
X001
X002
X003
[2] [2]
S/S
X000
(*1)
Class D grounding
See section 3.3 for details.
(*2)
Do not connect the (0V), (24V) terminals with others,
since they are not available.
[1]: Main unit, Input/output extension unit
(Common to both sink and source inputs)
[2]: Input/output extension block
(Common to both sink and source inputs)
3-wire type
sensor
S/S
(0V)
(24V)
X000
X001
X002
X003
S/S
X000
Fuse
24 V DC24 V DC
3-wire type
sensor
3.4.4 Instructions for connecting input devices
1) In the case of no-voltage contact:
The input current of this PLC is 5 to 7 mA/24 V DC.
Use input devices applicable to this minute current.
If no-voltage contacts (switches) for large current are used,
contact failure may occur.
<Example> Products of OMRON
Type
Microswitch
Proximity
switch
2) In the case of input device with built-in series diode:
The voltage drop of the series diode should be approx. 4 V or
less.
When lead switches with a series LED are used, up to two
switches can be connected in series.
Also make sure that the input current is over the input-sensing
level while the switches are ON.
3) In the case of input device with built-in parallel resistance:
Use a device having a parallel resistance, Rp, of 15 kor more.
When the resistance is less than 15 k, connect a bleeder
resistance, Rb, obtained from the formula as shown in the
following figure.
Model
name
Models Z, V
and D2RV
Model TL
Type Model name
Operation
switch
Photoelectric
switch
Model A3P
Model E3S
4) In the case of 2-wire proximity switch:
Use a two-wire proximity switch whose leakage current, , is
1.5 mA or less when the switch is off.
When the current is larger than 1.5 mA, connect a bleeder
resistance, Rb, obtained from formula as shown in the following
figure.
6
-1.5
Ι
Ι
Rb
(kΩ)
2-wire
proximity
sensor
Source input
0V
S/S
X
24V
Rb
2-wire
proximity
sensor
Ι
Rb
Sink input
24V
S/S
X
0V
3.4.5 Input specifications (100 V AC input type)
Item Specification
Number of
input
points
Input connecting type
Input form
Input signal voltage
Input impedance
Input signal current
ON input sensitivity current 3.8 mA or more
OFF input sensitivity current 1.7 mA or less
Input response time
Input signal form Contact input
Input circuit insulation Photocoupler insulation
Input operation display
FX2N-8EX-UA1/UL 8 points
FX3U-32MR/UA1 16 points
FX2N-48ER-UA1/UL 24 points
FX3U-64MR/UA1 32 points
Refer to FX3U Series User's
Manual - Hardware Edition
100 to 120 V AC
+10 %, -15 % 50/60 Hz
Approx. 21 k/50 Hz
Approx. 18 k/60 Hz
4.7 mA/100 V AC 50 Hz
6.2 mA/110 V AC 60 Hz
(70 % or less when turned on
simultaneously)
Approx. 25 to 30 ms
(A high speed receiving is
improper)
LED on panel lights when
photocoupler is driven.
3.4.6 Examples of 100V AC input wiring
[1]
[2]
1 Class D grounding See section 3.3 for details.
*
2 Do not take input signals from loads generating surge.
*
[1]: Main unit, Input/output extension unit
(100 V AC input type)
[2]: Input extension block
(100 V AC input type)
3.5 Relay output specifications and example of external wiring
As for the details of Instructions for connecting input devices, refer to
the following manual.
Refer to FX3U Series User's Manual - Hardware Edition.
L
N
COM
X000
X001
X002
COM
X000
X001
Fuse
Fuse
Fuse
MC
1
*
100 to 240 V AC
100 to 120 V AC
2
*
3.5.1 Relay output specifications
Item Specification
FX2N-8ER
FX3U-16MR,
FX2N-8EYR
FX3U-32MR/,
Number
of output
points
Output connecting type
Output form Relay
External power supply
Max. load
Min. load 5 V DC, 2 mA (reference value)
Open circuit leakage current -
Response
time
Output circuit insulation Mechanical insulation
Output operation display
FX2N-32ER,
FX2N-16EYR
FX3U-48MR,
FX2N-48ER
FX3U-64MR/ 32 points
FX3U-80MR 40 points
FX3U-128MR/ES 64 points
Resistance load
Inductive load 80 VA
OFFON Approx. 10 ms
ONOFF Approx. 10 ms
4 points (8 points) (*1)
8 points
16 points
24 points
Refer to FX3U Series User's Manual
- Hardware Edition
30 V DC or less
240 V AC or less ("250 V AC or less"
if not a CE, UL, cUL compliant item)
2 A/point (*2)
LED on panel lights when power is
applied to relay coil.
(*1) Each value inside ( ) indicates the number of occupied points.
PLC
24 V DC
Fuse
Y000
100 V AC
COM1
Y001
Load
Fuse
Y010
COM2
Y011
Load
(*2) The total load current of resistance loads per common
terminal should be the following value.
- 1 output point/common terminal: 2 A or less
- 4 output points/common terminal: 8 A or less
- 8 output points/common terminal: 8 A or less
As for the number of outputs per common terminal, refer to
“Chapter 4 interpretation of partition” and the following manual.
Refer to FX3U Series User's Manual - Hardware Edition.

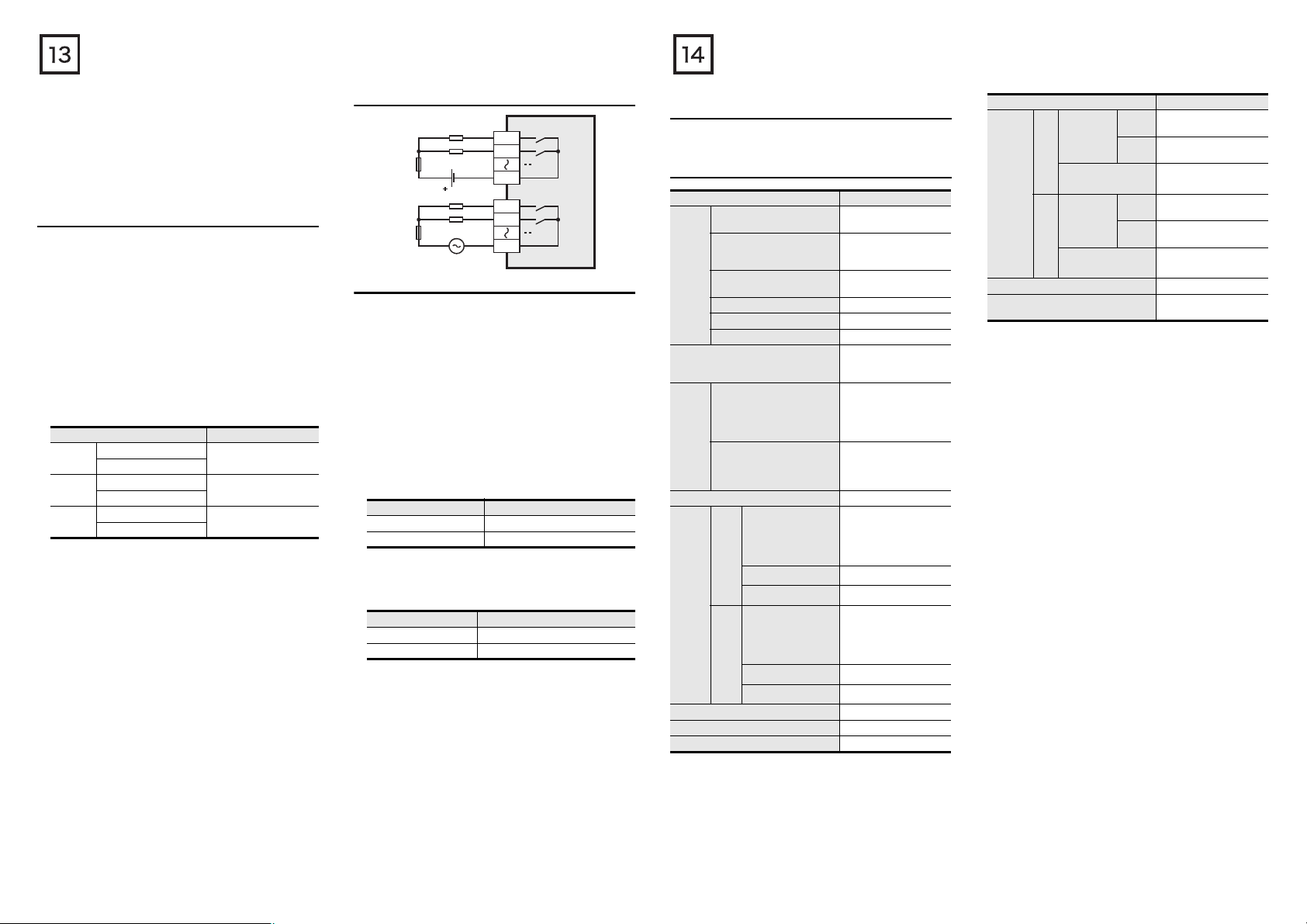

3.5.2 Life of relay output contact
The product life of relay contacts considerably varies depending on
the load type used. Take care that loads generating reverse
electromotive force or rush current may cause poor conta ct or
deposition of contacts which may lead to considerable reduction of
the contact product life.
1) Inductive load
Inductive loads generate large reverse electromotive force
between contacts at shutdown which may cause arcing. At a
fixed current consumption, as the power factor (phase between
current and voltage) gets smaller, the arc energy gets larger.
The standard life of the contact used for Inductive loads, such as
contactors and solenoid valves, is 500 thousand operations at
20 VA.
The following table shows the approximate life of the relay based
on the results of our operation life test.
Test condition: 1 sec.ON / 1 sec.OFF.
The product life of relay contacts becomes considerably shorter
than the above conditions when the rush overcurrent is shut
down.
Some types of inductive loads generate rush current 5 to 15 times
the stationary current at activation. Make sure that the rush
current does not exceed the current corresponding to the
maximum specified resistance load.
2) Lamp load
Lamp loads generally generate rush current 10 to 15 times the
stationary current. Make sure that the rush current does not
exceed the current corresponding to the maximum specified
resistance load.
3) Capacitive load
Capacitive loads can generate rush current 20 to 40 times the
stationary current. Make sure that the rush current does not
exceed the current corresponding to the maximum specified
resistance load. Capacitive loads such as capacitors may be
present in electronic circuit loads including inverters.
Load capacity Contact life
20 VA
35 VA
80 VA
0.2 A/100 V AC
0.1 A/200 V AC
0.35 A/100 V AC
0.17 A/200 V AC
0.8 A/100 V AC
0.4 A/200 V AC
For countermeasures while using inductive loads,
For the maximum specified resistance load,
2 hundred thousand
refer to Subsection 3.5.4.
refer to Subsection 3.5.1.
3 million times
1 million times
times
3.5.3 Example of relay output wiring
3.5.4 Cautions in external wiring
For cautions in external wiring, refer to the following manual.
Refer to FX
Protection circuit for load short-circuiting
When a load connected to the output terminal short-circuits, the
printed circuit board may be burnt out. Fit a protective fuse on the
output circuit.
Protection circuit of contact when inductive load is used
An internal protection circuit for the relays is not provided for the
relay output circuit. It is recommended to use inductive loads with
built-in protection circuits. When using loads without built-in
protection circuits, insert an external contact protection circuit, etc.
to reduce noise and extend the product life.
1) DC circuit
Connect a diode in parallel with the load.
Use a diode (for commutation) having the following
specifications.
Reverse voltage 5 to 10 times the load voltage
Forward current Load current or more
2) AC circuit
Connect the surge absorber (combined CR components such as
a surge killer and spark killer, etc.) parallel to the load.
Select the rated voltage of the surge absorber suitable to the
output used. Refer to the table below for other specifications.
Electrostatic capacity Approx. 0.1 F
Resistance value Approx. 100 to 200
Interlock
Loads, such as contactors for normal and reverse rotations, that
must not be turned on simultaneously should have an interlock in the
PLC program and an external interlock.
Common mode
Use output contacts of the PLC in the common mode.
3U Series User's Manual - Hardware Edition.
Item Standard
Item Standard
3.6 Transistor output specifications and example of external wiring
As for the details of the transistor output specifications and external
wiring, refer to the following manual.
Refer to FX3U Series User's Manual - Hardware Edition.
3.6.1 Transistor output specifications
Item Specification
FX3U-16MT/,
FX2N-8EYT
FX3U-32MT/,
2N-32ET,
FX
Number
FX2N-16EYT
of
FX3U-48MT/,
output
FX2N-48ET
points
FX3U-64MT/ 32 points
FX3U-80MT/ 40 points
FX3U-128MT/ES(S) 64 points
Output connecting type
FX3U-MT/S(-A),
FX2N-ET,
FX2N-48ET-D,
FX2N-EYT,
Output
FX2N-8EYT-H
form
FX3U-MT/SS,
FX2N-ET-ESS/UL,
FX2N-48ET-DSS,
FX2N-EYT-ESS/UL
External power supply 5-30 V DC
FX3U-MT/,
FX2N-ET,
FX2N-ET-,
Resis
FX2N-EYT,
tance
FX2N-EYT-ESS/UL
load
FX2N-8EYT-H
Max.
load
Min. load -
Open circuit leakage current 0.1 mA or less/30 V DC
ON voltage 1.5 V or less
FX2N-16EYT-C
FX3U-MT/,
FX2N-ET,
FX2N-ET-,
Induc
FX2N-EYT,
tive
FX2N-EYT-ESS/UL
load
FX2N-8EYT-H
FX2N-16EYT-C
8 points
16 points
24 points
Refer to FX3U Series
User's Manual Hardware Edition
Transistor (Sink)
Transistor (Source)
0.5 A/point (*1)
1 A/point (*2)
0.3 A/point (*3)
12 W/24 V DC (*4)
24 W/24 V DC (*5)
7.2 W/24 V DC (*6)
Item Specification
Y000 to
5 s or less/10 mA
Y002
Main unit
OFF
ON
Input/output extension
Response
time
Output circuit insulation Photocoupler insulation
Output operation display
(*1) The total load current of resistance loads per common
terminal should be the following value.
- 1 output point/common terminal: 0.5 A or less
- 4 output points/common terminal: 0.8 A or less
- 8 output points/common terminal: 1.6 A or less
As for the number of outputs per common terminal, refer to
“Chapter 4 interpretation of partition” and the following manual.
Refer to FX
(*2) The total load current of resistance loads per common
terminal should be the following value.
- 4 output points/common terminal: 2 A or less
As for the number of outputs per common terminal, refer to the
following manual.
Refer to FX3U Series User's Manual - Hardware Edition.
(*3) The total load current of resistance loads per common
terminal should be the following value.
- 16 output point/common terminal: 1.6 A or less
As for the number of outputs per common terminal, refer to the
following manual.
Refer to FX3U Series User's Manual - Hardware Edition.
(*4) The total of inductive loads per common terminal should be
the following value.
- 1 output point/common terminal: 12 W or less/24 V DC
- 4 output points/common terminal: 19.2 W or less/24 V DC
- 8 output points/common terminal: 38.4 W or less/24 V DC
As for the number of outputs per common termin al, refer to
“Chapter 4 interpretation of partition” and the following manual.
Refer to FX3U Series User's Manual - Hardware Edition.
(*5) The total of inductive loads per common terminal should be
the following value.
- 4 output points/common terminal: 48 W or less/24 V DC
As for the number of outputs per common terminal, refer to the
following manual.
Refer to FX3U Series User's Manual - Hardware Edition.
(*6) The total of inductive loads per common terminal should be
the following value.
- 16 output points/common terminal: 38.4 W or less
As for the number of outputs per common terminal, refer to the
following manual.
Refer to FX3U Series User's Manual - Hardware Edition.
(*7) The response time is as follows in the FX2N-8EYT-H.
-OFFON: 0.2 ms or less/1 A
-ONOFF: 0.4 ms or less/1 A
units/blocks (*7)
Main unit
ON
OFF
Input/output extension
units/blocks (
3U Series User's Manual - Hardware Edition.
or more (5-24 V DC)
Y003 or
0.2 ms or less/200 mA
more
or more (at 24 V DC)
0.2 ms or less/200 mA
or more (at 24 V DC)
Y000 to
5 s or less/10 mA
Y002
or more (5-24 V DC)
Y003 or
0.2 ms or less/200 mA
more
or more (at 24 V DC)
0.2 ms or less/200 mA
7)
or more (at 24 V DC)
*
LED on panel lights when
photocoupler is driven.
3.6.2 External wiring of transistor output
PLC
U
U
Load
Fuse
AC power
supply
Fuse
Load
AC power
supply
Y000
Y001
COM1
Y005
Y004
COM2
This manual confers no industrial property rights or any rights of any
other kind, nor does it confer any patent licenses. Mitsubishi Electric
Corporation cannot be held responsible for any problems involving
industrial property rights which may occur as a result of using the
contents noted in this manual.
For safe use
This product has been manufactured as a general-purpose part for
general industries, and has not been designed or manufactured to
be incorporated in a device or system used in purposes related to
human life.
Before using the product for special purposes such as nuclear
power, electric power, aerospace, medicine or passenger
movement vehicles, consult with Mitsubishi Electric.
This product has been manufactured under strict quality control.
However when installing the product where major accidents or
losses could occur if the product fails, install appropriate backup or
failsafe functions in the system.
HEAD OFFICE : TOKYO BUILDING, 2-7-3 MARUNOUCHI,
CHIYODA-KU, TOKYO 100-8310, JAPAN
Warran ty
Exclusion of loss in opportunity and seconda ry loss f rom warranty liab ility
Regardless of the gratis warranty ter m, Mitsubishi shall not be liable for
compensation to:
(1)
Damages caused by any cause found not to be the responsibility
of Mitsubishi.
(2) Loss in opportunity, lost profits incurred to the user by Failures of
Mitsubishi products.
(3) Special damages and secondary damages whether foreseeable
or not, compensation for accidents, and compensation for damages
to products other than Mitsubishi products.
(4) Replacement by the user, maintenance of on-site equipment, start-up
test run and other tasks.

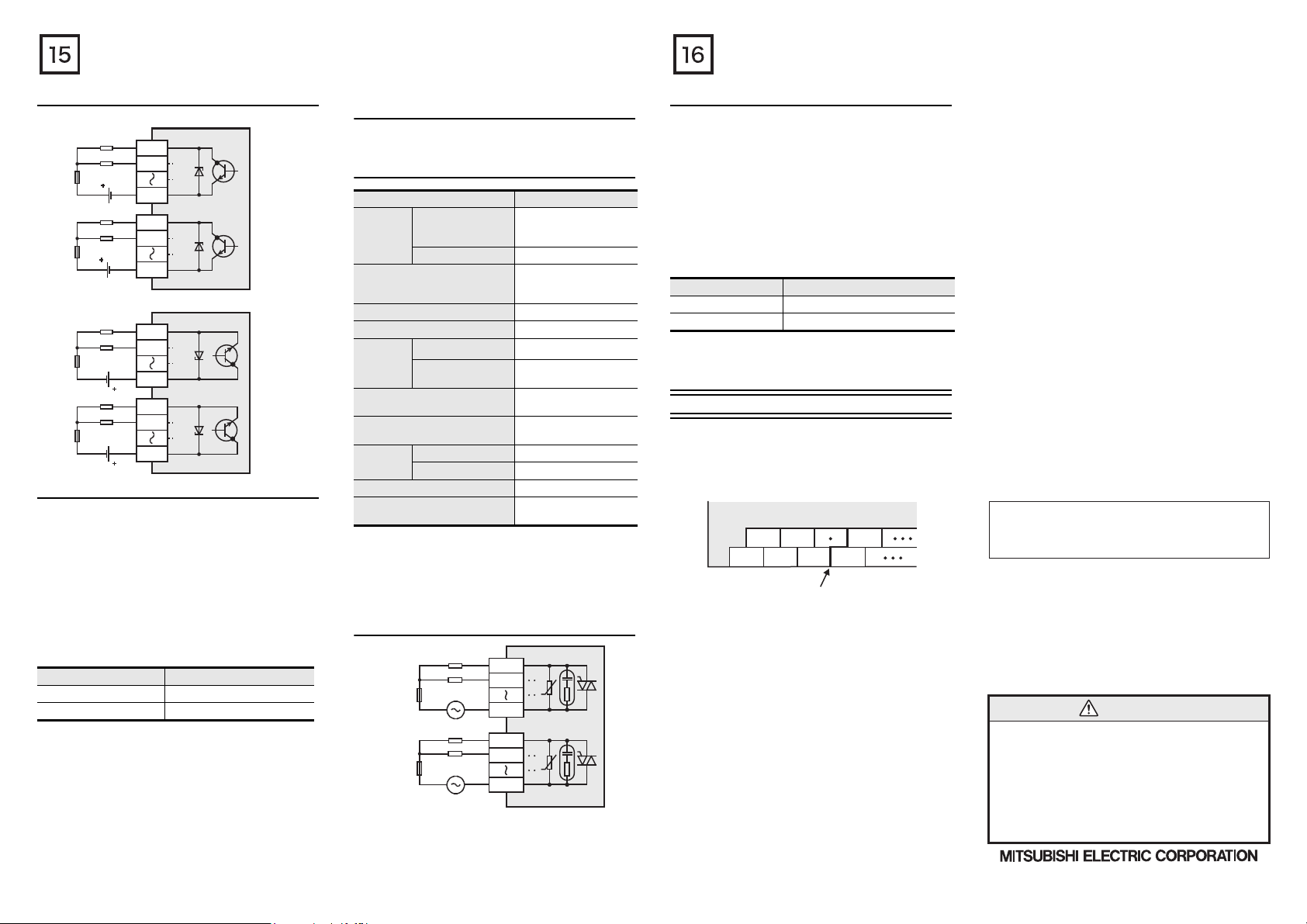

1. External wiring of sink output type
Load
Y000
Load
Y001
COM1
Y004
Y005
COM2
Y000
Y001
+V0
Y004
Y005
+V1
PLC
PLC
Fuse
24 V DC
Fuse
24 V DC
2. External wiring of source output type
Load
Fuse
24 V DC
Load
Fuse
24 V DC
3.6.3 Cautions in external wiring
For cautions in external wiring, refer to the following manual.
Refer to FX3U Series User's Manual - Hardware Edition.
Protection circuit for load short-circuits
A short-circuit at a load connected to an output terminal could cause
burnout at the output element or the PCB. To prevent this, a
protection fuse should be inserted at the output.
Use a load power supply capacity that is at least 2 times larger than
the total rated fuse capacity.
Contact protection circuit for inductive loads
When an inductive load is connected, connect a diode (for
commutation) in parallel with the load as necessary.
The diode (for commutation) must comply with the following
specifications.
Reverse voltage 5 to 10 times of the load voltage
Forward current Load current or more
Interlock
Loads, such as contactors for normal and reverse rotations, that
must not be turned on simultaneously should have an interlock in the
PLC program and an external interlock.
Item Guide
3.7 Triac output specifications and example of external wiring
As for the details of the triac output specifications and external
wiring, refer to the following manual.
Refer to FX3U Series User's Manual - Hardware Edition.
3.7.1 Triac output specifications
Item Specification
Number
of output
points
Output connecting type
Output form Triac (SSR)
External power supply 85 to 242 V AC
Max. load
Min. load
Open circuit leakage current
Response
time
Output circuit insulation Photo-thyristor insulation
Output operation display
(*1) The total load current of resistance loads per common
FX3U-32MS/ES
FX2N-16EYS
FX2N-32ES
FX3U-64MS/ES 32 points
Resistance load
Inductive load
OFFON 1 ms or less
ONOFF 10 ms or less
terminal should be the following value.
- 4 output points/common terminal: 0.8 A or less
- 8 output points/common terminal: 0.8 A or less
As for the number of outputs per common terminal, refer to
“Chapter 4 interpretation of partition” and the following manual.
Refer to FX3U Series User's Manual - Hardware Edition.
,
,
16 points
Refer to FX3U Series
User's Manual - Hardware
Edition
0.3 A/point (*1)
15 VA/100 V AC,
30 VA/200 V AC
0.4 VA/100 V AC,
1.6 VA/200 V AC
1 mA/100 V AC,
2 mA/200 V AC
LED on panel lights when
photo-thyristor is driven.
3.7.2 External wiring of triac output
3.7.3 Cautions in external wiring
For cautions in external wiring, refer to the following manual.
Refer to FX3U Series User's Manual - Hardware Edition.
Protection circuit for load short-circuits
A short-circuit at a load connected to an output terminal could cause
burnout at the output element or the PCB. To prevent this, a
protection fuse should be inserted at the output.
Micro current load
The PLC's internal Triac output circuit is equipped with a turn-off C-R
absorber. When connecting a very low current load of "0.4 VA/100 V
AC or less, or 1.6 VA/200 V AC or less", please connect a surge
absorber parallel to the load.
Select the rated voltage of a surge absorber that is suitable for the
load being used. Refer to the table below for other specifications.
Item Guide
Static electricity capacity Approx. 0.1 F
Resistance value Approx. 100 to 200
Interlock
Loads, such as contactors for normal and reverse rotations, that
must not be turned on simultaneously should have an interlock in the
PLC program and an external interlock.
4. Terminal block layouts
For details on the terminal block layout, refer to the following manual.
Refer to FX3U Series User's Manual - Hardware Edition.
Interpretation of partition
The partition of the output terminals (see following figure) indicates
the range of the output connected to the same common.
Example: FX
Output terminal
3U
-48MT/ES
Y0
Y2
COM1 Y1 COM2Y3
Partition
Y4
Loading...
