1. APPLICATION
This specification applies to
These specification papers are the proprietary product of Mitsubishi Electric Corporation
(“MITSUBISHI) and include materials protected under copyright of MITSUBISHI. No part of this document may be reproduced in any form or by any means without the express written permission of MITSUBISHI.
MITSUBISHI does not assume any liability for infringement of patents, copyrights or other
intellectual property rights of third parties by or arising from use of a product specified in this document. No license, express, implied or otherwise, is granted under any patents, copyrights or other intellectual property rights of MITSUBISHI or of others.
MITSUBISHI classifies the usage of the TFT-LCD module as follows. Please confirm the usage
before using the product.
www.panelook.com
color TFT-LCD module, AA192ED01.
(1) Standard Usage
Computers, office equipment, factory automation equipment, test and measurement equipment, communications, transportation equipment(automobiles, ships, trains, etc.), provided, however, that operation is not influenced by TFT-LCD directly.
(2) Special Usage
Medical equipment, safety equipment, transportation equipment, provided, however, that TFT-LCD is necessary to its operation.
(3) Specific Usage
Cockpit Equipment, military systems, aerospace equipment, nuclear reactor control systems, life support systems and any other equipment. MITSUBISHI should make a contract that stipulate apportionment of responsibilities between MITSUBISHI and our customer.
The product specified in this document is designed for “Standard Usage” unless otherwise specified
in this document. If customers intend to use the product for applications other than those specified for “Standard Usage”, they should first contact MITSUBISHI sales representative for it's intended use in writing.
MITSUBISHI has been making continuous effort to improve the reliability of its products. Customers should implement sufficient reliability design of their application equipments such as redundant system design, fail-safe functions, anti-failure features.
MITSUBISHI assumes no responsibility for any damage resulting from the use of the product that
does not comply with the instructions and the precautions specified in this document.
Please contact and consult a MITSUBISHI sales representative for any questions regarding this
product.
MITSUBISHI Confidential (3/24)
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
AA192ED01_02_00
www.panelook.com
Page 4
Global LCD Panel Exchange Center
2. OVERVIEW
AA192ED01 is 19.2” color TFT-LCD (Thin Film Tr composed of LCD panel, driver ICs, control circuit, and backlight unit.
By applying 6 bit or 8 bit digital data, 1920u 360, 262k-color or 16.7M-color images are displayed on the 19.2” diagonal screen. Input power voltage is single 3.3 V for LCD driving. The type of data and control signals are digital and transmitted via LVDS interface per Typ. 60 MHz clock cycle.
Driver circuit for LED backlight is not included in this module. General specifications are summarized in the following table:
ITEM SPECIFICATION Display Area (mm) Number of Dots
www.panelook.com
ansistor Liquid Crystal Display) module
478.08(H) u 89.64(V) (19.2-inch diagonal)
1920 u3 (H) u 360 (V) Pixel Pitch (mm) Color Pixel Arrangement RGB vertical stripe Display Mode Normally white TN Number of Color 262k(6 bit/color), 16.7M(8 bit/color) Luminance (cd/m2) 500 Wide Viewing Angle Technology Optical Compensation Film Viewing Angle (CR t10) 80~80° (H), 60~80° (V) Surface Treatment Anti-glare and hard-coating 3H Electrical Interface LVDS (6 bit/8 bit) Optimum Viewing Angle (Contrast ratio) 6 o’clock Module Size (mm)
Module Mass (g) (780) Backlight Unit LED, edge-light
Characteristic value without any note is typical value.
0.249 (H) u 0.249 (V)
496.0 (W) u 109.2 (H) u (13.2) (D)
MITSUBISHI Confidential (4/24)
AA192ED01_02_00
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 5
Global LCD Panel Exchange Center
3. ABSOLUTE MAXIMUM RATINGS
ITEM SYMBOL MIN. MAX. UNIT
www.panelook.com
Power Supply Voltage for LCD VCC Logic Input Voltage VI Backlight Voltage VL
Backlight ON-OFF BLEN
0.3
4.0 V
VCC+0.3 V
13.2 V VL V
Light Dimming Control Voltage VBRT 0 (5.0) V Operation Temperature (Panel) Operation Temperature (Ambient) Storage Temperature
Note 1,2)
T
Note 2)
T
Note 2)
T
op(Ambient)
op(Panel)
stg
40
40 40
80 °C 80 °C 80 °C
[Note]
1) Measured at the center of active area and at the center of panel back surface
2) Top,Tstgd 40qC : 90%RH max. without condensation Top,Tstg > 40qC : Absolute humidity shall be less than the value of 90%RH at 40qC without
condensation.
4. ELECTRICAL CHARACTERISTICS
(1) TFT- LCD
Ambient temperature: Ta = 25°C
ITEM SYMBOL MIN. TYP. MAX. UNIT Remarks
Power Supply Voltage for LCD VCC 3.0 3.3 3.6 V *1) Power Supply Current for LCD ICC -- (520) (720) mA *2) Permissive Input Ripple Voltage VRP -- -- 100 mVp-p VCC=+3.3V
High VIH
0.8uVCC
-- VCC V MODE, SC
Logic Input Voltage
Low VIL 0 --
0.2uVCC
V MODE, SC
*1) Power and signals sequence:
t1 d10ms 200 ms dt4 0 < t2 d 50 ms 200 ms dt5
0 < t3 d 50 ms 0 dt6
VCC
LCD Power Supply
Logic Signal
Backlight Power Supply
0.9VCC
0.1VCC
t1
t2
data
t3
0.9VCC
0.1VCC
t4
0.1VCC
t5 t6
data: RGB DATA, DCLK, DENA, MODE, SC
MITSUBISHI Confidential (5/24)
AA192ED01_02_00
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 6
Global LCD Panel Exchange Center
VCC-dip conditions:
www.panelook.com
1) When 2.6 V
VCC < 3.0 V, td d 10 ms
d
2) When VCC < 2.6 V VCC-dip conditions should also follow the power and signals sequence.
VCC
3.0 V
2.6 V
td
*2) VCC = + 3.3 V, f
=23.4kHz, fV=60Hz, f
H
= 60MHz
CLK
Display image at typical power supply current value is 256-gray-bar pattern (8 bit), 360 line
mode.
*3) Fuse
Parameter Fuse Type Name Supplier Remark
VCC FCC16202AB Kamaya Electric Co., Ltd. *)
*) The power supply capacity should be designed to be more than the fusing current.
(2) Backlight Ta=25°C
ITEM SYMBOL MIN. TYP. MAX. UNIT Remarks
Input Voltage VL 10.8 12.0 13.2 V *3)
Input Current IL (TBD) (850) (TBD) mA VBRT = 0 V
High (2.5) -- VL V ON
Backlight ON-OFF
Low
BLEN
0 -- (0.4) V OFF
LED Life Time LT 60000 -- -- H *1)
VBRT 0 -- 2.5 V 0V: Max. Luminance
Light Dimming Control Voltage
RBRT 0 -- 50
k㱅 0k㱅: Max. Luminance
*1) LED life time is defined as the time when the brightness becomes 50% of the initial value.
*2) Comply with the LED power-on sequence of VL oBLEN oVBRT, and LED power-off sequence
of BLEN oVBRT oVL.
*3) Fuse
Parameter Fuse Type Name Supplier Remark
VL FCC16202AB Kamaya Electric Co., Ltd.
*)
*) The power supply capacity should be designed to be more than the fusing current.
MITSUBISHI Confidential (6/24)
AA192ED01_02_00
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 7
Global LCD Panel Exchange Center
5. INTERFACE PIN CONNECTION
(1) CN 1(Interface Signal)
Used Connector: DF14A-20P-1.25H(56) (HIROSE) Corresponding connector: DF14-20S-1.25C (HIROSE)
Pin
No.
*1) Metal frame is connected to signal GND. *2) Recommended wiring of Pin 17,18 (6 bit input)
Symbol
1 VCC 2 VCC 3 GND 4 GND 5
Link 0 6 Link 0+ R0, R1, R2, R3, R4, R5, G0 R2, R3, R4, R5, R6, R7, G2 R0, R1, R2, R3, R4, R5, G0 7 GND 8
Link 1 9 Link 1+ G1, G2, G3, G4, G5, B0, B1 G3, G4, G5, G6, G7, B2, B3 G1, G2, G3, G4, G5, B0, B1
10 GND 11
Link 2
12 Link 2+ B2, B3, B4, B5, DENA B4, B5, B6, B7, DENA B2, B3, B4, B5, DENA 13 GND 14
CLKIN Clock m 15 CLKIN+ 16 GND 17
Link3
18 Link3+ See: *2) R0, R1, G0, G1, B0, B1 R6, R7, G6, G7, B6, B7 19 MODE Low=ISP 6 bit compatibility mode 20 SC
R0, R1, R2, R3, R4, R5, G0 R2, R3, R4, R5, R6, R7, G2
G1, G2, G3, G4, G5, B0, B1 G3, G4, G5, G6, G7, B2, B3
B2, B3, B4, B5, DENA B4, B5, B6, B7, DENA
See: *2) R0, R1, G0, G1, B0, B1

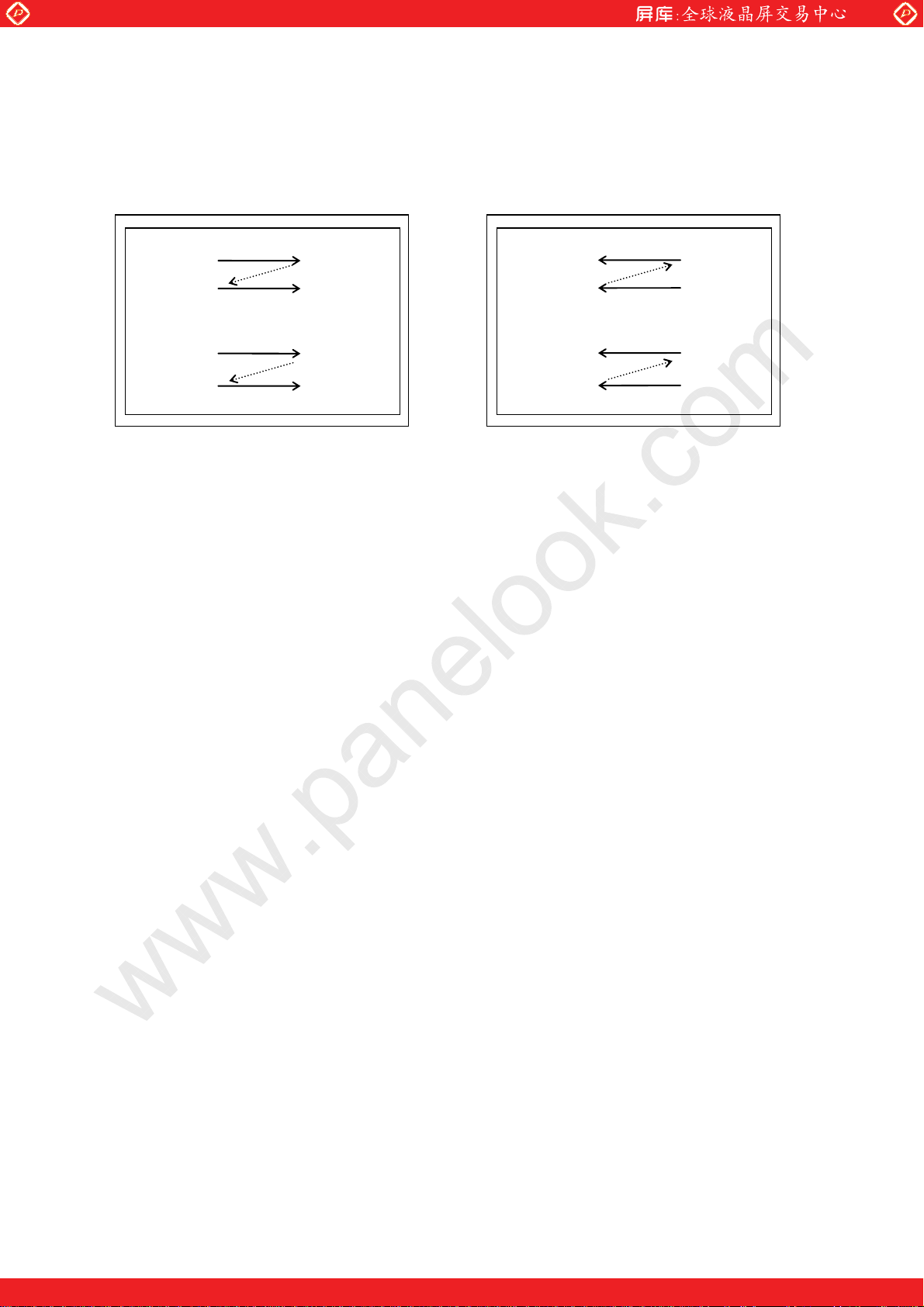

Scan direction control ( Low = Normal , High = Reverse )
Function(ISP 6 bit compatibility mode)
6 bit input 8 bit input
+3.3 V Power supply +3.3 V Power supply
www.panelook.com
GND GND
GND
GND
GND
Clock +
GND
Function(ISP 8 bit
compatibility mode)
m m m m
R0, R1, R2, R3, R4, R5, G0
m
G1, G2, G3, G4, G5, B0, B1
m
B2, B3, B4, B5, DENA
m
m m
R6, R7, G6, G7, B6, B7
High=ISP 8 bit compatibility mode
m

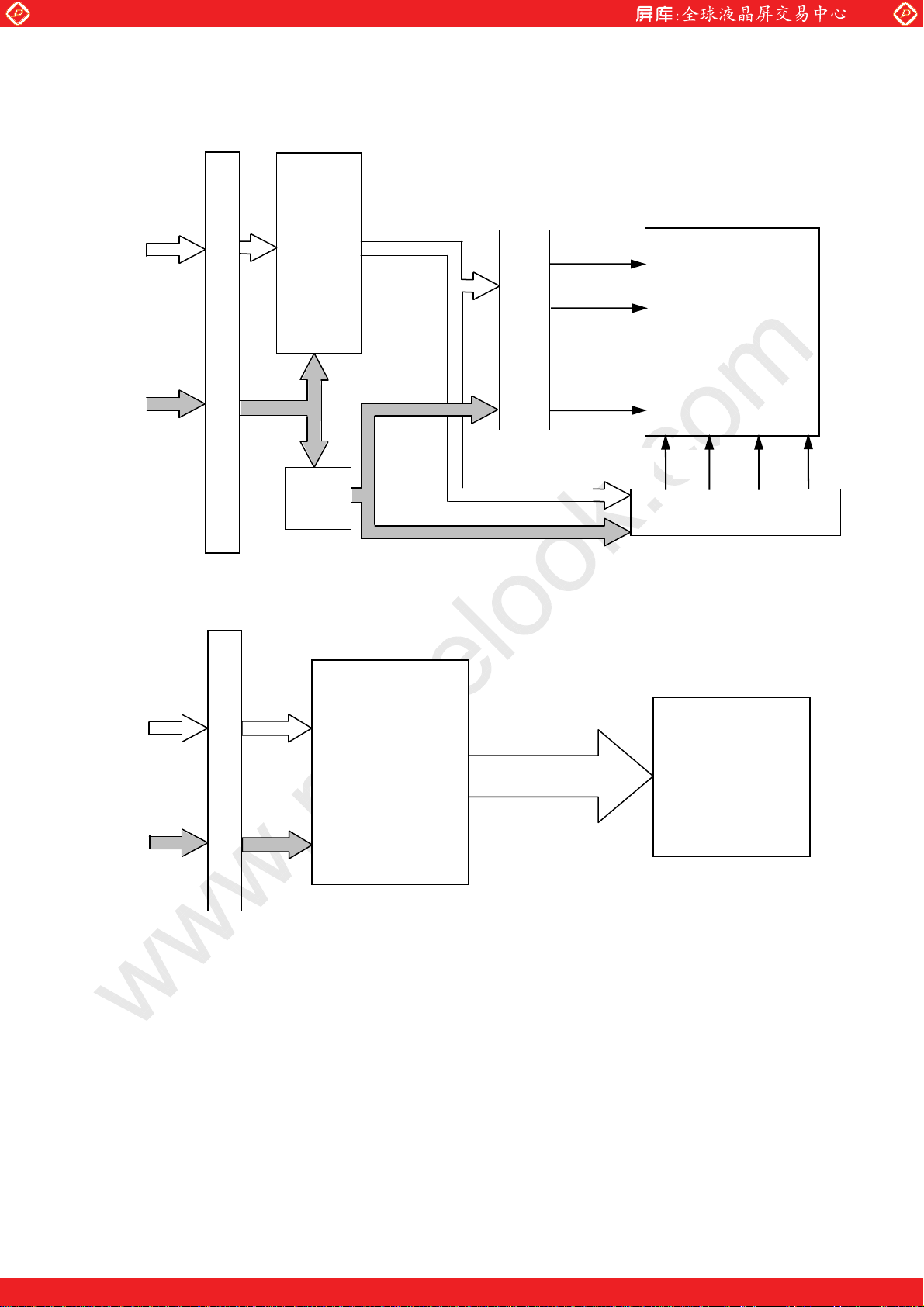

LVD S transmitter
(2) CN 2(Backlight)
Backlight-side connector: SM14B-SRSS-TB(LF)(SN) (JST) Corresponding connector: SHR-14V-S-B (JST)
Pin No. Symbol Function
1, 2, 3, 4, 5 VL Input Voltage
6, 7, 8, 9, 10 GND GND
11 BLEN OFF: 0-0.4(V) or OPEN / ON: 2.5-Vin(V) 12 VBRT / RBRT
13, 14 GND GND
LOW data
Pin 17 Pin 18
VCC
680
Ω
Pin 17
Pin 18
or
620
Ω
PWM Dimming MIN. Brightness: 2.5(V) or 50(k
PWM Dimming MAX. Brightness: 0(V) or 0(k
:
:
)
)
MITSUBISHI Confidential (7/24)
AA192ED01_02_00
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 8
Global LCD Panel Exchange Center
(3) ISP data mapping
c. ISP 8 bit compatibility mode
CLKIN+/-
www.panelook.com
1CLK
Link0+/-
Link1+/-
Link2+/-
Link3+/-
a. ISP 6 bit compatibility mode(6 bit input)
CLKIN+/-
Link0+/-
Link1+/-
R1G0 R5 R4 R3 R2 R0
G2B1 B0 G5 G4 G3 G1
B3DENA B5 B4 B2
R7B7 B6 G7 G6 R6
1CLK
R1G0 R5 R4 R3 R2 R0
G2B1 B0 G5 G4 G3 G1
Link2+/-
b. ISP 6 bit compatibility mode(8 bit input)
CLKIN+/-
Link0 +/-
Link1 +/-
Link2 +/-
Link3 +/-
B3DENA B5 B4 B2
1CLK
R3G2 R7 R6 R5 R4 R2
G4B3 B2 G7 G6 G5 G3
B5DENA B7 B6 B4
R1B1 B0 G1 G0 R0
MITSUBISHI Confidential (8/24)
AA192ED01_02_00
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 9
Global LCD Panel Exchange Center
6. INTERFACE TIMING
www.panelook.com
LVDS transmitter input signal
(1) Timing Specifications
ITEM SYMBOL MIN. TYP. MAX. UNIT
DCLK
DENA
Frequency f Period t
Active Time t Blanking Time t
Horizontal
Frequency f Period Active Time t Blanking Time t
Vertical
Frequency f Period t
CLK
CLK
HA
HB
H
t
H
VA
VB
V
V
50 60 70 MHz
14.3 16.7 20 ns
1920 1920 1920 t
20 640 -- t 20 23.4 36.1 kHz
27.7 42.6 50.1 360 360 360 t
3 30 -- t
55 60 75 Hz
13.3 16.6 18.2 ms
[Note]
1) DENA (Data Enable) shall always be positive polarity as shown in the timing specification.
2) DCLK shall appear during all invalid period.
3) LVDS timing follows the timing specifications of LVDS receiver IC: THC63LVDF84B(Thine).
4) In case of blanking time fluctuation, please satisfy following condition. t
VBn
> t
VBn-1
3(t
)
H
CLK
CLK
Ps
H
H
MITSUBISHI Confidential (9/24)
AA192ED01_02_00
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 10
Global LCD Panel Exchange Center

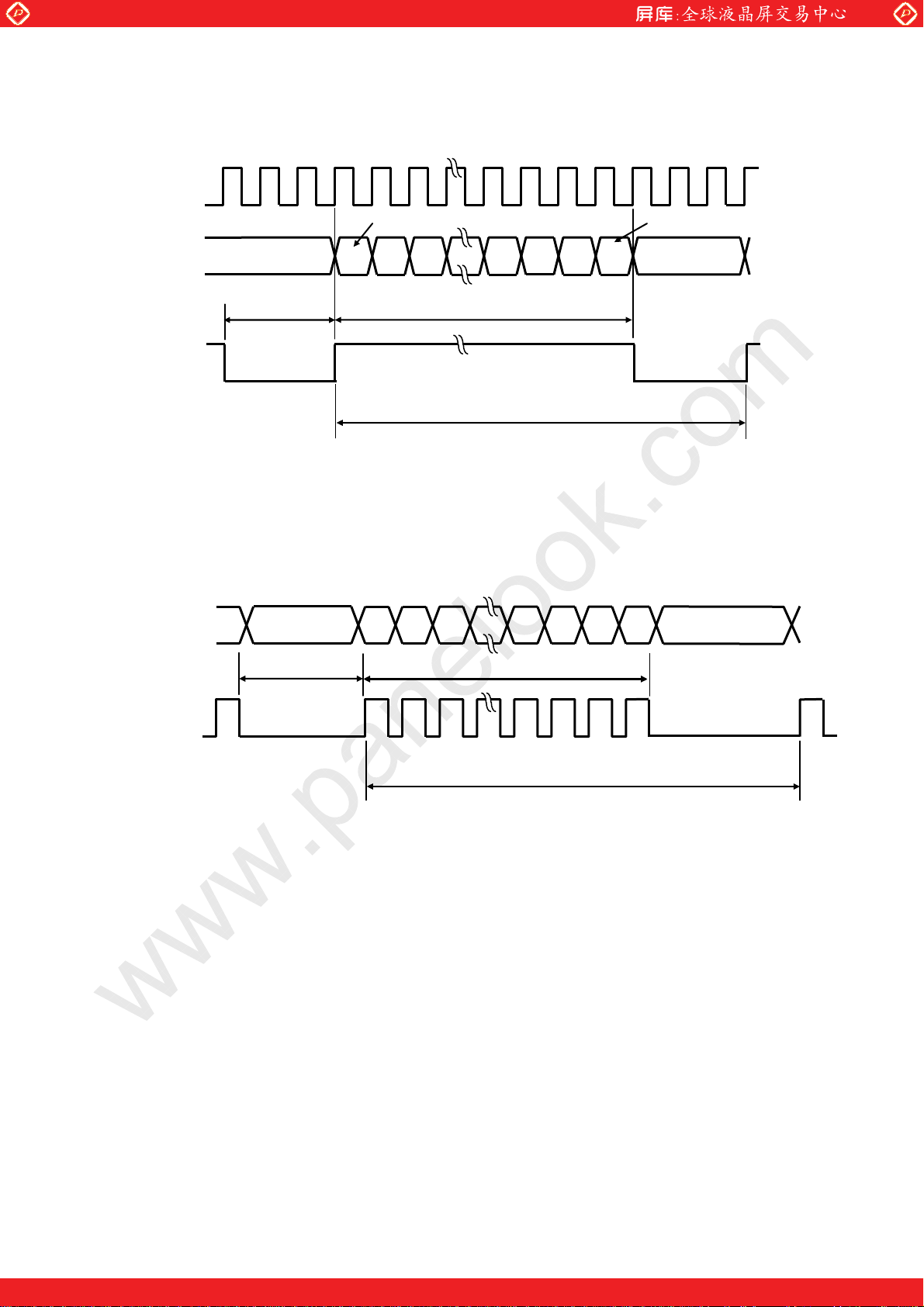

(2) Timing Chart
a. Horizontal Timing Chart
DCLK
DATA (R,G,B)
www.panelook.com
First Data Last Data
1 2
3Invalid Data Invalid Data
1919 1920
t
HB
DENA
b. V erti cal T im ing Chart
LINE DATA
DENA
t
HA
tH=1/f
H
1 2 359 360 3Invalid Data Invalid Data
t
VB
t
VA
tV=1/f
V
MITSUBISHI Confidential (10/24)
AA192ED01_02_00
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 11
Global LCD Panel Exchange Center
(3) Color Data Assignment

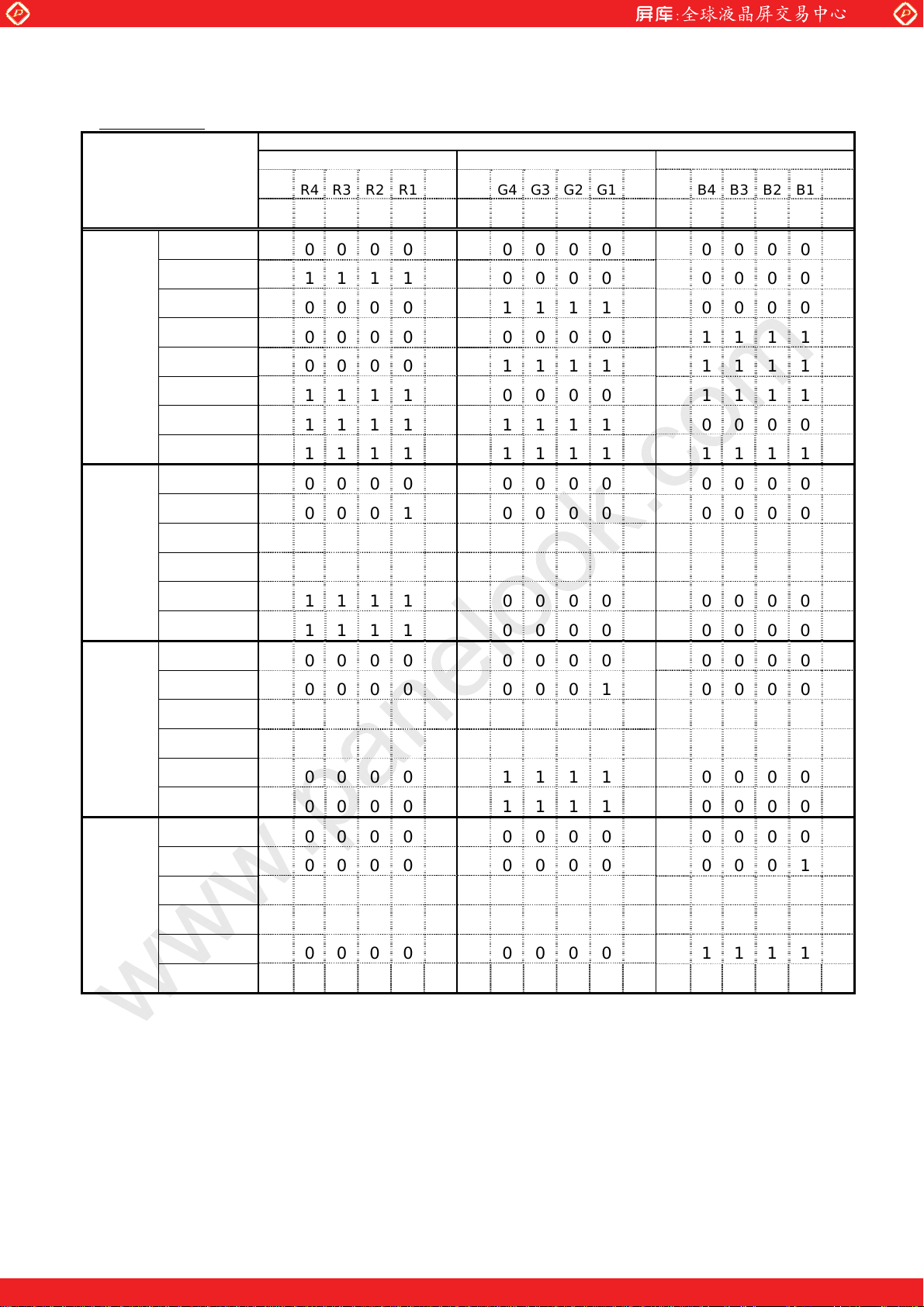

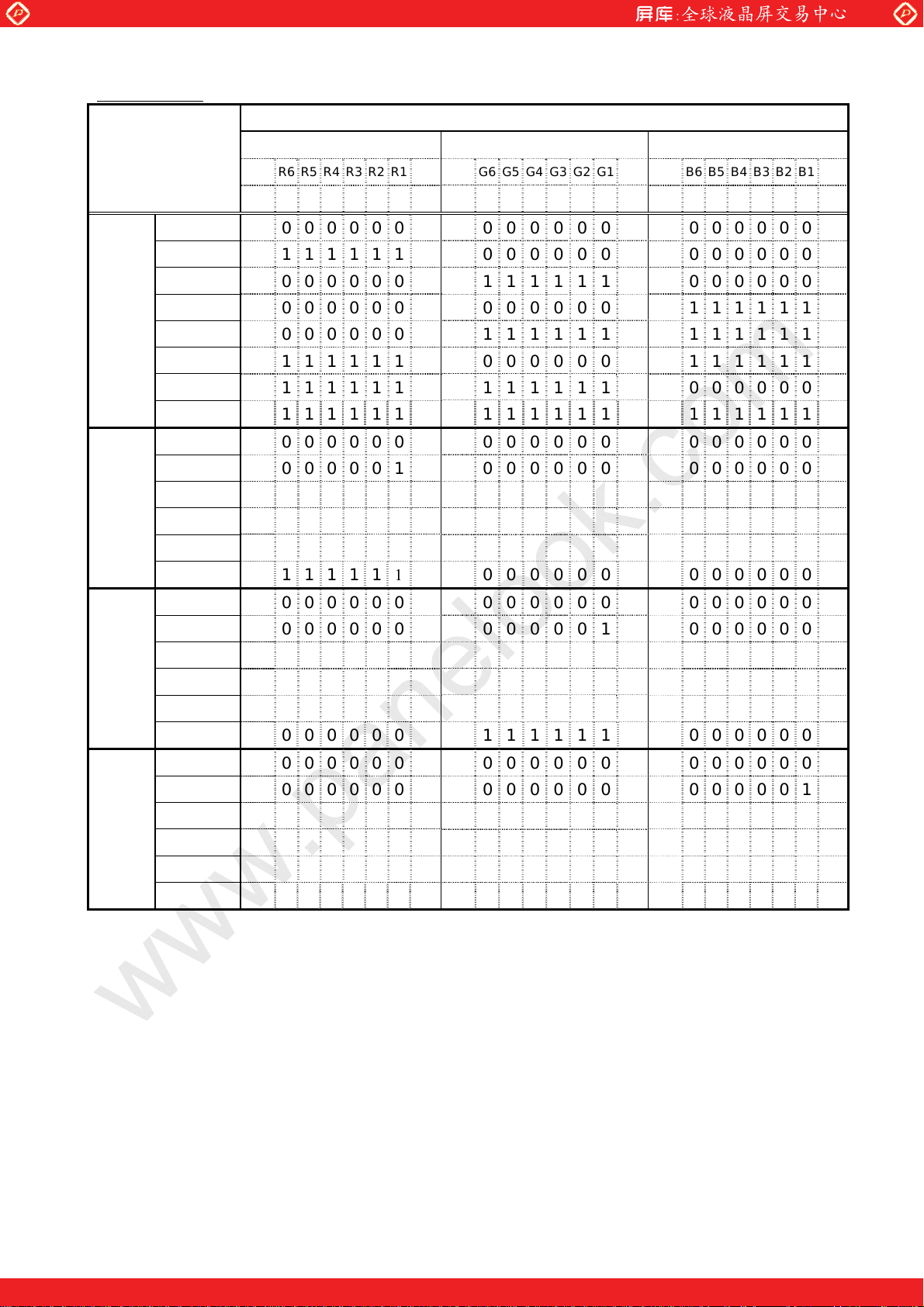

a. 6 bit input
COLOR
R5 R4 R3 R2 R1 R0 G5 G4 G3 G2 G1 G0 B5 B4 B3 B2 B1 B0
MSB LSB MSB LSB MSB LSB
BLACK 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 RED(63) 1 1 1 1 1 1 0 0 0 0 0 0 0 0 0 0 0 0 GREEN(63) 0 0 0 0 0 0 1 1 1 1 1 1 0 0 0 0 0 0
BASIC BLUE(63) 0 0 0 0 0 0 0 0 0 0 0 0 1 1 1 1 1 1
COLOR CYAN 0 0 0 0 0 0 1 1 1 1 1 1 1 1 1 1 1 1
MAGENTA 1 1 1 1 1 1 0 0 0 0 0 0 1 1 1 1 1 1 YELLOW 1 1 1 1 1 1 1 1 1 1 1 1 0 0 0 0 0 0 WHITE 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1
www.panelook.com
INPUT DATA
R DATA G DATA B DATA
RED(1) 0 0 0 0 0 1 0 0 0 0 0 0 0 0 0 0 0 0 RED(2) 0 0 0 0 1 0 0 0 0 0 0 0 0 0 0 0 0 0
RED
RED(62) 1 1 1 1 1 0 0 0 0 0 0 0 0 0 0 0 0 0 RED(63) 1 1 1 1 1 1 0 0 0 0 0 0 0 0 0 0 0 0 GREEN(1) 0 0 0 0 0 0 0 0 0 0 0 1 0 0 0 0 0 0 GREEN(2) 0 0 0 0 0 0 0 0 0 0 1 0 0 0 0 0 0 0
GREEN
GREEN(62) 0 0 0 0 0 0 1 1 1 1 1 0 0 0 0 0 0 0 GREEN(63) 0 0 0 0 0 0 1 1 1 1 1 1 0 0 0 0 0 0 BLUE(1) 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 BLUE(2) 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 0
BLUE
BLUE(62) 0 0 0 0 0 0 0 0 0 0 0 0 1 1 1 1 1 0 BLUE(63) 0 0 0 0 0 0 0 0 0 0 0 0 1 1 1 1 1 1
[Note]
1) Definition of gray scale
Color (n) --- n indicates gray scale level.
Higher n means brighter level.
2) Data
1:High, 0: Low
MITSUBISHI Confidential (11/24)
AA192ED01_02_00
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 12
Global LCD Panel Exchange Center
b. 8 bit input
www.panelook.com
INPUT DATA
BASIC
COLOR
RED
GREEN
COLOR
BLACK RED(255) GREEN(255) BLUE(255) CYAN MAGENTA YELLOW WHITE RED(1) RED(2)
RED(255) GREEN(1) GREEN(2)
R DATA G DATA B DATA
R7 R6 R5 R4 R3 R2 R1 R0 G7 G6 G5 G4 G3 G2 G1 G0 B7 B6 B5 B4 B3 B2 B1 B0
MSB LSB MSB LSB MSB LSB
0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0
1 1 1 1 1 1
 
0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 0 0 0 0 0 0 0 0 0
GREEN(255) BLUE(1) BLUE(2)
BLUE
BLUE(255)
[Note]
1) Definition of gray scale Color (n) --- n indicates gray scale level.
2) Data 1:High, 0: Low
0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 0
0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1
Higher n means brighter level.
MITSUBISHI Confidential (12/24)
AA192ED01_02_00
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 13
Global LCD Panel Exchange Center

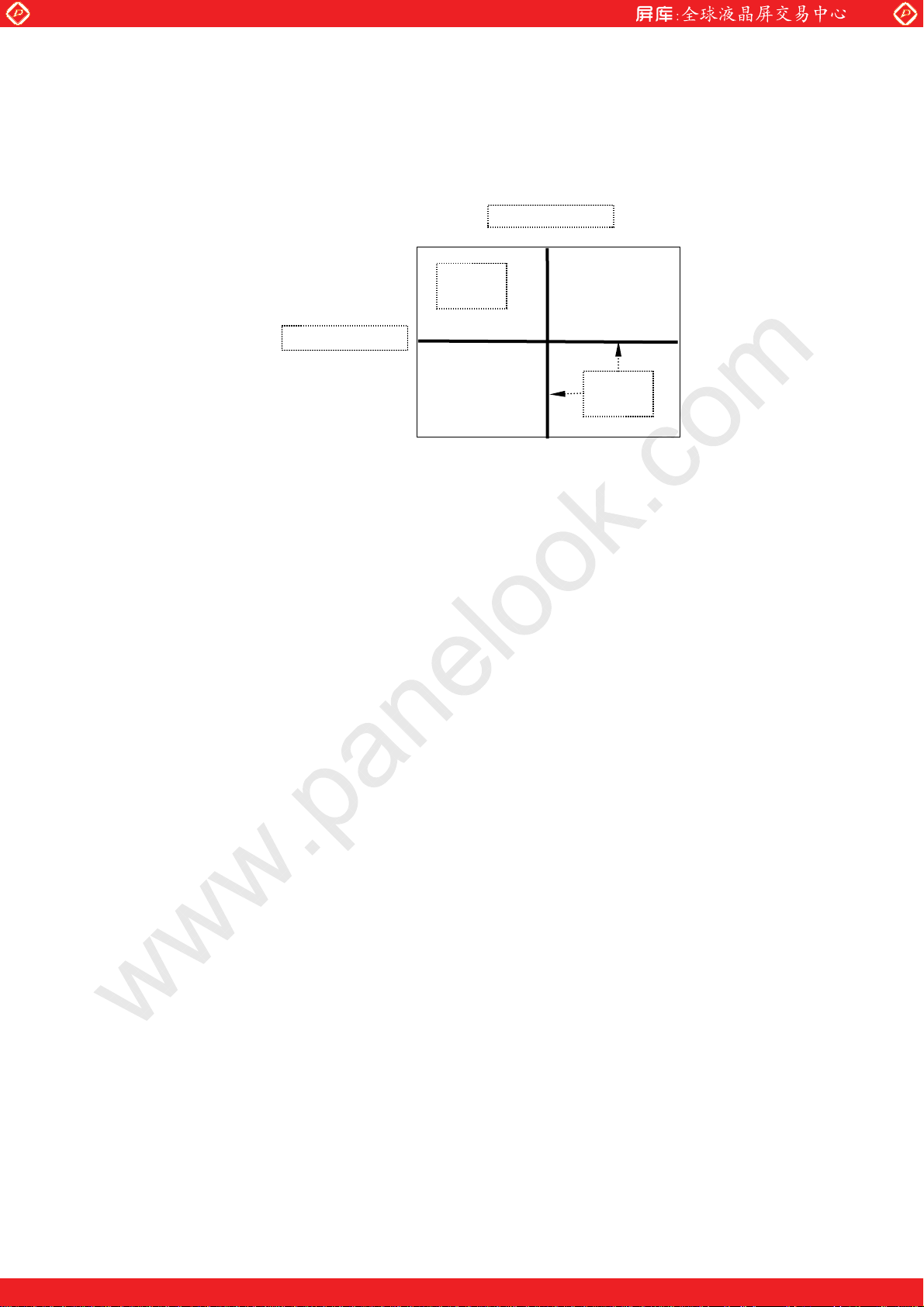

(4) Display Position and Scan Direction
D(X,Y) shows the data number of input signal.
www.panelook.com
SC: Low
D(1,1) D(1920,1)
D(1,360)
D(1920,360)
SC: High
CN2 CN2
D(1920,360) D(1,360)
D(1920,1) D(1,1)
MITSUBISHI Confidential (13/24)
AA192ED01_02_00
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 14
Global LCD Panel Exchange Center
7. BLOCK DIAGRAM
CN1
Timing signal Display data
Timing
Controller
www.panelook.com
G1
G2
TFT-LCD
Power
Brightness/ ON/OFF Control
Power
I/F Connector
CN2
I/F Connector
Power
Supply
Circuit
Power
Supply
Circuit
Driver(gate)
G360
S1
S2
S5759
Driver(source)
LED B/L
S5760
MITSUBISHI Confidential (14/24)
AA192ED01_02_00
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 15
Global LCD Panel Exchange Center
8. MECHANICAL SPECIFICATIONS
(1) Front Side
www.panelook.com
MITSUBISHI Confidential (15/24)
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
AA192ED01_02_00
(Unit:mm)
www.panelook.com
Page 16
Global LCD Panel Exchange Center
(2) Rear Side
www.panelook.com
MITSUBISHI Confidential (16/24)
AA192ED01_02_00
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
(Unit:mm)
www.panelook.com
Page 17
Global LCD Panel Exchange Center

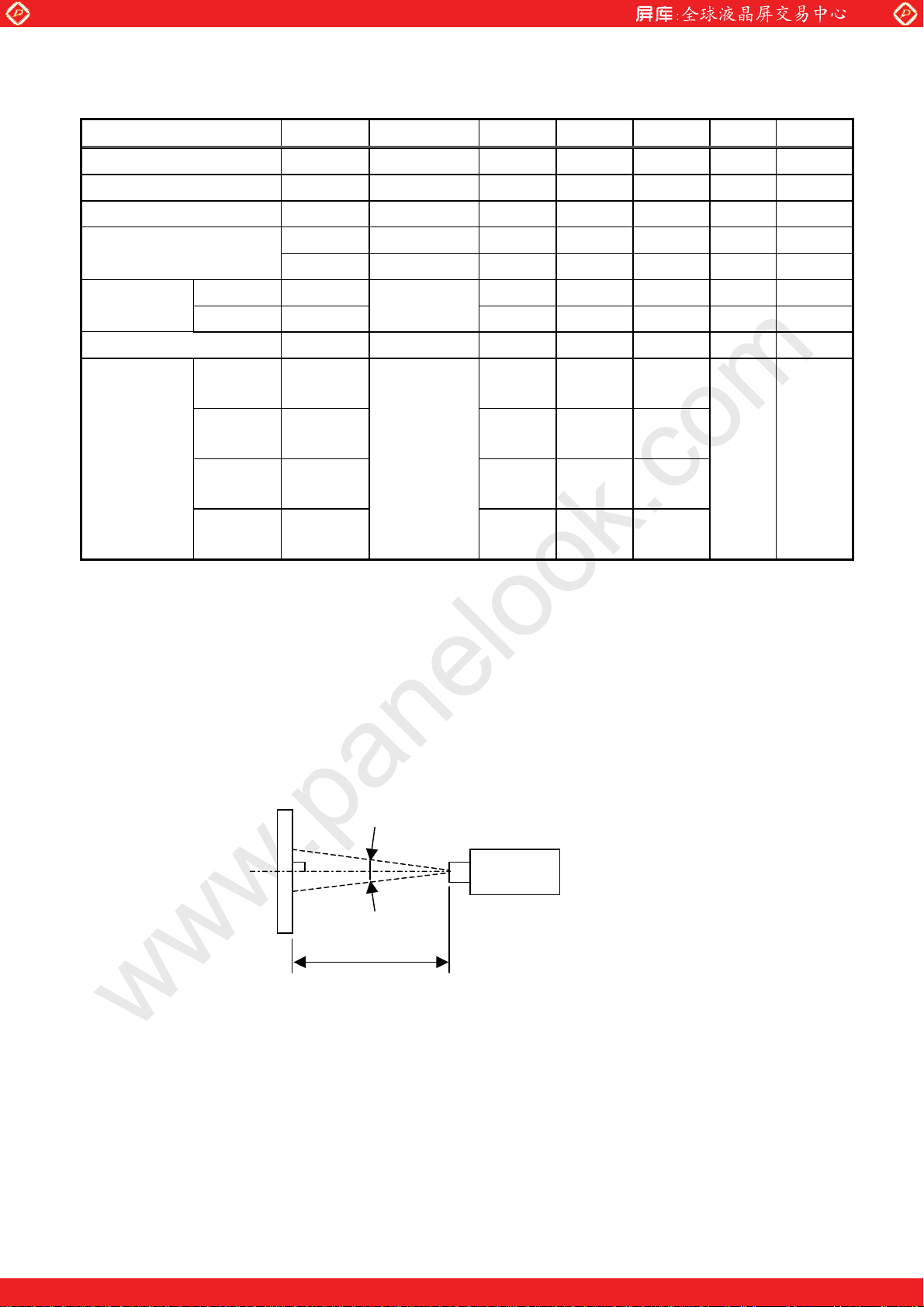

9. OPTICAL CHARACTERISTICS
ITEM SYMBOL CONDITION MIN TYP MAX UNIT Remarks
www.panelook.com
Ta=25°C, VCC=3.3V, Input Signals: Typ. values shown in Section 6
Contrast Ratio CR Luminance Lw Luminance Uniformity
'Lw T
tr
Response Time
tf
Viewing
Angle
Horizontal Vertical
T
TV
TV qTH q
TV qTH q
qTH q
V
TV qTH q
TV qTH q
65a65 80a80
H
CRt10
450 700 -- -- *1)*2)*5) 400 500 -- cd/m
2
*1)*5)
-- -- 30 % *1)*3)*5)
-- 4 -- ms *1)*4)*5)
-- 12 -- ms *1)*4)*5)
-- ° *1)*5)
45a65 60a80
-- ° *1)*5)
Image sticking tis 2 h -- -- 2 s *6)
Red Rx TBD TBD TBD
Ry TBD TBD TBD Color Green Gx TBD TBD TBD Coordinates Gy
TV qTH q
TBD TBD TBD --
*1)*5)
Blue Bx TBD TBD TBD
By TBD TBD TBD
White Wx 0.273 0.313 0.353
Wy 0.289 0.329 0.369
[Note] These items are measured using CS1000(MINOLTA) for color coordinates, EZContrast(ELDIM) for viewing angle and CS1000 or BM-5A(TOPCON) for others under the dark room condition (no ambient light) after more than 30 minutes from turning on the lamp unless noted.
Condition: VBRT = 0 V or RBRT = 0k
:
Measurement method for luminance and color coordinates is as follows.
Photodetector
T(Field)
TFT-LCD module
500 mm
The luminance is measured according to FLAT PANEL DISPLAY MEASUREMENTS STANDARD
(VESA Standard).
Luminance :T=2q (BM-5A) Color coordinates :T=1q (CS1000)
MITSUBISHI Confidential (17/24)
AA192ED01_02_00
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 18
Global LCD Panel Exchange Center

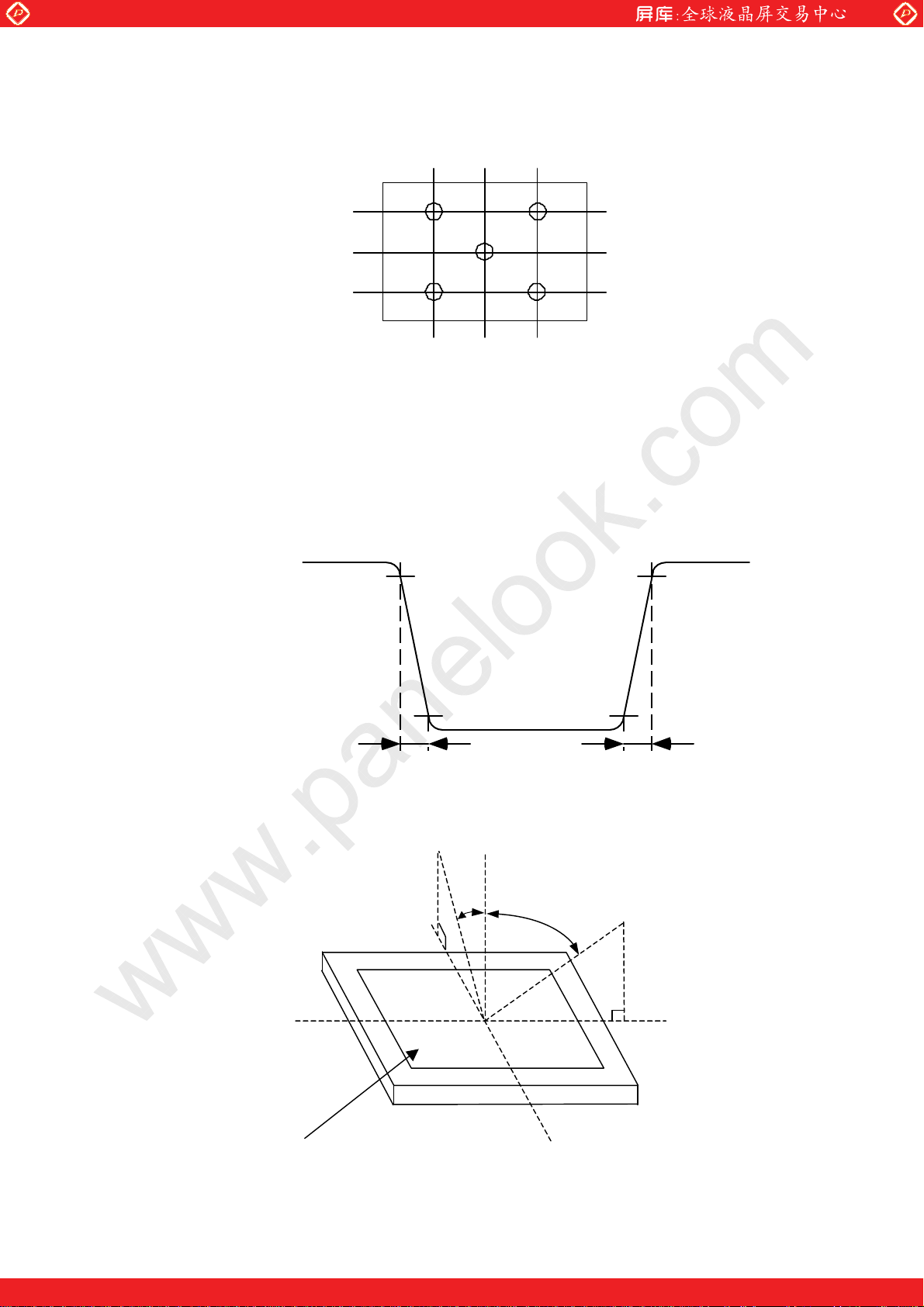

*1) Measurement Point
Contrast Ratio, Luminance, Response Time, Viewing Angle, Color Coordinates: Display Center
Luminance Uniformity: point 1
www.panelook.com
a5 shown in a figure below
(1,1)
90
180
270
480 960 1440
1
5
3
2
4
*2) Definition of Contrast Ratio
CR= Luminance with all white pixels / Luminance with all black pixels
*3) Definition of Luminance Uniformity
'
Lw=[Lw(MAX)/Lw(MIN)-1]
u
100
*4) Definition of Response Time
White
(1920,360)
90%90%
Luminance
*5) Definition of Viewing Angle(
Le t ( )
tr
TVT
Upper( )
10%10% Black
)
H
tf
Normal A i
T
V
T
+
Ri t ( )
LCD panel
MITSUBISHI Confidential (18/24)
Lo er( )
AA192ED01_02_00
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 19
Global LCD Panel Exchange Center
*6) Image sticking:
Continuously display the test pattern shown in the figure below for two-hours. Then display a completely white screen. The previous image shall not persist more than two seconds at 25°C.
Rows 178-182
www.panelook.com
Cols 958-962
White
Area
Black Lines
TEST PATTERN FOR IMAGE STICKING TEST
MITSUBISHI Confidential (19/24)
AA192ED01_02_00
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 20
Global LCD Panel Exchange Center
10. RELIABILITY TEST CONDITION
(1) Temperature and Humidity
ITEM CONDITIONS
www.panelook.com
HIGH TEMPERATURE
HIGH HUMIDITY OPERATION
HIGH TEMPERATURE OPERATION 80°C, 240 h
LOW TEMPERATURE OPERATION
HIGH TEMPERATURE STORAGE 80°C, 240 h
LOW TEMPERATURE STORAGE –40°C, 240 h
THERMAL SHOCK
(2) Shock & Vibration
ITEM CONDITIONS
Shock level: 1470m/s2(150G)
SHOCK Waveform: half sinusoidal wave, 2ms
(NON-OPERATION) Number of shocks: one shock input in each direction of three mutually
perpendicular axes for a total of six shock inputs
40°C, 90%RH, 240 h
(No condensation)
40°C, 240 h
–40°C (1h)
a 80°C(1h),
100 cycles
Vibration level: 9.8m/s2 (1.0G) Waveform: sinusoidal
VIBRATION Frequency range: 5 to 500Hz
(NON-OPERATION) Frequency sweep rate: 0.5 octave /min
Duration: one sweep from 5 to 500 Hz in each of three mutually
perpendicular axis(each x,y,z axis: 1 hour, total 3 hours)
(3) Judgment standard
The judgment of the above tests should be made as follow:
Pass: Normal display image, no damage of the display function. (ex. no line defect)
Partial transformation of the module parts should be ignored.
Fail: No display image, damage of the display function. (ex. line defect)
MITSUBISHI Confidential (20/24)
AA192ED01_02_00
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 21
Global LCD Panel Exchange Center
11. OTHER FEATURE
This LCD module complies with RoHS *) directive.
*)
RoHS: Restriction of the use of certain hazardous substances in electrical and electronic
equipment
www.panelook.com
MITSUBISHI Confidential (21/24)
AA192ED01_02_00
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 22
Global LCD Panel Exchange Center
www.panelook.com
12. HANDLING PRECAUTIONS FOR TFT-LCD MODULE
Please pay attention to the followings in handling TFT-LCD products;
(1) ASSEMBLY PRECAUTION
a. Please mount the LCD module by using mounting hole with a screw clamping torque
(recommended value: 0.3 Nm). Please do not bend or wrench the LCD module in assembling. Please do not drop, bend or twist the LCD module in handling.
b. Please design display housing in accordance with the following guide lines.
(a) Housing case must be designed carefully so as not to put stresses on LCD and not to
wrench module.
(b) Under high temperature environment, performance and life time of LED may heavily
shorten. When you design with our LCD product, please consider radiating heat and ventilation for good heat management.
(c) Keep sufficient clearance between LCD module back surface and housing when the LCD
module is mounted. Approximately 1.0mm of the clearance in the design is recommended taking into account the tolerance of LCD module thickness and mounting structure height on the housing.
(d) When some parts, such as, FPC cable and ferrite plate, are installed underneath the LCD
module, still sufficient clearance is required, such as 0.5mm. This clearance is, especially, to be reconsidered when the additional parts are implemented for EMI countermeasure.
(e) Keep sufficient clearance between LCD module and the others parts, such as inverter and
speaker so as not to interfere the LCD module. Approximately 1.0 mm of the clearance in the design is recommended.
(f) To avoid local elevation/decrease of temperature, considering location of heating element,
heat release, thermal design should be done.
c. Please do not push or scratch LCD panel surface with anything hard. And do not soil LCD
panel surface by touching with bare hands. (Polarizer film, surface of LCD panel is easy to be
flawed.) d. Please wipe off LCD panel surface with absorbent cotton or soft cloth in case of it being soiled. e. Please wipe off drops of adhesives like saliva and water on LCD panel surface immediately.
They might damage to cause panel surface variation and color change. f. Please do not take a LCD module to pieces and reconstruct it. Resolving and reconstructing
modules may cause them not to work well.
g. Please do not touch metal frames with bare hands and soiled gloves. A color change of the metal
frames can happen during a long preservation of soiled LCD modules. h. Please handle metal frame carefully because edge of metal frame is very sharp. i. Please connect the metal frame of LCD module to GND in order to minimize the effect of
external noise and EMI.
j. Be sure to connect the cables and the connecters correctly.
MITSUBISHI Confidential (22/24)
AA192ED01_02_00
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 23
Global LCD Panel Exchange Center
(2) OPERATING PRECAUTIONS
a. Please be sure to turn off the power supply before connecting and disconnecting signal input
cable.
b. Please do not change variable resistance settings in LCD module. They are adjusted to the
most suitable value. If they are changed, it might happen LCD does not satisfy the
characteristics specification. c. The interface signal speed is very high. Please pay attention to transmission line design and
other high speed signal precautions to satisfy signal specification.
d. A condensation might happen on the surface and inside of LCD module in case of sudden
change of ambient temperature. Please take care so as not to cause any damage mentioned on (1)-d.
e. Please pay attention not to display the same pattern for very long time. Image might stick on
LCD. Even if image sticking happens, it may disappear as the operation time proceeds.
www.panelook.com
f. Please obey the same safe instructions as ones being prepared for ordinary electronic products.
(3) PRECAUTIONS WITH ELECTROSTATICS
a. This LCD module use CMOS-IC on circuit board and TFT-LCD panel, and so it is easy to be
affected by electrostatics. Please be careful with electrostatics by the way of your body
connecting to the ground and so on. b. Please remove protection film very slowly from the surface of LCD module to prevent from
electrostatics occurrence.
(4) STORAGE PRECAUTIONS
LCD should be stored in the room temperature environment with normal humidity. The LCD inventory should be processed by first-in first-out method.
(5) SAFETY PRECAUTIONS
a. When you waste damaged or unnecessary LCDs, it is recommended to crush LCDs into pieces
and wash them off with solvents such as acetone and ethanol, which should later be burned.
b. If any liquid leaks out of a damaged glass cell and comes in contact with the hands, wash off
thoroughly with soap and water.
(6) OTHERS
a. A strong incident light into LCD panel may cause deterioration to polarizer film, color filter,
and other materials, which will degrade the quality of display characteristics. Please do not expose LCD module under strong Ultraviolet rays for a long time.
MITSUBISHI Confidential (23/24)
AA192ED01_02_00
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 24
Global LCD Panel Exchange Center
b. Please pay attention to a panel side of LCD module not to contact with other materials in
preserving it alone.
c. For the packaging box handling, please see and obey with the packaging specification
datasheet.
www.panelook.com
MITSUBISHI Confidential (24/24)
AA192ED01_02_00
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Loading...
