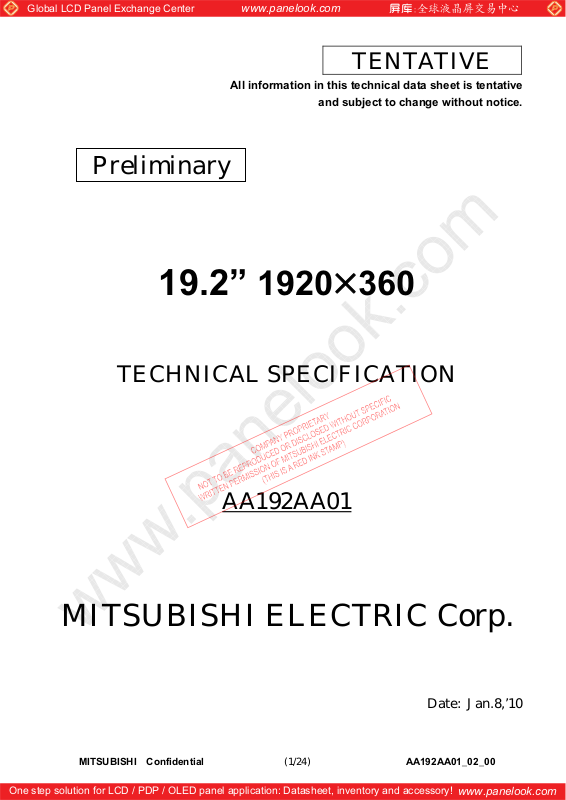

Mitsubishi AA192AA01 Specification

Global LCD Panel Exchange Center

u

Preliminary

www.panelook.com

TENTATIVE

All information in this technical data sheet is tentative

and subject to change without notice.

19.2” 1920

360

TECHNICAL SPECIFICATION

AA192AA01

MITSUBISHI ELECTRIC Corp.

Date: Jan.8,’10

MITSUBISHI Confidential (1/24) AA192AA01_02_00

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

CONTENTS





www.panelook.com

No.

-- COVER 1

-- CONTENTS 2
1 APPLICATION 3
2 OVERVIEW 4
3 ABSOLUTE MAXIMUM RATINGS 5
4 ELECTRICAL CHARACTERISTICS 5, 6
5 INTERFACE PIN CONNECTION 7, 8
6 INTERFACE TIMING 9, 10, 11, 12, 13
7 BLOCK DIAGRAM 14
8 MECHANICAL SPECIFICATION 15, 16
9 OPTICAL CHARACTERISTICS 17, 18, 19

Item Page

10 RELIABILITY TEST CONDITION 20
11 OTHER FEATURE 21
12 HANDLING PRECAUTIONS FOR TFT-LCD MODULE 22, 23, 24

MITSUBISHI Confidential (2/24) AA192AA01_02_00

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center



1. APPLICATION

This specification applies to color TFT-LCD module, AA192AA01.

These specification papers are the proprietary product of Mitsubishi Electric Corporation

(“MITSUBISHI) and include materials protected under copyright of MITSUBISHI. No part of this
document may be reproduced in any form or by any means without the express written permission
of MITSUBISHI.

MITSUBISHI does not assume any liability for infringement of patents, copyrights or other

intellectual property rights of third parties by or arising from use of a product specified in this
document. No license, express, implied or otherwise, is granted under any patents, copyrights or
other intellectual property rights of MITSUBISHI or of others.

MITSUBISHI classifies the usage of the TFT-LCD module as follows. Please confirm the usage

before using the product.

www.panelook.com

(1) Standard Usage

Computers, office equipment, factory automation equipment, test and measurement
equipment, communications, transportation equipment(automobiles, ships, trains, etc.),
provided, however, that operation is not influenced by TFT-LCD directly.

(2) Special Usage

Medical equipment, safety equipment, transportation equipment, provided, however, that
TFT-LCD is necessary to its operation.

(3) Specific Usage

Cockpit Equipment, military systems, aerospace equipment, nuclear reactor control
systems, life support systems and any other equipment. MITSUBISHI should make a
contract that stipulate apportionment of responsibilities between MITSUBISHI and our
customer.

The product specified in this document is designed for “Standard Usage” unless otherwise specified

in this document. If customers intend to use the product for applications other than those specified
for “Standard Usage”, they should first contact MITSUBISHI sales representative for it's intended
use in writing.

MITSUBISHI has been making continuous effort to improve the reliability of its products.
Customers should implement sufficient reliability design of their application equipments such as
redundant system design, fail-safe functions, anti-failure features.

MITSUBISHI assumes no responsibility for any damage resulting from the use of the product that

does not comply with the instructions and the precautions specified in this document.

Please contact and consult a MITSUBISHI sales representative for any questions regarding this

product.

MITSUBISHI Confidential (3/24) AA192AA01_02_00

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

2. OVERVIEW

AA192AA01 is 19.2” color TFT-LCD (Thin Film Transistor Liquid Crystal Display) module
composed of LCD panel, driver ICs, control circuit, and backlight unit.

By applying 6 bit or 8 bit digital data, 1920u 360, 262k-color or 16.7M-color images are displayed
on the 19.2” diagonal screen. Input power voltage is single 3.3 V for LCD driving.
The type of data and control signals are digital and transmitted via LVDS interface per Typ. 60
MHz clock cycle.

Driver circuit for LED backlight is not included in this module. General specifications are
summarized in the following table:

ITEM SPECIFICATION
Display Area (mm)
Number of Dots

www.panelook.com

478.08(H) u 89.64(V)
(19.2-inch diagonal)

1920 u3 (H) u 360 (V)
Pixel Pitch (mm)
Color Pixel Arrangement RGB vertical stripe
Display Mode Normally white TN
Number of Color 262k(6 bit/color), 16.7M(8 bit/color)
Luminance (cd/m2) 500
Wide Viewing Angle Technology Optical Compensation Film
Viewing Angle (CR t10) 80~80° (H), 60~80° (V)
Surface Treatment Anti-glare and hard-coating 3H
Electrical Interface LVDS (6 bit/8 bit)
Optimum Viewing Angle (Contrast ratio) 6 o’clock
Module Size (mm)

Module Mass (g) (780)
Backlight Unit LED, edge-light

Characteristic value without any note is typical value.

0.249 (H) u 0.249 (V)

496.0 (W) u 109.2 (H) u (13.2) (D)

MITSUBISHI Confidential (4/24) AA192AA01_02_00

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

3. ABSOLUTE MAXIMUM RATINGS

ITEM SYMBOL MIN. MAX. UNIT

www.panelook.com

Power Supply Voltage for LCD VCC
Logic Input Voltage VI
Backlight Voltage VL

Backlight ON-OFF BLEN



0.3





4.0 V

VCC+0.3 V

13.2 V
VL V

Light Dimming Control Voltage VBRT 0 (5.0) V
Operation Temperature (Panel)
Operation Temperature (Ambient)
Storage Temperature

Note 1,2)

T

Note 2)

T

Note 2)

T

op(Ambient)

op(Panel)

stg

30
30
30

80 °C
80 °C
80 °C

[Note]

1) Measured at the center of active area and at the center of panel back surface

2) Top,Tstgd 40qC : 90%RH max. without condensation
Top,Tstg > 40qC : Absolute humidity shall be less than the value of 90%RH at 40qC without

condensation.

4. ELECTRICAL CHARACTERISTICS

(1) TFT- LCD

Ambient temperature: Ta = 25°C

ITEM SYMBOL MIN. TYP. MAX. UNIT Remarks

Power Supply Voltage for LCD VCC 3.0 3.3 3.6 V *1)
Power Supply Current for LCD ICC -- (520) (720) mA *2)
Permissive Input Ripple Voltage VRP -- -- 100 mVp-p VCC=+3.3V

High VIH

0.8uVCC

-- VCC V MODE, SC

Logic Input Voltage

Low VIL 0 --

0.2uVCC

V MODE, SC

*1) Power and signals sequence:

t1 d10ms 200 ms dt4
0 < t2 d 50 ms 200 ms dt5

0 < t3 d 50 ms

LCD Power Supply

Logic Signal

Backlight Power Supply

0.9VCC

0.1VCC

t1

t2

0 dt6

VCC

data

t3

0.9VCC

0.1VCC

t4

0.1VCC

t5 t6

data: RGB DATA, DCLK, DENA, MODE, SC

MITSUBISHI Confidential (5/24) AA192AA01_02_00

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

VCC-dip conditions:

www.panelook.com

1) When 2.6 V

d VCC < 3.0 V, td d 10 ms

2) When VCC < 2.6 V
VCC-dip conditions should also follow the power and signals sequence.

VCC

3.0 V

2.6 V

td

*2) VCC = + 3.3 V, f

=23.4kHz, fV=60Hz, f

H

= 60MHz

CLK

Display image at typical power supply current value is 256-gray-bar pattern (8 bit), 360 line

mode.

*3) Fuse

Parameter Fuse Type Name Supplier Remark

VCC FCC16202AB Kamaya Electric Co., Ltd. *)

*) The power supply capacity should be designed to be more than the fusing current.

(2) Backlight Ta=25°C

ITEM SYMBOL MIN. TYP. MAX. UNIT Remarks

Input Voltage VL 10.8 12.0 13.2 V *3)

Input Current IL (TBD) (850) (TBD) mA VBRT = 0 V

High (2.5) -- VL V ON

Backlight ON-OFF

Low

BLEN

0 -- (0.4) V OFF

LED Life Time LT 60000 -- -- H *1)

VBRT 0 -- 2.5 V 0V: Max. Luminance

Light Dimming Control Voltage

RBRT 0 -- 50

k㱅 0k㱅: Max. Luminance

*1) LED life time is defined as the time when the brightness becomes 50% of the initial value.

*2) Comply with the LED power-on sequence of VL oBLEN oVBRT, and LED power-off sequence

of BLEN oVBRT oVL.

*3) Fuse

Parameter Fuse Type Name Supplier Remark

VL FCC16202AB Kamaya Electric Co., Ltd.

*)

*) The power supply capacity should be designed to be more than the fusing current.

MITSUBISHI Confidential (6/24) AA192AA01_02_00

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

V

5. INTERFACE PIN CONNECTION

(1) CN 1(Interface Signal)

Used Connector: DF14A-20P-1.25H(56) (HIROSE)
Corresponding connector: DF14-20S-1.25C (HIROSE)

Pin

No.

*1) Metal frame is connected to signal GND.
*2) Recommended wiring of Pin 17,18 (6 bit input)

Symbol

1 VCC
2 VCC
3 GND
4 GND
5

Link 0
6 Link 0+ R0, R1, R2, R3, R4, R5, G0 R2, R3, R4, R5, R6, R7, G2 R0, R1, R2, R3, R4, R5, G0
7 GND
8

Link 1
9 Link 1+ G1, G2, G3, G4, G5, B0, B1 G3, G4, G5, G6, G7, B2, B3 G1, G2, G3, G4, G5, B0, B1

10 GND
11

Link 2

12 Link 2+ B2, B3, B4, B5, DENA B4, B5, B6, B7, DENA B2, B3, B4, B5, DENA
13 GND
14

CLKIN Clock m
15 CLKIN+
16 GND
17

Link3

18 Link3+ See: *2) R0, R1, G0, G1, B0, B1 R6, R7, G6, G7, B6, B7
19 MODE Low=ISP 6 bit compatibility mode
20 SC

R0, R1, R2, R3, R4, R5, G0 R2, R3, R4, R5, R6, R7, G2

G1, G2, G3, G4, G5, B0, B1 G3, G4, G5, G6, G7, B2, B3

B2, B3, B4, B5, DENA B4, B5, B6, B7, DENA

See: *2) R0, R1, G0, G1, B0, B1

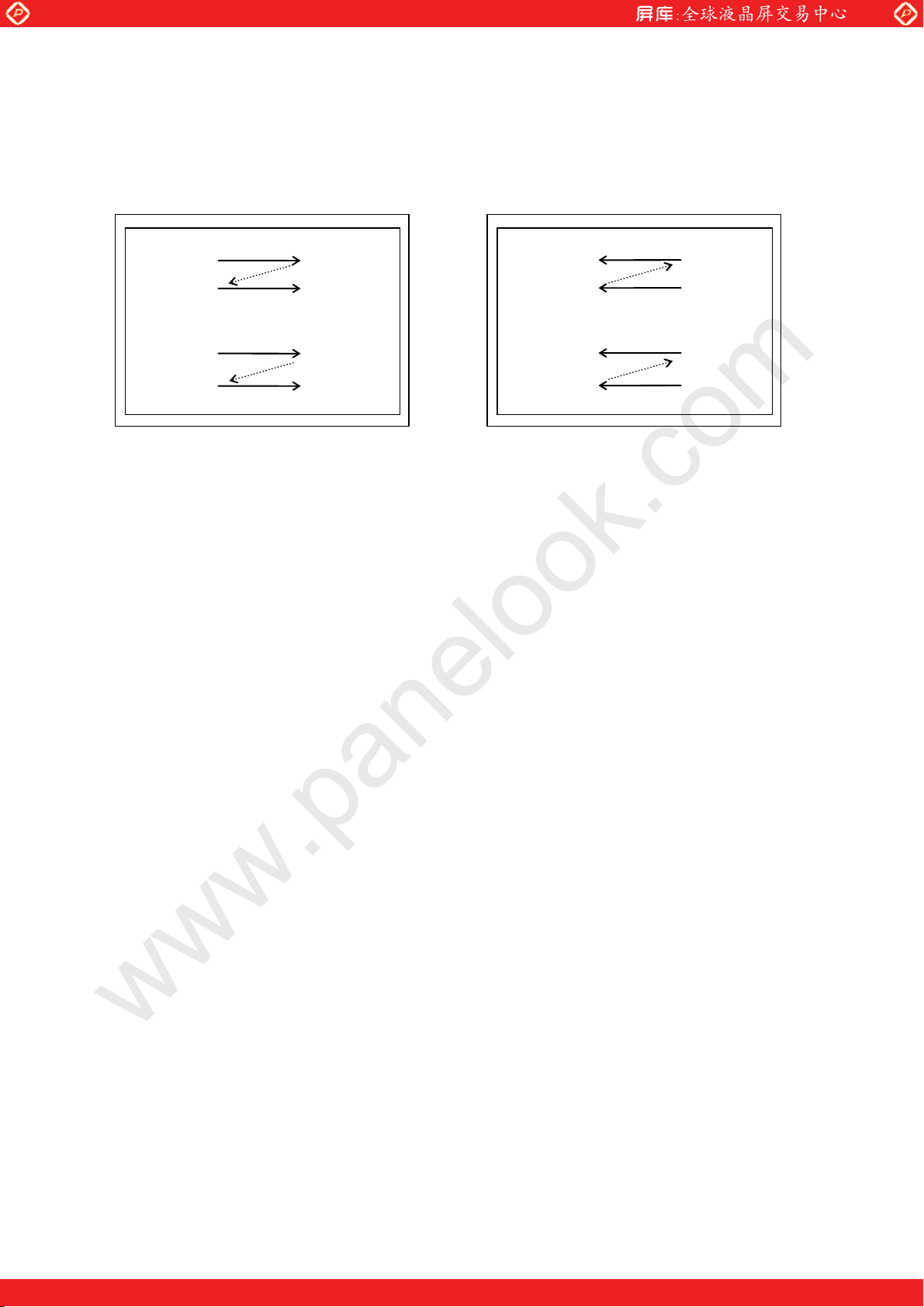

Scan direction control ( Low = Normal , High = Reverse )

Function(ISP 6 bit compatibility mode)

6 bit input 8 bit input

+3.3 V Power supply
+3.3 V Power supply

www.panelook.com

GND
GND

GND

GND

GND

Clock +

GND

Function(ISP 8 bit

compatibility mode)

m
m
m
m

R0, R1, R2, R3, R4, R5, G0

m

G1, G2, G3, G4, G5, B0, B1

m

B2, B3, B4, B5, DENA

m

m
m

R6, R7, G6, G7, B6, B7

High=ISP
8 bit compatibility mode

m

(2) CN 2(Backlight)

Backlight-side connector: SM14B-SRSS-TB(LF)(SN) (JST)
Corresponding connector: SHR-14V-S-B (JST)

Pin No. Symbol Function

1, 2, 3, 4, 5 VL Input Voltage

6, 7, 8, 9, 10 GND GND

CC

LVD S
transmitter

LOW data

Pin 17
Pin 18

or

680

620

Ω

Pin 17

Pin 18

Ω

11 BLEN OFF: 0-0.4(V) or OPEN / ON: 2.5-Vin(V)
12 VBRT / RBRT

PWM Dimming MIN. Brightness: 2.5(V) or 50(k

PWM Dimming MAX. Brightness: 0(V) or 0(k

13, 14 GND GND

:)

:)

MITSUBISHI Confidential (7/24) AA192AA01_02_00

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

(3) ISP data mapping

c. ISP 8 bit compatibility mode

CLKIN+/-

www.panelook.com

1CLK

Link0+/-

Link1+/-

Link2+/-

Link3+/-

a. ISP 6 bit compatibility mode(6 bit input)

CLKIN+/-

Link0+/-

Link1+/-

R1G0 R5 R4 R3 R2 R0

G2B1 B0 G5 G4 G3 G1

B3DENA B5 B4 B2

R7B7 B6 G7 G6 R6

1CLK

R1G0 R5 R4 R3 R2 R0

G2B1 B0 G5 G4 G3 G1

Link2+/-

b. ISP 6 bit compatibility mode(8 bit input)

CLKIN+/-

Link0 +/-

Link1 +/-

Link2 +/-

Link3 +/-

B3DENA B5 B4 B2

1CLK

R3G2 R7 R6 R5 R4 R2

G4B3 B2 G7 G6 G5 G3

B5DENA B7 B6 B4

R1B1 B0 G1 G0 R0

MITSUBISHI Confidential (8/24) AA192AA01_02_00

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

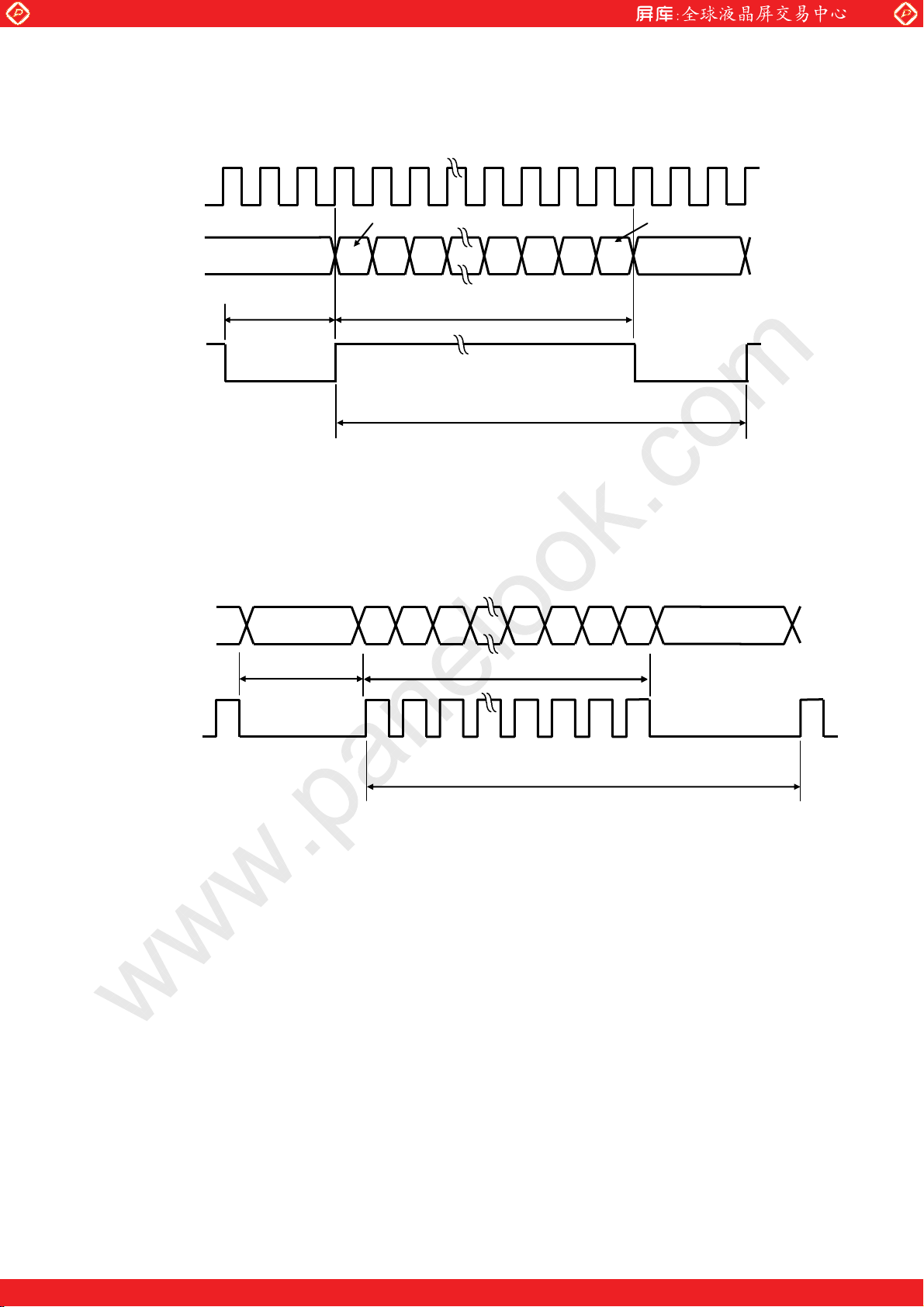

6. INTERFACE TIMING

LVDS transmitter input signal

(1) Timing Specifications

ITEM SYMBOL MIN. TYP. MAX. UNIT

www.panelook.com

DCLK

DENA

Frequency f
Period t

Active Time
Blanking Time

Horizontal

Frequency
Period
Active Time
Blanking Time

Vertical

Frequency
Period

CLK

CLK

t

HA

t

HB

f
t

t

VA

t

VB

f
t

H

H

V

V

50 60 70 MHz

14.3 16.7 20 ns

1920 1920 1920 t

20 640 -- t
20 23.4 36.1 kHz

27.7 42.6 50.1
360 360 360 t

3 30 -- t

55 60 75 Hz

13.3 16.6 18.2 ms

[Note]

1) DENA (Data Enable) shall always be positive polarity as shown in the timing specification.

2) DCLK shall appear during all invalid period.

3) LVDS timing follows the timing specifications of LVDS receiver IC: THC63LVDF84B(Thine).

4) In case of blanking time fluctuation, please satisfy following condition.
t

VBn

> t

VBn-1

 3(t

)

H

CLK

CLK

Ps

H

H

MITSUBISHI Confidential (9/24) AA192AA01_02_00

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

K

V

V

(2) Timing Chart

a. Horizontal Timing Chart

DCL

DATA
(R,G,B)

www.panelook.com

First Data Last Data

1 2

3Invalid Data Invalid Data

1919 1920

t

HB

DENA

b. V erti cal T im ing Chart

LINE DATA

DENA

t

HA

tH=1/f

H

1 2 359 360 3Invalid Data Invalid Data

t

VB

t

A

tV=1/f

MITSUBISHI Confidential (10/24) AA192AA01_02_00

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

(3) Color Data Assignment

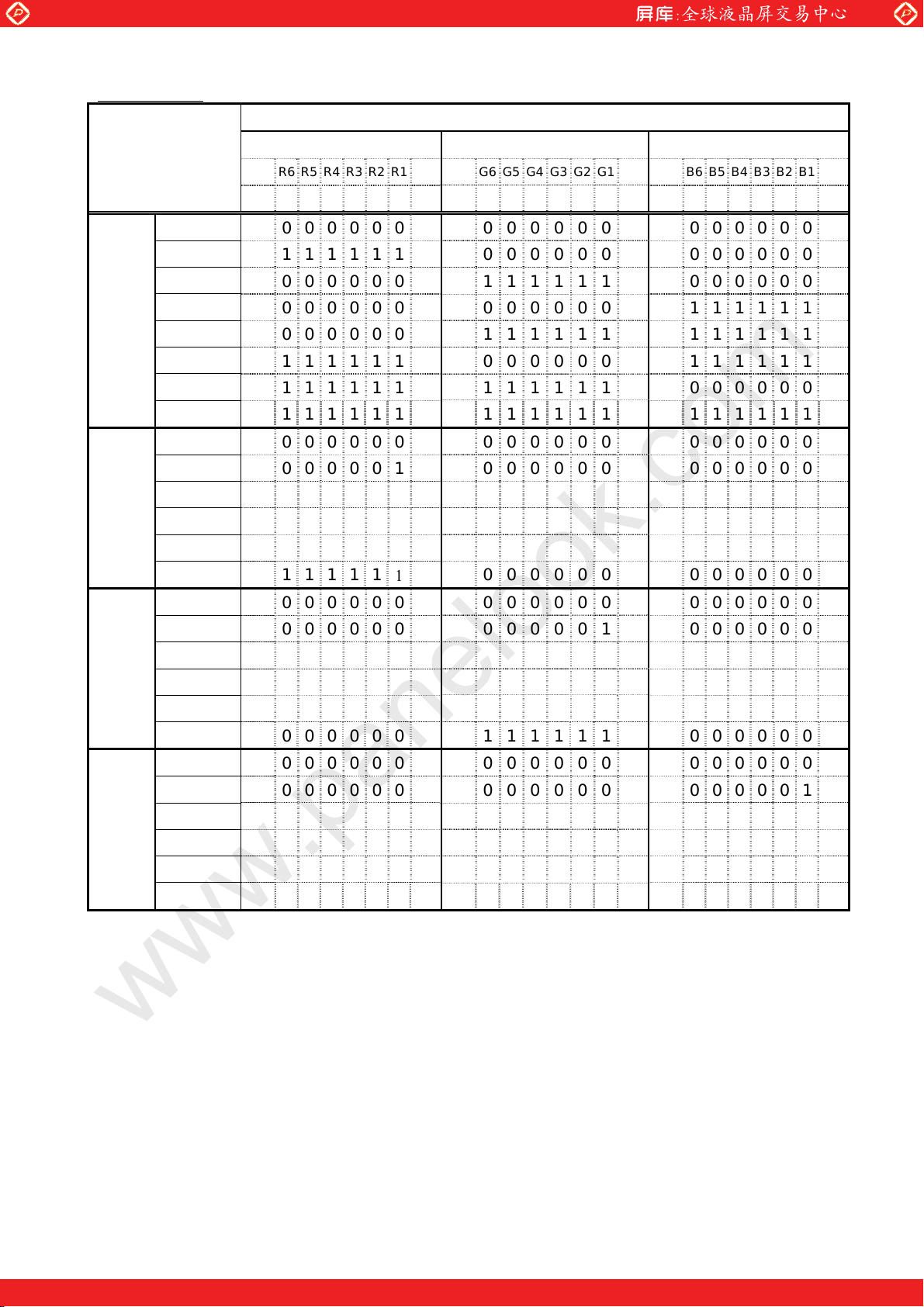

a. 6 bit input

COLOR

R5 R4 R3 R2 R1 R0 G5 G4 G3 G2 G1 G0 B5 B4 B3 B2 B1 B0

MSB LSB MSB LSB MSB LSB

BLACK 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0
RED(63) 1 1 1 1 1 1 0 0 0 0 0 0 0 0 0 0 0 0
GREEN(63) 0 0 0 0 0 0 1 1 1 1 1 1 0 0 0 0 0 0

BASIC BLUE(63) 0 0 0 0 0 0 0 0 0 0 0 0 1 1 1 1 1 1

COLOR CYAN 0 0 0 0 0 0 1 1 1 1 1 1 1 1 1 1 1 1

MAGENTA 1 1 1 1 1 1 0 0 0 0 0 0 1 1 1 1 1 1
YELLOW 1 1 1 1 1 1 1 1 1 1 1 1 0 0 0 0 0 0
WHITE 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1

www.panelook.com

INPUT DATA

R DATA G DATA B DATA

RED(1) 0 0 0 0 0 1 0 0 0 0 0 0 0 0 0 0 0 0
RED(2) 0 0 0 0 1 0 0 0 0 0 0 0 0 0 0 0 0 0

RED

RED(62) 1 1 1 1 1 0 0 0 0 0 0 0 0 0 0 0 0 0
RED(63) 1 1 1 1 1 1 0 0 0 0 0 0 0 0 0 0 0 0
GREEN(1) 0 0 0 0 0 0 0 0 0 0 0 1 0 0 0 0 0 0
GREEN(2) 0 0 0 0 0 0 0 0 0 0 1 0 0 0 0 0 0 0

GREEN

GREEN(62) 0 0 0 0 0 0 1 1 1 1 1 0 0 0 0 0 0 0
GREEN(63) 0 0 0 0 0 0 1 1 1 1 1 1 0 0 0 0 0 0
BLUE(1) 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1
BLUE(2) 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 0

BLUE

BLUE(62) 0 0 0 0 0 0 0 0 0 0 0 0 1 1 1 1 1 0
BLUE(63) 0 0 0 0 0 0 0 0 0 0 0 0 1 1 1 1 1 1

[Note]

1) Definition of gray scale

Color (n) --- n indicates gray scale level.

Higher n means brighter level.

2) Data

1:High, 0: Low

MITSUBISHI Confidential (11/24) AA192AA01_02_00

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

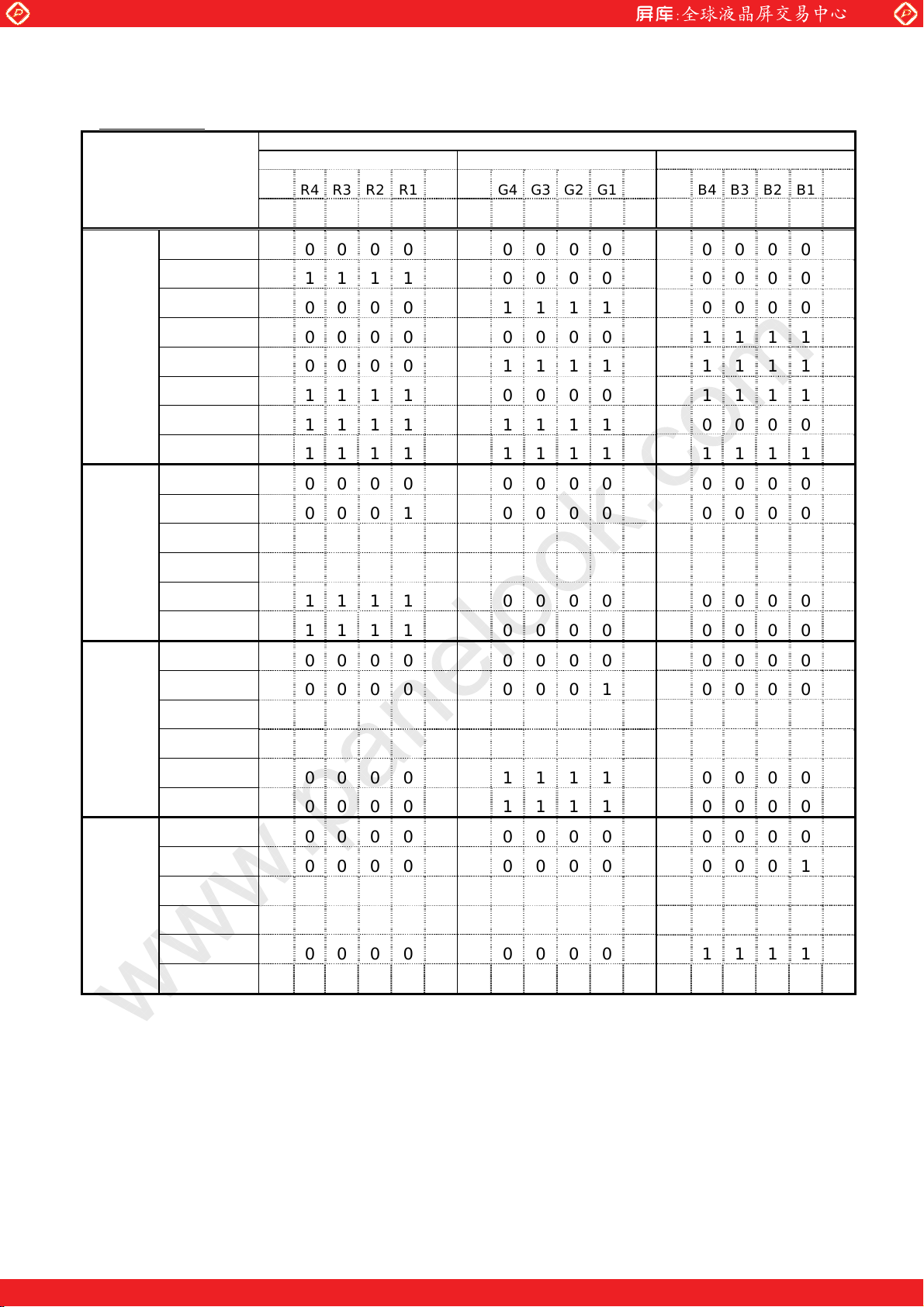

b. 8 bit input

www.panelook.com

INPUT DATA

BASIC

COLOR

RED

GREEN

COLOR

BLACK
RED(255)
GREEN(255)
BLUE(255)
CYAN
MAGENTA
YELLOW
WHITE
RED(1)
RED(2)

RED(255)
GREEN(1)
GREEN(2)

GREEN(255)

R DATA G DATA B DATA

R7 R6 R5 R4 R3 R2 R1 R0 G7 G6 G5 G4 G3 G2 G1 G0 B7 B6 B5 B4 B3 B2 B1 B0

MSB LSB MSB LSB MSB LSB

0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0
1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0
0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0
0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1
0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1
1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1
1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0
1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1
0 0 0 0 0 0 0 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0
0 0 0 0 0 0 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0

1 1 1 1 1 1

 

0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0
0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 0 0 0 0 0 0 0 0
0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 0 0 0 0 0 0 0 0 0

0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0

BLUE(1)
BLUE(2)

BLUE

BLUE(255)

[Note]

1) Definition of gray scale
Color (n) --- n indicates gray scale level.

2) Data
1:High, 0: Low

0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1
0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 0

0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1

Higher n means brighter level.

MITSUBISHI Confidential (12/24) AA192AA01_02_00

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

(4) Display Position and Scan Direction

D(X,Y) shows the data number of input signal.

www.panelook.com

SC: Low

D(1,1) D(1920,1)

D(1,360)

D(1920,360)

SC: High

CN2 CN2

D(1920,360) D(1,360)

D(1920,1) D(1,1)

MITSUBISHI Confidential (13/24) AA192AA01_02_00

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

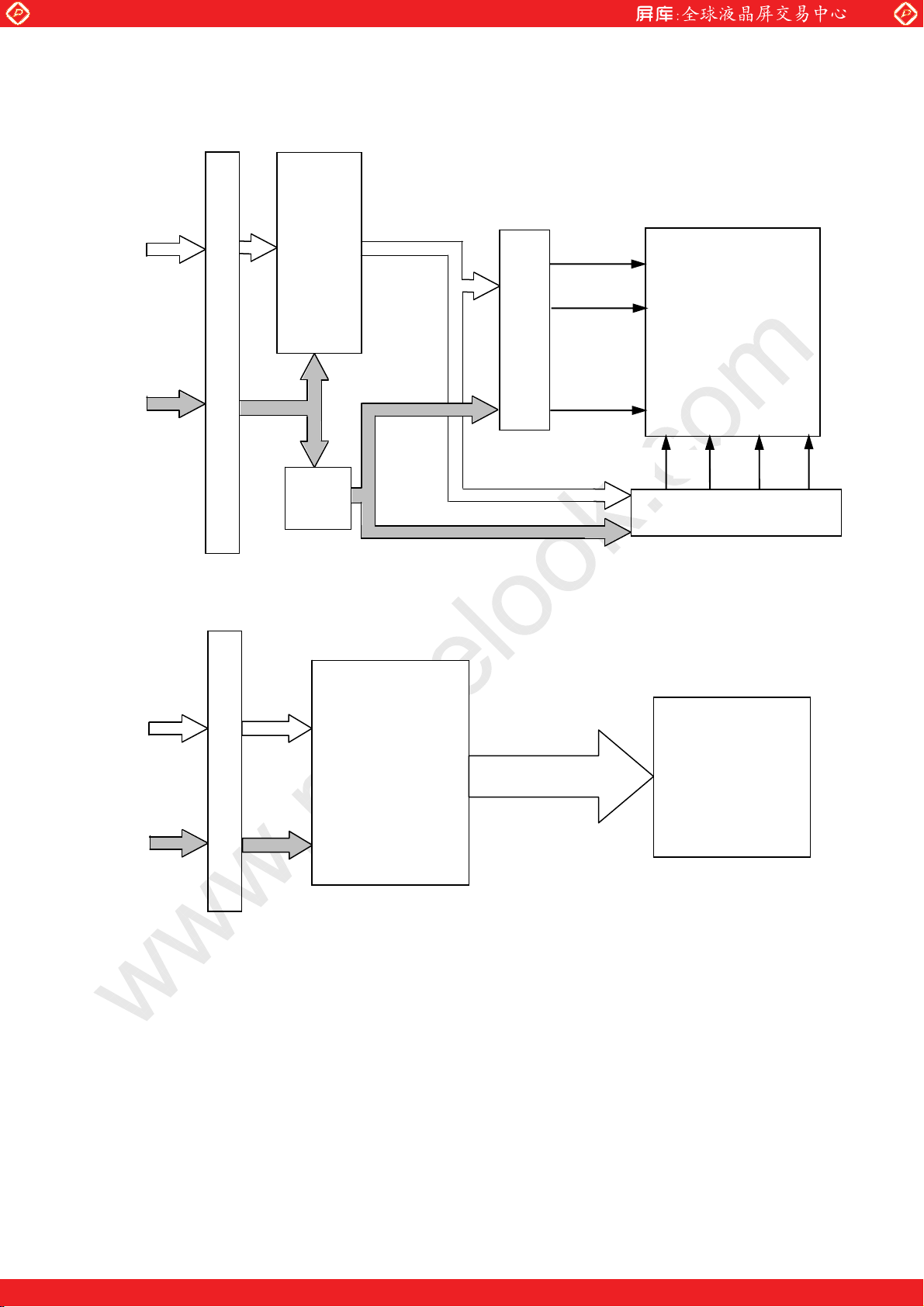

7. BLOCK DIAGRAM

CN1

Timing signal
Display data

Timing

Controller

www.panelook.com

G1

G2

TFT-LCD

Power

Brightness/
ON/OFF
Control

Power

I/F Connector

CN2

I/F Connector

Power

Supply

Circuit

Power

Supply

Circuit

Driver(gate)

G360

S1

S2

S5759

Driver(source)

LED B/L

S5760

MITSUBISHI Confidential (14/24) AA192AA01_02_00

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

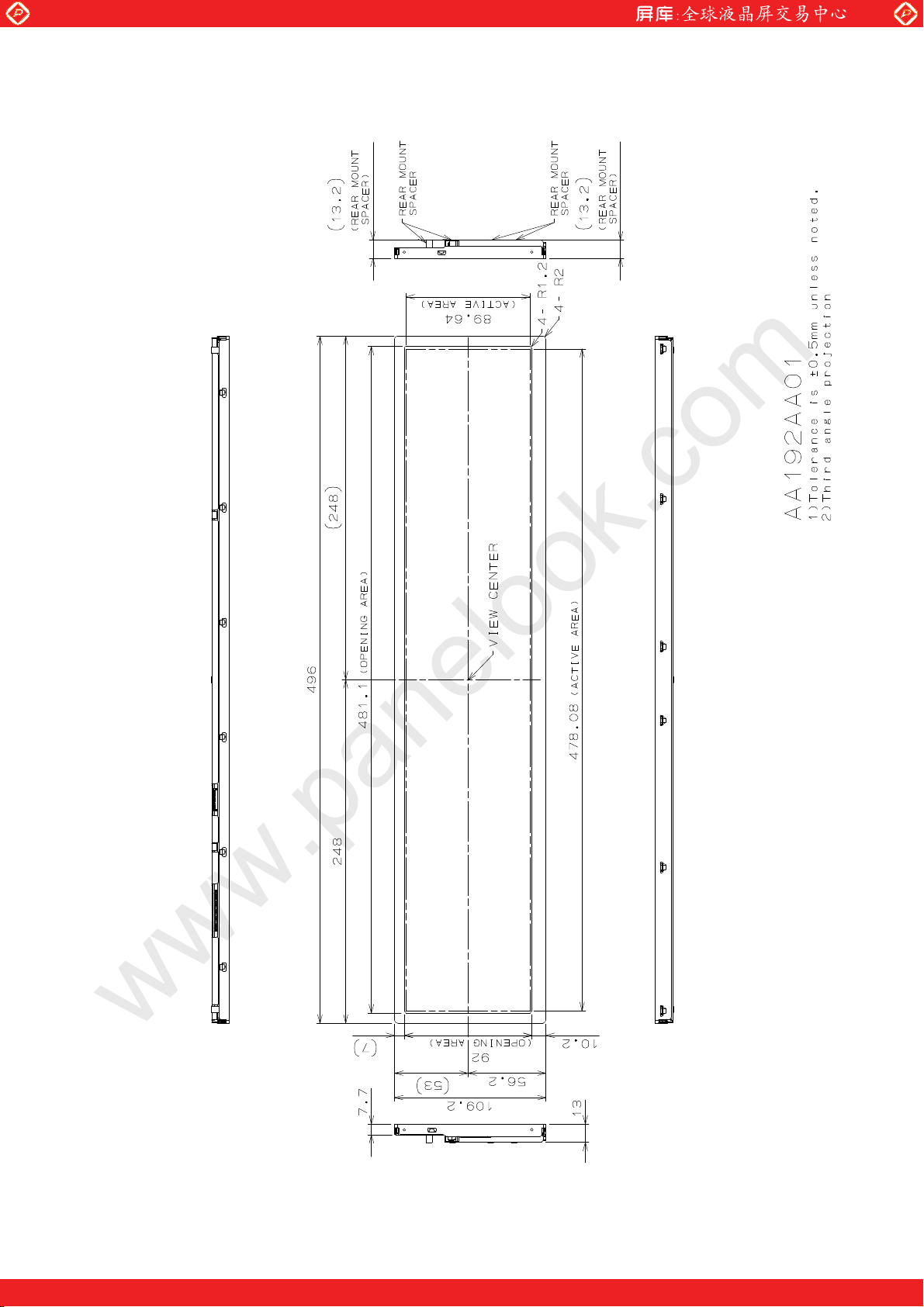

8. MECHANICAL SPECIFICATIONS

(1) Front Side

www.panelook.com

MITSUBISHI Confidential (15/24) AA192AA01_02_00

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

(Unit:mm)

www.panelook.com

Global LCD Panel Exchange Center

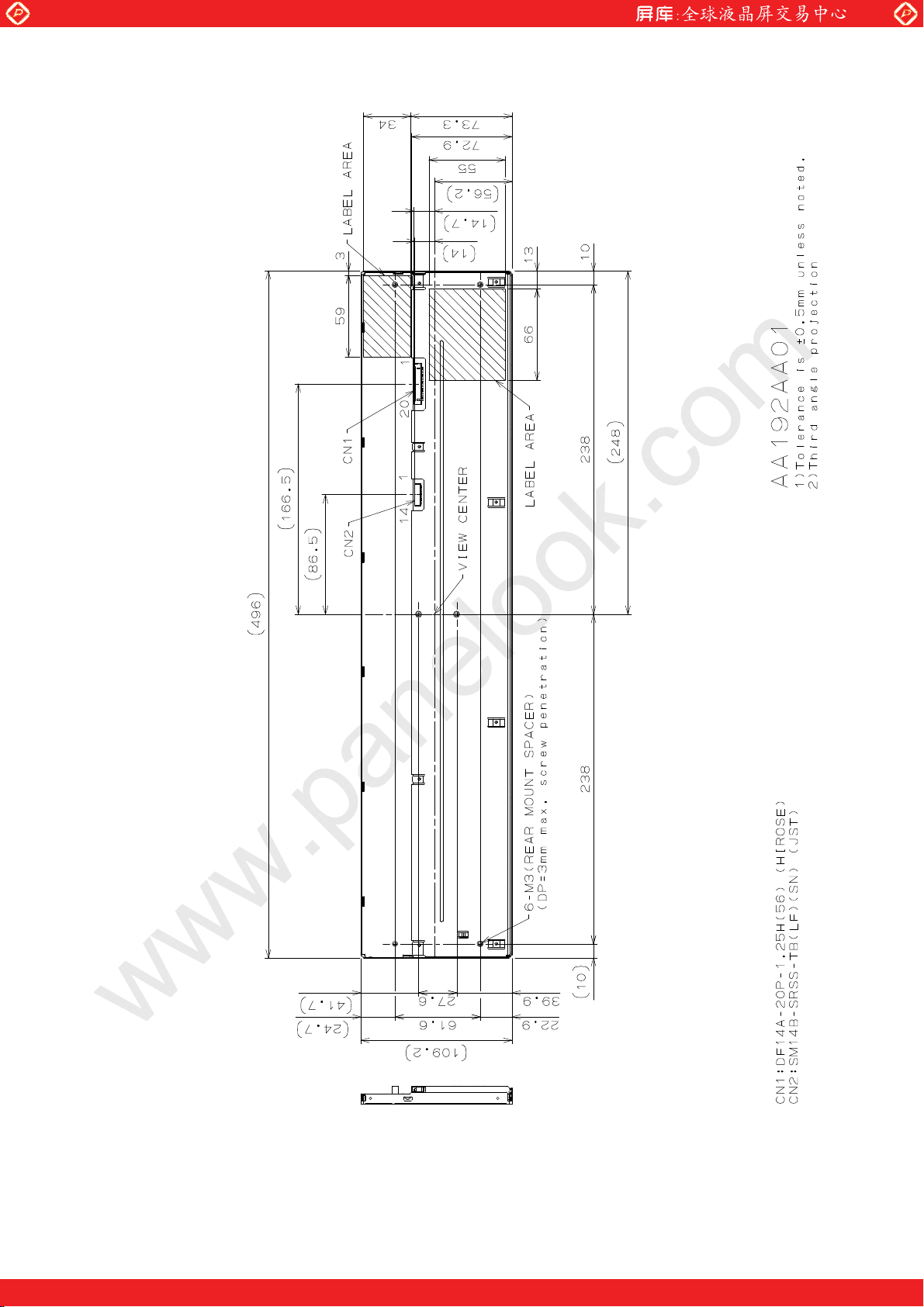

(2) Rear Side

www.panelook.com

MITSUBISHI Confidential (16/24) AA192AA01_02_00

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

(Unit:mm)

www.panelook.com

Global LCD Panel Exchange Center

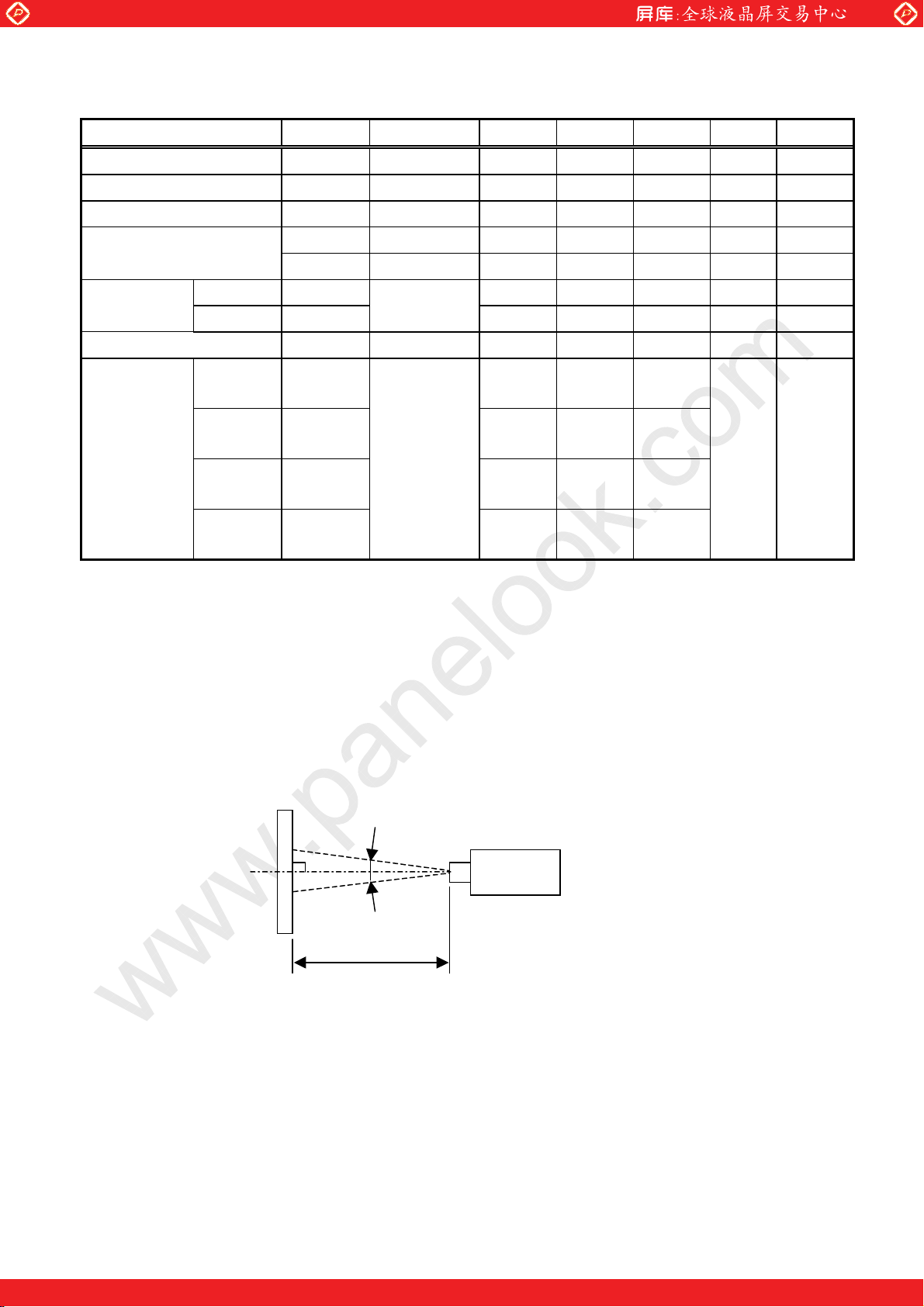

9. OPTICAL CHARACTERISTICS

ITEM SYMBOL CONDITION MIN TYP MAX UNIT Remarks

www.panelook.com

Ta=25°C, VCC=3.3V, Input Signals: Typ. values shown in Section 6

Contrast Ratio CR
Luminance Lw
Luminance Uniformity

'Lw T

tr

Response Time

tf

Viewing

Angle

Horizontal
Vertical

T

TV

TV qTH q

TV qTH q

qTH q

V

TV qTH q

TV qTH q

65a65 80a80

H

CR t10

450 700 -- -- *1)*2)*5)
400 500 -- cd/m

2

*1)*5)

-- -- 30 % *1)*3)*5)

-- 4 -- ms *1)*4)*5)

-- 12 -- ms *1)*4)*5)

-- ° *1)*5)

45a65 60a80

-- ° *1)*5)

Image sticking tis 2 h -- -- 2 s *6)

Red Rx TBD TBD TBD

Ry TBD TBD TBD
Color Green Gx TBD TBD TBD
Coordinates Gy

Blue Bx TBD TBD TBD

White Wx 0.273 0.313 0.353

By TBD TBD TBD

Wy 0.289 0.329 0.369

TV qTH q

TBD TBD TBD --

*1)*5)

[Note]
These items are measured using CS1000(MINOLTA) for color coordinates, EZContrast(ELDIM) for
viewing angle and CS1000 or BM-5A(TOPCON) for others under the dark room condition (no
ambient light) after more than 30 minutes from turning on the lamp unless noted.

Condition: VBRT = 0 V or RBRT = 0k

:

Measurement method for luminance and color coordinates is as follows.

Photodetector
Luminance :T=2q (BM-5A)
Color coordinates :T=1q (CS1000)

TFT-LCD module

T(Field)

500 mm

The luminance is measured according to FLAT PANEL DISPLAY MEASUREMENTS STANDARD

(VESA Standard).

MITSUBISHI Confidential (17/24) AA192AA01_02_00

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

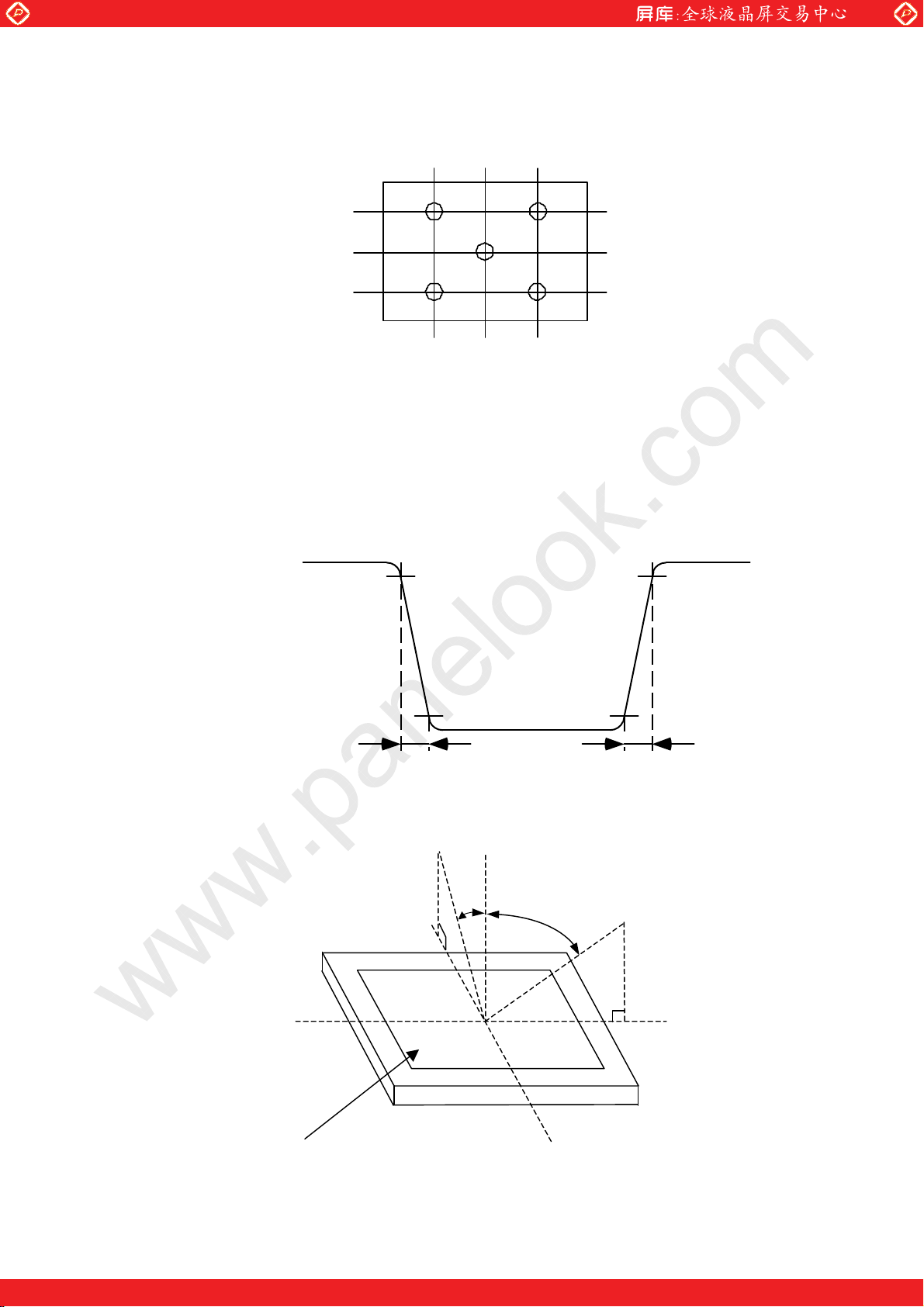

*1) Measurement Point

Contrast Ratio, Luminance, Response Time, Viewing Angle, Color Coordinates: Display Center

Luminance Uniformity: point 1

www.panelook.com

a5 shown in a figure below

(1,1)

90

180

270

480 960 1440

1

5

3

2

4

*2) Definition of Contrast Ratio

CR= Luminance with all white pixels / Luminance with all black pixels

*3) Definition of Luminance Uniformity

'Lw=[Lw(MAX)/Lw(MIN)-1]u100

*4) Definition of Response Time

White

(1920,360)

90%90%

Luminance

*5) Definition of Viewing Angle(

Left (-)

tr

TVT

Upper(+)

10%10% Black

)

H

tf

Normal Axis

T

V



T

+

Right (+)

LCD panel

Lower(-)

MITSUBISHI Confidential (18/24) AA192AA01_02_00

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

*6) Image sticking:

Continuously display the test pattern shown in the figure below for two-hours. Then display a
completely white screen. The previous image shall not persist more than two seconds at 25°C.

Rows 178-182

www.panelook.com

Cols 958-962

White

Area

Black
Lines

TEST PATTERN FOR IMAGE STICKING TEST

MITSUBISHI Confidential (19/24) AA192AA01_02_00

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center



www.panelook.com

10. RELIABILITY TEST CONDITION

(1) Temperature and Humidity

ITEM CONDITIONS

HIGH TEMPERATURE

HIGH HUMIDITY OPERATION

HIGH TEMPERATURE OPERATION 80°C, 240 h

LOW TEMPERATURE OPERATION

HIGH TEMPERATURE STORAGE 80°C, 240 h

LOW TEMPERATURE STORAGE –30°C, 240 h

THERMAL SHOCK

(2) Shock & Vibration

ITEM CONDITIONS

Shock level: 1470m/s2(150G)

SHOCK Waveform: half sinusoidal wave, 2ms

40°C, 90%RH, 240 h

(No condensation)

30°C, 240 h

–30°C (1h) a 80°C(1h),

100 cycles

(NON-OPERATION) Number of shocks: one shock input in each direction of three mutually

perpendicular axes for a total of six shock inputs
Vibration level: 9.8m/s2 (1.0G)

Waveform: sinusoidal

VIBRATION Frequency range: 5 to 500Hz

(NON-OPERATION) Frequency sweep rate: 0.5 octave /min

Duration: one sweep from 5 to 500 Hz in each of three mutually

perpendicular axis(each x,y,z axis: 1 hour, total 3 hours)

(3) Judgment standard

The judgment of the above tests should be made as follow:

Pass: Normal display image, no damage of the display function. (ex. no line defect)

Partial transformation of the module parts should be ignored.

Fail: No display image, damage of the display function. (ex. line defect)

MITSUBISHI Confidential (20/24) AA192AA01_02_00

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

11. OTHER FEATURE

This LCD module complies with RoHS *) directive.

*)

RoHS: Restriction of the use of certain hazardous substances in electrical and electronic

equipment

www.panelook.com

MITSUBISHI Confidential (21/24) AA192AA01_02_00

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center



www.panelook.com

12. HANDLING PRECAUTIONS FOR TFT-LCD MODULE

Please pay attention to the followings in handling TFT-LCD products;

(1) ASSEMBLY PRECAUTION

a. Please mount the LCD module by using mounting hole with a screw clamping torque

(recommended value: 0.3 Nm). Please do not bend or wrench the LCD module in assembling.
Please do not drop, bend or twist the LCD module in handling.

b. Please design display housing in accordance with the following guide lines.

(a) Housing case must be designed carefully so as not to put stresses on LCD and not to

wrench module.

(b) Under high temperature environment, performance and life time of LED may heavily

shorten. When you design with our LCD product, please consider radiating heat and
ventilation for good heat management.

(c) Keep sufficient clearance between LCD module back surface and housing when the LCD

module is mounted. Approximately 1.0mm of the clearance in the design is recommended
taking into account the tolerance of LCD module thickness and mounting structure height
on the housing.

(d) When some parts, such as, FPC cable and ferrite plate, are installed underneath the LCD

module, still sufficient clearance is required, such as 0.5mm. This clearance is, especially, to
be reconsidered when the additional parts are implemented for EMI countermeasure.

(e) Keep sufficient clearance between LCD module and the others parts, such as inverter and

speaker so as not to interfere the LCD module. Approximately 1.0 mm of the clearance in
the design is recommended.

(f) To avoid local elevation/decrease of temperature, considering location of heating element,

heat release, thermal design should be done.

c. Please do not push or scratch LCD panel surface with anything hard. And do not soil LCD

panel surface by touching with bare hands. (Polarizer film, surface of LCD panel is easy to be

flawed.)
d. Please wipe off LCD panel surface with absorbent cotton or soft cloth in case of it being soiled.
e. Please wipe off drops of adhesives like saliva and water on LCD panel surface immediately.

They might damage to cause panel surface variation and color change.
f. Please do not take a LCD module to pieces and reconstruct it. Resolving and reconstructing

modules may cause them not to work well.

g. Please do not touch metal frames with bare hands and soiled gloves. A color change of the metal

frames can happen during a long preservation of soiled LCD modules.
h. Please handle metal frame carefully because edge of metal frame is very sharp.
i. Please connect the metal frame of LCD module to GND in order to minimize the effect of

external noise and EMI.

j. Be sure to connect the cables and the connecters correctly.

MITSUBISHI Confidential (22/24) AA192AA01_02_00

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

(2) OPERATING PRECAUTIONS

a. Please be sure to turn off the power supply before connecting and disconnecting signal input

cable.

b. Please do not change variable resistance settings in LCD module. They are adjusted to the

most suitable value. If they are changed, it might happen LCD does not satisfy the

characteristics specification.
c. The interface signal speed is very high. Please pay attention to transmission line design and

other high speed signal precautions to satisfy signal specification.

d. A condensation might happen on the surface and inside of LCD module in case of sudden

change of ambient temperature. Please take care so as not to cause any damage mentioned on
(1)-d.

e. Please pay attention not to display the same pattern for very long time. Image might stick on

LCD. Even if image sticking happens, it may disappear as the operation time proceeds.

www.panelook.com

f. Please obey the same safe instructions as ones being prepared for ordinary electronic products.

(3) PRECAUTIONS WITH ELECTROSTATICS

a. This LCD module use CMOS-IC on circuit board and TFT-LCD panel, and so it is easy to be

affected by electrostatics. Please be careful with electrostatics by the way of your body

connecting to the ground and so on.
b. Please remove protection film very slowly from the surface of LCD module to prevent from

electrostatics occurrence.

(4) STORAGE PRECAUTIONS

LCD should be stored in the room temperature environment with normal humidity. The LCD
inventory should be processed by first-in first-out method.

(5) SAFETY PRECAUTIONS

a. When you waste damaged or unnecessary LCDs, it is recommended to crush LCDs into pieces

and wash them off with solvents such as acetone and ethanol, which should later be burned.

b. If any liquid leaks out of a damaged glass cell and comes in contact with the hands, wash off

thoroughly with soap and water.

(6) OTHERS

a. A strong incident light into LCD panel may cause deterioration to polarizer film, color filter,

and other materials, which will degrade the quality of display characteristics. Please do not
expose LCD module under strong Ultraviolet rays for a long time.

MITSUBISHI Confidential (23/24) AA192AA01_02_00

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

b. Please pay attention to a panel side of LCD module not to contact with other materials in

preserving it alone.

c. For the packaging box handling, please see and obey with the packaging specification

datasheet.



www.panelook.com

MITSUBISHI Confidential (24/24) AA192AA01_02_00

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com
