1. APPLICATION
This specification applies to color TFT-LCD module, AA121XH01.
These specification papers are the proprietary product of Mitsubishi Electric Corporation
(“MITSUBISHI) and include materials protected under copyright of MITSUBISHI. No part of this document may be reproduced in any form or by any means without the express written permission of MITSUBISHI.
MITSUBISHI does not assume any liability for infringement of patents, copyrights or other
intellectual property rights of third parties by or arising from use of a product specified in this document. No license, express, implied or otherwise, is granted under any patents, copyrights or other intellectual property rights of MITSUBISHI or of others.
MITSUBISHI classifies the usage of the TFT-LCD module as follows. Please confirm the usage
before using the product.
www.panelook.com
(1) Standard Usage
Computers, office equipment, factory automation equipment, test and measurement equipment, communications, transportation equipment(automobiles, ships, trains, etc.), provided, however, that operation is not influenced by TFT-LCD directly.
(2) Special Usage
Medical equipment, safety equipment, transportation equipment, provided, however, that TFT-LCD is necessary to its operation.
(3) Specific Usage
Cockpit Equipment, military systems, aerospace equipment, nuclear reactor control systems, life support systems and any other equipment. MITSUBISHI should make a contract that stipulate apportionment of responsibilities between MITSUBISHI and our customer.
The product specified in this document is designed for “Standard Usage” unless otherwise specified
in this document. If customers intend to use the product for applications other than those specified for “Standard Usage”, they should contact MITSUBISHI sales representative in advance.
MITSUBISHI has been making continuous effort to improve the reliability of its products. Customers should implement sufficient reliability design of their application equipments such as redundant system design, fail-safe functions, anti-failure features.
MITSUBISHI assumes no responsibility for any damage resulting from the use of the product that
does not comply with the instructions and the precautions specified in this document.
Please contact and consult a MITSUBISHI sales representative for any questions regarding this
product.
MITSUBISHI Confidential (3/21) AA121XH01_02_00
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Global LCD Panel Exchange Center
2. OVERVIEW
AA121XH01 is 12.1” color TFT-LCD (Thin Film Transistor Liquid Crystal Display) module composed of LCD panel, driver ICs, control circuit, and backlight unit.
By applying 6 bit digital data, 1024 × 768, 262 K-color images are displayed on the 12.1” diagonal screen. Input power voltage is single 3.3V for LCD driving. The type of data and control signals are digital and transmitted via LVDS interface per Typ. 65 MHz clock cycle.
Inverter for backlight is not included in this module. General specifications are summarized in the following table:
ITEM SPECIFICATION Display Area (mm) Number of Dots
www.panelook.com
245.76(H) × 184.32(V)
(12.106-inch diagonal)
1024 × 3 (H) × 768 (V) Pixel Pitch (mm) Color Pixel Arrangement RGB vertical stripe Display Mode Normally white TN Number of Color 262 K Brightness (cd/m2) 320 Wide Viewing Angle Technology Optical Compensation Film Viewing Angle (CR ≥ 10) Surface Treatment Antiglare and hard-coating 3H Electrical Interface LVDS Optimum Viewing Angle(Contrast ratio) 6 o’clock Module Size (mm) Module Mass (g) 720 Backlight Unit CCFL, 2-tubes, edge-light, replaceable
Characteristic value without any note is typical value.
0.240 (H) × 0.240 (V)
-65~65° (H) -75~45° (V)
280.0 (W) × 210.0 (H) × 12.0 (D)
MITSUBISHI Confidential (4/21) AA121XH01_02_00
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Global LCD Panel Exchange Center
3. ABSOLUTE MAXIMUM RATINGS
ITEM SYMBOL MIN. MAX UNIT Power Supply Voltage for LCD VCC 0 4.0 V Logic Input Voltage VI -0.3 VCC+0.3 V Lamp Voltage VL 0 2000 Vrms Lamp Current IL 0 18 mArms Lamp Frequency FL -- 80 kHz Operation Temperature(Panel) Operation Temperature(Ambient) Storage Temperature
[Note]
1) Measured at the center of active area and at the center of panel back surface
2) Top,Tstg 40°C : 90%RH max. without condensation Top,Tstg > 40°C : Absolute humidity shall be less than the value of 90%RH at 40°C without
Note 2)
T
condensation.
www.panelook.com
Note 1,2)
Note 2)
T
T
op(Panel)
op(Ambient)
stg
-20 70 °C
-20 70 °C
-20 80 °C
4. ELECTRICAL CHARACTERISTICS
(1) TFT-LCD Ambient temperature: Ta = 25••
ITEM SYMBOL MIN. TYP. MAX. UNIT Remarks
Power Supply Voltages for LCD VCC 3.0 3.3 3.6 V
Power Supply Currents for LCD ICC -- 470 820 mA Permissive input ripple Voltage VRP -- -- 100 mVp-p VCC=+3.3V
*1) Power and signals sequence:
10ms 400ms t4
t1
LCD Pow er Supply
Logic Signal
0 < t2 0 < t3
0.9VCC
0.1VCC
50ms 400ms t5 50ms 0 t6
VCC
data
0.9VCC
0.1VCC
0.1VCC
*1)
*2)
t2
t1
Backlight
Backlight Power Supply
t5 t6
data: RGB DATA, DCLK, HD, VD, DENA
t3
t4
MITSUBISHI Confidential (5/21) AA121XH01_02_00
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Global LCD Panel Exchange Center
VCC-dip conditions:
www.panelook.com
1) When 2.6 V
2) When VCC < 2.6 V VCC-dip conditions should also follow the power and signals sequence.
*2) Typical current condition:
64-gray-bar pattern 768 line mode
VCC = +3.3 V, , f
VCC < 3.0 V, td 10 ms
td
= 48.4 kHz, fV= 60 Hz, f
H
2.6 V
CLK
VCC
3.0 V
= 65 MHz
(2) Backlight Ta = 25••
ITEM
SYMBOL
MIN. TYP. MAX. UNIT Remarks
Lamp Voltage VL -- 540 -- Vrms IL = 12.0 mArms Lamp Current IL 6.0 12.0 13.4 mArms
••Lamp Frequency FL 30 -- 60 kHz
* 1),*5)
* 2)
1000 -- -- Ta = 25°C
Starting Lamp Voltage VS
1200 -- -- Ta = 0°C 1290 -- --
Lamp Life Time LT 50,000 -- -- h
Vrms
Ta = -20°C
*3),*4)
IL = 12.0 mArms,
Continuous operation
[Note]
*1) Lamp Current measurement method (The current meter is inserted in low voltage line.)
A
Inverter
Power
Supply
LCD
Module
CTL
CTH
CTH
MITSUBISHI Confidential (6/21) AA121XH01_02_00
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Global LCD Panel Exchange Center
*2) Lamp frequency of inverter may produce interference with horizontal synchronous frequency,
and this may cause horizontal beat on the display. Therefore, please adjust lamp frequency, and keep inverter as far from module as possible or use electronic shielding between inverter and module to avoid the interference.
*3) Lamp life time is defined as the time either when the brightness becomes 50% of the initial
value, or when the starting lamp voltage does not meet the value specified in this table.
*4) The life time of the backlight depends on the ambient temperature. The life time will decrease
under low/high temperature.
*5) Please use the inverter which has symmetrical current wave form as follows,
The degree of unbalance: less than 10% The ratio of wave height: less than
www.panelook.com
±10%
2
I
PH
I
PL
IPH: High side peak
: Low side peak
I
PL
Th e degree of unba lance = |IPH - IPL| / Irms
(or IPL) / Irms
The ratio of wave h eight =
I
PH
100(%)
×
CURRENT WAVE FORM
MITSUBISHI Confidential (7/21) AA121XH01_02_00
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Global LCD Panel Exchange Center
5. INTERFACE PIN CONNECTION
(1)CN 1(INTERFACE SIGNAL)
Used connector: FI-SE20P-HFE(JAE) Corresponding connector: FI-S20S[for discrete wire] , FI-SE20M[for SMT]
Pin No. Symbol Function
1 VCC +3.3V Power supply 2 VCC +3.3V Power supply 3 GND 4 GND 5 Link 0- R0, R1, R2, R3, R4, R5, G0 *) 6 Link 0+ R0, R1, R2, R3, R4, R5, G0 *) 7 GND 8 Link 1- G1, G2, G3, G4, G5, B0, B1 *)
9 Link 1+ G1, G2, G3, G4, G5, B0, B1 *) 10 GND 11 Link 2- B2, B3, B4, B5, HD, VD, DENA *) 12 Link 2+ B2, B3, B4, B5, HD, VD, DENA *) 13 GND 14 CLKIN- Clock­15 CLKIN+ Clock+ 16 GND 17 N.C. This pin should be open.
18 TEST
19 TEST 20 SC Low:Normal Scan , High:Reverse Scan
www.panelook.com
This pin should be open.
Test signal output for only internal test use.
This pin should be open. Test signal output for only internal test use.
*) The shielding case is connected with GND
(2)CN 2(BACKLIGHT)
Backlight-side connector: BHR-04VS-1 (JST) Inverter-side connector: SM04(4.0)B-BHS-1(JST)
Pin No. Symbol Function
1, 2 CTH VBLH (High voltage)
4 CTL VBLL (Low voltage)
[Note] VBLH – VBLL = VL
MITSUBISHI Confidential (8/21) AA121XH01_02_00
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Global LCD Panel Exchange Center
6. INTERFACE TIMING
LVDS transmitter input signal (1)Timing Specifications
ITEM SYMBOL MIN. TYP. MAX. UNIT
www.panelook.com
DCLK
Frequency f Period t
Horizontal Active Time t
Horizontal Front Porch t Horizontal Back Porch t
CLK
CLK
HA
HFP
HBP
43.6 65 66.6 MHz 15 15.4 22.9 ns
1024 1024 1024 t
0 24 -- t 4 296 -- t
CLK
CLK
CLK
DENA
Vertical Active Time t Vertical Front Porch t
Vertical Back Porch t
Frequency f
HD
Period t Low Width t Frequency f
VD••
Period t Low Width t
VA
VFP
VBP
H
H
WHL
V
V
WVL
768 768 768 t
2 3 -- t 1 35 -- t
H
H
H
42.4 48.4 60 kHz
16.6 20.7 23.6
1 136 -- t
μs
CLK
55 60 75 Hz
13.3 16.7 18.2 ms
1 6 -- t
H
••••
[Note]
1) Polarities of HD and VD are negative in this specification.
2) DENA (Data Enable) shall always be positive polarity as shown in the timing specification.
3) DCLK shall appear during all invalid period, and HD shall appear during invalid period of frame cycle.
4) LVDS timing follows the timing specifications of LVDS receiver IC: THC63LVDF84B(Thine).
MITSUBISHI Confidential (9/21) AA121XH01_02_00
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Global LCD Panel Exchange Center
V
(2) Timing Chart
a. Horizontal Timing Chart
DCLK
DATA
Invalid Data Invalid Data
(R,G,B)
www.panelook.com
First Data Last Data
12
1023
10243
t
HFP
DENA
t
HD
b. Vertical Timing Chart
HD
LINE DATA
Invalid Data Invalid Data
t
VFP
WHL
t
HBP
t
HA
tH=1/f
H
12 7677683
t
VBP
t
DENA
t
=1/f
t
WVL
D
MITSUBISHI Confidential (10/21) AA121XH01_02_00
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Global LCD Panel Exchange Center
(3) Color Data Assignment
COLOR
R5 R4 R3 R2 R1 R0 G5 G4 G3 G2 G1 G0 B5 B4 B3 B2 B1 B0
MSB LSB MSB LSB MSB LSB
BLACK 00 0 0 000000000 0 0 000 RED(63) 11 1 1 110000000 0 0 000 GREEN(63) 0 0 0 0 0 01111110 0 0 000
BASIC BLUE(63) 00 0 0 000000001 1 1 111
COLOR CYAN 00 0 0 001111111 1 1 111
MAGENTA 11 1 1 110000001 1 1 111 YELLOW 11 1 1 111111110 0 0 000 WHITE 11 1 1 111111111 1 1 111
www.panelook.com
INPUT DATA
R DATA G DATA B DATA
RED(1) 00 0 0 010000000 0 0 000 RED(2) 00 0 0 100000000 0 0 000
RED
RED(62) 11 1 1 100000000 0 0 000 RED(63) 11 1 1 110000000 0 0 000 GREEN(1) 0 0 0 0 0 00000010 0 0 000 GREEN(2) 0 0 0 0 0 00000100 0 0 000
GREEN
GREEN(62) 0 0 0 0 0 01111100 0 0 000 GREEN(63) 0 0 0 0 0 01111110 0 0 000 BLUE(1) 00 0 0 000000000 0 0 001 BLUE(2) 00 0 0 000000000 0 0 010
BLUE
BLUE(62) 00 0 0 000000001 1 1 110 BLUE(63) 00 0 0 000000001 1 1 111
[Note]
1) Definition of gray scale
Color (n) --- n indicates gray scale level. Higher n means brighter level.
2) Data
1:High, 0: Low
MITSUBISHI Confidential (11/21) AA121XH01_02_00
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Global LCD Panel Exchange Center
(4) Display Position and Scan Direction
D(X,Y) shows the data number of input signal for LCD panel signal processing PCB.
www.panelook.com
SC: Low
•••••••••••••••••••• •••••• SC: High
D(1,1) D(1024,1)
D(1,768)
D(1024,768)
CN2
D(1024,768) D(1,768)
CN2
D(1024,1) D(1,1)
MITSUBISHI Confidential (12/21) AA121XH01_02_00
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Global LCD Panel Exchange Center
S

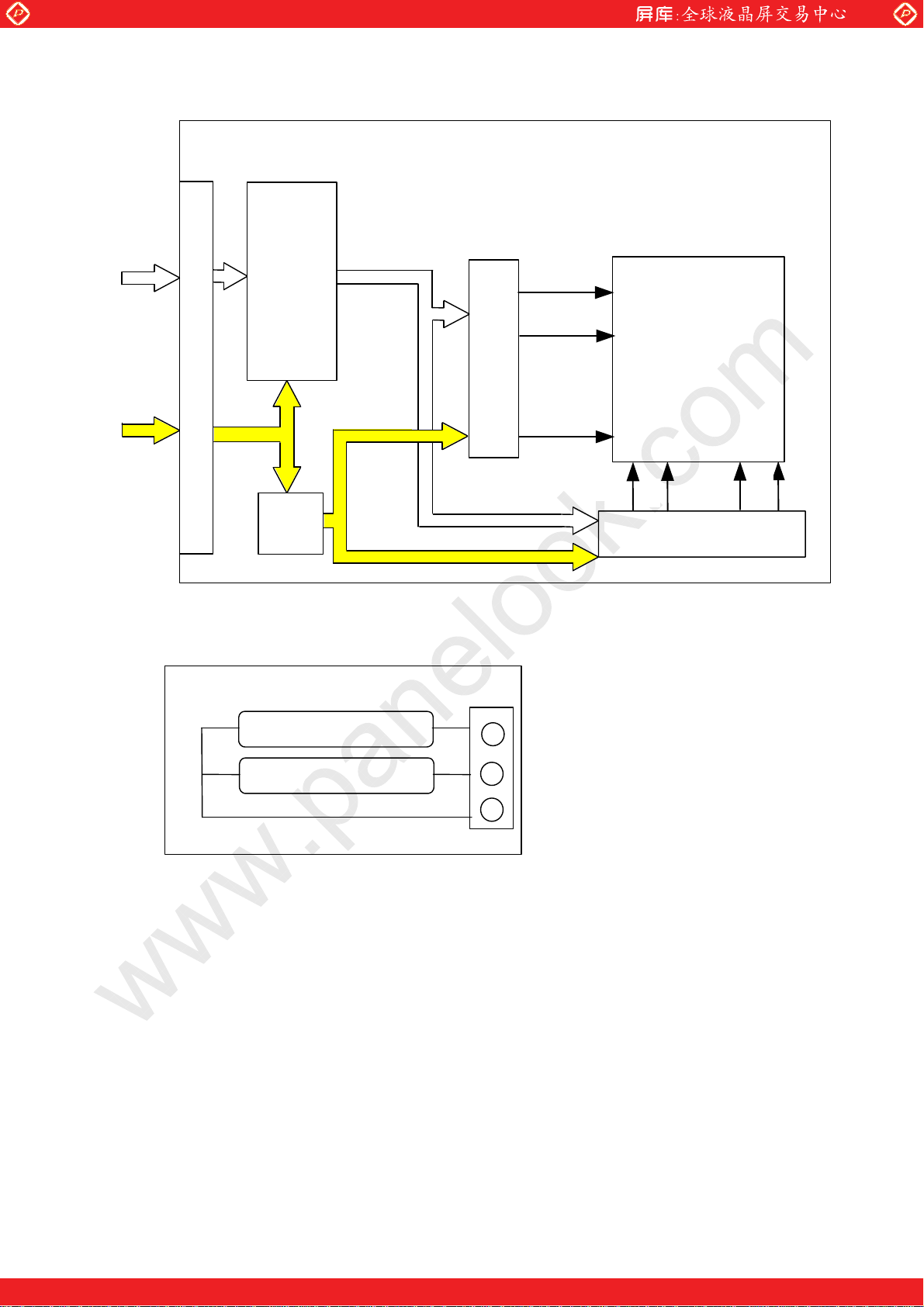

7. BLOCK DIAGRAM
Timing signal Display data
Timing
Converter
www.panelook.com
G1
G2
TFT-LCD
Power
I/F Connector
BACKLIGHT
Power
Supply
Circuit
CCFL
Drivers(gate)
CN2
1
2
4
G768
2
S1
Drivers(source)
S3071
S3072
MITSUBISHI Confidential (13/21) AA121XH01_02_00
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Global LCD Panel Exchange Center

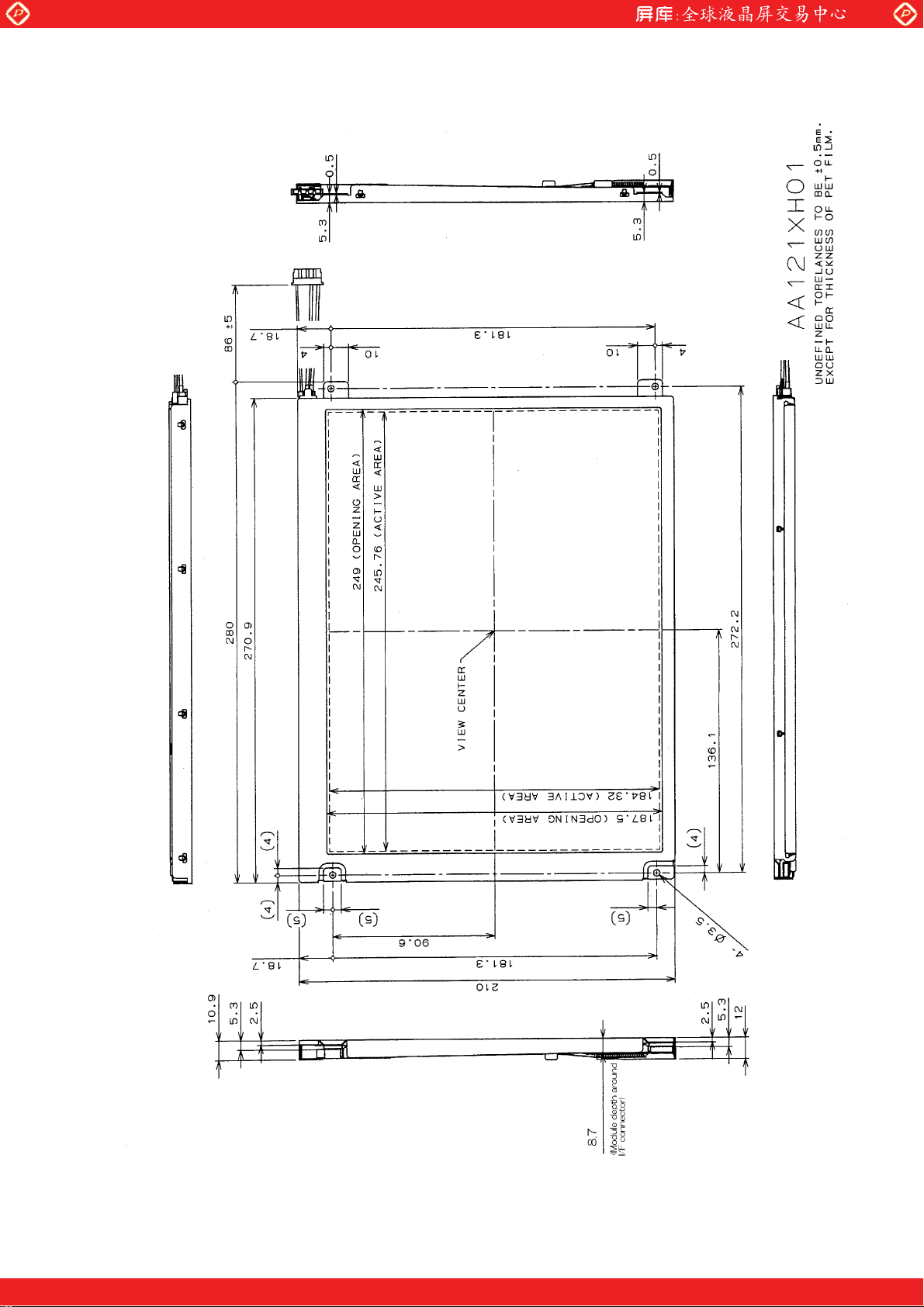

8. MECHANICAL SPECIFICATIONS
(1) Front Side
www.panelook.com
MITSUBISHI Confidential (14/21) AA121XH01_02_00
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
(Unit:mm)
www.panelook.com
Global LCD Panel Exchange Center
(2) Rear Side
www.panelook.com
[Note]
We recommend you referring to the detailed drawing for your design. Please contact our company sales representative when you need the detailed drawing.
MITSUBISHI Confidential (15/21) AA121XH01_02_00
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
(Unit:mm)
www.panelook.com
Global LCD Panel Exchange Center
9. OPTICAL CHARACTERISTICS
ITEM SYMBOL CONDITION MIN TYP MAX UNIT Remarks
www.panelook.com
Ta=25°C, VCC=3.3V, Input Signals: Typ. Values shown in Section 6
••Contrast Ratio CR
Luminance Lw Luminance Uniformity
••Response Time•• tr
••••
Horizontal
••Viewing
••Angle
Vertical Horizontal Vertical
ΔLw θ = φ = 0°
tf
φ -5050 -6565
θ
φ -6565 -8080
θ
θ = φ = 0°
θ = φ = 0°
θ = φ = 0°
θ = φ = 0°
CR 10
CR 5
350 550 -- -- *1)*2)*6) 250 320 -- cd/m2*1)*3)*6)
-- -- 30 % *1)*4)*6)
-- 6 -- ms *1)*5)*6)
-- 19 -- ms *1)*5)*6)
-- ° *1)*6)
-40
30 -7545
-- ° *1)*6)
-- ° *1)*6)
-65
40 -8055
-- ° *1)*6)
Image sticking tis 2 h -- -- 2 s *7)
Red Rx 0.553 0.583 0.613
Ry 0.303 0.333 0.363 Color Green Gx 0.300 0.330 0.360 Coordinates Gy
θ = φ = 0°
0.509 0.539 0.569 --
*1)*6)
Blue Bx 0.135 0.165 0.195
By 0.143 0.173 0.203
White Wx 0.292 0.322 0.352
Wy 0.308 0.338 0.368
[Note] These items are measured using CS1000(MINOLTA) for color coordinates, EZContrast(ELDIM) for viewing angle and CS1000 or BM-5A(TOPCON) for others under the dark room condition (no ambient light) after more than 30 minutes from turning on the lamp unless noted.
Condition: IL = 12.0 mArms, FL = 55 kHz
*1) Measurement Point
Contrast Ratio, Luminance, Response Time, Viewing Angle, Color Coordinates: Display Center
Luminance Uniformity: point 1
192
384
576
5 shown in a figure below
(1,1)
256 512 768
1
5
3
2
4
(1024,768)
*2) Definition of Contrast Ratio
CR=ON (White) Luminance / OFF(Black) Luminance
*3) Definition of Luminance
Lw= ON(White)Luminance
MITSUBISHI Confidential (16/21) AA121XH01_02_00
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Global LCD Panel Exchange Center
*4) Definition of Luminance Uniformity
ΔLw=[Lw(MAX)/Lw(MIN)-1] × 100
*5) Definition of Response Time
Luminance
www.panelook.com
White
90%90%
*6) Definition of Viewing Angle(
θ , φ)
10%10% Black
tr
tf
*7) Image sticking:
Continuously display the test pattern shown in the figure below for two-hours. Then display a completely white screen. The previous image shall not persist more than two seconds at 25°C.
Cols 510-514
White
Area
Rows 382-386
Black Lines
TEST PATTERN FOR IMAGE STICKING TEST
MITSUBISHI Confidential (17/21) AA121XH01_02_00
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Global LCD Panel Exchange Center
• •
• •
www.panelook.com
10. RELIABILITY TEST CONDITION
(1) Temperature and Humidity
TEST ITEM CONDITIONS
HIGH TEMPERATURE
HIGH HUMIDITY OPERATION
HIGH TEMPERATURE OPERATION 70°C, 240 h
LOW TEMPERATURE OPERATION
HIGH TEMPERATURE STORAGE 80°C, 240 h
LOW TEMPERATURE STORAGE –20°C, 240 h
THERMAL SHOCK••
(2) Shock & Vibration
ITEM CONDITIONS
40°C, 90%RH, 240••h
(No condensation)
20°C, 240 h
BETWEEN –20°C (1h) and 80°C(1h),
100 CYCLES
Shock level: 1470m/s2(150G)
SHOCK Waveform: half sinusoidal wave, 2ms
(NON-OPERATION) Number of shocks: one shock input in each direction of three mutually
perpendicular axes for a total of six shock inputs Vibration level: 9.8m/s2 (1.0G)
Waveform: sinusoidal
VIBRATION Frequency range: 5 to 500Hz
(NON-OPERATION) Frequency sweep rate: 0.5 octave /min
Duration: one sweep from 5 to 500 Hz in each of three mutually
perpendicular axis(each x,y,z axis: 1 hour, total 3 hours)
(3) Judgment standard
The judgment of the above tests should be made as follow:
Pass: Normal display image, no damage of the display function. (ex. no line defect)
Partial transformation of the module parts should be ignored.
Fail: No display image, damage of the display function. (ex. line defect)
MITSUBISHI Confidential (18/21) AA121XH01_02_00
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Global LCD Panel Exchange Center
• •
www.panelook.com
11. HANDLING PRECAUTIONS FOR TFT-LCD MODULE
Please pay attention to the followings in handling TFT-LCD products;
(1) ASSEMBLY PRECAUTION
a. Please use the mounting hole on the module in installing and do not bending or wrenching
LCD in assembling. And please do not drop, bend or twist LCD module in handling.
b. Please design display housing in accordance with the following guide lines.
(a) Housing case must be designed carefully so as not to put stresses on LCD all sides and not
to wrench module. The stresses may cause non-uniformity even if there is no non-uniformity statically.
(b) Keep sufficient clearance between LCD module back surface and housing when the LCD
module is mounted. Approximately 1.0mm of the clearance in the design is recommended taking into account the tolerance of LCD module thickness and mounting structure height on the housing.
(c) When some parts, such as, FPC cable and ferrite plate, are installed underneath the LCD
module, still sufficient clearance is required, such as 0.5mm. This clearance is, especially, to be reconsidered when the additional parts are implemented for EMI countermeasure.
(d) Design the inverter location and connector position carefully so as not to give stress to lamp
cable, or not to interface the LCD module by the lamp cable.
(e) Keep sufficient clearance between LCD module and the others parts, such as inverter and
speaker so as not to interface the LCD module. Approximately 1.0mm of the clearance in the design is recommended.
(f) To avoid local elevation/decrease of temperature, considering location of heating element,
heat release, thermal design should be done.
c. Please do not push or scratch LCD panel surface with anything hard. And do not soil LCD
panel surface by touching with bare hands. (Polarizer film, surface of LCD panel is easy to be flawed.)
d. Please do not press any parts on the rear side such as source TCP, gate TCP, control circuit
board and FPCs during handling LCD module. If pressing rear part is unavoidable, handle the
LCD module with care not to damage them. e. Please wipe off LCD panel surface with absorbent cotton or soft cloth in case of it being soiled. f. Please wipe off drops of adhesives like saliva and water on LCD panel surface immediately.
They might damage to cause panel surface variation and color change. g. Please do not take a LCD module to pieces and reconstruct it. Resolving and reconstructing
modules may cause them not to work well. h. Please do not touch metal frames with bare hands and soiled gloves. A color change of the
metal frames can happen during a long preservation of soiled LCD modules.
MITSUBISHI Confidential (19/21) AA121XH01_02_00
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Global LCD Panel Exchange Center
i. Please handle metal frame carefully because edge of metal frame is very sharp. j. Please pay attention to handling lead wire of backlight so that it is not tugged in connecting
with inverter. k. Please connect the metal frame of LCD module to GND in order to minimize the effect of
external noise and EMI. l. Be sure to connect the cables and the connecters correctly.
(2) OPERATING PRECAUTIONS
a. Please be sure to turn off the power supply before connecting and disconnecting signal input
cable. b. Please do not change variable resistance settings in LCD module. They are adjusted to the
most suitable value. If they are changed, it might happen LCD does not satisfy the
www.panelook.com
characteristics specification. c. LCD backlight takes longer time to become stable of radiation characteristics in low
temperature than in room temperature. d. The interface signal speed is very high. Please pay attention to transmission line design and
other high speed signal precautions to satisfy signal specification. e. A condensation might happen on the surface and inside of LCD module in case of sudden
change of ambient temperature. f. Please pay attention not to display the same pattern for very long time. Image might stick on
LCD. Even if image sticking happens, it may disappear as the operation time proceeds. g. Please obey the same safe instructions as ones being prepared for ordinary electronic products.
(3) PRECAUTIONS WITH ELECTROSTATICS
a. This LCD module use CMOS-IC on circuit board and TFT-LCD panel, and so it is easy to be
affected by electrostatics. Please be careful with electrostatics by the way of your body
connecting to the ground and so on. b. Please remove protection film very slowly from the surface of LCD module to prevent from
electrostatics occurrence.
(4) STORAGE PRECAUTIONS
a. Please do not leave the LCDs in the environment of high humidity and high temperature such
as 60°C90%RH. b. Please do not leave the LCDs in the environment of low temperature; below –20°C.
MITSUBISHI Confidential (20/21) AA121XH01_02_00
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Global LCD Panel Exchange Center
(5) SAFETY PRECAUTIONS
a. When you waste damaged or unnecessary LCDs, it is recommended to crush LCDs into pieces
and wash them off with solvents such as acetone and ethanol, which should later be burned. b. If any liquid leaks out of a damaged glass cell and comes in contact with the hands, wash off
thoroughly with soap and water. c. Be sure to turn off the power supply when inserting or disconnecting the cable. d. Inverter should be designed carefully so as not to keep working in case of detecting over
current or open circuit on the lamp.
(6) OTHERS
a. A strong incident light into LCD panel might cause display characteristics changing inferior
because of polarizer film, color filter, and other materials becoming inferior. Please do not
www.panelook.com
expose LCD module direct sunlight and strong UV rays. b. Please pay attention to a panel side of LCD module not to contact with other materials in
preserving it alone. c. For the packaging box, please pay attention to the followings;
(a) Packaging box and inner case for LCD are designed to protect the LCDs from the damage
or scratching during transportation. Please do not open except picking LCDs up from the box.
(b) Please do not pile them up more than 5 boxes. (They are not designed so.) And please do not
turn over.
(c) Please handle packaging box with care not to give them sudden shock and vibrations. And
also please do not throw them up.
(d) Packaging box and inner case for LCDs are made of cardboard. So please pay attention not
to get them wet. (Such like keeping them in high humidity or wet place can occur getting them wet.)
MITSUBISHI Confidential (21/21) AA121XH01_02_00
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Loading...
