Melco Display Technology, Inc.

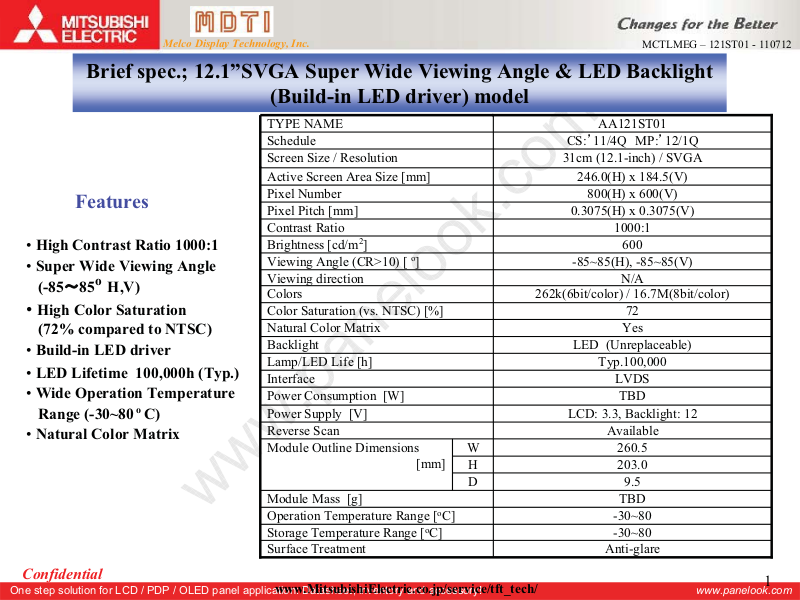

Brief spec.; 12.1”SVGA Super Wide Viewing Angle & LED Backlight

Features

• High Contrast Ratio 1000:1

• Super Wide Viewing Angle

o

(-85

• High Color Saturation

(72% compared to NTSC)

• Build-in LED driver

• LED Lifetime 100,000h (Typ.)

• Wide Operation Temperature

Range (-30~80

• Natural Color Matrix

85

H,V)

o

C)

MCTLMEG – 121ST01 - 110712

(Build-in LED driver) model

TYPE NAME AA121ST01
Schedule CS:㵭11/4Q MP:㵭12/1Q
Screen Size / Resolution 31cm (12.1-inch) / SVGA

Active Screen Area Size [mm] 246.0(H) x 184.5(V)
Pixel Number 800(H) x 600(V)
Pixel Pitch [mm] 0.3075(H) x 0.3075(V)
Contrast Ratio 1000:1
Brightness [cd/m
Viewing Angle (CR>10) [ o] -85~85(H), -85~85(V)
Viewing direction N/A

Colors 262k(6bit/color) / 16.7M(8bit/color)
Color Saturation (vs. NTSC) [%] 72
Natural Color Matrix Yes
Backlight LED (Unreplaceable)
Lamp/LED Life [h] Typ.100,000
Interface LVDS
Power Consumption [W] TBD
Power Supply [V] LCD: 3.3, Backlight: 12
Reverse Scan Available
Module Outline Dimensions

Module Mass [g] TBD
Operation Temperature Range [
Storage Temperature Range [oC] -30~80
Surface Treatment Anti-glare

2

] 600

W 260.5

[mm]

H 203.0
D 9.5

o

C] -30~80
