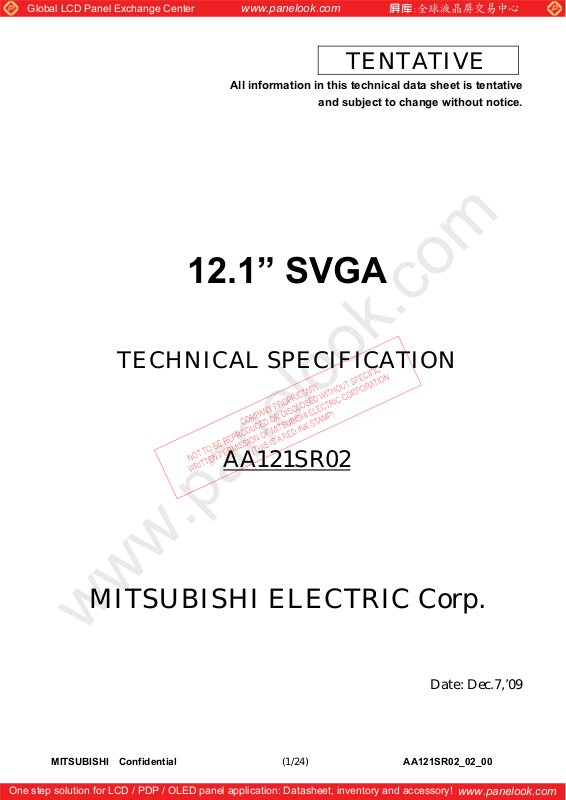

Mitsubishi AA121SR02 Specification

Global LCD Panel Exchange Center

12.1” SVGA

www.panelook.com

TENTATIVE

All information in this technical data sheet is tentative

and subject to change without notice.

TECHNICAL SPECIFICATION

AA121SR02

MITSUBISHI ELECTRIC Corp.

Date: Dec.7,’09

MITSUBISHI Confidential

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

(1/24)

AA121SR02_02_00

www.panelook.com

Global LCD Panel Exchange Center

CONTENTS





www.panelook.com

No.

-- COVER 1

-- CONTENTS 2
1 APPLICATION 3
2 OVERVIEW 4
3 ABSOLUTE MAXIMUM RATINGS 5
4 ELECTRICAL CHARACTERISTICS 5, 6, 7
5 INTERFACE PIN CONNECTION 8, 9
6 INTERFACE TIMING 10, 11, 12, 13
7 BLOCK DIAGRAM 14

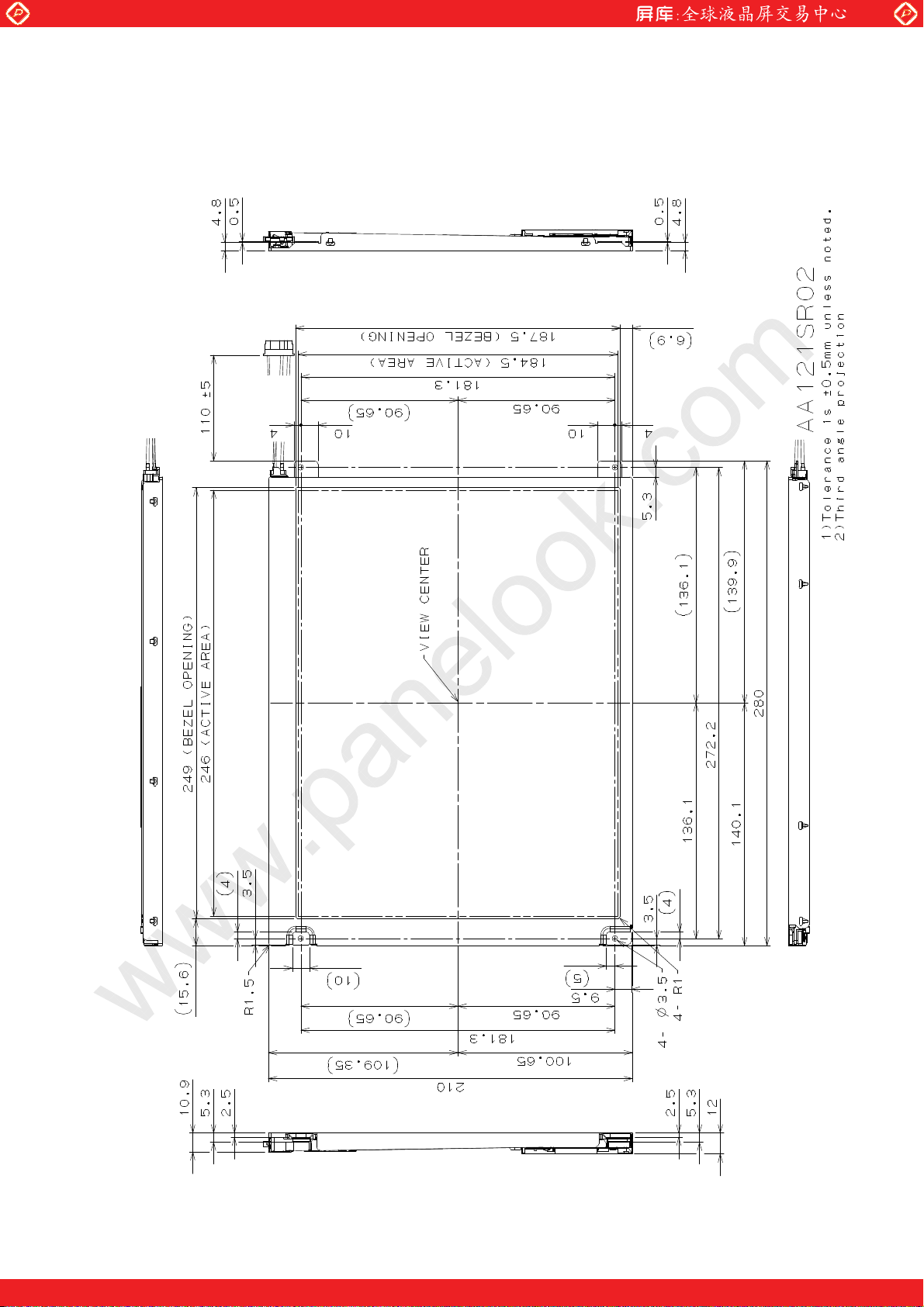

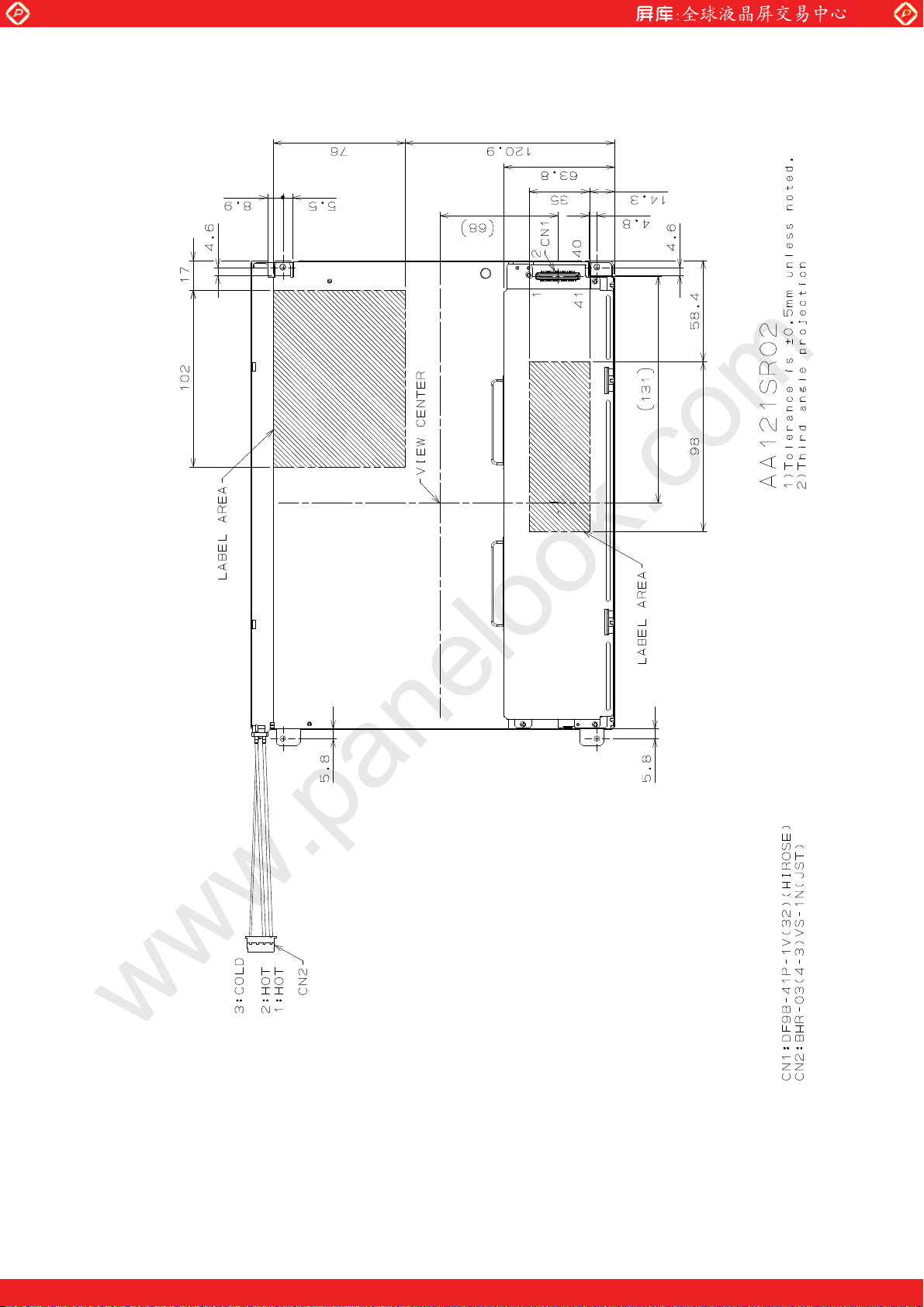

8 MECHANICAL SPECIFICATION 15, 16

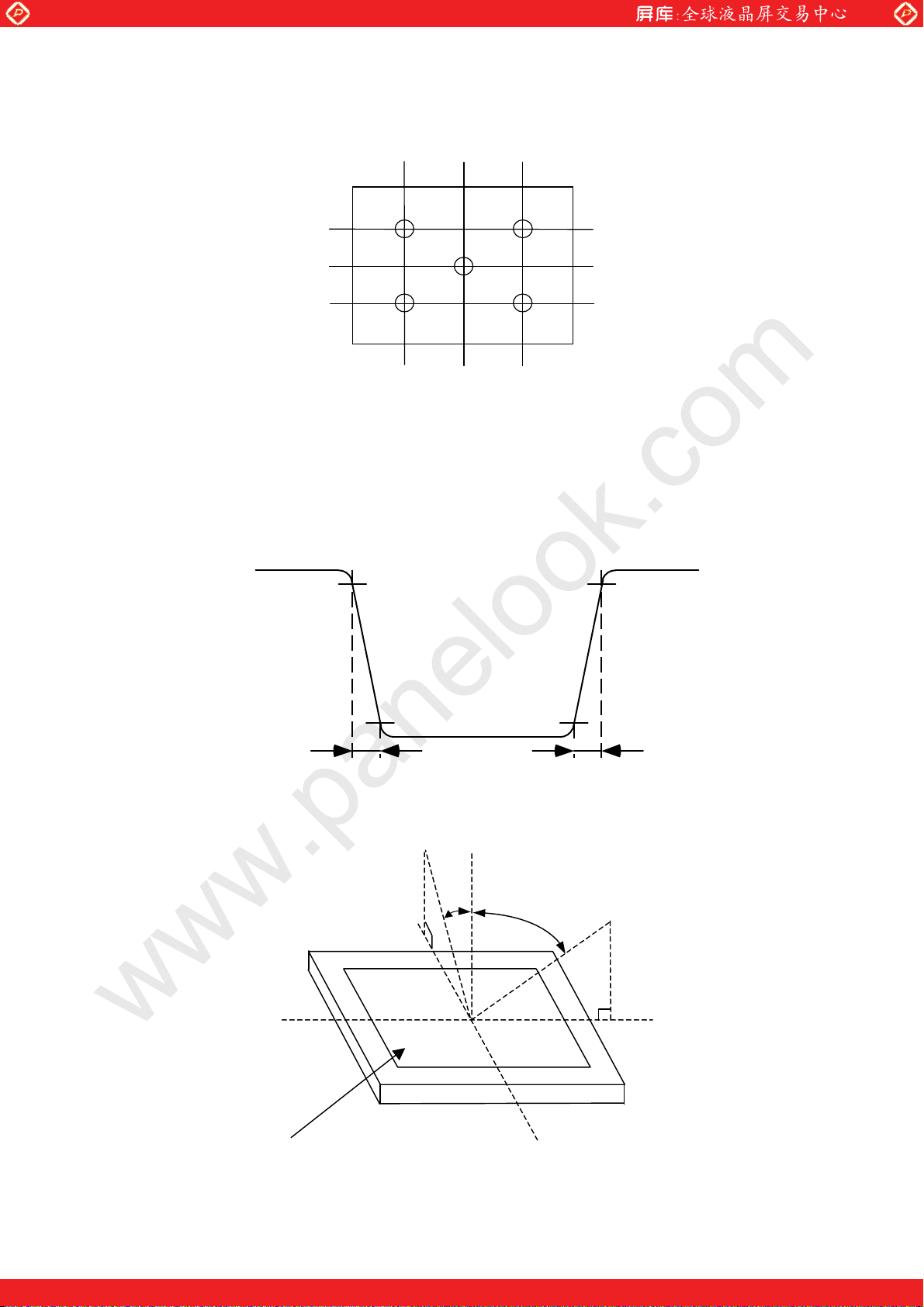

9 OPTICAL CHARACTERISTICS 17, 18, 19

Item Page

10 RELIABILITY TEST CONDITION 20
11 OTHER FEATURE 21
12 HANDLING PRECAUTIONS FOR TFT-LCD MODULE 22, 23, 24

MITSUBISHI Confidential

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

(2/24)

AA121SR02_02_00

www.panelook.com

Global LCD Panel Exchange Center



1. APPLICATION

This specification applies to color TFT-LCD module, AA121SR02.

These specification papers are the proprietary product of Mitsubishi Electric Corporation
(“MITSUBISHI) and include materials protected under copyright of MITSUBISHI. No part of this
document may be reproduced in any form or by any means without the express written permission
of MITSUBISHI.

MITSUBISHI does not assume any liability for infringement of patents, copyrights or other
intellectual property rights of third parties by or arising from use of a product specified in this
document. No license, express, implied or otherwise, is granted under any patents, copyrights or
other intellectual property rights of MITSUBISHI or of others.

MITSUBISHI classifies the usage of the TFT-LCD module as follows. Please confirm the usage
before using the product.

(1) Standard Usage

Computers, office equipment, factory automation equipment, test and measurement
equipment, communications, transportation equipment(automobiles, ships, trains, etc.),
provided, however, that operation is not influenced by TFT-LCD directly.

(2) Special Usage

Medical equipment, safety equipment, transportation equipment, provided, however, that
TFT-LCD is necessary to its operation.

(3) Specific Usage

Cockpit Equipment, military systems, aerospace equipment, nuclear reactor control
systems, life support systems and any other equipment. MITSUBISHI should make a
contract that stipulate apportionment of responsibilities between MITSUBISHI and our
customer.

www.panelook.com

The product specified in this document is designed for “Standard Usage” unless otherwise specified
in this document. If customers intend to use the product for applications other than those specified
for “Standard Usage”, they should first contact MITSUBISHI sales representative for it's intended
use in writing.

MITSUBISHI has been making continuous effort to improve the reliability of its products.
Customers should implement sufficient reliability design of their application equipments such as
redundant system design, fail-safe functions, anti-failure features.

MITSUBISHI assumes no responsibility for any damage resulting from the use of the product that
does not comply with the instructions and the precautions specified in this document.

Please contact and consult a MITSUBISHI sales representative for any questions regarding this
product.

MITSUBISHI Confidential

(3/24)

AA121SR02_02_00

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

2. OVERVIEW

AA121SR02 is 12.1” color TFT-LCD (Thin Film Transistor Liquid Crystal Display) module
composed of LCD panel, driver ICs, control circuit, and backlight unit.

By applying 6 bit digital data, 800u 600, 262k-color images are displayed on the 12.1” diagonal
screen. Input power voltage is 3.3 V for LCD driving.
The type of data and control signals are digital and transmitted via CMOS interface per Typ.
40MHz clock cycle.

Inverter for backlight is not included in this module. General specifications are summarized in the
following table:

ITEM SPECIFICATION
Display Area (mm)
Number of Dots

www.panelook.com

246.0(H) u 184.5(V)

(12.106-inch diagonal)

800 u3 (H) u 600 (V)
Pixel Pitch (mm)
Color Pixel Arrangement RGB vertical stripe
Display Mode Normally white TN
Number of Color 262k
Luminance (cd/m2) 450
Wide Viewing Angle Technology Optical Compensation Film
Viewing Angle (CR t10) 80~80° (H), 55~75° (V)
Surface Treatment Anti-reflection and hard-coating 2H
Electrical Interface CMOS
Optimum Viewing Angle(Contrast ratio) 6 o’clock
Module Size (mm)
Module Mass (g) 770
Backlight Unit CCFL, 2-tubes, edge-light, replaceable

Characteristic value without any note is typical value.

0.3075 (H) u 0.3075 (V)

280.0 (W) u 210.0 (H) u 12.0 (D)

MITSUBISHI Confidential

(4/24)

AA121SR02_02_00

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

3. ABSOLUTE MAXIMUM RATINGS

ITEM SYMBOL MIN. MAX UNIT

www.panelook.com

Power Supply Voltage for LCD VCC
Logic Input Voltage VI

0.3
0.3

4.0 V

6.0 V
Lamp Voltage VL 0 2000 Vrms
Lamp Current IL 0 18 mArms
Lamp Frequency FL -- 100 kHz

Operation Temperature (Panel)
Operation Temperature (Ambient)

Storage Temperature

Note 1,2)

Note 2)

T

Note 2)

T

T

op(Panel)

op(Ambient)

stg

30
30
30

80 °C
80 °C
80 °C

[Note]

1) Measured at the center of active area and at the center of panel back surface

2) Top,Tstgd 40qC : 90%RH max. without condensation
Top,Tstg > 40qC : Absolute humidity shall be less than the value of 90%RH at 40qC without

condensation.

4. ELECTRICAL CHARACTERISTICS

(1) TFT-LCD

Ambient temperature: Ta = 25°C

ITEM SYMBOL MIN. TYP. MAX. UNIT Remarks

Power Supply Voltages for LCD VCC 3.0 3.3 3.6 V *1)
Power Supply Currents for LCD ICC -- 340 500 mA *2)
Permissive Input Ripple Voltage VRP -- -- 100 mVp-p VCC = +3.3V

High VIH 2.0 -- 5.5 V

Logic Input Voltage

Low VIL 0 -- 0.8 V

*1) Power and signals sequence:

t1 d10ms 200 ms d t4
0 < t2 d 50 ms 200 ms d t5
0 < t3 d 50 ms 0 d t6

VCC

LCD Power Supply

Logic Signal

0.9VCC

0.1VCC

t1

t2

data

t3

0.9VCC

0.1VCC

t4

0.1VCC

Backlight Power Supply

t5 t6

data: RGB DATA, DCLK, DENA, SC

MITSUBISHI Confidential

(5/24)

AA121SR02_02_00

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

VCC-dip conditions:

1) When 2.4 V

d VCC < 3.0 V, td d 10 ms

2) When VCC < 2.4 V
VCC-dip conditions should also follow the power and signals sequence.

www.panelook.com

VCC

3.0 V

2.4 V

td

*2) VCC = +3.3 V , f

=37.9 kHz, fV=60 Hz, f

H

= 40 MHz

CLK

Display image at typical power supply current value is 64-gray-bar pattern (6 bit), 600 line mode.

*3) Fuse

Parameter Fuse Type Name Supplier Remark

VCC FCC16162AB Kamaya Electric Co., Ltd. *)

*) The power supply capacity should be designed to be more than the fusing current.

(2) Backlight
Ta = 25°C

ITEM

SYMBOL

MIN. TYP. MAX. UNIT Remarks

Lamp Voltage VL -- 540 -- Vrms IL = 12.0 mArms
Lamp Current IL 6.0 12.0 14.0 mArms *2), *6)

Lamp Frequency FL 30 -- 70 kHz *3)

1000 -- -- Ta = 25°C

Starting Lamp Voltage VS

1200 -- -- Ta = 0°C
1320 -- --

Lamp Life Time LT 50,000 -- -- h

Vrms

Ta = 30°C

*4), *5) IL = 12.0mArms,

Continuous operation

[Note]
*1) Please use synchronous inverter.

*2) Lamp Current measurement method (The current meter is inserted in low voltage line.)

A

Inverter

Power

Supply

LCD

Module

CTL

CTH

CTH

*3) Lamp frequency of inverter may produce interference with horizontal synchronous frequency, and

this may cause horizontal beat on the display. Therefore, please adjust lamp frequency, and
keep inverter as far from module as possible or use electronic shielding between inverter and
module to avoid the interference.

*4) Lamp life time is defined as the time either when the brightness becomes 50% of the initial value,

or when the starting lamp voltage does not meet the value specified in this table.

MITSUBISHI Confidential

(6/24)

AA121SR02_02_00

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

*5) The life time of the backlight depends on the ambient temperature. The life time will decrease

under low/high temperature.

*6) Please use the inverter which has symmetrical current wave form as follows,

The degree of unbalance: less than 10%

www.panelook.com

The ratio of wave height: less than

I

PH

I

PL

CURRENT WAVE FORM

±10%

2

IPH: High side peak

I

: Low side peak

PL

The degree of unbalance = |IPH - IPL| / Irms

(or IPL) / Irms

The ratio of w ave height =

I

PH

100(%)

u

MITSUBISHI Confidential

(7/24)

AA121SR02_02_00

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

5. INTERFACE PIN CONNECTION

(1) CN 1(INTERFACE SIGNAL)

Used connector: DF9B-41P-1V(32) (Hirose)
Corresponding connector: DF9B-41S-1V (Hirose)

Pin No. Symbol Function

1 GND Signal ground
2 DCLK Clock signal for sampling catch data signal
3 GND Signal ground
4 HD Horizontal sync signal *1
5 VD Vertical sync signal *1
6 GND Signal ground
7 GND Signal ground
8 GND Signal ground

9 R0 RED data signal(LSB)
10 R1 RED data signal
11 R2 RED data signal
12 GND Signal ground
13 R3 RED data signal
14 R4 RED data signal
15 R5 RED data signal(MSB)
16 GND Signal ground
17 GND Signal ground
18 GND Signal ground
19 G0 GREEN data signal(LSB)
20 G1 GREEN data signal
21 G2 GREEN data signal
22 GND Signal ground
23 G3 GREEN data signal
24 G4 GREEN data signal
25 G5 GREEN data signal(MSB)
26 GND Signal ground
27 GND Signal ground
28 GND Signal ground
29 B0 BLUE data signal (LSB)
30 B1 BLUE data signal
31 B2 BLUE data signal
32 GND Signal ground
33 B3 BLUE data signal
34 B4 BLUE data signal
35 B5 BLUE data signal(MSB)
36 GND Signal ground
37 DENA Data enable signal(to settle the viewing area)
38 GND Signal ground
39 VCC +3.3 V Power supply
40 VCC +3.3 V Power supply
41

*1 HD and VD are not being used for timing control.

*2) Metal frame is connected to signal GND.

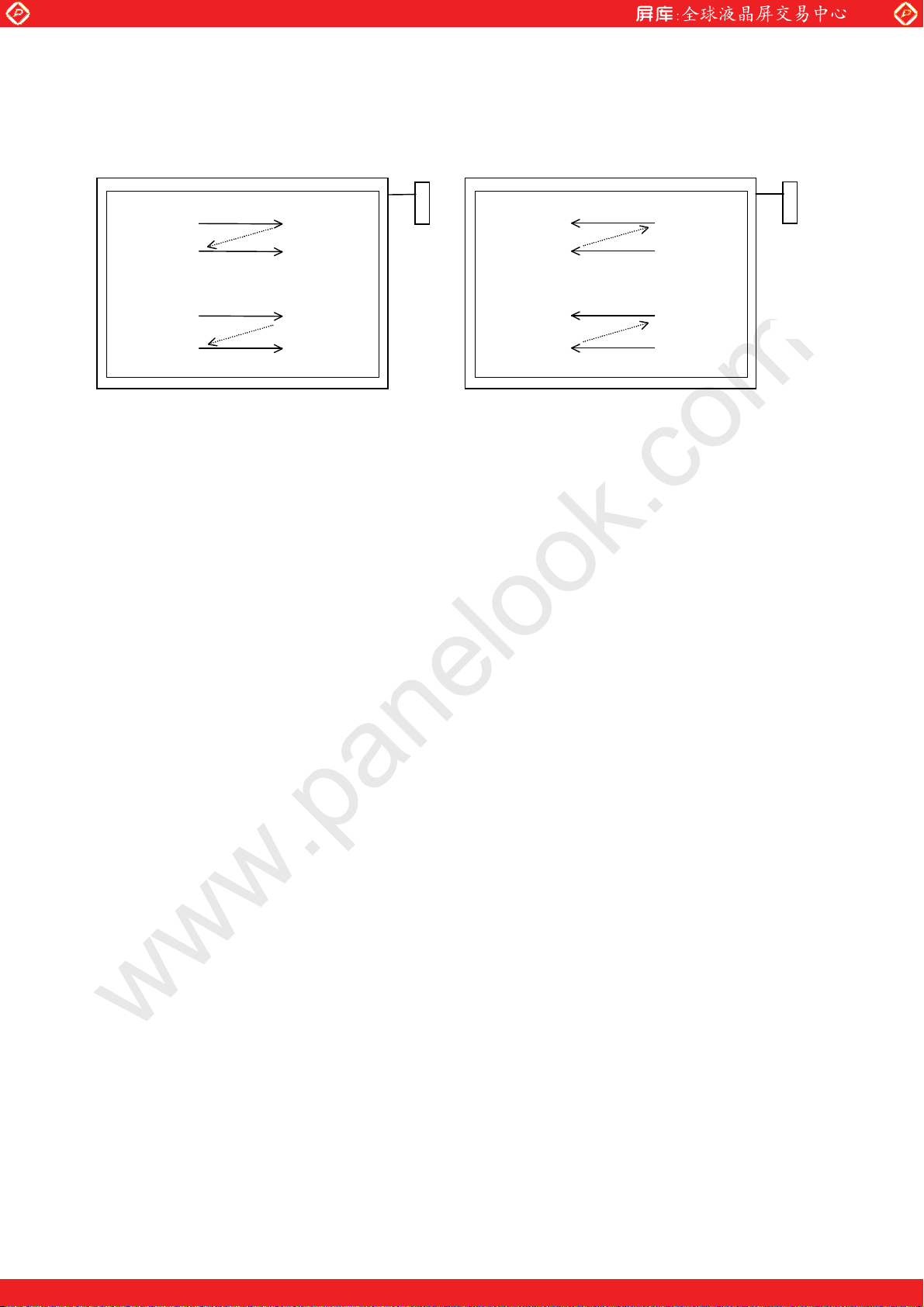

SC Scan direction control.(Low:Normal, High:Reverse)

www.panelook.com

MITSUBISHI Confidential

(8/24)

AA121SR02_02_00

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

(2) CN 2(Backlight)

www.panelook.com

Backlight-side connector: BHR-03
Inverter-side connector: SM04(4.0)B-BHS(LF)(SN) (JST)

Pin No. Symbol Function

1, 2 CTH VBLH (High voltage)

3 CTL VBLL (Low voltage)

>Note@VBLH - VBLL = VL

4-3VS-1N (JST)

MITSUBISHI Confidential

(9/24)

AA121SR02_02_00

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

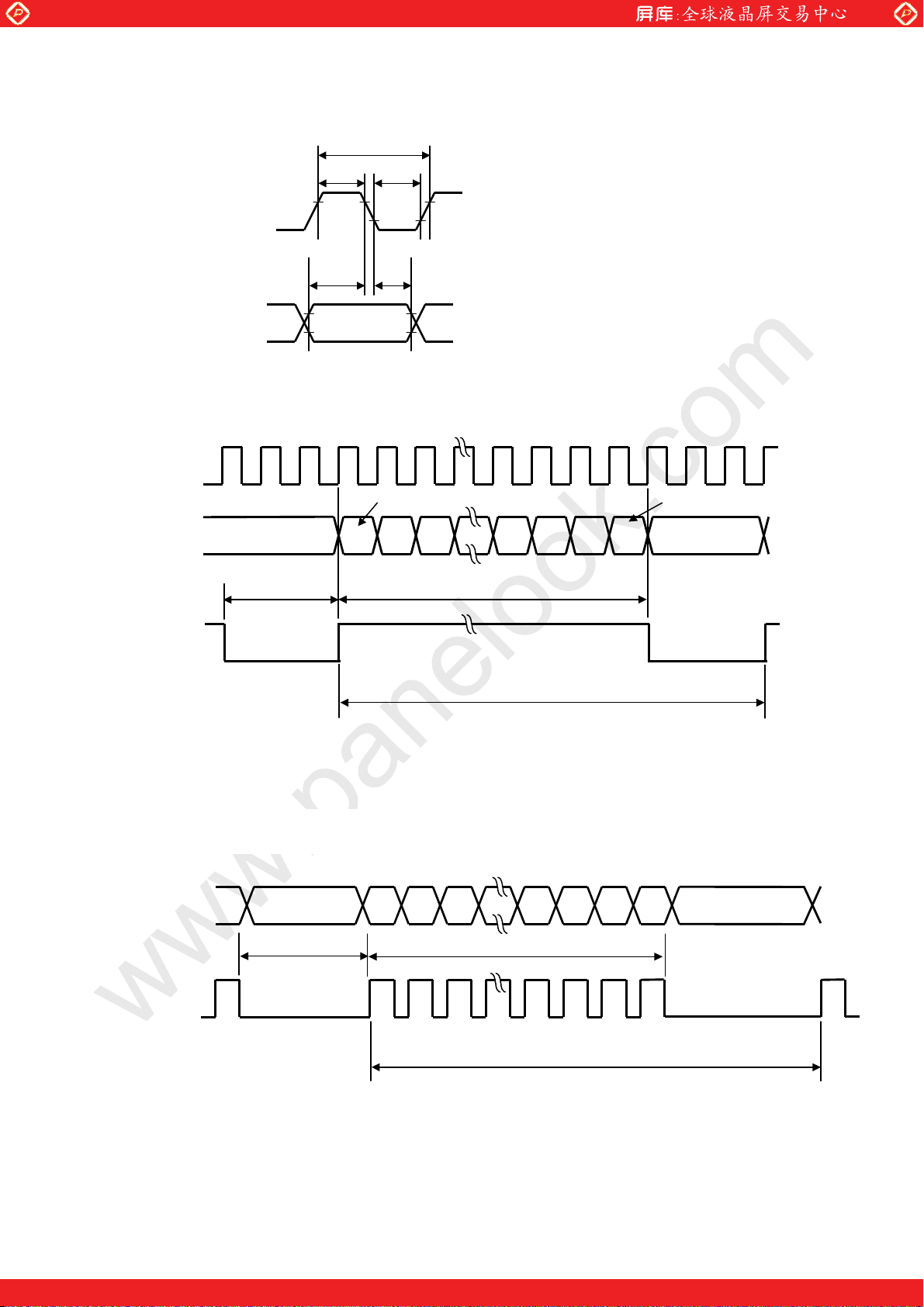

6. INTERFACE TIMING

(1) Timing Specifications

ITEM SYMBOL MIN. TYP. MAX. UNIT

www.panelook.com

DCLK

DATA(R,G,B),

DENA

DENA

Frequency f
Period t
Low Width t
High Width t

Set up time t
Hold time t

Active Time
Blanking Time t

Horizontal

Frequency f
Period t
Active Time
Blanking Time t

CLK

CLK

WCL

WCH

DS

DH

t

HA

HB

H

H

t

VA

VB

35 40 42 MHz

23.8 25 28.6 ns
10 -- -- ns
10 -- -- ns

4 -- -- ns
4 -- -- ns

800 800 800 t

20 256 -- t

35.2 37.9 39.2 kHz

25.5 26.4 28.4

600 600 600 t

4 28 -- t

Vertical

Frequency f
Period t

V

V

55 60 64.2 Hz

15.6 16.7 18.2 ms

[Note]

1) DATA is latched at fall edge of DCLK in this specification.

2) DENA (Data Enable) should always be positive polarity as shown in the timing specification.

3) DCLK should appear during all invalid period.

4) In case of blanking time fluctuation, please satisfy following condition.
t

VBn

> t

VBn-1

 3(t

)

H

CLK

CLK

Ps

H

H

MITSUBISHI Confidential

(10/24)

AA121SR02_02_00

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

V

V

V

V

V

V

(2) Timing Chart

www.panelook.com

a. Pixel Timing Chart

DCLK

DATA(R,G,B),
DENA

b. Horizontal Timi ng Chart

DCLK

DATA
(R,G,B)

t

CLK

t

t

t

WCH

D

Ｓ

WCL

2.0

0.8

t

D

Ｈ

2.0

0.8

First Data Last Data

1 2 799 800 3Invalid Data Invalid Data

t

HB

DENA

c. Vertical Timing Chart

LINE DATA

DENA

t

HA

tH=1/f

H

1 2 599 600 3Invalid Data Invalid Data

t

VB

t

A

tV=1/f

MITSUBISHI Confidential

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

(11/24)

AA121SR02_02_00

www.panelook.com

Global LCD Panel Exchange Center

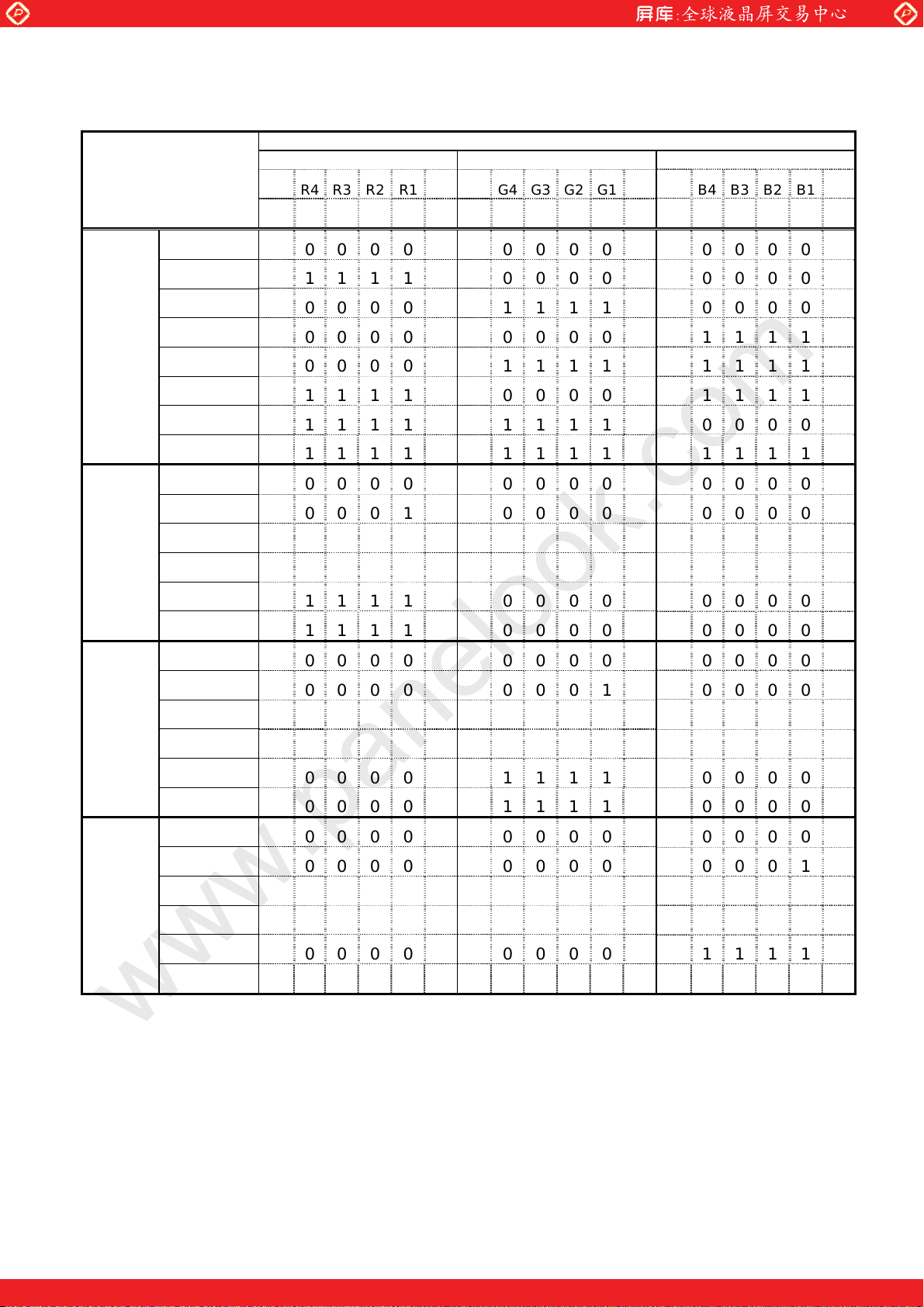

(3) Color Data Assignment

COLOR

R5 R4 R3 R2 R1 R0 G5 G4 G3 G2 G1 G0 B5 B4 B3 B2 B1 B0

MSB LSB MSB LSB MSB LSB

BLACK 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0
RED(63) 1 1 1 1 1 1 0 0 0 0 0 0 0 0 0 0 0 0
GREEN(63) 0 0 0 0 0 0 1 1 1 1 1 1 0 0 0 0 0 0

BASIC BLUE(63) 0 0 0 0 0 0 0 0 0 0 0 0 1 1 1 1 1 1

COLOR CYAN 0 0 0 0 0 0 1 1 1 1 1 1 1 1 1 1 1 1

MAGENTA 1 1 1 1 1 1 0 0 0 0 0 0 1 1 1 1 1 1
YELLOW 1 1 1 1 1 1 1 1 1 1 1 1 0 0 0 0 0 0
WHITE 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1

www.panelook.com

INPUT DATA

R DATA G DATA B DATA

RED(1) 0 0 0 0 0 1 0 0 0 0 0 0 0 0 0 0 0 0
RED(2) 0 0 0 0 1 0 0 0 0 0 0 0 0 0 0 0 0 0

RED

RED(62) 1 1 1 1 1 0 0 0 0 0 0 0 0 0 0 0 0 0
RED(63) 1 1 1 1 1 1 0 0 0 0 0 0 0 0 0 0 0 0
GREEN(1) 0 0 0 0 0 0 0 0 0 0 0 1 0 0 0 0 0 0
GREEN(2) 0 0 0 0 0 0 0 0 0 0 1 0 0 0 0 0 0 0

GREEN

GREEN(62) 0 0 0 0 0 0 1 1 1 1 1 0 0 0 0 0 0 0
GREEN(63) 0 0 0 0 0 0 1 1 1 1 1 1 0 0 0 0 0 0
BLUE(1) 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1
BLUE(2) 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 0

BLUE

BLUE(62) 0 0 0 0 0 0 0 0 0 0 0 0 1 1 1 1 1 0
BLUE(63) 0 0 0 0 0 0 0 0 0 0 0 0 1 1 1 1 1 1

[Note]

1) Definition of gray scale
Color (n) --- n indicates gray scale level.

Higher n means brighter level.

2) Data
1:High, 0: Low

MITSUBISHI Confidential

(12/24)

AA121SR02_02_00

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

(4) Display Position and Scan Direction

D(X,Y) shows the data number of input signal.

www.panelook.com

SC:Low

D(1,1) D(800,1)

D(1,600)

SC:High

CN2

D(800,600)

D(800,600) D(1,600)

CN2

D(800,1) D(1,1)

MITSUBISHI Confidential

(13/24)

AA121SR02_02_00

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

7. BLOCK DIAGRAM

CN1

Timing signal
Display data

Timing

Controller

www.panelook.com

G1

G2

TFT-LCD

Power

Drivers(gate)

I/F Connector

Power

Supply

Circuit

G600

S1

S2

Drivers(source)

CCFL

S2399

S2400

CN2

1

2

3

MITSUBISHI Confidential

(14/24)

AA121SR02_02_00

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

8. MECHANICAL SPECIFICATIONS

(1) Front Side

www.panelook.com

MITSUBISHI Confidential

(15/24)

AA121SR02_02_00

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

(Unit: mm)

www.panelook.com

Global LCD Panel Exchange Center

(2) Rear Side

www.panelook.com

MITSUBISHI Confidential

(16/24)

AA121SR02_02_00

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

(Unit:mm)

www.panelook.com

Global LCD Panel Exchange Center

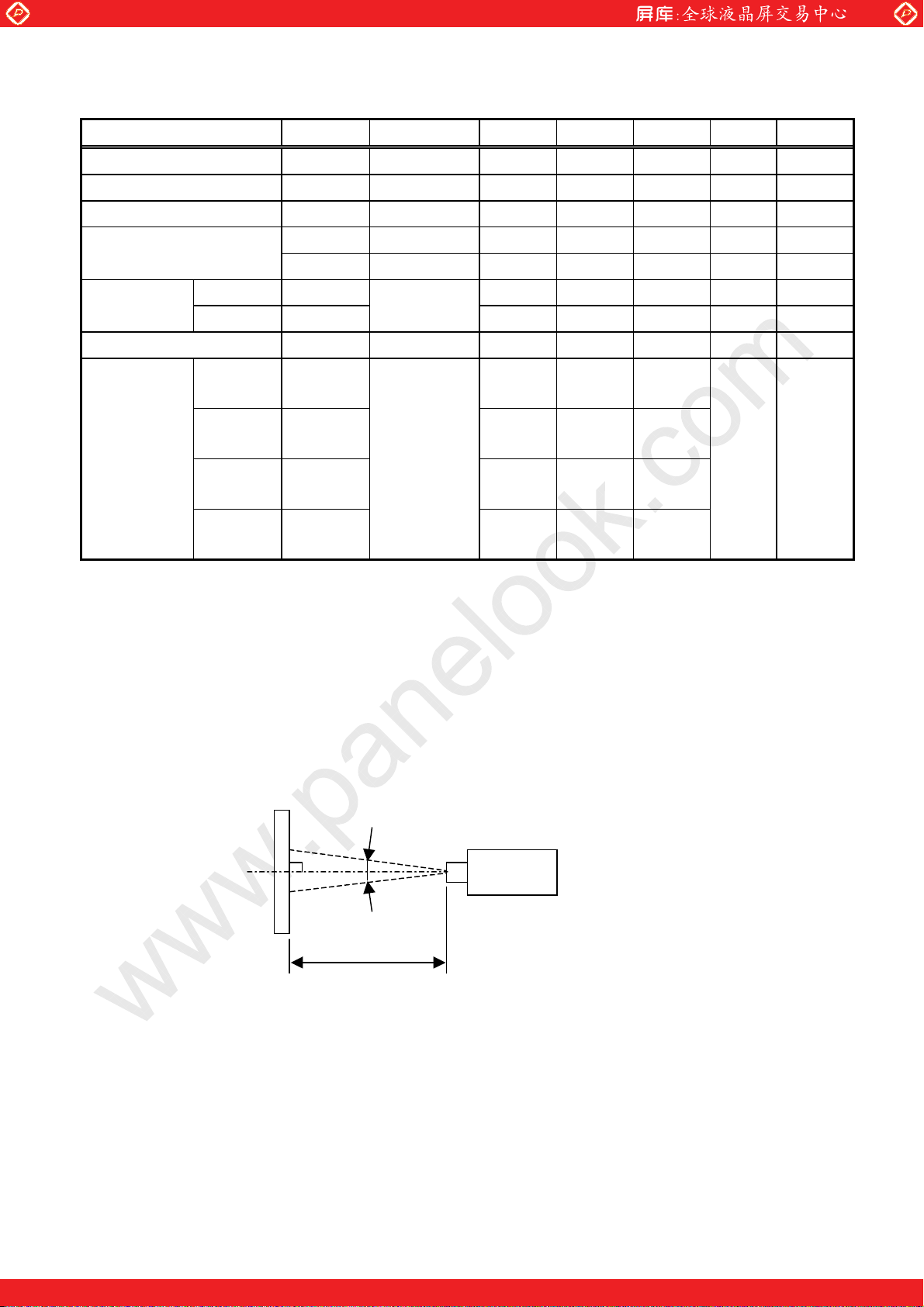

9. OPTICAL CHARACTERISTICS

ITEM SYMBOL CONDITION MIN TYP MAX UNIT Remarks

www.panelook.com

Ta=25°C, VCC=3.3V, Input Signals: Typ. values shown in Section 6

Contrast Ratio CR
Luminance Lw
Luminance Uniformity

'

Lw T
tr

Response Time

tf

Viewing

Angle

Horizontal
Vertical

T

H

TV

TV qTH q

TV qTH q

qTH q

V

TV qTH q

TV qTH q

65a65 80a80

CR t10

400 600 -- -- *1)*2)*5)
360 450 -- cd/m

2

*1)*5)

-- -- 30 % *1)*3)*5)

-- 4 -- ms *1)*4)*5)

-- 12 -- ms *1)*4)*5)

-- ° *1)*5)

40a60 55a75

-- ° *1)*5)

Image sticking tis 2 h -- -- 2 s *6)

Red

Color Gx

Green

Coordinates

Blue

White

Rx
Ry

0.543 0.573 0.603

0.307 0.337 0.367

0.288 0.318 0.348

Gy
Bx
By

TV qTH q

0.506 0.536 0.566

0.130 0.160 0.190

0.125 0.155 0.185
Wx 0.283 0.313 0.343
Wy 0.299 0.329 0.359

--

*1)*5)

[Note]
These items are measured using CS1000(MINOLTA) for color coordinates, EZContrast(ELDIM) for
viewing angle and CS1000 or BM-5A(TOPCON) for others under the dark room condition (no
ambient light) after more than 30 minutes from turning on the lamp unless noted.

Condition: IL = 12.0 mArms, FL=43 kHz
Measurement method for luminance and color coordinates is as follows.

Photodetector
Luminance :T=2q (BM-5A)
Color coordinates :T=1q (CS1000)

TFT-LCD module

T(Field)

500 mm

The luminance is measured according to FLAT PANEL DISPLAY MEASUREMENTS STANDARD

(VESA Standard).

MITSUBISHI Confidential

(17/24)

AA121SR02_02_00

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

*1) Measurement Point

Contrast Ratio, Luminance, Response Time, Viewing Angle, Color Coordinates: Display Center

Luminance Uniformity: point 1

www.panelook.com

a5 shown in a figure below

200

(1, 1)

400

600

150

300

450

1

5

3

2

4

(800, 600)

*2) Definition of Contrast Ratio

CR= Luminance with all white pixels / Luminance with all black pixels

*3) Definition of Luminance Uniformity

'Lw=[Lw(MAX)/Lw(MIN)-1]u100

*4) Definition of Response Time

White

90%90%

Luminance

tr

*5) Definition of Viewing Angle(

Left (-)

LCD panel

TVT

)

H

Upper(+)

Normal Axis

T

V

10%10% Black



T

+

Lower(-)

tf

Right (+)

MITSUBISHI Confidential

(18/24)

AA121SR02_02_00

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

*6) Image sticking:

Continuously display the test pattern shown in the figure below for two-hours. Then display a
completely white screen. The previous image shall not persist more than two seconds at 25°C.

Rows 298-302

TEST PATTERN FOR IMAGE STICKING TEST

www.panelook.com

Cols 398-402

White

Area

Black
Lines

MITSUBISHI Confidential

(19/24)

AA121SR02_02_00

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center



www.panelook.com

10. RELIABILITY TEST CONDITION

(1) Temperature and Humidity

ITEM CONDITIONS

HIGH TEMPERATURE

HIGH HUMIDITY OPERATION

HIGH TEMPERATURE OPERATION 80°C, 240 h

LOW TEMPERATURE OPERATION

HIGH TEMPERATURE STORAGE 80°C, 240 h

LOW TEMPERATURE STORAGE

THERMAL SHOCK

(2) Shock & Vibration

ITEM CONDITIONS

Shock level: 1470m/s2(150G)

40°C, 90%RH, 240 h

(No condensation)

30°C, 240 h

30°C, 240 h

–30°C (1h) a 80°C(1h),

100 cycles

SHOCK Waveform: half sinusoidal wave, 2ms

(NON-OPERATION) Number of shocks: one shock input in each direction of three mutually

perpendicular axes for a total of six shock inputs
Vibration level: 9.8m/s2 (1.0G)

Waveform: sinusoidal

VIBRATION Frequency range: 5 to 500Hz

(NON-OPERATION) Frequency sweep rate: 0.5 octave /min

Duration: one sweep from 5 to 500 Hz in each of three mutually

perpendicular axis(each x,y,z axis: 1 hour, total 3 hours)

(3) Judgment standard

The judgment of the above tests should be made as follow:

Pass: Normal display image, no damage of the display function. (ex. no line defect)

Partial transformation of the module parts should be ignored.

Fail: No display image, damage of the display function. (ex. line defect)

MITSUBISHI Confidential

(20/24)

AA121SR02_02_00

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

11. OTHER FEATURE

This LCD module complies with RoHS *) directive.

*)

RoHS: Restriction of the use of certain hazardous substances in electrical and electronic

equipment

www.panelook.com

MITSUBISHI Confidential

(21/24)

AA121SR02_02_00

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center



www.panelook.com

12. HANDLING PRECAUTIONS FOR TFT-LCD MODULE

Please pay attention to the followings in handling TFT-LCD products;

(1) ASSEMBLY PRECAUTION

a. Please mount the LCD module by using mounting hole with a screw clamping torque

(recommended value: 0.3 Nm). Please do not bend or wrench the LCD module in assembling.
Please do not drop, bend or twist the LCD module in handling.

b. Please design display housing in accordance with the following guide lines.

(a) Housing case must be designed carefully so as not to put stresses on LCD and not to

wrench module.

(b) Keep sufficient clearance between LCD module back surface and housing when the LCD

module is mounted. Approximately 1.0mm of the clearance in the design is recommended
taking into account the tolerance of LCD module thickness and mounting structure height
on the housing.

(c) When some parts, such as, FPC cable and ferrite plate, are installed underneath the LCD

module, still sufficient clearance is required, such as 0.5mm. This clearance is, especially, to
be reconsidered when the additional parts are implemented for EMI countermeasure.

(d) Design the inverter location and connector position carefully so as not to give stress to

lamp cable, or not to interfere the LCD module by the lamp cable.

(e) Keep sufficient clearance between LCD module and the others parts, such as inverter and

speaker so as not to interfere the LCD module. Approximately 1.0mm of the clearance in
the design is recommended.

(f) To avoid local elevation/decrease of temperature, considering location of heating element,

heat release, thermal design should be done.

c. Please do not push or scratch LCD panel surface with anything hard. And do not soil LCD

panel surface by touching with bare hands. (Polarizer film, surface of LCD panel is easy to be

flawed.)
d. Please wipe off LCD panel surface with absorbent cotton or soft cloth in case of it being soiled.
e. Please wipe off drops of adhesives like saliva and water on LCD panel surface immediately.

They might damage to cause panel surface variation and color change.
f. Please do not take a LCD module to pieces and reconstruct it. Resolving and reconstructing

modules may cause them not to work well.
g. Please do not touch metal frames with bare hands and soiled gloves. A color change of the

metal frames can happen during a long preservation of soiled LCD modules.
h. Please handle metal frame carefully because edge of metal frame is very sharp.
i. Please pay attention to handling lead wire of backlight so that it is not tugged in connecting

with inverter.

MITSUBISHI Confidential

(22/24)

AA121SR02_02_00

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

j. Please connect the metal frame of LCD module to GND in order to minimize the effect of

external noise and EMI.
k. Be sure to connect the cables and the connectors correctly.

(2) OPERATING PRECAUTIONS

a. Please be sure to turn off the power supply before connecting and disconnecting signal input

cable.
b. Please do not change variable resistance settings in LCD module. They are adjusted to the

most suitable value. If they are changed, it might happen LCD does not satisfy the

characteristics specification.
c. LCD backlight takes longer time to become stable of radiation characteristics in low

temperature than in room temperature.
d. The interface signal speed is very high. Please pay attention to transmission line design and

www.panelook.com

other high speed signal precautions to satisfy signal specification.
e. A condensation might happen on the surface and inside of LCD module in case of sudden

change of ambient temperature. Please take care so as not to cause any damage mentioned

on (1)-e.
f. Please pay attention not to display the same pattern for very long time. Image might stick on

LCD. Even if image sticking happens, it may disappear as the operation time proceeds.
g. Please obey the same safe instructions as ones being prepared for ordinary electronic products.

(3) PRECAUTIONS WITH ELECTROSTATICS

a. This LCD module use CMOS-IC on circuit board and TFT-LCD panel, and so it is easy to be

affected by electrostatics. Please be careful with electrostatics by the way of your body

connecting to the ground and so on.
b. Please remove protection film very slowly from the surface of LCD module to prevent from

electrostatics occurrence.

(4) STORAGE PRECAUTIONS

LCD should be stored in the room temperature environment with normal humidity. The LCD

inventory should be processed by first-in first-out method.

(5) SAFETY PRECAUTIONS

a. When you waste damaged or unnecessary LCDs, it is recommended to crush LCDs into pieces

and wash them off with solvents such as acetone and ethanol, which should later be burned.
b. If any liquid leaks out of a damaged glass cell and comes in contact with the hands, wash off

thoroughly with soap and water.
c. Be sure to turn off the power supply when inserting or disconnecting the cable.

MITSUBISHI Confidential

(23/24)

AA121SR02_02_00

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

d. Inverter should be designed carefully to limit or stop its function when over current is detected

on the on the lamp.

(6) OTHERS

a. A strong incident light into LCD panel may cause deterioration to polarizer film, color filter,

and other materials, which will degrade the quality of display characteristics. Please do not

expose LCD module under strong Ultraviolet rays for a long time.
b. Please pay attention to a panel side of LCD module not to contact with other materials in

preserving it alone.

c. For the packaging box handling, please see and obey with the packaging specification

datasheet.

d. Please do not reuse the Lamp Unit which is once removed.

www.panelook.com

MITSUBISHI Confidential

(24/24)

AA121SR02_02_00

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com
