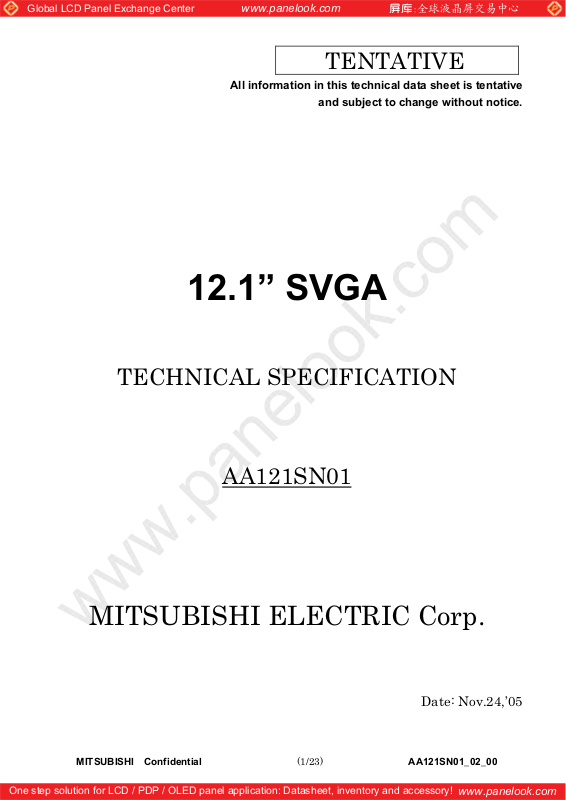

12.1” SVGA
TECHNICAL SPECIFICATION
AA121SN01
MITSUBISHI ELECTRIC Corp.
Date: Nov.24,’05
MITSUBISHIConfidential (1/23) AA121SN01_02_00
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 2
Global LCD Panel Exchange Center
CONTENTS
No. Item Page
-- COVER 1
-- CONTENTS 2
1 APPLICATION 3
www.panelook.com
2 OVERVIEW 4
3 ABSOLUTE MAXIMUM RATINGS 5
4 ELECTRICAL CHARACTERISTICS 5, 6, 7
5 INTERFACE PIN CONNECTION 8, 9
6 INTERFACE TIMING 10, 11, 12, 13, 14
7 BLOCK DIAGRAM 15
8 MECHANICAL SPECIFICATION 16, 17
9 OPTICAL CHARACTERISTICS 18, 19
10 RELIABILITY TEST CONDITION 20
11 HANDLING PRECAUTIONS FOR TFT-LCD MODULE 21, 22, 23
MITSUBISHIConfidential (2/23) AA121SN01_02_00
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 3
Global LCD Panel Exchange Center
1. APPLICATION
This specification applies to color TFT-LCD module, AA121SN01.
These specification papers are the proprietary product of Mitsubishi Electric Corporation
(“MITSUBISHI) and include materials protected under copyright of MITSUBISHI. No part of this
document may be reproduced in any form or by any means without the express written permission
of MITSUBISHI.
MITSUBISHI does not assume any liability for infringement of patents, copyrights or other
intellectual property rights of third parties by or arising from use of a product specified in this
document. No license, express, implied or otherwise, is granted under any patents, copyrights or
other intellectual property rights of MITSUBISHI or of others.
MITSUBISHI classifies the usage of the TFT-LCD module as follows. Please confirm the usage
before using the product.
(1) Standard Usage
Computers, office equipment, factory automation equipment, test and measurement
equipment, communications, transportation equipment(automobiles, ships, trains, etc.),
provided, however, that operation is not influenced by TFT-LCD directly.
(2) Special Usage
Medical equipment, safety equipment, transportation equipment, provided, however, that
TFT-LCD is necessary to its operation.
(3) Specific Usage
Cockpit Equipment, military systems, aerospace equipment, nuclear reactor control
systems, life support systems and any other equipment. MITSUBISHI should make a
contract that stipulate apportionment of responsibilities between MITSUBISHI and our
customer.
The product specified in this document is designed for “Standard Usage” unless otherwise specified
in this document. If customers intend to use the product for applications other than those specified
for “Standard Usage”, they should contact MITSUBISHI sales representative in advance.
MITSUBISHI has been making continuous effort to improve the reliability of its products.
Customers should implement sufficient reliability design of their application equipments such as
redundant system design, fail-safe functions, anti-failure features.
MITSUBISHI assumes no responsibility for any damage resulting from the use of the product that
does not comply with the instructions and the precautions specified in this document.
Please contact and consult a MITSUBISHI sales representative for any questions regarding this
product.
www.panelook.com
MITSUBISHIConfidential (3/23) AA121SN01_02_00
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 4
Global LCD Panel Exchange Center
2. OVERVIEW
AA121SN01 is 12.1” color TFT-LCD (Thin Film Transistor Liquid Crystal Display) module
composed of LCD panel, driver ICs, control circuit, and backlight unit.
By applying 6 bit or 8 bit digital data, 800u 600, 262 K-color or 16.7 M-color images are displayed
on the 12.1” diagonal screen. Input power voltage is 3.3V for LCD driving.
The type of data and control signals are digital and transmitted via LVDS interface per Typ.
40MHz clock cycle.
Inverter for backlight is not included in this module. General specifications are summarized in the
following table:
ITEM SPECIFICATION
Display Area (mm)
Number of Dots
www.panelook.com
246.0(H) u 184.5(V)
(12.106-inch diagonal)
800 u3 (H) u 600 (V)
Pixel Pitch (mm)
Color Pixel Arrangement RGB vertical stripe
Display Mode Normally white TN
Number of Color 262 K(6 bit/color), 16.7 M(8 bit/color)
Brightness (cd/m2) 1000
Wide Viewing Angle Technology Optical Compensation Film
Viewing Angle (CR t10)
Surface Treatment Antiglare and hard-coating 3H
Electrical Interface LVDS(6 bit/8 bit)
Optimum Viewing Angle(Contrast ratio) 6 o’clock
Module Size (mm)
Module Mass (g) 1150
Backlight Unit CCFL, 4-tubes, edge-light, replaceable
Characteristic value without any note is typical value.
0.3075 (H) u 0.3075 (V)
-65~65° (H) -75~45° (V)
280.0 (W) u 219.0 (H) u 17.8 (D)
MITSUBISHIConfidential (4/23) AA121SN01_02_00
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 5
Global LCD Panel Exchange Center
3. ABSOLUTE MAXIMUM RATINGS
ITEM SYMBOL MIN. MAX UNIT
Power Supply Voltage for LCD VCC 0 4.0 V
www.panelook.com
Logic Input Voltage VI
0.3 VCC0.3
V
Lamp Voltage VL 0 2000 Vrms
Lamp Current IL 0 18 mArms
Lamp Frequency FL -- 80 kHz
Operation Temperature(Panel)
Operation Temperature(Ambient)
Storage Temperature
Note 1,2)
T
Note 2)
T
Note 2)
T
op(Panel)
op(Ambient)
stg
20
20
20
70 °C
70 °C
80 °C
[Note]
1) Measured at the center of active area and at the center of panel back surface
2) Top,Tstgd 40qC : 90%RH max. without condensation
Top,Tstg > 40qC : Absolute humidity shall be less than the value of 90%RH at 40qC without
condensation.
4. ELECTRICAL CHARACTERISTICS
(1) TFT-LCD
Ambient temperature: Ta = 25
ITEM SYMBOL
Power Supply Voltages for LCD VCC 3.0 3.3 3.6 V
Power Supply Currents for LCD ICC -- 300 450 mA VCC = 3.3 V
MIN. TYP. MAX. UNIT Remarks
*1)
*2)
Permissive Input Ripple Voltage VRP -- -- 100 mVp-p VCC = 3.3V
*1) Power and signals sequence:
t1 d10ms 200 ms d t4
0 < t2 d 50 ms 200 ms d t5
0 < t3 d 50 ms 0 d t6
LCD Power Supply
Logic Signal
Backlight Power Supply
0.9VCC
0.1VCC
t1
t2
VCC
data
Backlight
t3
0.9VCC
0.1VCC
t4
0.1VCC
t5 t6
data: RGB DATA, DCLK, DENA
MITSUBISHIConfidential (5/23) AA121SN01_02_00
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 6
Global LCD Panel Exchange Center
www.panelook.com
VCC-dip conditions:
1) When 2.6 V
d VCC < 3.0 V, td d 10 ms
2) When VCC < 2.6 V
VCC-dip conditions should also follow the power and signals sequence.
VCC
3.0V
2.6V
td
*2) Typical current condition:
64-gray-bar pattern
600 line mode
VCC = +3.3 V , f
=37.9 kHz, fV=60.0 Hz, f
H
= 40 MHz
CLK
(2) Backlight
Ta = 25
ITEM
SYMBOL
MIN. TYP. MAX. UNIT Remarks
Lamp Voltage VL -- 540 -- Vrms IL = 13.0 mArms
Lamp Current IL 6.0 13.0 14.5 mArms
Lamp Frequency FL 30 -- 60 kHz
* 2), *6)
* 3)
1000 -- -- Ta = 25°C
Starting Lamp Voltage VS
1200 -- -- Ta = 0°C
Vrms
1290 -- --
Lamp Life Time LT 50,000 -- -- h
Ta = 20°C
* 4), *5)
IL = 13.0mArms,
Continuous operation
[Note]
*1)Please use synchronous inverter.
*2) Lamp Current measurement method (The current meter is inserted in low voltage line.)
LCD
Mod ule
CTL
CTH
CTH
CTH
CTH
A
Inverter
Power
Supply
CTL
A
*3) Lamp frequency of inverter may produce interference with horizontal synchronous frequency,
and this may cause horizontal beat on the display. Therefore, please adjust lamp frequency, and
keep inverter as far from module as possible or use electronic shielding between inverter and
module to avoid the interference.
MITSUBISHIConfidential (6/23) AA121SN01_02_00
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 7
Global LCD Panel Exchange Center
*4) Lamp life time is defined as the time either when the brightness becomes 50% of the initial
value, or when the starting lamp voltage does not meet the value specified in this table.
*5) The life time of the backlight depends on the ambient temperature. The life time will decrease
under low/high temperature.
*6) Please use the inverter which has symmetrical current wave form as follows,
The degree of unbalance: less than 10%
www.panelook.com
The ratio of wave height: less than
I
PH
I
PL
IPH: High side peak
I
: Low side peak
PL
±10%
2
The degree of unbalance = |IPH - IPL| / Irms
(or IPL) / Irms
The ratio of wave height =
I
PH
100(%)
u
CURRENT WAVE FORM
MITSUBISHIConfidential (7/23) AA121SN01_02_00
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 8
Global LCD Panel Exchange Center
V

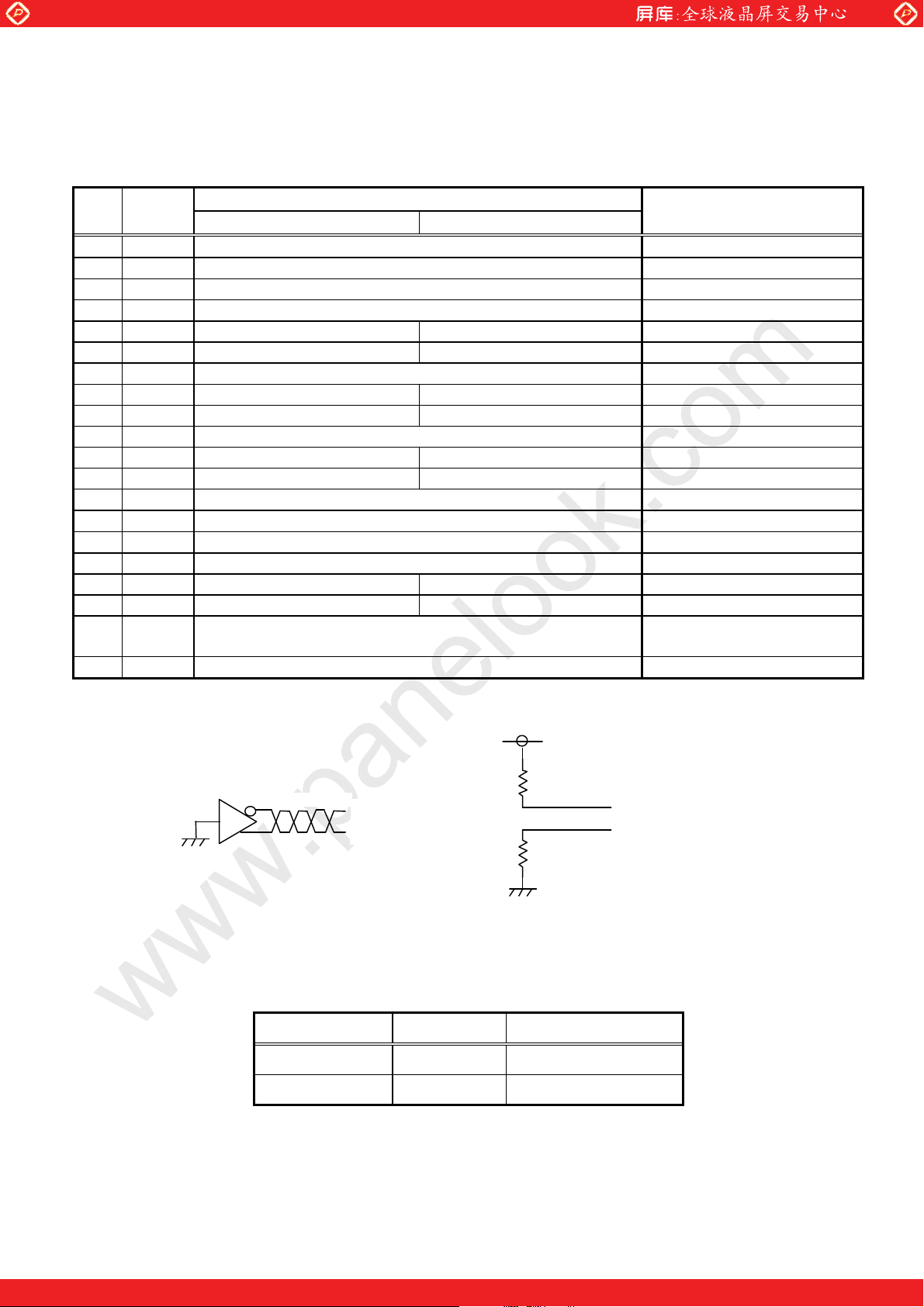

5. INTERFACE PIN CONNECTION
(1) CN 1(Interface Signal)
Used connector: FI-SEB20P-HFE
Corresponding connector: FI-S20S[for discrete Wire], FI-SE20ME[for FPC]
Pin
No.
Symbol
1 VCC
2 VCC
3 GND
4 GND
5 Link 0- R0, R1, R2, R3, R4, R5, G0 R2, R3, R4, R5, R6, R7, G2 R0, R1, R2, R3, R4, R5, G0
6 Link 0+ R0, R1, R2, R3, R4, R5, G0 R2, R3, R4, R5, R6, R7, G2 R0, R1, R2, R3, R4, R5, G0
7 GND
8 Link 1- G1, G2, G3, G4, G5, B0, B1 G3, G4, G5, G6, G7, B2, B3 G1, G2, G3, G4, G5, B0, B1
9 Link 1+ G1, G2, G3, G4, G5, B0, B1 G3, G4, G5, G6, G7, B2, B3 G1, G2, G3, G4, G5, B0, B1
10 GND
11 Link 2- B2, B3, B4, B5, DENA B4, B5, B6, B7, DENA B2, B3, B4, B5, DENA
12 Link 2+ B2, B3, B4, B5, DENA B4, B5, B6, B7, DENA B2, B3, B4, B5, DENA
13 GND
14 CLKIN15 CLKIN+
16 GND
17 Link3- See: *2) R0, R1, G0, G1, B0, B1 R6, R7, G6, G7, B6, B7
18 Link3+ See: *2) R0, R1, G0, G1, B0, B1 R6, R7, G6, G7, B6, B7
19 MODE Low=ISP 6 bit compatibility mode
20 SC
Scan direction control. ( Low : Normal , High : Reverse )
*1) The shielding case is connected with GND.
*2) Recommended wiring of Pin 17,18 (6 bit input)
Function(ISP 6 bit compatibility mode)
6 bit input 8 bit input
+3.3 V Power supply
+3.3 V Power supply
www.panelook.com
GND
GND
GND
GND
GND
Clock -
Clock +
GND
Function(ISP 8 bit
compatibility mode)
m
m
m
m
m
m
m
m
m
m
High=ISP
8 bit compatibility mode
m
LVD S
transmitter
(2) CN 2,3(Backlight)
Backlight-side connector: BHR-04VS-1 (JST)
Inverter-side connector: SM04(4.0)B-BHS-1(JST)
LOW data
6 8 0
Pin 17
Pin 18
QT
6 2 0
Pin No. Symbol Function
1, 2 CTH VBLH (High voltage)
4 CTL VBLL (Low voltage)
>Note@VBLH - VBLL = VL
CC
ǡ
Pin 17
Pin 18
ǡ
MITSUBISHIConfidential (8/23) AA121SN01_02_00
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 9
Global LCD Panel Exchange Center
(3) ISP data mapping
a. ISP 6 bit compatibility mode(6 bit input)
www.panelook.com
CLKIN+/-
Link0+/-
Link1+/-
Link2+/-
b. ISP 6 bit compatibility mode(8 bit input)
CLKIN+/-
Link0+/-
Link1+/-
G0
B1
R5
B0
R4
G5
R3
G4
DENA B5
G2
B3
R7
B2
R6
G7
R5
G6
1CLK
R2
G3
B4
R4
G5
R1
G2
B3
1CLK
R3
G4
R0
G1
B2
R2
G3
Link2+/-
Link3+/-
c. ISP 8 bit compatibility mode
CLKIN+/-
Link0+/-
Link1+/-
Link2+/-
Link3+/-
DENA B7
B1
B0
G1
B6
G0
B5
R1
B4
R0
1CLK
G0
B1
R5
B0
R4
G5
R3
G4
DENA B5
B7
B6
G7
R2
G3
B4
G6
R1
G2
B3
R7
R0
G1
B2
R6
MITSUBISHIConfidential (9/23) AA121SN01_02_00
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 10
Global LCD Panel Exchange Center
6. INTERFACE TIMING
LVDS transmitter input signal

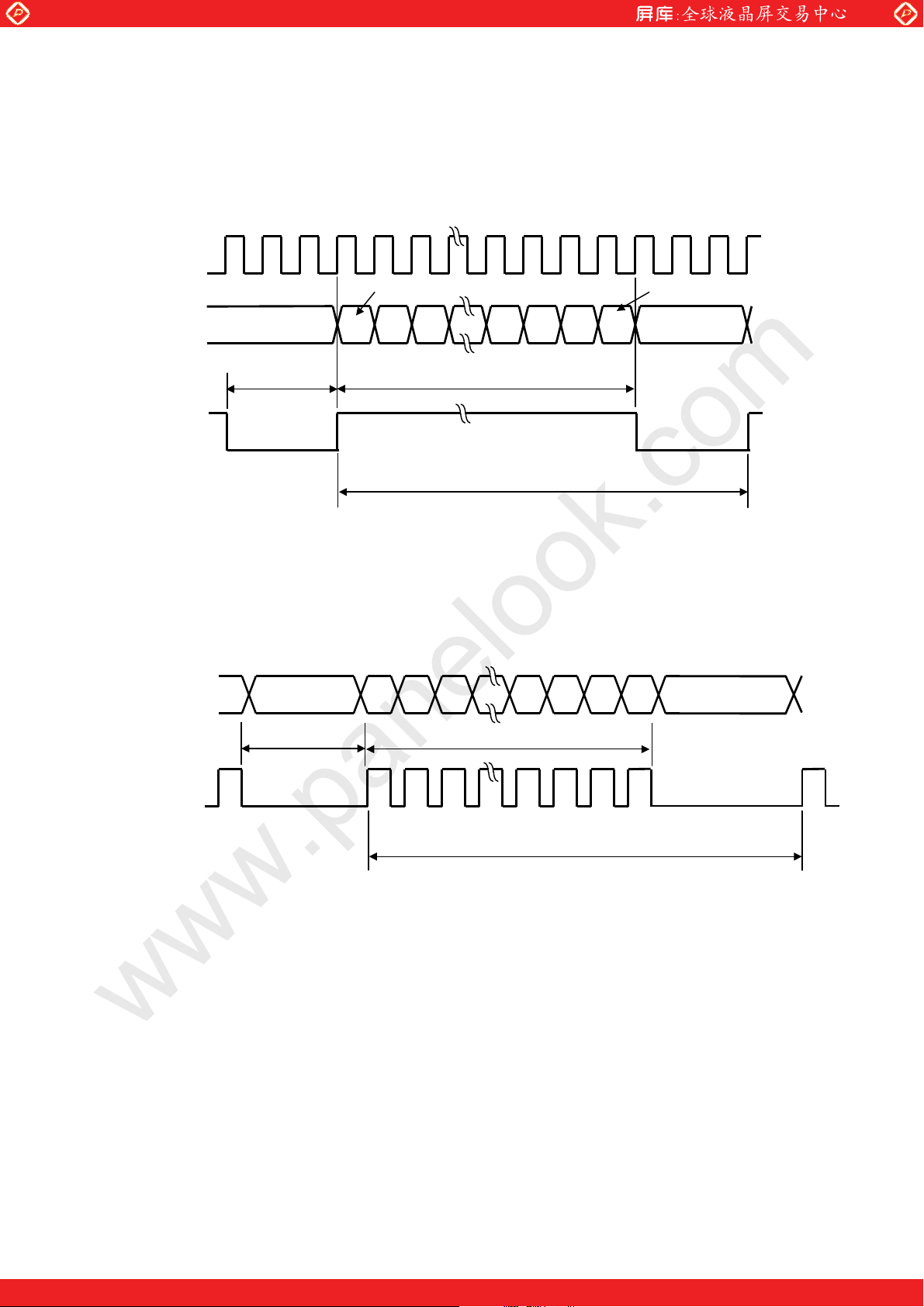

(1) Timing Specifications
www.panelook.com
DCLK
ITEM SYMBOL
Frequency f
Period t
Active Time t
Blanking Time t
MIN TYP MAX UNIT
CLK
CLK
HA
HB
35 40 42 MHz
23.8 25 28.6 ns
800 800 800 t
20 256 -- t
Horizontal
DENA
Frequency f
Period t
Active Time t
Blanking Time t
H
H
VA
VB
35.2 37.9 39.2 kHz
25.5 26.4 28.4
600 600 600 t
3 28 -- t
Vertical
Frequency f
Period t
V
V
55 60 64.2 Hz
15.6 16.7 18.2 ms
[Note]
1) DENA (Data Enable) should always be positive polarity as shown in the timing specification.
2) DCLK should appear during all invalid period.
3) LVDS timing follows the timing specifications of LVDS receiver IC: THC63LVDF84B(Thine).
CLK
CLK
Ps
H
H
MITSUBISHIConfidential (10/23) AA121SN01_02_00
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 11
Global LCD Panel Exchange Center

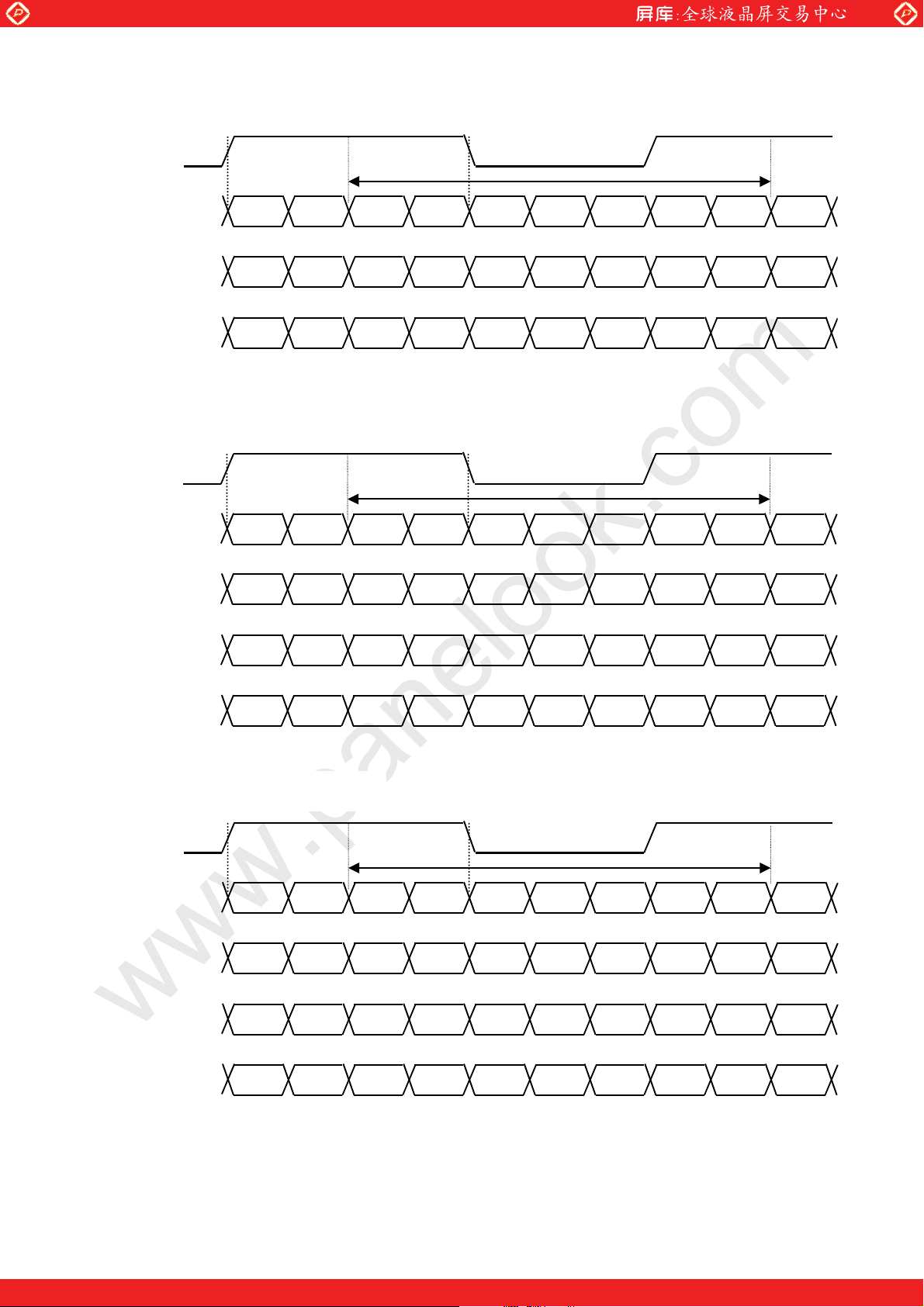

(2) Timing Chart
a. Horizontal Timing Chart
DCLK
DATA
(R,G,B)
www.panelook.com
First Data Last Data
1 2 799 800 3 Invalid Data Invalid Data
t
HB
DENA
b. Vertical Timing Chart
LINE DATA
DENA
1 2 599 600 3 Invalid Data Invalid Data
t
VB
tHA
tH=1/fH
tVA
tV=1/fV
MITSUBISHIConfidential (11/23) AA121SN01_02_00
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 12
Global LCD Panel Exchange Center

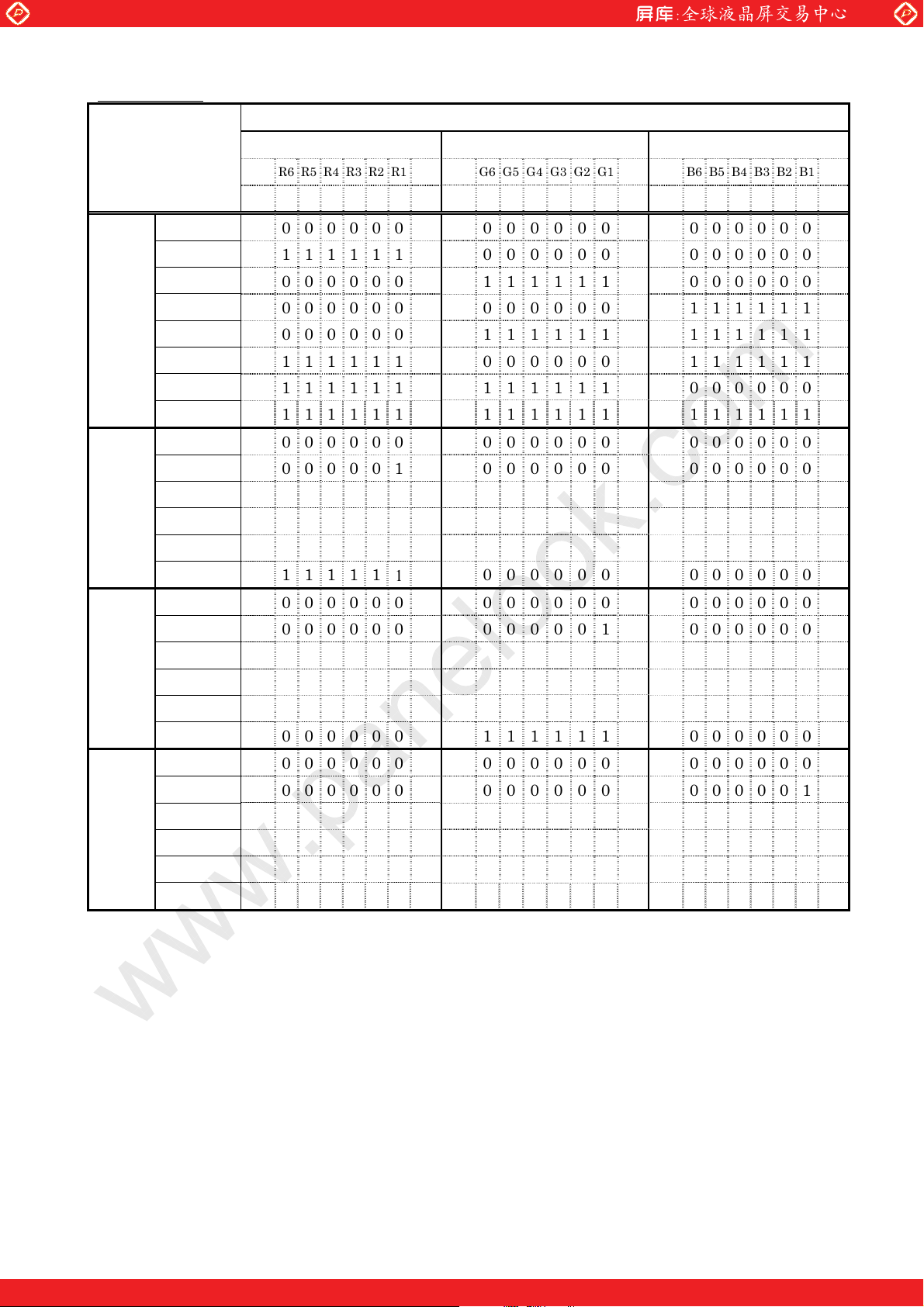

(3) Color Data Assignment
www.panelook.com
a. 6 bit input
COLOR
INPUT DATA
R DATA G DATA B DATA
R5 R4 R3 R2 R1 R0 G5 G4 G3 G2 G1 G0 B5 B4 B3 B2 B1 B0
MSB LSB MSB LSB MSB LSB
BLACK 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0
RED(63) 1 1 1 1 1 1 0 0 0 0 0 0 0 0 0 0 0 0
GREEN(63) 0 0 0 0 0 0 1 1 1 1 1 1 0 0 0 0 0 0
BASIC BLUE(63) 0 0 0 0 0 0 0 0 0 0 0 0 1 1 1 1 1 1
COLOR CYAN 0 0 0 0 0 0 1 1 1 1 1 1 1 1 1 1 1 1
MAGENTA 1 1 1 1 1 1 0 0 0 0 0 0 1 1 1 1 1 1
YELLOW 1 1 1 1 1 1 1 1 1 1 1 1 0 0 0 0 0 0
WHITE 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1
RED(1) 0 0 0 0 0 1 0 0 0 0 0 0 0 0 0 0 0 0
RED(2) 0 0 0 0 1 0 0 0 0 0 0 0 0 0 0 0 0 0
RED
RED(62) 1 1 1 1 1 0 0 0 0 0 0 0 0 0 0 0 0 0
RED(63) 1 1 1 1 1 1 0 0 0 0 0 0 0 0 0 0 0 0
GREEN(1) 0 0 0 0 0 0 0 0 0 0 0 1 0 0 0 0 0 0
GREEN(2) 0 0 0 0 0 0 0 0 0 0 1 0 0 0 0 0 0 0
GREEN
GREEN(62) 0 0 0 0 0 0 1 1 1 1 1 0 0 0 0 0 0 0
GREEN(63) 0 0 0 0 0 0 1 1 1 1 1 1 0 0 0 0 0 0
BLUE(1) 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1
BLUE(2) 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 0
BLUE
BLUE(62) 0 0 0 0 0 0 0 0 0 0 0 0 1 1 1 1 1 0
BLUE(63) 0 0 0 0 0 0 0 0 0 0 0 0 1 1 1 1 1 1
[Note]
1) Definition of gray scale
Color (n) --- n indicates gray scale level.
Higher n means brighter level.
2) Data
1:High, 0: Low
MITSUBISHIConfidential (12/23) AA121SN01_02_00
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 13
Global LCD Panel Exchange Center
www.panelook.com
b. 8 bit input
COLOR
BLACK
RED(255)
BASIC
COLOR
RED
GREEN
GREEN(255)
BLUE(255)
CYAN
MAGENTA
YELLOW
WHITE
RED(1)
RED(2)
RED(255)
GREEN(1)
GREEN(2)
GREEN(255)
INPUT DATA
R DATA G DATA B DATA
R7 R6 R5 R4 R3 R2 R1 R0 G7 G6 G5 G4 G3 G2 G1 G0 B7 B6 B5 B4 B3 B2 B1 B0
MSB LSB MSB LSB MSB LSB
0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0
1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0
0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0
0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1
0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1
1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1
1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0
1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1
0 0 0 0 0 0 0 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0
0 0 0 0 0 0 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0
1 1 1 1 1 1
0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0
0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 0 0 0 0 0 0 0 0
0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 0 0 0 0 0 0 0 0 0
0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0
BLUE(1)
BLUE(2)
BLUE
BLUE(255)
[Note]
1) Definition of gray scale
Color (n) --- n indicates gray scale level.
2) Data
1:High, 0: Low
0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1
0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 0
0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1
Higher n means brighter level.
MITSUBISHIConfidential (13/23) AA121SN01_02_00
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 14
Global LCD Panel Exchange Center

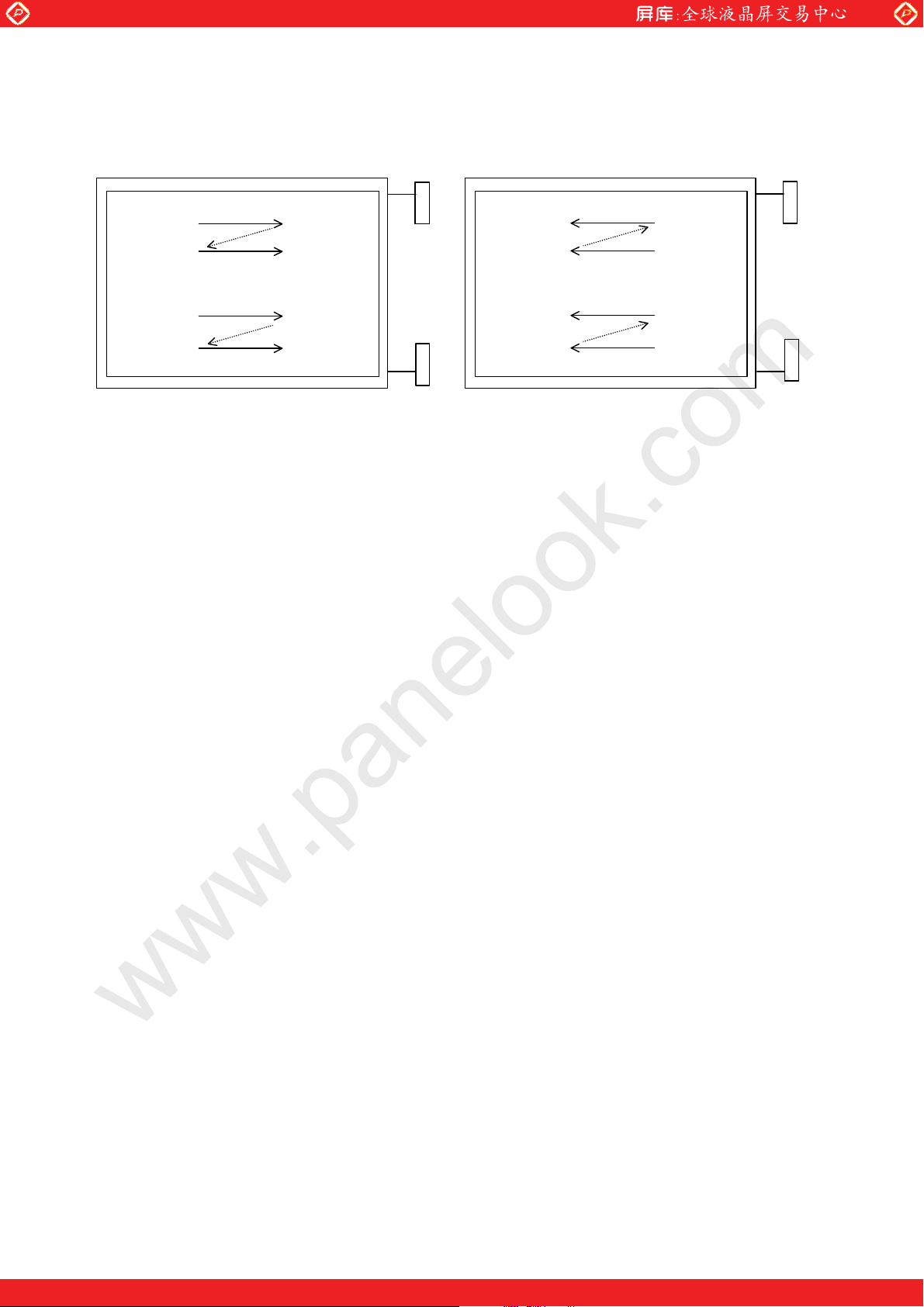

(4) Display Position and Scan Direction
D(X,Y) shows the data number of input signal for LCD panel signal processing PCB.
SC:Low
SC:High
www.panelook.com
D(1,1) D(800,1)
D(1,600)
D(800,600)
CN2
CN3
D(800,600) D(1,600)
CN2
D(800,1) D(1,1)
CN3
MITSUBISHIConfidential (14/23) AA121SN01_02_00
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 15
Global LCD Panel Exchange Center
www.panelook.com

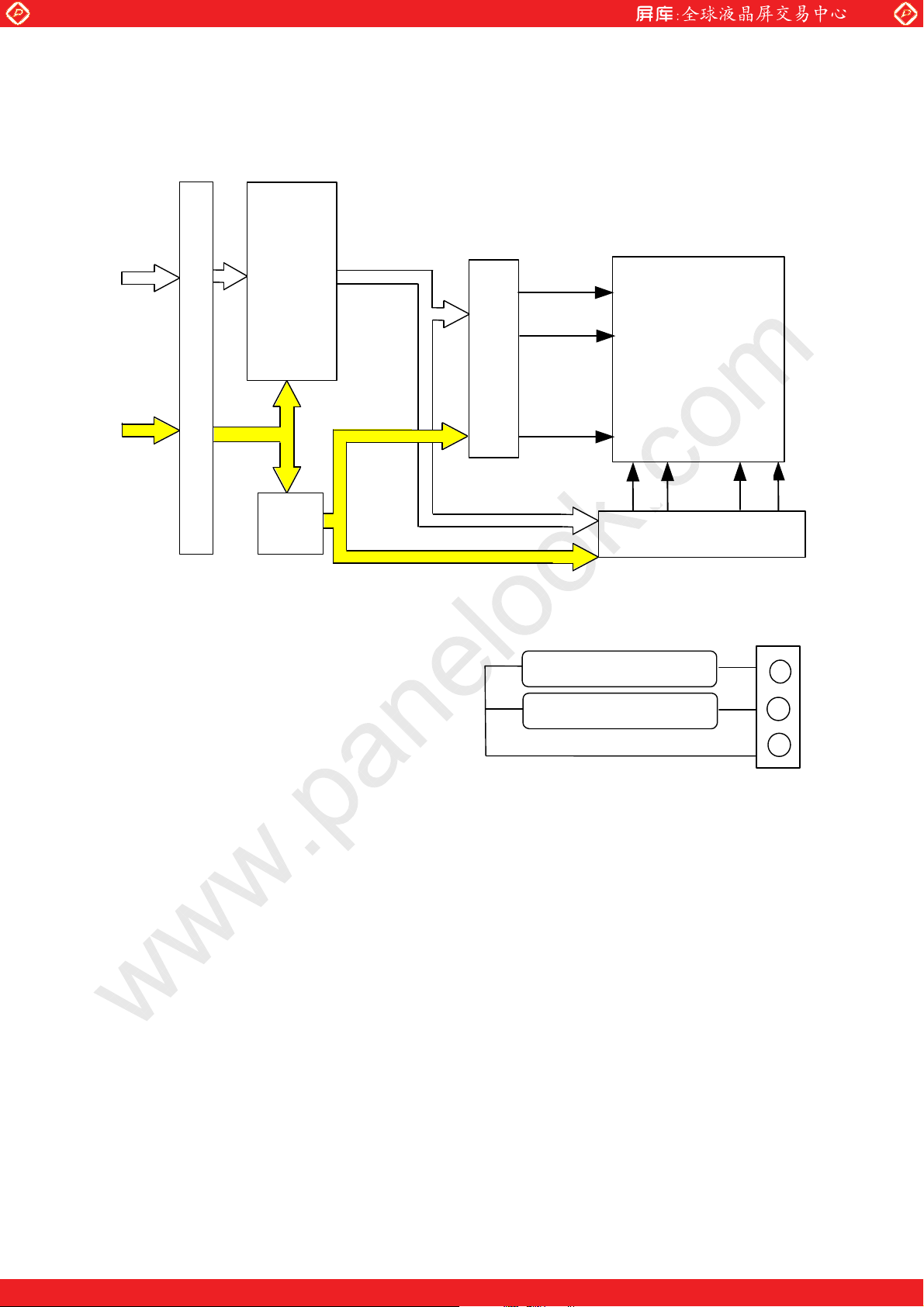

7. BLOCK DIAGRAM
CN1
Timing signal
Display data
Timing
Controller
Power
I/F Connector
Power
Supply
Circuit
G1
G2
TFT-LCD
Drivers(gate)
G600
S1
S2
Drivers(source)
S2399
S2400
CCFL
CN2 , 3
1
2
4
MITSUBISHIConfidential (15/23) AA121SN01_02_00
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 16
Global LCD Panel Exchange Center
www.panelook.com
8. MECHANICAL SPECIFICATIONS
(1) Front Side
MITSUBISHIConfidential (16/23) AA121SN01_02_00
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
(Unit: mm)
www.panelook.com
Page 17
Global LCD Panel Exchange Center

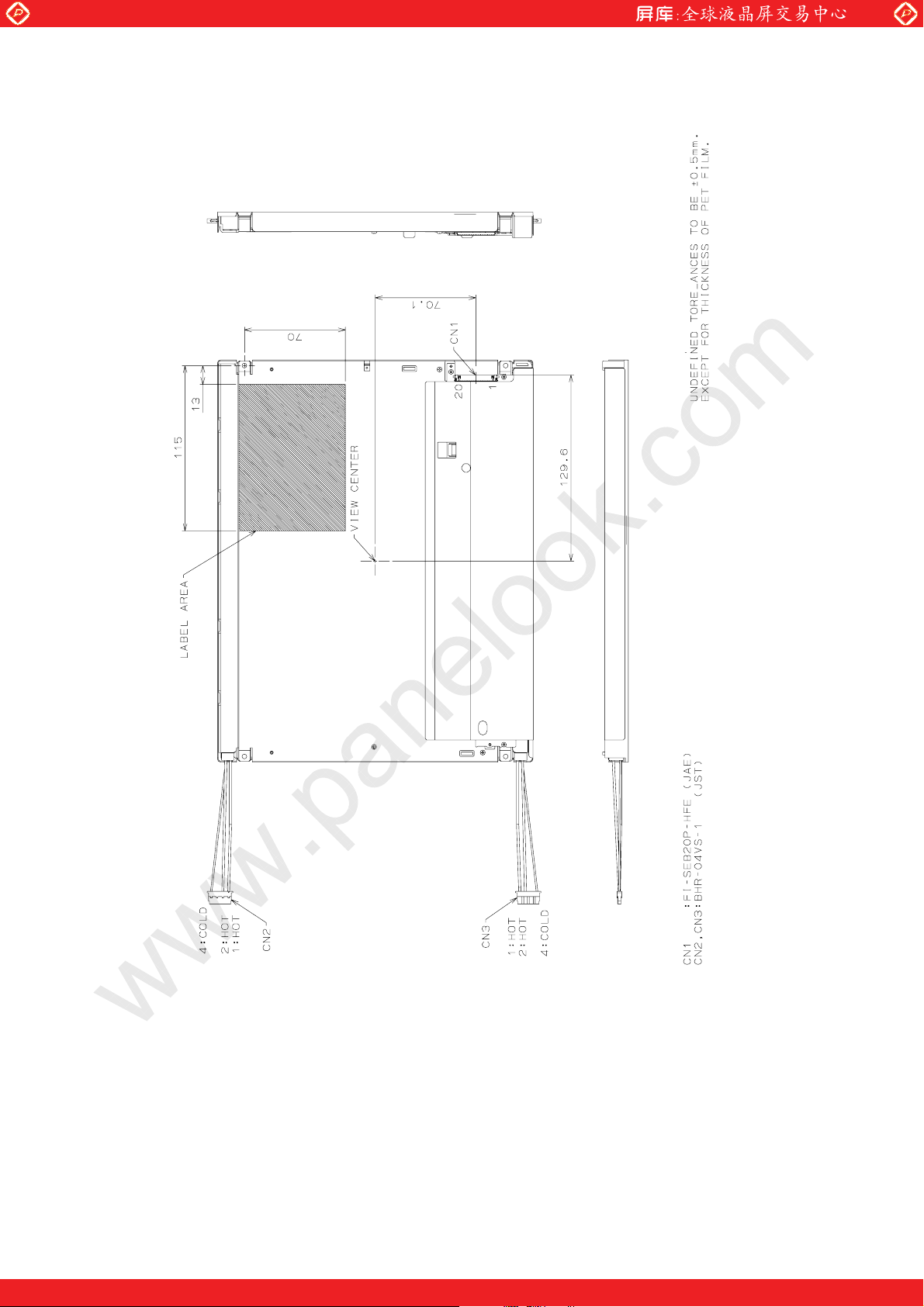

(2) Rear Side
www.panelook.com
[Note]
We recommend you referring to the detailed drawing for your design.
Please contact our company sales representative when you need the detailed drawing.
MITSUBISHIConfidential (17/23) AA121SN01_02_00
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
(Unit:mm)
www.panelook.com
Page 18
Global LCD Panel Exchange Center

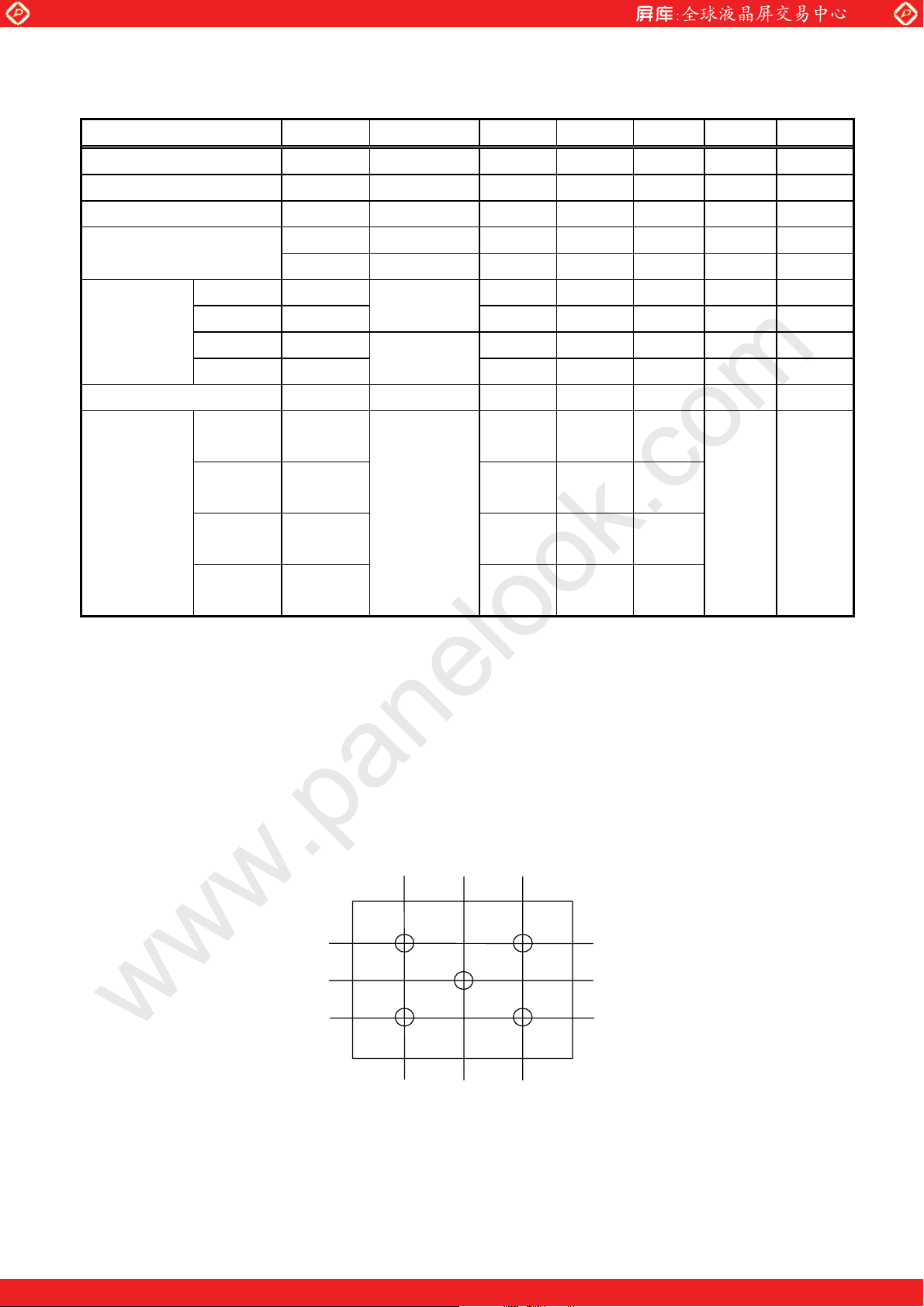

9. OPTICAL CHARACTERISTICS
ITEM SYMBOL CONDITION
www.panelook.com
Ta=25°C, VCC=3.3V, Input Signals: Typ. Values shown in Section 6
MIN TYP MAX UNIT Remarks
Contrast Ratio CR
Luminance Lw
Luminance Uniformity
'
Lw T
tr
Response Time
tf
Viewing
Angle
Horizontal
Vertical
Horizontal
Vertical
TH -50a50 -65a65
TV
TH -65a65 -80a80
TV
TV qTH q
TV qTH q
qTH q
V
TV qTH q
TV qTH q
CR t10
CR t5
450 650 -- -- *1)*2)*5)
800 1000 -- cd/m2 *1)*5)
-- -- 30 % *1)*3)*5)
-- 6 -- ms *1)*4)*5)
-- 19 -- ms *1)*4)*5)
-- ° *1)*5)
a30 -75a45
-40
-- ° *1)*5)
-- ° *1)*5)
a40 -80a55
-50
-- ° *1)*5)
Image sticking tis 2 h -- -- 2 s *6)
Red
Color Gx 0.304 0.334 0.364
Green
Coordinates
Blue
White
Rx 0.549 0.579 0.609
Ry 0.296 0.326 0.356
Gy
TV qTH q
0.497 0.527 0.557 --
*1)*5)
Bx 0.134 0.164 0.194
By 0.125 0.155 0.185
Wx 0.283 0.313 0.343
Wy 0.299 0.329 0.359
[Note]
These items are measured using CS1000(MINOLTA) for color coordinates, EZContrast(ELDIM) for
viewing angle and CS1000 or BM-5A(TOPCON) for others under the dark room condition (no
ambient light) after more than 30 minutes from turning on the lamp unless noted.
Condition: IL = 13.0 mArms, FL=55kHz
*1) Measurement Point
Contrast Ratio, Luminance, Response Time, Viewing Angle, Color Coordinates: DisplayCenter
Luminance Uniformity: point 1
a5 shown in a figure below
200
(1, 1)
150
300
450
400
1
3
600
2
5
4
(800, 600)
*2) Definition of Contrast Ratio
CR= Luminance with all white pixels / Luminance with all Black pixels.
*3) Definition of Luminance Uniformity
'Lw=[Lw(MAX)/Lw(MIN)-1]u100
MITSUBISHIConfidential (18/23) AA121SN01_02_00
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 19
Global LCD Panel Exchange Center

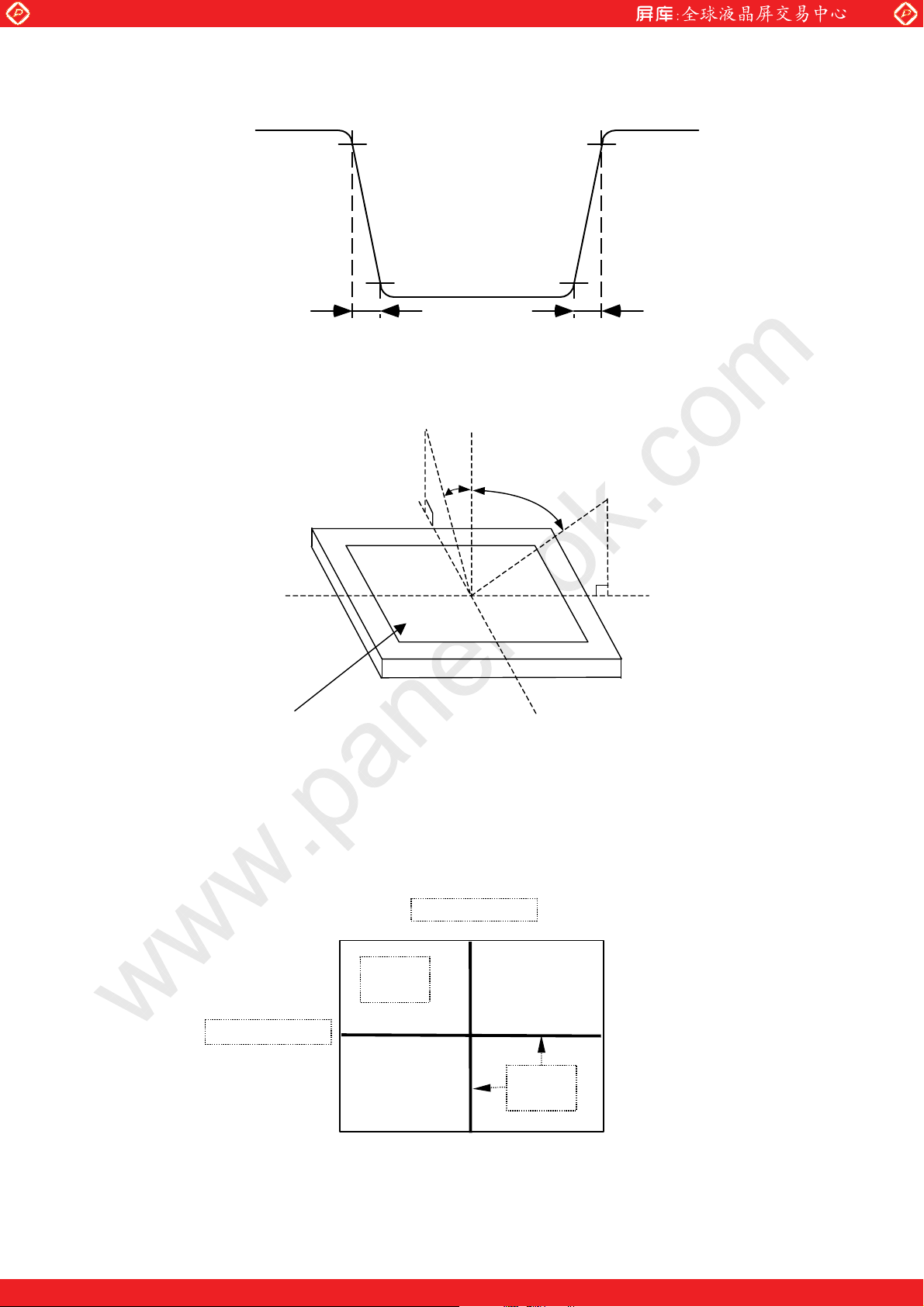

*4) Definition of Response Time
White
Luminance
www.panelook.com
90%90%
tr
*5) Definition of Viewing Angle (
Left (-)
LCD panel
TVT
)
H
Upper(+)
Normal Axis
T
V
10%10% Black
T
+
Lower(-)
tf
Right (+)
*6) Image sticking:
Continuously display the test pattern shown in the figure below for two-hours. Then display a
completely white screen. The previous image shall not persist more than two seconds at 25°C.
Cols 398-402
White
Area
Rows 298-302
Black
Lines
TEST PATTERN FOR IMAGE STICKING TEST
MITSUBISHIConfidential (19/23) AA121SN01_02_00
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 20
Global LCD Panel Exchange Center
www.panelook.com
10. RELIABILITY TEST CONDITION
(1) Temperature and Humidity
TEST ITEM CONDITIONS
HIGH TEMPERATURE
HIGH HUMIDITY OPERATION
HIGH TEMPERATURE OPERATION 70°C, 240 h
LOW TEMPERATURE OPERATION
HIGH TEMPERATURE STORAGE 80°C, 240 h
LOW TEMPERATURE STORAGE
THERMAL SHOCK
(2) Shock & Vibration
ITEM CONDITIONS
40°C, 90%RH, 240h
(No condensation)
20°C, 240 h
20°C, 240 h
BETWEEN –20°C (1h) and 80°C(1h),
100 CYCLES
Shock level: 1470m/s2 (150G)
SHOCK Waveform: half sinusoidal wave, 2ms
(NON-OPERATION) Number of shocks: one shock input in each direction of three mutually
perpendicular axes for a total of six shock inputs
Vibration level: 9.8m/s2 (1.0G)
Waveform: sinusoidal
VIBRATION Frequency range: 5 to 500Hz
(NON-OPERATION) Frequency sweep rate: 0.5 octave /min
Duration: one sweep from 5 to 500 Hz in each of three mutually
perpendicular axis(each x,y,z axis: 1 hour, total 3 hours)
(3) Judgment standard
The judgment of the above tests should be made as follow:
Pass: Normal display image, no damage of the display function. (ex. no line defect)
Partial transformation of the module parts should be ignored.
Fail: No display image, damage of the display function. (ex. line defect)
MITSUBISHIConfidential (20/23) AA121SN01_02_00
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 21
Global LCD Panel Exchange Center
www.panelook.com
11. HANDLING PRECAUTIONS FOR TFT-LCD MODULE
Please pay attention to the followings in handling TFT-LCD products;
(1) ASSEMBLY PRECAUTION
a. Please use the mounting hole on the module in installing and do not bending or wrenching
LCD in assembling. And please do not drop, bend or twist LCD module in handling.
b. Please design display housing in accordance with the following guide lines.
(a) Housing case must be designed carefully so as not to put stresses on LCD all sides and not
to wrench module. The stresses may cause non-uniformity even if there is no
non-uniformity statically.
(b) Keep sufficient clearance between LCD module back surface and housing when the LCD
module is mounted. Approximately 1.0mm of the clearance in the design is recommended
taking into account the tolerance of LCD module thickness and mounting structure height
on the housing.
(c) When some parts, such as, FPC cable and ferrite plate, are installed underneath the LCD
module, still sufficient clearance is required, such as 0.5mm. This clearance is, especially, to
be reconsidered when the additional parts are implemented for EMI countermeasure.
(d) Design the inverter location and connector position carefully so as not to give stress to lamp
cable, or not to interface the LCD module by the lamp cable.
(e) Keep sufficient clearance between LCD module and the others parts, such as inverter and
speaker so as not to interface the LCD module. Approximately 1.0mm of the clearance in
the design is recommended.
(f) To avoid local elevation/decrease of temperature, considering location of heating element,
heat release, thermal design should be done.
c. Please do not push or scratch LCD panel surface with anything hard. And do not soil LCD
panel surface by touching with bare hands. (Polarizer film, surface of LCD panel is easy to be
flawed.)
d. Please do not press any parts on the rear side such as source TCP, gate TCP, control circuit
board and FPCs during handling LCD module. If pressing rear part is unavoidable, handle the
LCD module with care not to damage them.
e. Please wipe off LCD panel surface with absorbent cotton or soft cloth in case of it being soiled.
f. Please wipe off drops of adhesives like saliva and water on LCD panel surface immediately.
They might damage to cause panel surface variation and color change.
g. Please do not take a LCD module to pieces and reconstruct it. Resolving and reconstructing
modules may cause them not to work well.
h. Please do not touch metal frames with bare hands and soiled gloves. A color change of the
metal frames can happen during a long preservation of soiled LCD modules.
i Please handle metal frame carefully because edge of metal frame is very sharp.
j. Please pay attention to handling lead wire of backlight so that it is not tugged in connecting
MITSUBISHIConfidential (21/23) AA121SN01_02_00
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 22
Global LCD Panel Exchange Center
with inverter.
k. Please connect the metal frame of LCD module to GND in order to minimize the effect of
external noise and EMI.
www.panelook.com
l. Be sure to connect the cables and the connecters correctly.
(2) OPERATING PRECAUTIONS
a. Please be sure to turn off the power supply before connecting and disconnecting signal input
cable.
b. Please do not change variable resistance settings in LCD module. They are adjusted to the
most suitable value. If they are changed, it might happen LCD does not satisfy the
characteristics specification.
c. LCD backlight takes longer time to become stable of radiation characteristics in low
temperature than in room temperature.
d. The interface signal speed is very high. Please pay attention to transmission line design and
other high speed signal precautions to satisfy signal specification.
e. A condensation might happen on the surface and inside of LCD module in case of sudden
change of ambient temperature.
f. Please pay attention not to display the same pattern for very long time. Image might stick on
LCD. Even if image sticking happens, it may disappear as the operation time proceeds.
g. Please obey the same safe instructions as ones being prepared for ordinary electronic products.
(3) PRECAUTIONS WITH ELECTROSTATICS
a. This LCD module use CMOS-IC on circuit board and TFT-LCD panel, and so it is easy to be
affected by electrostatics. Please be careful with electrostatics by the way of your body
connecting to the ground and so on.
b. Please remove protection film very slowly from the surface of LCD module to prevent from
electrostatics occurrence.
(4) STORAGE PRECAUTIONS
a. Please do not leave the LCDs in the environment of high humidity and high temperature such
as 60°C90%RH.
b. Please do not leave the LCDs in the environment of low temperature; below –20°C.
(5) SAFETY PRECAUTIONS
a. When you waste damaged or unnecessary LCDs, it is recommended to crush LCDs into pieces
and wash them off with solvents such as acetone and ethanol, which should later be burned.
b. If any liquid leaks out of a damaged glass cell and comes in contact with the hands, wash off
MITSUBISHIConfidential (22/23) AA121SN01_02_00
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 23
Global LCD Panel Exchange Center
thoroughly with soap and water.
c. Be sure to turn off the power supply when inserting or disconnecting the cable.
d. Inverter should be designed carefully so as not to keep working in case of detecting over
current or open circuit on the lamp.
(6) OTHERS
a. A strong incident light into LCD panel might cause display characteristics changing inferior
because of polarizer film, color filter, and other materials becoming inferior. Please do not
www.panelook.com
expose LCD module direct sunlight and strong UV rays.
b. Please pay attention to a panel side of LCD module not to contact with other materials in
preserving it alone.
c. For the packaging box, please pay attention to the followings;
(a) Packaging box and inner case for LCD are designed to protect the LCDs from the damage
or scratching during transportation. Please do not open except picking LCDs up from the
box.
(b) Please do not pile them up more than 5 boxes. (They are not designed so.) And please do not
turn over.
(c) Please handle packaging box with care not to give them sudden shock and vibrations. And
also please do not throw them up.
(d) Packaging box and inner case for LCDs are made of cardboard. So please pay attention not
to get them wet. (Such like keeping them in high humidity or wet place can occur getting
them wet.)
MITSUBISHIConfidential (23/23) AA121SN01_02_00
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Loading...
