Mitsubishi AA121SL10 Specification
Global LCD Panel Exchange Center
www.panelook.com
TENTATIVE
All information in this technical data sheet is tentative
and subject to change without notice
12.1” SVGA
TECHNICAL SPECIFICATION
AA121SL10
MITSUBISHI ELECTRIC Corp.
Date: May.21,’07
MITSUBISHI Confidential (1/24) AA121SL10_02_00
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Global LCD Panel Exchange Center
CONTENTS
No. Item Page
-- COVER 1
www.panelook.com
-- CONTENTS 2
1 APPLICATION 3
2 OVERVIEW 4
3 ABSOLUTE MAXIMUM RATINGS 5
4 ELECTRICAL CHARACTERISTICS 5, 6, 7
5 INTERFACE PIN CONNECTION 8, 9

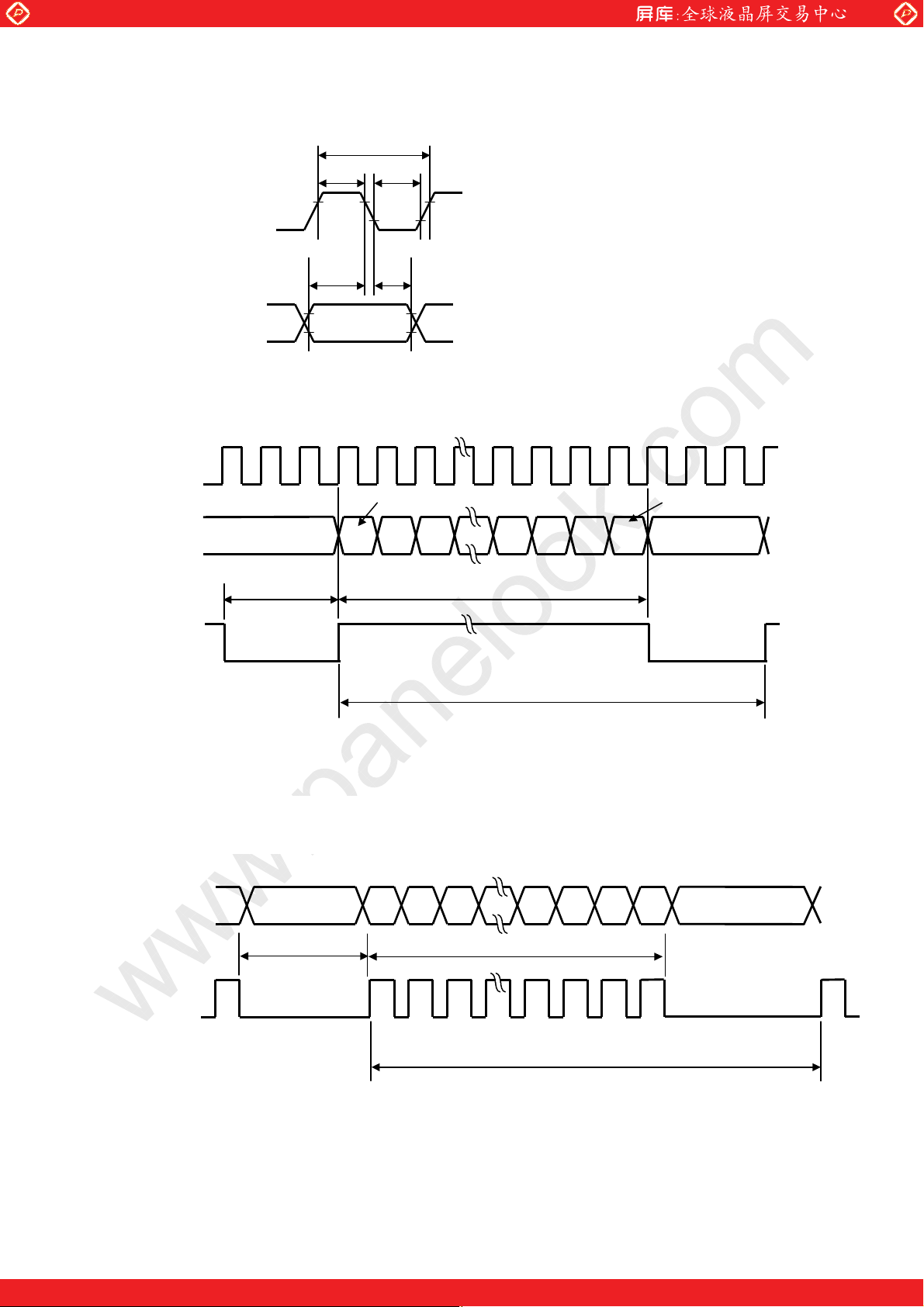

6 INTERFACE TIMING 10, 11, 12, 13

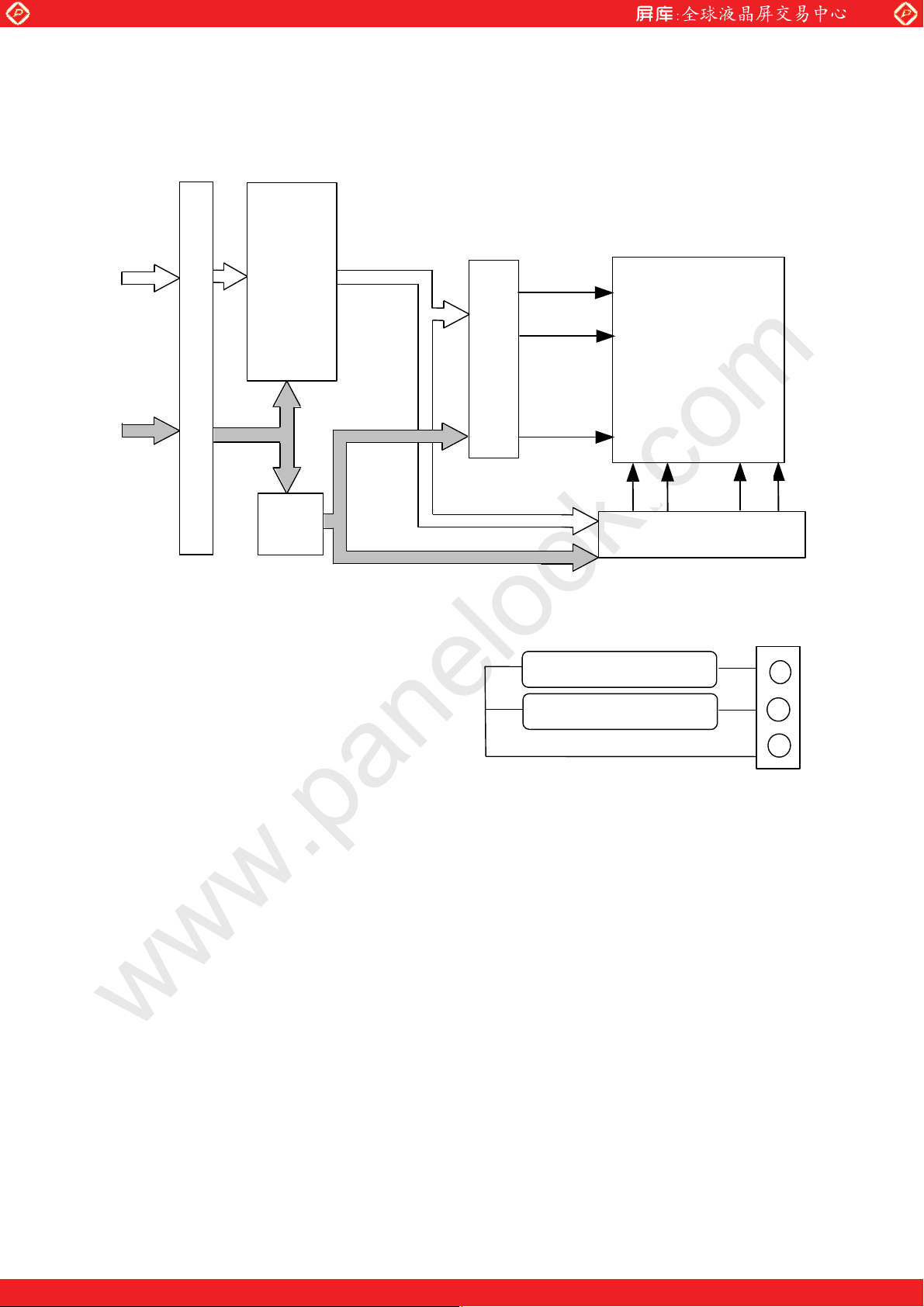

7 BLOCK DIAGRAM 14
8 MECHANICAL SPECIFICATION 15, 16

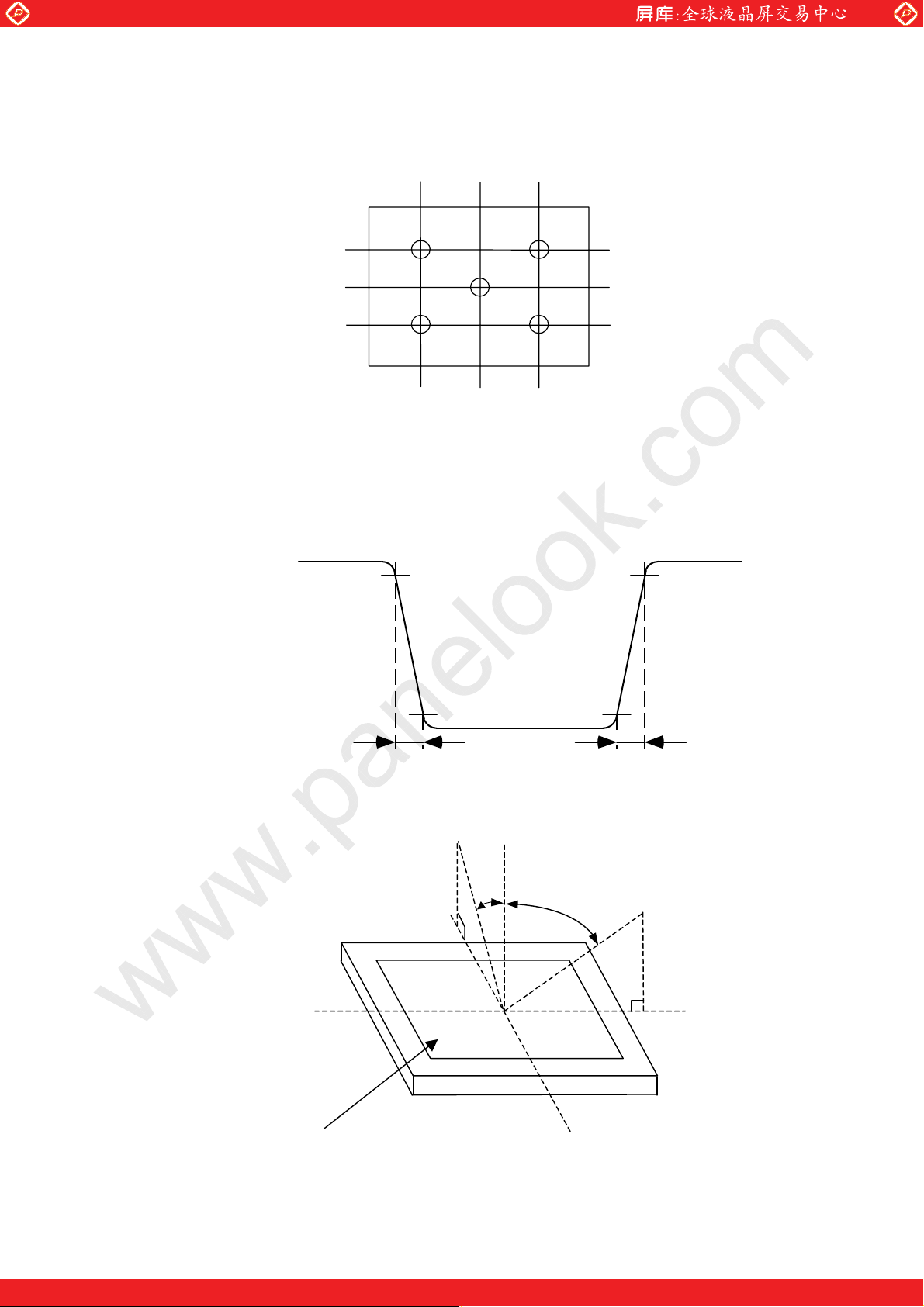

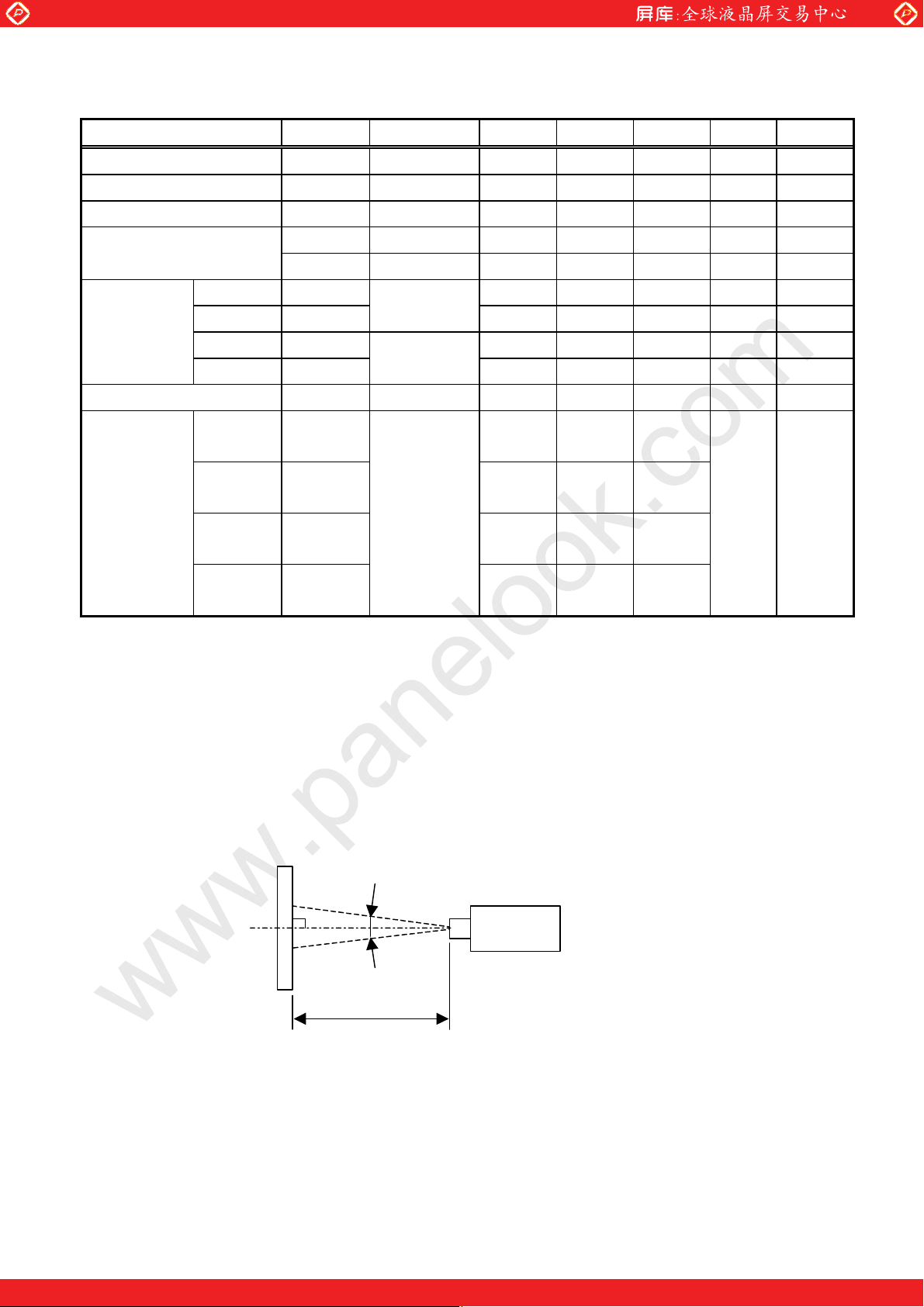

9 OPTICAL CHARACTERISTICS 17, 18, 19
10 RELIABILITY TEST CONDITION 20
11 OTHER FEATURE 21
12 HANDLING PRECAUTIONS FOR TFT-LCD MODULE 22, 23, 24
MITSUBISHI Confidential (2/24) AA121SL10_02_00
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Global LCD Panel Exchange Center
1. APPLICATION
This specification applies to color TFT-LCD module, AA121SL10.
These specification papers are the proprietary product of Mitsubishi Electric Corporation
(“MITSUBISHI) and include materials protected under copyright of MITSUBISHI. No part of this
document may be reproduced in any form or by any means without the express written permission
of MITSUBISHI.
MITSUBISHI does not assume any liability for infringement of patents, copyrights or other
intellectual property rights of third parties by or arising from use of a product specified in this
document. No license, express, implied or otherwise, is granted under any patents, copyrights or
other intellectual property rights of MITSUBISHI or of others.
MITSUBISHI classifies the usage of the TFT-LCD module as follows. Please confirm the usage
before using the product.
(1) Standard Usage
Computers, office equipment, factory automation equipment, test and measurement
equipment, communications, transportation equipment(automobiles, ships, trains, etc.),
provided, however, that operation is not influenced by TFT-LCD directly.
(2) Special Usage
Medical equipment, safety equipment, transportation equipment, provided, however, that
TFT-LCD is necessary to its operation.
(3) Specific Usage
Cockpit Equipment, military systems, aerospace equipment, nuclear reactor control
systems, life support systems and any other equipment. MITSUBISHI should make a
contract that stipulate apportionment of responsibilities between MITSUBISHI and our
customer.
The product specified in this document is designed for “Standard Usage” unless otherwise specified
in this document. If customers intend to use the product for applications other than those specified
for “Standard Usage”, they should contact MITSUBISHI sales representative in advance.
MITSUBISHI has been making continuous effort to improve the reliability of its products.
Customers should implement sufficient reliability design of their application equipments such as
redundant system design, fail-safe functions, anti-failure features.
MITSUBISHI assumes no responsibility for any damage resulting from the use of the product that
does not comply with the instructions and the precautions specified in this document.
Please contact and consult a MITSUBISHI sales representative for any questions regarding this
product.
www.panelook.com
MITSUBISHI Confidential (3/24) AA121SL10_02_00
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Global LCD Panel Exchange Center
2. OVERVIEW
AA121SL10 is 12.1” color TFT-LCD (Thin Film Transistor Liquid Crystal Display) module
composed of LCD panel, driver ICs, control circuit, and backlight unit.
By applying 6 bit digital data, 800u 600, 262 k-color images are displayed on the 12.1” diagonal
screen. Input power voltage is single 3.3V for LCD driving.
The type of date and control signals are digital and transmitted via CMOS interface per typ.
40MHz clock cycle.
Inverter for backlight is not included in this module. General specifications are summarized in the
following table:
ITEM SPECIFICATION
Display Area (mm)
Number of Dots
www.panelook.com
246.0(H) u 184.5(V)
(12.106-inch diagonal)
800 u3 (H) u 600 (V)
Pixel Pitch (mm)
Color Pixel Arrangement RGB vertical stripe
Display Mode Normally white TN
Number of Color 262 k
Luminance (cd/m2) 400
Wide Viewing Angle Technology Optical compensation Film
Viewing Angle(CRt10) -60a60q(H) -75a45q(V)
Surface Treatment Anti-reflection and hard-coating 2H
Electrical Interface CMOS
Optimum Viewing Angle(Contrast ratio) 6 o’clock
Module Size (mm)
Module Mass (g) 720
Backlight Unit CCFL, 2-tubes, edge-light, replaceable
Characteristic value without any note is typical value.
0.3075 (H) u 0.3075 (V)
280.0 (W) u 210.0 (H) u 12.0 (D)
MITSUBISHI Confidential (4/24) AA121SL10_02_00
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Global LCD Panel Exchange Center
3. ABSOLUTE MAXIMUM RATINGS
www.panelook.com
ITEM SYMBOL
MIN. MAX. UNIT
Power Supply Voltage for LCD VCC -0.3 4.0 V
Logic Input Voltage VI -0.3 6.0 V
Lamp Voltage VL 0 2000 Vrms
Lamp Current IL 0 18 mArms
Lamp Frequency FL -- 80 kHz
Operation Temperature(Panel)
Operation Temperature(Ambient)
Storage Temperature
Note 1,2)
T
Note 2)
T
Note 2)
T
op(Panel)
op(Ambient)
stg
-20 70 °C
-20 70 °C
-20 80 °C
[Note]
1) Measured at the center of active area and at the center of panel back surface
2) Top,Tstgd 40qC : 90%RH max. without condensation
Top,Tstg > 40qC : Absolute humidity shall be less than the value of 90%RH at 40qC without
condensation.
4. ELECTRICAL CHARACTERISTICS
(1) TFT-LCD Ambient temperature: Ta = 25
ITEM SYMBOL
Power Supply Voltage for LCD VCC 3.0 3.3 3.6 V
Power Supply Current for LCD ICC -- 340 500 mA
MIN. TYP. MAX. UNIT Remarks
*1)
*2)
Permissive Input Ripple Voltage VRP -- -- 100 mVp-p VCC = +3.3V
Logic Input
Voltage
High VIH 2.0 -- 5.5 V
Low VIL 0 -- 0.8 V
*1) Power and signals sequence:
t1 d10ms 200 ms d t4
0 < t2 d 50 ms 200 ms d t5
0 < t3 d 50 ms 0 d t6
LCD Power Supply
Logic Signal
0.9VCC
㩷
0.1VCC
t2
t1
VCC
data
Backlight
0.9VCC
0.1VCC
t3
t4
0.1VCC
Backlight Power Supply
t5 t6
data: RGB DATA, DCLK, DENA, SC
MITSUBISHI Confidential (5/24) AA121SL10_02_00
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Global LCD Panel Exchange Center
www.panelook.com
VCC-dip conditions:
1) When 2.4 V
d VCC < 3.0 V, td d 10 ms
2) When VCC < 2.4 V
VCC-dip conditions should also follow the power and signals sequence.
VCC
3.0V
2.4V
td
*2) Typical current condition:
64-gray-bar pattern
600 line mode
VCC = +3.3 V , f
=37.9kHz, fV=60.3Hz, f
H
= 40MHz
CLK
(2) Backlight Ta = 25
ITEM
SYMBOL
MIN. TYP. MAX. UNIT Remarks
Lamp Voltage VL -- 540 -- Vrms IL = 12.0 mArms
Lamp Current IL 6.0 12.0 14.0 mArms
Lamp Frequency FL 30 -- 60 kHz
* 2), *6)
*3)
1000 -- -- Ta = 25°C
Starting Lamp Voltage VS
1200 -- -- Ta = 0°C
Vrms
1290 -- --
Lamp Life Time LT 50,000 -- -- h
Ta = -20°C
*4), *5)
IL = 12.0 mArms,
Continuous operation
[Note]
*1)Please use synchronous inverter.
*2) Lamp Current measurement method (The current meter is inserted in low voltage line.)
A
Inverter
Power
Supply
LCD
Module
CTL
CTH
CTH
*3) Lamp frequency of inverter may produce interference with horizontal synchronous frequency,
and this may cause horizontal beat on the display. Therefore, please adjust lamp frequency, and
keep inverter as far from module as possible or use electronic shielding between inverter and
module to avoid the interference.
*4) Lamp life time is defined as the time either when the brightness becomes 50% of the initial
value, or when the starting lamp voltage does not meet the value specified in this table.
*5) The life time of the backlight depends on the ambient temperature. The life time will decrease
under low/high temperature.
MITSUBISHI Confidential (6/24) AA121SL10_02_00
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Global LCD Panel Exchange Center
*6) Please use the inverter which has symmetrical current wave form as follows,
The degree of unbalance: less than 10%
www.panelook.com
The ratio of wave height: less than
I
PH
I
PL
IPH: High side peak
I
: Low side peak
PL
±10%
2
The degree of unbalance = |IPH - IPL| / Irms
(or IPL) / Irms
The ratio of wave height =
I
PH
100(%)
u
CURRENT WAVE FORM
MITSUBISHI Confidential (7/24) AA121SL10_02_00
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Global LCD Panel Exchange Center
5. INTERFACE PIN CONNECTION
(1)CN 1(INTERFACE SIGNAL)
www.panelook.com
Used connector: DF9B-41P-1V
Corresponding connector: DF9B-41S-1V(Hirose)
Pin No. Symbol Function
1 GND Signal ground
2 DCLK Clock signal for sampling catch data signal
3 GND Signal ground
4 HD Horizontal sync signal *1)
5 VD Vertical sync signal *1)
6 GND Signal ground
7 GND Signal ground
8 GND Signal ground
9 R0 RED data signal(LSB)
10 R1 RED data signal
11 R2 RED data signal
12 GND Signal ground
13 R3 RED data signal
14 R4 RED data signal
15 R5 RED data signal(MSB)
16 GND Signal ground
17 GND Signal ground
18 GND Signal ground
19 G0 GREEN data signal(LSB)
20 G1 GREEN data signal
21 G2 GREEN data signal
22 GND Signal ground
23 G3 GREEN data signal
24 G4 GREEN data signal
25 G5 GREEN data signal(MSB)
26 GND Signal ground
27 GND Signal ground
28 GND Signal ground
29 B0 BLUE data signal (LSB)
30 B1 Blue data signal
31 B2 BLUE data signal
32 GND Signal ground
33 B3 BLUE data signal
34 B4 BLUE data signal
35 B5 BLUE data signal(MSB)
36 GND Signal ground
37 DENA Data enable signal(to settle the viewing area)
38 GND Signal ground
39 VCC +3.3 V Power supply
40 VCC +3.3 V Power supply
41

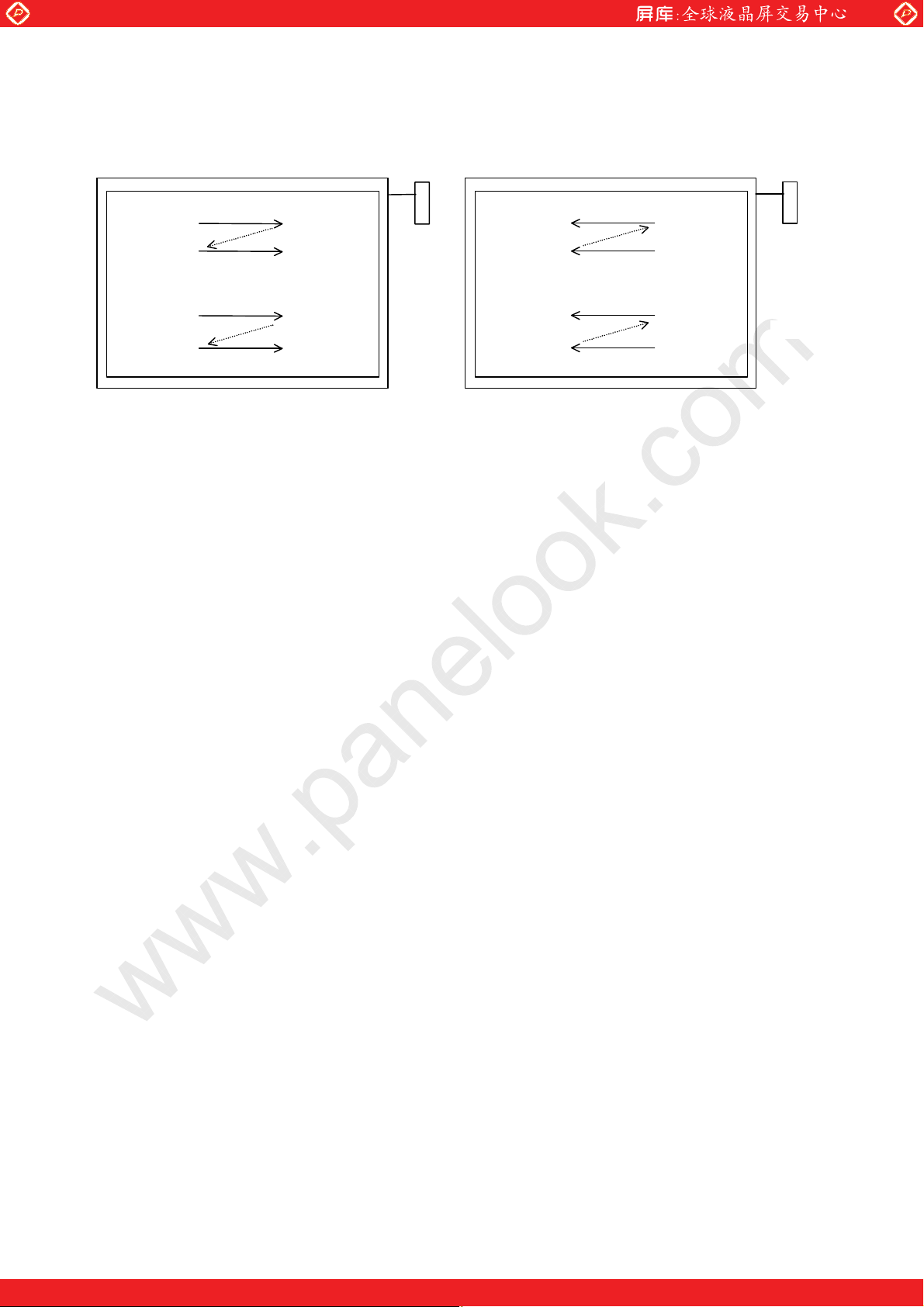

SC Scan direction control.(Low:Normal, High:Reverse)
32(Hirose)
*1HD and VD are not being used for timing control.
*2)The shielding case is connected with GND.
