Mitel 6730a
USER GUIDE
Release# 1.0
Mitel 6730a User Guide
ii
NOTICE
The information contained in this document is believed to be accurate in all respects but is not
warranted by Mitel Networks™ Corporation (MITEL®). Mitel makes no warranty of any kind with
regards to this material, including, but not limited to, the implied warranties of merchantability and
fitness for a particular purpose. The information is s ubject to change without notice and should not be
construed in any way as a commitment by Mitel or any of its affiliates or subsidiaries. Mitel and its
affiliates and subsidiaries assume no responsibili ty for any errors or omissions in this document.
Revisions of this document or new editions of it may be issued to incorporate such changes.
No part of this document can be reproduced or transmi tted in any form or by any means - electronic or
mechanical - for any purpose without written permission from Mitel Networks Corporation.
TRADEMARKS
The trademarks, service marks, logos and graphics (collectively "Trademarks") appearing on M i t el 's
Internet sites or in its publications are registered and unregistered trademarks of Mitel Networks
Corporation (MNC) or its subsidiaries (collectively "Mitel") or others. Use of the Trademarks is
prohibited without the express consent from Mitel. Please contact our legal department at
legal@mitel.com for additional information. F or a li st of the worldwide Mitel Networks Corporation
registered trademarks, please refer to the website: http://www.mitel.com/trademarks.
© Copyright 2018, Mitel Networks Corporation
All rights reserved
Mitel 6730a User Guide
Release # 1.0
Table of Contents
iii
Introduction ............................................................................................................. 5
Phone Specification................................................................................................. 5
Phone Parts ............................................................................................................ 6
Key Panel ................................................................................................................ 7
Bottom View ............................................................................................................ 9
Basic Operation ..................................................................................................... 10
Dial and Pre-dial ................................................................................................................. 10
Dial ................................................................................................................................................. 10
Pre-dial ........................................................................................................................................... 10
Call by Handsfree ............................................................................................................... 10
Call by Headset .................................................................................................................. 10
Music on Hold ..................................................................................................................... 10
Mute .................................................................................................................................... 10
Goodbye Key ...................................................................................................................... 10
Redial ................................................................................................................................. 11
Menu Operation .................................................................................................... 11
Phone Setting ........................................................................................................ 12
Set Language ..................................................................................................................... 12
Set Ring Volume ................................................................................................................. 12
Set Ring Melody ................................................................................................................. 12
Set Handset Volume ........................................................................................................... 12
Set Handfree Volume ......................................................................................................... 13
Set Headset Volume ........................................................................................................... 13
Set Password...................................................................................................................... 14
Set Lock state ..................................................................................................................... 14
LCD Contrast ...................................................................................................................... 14
Set Flash Time.................................................................................................................... 14
Set Time/Date ..................................................................................................................... 14
Date Format ........................................................................................................................ 15
Time Format ....................................................................................................................... 15
Mitel 6730a User Guide
iv
Area Code Setting .............................................................................................................. 15
Call Records .......................................................................................................... 16
View Call Records .............................................................................................................. 16
Delete Call Records ............................................................................................................ 16
Save One-touch / Two-touch memory / Phonebook from Call Records ............................. 16
Dial Back from Call Records ............................................................................................... 16
Area Code Filter .................................................................................................................. 16
Alarm Setting ......................................................................................................... 17
Alarm Clock ........................................................................................................................ 17
Alarm Duration .................................................................................................................... 17
Alarm ON/OFF .................................................................................................................... 17
Speed Dial Memory ............................................................................................... 18
Save a Memory ................................................................................................................... 18
Dial from a Memory ............................................................................................................ 18
Delete Memory ................................................................................................................... 18
Message Waiting Memory (MWM) ........................................................................ 19
Save MWM ......................................................................................................................... 19
Dial from MWM ................................................................................................................... 19
Delete MWM ....................................................................................................................... 19
Message Waiting LED ........................................................................................................ 19
Phonebook ............................................................................................................ 20
Save MWM ......................................................................................................................... 20
Search Phonebook ............................................................................................................. 20
Add Phonebook .................................................................................................................. 20
Delete Phonebook .............................................................................................................. 20
Caller ID display .................................................................................................... 21
Mitel 6710a User Guide
5
Introduction
Mitel 6730a is an advanced line-powered analog phone. It supports multi-languages, call log
management, volume adjustment, message waiting, configuration lock, and remote control
through FSK signaling.
Phone Specification
General
Color
Charcoal
Signal
Analog
Line supported
Single
Features
Volume control
Handset / Headset (4 levels)
Handsfree (8 levels)
Flash button flash time programmabl e
100ms, 200ms, 300ms (default), 400ms , 600ms, 900
ms
Compatibility with hearing aid
Yes
DTMF dialing
Yes
Incoming call/MWI indicator
Yes
Call waiting display
Yes
Caller ID display
FSK - Type 1 & 2
Missed call + received call
50 call records
Outgoing Call Log
50 call records
Phone book
100 records
Call Timer
Yes
Greeting Message / Owner number
Yes
Real time clock
Yes
Alarm clock
Yes
Display language
6 languages and adjustable by PBX
Reset calling/redial list
Manageable by PBX
Delete calling/redial list
Manageable by PBX
Remote handfree speaking
Manageable by PBX
Configuration lock (4-digit passcode)
Phone book, speed-dial memory and critical phone
settings are lockable
Hardware and Feature
LED calling signalization
Support
Hold with key
Support
Release with key
Support
Speed dial keys
Support (up to 8)
Redial with key
last 1 number
Navigational key
Yes
Ringer melody
8 types
Ringer volume
2 levels
Ringer silence
Yes
Mitel 6730a User Guide
6
Accessories
Connection cable, RJ11/ RJ45
1 pcs, 2 meters
Number card
1 pcs

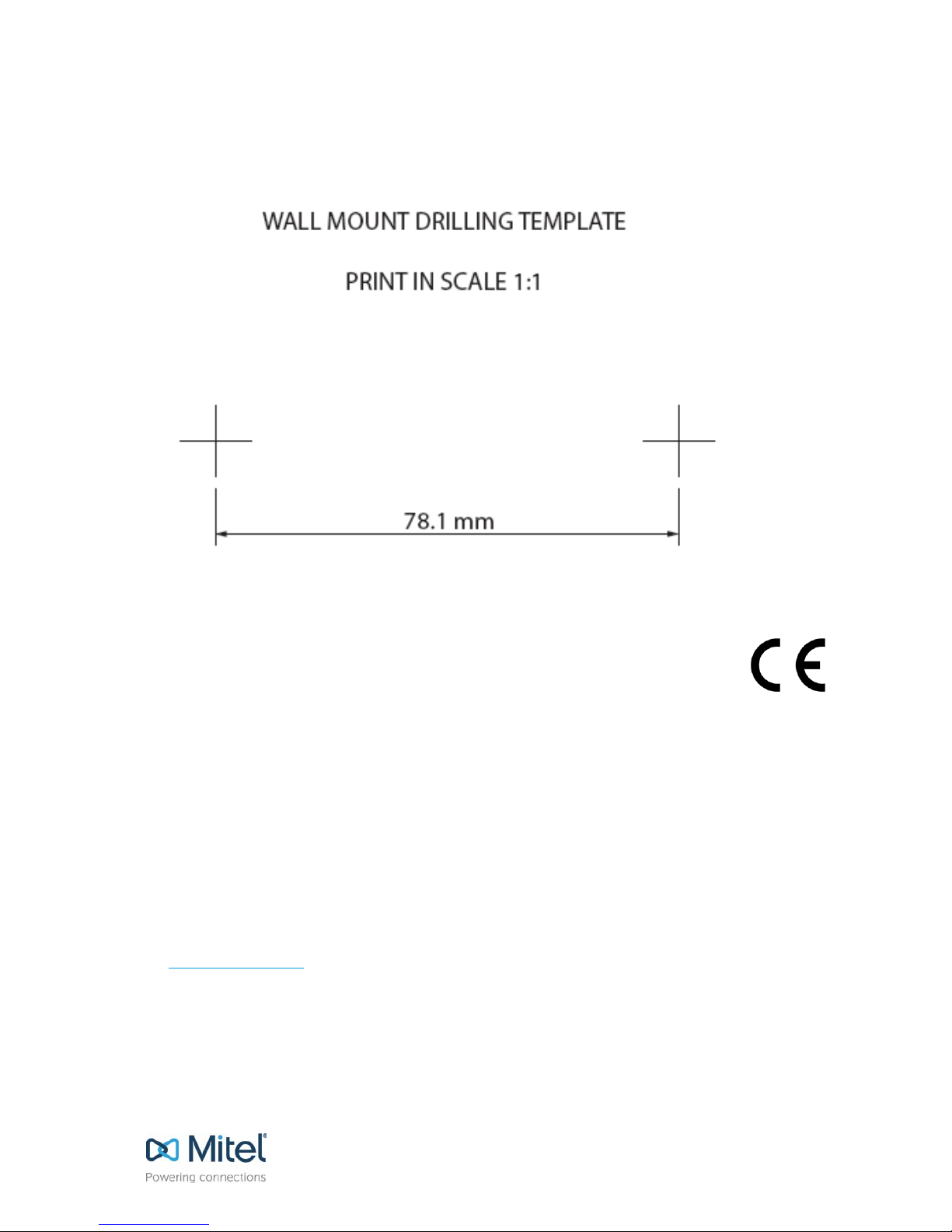

Wall mounting kit
screws & anchors included
Phone Parts
When you unpack your phone, you should ensure that you have all the following items. If any
part is missing, contact the supplier of your phone.
Figure 1 : Phone Parts
Mitel 6710a User Guide
7
Key Panel
Figure 2 : Key Panel Overview
