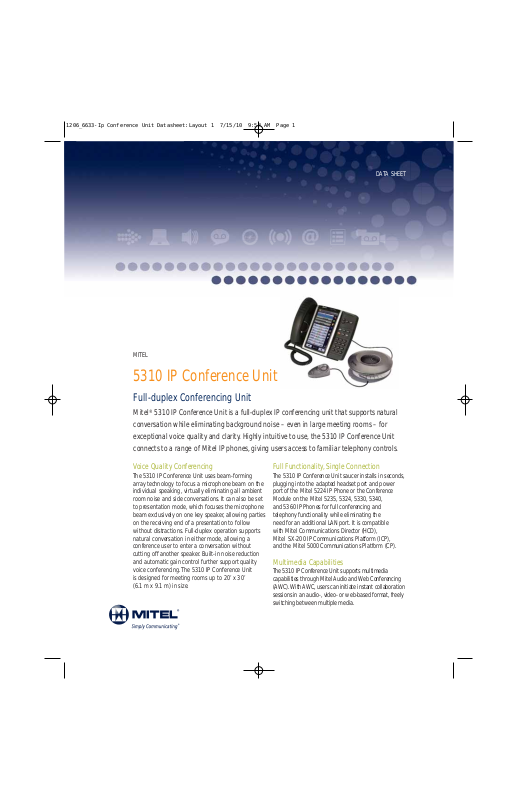

Mitel 5310 IP DATASHEET

DATA SHEET

Full-duplex Conferencing Unit

Mitel®5310 IP Conference Unit is a full-duplex IP conferencing unit that supports natural
conversation while eliminating background noise – even in large meeting rooms – for
exceptional voice quality and clarity. Highly intuitive to use, the 5310 IP Conference Unit
connects to a range of Mitel IP phones, giving users access to familiar telephony controls.

MITEL

5310 IP Conference Unit

Voice Quality Conferencing

The 5310 IP Conference Unit uses beam-forming
array technology to focus a microphone beam on the
individual speaking, virtually eliminating all ambient
room noise and side conversations. It can also be set
to presentation mode, which focuses the microphone
beam exclusively on one key speaker, allowing parties
on the receiving end of a presentation to follow
without distractions. Full-duplex operation supports
natural conversation in either mode, allowing a
conference user to enter a conversation without
cutting off another speaker. Built-in noise reduction
and automatic gain control further support quality
voice conferencing. The 5310 IP Conference Unit
is designed for meeting rooms up to 20’ x 30’
(6.1 m x 9.1 m) in size.

Full Functionality, Single Connection

The 5310 IP Conference Unit saucer installs in seconds ,
plugging into the adapted headset port and power
port of the Mitel 5224 IP Phone or the Conference
Module on the Mitel 5235, 5324, 5330, 5340,
and 5360 IP Phones for full conferencing and
telephony functionality while eliminating the
need for an additional LAN port. It is compatible
with Mitel Communications Director (HCD),
Mitel SX-200 IP Communications Platform (ICP),
and the Mitel 5000 Communications Platform (CP).

Multimedia Capabilities

The 5310 IP Conference Unit supports multimedia
capabilities through Mitel Audio and Web Conferencing
(AWC). With AWC, users can initiate instant collaboration
sessions in an audio-, video- or web-based format, freely
switching between multiple media.

Features

• Full-duplex handsfree operation

• Acoustic beam-forming technology to focus on
lead speaker and eliminate background noise,
side conversations etc.

• Noise reduction

• Automatic gain technology eliminates disturbing
background noises when participants are moving
around the room

• Integrated LED direction indicators that provide
conference participants visual confirmation that
the unit is receiving their voice

• Dual-colored LEDs (orange / green) indicate status:
mute, presentation mode and directionality
of microphone

• Full telephony functionality through Mitel IP phones

• Presentation mode allows the user to focus / freeze
the beam in a particular direction

• 5220 and 5224 IP Phones interface: side control unit
features conference unit on / off, volume controls,
presentation mode and mute

• 5235, 5324, 5330, 5340, and 5360 IP Phones:
conference controller application on the phones
features softkey functionality for conference unit on /
off, volume controls, presentation mode and mute

• Optional remote control mouse performs the
functions of on, off, mute, volume up / down and
presentation mode

Recommended Conference Area

Designed for optimal use in offices or meeting rooms up
to 20’ x 30’ or 600 sq ft (6.1 m x 9.1 m or 55.5 m²)

Audio Specifications

Frequency Range: 300 Hz to 3500 Hz
Volume: Peak sound pressure: 89 dB

(at 1.6’ or 0.5 meters)

Microphone: 6 Microphones at 60º beams

= 360º microphone coverage

Compression Support

G.711, G.729

Voice QoS

Supports IEEE 802.1p/q for quality of service

2 MITEL DATA SHEET

5360 IP Phone with
5310 IP Conference Unit

DATA SHEET TITLE 3

DATA SHEET

Powering Options

IEEE 802.3af Power over Ethernet (PoE) for 5235, 5324,
5330, 5340 and 5360 IP Phones

Optional external universal AC power supply:
110 V 60 Hz AC / 220 V 50 Hz AC

• 5220 and 5224 IP Phones:
– Powered via the AC adapter power port

on the 5220 and 5224 IP Phones

– Requires 24 V DC power adapter

(purchased separately)

• 5235, 5324, 5330, 5340 and 5360 IP Phones:
– Powered over Ethernet with a power source

compliant to IEEE 802.3af

– 48 V DC Ethernet power adapter available,

purchased separately (if required)

Power Consumption

5 W (in addition to the power consumed by the phone
that the 5310 Conference Unit is attached to)

Environmental Conditions

Temperature Humidity

Operational

+4°C – +49°C 34% at 49°C

95% at 29°C

Storage -40°C – +66°C 15% at 66°C

95% at 29°C

Regulatory Standards

EMC CANADA:

ICES-003 (Class B)
USA:

CFR Title 47, Part 15 (Class B)
EU:

EN55024 (EU), EN55022 (Class B)
AUSTRALIA / NEW ZEALAND:

AS / NZS CISPR 22
BRAZIL:

Resolution No. 442 / 2006
CHINA:

GB9254

Safety CANADA:

CSA C22.2 No. 60950-1
USA:

UL 60950
EU:

EN 60950, EN 60950-1
AUSTRALIA / NEW ZEALAND:

AS / NZS 60950-1
BRAZIL:

Resolution 238 / 2000
CHINA:

GB4943

Telecom CANADA:

CS03 Part V (hearing aid compatible)
USA:

FCC part 68 (CFR 47)
(hearing aid compatible)

AUSTRALIA / NEW ZEALAND:
PTC220
AS / ACIS, S004

System Requirements

• Mitel Communications Director (MCD)
Release 4.0 or later

• Mitel 5000 Communications Platform (CP)
Release 4.0 or later

• Mitel SX-200 ICP Release 4.0 (UR1) or later

• Mitel SIP phones Release 8.0

Physical Dimensions

Size (L x W x H) Weight

Phone only 10.5” x 4” x 3.5” 1.35 lbs or 0.61 kg

(26.7 cm x 10.2 cm x 8.9 cm)

Packaged 11.7” x 6.4” x 3.2” 2.24 lbs or 1.02 kg

(29.6 cm x 16.2 cm x 8.1 cm)

Supported IP Phones

• 5224 IP Phone

• 5235 IP Phone

• 5324 IP Phone

• 5330 IP Phone

• 5340 IP Phone

• 5360 IP Phone
