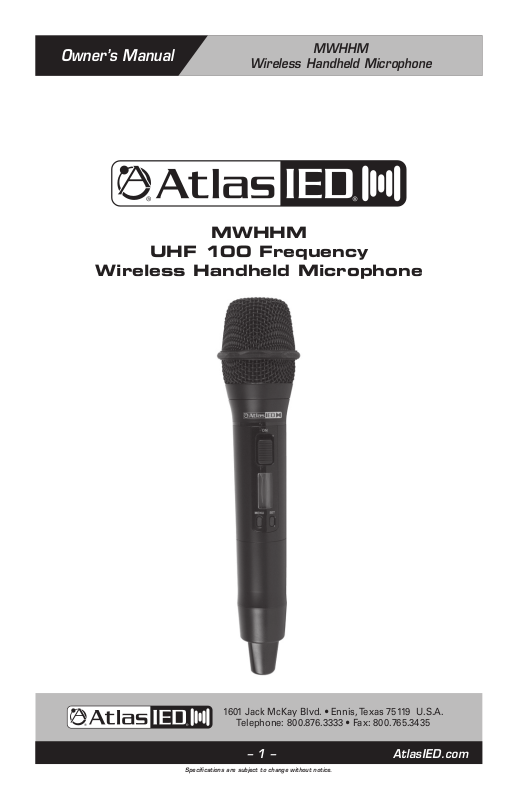

Owner’s Manual

Wireless Handheld Microphone

MWHHM

MWHHM

UHF 100 Frequency

Wireless Handheld Microphone

1601 Jack McKay Blvd. • Ennis, Texas 75119 U.S.A.

Telephone: [phone] • Fax: [phone]

AtlasIED.com – 1 –

Specifications are subject to change without notice.

MWHHM

Wireless Handheld Microphone

Owner’s Manual

Description

The AtlasIED MWHHM wireless handheld microphone is the ideal choice for a variety of applications
ranging from classrooms and conference rooms to lecture halls and live presentations. The MWHHM
features a dynamic/condenser type microphone element in a sturdy enclosure that is lightweight
and ergonomically designed for comfort. The unit is powered by either standard AA batteries or with
NiMH rechargeable batteries (sold separately) allowing for up to 16 hours of usage. The unit operates
on the UHF band and syncs to the wireless receiver, AtlasIED model MWRCVR, for connection to

local amplication. The integrated LCD displays critical information regarding channel, frequency,

and battery level. An optional charger is available when used with NiMH rechargeable batteries,
AtlasIED model MWCHGR.

Features

• Multi-function LCD display for channel / frequency, battery level indicator, Alkaline / NiMH
battery selection

• Patented technology for 2-way data transfer between transmitter and receiver

• Hidden antenna

• Detachable microphone capsule design

• Rugged metal housing design

• Requires 2 AA batteries to operate

• Up to 16 hours operating time

• Matching battery charger: MWCHGR

Applications

• Classrooms

• Conference Rooms

• Lecture Halls

• Live Presentation

1601 Jack McKay Blvd. • Ennis, Texas 75119 U.S.A.

Telephone: [phone] • Fax: [phone]

AtlasIED.com – 2 –

Specifications are subject to change without notice.

Owner’s Manual

Parts and Functions

MWHHM

Wireless Handheld Microphone

3 446 7

1 2

1. Cartridge

2. Battery Power LED

3. Power Switch

4. LCD Display

5. Menu Button

6. Setting Button

7. Synchronizing Button

8. Battery Compartment

9. Color Cap

10. Sensor Area

11. Charging Contacts

8 9

5

10

11
