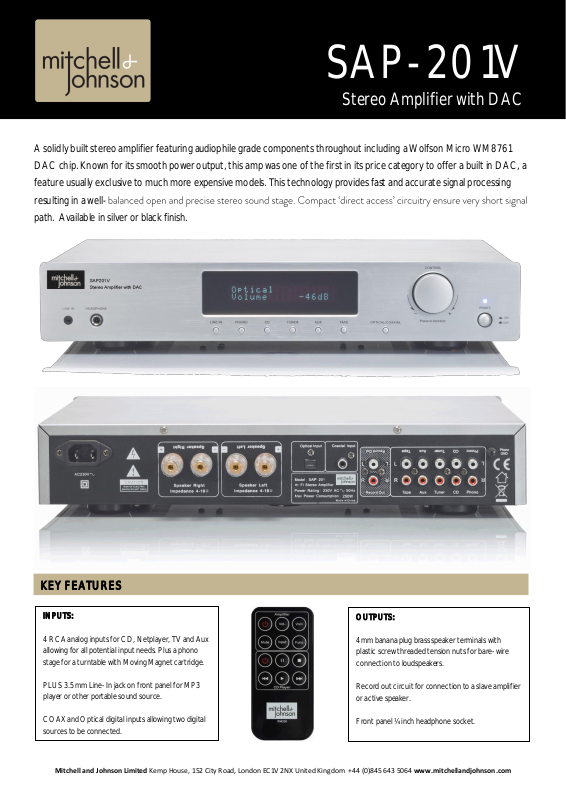

Mitchell & Johnson SAP-201V User Manual

SAP-201V

Stereo Amplifier with DAC

INPUTS:

4 RCA analog inputs for CD, Netplayer, TV and Aux
allowing for all potential input needs. Plus a phono
stage for a turntable with Moving Magnet cartridge.

PLUS 3.5mm Line-In jack on front panel for MP3
player or other portable sound source.

COAX and Optical digital inputs allowing two digital
sources to be connected.

OUTPUTS:

4mm banana plug brass speaker terminals with
plastic screw threaded tension nuts for bare-wire
connection to loudspeakers.

Record out circuit for connection to a slave amplifier
or active speaker.

Front panel ¼ inch headphone socket.

KEY FEATURES

A solidly built stereo amplifier featuring audiophile grade components throughout including a Wolfson Micro WM8761
DAC chip. Known for its smooth power output, this amp was one of the first in its price category to offer a built in DAC, a
feature usually exclusive to much more expensive models. This technology provides fast and accurate signal processing
resulting in a well­path. Available in silver or black finish.

Mitchell and Johnson Limited Kemp House, 152 City Road, London EC1V 2NX United Kingdom [phone] www.mitchellandjohnson.com

SAP-201V

Stereo Amplifier with DAC

Rated Output Power

40 W at 8 ohms, 2 ch driven, 1 kHz, 0.8 % THD (IEC)
50 W at 4 ohms, 2 ch driven, 1 kHz,0.8 % THD (IEC)

Dynamic Power

150W

THD (Total Harmonic Distortion)

0.08 % (1 kHz 1 W)

Damping Factor

60 (Front'1 kHz'8 )

Input Sensitivity and Impedance

250 mV/47 k(LINE)

6.5 mV/47 k(PHONO)

Output Level and Impedance

250 mV/47k(REC OUT)

Phono Overload

60 mV (MM 1 kHz 0.5 %)

Frequency Response

20 Hz-50 kHz/+1 dB-3 dB (LINE)

+14 dB, -14 dB, 100 Hz (BASS)

Tone Control

+14 dB, -14dB, 10 kHz (TREBLE)

+0 dB, -14 dB (BALANCE)

Signal to Noise Ratio

>85dB (LINE, IHF-A) 61 dB (PHONO, IHF-A)

Speaker Impedance

4 ohm, 8 ohm, 16 ohm

Digital Inputs

OPTICAL 1 (Rear), COAXIAL 1 (Rear)

Digital to Analog Converter

Wolfson Micro WM8761 upto 24 bit 192kHz sampling rate

Analog Inputs

PHONO/CD/NET-PLAYER/AUX/TV (REAR) LINE-IN (FRONT)

Analog Outputs

REC OUT

Headphones

1 x 1/4" (FRONT)

Power Supply

AC 230V, 50/60 Hz toroidal audio grade PSU

Power Consumption

Max 250W

Dimensions

(WxHxD) : 430 x 80 x 283 mm

Weight

6.3 kg

SPECIFICATION

Mitchell and Johnson Limited Kemp House, 152 City Road, London EC1V 2NX United Kingdom [phone] www.mitchellandjohnson.com
