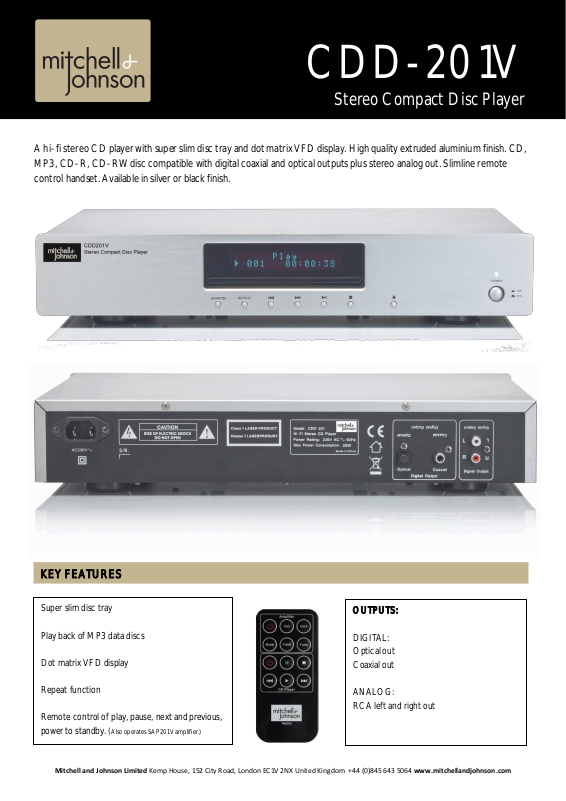

Page 1
CDD-201V
Stereo Compact Disc Player
Super slim disc tray
Play back of MP3 data discs
Dot matrix VFD display
Repeat function
Remote control of play, pause, next and previous,
power to standby. (Also operates SAP201V amplifier.)
OUTPUTS:
DIGITAL:
Optical out
Coaxial out
ANALOG:
RCA left and right out
KEY FEATURES
A hi-fi stereo CD player with super slim disc tray and dot matrix VFD display. High quality extruded aluminium finish. CD,
MP3, CD-R, CD-RW disc compatible with digital coaxial and optical outputs plus stereo analog out. Slimline remote
control handset. Available in silver or black finish.
Mitchell and Johnson Limited Kemp House, 152 City Road, London EC1V 2NX United Kingdom +44 (0)845 643 5064 www.mitchellandjohnson.com
Page 2
CDD-201V
Stereo Compact Disc Player
Output Level
1.8V +/- 2dB @ 1KHz 0dB
Signal to Noise Ratio
>80dB (LINE, IHF-A)
Frequency Response
20Hz - 20KHz
Digital Outputs
OPTICAL 1 (Rear), COAXIAL 1 (Rear)
Channel Balance
>20dB
Separation
>60dB
Digital to Analog Converter
Mediatek MTK1389DE
Analog Outputs
RCA/phono stereo left and right
Analog Output Level
1.8V
THD + noise
< 0.1%
Disc Compatibility
CD, MP3, CD-R, CD-RW disc
Power Supply
AC 230V, 50/60 Hz
Power Consumption
Max 20W
Dimensions
(WxHxD) : 430 x 80 x 283 mm
Weight
6.3 kg
SPECIFICATION
Mitchell and Johnson Limited Kemp House, 152 City Road, London EC1V 2NX United Kingdom +44 (0)845 643 5064 www.mitchellandjohnson.com
