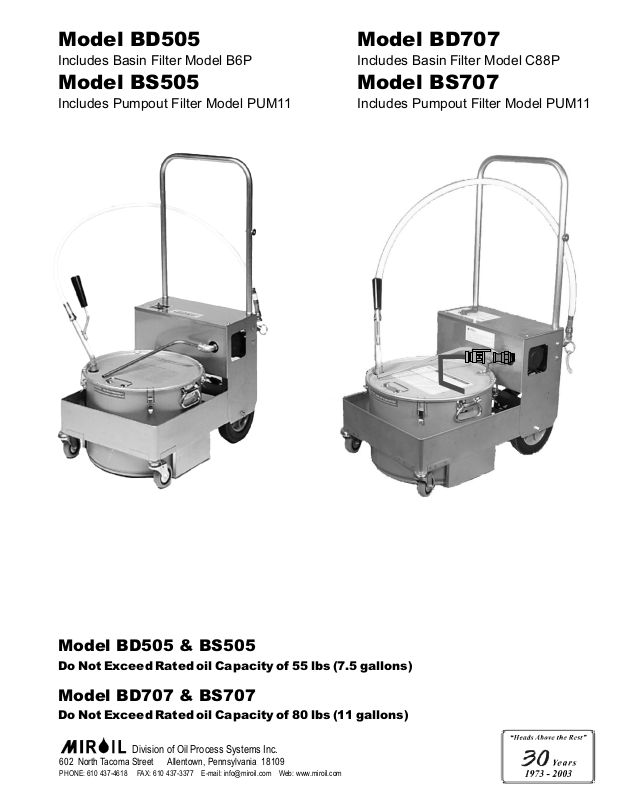

Miroil BD707 Installation Manual

Model BD505

Model BD707

Includes Basin Filter Model B6P

Model BS505

Includes Pumpout Filter Model PUM11

Includes Basin Filter Model C88P

Model BS707

Includes Pumpout Filter Model PUM11

Model BD505 & BS505

Do Not Exceed Rated oil Capacity of 55 lbs (7.5 gallons)

Model BD707 & BS707

Do Not Exceed Rated oil Capacity of 80 lbs (11 gallons)

Division of Oil Process Systems Inc.

602 North Tacoma Street Allentown, Pennsylvania 18109

PHONE: [phone] FAX: [phone] E-mail: [e-mail] Web: www.miroil.com

Dear Customer:

Congratulations on your selection of our High Performance Power Filter Machine which continues over
30 years of leadership in oil management.

Your Filter Machine is an important tool for fryer oil management. It is designed to achieve maximum
performance for removal of fine crumb and food materials at the lowest cost.

Another important part of oil management is fryliquid™ antioxidant. When you use this product with
your filter machine you will experience enhanced oil performance and enhanced food quality. This
combination delivers benefits not available from other filter machines.

• Provides consistent and enhanced food quality

• Oil savings from 25% to 40%

• Fryers stay free of carbon and gum deposits

• The MirOil filter doe s not leach harmful chemicals like paper filters

• Faster set-up and clean-up will save on labor

• Throw-away paper filters, D. E. powder or expensive cartridges are not needed.

• MirOil "Rinse & Reuse" filter bags clean up in seconds under hot water spray.

Why fryliquid™ antioxidant and your filter machine deliver these benefits.

All oil breakdown substances are liquid. They pass through filters and filter aids and remain in the oil.

As they accumulate, they undermine the nutritional profile and the cooking performance of the oil.
fryliquid™ antioxidant prevents these breakdown liquid substances from forming in the oil.

This is why fryliquid™ antioxidant is able to provide total control of food quality and oil performance.
fryliquid™ antioxidant prevents off flavors and odors. fryliquid™ antioxidant does not react with
the oil or with the food.

To receive the full benefit from your MirOil Filter Machine, just follow these simple rules.

1. Set up a regular schedule to filter once a day.

2. Add fryliquid™ antioxidant to your oil before each meal session.

3. Follow the filtering and freshening procedures outlined in this manual.

For questions about fryliquid™ antioxidant or your Power Filter Machine. . . .

Frying Hot Line 800.523.9844

Additional Tips

Order a spare filter bag so you are prepared if it may be required in the future.

If the oil for discard is held overnight in the kitchen for security reasons or if you need a measure for the

freshening oil . . . . Order a Model 30LG utility pail - for measuring and / or storing up to 5 gallons of oil.

Division of Oil Process Systems Inc.

602 North Tacoma Street Allentown, Pennsylvania 18109

PHONE: [phone] FAX: [phone] E-mail: [e-mail] Web: www.miroil.com

Loss or Damage During Shipment

Inspect all cartons for damage before unpacking. Your MirOil pump was thoroughly inspected before

leaving our factory. The carrier is responsible for safe delivery. All claims for any loss or damage in transit must
be made to the carrier. MirOil will assist with claims IF damage has been promptly reported to the carrier.

1 Year Limited Warranty on your Filter Machine

This product is warranted only against defects in workmanship or materials for 1 year from date of the
filter machine is placed in service or not longer than 15 months from date of purchase. Liability under
the basic 1 year limited warranty is limited to replacing or repairing parts FOB Allentown PA. Parts must
be returned to our factory with shipping costs prepaid. The 1 year warranty does not cover the

costs of service labor or shipping to replace parts.

The use of the filter pump for pumping any liquid other than fryer oil will contaminate the pump and
piping. This will contaminate the oil and may void this warranty

6 month Limited Warranty on your Filter Bag

The filter bag has a pro rata warranty for 6 months. This is similar to a warranty for a battery or tire. The
filter bag must be returned to MirOil for repair, FOB Allentown, PA 18109. If the filter bag is not able to
be repaired, It will be replaced with a new filter bag at the prevailing cost. Credit toward the purchase of
the new filter bag will be provided for the unused service life of the old filter bag. This warranty does not
cover the costs shipping to replace parts.

Important Limits for Coverage Under All Warranties

No warranty described above covers the replacement of parts that become inoperative because of
wear (except filter bags) or abuse or for parts subjected to abuse/misuse, negligence, accident or if the
product has been improperly repaired or altered by user or a 3rd party. No other warranty, expressed or
implied, is authorized to be made by any parties on behalf of MirOil.

The manufacturer and the manufacturer's sales agents and/or agencies accept no liability for the use
or misuse of this machine. Expressly excluded from warranty are implied warranties of
merchantability and fitness for purpose. Manufacturer, agents and sales agencies disclaim all liability
for accidents resulting from use or the misuse of this equipment.

Toll Free Call for warranty information 1.800.523.9844

Manual Reset Switch:

Manual reset thermal protector. The thermal protector will open the motor circuit if the motor overheats. If this
happens, disconnect the power cord and turn switch off.

AFTER THE MOTOR COOLS, PUSH THIS RESET BUTTON. A CLICK INDICATES THAT IS HAS RESET
AND THE MOTOR CAN BE RESTARTED.

If your oil / fat is solid at room temperature:

If a plug of solid fat or shortening forms in the hose, It will prevent pumping.

Procedure to prevent plug of solid oil, fat or shortening:

The oil film on the inside wall may collect at a loop in the hose and form a plug of solid fat. This will prevent the pump from
priming. After filtering, disconnect the discharge hose and hang it from a hook to drain. Use a small collector pan or place hose
nozzle in holder tube on Mobility Basin to avoid oil dripping on the floor.

Procedure for correcting blockage from plug of solid fat:

Unplug the electric cord. Try to pour some water through the discharge hose. If the water will not pass through the hose it is
blocked with fat. Melt the fat plug by placing the hose in a large tub or sink with hot water.

Safety Caution:

Residue of water in the hose can cause a dangerous splatter of hot oil.

After the fat plug is melted, make sure the water is fully drained before the hose is recoupled. Before turning ON the power filter
always make sure the discharge hose nozzle is directed at the fryer. If the pump is still not primed, allow the pump to run for
about 3 to 5 minutes so the pump heat may melt any residue of fat in or near the pump body.

Safety first - Make sure the hose nozzle is in the holder tube on the Pump Module when the pump is running.
