MirOil 690HS User Manual

back to miroil.com

Table of Contents

Use Instructions

for Models - 690HD

- 690HS

Please choose:

1. Title page 2

2. Dear Customer 3

3. Packaging information 4

4. Assembly Instructions 5

5. Filtering Procedure - HD Series 6

6. Filtering Procedure - HS Series 7

7. Warranty Registration 8

Page

Return to main menu

Model 690HD

(Shown below)

Includes Basin Filter Model 905

Model 690HS

(Shown below)

Includes Pump Out Filter

Model 690HD / Model 690HS

Do Not Exceed Rated oil Capacity of 45 lbs (6.5 gallons)

Division of Oil Process Systems Inc.

602-20 North Tacoma Street Allentown, Pennsylvania 18103

PHONE: [phone] FAX: [phone] E-mail: [email protected] Web: www.miroil.com

Return to main menu

Dear Customer:
Congratulations on your selection of our Hand Operated Filter Machine which continues over 25 years

of leadership in oil management.
Your Filter Machine is an important tool for fryer oil management. It is designed to achieve maximum

performance for removal of fine crumb and food materials at the lowest cost.
Another important part of oil management is Frypowder oil stabilizer & filter aid. Frypowder Oil

Stabilizer & Filter Aid used with your filter machine will enhance your experience of performance. This
combination delivers benefits not available from other filter machines.

• Provides consistent and enhanced food quality

• Oil savings from 25% to 40%

• Fryers stay free of carbon and gum deposits

• The MirOil filter doe s not leach harmful chemicals like paper filters

• Faster set-up and clean-up will save on labor

• MirOil filter has a 6 months filter life pro rated guarantee.

®®

• Throw-away paper filters, D. E. powder or expensive cartridges are not needed.

• MirOil "Rinse & Reuse" filter bags clean up in seconds under hot water spray.

Why Frypowder Oil Stabilizer and Filter Aid and your filter machine deliver these benefits.

All oil breakdown substances are liquid. They pass through filters and filter aids and remain in the oil. As

they accumulate, they undermine the nutritional profile and the cooking performance of the oil.
Frypowder oil stabilizer captures these breakdown liquid substances as they form.

This is why Frypowder oil stabilizer is able to provide total control of food quality and oil performance.
Frypowder oil stabilizer has no chemistry with the oil or with the food.

When the oil is filtered, the Frypowder oil stabilizer mineral leave the fryer with the crumb and
performs as a filter aid for improved filtering.

T o receive the full benefit from your MirOil Filter Machine, just follow these simple rules.

1. Set up a regular schedule to filter once a day.

2. Add Frypowder to your oil before each meal session.

3. Follow the filtering and freshening procedures outlined in this manual.

For questions about Frypowder oil stabilizer or your Power Filter Machine. . . .

Frying Hot Line 1.800.523.9844

Additional Tips

Order a spare filter bag so you are prepared if it may be required in the future.
If the oil for discard is held overnight in the kitchen for security reasons or if you need a measure for the

freshening oil . . . . Order a Model 30LG utility pail - for measuring and / or storing up to 5 gallons of oil.

Division of Oil Process Systems Inc.

602-20 North Tacoma Street Allentown, Pennsylvania 18103

PHONE: [phone] FAX: [phone] E-mail: [email protected] Web: www.miroil.com

Return to main menu

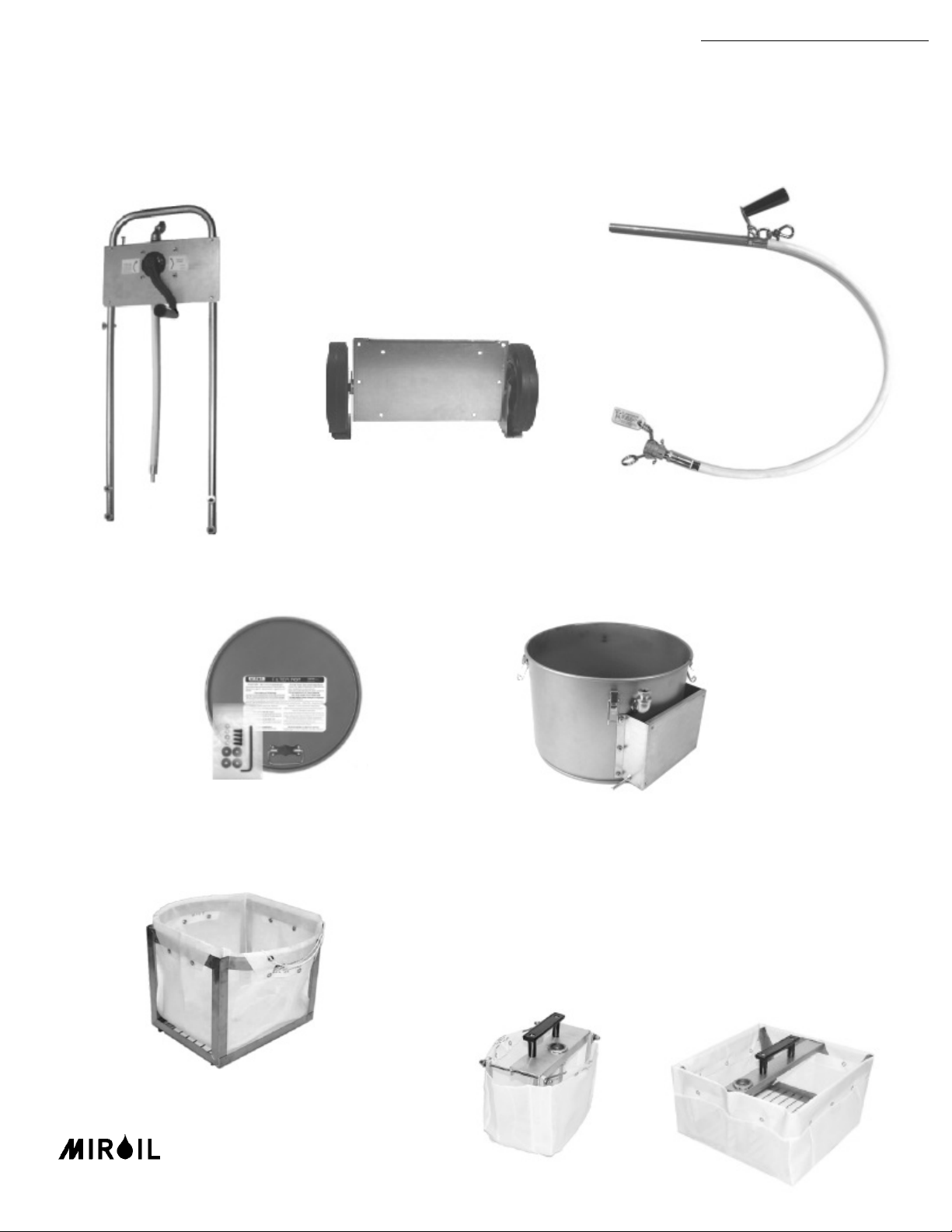

The following parts are included for assembly

Assembly of Hot Oil Pump
Mounted on Handle

Carton 2 for Model 690HD & Model 690HS

Carton 1 for Model 690HD & Model 690HS

#

Wheel Assembly

#

Discharge Hose

Assembly

Carton 2 for Model 690HD

also includes Model D905A Filter Assembly

#

for drain operation

7.5 gallon Oil Drain Basin Lid and Screws

Carton 2 for Model 690HS

also includes Pump Out Filter Assembly

compatible with the lift out fry pan

Model WDY8A
Holder Frame & Filter Bag

for smaller fryers

#

Model WE28A
Or Model PUM11A Holder
Frame & Filter Bag for
larger lift out fry pans
in larger fryers

A Model 900 Filter Bag is to be snapped
onto the Model 905C Filter Frame.

Division of Oil Process Systems Inc.

602-20 North Tacoma Street Allentown, Pennsylvania 18103

PHONE: [phone] FAX: [phone] E-mail: [email protected] Web: www.miroil.com

Assembly of models 690HD / HS

Return to main menu

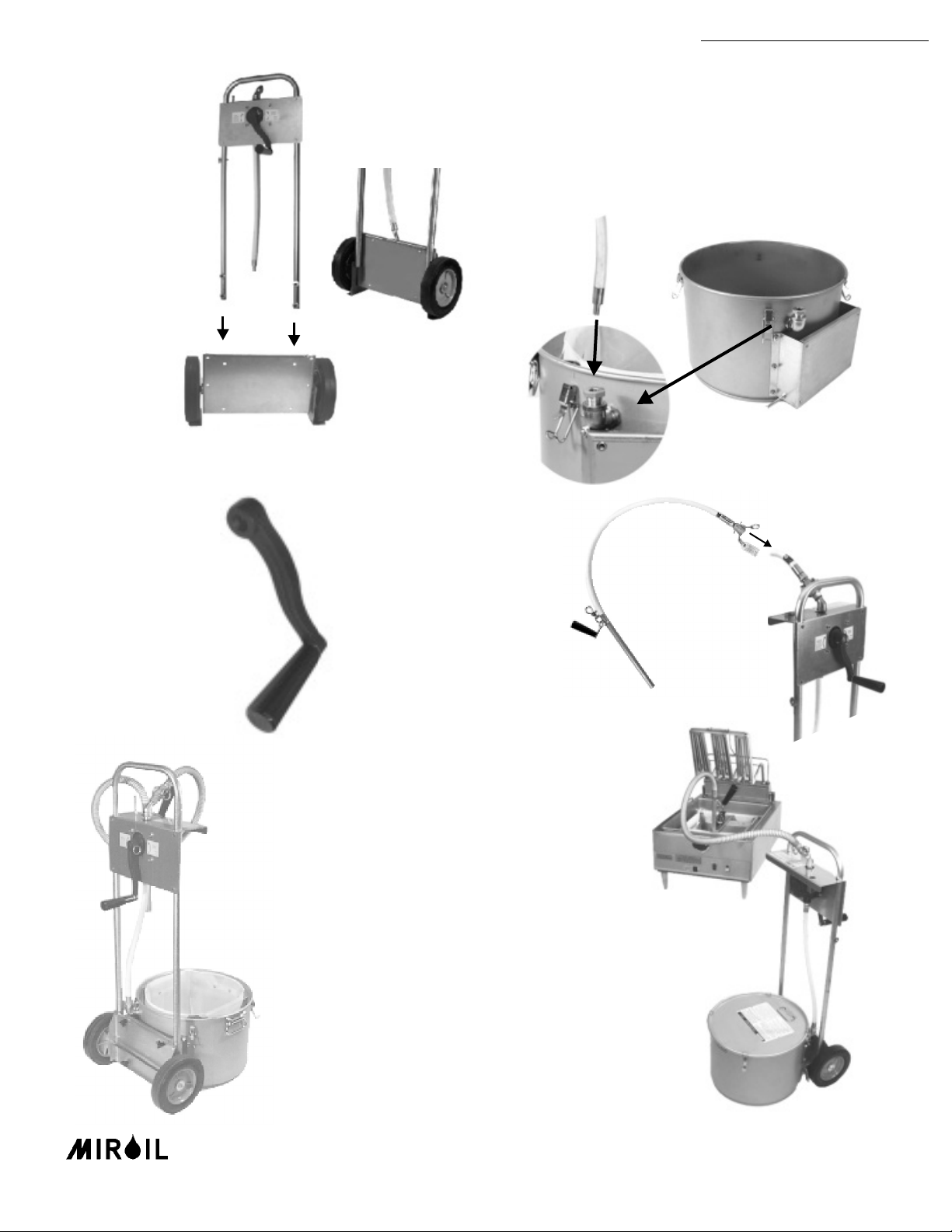

Step 1

Attach the Wheel
Assembly to the
Handle and Hot Oil
Pump Assembly.
Use the Allen wrench
and Allen screws in
the nutserts in the
handle.

Step 3.

Remove pin, turn &
remount crank
handle from
shipping position to
the correct position
for pumping.
Reinstall pin.

Step 2.

Insert tube at end of hose (from hot oil
pump suction) into the socket on the side of
the Filter Basin until the tube is fully seated.

Step 4.

Carefully attach the
quick coupling on the
end of the Discharge
Hose to the mating
fitting on the
pump/handle
assembly

The Filter Machine is ready for use.
Be sure to read the instructions
before placing machine into service.

Assembled

Model 690HD

Division of Oil Process Systems Inc.

602-20 North Tacoma Street Allentown, Pennsylvania 18103

PHONE: [phone] FAX: [phone] E-mail: [email protected] Web: www.miroil.com

Assembled

Model 690HS

Return to main menu

Filter Procedure for Model 690HD for use with fryers with drain valves.

CAUTION: Couple the hose. Pull hard on the hose to make sure the lever arms are locked.

Make sure hose nozzle is in the nozzle holder tube on the pump.
Filter oil at temperatures from 300°F to 350°F

Step 1 - Swing wheel stabilizers into place as shown in diagram below (figure 1).
Step 2 - Place EZ Flow Model 905 Filter in the Basin (see diagram Figure 1).

Carefully open the fryer valve to drain oil into the filter basin through the filter bag.

Step 3 - Use a small amount of Frypowder on a damp cloth to clean "ring around the fryer" and any slight

residue of previous carbon formation on heating surfaces.

Aim hose nozzle carefully as you pump oil to flush crumb and powder residue from fryer.
Step 4 - Close the drain valve turn pump to return the oil back to the fryer
Step 5 - Discard heavy crumb load before filtering the next fryer. Use a bus tray or carton to allow the crumb

to cool because hot crumb will melt plastic garbage can liners.
Clean your filter under hot water spray. Store the filter in the filter basin to avoid accidental damage.
Do not wash the filter in a dishwasher or use soap. The least residue of soap is harmful to the oil.

If solid oil or shortening is used, before storing the filter machine, turn the pump handle

clockwise to empty the oil from the pump cavity.
Uncouple the hose and store it in a hanging position to prevent a fat plug from forming when it
collects and solidifies at a loop or bend of the hose.

More notes for great fried food:

1. Add Frypowder oil stabilizer to your oil after filtering and/or before each meal session. This will capture

oil breakdown substances as they form in the oil and prevent oil breakdown reactions.

2. Filter once a day when Frypowder oil stabilizer is used unless crumb load is extremely heavy.

3. Follow the filtering and freshening procedures described in your brochure for Frypowder oil stabilizer

and the New Frying Technology to choose an oil management program for your fry station.

For assistance call . . . . 1.800.523.9844

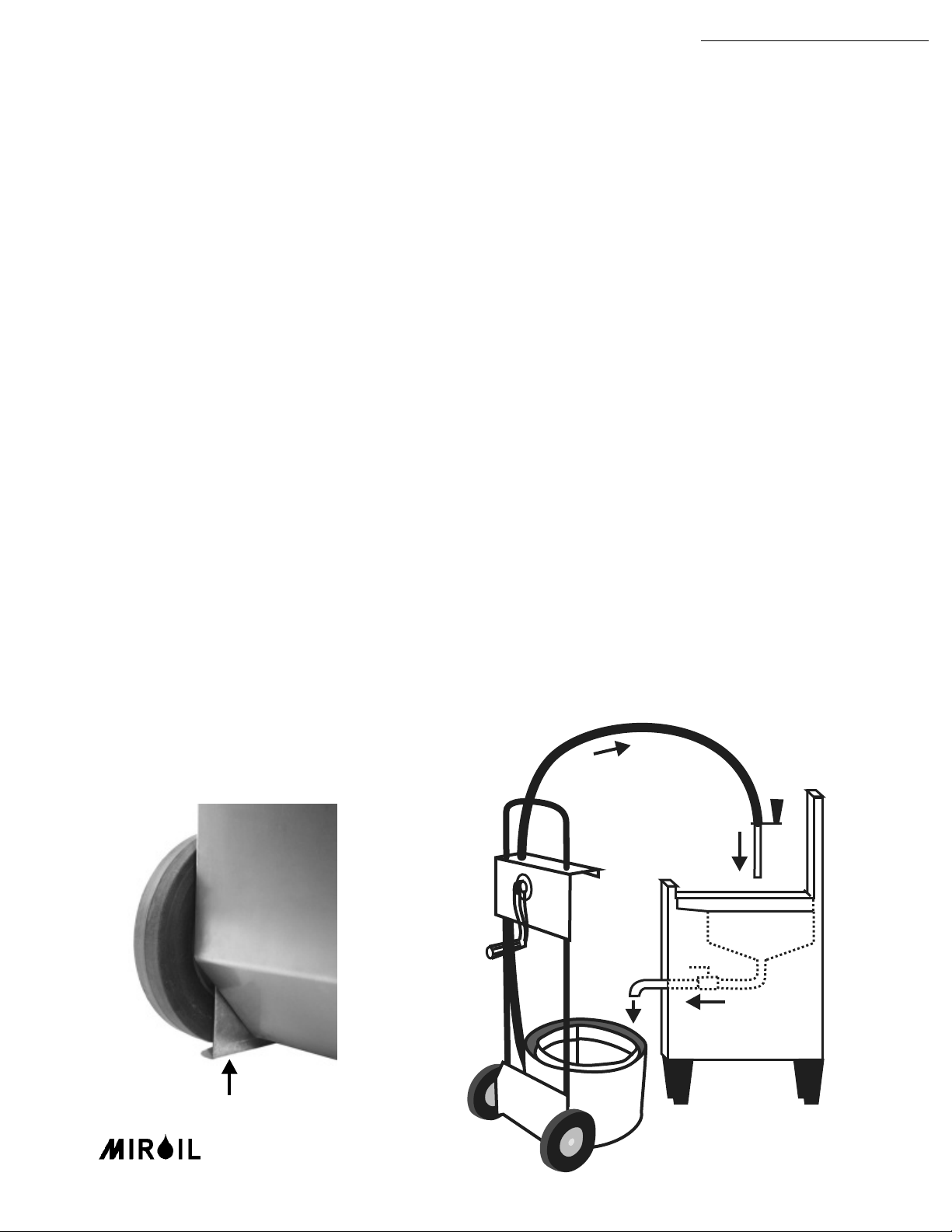

Figure 1

Wheel stabilizer in pumping position

Division of Oil Process Systems Inc.

602-20 North Tacoma Street Allentown, Pennsylvania 18103

PHONE: [phone] FAX: [phone] E-mail: [email protected] Web: www.miroil.com

Fryer

Return to main menu

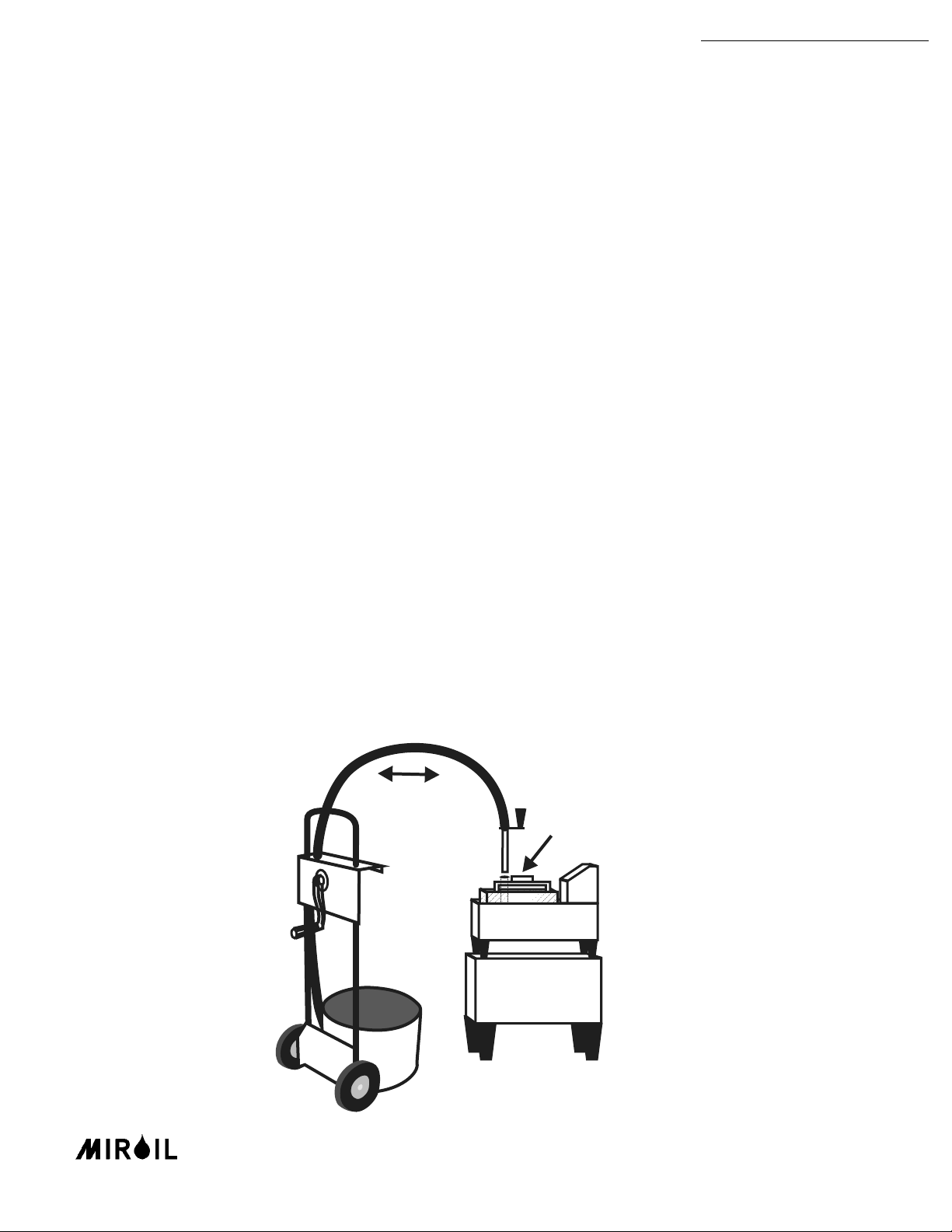

Filter Procedure for 690HS Series For countertop fryers with lift out fry pans (No drain valves)

If you also have fryers with drain valves, buy a D Series Drain Filter for this filter machine

Use the Filter Procedure for "D" Series for fryers with drain valves

Refer to diagram on bottom of this page:

CAUTION: Couple the hose. Pull hard on the hose to make sure the lever arms are locked. Make sure hose
nozzle is in the nozzle holder on the pump. Lift heaters out of the oil and secure them in this position.
Filter oil at temperatures from 300°F to 350°F.

Step 1 - Swing wheel stabilizers into place as shown in diagram below
Step 2 - Carefully immerse the Pump-Out Filter Bag mounted on its holder frame into the oil.

Install the hose nozzle into the nozzle holder tube of the Pump Out Filter.

Step 3 - Do not tilt the fryer pan to pump the residue of oil.

Adjust the height of the bottom of the nozzle to leave the proper amount of oil in the fry pan for
freshening. Discard this left over oil with the crumb.
This controlled discard will take the place of the Partial Discard Procedure of the Frying Program.

Step 4 - Rinse the fry pan only with hot water - no soap. To clean "ring around the fry pan" and any carbon

formation on the heating surfaces use some Frypowder on a damp cloth.
Step 5 - Turn pump handle counterclockwise to pump the oil back to the the fry pan.
Do not wash the filter in a dishwasher or use soap. The least residue of soap is harmful to the oil.

If solid shortening is used, uncouple the hose and store it in a hanging position to prevent a fat plug
from forming when it collects and solidifies at a loop or bend of the hose.

More notes for great fried food:

1. Add Frypowder oil stabilizer to your oil after filtering and/or before each meal session. This will capture

oil breakdown substances as they form in the oil and prevent oil breakdown reactions.

2. Filter once a day when Frypowder oil stabilizer is used unless crumb load is extremely heavy.

3. Follow the filtering and freshening procedures described in your brochure for Frypowder oil stabilizer

and the New Frying Technology to choose an oil management program for your fry station.

For assistance call . . . . 1.800.523.9844

Counter Top Fryer
with lift out Fry Pan

Division of Oil Process Systems Inc.

602-20 North Tacoma Street Allentown, Pennsylvania 18103

PHONE: [phone] FAX: [phone] E-mail: [email protected] Web: www.miroil.com

Pump out filter

with nozzle

support tube

Return to main menu

Loss or Damage During Shipment

Inspect all cartons for damage before unpacking. Your MirOil pump was thoroughly inspected before

leaving our factory. The carrier is responsible for safe delivery. All claims for any loss or damage in transit
must be made to the carrier. MirOil will assist with claims IF damage has been promptly reported to the carrier.

1 Year Limited Warranty on your Filter Machine

This product is warranted only against defects in workmanship or materials for 1 year from date of the
filter machine is placed in service or not longer than 15 months from date of purchase. Liability under
the basic 1 year limited warranty is limited to replacing or repairing parts FOB Allentown PA. Parts
must be returned to our factory with shipping costs prepaid. The 1 year warranty does not cover the
costs of service labor or shipping to replace parts.

The use of the filter pump for pumping any liquid other than fryer oil will contaminate the pump and
piping. This will contaminate the oil and may void this warranty

6 month Limited Warranty on your Filter Bag

The filter bag has a pro rata warranty for 6 months. This is similar to a warranty for a battery or tire. The
filter bag must be returned to MirOil for repair, FOB Allentown, PA 18103. If the filter bag is not able to
be repaired, It will be replaced with a new filter bag at the prevailing cost. Credit toward the purchase of
the new filter bag will be provided for the unused service life of the old filter bag. This warranty does not
cover the costs shipping to replace parts.

Important Limits for Coverage Under All Warranties

No warranty described above covers the replacement of parts that become inoperative because of
wear (except filter bags) or abuse or for parts subjected to abuse/misuse, negligence, accident or if the
product has been improperly repaired or altered by user or a 3rd party. No other warranty , expressed or
implied, is authorized to be made by any parties on behalf of MirOil.

The manufacturer and the manufacturer's sales agents and/or agencies accept no liability for the use
or misuse of this machine. Expressly excluded from warranty are implied warranties of
merchantability and fitness for purpose. Manufacturer, agents and sales agencies disclaim all liability
for accidents resulting from use or the misuse of this equipment.

Toll Free Call for warranty information 1.800.523.9844

Cut and fax / send lower portion Cut and fax / send lower portion Cut and fax / send lower portion

Avoid losing protection under the Warranty
FAX this W arranty Registration promptly to [phone]
or . . . add postage and mail to:
602-20 N. Tacoma St., Allentown, PA 18103

Filter Machine Model No. __________________________ Serial No. ____________________
Oil Pump Model No. ______________________________ Serial No. ____________________
Filter Bag Model No.______________________________ Serial No. ____________________
Owner ___________________________________________
Contact Person ___________________________________
Purchased From __________________________________
Date purchased ___________________________________ Date placed in service ___________

Division of Oil Process Systems Inc.

602-20 North Tacoma Street Allentown, Pennsylvania 18103

PHONE: [phone] FAX: [phone] E-mail: [email protected] Web: www.miroil.com
