OM Design Series

OM Design Series

In the concert hall the orchestra completes its warm-up. The audience applauds
as the soloist takes the stage and then goes still. The conductor steps onto the
podium and with a stroke of his baton the music begins. Each note from each
instrument reaches your ear with its own sweet clarity as a sea of glorious sound
envelopes you from all sides.

Suddenly you realize you are not in a concert hall. You are in your own living
room. But even there you are not listening to speakers but to the artists them­selves.

Welcome to the ultimate illusion. Welcome to Mirage OM Design.

OMD-28

Mirage Loudspeaker’s innovative speaker designs have been at the top of the
audio community for over 30 years. Mirage’s latest ingenious masterpiece is the
revolutionary OMD-28. A timeless statement piece that combines pure luxury,
incredible cabinet finishing and the most sophisticated artistry in loudspeaker
design.

The OMD-28 speakers offer a level of tonal detail and accuracy unlike anything

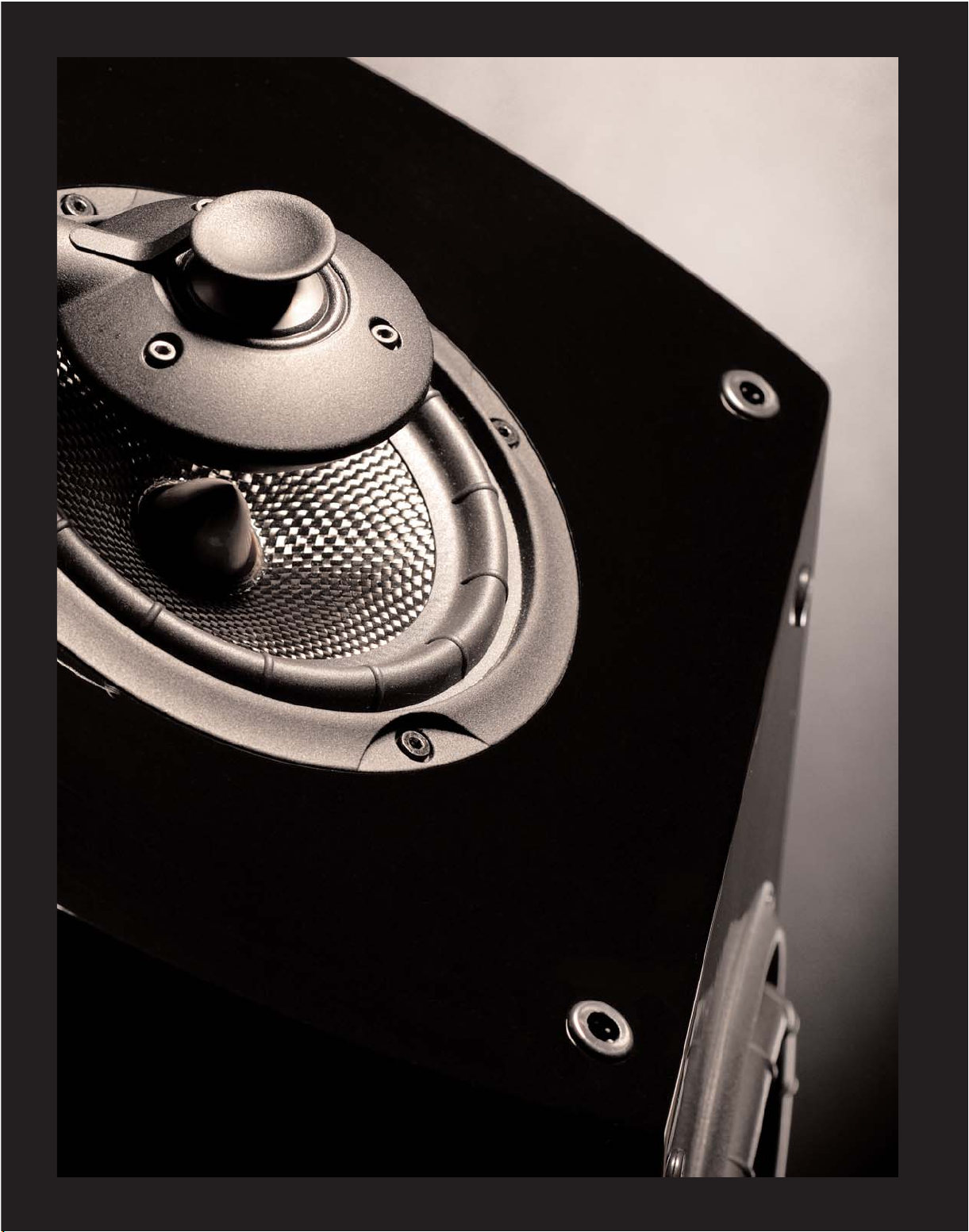

you have ever experienced. Two 8” woven carbon fibre woofers mated to
Mirage’s patented Ribbed Elliptical Surround allow the OMD-28 to achieve
outstanding bass extension. Two down-firing ports, a 5.25” midrange driver and
a high efficiency 1.125” PTH™ tweeter mounted in Mirage’s exclusive
OMNIGUIDE design, complete this amazing speaker package. The handmade
cabinets are beautifully finished in stunning high gloss black, high gloss rose­wood or in exquisite high gloss burled maple.

Mirage’s revolutionary OMD-28 is the first true high-end OMNIGUIDE-based
audiophile speaker. OMNIGUIDE technology was developed to mimic the way
sound is created in real life. This patented technology embraces room reflec­tions rather than avoiding them, allowing the speakers to evenly fill out the
entire room and as such, creating the most realistic sound reproductions imagi­nable. Close your eyes, embrace the moment and listen, not to the speakers, but
the artists you cherish.

OMD-C2

The stylish three-way OMD-C2 Center Channel features Mirage’s proprietary OMNIPOLAR technology,
creating a 360° sound field that brings movies and multi-channel audio tracks to life. Never before has “being
at the movies” felt so realistic and so seamless. The OMD-C2 offers precise dialogue placement, while at the
same time conveying a spaciousness and presence impossible to achieve from conventional forward-radiat­ing center channel speakers.

OMD-R

The OMNIPOLAR radiation pattern created by the OMD-R provides seamless blending between front and
rear surround effects, creating an impressive home theater experience. Fewer speaker placement headaches
arise with the use of the OMD-R surround speakers. The OMD-R surround sound channel is perfect for cre­ating sound effects or reproducing demanding multi-channel audio tracks.

AVAILABLE FINISHES

Model

OOMMDD--2288

Speaker System Type

OMNIPOLAR™ Bass Reflex Loudspeaker with Down-firing Vents

Recommended Amplifier Power

50-300 Watts (Unclipped)

Impedance

6 Ohms Nominal / 3.5 Ohms Minimum

Frequency Response

25 Hz - 20 Hz

Usable Low Frequency Response

-10 dB Anechoic @ 18 Hz

Sensitivity

87 dB

Crossover Points

550 Hz and 2.5 kHz

Tweeter

1.1” (2.8 cm) Chambered Titanium Dome

Midrange

5.25” (13.3 cm) Multi-layer Carbon Fiber / Fiberglas™ Hybrid
with Underhung Motor System

Woofer

Two 8” (20.3 cm) Multi-layer Carbon Fiber

Dimensions (H x W x D)

46.5 x 11 x 13 inches / 118.1 x 27.9 x 33 cm

Weight

73 lb / 33.1 kg

Finishes

High Gloss Black; High Gloss Rosewood; High Gloss Burled Maple

Accessories Included

Locking Aluminum Cone Feet; Polishing Cloth; Gloves

Model

OOMMDD--CC22

Speaker System Type

OMNIPOLAR™ Acoustic Suspension Center Channel Speaker

Recommended Amplifier Power

25-200 Watts (Unclipped)

Impedance

6 Ohms Nominal / 4 Ohms Minimum

Frequency Response

60 Hz - 20 Hz

Sensitivity

88 dB

Crossover Points

550 Hz and 2.5 kHz

Tweeter

1.1” (2.8 cm) Chambered Titanium Dome

Midrange

5.25” (13.3 cm) Multi-layer Carbon Fiber / Fiberglas™ Hybrid
with Underhung Motor System

Woofer

Two 6.5” (16.5 cm) Multi-layer Carbon Fiber

Dimensions (H x W x D)

9.9 x 25 x 14.8 inches / 25.2 x 63.5 x 37.7 cm - with binding posts

Weight

32 lb / 14.5 kg

Finishes

High Gloss Black; High Gloss Rosewood; High Gloss Burled Maple

Accessories Included

Locking Aluminum Cone Feet; Polishing Cloth; Gloves

Model

OOMMDD--RR

Speaker System Type

OMNIPOLAR™ Acoustic Suspension Loudspeaker

Recommended Amplifier Power

25-200 Watts (Unclipped)

Impedance

6 Ohms Nominal / 4 Ohms Minimum

Frequency Response

75 Hz - 20 Hz

Sensitivity

90 dB

Crossover Points

800 Hz and 2.7 kHz

Tweeter

Two 1” (2.5 cm) Titanium Domes

Midrange

Two 2” (5.1 cm) Chambered Titanium Cones

Woofer

Two 5.25” (13.3 cm) Multi-layer Carbon Fiber
with Underhung Motor Systems

Dimensions (H x W x D)

14.8 x 14.7 x 7.3 inches / 37.5 x 37.4 x 18.2 cm

Weight

22 lb / 9.9 kg

Finishes

High Gloss Black

Accessories Included

Wall mount Bracket; Polishing Cloth; Gloves
