Mio Cyclo 305 HC, Cyclo 305, Cyclo 300 User Manual

User Manual

₃₀₀/₃₁₀/₅₀₀

series

Welcome

Thank you for purchasing this Mio. Please read this manual carefully before using your Mio for the first time. Keep this manual in a safe place and use as your first point of reference.

Important information for using the manual

It is important to understand the terms and typographical conventions used in this manual.

Bold — Components or items displayed on screen, including buttons, headings, field names and options.

Italics — Indicates the name of a screen.

Disclaimer

Not all models are available in all regions. Depending on the specific model purchased, the colour and look of your device

and accessories may not exactly match the graphics shown in this document. Mio operates a policy of ongoing development. Mio reserves the right to make

changes and improvements to any of the products described in this document without prior notice. Mio does not warrant that this document is error-free. The screenshots and other presentations shown in this manual may differ from the actual screens and presentations generated by the actual product. All such differences are minor and the actual product will deliver the described functionality as presented in this User Manual in all material respects.

Copyright

All other trademarks and registrations are the property of their respective owners.

ANT+™ is a trademark of Dynastream Innovations Inc. or its subsidiaries.

Revision: R01

(07/2014)

Welcome 2

Important information for using the manual .................................................2

Disclaimer ..............................................................................................................2

Copyright ...............................................................................................................2

Contents 2

Knowing your device 4

Main unit................................................................................................................4

Accessories ............................................................................................................ 5

Getting started 5

Charging the battery ...........................................................................................5

Performing the initial start-up ...........................................................................6

Connecting your device to the computer ........................................................6

Installing the device 7

Mounting the device on your bike ....................................................................7

Installing the sensors on your bike ...................................................................8

Putting on the heart rate monitor ....................................................................8

Operating basics 9

Using the POWER button ...................................................................................9

Using the touch screen .....................................................................................10

Main menu ..........................................................................................................10

Keyboard screen .................................................................................................12

Viewing Dashboard screens 12

Starting navigation 13

Using the Navigate wizard ...............................................................................13

Navigating to Home ..........................................................................................14

Finding the location by Address ......................................................................14

Searching for a POI ............................................................................................14

Searching for a location from the map screen ..............................................15

Searching for a location using GPS coordinates ...........................................15

Navigating to your Favourite ........................................................................... 15

Tracks ...................................................................................................................15

Other navigating options .................................................................................16

Surprise Me™ 17

Loop ...................................................................................................................... 17

A to B (Address, POI, Favourite, or Point on map) .......................................17

Workout mode 18

Workout by Distance .........................................................................................18

Workout by Time ................................................................................................19

Workout by Calories ..........................................................................................19

Workout by HR Zone .........................................................................................19

Workout by Power Zone ...................................................................................19

Indoor training mode ....................................................................................... 20

Viewing the History 20

Viewing the summary of recorded data .......................................................20

Managing data on the device 21

Using MioShare ..................................................................................................21

Sharing your route with friends in the trip .................................................... 21

Using WIFI (wireless local area network) ......................................................22

Pairing with your smartphone 23

Receiving incoming calls .................................................................................. 23

Receiving text messages .................................................................................. 23

Playing music ..................................................................................................... 24

Voice Instructions ............................................................................................. 24

Customising your device 24

Profiles .................................................................................................................25

Routing .................................................................................................................25

Sensors ................................................................................................................ 26

Phone .................................................................................................................. 26

Where AM I ........................................................................................................26

Screen ...................................................................................................................27

Transfer ................................................................................................................27

Shimano Di2 .......................................................................................................27

Maps .....................................................................................................................27

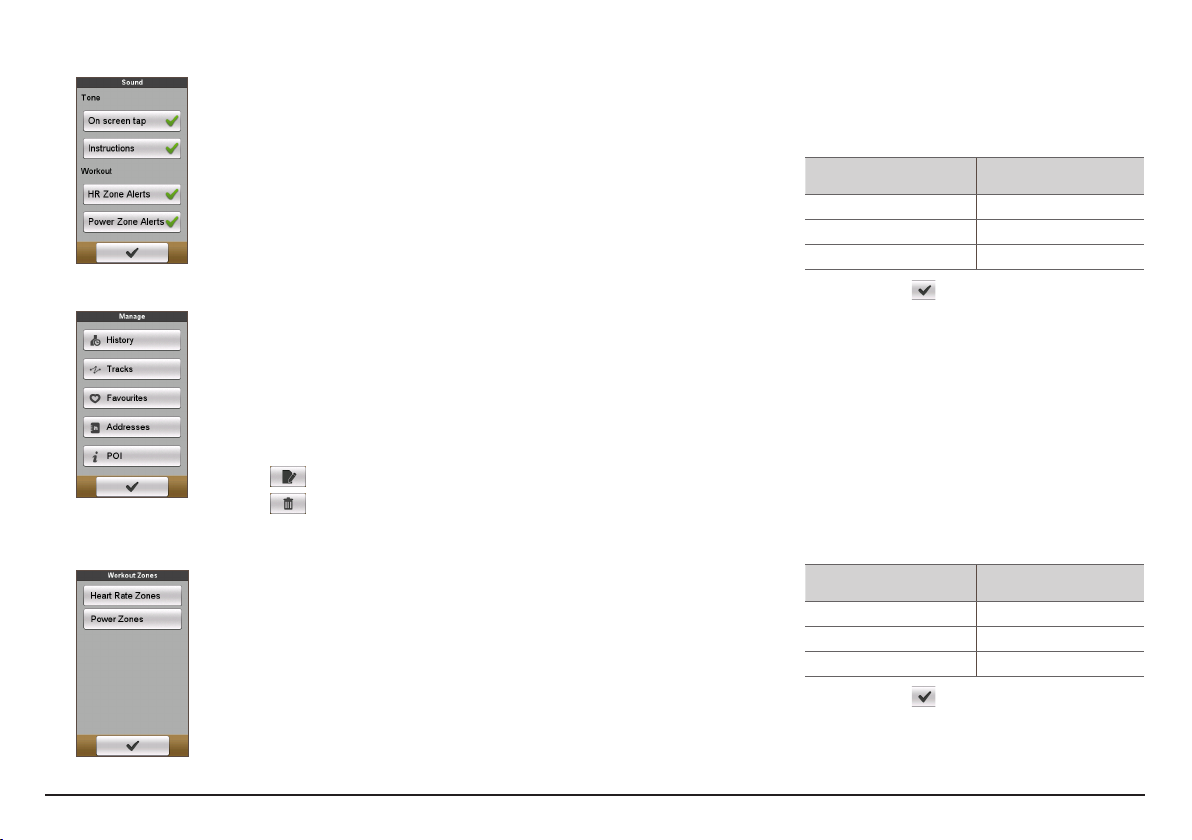

Alerts ................................................................................................................... 28

Manage ............................................................................................................... 28

Define Zones ...................................................................................................... 28

Compass .............................................................................................................29

Language ............................................................................................................. 29

Keyboard ............................................................................................................. 29

Date & Time ....................................................................................................... 29

Product Info .......................................................................................................30

For more information 30

Online support .................................................................................................. 30

Caring for your Mio ........................................................................................... 30

Troubleshooting ................................................................................................. 31

What is GPS? ......................................................................................................31

IPX7 .......................................................................................................................32

Safety precautions .............................................................................................32

Regulatory information ....................................................................................32

Bluetooth............................................................................................................ 33

WEEE ...................................................................................................................33

End User License Agreement........................................................................... 33

Knowing your device

Main unit

₃₀₀/₃₀₅

Cyclo

1. POWER button

Turns your device on/off.

2. Touch screen

  •Displays the output of your device.

  •Tap the screen with your ﬁnger to select menu commands or enter

information.

3. Mini-USB connector

Connects to the charger or USB cable.

4. Bike mount socket

For the device mount.

₃₁₀/₃₁₅/₅₀₀/₅₀₅

Cyclo

1. Charge Indicator

Indicates the level of internal battery charge: Green - battery full; Orange - battery charging.

2. POWER button

Turns your device on/off.

3. Touch screen

  •Displays the output of your device.

  •Tap the screen with your ﬁnger to select menu commands or enter

information.

4. Mini-USB connector

Connects to the charger or USB cable.

5. Bike mount socket

For the device mount.

Accessories

Your device comes with the following accessories. To use your device on a bike, ensure you use the specific bike mount kit that came with your device. Mio may provide optional accessories for specific models. Please visit Mio website (www.mio.com) for information.

Note: Depending on the specific model purchased, the colour and look of your device and accessories may not exactly match the graphics shown in this document.

Getting started

Charging the battery

Your device has an internal battery that may not be fully charged when you purchase it. You should charge the battery for at least 8 hours before you start using it for the very first time.

To charge the battery:

• Using a mains power socket

Plug the home charger cable into the USB connector on the back of your device and the mains power charger into the power socket.

Power adapter

Heart rate belt*

(ANT+™ sensor)

* May be sold separately and used for Cyclo 305/315/505 only.

Information:

This device is ANT+ certified. Visit www.thisisant.com/directory for a list of compatible products and apps.

USB cable

x 5

Speed and cadence sensor kit*

(ANT+™ sensor)

Bike mount kit

• Via the computer

Connect your device to the computer by using the provided USB cable. For more information, see "Connecting your device to the computer" in this section.

CAUTION: For optimal performance of the lithium battery, note the following:

• Do not charge the battery where the temperature is high (e.g. in direct sunlight). The battery will stop charging when the ambient temperature is less than -10ºC (14ºF) or more than 60ºC (140ºF).

• Recharge the battery when it is nearly discharged. When recharging, make sure that the battery is fully charged. Doing so can extend the battery life.

• If you will not use the product for a long period of time (over one month) or find the discharge/recharge time has been shortened, be sure to fully discharge the battery first before recharging it. You are also advised to fully discharge and recharge the battery once every 1~2 months.

• Failure to follow the battery usage instructions could cause damage to your device, battery and even bodily injury or property damage and will void the warranty.

4. Activate the map.

Enter the Startup Key (which is printed on the bottom of the box) and then tap OK to unlock your device. You will only have to do this the first time you use the device.

5. Once your device is turned on, it will search for satellite signals

automatically. This may take several seconds depending on the location.

When GPS is ﬁxed, the GPS signal icon ( ) on the screen indicates the GPS status.

Note: Depending on your device model, it will also automatically scan and pair the accessories (for heart rate monitor and cadence/speed sensor only) with the device. You can also scan the accessories manually while using the device by tapping Main menu > Settings > Sensors.

Performing the initial start-up

1. Mount the device and accessories on to your bike. For more information, see

the “Installing the device” section.

2. Press and hold the POWER button for 3 seconds to turn your device on.

3. Follow the prompts to personalise your device, including:

• Select your preferred language.

• Set the date and time.

• Set the units format.

• Create your user profile.

Note: You can change these settings while using the device by tapping Main menu > Settings.

Connecting your device to the computer

1. Turn on the computer.

2. Turn on your device. Connect the mini-USB end of the USB cable to the back

of your device and the other end to a USB port on your computer.

3. Select the desired connection type from the pop-up message window:

• Connect to PC: Your device will be recognised as two external mass-

storage drives: Mio_system and Mio_data. You can use Windows File Explorer to copy/move the ﬁles from the computer to your device. A USB Connection screen appears to prevent you from using your device.

DO NOT delete any ﬁles that are pre-installed on the device. Deleting the ﬁles can cause the device to crash. Mio is not responsible for product quality caused by ﬁle deletion.

• Charge only: You will be able to continue using your device with the

battery in charging mode via the computer.

Installing the device

Follow the instructions in this section to mount the device and the cadence/ speed sensor kit (for selected models only) on your bike. In addition, you will need to put on the heart rate monitor during your workouts.

Mounting the device on your bike

The bike mount kit includes two types of rubber pads, allowing you to attach the bike mount to your bike securely.

1. Select the rubber pad that best ﬁts the handle bars on your bike and then

attach it using the two plastic straps.

2. Align the latch on the back of the device with the slot on the bike mount,

and then rotate the device clockwise to lock the device to the bike mount.

You can choose to mount the device on the handlebar (a) or on the stem (b). See the following figure for the examples of mounting the device.

3. To remove the device from the bike mount, rotate it anticlockwise.

Installing the sensors on your bike

The cadence/speed sensor kit is used for selected models only.

1. Follow the instruction below to install the cadence/speed sensor kit on your

bike.

2. Ensure that the magnets are aligned with the sensing area on the sensors.

3. When done, you can manually pair the sensor with your device by tapping Main menu > Settings > Sensors > Cadence/Speed.

Information:

The cadence sensor contains a replaceable CR2032 battery. Follow the instructions below to replace the battery:

1. Locate the battery cover on the back of the sensor, and then twist the cover anticlockwise (e.g. by using a coin) to remove the cover and battery.

2. Insert the new battery into the battery chamber and replace the cover.

3. Twist the cover clockwise (e.g. by using a coin) to close the cover.

Putting on the heart rate monitor

The heart rate monitor is used for selected models only.

Note: Please note the heart rate monitor is not a medical device and its readings are not a substitute for obtaining measurements that require medical precision. It is strongly recommended to consult a doctor if you have a pacemaker or other implemented devices before using the heart rate monitor.

1. Before using the heart rate monitor, wet the contacts on the back of the

chest strap.

Note: If possible, you can also use an electrolyte gel (usually available in local sports stores) to ensure good contact.

2. Adjust the elastic strap so it’s snug while you are putting it on. Ensure that

you can take a good deep breath after putting on the strap.

3. Follow the instructions below to wrap the strap around your back, and then

secure it on the other side with the buckle.

Note: Putting on the heart rate monitor is like wearing a belt around your lower chest.

4. When done, you can manually pair the monitor with your device by tapping Main menu > Settings > Sensors > Heart rate.

Information:

The heart rate monitor contains a replaceable CR2032 battery. Follow the instructions below to replace the battery:

1. Locate the battery cover on the back of the monitor, and then twist the cover anticlockwise (e.g. by using a coin) to remove the cover and battery.

2. Insert the new battery into the battery chamber and replace the cover.

3. Twist the cover clockwise (e.g. by using a coin) to close the cover.

Operating basics

Using the POWER button

• Turning on the device

Press and hold the POWER button for 3 seconds to turn on your device.

• Turning off the device

Press and hold the POWER button for 3 seconds to pop up the Power Off/ Cancel screen. Choose Power Off to turn off the device or Cancel to

continue operating the device.

Note: Press and hold the POWER button for 5 seconds to force power off if application doesn’t have response.

Your device will automatically turn off after 10 minutes (by default) of inactivity. turned off if you do not make a selection.

Note: You can change the auto power off setting by tapping Main menu > Settings > Screen > Auto Power Off Timer.

• Navigating through the screens

While the device is turned on and you are navigating through the menu screens, press the POWER button briefly to return to the previous screen.

The Power Off/Cancel screen

will pop up and the device will be

Using the touch screen

To operate your device, touch the screen with your finger. You can perform the following actions:

• Tap

Quick touch the screen once to open menus or select onscreen button/option.

• Drag

While navigating on the map, tap and hold on the screen without releasing your finger to move the map to the desired position.

• Slide

Depending on your model, drag your finger vertically or horizontally across the screen.

• Drag to the left/right to switch to another menu screen.

• Drag to the top/bottom to scroll up/down a list.

Note: Not all slide gestures are applicable to all screens.

Unlocking the screen

Your device will automatically lock the screen after 5 minutes (by default*) of inactivity. When the screen is locked, press the POWER button brieﬂy to unlock the screen.

Note: You can change the screen lock setting by tapping Main menu > Settings > Screen > Screen Lock Timer.

Main menu

The Main menu is your starting place for various tasks, providing quick access to applications and settings. Tap a button to start a task or open another menu.

Icon Description

The Dashboard displays the view of functions, including the compass/navigation screen and the workout screen (when a workout has been selected).

Start to plan your route by selecting the locations, such as home, address, tracks, POI, coordinate, favourite, etc.

Your trip/training can be saved in the history records. When your ride is finished, you can check the history data such as date/time, distance, speed, altitude, etc.

Based on distance or time, the device will plan 3 routes for you to choose from.

You can set workouts by entering your goals, such as by distance, by time, or by calories.

There are various customisation options available to enhance your cycling experience. You can customise the system settings, user profiles and more.

For Cyclo 500/505, when a phone is connected, you may control the music playback of your smartphone from your Cyclo device.

For Cyclo 500/505, when a phone is connected, you will be notified of missed calls and new text messages of your smartphone from your Cyclo device.

The System icons

Various System icons on the title bar at the top of the screen provide the status information of your device. Depending on your settings, the icons may be different to provide various information of your device. Please note that these icons will not be always displayed during your trip/training.

1 2 3 4 5 6 7 8

NO. Icon Description

1 Time display Displays the current time.

The device will automatically set the correct time based on the current GPS ﬁxes.

2 User proﬁle

3 Heart rate* Depending on your model, the icon will display when the

4 Cadence/Speed*

5 Power sensor*/ **

6 Di2 sensor*/ **

7 Bluetooth status* When the Bluetooth function is enabled:

/ / : Bike (city bike/mountain bike/race

bike) navigation mode enabled.

: Running navigation mode enabled.

: Indoor training mode* enabled (navigating function

of the device will be disabled).

sensor is paired with the device.

: The icon is not displayed when not activated in the

Sensors setting.

/ / / : The icon is greyed out when activated,

but not paired with the device.

/ / / : The icon is white when the connection

is made, or blinking when the pairing is in progress.

: No phone is connected. The icon ﬂashes when a

connection is being made.

: A phone is connected.

: A call is in progress.

: There are missed calls or new text messages on the

connected phone.

NO. Icon Description

8 Recording status

9 GPS signal The GPS signal icon indicates the GPS status.

10 Battery status The Battery icon indicates the remaining battery power.

* For selected models only

** Not provided

: The device is recording your trip/training.

: Recording has been paused.

A bar shows the strength of the GPS signal being received; the more bars the stronger the signal.

+ 24 hidden pages
