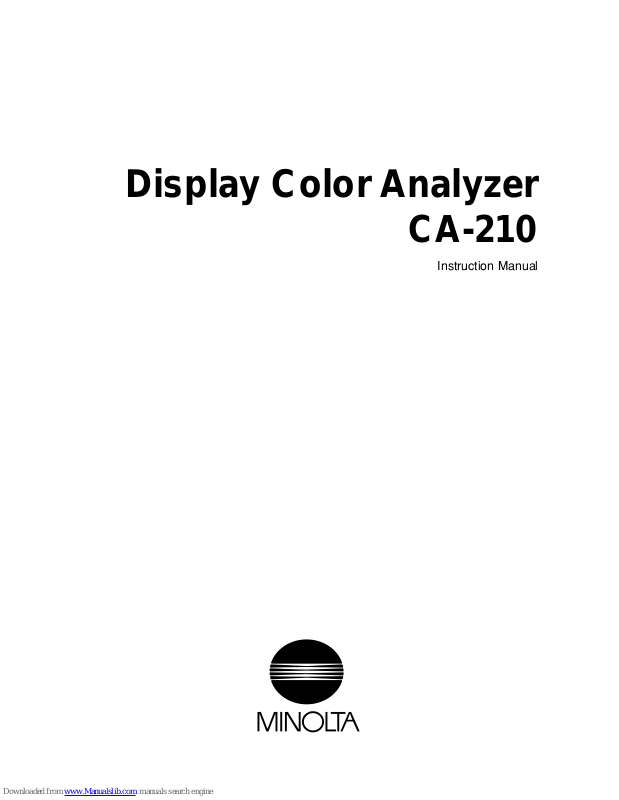

Minolta CA-210 User Manual

Display Color Analyzer

CA-210

Instruction Manual

Safety Symbols

The following symbols are used in this manual to prevent accidents which may occur as result of incorrect use of the instrument.

Denotes a sentence regarding safety warning or note. Read the sentence carefully to ensure safe and correct use.

Denotes a sentence regarding safety precautions for risk of fire. Read the sentence carefully to ensure safe and correct use.

Denotes a sentence regarding safety precautions for risk of electric shock. Read the sentence carefully to ensure safe and correct use.

Denotes a prohibited operation. The operation must never been performed.

Denotes an instruction. The instruction must be strictly adhered to.

Denotes an instruction. Disconnect the AC power cord from the AC outlet.

Denotes a prohibited operation. The part must never be disassembled.

Denotes an instruction. Connect the grounding terminal as instructed.

Notes on this Manual

• Copying or reproduction of all or any part of the contents of this manual without MlNOLTA’s permission

is strictly prohibited.

• The contents of this manual are subject to change without prior notice.

• Every effort has been made in the preparation of this manual to ensure the accuracy of its contents.

However, should you have any questions or find any errors, please contact a Minolta-authorized service facility.

• MINOLTA will not accept any responsibility for consequences arising from the use of the instrument.

Explanation Section

Safety Precautions

When using this hardware, the following points must be strictly observed to ensure correct and safe use. After you have read this manual, keep it in a safe place so that it can be referred to easily whenever it is needed.

Do not use the CA-Series in places where flammable or combustible gases (gasoline etc.) are present. Doing so may cause a fire.

Always use the AC power cord supplied as a standard accessory with the CA-Series, and connect it to an AC outlet (100V-240V , 50-60 Hz). Failure to do so may damage the CA-Series, causing a fire or electric shock.

Do not bend, twist or pull the AC power cord excessively. In addition, do not place heavy items on the AC power cord, or damage or modify it in any way. Doing so may cause damage to the AC power cord, resulting in fire or electric shock.

If the CA-Series will not be used for a long time, disconnect the AC power cord from the AC outlet. Accumulated dirt or water on the prongs of the AC power cord’s plug may cause a fire. If there is any dirt or water on the prongs of the AC power cord’s plug, remove it.

The CA-Series should not be operated if dirt or dust has entered through the vent holes. Doing so may result in a fire. For periodic inspection, contact the nearest Minolta-authorized service facility.

WARNING

(Failure to adhere to the following points may result in death or serious injury.)

When disconnecting the AC power cord’s plug, always hold the plug and pull it to remove it. Never pull the AC power cord itself. Doing so may damage the AC power cord, causing a fire or electric shock. In addition, do not insert or disconnect the AC power cord’s plug with wet hands. Doing so may cause electric shock.

Do not disassemble or modify the CA-Series. Doing so may cause a fire or electric shock.

Take special care not to allow liquid or metal objects to enter the CA-Series. Doing so may cause a fire or electric shock. Should liquid or metal objects enter the CA-Series, turn the power OFF immediately, disconnect the AC power cord from the AC outlet, and contact the nearest Minolta-authorized service facility.

The CA-Series should not be operated if it is damaged, or smoke or odd smells are detected. Doing so may result in a fire. In such situations, turn the power OFF immediately, disconnect the AC power cord from the AC outlet, and contact the nearest Minolta-authorized service facility.

Take care not to drop or overturn the CA-Series. Failure to adhere to this precaution may result in injury or your body being trapped.

Do not place the instrument on an unstable or sloping surface. Doing so may result in its dropping or overturning, causing injury. Take care not to drop the instrument when carrying it.

CAUTION

(Failure to adhere to the following points may result in injury or damage to the instrument or other property.)

Be sure to connect the AC power cord’s plug to an AC outlet that has a protective grounding terminal. Also make sure that peripheral devices (e.g. PC) are connected to AC outlets that have a protective grounding terminal. Failure to do so may result in electric shocks.

Foreword

Thank you for purchasing the Display Color Analyzer CA-210. This instrument is designed for measurement of color, intensity and flicker of various types of color displays including color LCD displays. Before using this instrument, please read this manual thoroughly.

Notes on Use

● This instrument is designed for indoor use only, and should not be used outdoors.

● The instrument must never be disassembled as it is composed of precision electric components.

● Always use the rated power voltage (100-240V

). Connect the AC power cord to an AC outlet (100-240V ,

50-60 Hz). Make sure that the voltage is within ±10% of the rated power voltage.

● The operating environment for this instrument should conform to “Pollution Degree 2” (i.e. where there is no

possibility of metal dust and condensation), “Installation Category II” (i.e. the specified commercial power voltage should be used) and altitude of below 2000 m.

● The instrument must not be used if foreign matter such as water and metal objects enter it, doing so is very

dangerous.

● The instrument should not be used in certain environments, such as near a heater which will cause an excessive

rise in its temperature resulting in breakdown. Therefore it should not be used in such an environment. It should be used in well-ventilated areas, and care should be taken not to allow the vent holes to become blocked.

● The instrument must not be used in areas subject to rapid changes of temperature, to avoid condensation.

● The instrument must not be used in areas where there is an excessive amount of dust or where the humidity is

excessively high.

● The instrument should be used at ambient temperatures of between 0 and 40˚C and humidity of 85%RH or less.

● The instrument must not be exposed to excessive impact and vibrations.

● The AC power cord must not be pulled or bent excessively nor must excessive force be exerted on it. Doing so

may result in wire breakage.

● The AC power cord must not be connected to an AC line on which excessive noise is present.

● The instrument and personal computer must be grounded.

● If any irregularity or abnormality is found, turn OFF the power immediately, disconnect the AC power cord, and

refer to “Breakdown check” on page 105.

● Should the instrument break down, do not try to disassemble by yourself. Contact a Minolta-authorized service

facility.

● The LCD screen may sometimes be difficult to see if the instrument is used at near 0˚C. In this case, wait for one

to two minutes after the power is turned ON, and check the LCD.

● If the intensity of the display to be measured is 0.1 cd/m

or less, perform zero calibration after an elapse of 30

minutes or more after the POWER switch is set to ON.

Notes on Storage

● The instrument should be stored at temperatures of between -20 and 55˚C (humidity of 85%RH or less at 35˚C/

no condensation). Do not store it in areas subject to high temperatures and high humidity. For added safety, it is recommended that it be stored with a drying agent (such as silica gel) at near room temperature.

● Take care not to allow condensation to form on the instrument during storage. In addition, pay attention to rapid

temperature changes during transportation to the storage area to prevent condensation.

Explanation Section

Cleaning

● If the instrument gets dirty, wipe it with a soft dry cloth. Never use solvents (e.g. benzene, thinner) or other

chemicals.

● If the optics of the probe gets dirty, wipe it with a soft dry cloth or lens cleaning paper.

● If it not possible to remove dirt from the instrument, contact a Minolta-authorized service facility.

About This Manual

This manual is designed for those who possess basic knowledge of LCD displays. Before using this instrument, please read this manual thoroughly.

A quick summary of measurement methods is given in “Measurement/Quick Guide” (pages 109 to 112), please refer to it when you need a quick check.

For Those Who Want to Purchase Optional Accessories for this Instrument

This manual also explains how to use optional accessories available for this instrument. If an explanation of how to use an optional accessory is given in this manual, its product name is also given. Please read the explanation together with the manual supplied with the accessory. <Example> ● Location of the explanation regarding 4-point expansion board CA-B14

When the optional 4-point expansion board CA-B14 is used

Contents

Safety Precautions ........................................................................................................................................................................ 1

Foreword .......................................................................................................................................................................................2

Notes on Use.................................................................................................................................................................................2

Notes on Storage...........................................................................................................................................................................2

Cleaning ........................................................................................................................................................................................ 3

About This Manual .......................................................................................................................................................................3

Manual Structure ..........................................................................................................................................................................................6

Names and Functions of Parts....................................................................................................................................................................10

About Accessories ........................................................................................................................................................................................13

Standard Accessories .................................................................................................................................................................. 13

Optional Accessories ..................................................................................................................................................................13

About Measuring Probe..............................................................................................................................................................................14

Setting a Measuring Probe..........................................................................................................................................................14

Setting the Measuring Distance ..................................................................................................................................................14

About Switching Ring ................................................................................................................................................................ 15

Function of Each Key ..................................................................................................................................................................................16

About Display ..............................................................................................................................................................................................19

Installation/Connection ___________________________________________23

About Installation ........................................................................................................................................................................................ 25

About Connection ........................................................................................................................................................................................ 26

1. Connecting a Measuring Probe...............................................................................................................................................26

2. Installing the 4-Point Expansion Board CA-B14 When the optional 4-point expansion board CA-B14 is used ................27

3. Connecting the Power ............................................................................................................................................................. 28

4. Inputting the Vertical Synchronizing Signal ...........................................................................................................................28

Turning the Power ON/OFF .......................................................................................................................................................................29

1. Turning the Power ON ( | )/OFF (O) ......................................................................................................................................29

2. Instrument Status at Power-ON ..............................................................................................................................................30

Measurement Preparation _________________________________________33

Zero Calibration ..........................................................................................................................................................................................34

1. Performing Zero Calibration .................................................................................................................................................. 34

2. Zero Calibration Check Method .............................................................................................................................................35

Selecting SYNC Mode, Display Mode and the Number of Display Digits ............................................................................................. 36

1. Selecting SYNC Mode ........................................................................................................................................................... 36

2. Selecting the Measurement Mode .......................................................................................................................................... 38

3. Selecting the Number of Display Digits ................................................................................................................................. 40

Selecting Probe No. When the optional 4-point expansion board CA-B14 is used ............................................................................41

Settings Section __________________________________________________43

Outline of the Settings Section....................................................................................................................................................................44

Before Making Each Setting ....................................................................................................................................................................... 46

1. About Memory Channels........................................................................................................................................................46

2. About the Target Color ........................................................................................................................................................... 47

3. Selecting the Calibration Standard ......................................................................................................................................... 48

User Calibration ..........................................................................................................................................................................................49

1. About User Calibration...........................................................................................................................................................49

2. Performing White Calibration ................................................................................................................................................ 50

3. Performing Matrix Calibration ...............................................................................................................................................52

Analyzer Mode.............................................................................................................................................................................................56

1. About Analyzer Mode.............................................................................................................................................................56

2. Inputting the RGB Luminescence Characteristic for Analyzer Mode....................................................................................57

Setting/Changing the Target Color ............................................................................................................................................................60

1. Setting/Changing the Target Color by Measurement ............................................................................................................. 61

2. Setting/changing the target color by entering values..............................................................................................................63

Other Settings ..............................................................................................................................................................................................65

1. Setting an ID Name ................................................................................................................................................................ 65

2. Setting the Analog Display Range..........................................................................................................................................67

Settings Checking Method ..........................................................................................................................................................................71

1. Checking the Set Values ......................................................................................................................................................... 71

2. Checking the Probe Serial No. when Making Settings .......................................................................................................... 72

Measurement Section _____________________________________________73

Measurement................................................................................................................................................................................................74

1. Performing Measurement ....................................................................................................................................................... 74

2. Holding the Measured Values ................................................................................................................................................. 75

3. Displaying the Measured Values ............................................................................................................................................76

White Balance Adjustment in Analyzer Mode ..........................................................................................................................................79

Selecting the Measurement Speed..............................................................................................................................................................82

Communications Section __________________________________________85

Communicating with PC.............................................................................................................................................................................86

1. Communicating with PC via RS-232C...................................................................................................................................86

2. Selecting the RS-232C Baud Rate .......................................................................................................................................... 87

3. Communicating with PC via USB .......................................................................................................................................... 88

4. Remote Measurement .............................................................................................................................................................88

Explanation Section ______________________________________________89

Measuring Principle ....................................................................................................................................................................................90

1. Measuring Principle................................................................................................................................................................90

2. About T∆uvLv ........................................................................................................................................................................ 91

3. Principle of User Calibration ..................................................................................................................................................92

4. Optical System of CA-210 Probe ...........................................................................................................................................93

5. Principle of Analyzer Mode.................................................................................................................................................... 94

6. Principle of Flicker Mode ....................................................................................................................................................... 96

Maintenance ................................................................................................................................................................................................. 99

1. Cleaning the Instrument..........................................................................................................................................................99

2. Storing the Instrument ............................................................................................................................................................ 99

Dimension Diagram...................................................................................................................................................................................100

Error Messages ..........................................................................................................................................................................................101

Breakdown Check .....................................................................................................................................................................................105

Specifications..............................................................................................................................................................................................108

Measurement/Quick Guide.......................................................................................................................................................................109

Manual Structure

This manual is divided into sections as shown below according to the contents.

Installation/Connection P. 23-32

Measurement Preparation P. 33-42

This section explains how to install the instrument, connect AC power, turn ON/OFF the power, and input the vertical synchronizing signal.

About Installation

Provides operating environmental conditions for the instrument and notes on installation.

About Connection

Explains how to connect measuring probes and connect the power cord. (Also explains installation method for the optional accessory “4-point expansion board”.)

* Before turning on the power: Refer to pages 86 to 88 if you are going to communicate the instru-

ment with the PC via RS-232C or USB.

Turning the Power ON/OFF

Explains how to turn ON/OFF the power.

Zero Calibration

Explains the zero point adjustment method. (Measurement cannot be performed if zero calibration is not completed.)

● The Preparation/Setting/Measurement section explains the procedure up to measurement.

The Measurement Preparation section explains preparations (instrument setting, zero calibration) that are required prior to measurement.

Selecting SYNC Mode, Display Mode and the Number of Display Digits

Explains how to select SYNC mode, that selects measurement time according to the display’s vertical scanning frequency, as well as explaining how to select display mode and the number of display digits.

When the optional 4-point expansion board CA-B14 is used

Selecting Probe No.

Explains how to select the measuring probe whose measured value is to be displayed.

To the Setting section P. 43-72

* Go to the Measurement section if you are going to perform measurement using

Minolta’s calibration standard and are not going to use analog display.

Page 26

Page 25

Page 29

Page 34

Page 41

Page 36

Selecting the Calibration Standard

Select calibration data. Select D65 and 9300K.

P. 48

When performing measurement using Minolta 40 calibration standard

Settings Section P. 43-72

This section explains settings that must be made according to measurement mode. The setting method varies with measurement mode.

From the Measurement Preparation section

Outline of the Settings Section

Explains measurement method types and settings that must be made. (Check what settings you need to make.)

Before Making Each Setting

Gives detailed explanations on memory channels common to each setting and target colors.

When performing measurement using user calibration

When performing measurement in analyzer mode

Setting/Changing the Target Color *1

Explains how to set/change the target color.

1. Setting/Changing the Target Color by Measurement

2. Setting/Changing the Target Color by Entering Values

User Calibration

Gives detailed explanation of user calibration and explains its execution method. (Target color is also set at this time.)

Analyzer Mode

Gives detailed explanation of analyzer mode and explains how to input the display’s RGB luminescence characteristic. (Target color is also set at this time.)

P. 60 P. 49 P. 56

Other Settings

Explains how to set an ID name *2 and analog display range *3.

Settings Checking Method

Explains how to check the set values and check the probe serial no. used when the values are set.

P. 65 P. 71

• To set an ID name:

“Setting an ID Name” (Page 65) *2

• To use the analog display

function: “Setting the Analog Display Range” (Page

67) *3

• To change the target color after user

calibration: “Setting/Changing the Target Color” (Page 60) *1

• To change the target color

after inputting the luminescence characteristic: “Setting/Changing the Target Color” (Page 60) *1

T o the Measur ement section P. 73-84

Page 44

Page 46

Measurement Section P. 73-82

Communications Section P. 85-88

This section explains measuring methods.

From the Settings section

Measurement

Explains measuring methods, how to hold the measured values and how to read them.

Page 74

White Balance Adjustment in Analyzer Mode

Explains how to adjust white balance.

Selecting the Measurement Speed

Explains how to select the measurement speed suitable for the display to be measured.

Page 79

Page 82

This section explains communication with PC via RS-232C or USB.

Communicating with PC via RS-232C

Explains how to connect the RS-232C cable and select the RS-232C baud rate to enable two-way communication with PC via RS-232C.

Page 86

Page 88

Communicating with PC via USB

Explains how to connect the USB cable to enable communication with PC via USB.

Remote Measurement

Explains how to perform measurement from the PC remotely.

Explanation Section

Explanation Section P. 89-112

This section explains the following items.

Measuring Principle

Maintenance

Dimension Diagram

Error Messages

Please read when an error message appears in the LCD display section.

Breakdown Check

Please read when the instrument does not function correctly.

Specifications

Measurement/Quick Guide

Provides an outline of operations explained in the previous sections (Measurement Preparation - Measurement).

Page 90

Page 99

Page 100

Page 101

Page 105

Page 108

Page 109

Names and Functions of Parts

Main Body <Front>

PQRS7TUV8WXYZ

ALPHA

GHI4JKL5MNO LOCK

CAL

White1ABC2DEF- SPACE

ENTER

Red0Green.Blue

POWER

-CAL

MODE REMOTE HOLD MR

MEMORY CH

OFF

CH01 EXT Ad P1 [EXT D-1.50]

2 Digital display

section

1 POWER switch

4 Measurement mode

display section

9 Tilt stand

6 HOLD lamp

7 REMOTE lamp

8 Key panel

5 LCD display

section

3 Analog display section

RS-232C

13 Vertical synchronizing signal input terminal

Probe connector [P1]

15 4-point expansion

board slot

11 USB connector

12 RS-232C connector

14 AC power connector

<Rear>

Chapter_Title

Main Body <Front>

1 POWER switch ........................................ • Used to turn ON and OFF the power to the instrument. (Page 29)

2 Digital display section ............................. • Displays the measured values.

3 Analog display section ............................ • Displays the difference (%) between the measured value and the

target color or the difference (%) between measured values. Measured values are displayed in the case of flicker mode.

• The range for each dot can be set between 0.1 and 99%. (Page 67)

4 Measurement mode display section......... • Displays the measurement mode in which the measured values are

displayed. (Page 38)

• The table below shows the relationship between measurement modes and data displayed in the digital display section 2 and analog display section 3.

Measurement display mode

Digital display section

Analog display section

xyLv mode x, y, Lv ∆x, ∆y, ∆Lv T∆uvLv mode T, ∆uv, Lv ∆x, ∆y, ∆Lv Analyzer mode (G reference) R, B, G R/G, B/G, ∆G Analyzer mode (R reference) R, B, G ∆R, B/G, G/R u'v'Lv mode u', v', Lv ∆x, ∆y, ∆Lv Flicker mode FLIC(Measured flicker value) Measured flicker value XYZ mode XYZ ∆x, ∆y, ∆Lv

5 LCD display section ................................ • Displays the memory channel, probe no., ID name, warning and

settings.

6 HOLD lamp ............................................. • Lights up during hold.

7 REMOTE lamp........................................ • Lights up when the instrument is ready for communication with

the PC via RS-232C or USB interface.

8 Key panel ................................................. • Used to select/set probe no., SYNC mode, measurement speed,

analog display range and ID name, as well as entering values. (Page

17)

9 Tilt stand

<Rear>

10 Probe connector [P1] ............................... • Used to connect a measuring probe. (Page 26)

11 USB connector ......................................... • USB interface for communication with the PC etc. (Page 88)

12 RS-232C connector ................................. • RS-232C compatible interface for communication with the PC etc.

(Page 86)

13 Vertical synchronizing signal ................... • Input the display’s vertical synchronizing signal into this terminal

input terminal when performing measurement in EXT SYNC mode. (Page 28)

14 AC power connector ................................ • Connect the AC power cord to this connector to supply power to

the instrument. (Page 28)

• The rating is AC100-240V, 50-60 Hz, 50VA.

15 4-point expansion board slot ................... • Used to install the optional 4-point expansion board (CA-B14).

(Page 27)

1212

Measuring probe CA-P12 (2 m)

This is the measuring section of the instrument, and must be placed against the display’s screen surface for measurement. The cable length is 2 m.

1 Receptor ................................................... • Place this receptor against the display’s screen surface and perform

measurement.

2 Switching ring ........................................... • For zero calibration, set this ring to the “0–CAL” position to block

entry of light into the probe. For preparation :Set the ring to the “POINTER” position to cause

the LED to emit a circle marker.

For measurement:Set the ring to the “MEAS” position to perform

measurement.

3 Ring stopper............................................. • Stops the ring at three positions.

4 Screw hole ............................................... • Used to secure the probe to a jig etc.

5 Plug .......................................................... • Connect this plug to the probe connector on the main unit or that

on the optional 4-point expansion board (CA-B14).

6 CA-210 block cover ................................ • Used to prevent entry of ambient light and help you place the probe

at the appropriate distance (30 mm) from the display and perpendicular to it.

7 CA-210 lens cap ...................................... • Used to protect the receptor.

Measuring probe CA-P12



7 CA-210 lens cap

CA-H11

1 Receptor

2 Switching ring

3 Ring stopper

4 Screw hole

6 CA-210 hood

CA-H10

5 Plug

1313

Installation/Connection

About Accessories

Standard Accessories

● AC power cord (100-120V, 3P) Connect this cord to the AC power connector to supply power to the instrument. For a description of how to connect, refer to page 28.

● Measuring probe (with a lens cap)

● CA-210 hood CA-H10

● Color analyzer PC software CA-SDK

● Instruction manual

Read this manual before operating the instrument.

Optional Accessories

● Measuring probe CA-P12/CA-P15 (both with a lens cap) Connect measuring probes to the probe connectors provided on the instrument and the 4-point expansion board CA-B14. Cord length CA-P12: 2 m/CA-P15: 5 m

Location of the explanation

Connecting method: Page 26 Measuring method: Measurement Preparation, Setting, Measurement sections

● 4-point expansion board CA-B14 Connect measuring probes (CA-P12/CA-P15) to this board, to allow simultaneous measurement of the colors at up to 5 points on the display’s surface.

Location of the explanation

Installation method: Page 27 Measuring method: Measurement Preparation, Setting, Measure-

ment sections

● CA-210 hood CA-H10

● CA-210 lens cap CA-H11

［P2］［P3］［P4］［P5］

Probe connector

Connector

Grip

About Measuring Probe

Setting a Measuring Probe

Two types of screws are provided to secure the measuring prove. Tripod screw: Used to mount the prove to a tripod. The screw depth is 6 mm. ISO screw: Used to mount the prove to a jig. An ISO screw (5 mm, depth: 6 mm) can be used.

Tripod screw

88mm

22mm

98mm

108mm

ISO screw (5 mm) ISO screw (5 mm)

=30m

Display’s screen surface

(When used with the hood)

(When used without the hood)

Setting the Measuring Distance

1. Secure the display to be measured.

2. Set the switching ring to the POINTER posi-

tion.

A circle marker will be emitted.

3. Check the area to be measured, make sure

that the distance from the display surface to the tip of the probe is 30 mm, and secure the probe.

Make sure that the probe is placed perpendicular to the display surface.

JEITA ED-2522 states that measurement must be taken for an area of 500 pixels or more with the light receiving angle of 5 degrees less. This requirement can be met if the object is placed as explained above since this instrument is designed to measure ø27 mm at ±2.5 degrees. Use of the hood (standard accessory) not only prevents entry of environmental light but also makes it easy to place the instrument at the specified distance and perpendicular to the object.

• Measurement can be performed with stable accuracy if r= 30 mm±10 mm.

• The optimum angle varies with the display’s light distribution characteristic.

Installation/Connection

Switching ring

About Switching Ring

When you turn the switching ring, it stops at three positions (MEAS, 0-CAL, POINTER). To turn the ring, the stopper must be pulled toward you to unlock it.

MEAS : To perform measurement, the ring must be set in this posi-

tion.

0-CAL : To perform zero calibration, the ring must be set in this

position. Take care not to direct the measuring probe to a high-intensity light source.

POINTER: A red circle marker will be emitted from the LED. It may

be difficult to see the marker depending on the surrounding brightness and intensity or color of the object. In this case, place a piece of white paper over the screen. You must also take care not to stair into the prove while the marker is emitted.

Analyzer mode

PQRS7TUV8WXYZ

ALPHA

GHI4JKL5MNO LOCK

CAL

White1ABC2DEF- SPACE

ENTER

Red0Green.Blue

PQRS7TUV8WXYZ

ALPHA

GHI4JKL5MNO LOCK

CAL

White1ABC2DEF- SPACE

ENTER

Red0Green.Blue

POWER

-CAL

MODE REMOTE HOLD MR

MEMORY CH

OFF

CH01 EXT Ad P1 [EXT D-1.50]

1 2 5 4 3 6

1 0-CAL key ............................................. • Starts zero calibration. Before pressing this key, make sure that the

measuring probe is blocked from light. (Page 34)

2 Mode key ............................................... • Used to select measurement mode. (Page 38)

The measurement mode switches as follows each time this key is pressed. xyLv→T∆uvLv→RBG (R/G, B/G, ∆G)→RBG (∆R, B/G, G/R)→ u'v'Lv→Flicker→XYZ →yLv

3 MR key .................................................. • Displays the specified target color in the LCD display section. (Page

72) (For long depression of this key, refer to page 17.)

4 HOLD key ............................................. • Holds the display of the measured value. (The HOLD lamp will

light up.)

• Pressing this key while the HOLD lamp is lit will cancel hold mode. (The HOLD lamp will go out.)

Function of Each Key

Key Panel

Installation/Connection

5 REMOTE key ........................................ • Sets the instrument in remote mode (i.e. communication with the

PC is possible via RS-232C or USB). (The REMOTE lamp will light up. See page 88.)

• Pressing this key while the REMOTE key is lit will cancel remote mode. (The lamp will go out.)

(Note) Remote mode should not be activated unless you are going to communi-

cate with the PC. Otherwise, the other keys will be inoperative.

6 MEMORY CH key ........................ • Used to select a memory channel (CH00 to 99).

key Pressing the key will switch memory channel in the order

“00→01→02

…

98→99→00

…

”.

Pressing the

key will switch memory channel in the order

“00→99→98

…

01→00→99

…

”.

The memory channel switches from one to another each time the key is pressed, and switches continuously if the key is left held down.

① Ten-key ( ~ , )......................... • Used to enter calibration data for user calibration (page 49), target

color (page 60), ID name (page 65) and analog display range (page

67).

② ALPHA key (

) ................................... • Used to enter alphabets. This key enables you to use the ten-key as

alphabet keys. Pressing this key again will restore the original function of the ten-key.

③ Alphabet keys (

~ , ) ................ • Used to enter alphabets for the ID name.

④ MENU key (

)..................................... • Switches the LCD display section to the menu selection screen.

Pressing this key again will restore the original function of the LCD display section.

⑤ CAL key ( ) ........................................ Normal Screen

• When CH00 is selected as the memory channel You can enter a value for the target color. (Page 63)

• When a channel other than CH00 is selected as the memory channel You can enter calibration data for user calibration. (Page 49)

• When an analyzer measurement mode is selected You can enter the display’s RGB luminescence characteristic and target color (W). (Page 57)

Menu Selection Screen

• Pressing the [CAL] key in the menu selection screen causes the screen to switch as follows. PROBE selection → SYNC selection → ID Name input → RANGE setting → Measurement Speed selection → Number of Digits setting → Calibration Standard selection → RS232C Baud Rate selection → PROBE selection This does not apply in the case of flicker mode.

1818

⑥ Cursor key ( ) ..................................... • Used to switch from one option to another in the PROBE, SYNC,

Measurement Speed, Number of Digits, Calibration Standard and RS232C Baud Rate screens, which are opened from the menu selection screen.

⑦ ENTER key (

) ................................... • Used to confirm each setting/selection you have made.

⑧ White, Red, Green, .................................. • Used to switch from one mode to another when entering RGB

Blue keys (

) luminescence characteristic.

❶ Holding down the key ....................... Locks all the keys except for the 0-CAL key. Holding down this

for two seconds or more key again for two seconds or more will unlock the keys. (Whistling sound.)

❷ Holding down the

key ....................... Stores the current settings (probe, SYNC, measurement speed, number

for five seconds or more of display digits, calibration standard, RS232C baud rate, memory (Bleeping sound. A whistling sound channel, measurement mode) to the instrument. The settings will be is heard when the setting is saved.) effective when the power is turned on next time.

❸ Holding down the MR key .................... When xyLv, T∆uvLv or XYZ measurement mode is selected

for two to four seconds The serial number of the probe used when user calibration is performed (Bleeping sound.) or when target color is set will be displayed. (Page 72)

When an analyzer mode is selected

The serial number of the probe used when the display’s RGB luminescence characteristic is entered or when the target color (W) is set will be displayed. (Page 72)

When flicker mode is selected

“00000000” will be displayed. (Page 72)

❹

Holding down the MR key .................... The unit of intensity will be displayed. (cd/m2)

for four seconds or more (Bleep sounds two seconds later and then four seconds later.)

1919

Installation/Connection

About Display

x y

∆x ∆y

∆Lv

∆uv

∆x ∆y

∆Lv

R B

R/G

B/G

∆G

∆x ∆y

∆Lv

∆x ∆y

∆Lv

CH00 EXT P1 [MINOLTA ]

* This shows when the entire display area is lit. (The LCD display section is not shown.)

1 Measurement mode

2 Digital display section 3 Analog display section

4 LCD display section:

Analyzer mode

1 Measurement mode ................................. Displays the measurement mode in which the measured values are

displayed. Measurement mode switches from one to another as shown below each time the MODE key is pressed. (Page 38)

xyLv→T∆uvLv→RBG (R/G, B/G, ∆G)→RBG (∆R, B/G, G/R)→ u'v'Lv→Flicker→XYZ →xyLv

2 Digital display section ............................. Displays the measured values.

● When xylv measurement mode is selected

x, y and Lv are displayed.

● When T∆uvLv measurement mode is selected

T, ∆uv and Lv are displayed. T (relative color temperature) is displayed in three significant digits.

● When an analyzer measurement mode is selected

R, B and G are displayed. R-reference and G-reference are available. (The same contents are displayed in the digital display area, whether R-reference or G-reference.)

● When u'v'Lv measurement mode is selected

u', v' and Lv are displayed.

● When flicker measurement mode is selected

Flicker is displayed. The display range is from 0.0 to

100.0%.

● When XYZ measurement mode is selected

X, Y and Z are displayed. (X, Y and Z from top to bottom)

3 Analog display section ............................ Displays the difference (%) between the measured value and the tar-

get color or the difference (%) between measured values. The range for each dot can be set between 0.1 and 99%. (Page 67)

● How to read/when the range is set in “n” %

The range has been set to 10% prior to factory shipment.

● When xylv, T∆uvLv, u'v'Lv or XYZ measurement

mode is selected ∆x, ∆y and ∆Lv are displayed.

● When an analyzer measurement mode is selected For G-reference R/G, B/G and ∆G are displayed. For R-reference ∆R, B/R and G/R are displayed.

● When flicker measurement mode is selected Flicker is displayed.

4 LCD display section ................................ Displays the memory channel, probe no., ID name, warning and set-

tings. In case of error, an error message will appear. (For a description of what to do in case of error, refer to page 101.)

∆x ∆y

∆Lv

R/G

B/G

∆G

+n×8% or higher

＋−

Red LED Green LED Red LED

n×8%

or lower

Below ±n% Below ±n×2% Below ±n×4% Below ±n×8%

CH00 AdP1 [MINOLTA ]

Displays the currently selected SYNC mode. (NTSC, PAL, EXT, UNIV, INT) (Page 36)

Displays the currently selected measurement speed. (A.F.S) (Page 82)

Displays the calibration mode for the currently selected memory channel. (d.h.a.m) (Page 55)

Probe no. (Page 41) ID name display area (Page 65)

Memory channel

(Page 46)

Installation/Connection

● When the measurement range is exceeded Digital display section : “– – –”

Analog display section : Not lit LCD display section : “OVER”

● When Lv (intensity) is below 0.10 cd/m

Digital display section : blinking (white calibration equivalent to Minolta’s Analog display section, : The display contents blink. calibration standard) LCD display section

● When T∆uvLv measurement mode Digital display section : “– – –” is selected and T and ∆uv are out of (T and ∆uv) the display range

● When flicker mode is selected When the display range is exceeded LCD display section : “FLICKER ERROR OVER” When Lv (intensity) is below 5 cd/m

LCD display section : “FLICKER ERROR UNDER”

Installation/Connection

This section explains how to install the instrument, connect AC power, turn ON/OFF the power, and input the vertical synchronizing signal.

About Installation

Provides operating environmental conditions for the instrument and notes on installation.

About Connection

Explains how to connect measuring probes and connect the power cord. (It also explains installation method of the optional 4-point expansion board.)

* Before turning on the power : Refer to pages 85 to 88 if you are going to communicate the instrument with the

PC via RS-232C or USB.

Turning the Power ON/OFF

Explains how to turn ON/OFF the power.

Page 24

Page 29

2424

• Do not bend, twist or pull the AC power cord excessively.

• Do not place heavy items on the AC power cord or scratch it.

• Do not modify the AC power cord.

Doing so may damage it, resulting in fire or electric shock.

When disconnecting the AC power cord’s plug, al- ways hold the plug and pull it to remove it. Never pull the AC power cord itself as it may be damaged, resulting in fire or electric shock. Also do not insert or disconnect the AC power cord’s plug with wet hands. Doing so may cause electric shock.

If you are not going to use the instrument for a long time, disconnect the AC power cord from the AC outlet. Dirt or water may accumulate on the prongs of the AC power cord’s plug and it may cause a fire. If there is any dirt or water on the prongs, it must be removed.

Do not use the instrument in areas where flammable or combustible gases (gasoline fumes etc.) are present. Doing so may result in a fire.

If dust has entered through the vents and collected inside the instrument, do not use the instrument. Doing so may result in a fire. For periodic inspection, contact a Minolta-authorized service facility.

Always use the AC power cord supplied as a standard accessory with the instrument, and connect it to an AC outlet (100-240V, 50-60 Hz). Connecting to a voltage other than that specified may result in damage to the instrument, fire or electric shock.

SAFETY WARNING

(Failure to adhere to the following points may result in death or serious injury.)

SAFETY PRECAUTIONS

(Failure to adhere to the following points may result in injury or damage to the instrument or other property.)

• Do not place the instrument on an unstable or sloping surface.

• When you carry the product, take care not to let it drop.

Doing so may result in its dropping or overturning, causing injury.

2525

Installation/Connection

About Installation

The operating environmental requirements are given in the “Specifications” of this manual. The instrument must be installed in a place that completely meets these requirements. (Page 108)

● Using the instrument in direct sunshine in midsummer or near a heater will cause a rapid rise in its temperature

resulting in breakdown. Special care must be taken when handling the instrument in such an environment. In addition, take care not to allow the vents to become blocked. Do not use the instrument in poorly ventilated areas.

● Do not use the instrument in a place where the temperature changes rapidly, since measured values will be

incorrect.

● The instrument must not be used in areas where there is an excessive amount of dust or where the humidity is

excessively high.

● The instrument must not be used if foreign matter such as water and metal objects enter it, doing so is very

dangerous.

● The AC power cord must not be pulled or bent excessively nor must excessive force be exerted on it. Doing so

may result in wire breakage.

● The AC power cord must not be connected to an AC line on which excessive noise is present.

● If any irregularity or abnormality is found, turn OFF the power immediately, disconnect the AC power cord,

and refer to “Troubleshooting” on page 105.

About Connection

1. Connecting a Measuring Probe

Before setting the POWER switch to ON, a measuring probe must be connected to the probe connector [P1] on the instrument.

[Connecting Method]

1. Set the POWER switch to OFF (“ ○” position).

2. Insert the probe’s plug into the probe connector

[P1], with the probe serial no. facing down.

3. Check that the plug is inserted all the way and

connected firmly

• When disconnecting the measuring probe, set the POWER

switch to OFF first, and pull the probe by holding the plug. Never pull the probe by its cord.

● Never connect or remove the measuring probe while the POWER

switch is ON.

● When connecting/disconnecting the measuring probe, always hold

the plug and connect/disconnect it. In addition, do not pull or bend the cord excessively or exert excessive force on it. Doing so may result in wire breakage.

Probe connector [P1]

Installation/Connection

2. Installing the 4-Point Expansion Board CA-B14

Installing the optional 4-point expansion board CA-B14 in the instrument allows simultaneous measurement of the colors or flicker at up to 5 points on the display’s surface. Install the expansion board as shown below.

[Installation Method]

1. Remove the cover of the 4-point expansion board slot.

1 Set the POWER switch on the instrument to OFF. 2 Remove the two screws from the slot cover, and re-

move the cover.

2. Install the 4-point expansion board.

1 Place the 4-point expansion board along the right-

and left-side guides in the slot.

2 Push the board all the way and make sure that the

board is connected properly.

3 Secure the board with the two screws that were re-

moved previously.

• Repeatability of the measurement value becomes

worse when the fixation by the screw is incomplete.

• To remove the board, remove the two screws first,

then hold the grip of the board and pull it out. After the board is removed, attach the cover to the slot.

● When installing/removing the 4-point expansion board, al-

ways set the POWER switch to OFF and pull the AC power cord from the AC outlet first.

● Do not touch the connectors (gold plated parts) or ICs on the 4-point expansion board with your hands. If oil or

similar matter adheres to the connectors, wipe them with a soft, dry cloth.

The following two types of measuring probes can be connected.

• CA-P12 (cord length: 2 m)

• CA-P15 (cord length: 5 m)

A total of five probes can be connected. When connecting two or more probes, always make sure that one of them is connected to the probe connector [P1]. Connect necessary number of probes to the probe connectors [P2] to [P5] on the 4-point expansion board. You do not have to connect any probes to those connectors ([P2] to [P5]). Probes can be connected to any connectors ([P2] to [P5]).

● The connecting method for connectors [P] to [P5] is the

same as that for [P1]. (Refer to page 26.)

Notes when connecting probes: Probe connectors on the 4-point expansion board where no probe is connected must be capped.

When the optional 4-point expansion board CA-B14 is used

［P1］

［P2］［P3］［P4］［P5］

Guide

2828

3. Connecting the Power

Power voltage range for the instrument — 100 to 240V

[Connection Method]

1. Set the POWER switch to OFF (“V” posi-

tion).

2. Connect the AC power cord’s connector to

the AC power connector on the instrument.

The AC power cord must be connected as shown in the figure.

3. Insert the AC power cord’s plug to an AC outlet.

● Never connect or remove the AC power cord while the POWER switch is ON.

● When connecting/disconnecting the AC power cord, always hold the plug and connect/disconnect it. In addi-

tion, do not pull or bend the cord excessively or exert excessive force on it. Doing so may result in wire breakage.

● Be sure to connect the AC power cord's plug to an AC outlet that has a protective grounding terminal.

4. Inputting the Vertical Synchronizing Signal

The vertical synchronizing signal from the display can be input to the instrument to allow synchronous measurement (when EXT SYNC mode is selected).

However, if another SYNC mode is selected, it is not necessary to input the vertical synchronizing signal.

Connect the BNC cable of the vertical synchronizing signal (frequency: 40 to 200 Hz) used for the display to the connector on the rear panel of the instrument as shown below. Before connecting, make sure that the power to both the instrument and display is turned OFF. In the case of flicker mode, a vertical synchronizing signal of 40 to 130 Hz must be input.

Main body

AC power connector

To an AC outlet

AC power cord

* To synchronize measurement with the display’s vertical synchronizing signal, EXT must be selected as the SYNC mode. For details, refer

to page 36.

Circuit diagram

74HC14 (operated with 5V)

Vertical synchronizing signal input terminal

Connector type: BNC

C-MOS logic level

Input the vertical synchronizing signal.

(40 to 200 Hz)

(Flicker mode: 40 to 130 Hz)

BNC connector

2929

Installation/Connection

Turning the Power ON/OFF

1. Turning the Power ON ( | )/OFF (

Before setting the POWER switch to ON, prepare the following.

1. Connect a measuring probe to the probe connector [P1]. (Page 26)

• To synchronize measurement with the ... 1

Input the vertical synchronizing signal that is used for the display. display’s vertical synchronizing signal (Page 28) (EXT is selected as the SYNC mode)

• To perform measurement........................ 1

Install the 4-point expansion board CA-B14 (option) in the in with two or more measuring probes strument. (Page 27)

2 Connect necessary number of probes to the probe connec-

tors [P2] to [P5]. (Pages 26 and 27)

• To communicate with the PC ................. 1

Connect the instrument’s RS-232C connector to the PC. (Page 86)

via RS-232C ........................................... 2 From the menu selection screen, select the desired RS232C

baud rate. (Page 87)

• To communicate with the PC via USB... 1

Connect the instrument’s USB connector to the PC. (Page 88)

2. Connect the AC power cord to an AC outlet. (Page 28)

[Turning the Power ON ( | )]

Set the POWER switch to ON. If the instrument is connected to external equipment, set the instrument’s POWER switch to ON first, then turn ON the power to the external equipment.

[Turning the Power OFF (V)]

If the instrument is connected to external equipment, turn OFF the power to the external equipment first, then set the instrument’s POWER switch to OFF.

…

For other error messages, refer to page 101.

● “SET MAIN PROBE” (After the POWER switch is set to ON)

• Cause 1 : The measuring probe is not connected to the probe con-

nector [P1] properly.

• Action 1: Set the POWER switch to OFF, then connect the measuring probe to the probe connector [P1]

properly. (Before connecting/disconnecting the measuring probe, make sure that the POWER switch is set to OFF.)

● “PROBE ERROR”

• Cause 1 : A measuring probe was connected or disconnected while

the POWER switch was ON.

• Action 1: Set the POWER switch to OFF first, connect necessary measuring probes, then set the POWER

switch to ON. (Before connecting/disconnecting the measuring probe, make sure that the POWER switch is set to OFF.)

SET MAIN PROBE

PROBE ERROR

PROBE [P1] NO.XXXXXXXX

DARKEN PROBE PUSH 0-CAL KEY

Probe serial no.

2. Instrument Status at Power-ON

The instrument has been set prior to factory shipment so that it will be set as follows when the POWER switch is set to ON.

1 Measurement mode Page 38 xyLv mode 2 Memory channel no. Page 46 CH00 3 Target color Page 61 x = 0.3127 y = 0.3293 Lv = 160.0 (cd/m

)

4 PROBE Page 41 P1 5 SYNC (measurement synchronous mode) Page 36 EXT mode 6 ID name Page 65 Consists of spaces only. 7 RANGE Page 67 10% (all ranges) 8 Measurement speed Page 82 AUTO 9 Number of display digits Page 40 4 digits 0 Calibration standard Page 48 D

Minolta’s standard

A RS232C baud rate Page 87 38400bps B Correction factor for user calibration Page 49 D

Minolta’s standard

Change necessary parameters and press the key for more than five seconds. A bleep will sound, followed by a whistling sound when the settings are saved. The instrument will start with the new settings when the power is turned ON next time. (The selected mode and memory channel etc. will be stored in the instrument’s memory, and they will remain effective even if the POWER switch is set to OFF.)

* For details, refer to the pages given in the above table.

Changing Method for parameters

1 and

1 Measurement mode ........

Press the MODE key.

2 Memory channel .............Press the CH



and keys.

Changing Method for parameter

3 Target color value ...........The current target color will be changed if you

select a mode other than flicker and then enter a target color, or select user calibration or enter the RGB luminescence characteristic for analyzer mode.

Changing Method for parameters

4 to

For parameters 4 to A, switch the LCD display section to the menu selection screen as explained below.

1. Press the key.

The LCD display section will switch to the menu selection screen.

2. Press the key until the desired screen is displayed.

Each time the key is pressed, the screen will switch in the order PROBE→SYNC→ID Name input→RANGE→Measurement Speed→ Number of Digits→Calibration Standard→RS232C Baud Rate→PROBE.

3. Press the key to select the desired setting, and

press the key to confirm the selection.

For the ID name and range, enter the desired settings using the ten-key, ALPHA and alphabet keys, then press the

key to confirm the set-

tings.

MENU : SELECT PUSH SPACE KEY

SELECT : PROBE P1 35881112

SELECT : SYNC. EXT

CH01 EXT Ad P1 [ ]

RANGE x,y Lv (%) 10 10

SELECT : M-SPD AUTO

SELECT : DISP. 4 FIGURES

SELECT : STD-DT 6500K

SELECT : BAUD 38400 BPS

Menu selection screen

PROBE selection screen

SYNC selection screen

ID name input screen

RANGE setting screen

Measurement speed selection screen

Number of display digits selection screen

Calibration standard selection screen

RS-232C baud rate selection screen

Installation/Connection

Changing Method for parameter

For the setting method, refer to the page given in the above table.

The REMOTE key should not be pressed unless you are going to communicate with the PC via RS-232C or USB.

• Pressing the REMOTE key sets the instrument in remote mode, enabling communication with the PC via RS-232C or USB.

(The REMOTE lamp will light up.) In remote mode, no keys other than the REMOTE key are effective. To cancel remote mode, press the REMOTE key again.

Measurement Preparation

To the Setting section

* Go to the Measurement section if you are going to perform measurement using Minolta’s calibration

standard and are not going to use analog display.

Measurement Preparation

The Measurement Preparation section explains preparations (instrument setting, zero calibration) that are required prior to measurement.

Zero Calibration

Explains the zero point adjustment method. (Measurement cannot be performed if zero calibration has not been completed.)

Selecting SYNC Mode, Display Mode and the Number of Display Digits

When the optional 4-point expansion board CA–B14 is used

Selecting probe no.

Explains how to select the measuring probe whose measured value is to be displayed.

Page 36

Page 34

Page 41



Swtching ring

Zero Calibration

Zero calibration performs zero point adjustment while blocking entry of light into the measuring probe’s receptor. Zero calibration must be performed whenever the POWER switch is set to ON.

1. Performing Zero Calibration

● If the intensity of the display to be measured is 0.1 cd/m

or less, perform zero calibration after elapse of 30 minutes or more after the POWER switch is set to ON. When measuring such a low-intensity display for a long period of time, perform zero calibration approximately every hour.

● Perform zero calibration if the ambient temperature has changed.

● Zero calibration can be performed anytime even if “PUSH 0-CAL KEY” is not displayed.

● Never direct the measuring probe toward the illuminant during zero calibration.

● Never press any keys during zero calibration. Doing so will cause completion of zero calibration to take more

time.

● When the optional 4-point expansion board CA-B14 is used

Zero calibration will be performed simultaneously with all the connected measuring probes.

[Operating Procedure]

Before starting zero calibration, check that a measuring probe is connected to the probe connector [P1] on the instrument.

1. Check that the POWER switch is set to ON.

2. Set the Switching ring to the 0-CAL position.

Be careful because zero calibration can't be done properly.

・Don't turn the tip of Probe to the high illuminant. ・Don't carry out zero calibration under the condition that the switching-ring is set in "POINTER".

When the optional 4-point expansion board CA-B14 is used

Set the switching ring of every measuring probe to the 0-CAL position. Zero calibration will not be performed correctly if the switching ring of any of the measuring probes is not set to the 0CAL position.

3. Press the 0-CAL key.

Measurement will start automatically at the end of zero calibration.

“E1” is always displayed if the instrument is used for the first time since shipment from the factory.

DARKEN PROBE PUSH 0-CAL KEY

ZERO CALIBRATION

CH00 EXT Fd P1 E1 [ ]

Message displayed when the POWER switch is set to ON

Press the 0-CAL key.

During zero calibration

End of zero calibration

Measurement Preparation

<Error Messages in LCD Display Section> … For other error messages, refer to page 101.

● “TOO BRIGHT” (During zero calibration)

• Cause : Light is entering the measuring probe’s recep-

tor.

• Action : Block the light completely, and when “PUSH 0-

CAL KEY” appears press the 0-CAL key again to start zero calibration.

● “E1” (After completion of zero calibration)

• Cause : “E1” is displayed if the instrument is used for

the first time since shipment from the factory, because no target color has been set.

• For other cases, refer to page 101.

2. Zero Calibration Check Method

If you want to check whether zero calibration has been performed correctly, block entry of light into the measuring probe’s receptor using a blackout curtain etc.

• If the message shown on the right appears in the LCD

display section, perform zero calibration again.

• Zero calibration has been completed correctly if “000”

blinks for “Lv” in the digital display section. If a value other than “000” is displayed, perform zero calibration again.

(Note) Even if “OFFSET ERROR” is displayed, measurement will start if the measuring probe’s receptor is exposed to light.

OFFSET ERROR PUSH O-CAL KEY

CH00 EXT Ad P1 E1 [ ]

ZERO CALIBRATION

TOO BRIGHT

DARKEN PROBE PUSH 0-CAL KEY

The message switches automatically.

Approx. 1 second

Selecting SYNC Mode, Display Mode and the Number of Display Digits

1. Selecting SYNC Mode

In SYNC mode, measurement time (sampling time) is selected according to the display’s vertical scanning frequency. The following five SYNC modes are available. Select the SYNC mode suitable for the TV or display to be measured.

Used for measurement of NTSC monitors

Used for measurement of PAL and SECAM monitors

Used to synchronize measurement with the monitor’s vertical synchronizing signal (frequency: 40 to 200 Hz) that is input to the instrument. (For how to input the vertical synchronizing signal, refer to page 28.)

Used for measurement of any monitors, for instance, when the frequency of monitor’s vertical synchronizing signal is unknown or when the vertical synchronizing signal cannot be input into the instrument for some reason.

If the frequency of the monitor’s vertical synchronizing signal is known, set it to be used for measurement.

33.3 ms

40.0 ms

(1 vertical scan

cycle) × 2

100 ms

(1 vertical scan

cycle) × 2

60 Hz

50 Hz

40 to 200 Hz

Flicker

(40 to 130 Hz)

—

40 to 200 Hz

Flicker

(40 to 130 Hz)

Not required

Required

Not required

[Selecting Method]

1. Press the key.

The LCD display section will switch to the menu selection screen.

2. Press the key to open the SYNC selection

screen.

Each time the key is pressed, the screen will switch in the order PROBE → SYNC → ID Name input → RANGE → Measurement Speed → Number of Digits → Calibration Stan- dard → RS232C Baud Rate → PROBE.

3. Press the key to display the SYNC mode you

want to select.

Each time the key is pressed, SYNC mode switches in the order EXT→UNIV→INT→NTSC→PAL→EXT. “INT” allows you to change the synchronizing frequency.

PQRS7TUV8WXYZ

ALPHA

GHI4JKL5MNO LOCK

CAL

White1ABC2DEF- SPACE

ENTER

Red0Green.Blue

2 3 4

Press the key until the desired SYNC mode is displayed.

MENU : SELECT PUSH SPACE KEY

SELECT : SYNC. EXT

SELECT : SYNC. UNIV

CH00 EXT Ad P1 [ ]

Menu selection screen

SYNC selection screen

SYNC Mode

NTSC

PA L

EXT

UNIV.

INT

Description

Measurement time

(Sampling time)

Vertical scanning

frequency

Display’s vertical

synchronizing

signal

Not required

Measurement Preparation

SELECT : SYNC.

4. INT 60.0Hz

Select INT as explained above, and enter the desired frequency using the ten-key.

The measurement time (sampling time) is determined by the selected SYNC mode. The measurement speed (the number of measurements and outputs per second) is determined by the SYNC mode and the following conditions.

• Intensity of the display to be measured

• Measurement mode

• Data output (RS-232C or USB)

• Baud rate when data is output via RS-232C

• Number of measuring probes to be used (when the optional 4-point expansion board is used)

The table below shows the measurement speed for each SYNC mode when measurement is performed under the following conditions.

RS232C

• Intensity of the display to be measured ... No errors and warnings, and the intensity is stable.

• Display mode........................................... xyLv

• Baud rate for data output ......................... 38,400 bps

• Number of connected measuring probes.... 1

xyLv FLICKER

FAST* SLOW* — NTSC 17 measurements/sec. 4.5 measurements/sec. 16 measurements/sec. PAL 15 measurements/sec. 4 measurements/sec. 14 measurements/sec. EXT* 17 measurements/sec. 4.5 measurements/sec. 16 measurements/sec. UNIV. 7 measurements/sec. 1.5 measurements/sec. — INT* 17 measurements/sec. 4.5 measurements/sec. 16 measurements/sec.

* The measurement speed for EXT and INT when the vertical scanning frequency is 60 Hz is given.

USB

• Intensity of the display to be measured ... Maximum intensity by Minolta standard (CH00)

• Display mode........................................... xyLv

• Number of connected measuring probes.... 1

xyLv FLICKER

FAST* SLOW* — NTSC 20 measurements/sec. 5 measurements/sec. 16 measurements/sec. PAL 17 measurements/sec. 4 measurements/sec. 14 measurements/sec. EXT* 20 measurements/sec. 5 measurements/sec. 16 measurements/sec. UNIV. 8 measurements/sec. 1.5 measurements/sec. — INT* 20 measurements/sec. 5 measurements/sec. 16 measurements/sec.

* The measurement speed for EXT and INT when the vertical scanning frequency is 60 Hz is given.

4. Press the key to confirm the selection.

* To use EXT mode, the vertical synchronizing signal used for the display must be input to the instrument. (Page 28) * By default (factory setting), the instrument is set so that EXT mode will be selected automatically when the POWER switch is set to ON.

If you want to change this setting, refer to page 29.

*About FAST and SLOW

This instrument can choose three measurement speeds. It relates to the measurement accuracy closely. The explanation is mentioned in p.82.

2. Selecting the Measurement Mode

The following measurement modes are available.

Measurement Mode Description

xyLv mode

Used to display/output chromaticity coordinates xy and intensity Lv. (The analog display section shows ∆x, ∆y and ∆Lv.)

T∆uvLv mode

Used to display/output T (relative color temperature), ∆uv (color difference from blackbody locus) and intensity Lv. (The analog display section shows ∆x, ∆y and ∆Lv.)

Analyzer mode

G-reference

Used to display/output the current RBG luminous intensity in ratio (percentage) to the one for the target color (W), that is considered to be 100. (The analog display section shows R/G and B/G (ratio of measured values), luminous intensity of target color G, and ∆G (difference from the current G luminous intensity)).

R-reference

Used to display/output the current RBG luminous intensity in ratio (percentage) to the one for the target color (W), that is considered to be 100. (The analog display section shows ∆R (difference between the luminous intensity of the target color R and that of the current R, and B/R and G/R (ratio of measured values).)

u'v'Lv mode

Used to display/output u'v' chromaticity coordinates (CIE 1976 UCS chromaticity diagram) and intensity Lv. (The analog display section shows ∆x, ∆y and ∆Lv.)

Flicker mode Used to display flicker amount in contrast format (AC/DC). The unit is %.

XYZ mode

Used to display/output tristimulus values X, Y and Z. (The analog display section shows ∆x, ∆y and ∆Lv.)

…

For other error messages, refer to page 101.

● “NO SYNC. SIGNAL” (when EXT mode is selected)

• Cause 1: The vertical synchronizing signal used for the display is not connected to the terminal on the

instrument.

Action : If EXT mode is selected, input the vertical synchronizing signal to the terminal on the instru-

ment properly.

• Cause 2: The frequency of the vertical synchronizing signal used for the display is below 40 Hz or beyond

200 Hz.

Action : Switch SYNC mode to UNIV. mode and start measurement.

Measurement Preparation

[Selecting Method]

Press the MODE key to display the measurement mode you want to select.

Each time the MODE key is pressed, measurement mode will switch as shown below.

MODE key

Measurment

x y

∆x ∆y

∆Lv

∆uv

∆x ∆y

∆Lv

R B

R/G

B/G

∆G

R B

∆R

B/R

G/R

∆x ∆y

∆Lv

∆x ∆y

∆Lv

xyLv mode

T∆uvLv mode

Analyzer mode (G reference)

XYZ modeAnalyzer mode (R reference)

u'v'Lv mode

Flicker mode

* By default (factory setting), the instrument is set so that xyLv mode will be selected automatically when the POWER switch is set to ON.

If you want to change this setting, refer to page 29.

4040

3. Selecting the Number of Display Digits

The number of display digits can be selected from 4 or 3. However, T is always displayed in three digits, and flicker is always displayed up to the first decimal place.

[Selecting Method]

1. Press the key.

The LCD display section will switch to the menu selection screen.

2. Press the key to open the number of

display digits selection screen.

Each time the key is pressed, the screen will switch in the order PROBE → SYNC → ID Name input → RANGE → Measurement Speed → Number of Digits → Calibration Standard → RS232C Baud Rate → PROBE.

3. Press the key until the desired number

of display digits appears.

Each time the key is pressed, the number of display digits switches alternately between “4 FIGURES” and “3 FIGURES”.

4. Press the key to confirm the selection.

* By default (factory setting), the instrument is set so that “4 FIGURES”

will be selected automatically when the POWER switch is set to ON. If you want to change this setting, refer to page 29.

* To cancel selection of the number of display digits, press

key.

● The selected number of display digits will be kept even if the POWER switch is set to OFF. The selected

number of display digits will be effective when the POWER switch is set to ON.

PQRS7TUV8WXYZ

ALPHA

GHI4JKL5MNO LOCK

CAL

White1ABC2DEF- SPACE

ENTER

Red0Green.Blue

2 3 4

Press the key until the desired number of display digits appears.

MENU : SELECT PUSH SPACE KEY

SELECT : DISP. 4 FIGURES

SELECT : DISP. 3 FIGURES

Menu selection screen

Number of display digits selection screen

4141

Measurement Preparation

When the optional 4-point expansion board CA-B14 is used

Selecting Probe No.

Measurement will be performed simultaneously with all the connected measuring probes. However, the digital and analog display sections show only the measurement results taken by the one selected probe. Follow the procedure given below to select the probe connector No. (P1 to P5) to which the desired measuring probe is connected.

In this example, a measuring probe is connected to the probe connectors [P1], [P3] and [P5].

[Selecting Method]

1. Press the key.

The LCD display section will switch to the menu selection screen.

2. Press the key to open the PROBE selection screen.

3. Press the key to display the probe no. you want to select.

Each time the key is pressed, the probe no. switches in the order [P1]→[P3]→[P5]→[P1].

4. Press the key to confirm the selection.

* By default (factory setting), the instrument is set so that [P1] will be

selected automatically when the POWER switch is set to ON. If you want to change this setting, refer to page 29.

［P1］

［P3］ ［P5］

PQRS7TUV8WXYZ

ALPHA

GHI4JKL5MNO LOCK

CAL

White1ABC2DEF- SPACE

ENTER

Red0Green.Blue

2 3 4

CH00 EXT Ad P1 [ ]

MENU : SELECT PUSH SPACE KEY

SELECT : PROBE P1 35881112

SELECT : PROBE P3 35881113

SELECT : PROBE P5 35881114

Press the key until the desired probe no. appears.

Menu selection screen

PROBE selection screen

Settings Section

This section explains settings that must be made according to measurement mode. The setting method varies with measurement mode.

From the Measurement Preparation Section

Outline of the Settings Section

Explains measurement method types and settings that must be made. (Find out what settings you have to make.)

Before Making Each Setting

Gives detailed explanations on memory channels common to each setting and target colors.

To the Measurement section

When performing measurement using Minolta calibration standard

Selecting the Calibration Standard

Select D65 or 9300K.

Page 48

Setting/Changing the Target Color *1

Explains how to set/change the target color.

1. Setting/Changing the Target Color by Measurement

2. Setting/Changing the Target Color by Entering Values

Page 60

User Calibration

Gives detailed explanation of user calibration and explains its execution method. (Target color is also set at this time.)

Page 49

Analyzer Mode

Gives detailed explanation of analyzer mode and explains how to input the RGB luminescence characteristic for the display’s analyzer mode. (Target color is also set at this time.)

Page 56

• To set an ID name: “Setting an ID Name” (Page 65) *2

• To use the analog display function: “Setting an Analog Display Range”

(Page 67) *3

When performing measurement using user calibration

When performing measurement in analyzer mode

•

To change the target color after user calibration

: “Setting/Changing the Target Color” (Page 60) *1

Other Settings

Explains how to set an ID name and analog display range.

Page 65

Settings Checking Method

Explains how to check the set values and check the probe serial no. used when the values are set.

Page 71

• To change the target color after the analyzer mode RGB luminescence characteristic is input: “Setting/Changing the Target Color” (Page

60) *1

Page 44

Page 46

Outline of the Settings Section

This section explains settings that must be made according to measurement method. Available measurement methods and the settings that must be made are explained below.

With this method, measurement is performed using Minolta’s calibration standard without calibration. Even if you are setting the target color to the memory channel CH00, measurement must be performed as explained below.

It is not necessary to set/change the target color if you are not going to use the analog display function.

[Operating Procedure]

• To set an ID name : “Setting an ID Name” (Page 65) *2

• To use the analog display function : “Setting an Analog Display Range” (Page 67) *3

With this method, user calibration is performed and the obtained correction factor is used for measurement. Since the target color is also set, the analog display section can show the deviation of the measured values from the target color. User calibration must be performed in the following cases. (However, it is not possible to perform user calibration using the memory channel CH00.)

• To correct variation of readings that occur due to the deviation of spectral sensitivity from the CIE 1931 color-

matching function

• To correct difference of readings between instruments when two or more instruments are used

• Correction of difference of readings between measuring probes when two or more probes are used

[Operating Procedure]

• Details of user calibration : “About User Calibration” (Page 49)

• To change the target color after user calibration : “Setting/Changing the Target Color” (Page 60) *1

• To set an ID name : “Setting an ID Name” (Page 65) *2

• To use the analog display function : “Setting an Analog Display Range” (Page 67) *3

When using only the digital

display function

When also using the analog

display function

<Measurement

Preparation section>

Page 33

Measurement

Page 74

Setting/Changing

the Target Color *1

Page 60

Selecting the Calibration Standard

Page 48

<Measurement

Preparation section>

Page 33

User Calibration

• White calibration

• Matrix calibration

Page 49

Measurement

Page 74

Settings Section

With this method, the measured colors are expressed in luminous intensity of each R, B and G monochromatic light based on the display’s analyzer mode RGB luminescence characteristic (which is input to the instrument’s memory channel) and the target color (W). Since the target color is also set, the analog display section can show the deviation of the measured values from the target color. If this method is used when adjusting display’s white balance, the adjustment can be performed more easily than xyLv mode.

[Operating Procedure]

•Details of analyzer mode : “About Analyzer Mode” (Page 56)

•To change the target color after the analyzer

mode RGB luminescence characteristic is input : “Setting/Changing the Target Color” (Page 60) *1

•To set an ID name : “Setting an ID Name” (Page 65) *2

•To use the analog display function : “Setting an Analog Display Range” (Page 67) *3

*1 About “Setting/Changing the Target Color”

There are the following two methods for setting/changing the target color.

1 Setting/changing the target ...................... The display’s measured values are set as the target color.

color by measurement This method can be used for any memory channels.

2 Setting/changing the target color ............. Set the desired values (x, y, Lv) by entering them directly using the

by entering values instrument’s ten-key. This method can be used for memory channel

CH00 only.

*2 About “Setting an ID Name”

An ID name is a name that can be assigned to each memory channel by entering it directly using keys. This function is useful when you want to specify that user calibration and target color have been set for what type of display with what colors.

*3 About “Setting an Analog Display Range”

Adjustment is performed by setting the analog display range for each dot.

* To check the specified target color, calibration data for user calibration and probe serial no. used when these settings are made, refer to

“Settings Checking Method” on page 71.

<Measurement

Preparation section>

Page 33

<Settings section> Inputting RGB Luminescence Characteristic for Display’s Analyzer Mode

Page 57

• Measurement

• Adjusting the White Balance

Page 74

Before Making Each Setting

1. About Memory Channels

This instrument has a total of 100 channels (CH00 to CH99). The following items can be set for each of these channels.

1 Correction factor for user calibration ...........................

.................................... (For details, refer to page 49.)

2 RGB luminescence characteristic for analyzer mode ......

.................................... (For details, refer to page 57.)

3 Target color .................... (For details, refer to page 47.)

4 ID name .......................... (For details, refer to page 65.)

CH00 is provided for calibration that uses Minolta’s calibration standard. For this channel, only the target color, RGB luminescence characteristic for display’s analyzer mode and ID name can be set. The desired memory channel can be selected by switching from one to another by pressing the MEMORY CH

and keys.

It is also possible to assign an ID name to each memory channel by entering it directly using keys. The ID name is displayed together with the memory channel no. in the LCD display section.

● If the RGB luminescence characteristic for analyzer mode is input using a memory channel that has been

matrix-calibrated, the correction factor for matrix calibration will be deleted. (If xylv, TÉ¢uvLv, u'v'Lv or XYZ measurement mode is selected, the Minolta’s calibration standard will be used for measurement.)

● In the case of the same memory channels and probes, the RGB luminescence characteristic for analyzer mode

is stored in their common memory irrespective of measurement mode. Therefore, when matrix calibration is performed, the RGB luminescence characteristic for analyzer mode is also input at the same time.

User Calibration How the memory is used in the case of analyzer mode

CH00 EXT Ad P1 [MINOLTA ]

Probe no.

Memory channel

ID name

MEMORY CH

and keys

Calibration values xyLv for W Calibration values xyLv for R Calibration values xyLv for G Calibration values xyLv for B

Measured value for W Measured value for R Measured value for G Measured value for B

Used for white calibration Used for analyzer mode RGB luminescence characteristic

Used for matrix calibration

When the optional 4-point expansion board CA-B14 is used

If the 4-point expansion board is installed, each probe ([P1] to [P5]) has a total of 100 channels (CH00 to CH99). The correction factor for user calibration (1), RGB luminescence characteristic for analyzer mode (2) and target color (3) can be set for each probe. However, ID name (4) is common to all the probes of the same memory channels. For instance, if the ID name “CRT-001” is assigned to CH01 when the measured values for probe [P1] are displayed, “CRT-001” will be displayed for CH01 of all the probes [P1] to [P5].

Probe no. [P1] [P2] [P3] [P4] [P5] Usable memory channels CH00 to 99 CH00 to 99 CH00 to 99 CH00 to 99 CH00 to 99 ID name (page 65) CH00 to 99 (Common to all probes)

Settings Section

2. About the Target Color

The target color is the reference used to measure how much the measured values are deviated from a certain color. The target color can be set for each probe of each memory channel. The target color is set when the following is performed.

1 User calibration (page 49) ....................... Performing user calibration sets the calibration values as the target

color.

2 Setting/changing the target color ............. Set or change the target color in the following cases.

(page 60) • When you want to set the target color for memory channel CH00

• When you want to set a color that differs from the color used for user

calibration as the target color to a user-calibrated memory channel

• When you want to perform measurement using Minolta’s calibra-

tion standard without user calibration and want to use the analog display function

3 Inputting the RGB luminescence ............ When you select analyzer measurement mode and input the RGB

characteristic for analyzer mode luminescence characteristic for analyzer mode, also set the target color (page 57) (W).

● Since when calibration factor is input for user calibration/analyzer mode the target color is also set at the same

time, the previously set target color will be deleted.

● To change the currently set target color, change it as explained in “Setting/Changing the Target Color” (page

60). Even if the target color is changed, the currently set correction factor for user calibration and the RGB luminescence characteristic for display’s analyzer mode will remain unchanged.

In the case of the same memory channels, the target color is stored in their common memory irrespective of measurement mode. As a result, the target color set last will be stored irrespective of how it was set.

Values that can be set to one memory channel

* The target color is common irrespective of color space mode.

Matrix calibration

Used for xyLv, T∆uvLv, u'v'Lv or XYZ measurement mode

Correction factor for user calibration

Target color *

Display’s luminescence characteristic

Used for analyzer mode

4848

3. Selecting the Calibration Standard

This section explains how to select the instrument’s calibration standard (D65 (6500K), 9300K). Selecting the instrument’s calibration standard will set the calibration standard for CH00 as well as for all the memory channels which have not been user-calibrated.

[Selecting Method]

1. Press the key.

The LCD display section will switch to the menu selection screen.

2. Press the key to open the

calibration standard selection screen.

3. Press the key to display the calibration standard you want to select.

Each time the key is pressed, the calibration standard switches alternately between “D65” and “9300K”.

4. Press the key to confirm the selection.

The selected calibration standard will be set for CH00 as well as for all the memory channels that have not been user-calibrated.

* By default (factory setting), the instrument is set so that D65 mode will be selected automatically when the POWER switch is set to ON.

If you want to change this setting, refer to page 29.

* To cancel calibration standard setting, press the

key.

● The specified calibration target values will be kept even if the POWER switch is set to OFF. The selected

calibration standard will be set for CH00 as well as for all the non-user-calibrated memory channels when the POWER switch is set to ON.

PQRS7TUV8WXYZ

ALPHA

GHI4JKL5MNO LOCK

CAL

White1ABC2DEF- SPACE

ENTER

Red0Green.Blue

2 3 4

MENU : SELECT PUSH SPACE KEY

SELECT : STD-DT 6500K

SELECT : STD-DT 9300K

Press the key until the desired calibration standard appears.

Menu selection screen

SYNC selection screen

The currently selected calibration standard will be displayed.

4949

Settings Section

User Calibration

1. About User Calibration

● User calibration is provided to set the user’s own correction factor to the instrument’s memory channels by

measuring the color of a display and setting the calibration values (x, y, Lv) to the instrument. Once this factor is set, the values corrected by this factor will be displayed and output each time measurement is taken.

● This instrument allows two kinds of user calibration; white calibration and matrix calibration.

By default (factory setting), matrix calibration is selected.

● User calibration can be performed for each memory channel. (Except for CH00)

● When the optional 4-point expansion board CA-B14 is used

User calibration is performed independently for probe connectors ([P1] to [P5]) for each memory channel. (Except for CH00)

● When this instrument is used for the first time since shipment from the factory, measurement will be performed

based on the calibration carried out by the Minolta’s calibration standard. This applies to all the memory channels. Once user calibration is performed, the following correction will be made when measurement is performed using the obtained correction factor. 1 Correction of variation of readings that occur due to the deviation of spectral sensitivity from the CIE 1931

color-matching function

2 Correction of difference of readings between instruments when two or more instruments are used

3 When the optional 4-point expansion board CA-B14 is used

Correction of difference of readings between measuring probes when two or more probes are used

● At the same time as user calibration is performed for a memory channel, the obtained color will be set as the

target color to that memory channel. The target color is the color used as the reference when displaying how much the measured values are deviated from a certain color. (Page 47)

When two or more instruments are used or when the optional 4-point expansion board CA-B14 is used to perform measurement with two or more measuring probes, the difference between readings can be corrected if user calibration is performed as explained below.

When the values of the color to be used as the target are known:

The color set to the reference display is displayed and user calibration is performed for all the bodies (or measuring probes).

When the values of the color to be used as the target are unknown:

1 Select one master body (or select one master probe). 2 Select “xyLV” measurement mode (page 38), and place the master body’s measuring probe (or the master

probe) against the display on which the target color is displayed.

While the probe is placed against the display, press the HOLD key.

4 By using the display on which the target color is displayed and the values displayed at step 3, perform user

calibration for the other bodies (or measuring probes).

2. Performing White Calibration

● User calibration cannot be performed with the memory channel CH00.

(CH00 memory channel is provided for measurement that uses the Minolta’s calibration standard.)

● White calibration must be performed for each display type (model).

Characters of displays vary with the display type (model). Because of this, measured values differ even if the same color is measured. Thus, a different memory channel must be used for each display type (model) to perform white calibration.

● If white calibration is performed with a memory channel to which the target color has already been set, that

target color will be deleted.

● If white calibration is performed with a memory channel which has already been matrix-calibrated, the correc-

tion factor of the previous matrix calibration will be deleted and the correction factor obtained from the white calibration will be set.

[Operating Procedure]

When the optional 4-point expansion board CA-B14 is used

Select the probe no. to be white-calibrated. White calibration can be performed independently for each probe connector ([P1] to [P5]) for each memory channel.

1 Press the key.

The LCD display section will switch to the menu selection screen.

2 Press the key to open the PROBE selec-

tion screen.

3 Press the key to display the probe no.

you want to select.

Each time the key is pressed, the probe no. switches in the order [P1] ….

4 Press the key to confirm the selection.

* By default (factory setting), the instrument is set so that [P1] will be selected automatically when the POWER switch is set to ON. If you

want to change this setting, refer to page 29.

1 4,10 6,72

5 8,9



MENU : SELECT PUSH SPACE KEY

SELECT : PROBE P1 35881112

SELECT : PROBE P3 35881113

Menu selection screen

PROBE selection screen

Probe no.

Press the

key until the desired probe no. appears.

Settings Section

1. Press the MODE key to select xyLv measurement mode.

2. Press the MEMORY CH and keys until the memory

channel where you want to perform white calibration appears.

3. Place the measuring probe against the display.

Make sure that the white color whose values are known is shown on the display.

4. While the probe is placed against the display, press the

HOLD key.

The latest measured values will be hold and the HOLD lamp lights up.

5. Press the key.

The LCD display section will switch to the user calibration input screen.

6. Press the key.

The LCD display section will switch to the W calibration value input screen.

7. Enter calibration values (x, y, Lv).

For x and y, a value 10000 times the calibration value must be entered. Use the ten-key (

to , ) to enter the values. The cursor moves to the right each time a value is entered. Each time the

key is pressed, the cursor moves in the order x → y → Lv → x.

In this example, x=0.3300, y=0.3000 and Lv=39.50 are entered. 1 Press the

, , and then key to enter the “x” value.

2 Press the

key.

The cursor (_) will move to “y”.

3 Press the

, , and then key to enter the “y” value.

4 Press the

key.

The cursor (_) will move to “Lv”.

5 Press the

, , , and then key to enter the “Lv” value.

8. Press the key.

The LCD display section will return to the user calibration input screen, with the “*” mark displayed indicating that values have been entered for “W”.

9. Press the key.

White calibration will start, and the entered values will be set as the target color when the correction factor is entered.

10. Press the HOLD key to start measurement.

* To cancel white calibration, press the key before pressing the

key at step 9.

* To view the white-calibrated values (target color values), press

the MR key. However, if the target color is set after white calibration is performed with the same memory channel, the values for that target color will be displayed. (For details, refer to page

71.)

* If measurement is performed with non-user-calibrated memory

channel for the first time since shipment from the factory, the Minolta’s calibration standard will be used for the measurement.

* To change the target color you set, change it as explained in “1. Setting/Changing the Target Color by Measurement” (page 61). The

currently set correction factor for white calibration will remain unchanged even if the target color is changed.

White calibration can still be performed even if the measured values are not hold (i.e. even if the HOLD key is not pressed). In this case, white calibration will be performed for the measured values set by pressing the

key at step 9.

CH01 EXT Ad P1 [ ]

CH01 U-CAL P1WRGB

CH01 x y Lv P1

0000 0000 0.00

CH01 x y Lv P1 3300 0000 0.00

CH01 x y Lv P1 3300 3000 0.00

CH01 x y Lv P1 3300 3000 39.50

CH01 U-CAL P1 *W R G B

“*” mark is displayed.

CH01 EXT Aa P1 [ ]

x y

∆x ∆y

∆Lv

LCD display section: Memory channel Measurement speed Calibration mode Probe connector no. ID name

Screen example after white calibration

Digital display section: Displays calibration values.

Analog display section: Displays the center dots only.

“a” is displayed after white calibration.

3. Performing Matrix Calibration

● Matrix calibration cannot be performed with the memory channel CH00.

(CH00 memory channel is provided for measurement that uses the Minolta’s calibration standard.)

● Matrix calibration must be performed for each display type (model).

● If matrix calibration is performed with a memory channel to which the target color has already been set, that

target color will be deleted.

● If matrix calibration is performed with a memory channel which has already been white -calibrated, the correc-

tion factor of the previous white calibration will be deleted and the correction factor obtained from the matrix calibration will be set.

● If matrix calibration is performed with a memory channel for which the RGB luminescence characteristic for

the analyzer mode is to be set, the previous RGB luminescence characteristic will be deleted and the WRGB set for matrix calibration will be set as the RGB luminescence characteristic.

[Operating Procedure]

5 6 7 8 9

5〜8

5〜9



When the optional 4-point expansion board CA-B14 is used

Select the probe no. to be white-calibrated. White calibration can be performed independently for each probe connector ([P1] to [P5]) for each memory channel.

1 Press the key.

The LCD display section will switch to the menu selection screen.

2 Press the key to open the PROBE selec-

tion screen.

3 Press the key to display the probe no. you want to select.

Each time the key is pressed, the probe no. switches in the order [P1] ….

4 Press the key to confirm the selection.

* By default (factory setting), the instrument is set so that [P1] will be selected automatically when the POWER switch is set to ON. If you

want to change this setting, refer to page 29.

Menu selection screen

PROBE selection screen

Probe no.

Press the

key until the desired probe no. appears.

MENU : SELECT PUSH SPACE KEY

SELECT : PROBE P1 35881112

SELECT : PROBE P3 35881113

Settings Section

[Preparation]

1. Press the MODE key to select xyLv measurement mode.

2. Press the MEMORY CH and keys until the

memory channel where you want to perform user calibration appears.

A memory channel other than CH00 must be selected.

3. Place the measuring probe against the display and take

measurement.

Set the display so that it can display four colors (RGBW) whose xyLv values are known.

4. Press the key.

The LCD display section will switch to the user calibration input screen.

5. Enter the luminescence characteristic of R and calibration

values (x, y, Lv).

1 Place the measuring probe against the display, which is now emitting

monochrome light of R. Currently measured values will be displayed.

While the probe is placed against the display, press the HOLD key. The measured values will be hold and the HOLD lamp lights up.

3 Press the

key. The LCD display section will switch to the R calibration value input screen.

4 Enter calibration values (x, y, Lv).

Enter them in the same way as when you enter W calibration values for white calibration (see step 7 in “Performing White Calibration” on page

51).

5 Press the

key. The LCD display section will return to the user calibration input screen, with the “*” mark displayed on the left of “R”.

Press the HOLD key to resume measurement.

6. Enter the luminescence characteristic of G and calibration values (x, y, Lv).

1 Place the measuring probe against the display, which is now emitting monochrome light of G.

Currently measured values will be displayed.

While the probe is placed against the display, press the HOLD key. The measured values will be hold and the HOLD lamp lights up.

3 Press

key. The LCD display section will switch to the G calibration value input screen.

Enter calibration values (x, y, Lv). Enter them in the same way as when you enter W calibration values for white calibration (see step 7 in “Performing White Calibration” on page 51).

5 Press the key.

The LCD display section will return to the user calibration input screen, with the “*” mark displayed on the left of “G”.

Press the HOLD key to resume measurement.

“*” mark is displayed.

CH01 U-CAL P1 W *R G B

CH01 x y Lv P1 0000 0000 0.00

CH01 U-CAL P1 W *R *G B

CH01 U-CAL P1 W R G B

CH01 x y Lv P1 0000 0000 0.00

CH01 U-CAL P1 W *R G B

“*” mark is displayed.

CH01 EXT Ad P1 [ ]

7. Enter the luminescence characteristic of B and calibration values (x, y, Lv).

1 Place the measuring probe against the display, which is now emitting monochrome light of B.

Currently measured values will be displayed.

While the probe is placed against the display, press the HOLD key. The measured values will be hold and the HOLD lamp lights up.

3 Press the

key. The LCD display section will switch to the B calibration value input screen.

4 Enter calibration values (x, y, Lv).

Enter them in the same way as when you enter W calibration values for white calibration (see step 7 in “Performing White Calibration” on page 51).

5 Press the

key. The LCD display section will return to the user calibration input screen, with the “*” mark displayed on the left of “B”.

Press the HOLD key to resume measurement.

8. Enter the luminescence characteristic of white light and calibration values (x, y, Lv).

1 Place the measuring probe against the display, which is now emitting white light.

Currently measured values will be displayed.

While the probe is placed against the display, press the HOLD key. The measured values will be hold and the HOLD lamp lights up.

3 Press the

key. The LCD display section will switch to the W calibration value input screen.

4 Enter calibration values (x, y, Lv).

Enter them in the same way as when you enter W calibration values for white calibration (see step 7 in “Performing White Calibration” on page 51).

5 Press the

key. The LCD display section will return to the user calibration input screen, with the “*” mark displayed on the left of “W”.

Press the HOLD key to resume measurement.

9. Press the key.

Matrix calibration will start, and the W measured values entered at step 8 will be set as the target color when the correction factor is entered.

* Steps 5 to 8 can be performed in any order. * Pressing the

, , or key before pressing the key

at step 9 allows you to re-enter the luminescence characteristic of the color or the measured values of white light and calibration values.

* To cancel matrix calibration, press the

key before pressing the key at step 9.

To view the target color values set for matrix calibration, press the MR key. However, if the target color is set after matrix calibration is performed with the same memory channel, the values for that target color set last will be displayed. (For details, refer to page 71.)

* If measurement is performed with non-user-calibrated memory channel for the first time since shipment from the factory, the Minolta’s

calibration standard will be used for the measurement.

* To change the target color you set, change it as explained in “1. Setting/Changing the Target Color by Measurement” (page 61). The

currently set correction factor for matrix calibration will remain unchanged even if the target color is changed.

Matrix calibration can still be performed even if the measured values are not hold (i.e. even if the HOLD key is not pressed). In this case, the measured values confirmed by pressing the

key at steps 5 to 8 will be used for calculation of the correction factor for

matrix calibration.

CH01 EXT Am P1 [ ]

x y

∆x ∆y

∆Lv

LCD display section: Memory channel Measurement speed Calibration mode Probe connector no. ID name

Example of screen after matrix calibration

Digital display section: Displays calibration values.

Analog display section: Displays the center dots only.

“m” is displayed after matrix calibration.

CH01 U-CAL P1 W *R *G *B

CH01 x y Lv P1 0000 0000 0.00

CH01 U-CAL P1*W *R *G *B

“*” mark is displayed.

CH01 U-CAL P1 W *R *G B

CH01 x y Lv P1 0000 0000 0.00

CH01 U-CAL P1 W *R *G *B

Settings Section

● The target color is also set when user calibration is performed. Note that the target color is common to all measurement modes (xyLv, T∆uvLv, analyzer, u'v'Lv, XYZ).

● If the intensity of the display to be measured is 0.1 cd/m

or less or if the ambient temperature has changed, zero

calibration must be performed before user calibration.

● Static electricity on the display’s screen surface must be removed as much as possible.

● Make sure that the measuring probe is placed straight against the display. If it is tilted or moved, user calibra-

tion will not be accurate.

● Take care not to let the measuring probe be exposed to excessive impact. Neither should the cord be pulled or bent excessively nor excessive force be exerted on it. Failure to observe these cautions may result in breakdown or wire-breakage.

● The

key may not be operable if “OVER” is displayed on the LCD display section.

● Never press the following keys during user calibration. Doing so will cancel user calibration and activate the mode corresponding to the pressed key. ( 0-CAL , MODE , MR , MEMORY CH , , )

The following alphabet will appear at the “*” position on the LCD display section according to the selected calibration mode. d : Matrix calibration with Minolta’s calibration standard D

h : Matrix calibration with Minolta’s calibration standard 9300K a : White calibration (user calibration) m: Matrix calibration (user calibration)

…

For other error messages, refer to page 101.

● “E3” (When the

key is pressed in the calibration value input screen)

• Cause : Incorrect calibration values are set. Incorrect calibration val-

ues mean the following.

1 One of x, y and Lv is “0”. 2 1–x– y

3 Values which are beyond the instrument’s calculation capability or contradicting values

• Action : Enter correct values and then press the

key.

● “E5” (When the

key is pressed in the calibration value input screen)

• Cause 1 : Calibration values (x, y, Lv) for white color have not been entered.

Action : Enter the calibration values (x, y, Lv) for white color and then press the

key.

• Cause 2: Calibration values for only some of R, G and B have been entered.

Action : If you are going to perform white calibration, enter the values for W only.

(Restart from step 4, where you were asked to press the

key.)

If you are going to perform matrix calibration, enter values for the colors whose values have

not been entered, and then press the

key.

● “E6” (When the

key is pressed in the calibration value input screen)

• Cause : Incorrect calibration values are set. Incorrect calibration val-

ues mean the following.

“E6” will appear if the calculation results obtained when calculation for matrix calibration is

performed are inappropriate.

• Action : Enter correct values and then press the

key.

CH01 U-CAL E5 *W *R G *B

CH01 U-CAL E6 *W *R *G *B

E3 x y Lv P1 3300 0000 100.0



CH01 EXT A* P1 [ ]

“*” position

Analyzer Mode

1. About Analyzer Mode

Analyzer measurement mode is provided for adjustment of the display’s white balance. The measured colors are expressed in output of each R, B and G monochromatic light based on the display’s analyzer mode RGB luminescence characteristic (input to the instrument) and the target color (W). Thus, adjusting the luminous intensity of R causes the measured value of R only to change, and measured values for B and G remain unchanged This mode is useful when you adjust the luminous intensity of R, B and G to match the target color (W). The following measured values will be displayed when the display’s luminous intensity (luminous intensity of R, B and G monochrome lights) and the target color (W) are set and measurement is performed in analyzer mode.

• Digital display section ............................... R, B, G : Outputs of the currently measured monochrome lights R,

B and G in ratio (%) to those of the specified target color (W)

• Analog display section............................... When analyzer mode (G-reference) is selected

R/G, B/G: Ratio of measured values ∆G : Difference from the target color in the case of monochrome

light G

When analyzer mode (R-reference) is selected

∆R : Difference from the target color in the case of monochrome

light R

G/R, B/R : Ratio of measured values

Measurement in analyzer mode (page 77) White balance adjustment in analyzer mode (page 79)

Measurement mode

R B

Inputting display’s analyzer mode RGB luminescence characteristic (See next page)

Luminescence characteristic of R

Luminescence characteristic of G

Luminescence characteristic of B

Target color

(W)

Settings Section

Inputting the RGB Luminescence Characteristic for Analyzer Mode

The RGB luminescence characteristic for analyzer mode must be input to each memory channel. When it is input, the target color (W) must also be set. To adjust white balance, the values of the white-balanced white must be entered as the white color (W). If the RGB luminescence characteristic for the display’s analyzer mode is input to a memory channel for which the target color has already been set, the previously set target color will be deleted. The target color to be used is the same as that for xyLv, T∆uvLv, u'v'Lv and XYZ measurement modes. The RGB luminescence characteristic for the display’s analyzer mode must be input for each display type (model). Characters of displays vary with the display type (model). Because of this, measured values differ even if the same color is measured. Thus, a different memory channel must be used for each display type (model) to input the RGB luminescence characteristic for analyzer mode.

[Operating Procedure]

4,5,6,7

1 42

3 8



When the optional 4-point expansion board CA-B14 is used

Select the probe no. for which the RGB luminescence characteristic for the display’s analyzer mode is to be input. The RGB luminescence characteristic for the display’s analyzer mode can be input independently for each probe connector ([P1] to [P5]) for each memory channel.

1 Press the key.

The LCD display section will switch to the menu selection screen.

2 Press the key to open the PROBE selec-

tion screen.

3 Press the key to display the probe no. you

want to select.

Each time the key is pressed, the probe no. switches in the order [P1] ….

4 Press the key to confirm the selection.

* By default (factory setting), the instrument is set so that [P1] will be selected automatically when the POWER switch is set to ON. If you

want to change this setting, refer to page 29.

Press the

key until the desired probe no. appears.

MENU : SELECT PUSH SPACE KEY

SELECT : PROBE P1 35881112

SELECT : PROBE P3 35881113

Menu selection screen

PROBE selection screen

Probe no.

1. Press the MODE key to select analyzer measurement

mode (RGB).

2. Press the MEMORY CH and keys until the

memory channel where you want to input the RGB luminescence characteristic appears.

3. Press the key.

The LCD display section will switch to the analyzer mode RGB luminescence characteristic input screen.

4. Input the luminescence characteristic of R.

1 Place the measuring probe against the display, which is now emit-

ting monochrome light of R.

2 Press the

key. In the LCD display section, the “*” mark will

appear on the left of “R”.

5. Input the luminescence characteristic of G.

1 Place the measuring probe against the display, which is now emit-

ting monochrome light of G.

2 Press the

key. In the LCD display section, the “*” mark will

appear on the left of “G”.

6. Input the luminescence characteristic of B.

1 Place the measuring probe against the display, which is now emit-

ting monochrome light of B.

2 Press the

key. In the LCD display section, the “*” mark will

appear on the left of “B”.

7. Enter the target color (W)

1 Place the measuring probe against the display, which is now emit-

ting the target color (W).

2 Press the

key. In the LCD display section, the “*” mark will

appear on the left of “W”.

…

For other error messages, refer to page 101.

● “E1”

• Cause 1: The display’s RGB luminescence characteristic has never been input for the currently se-

lected memory channel since shipment from the factory.

Action : This error will disappear if you enter the luminescence

characteristic.

• Cause 2: The currently used measuring probe is different from the

one that was used to input the display’s RGB luminescence characteristic and target color (W).

Action : Connect the same probe as the one used to input the

display’s RGB luminescence characteristic and target color (W). Alternatively, input the display’s RGB luminescence char- acteristic with the currently used measuring probe.

CH01 EXT Ad P1 [ ]

CH01 ALZ P1 W R G B

Memory channel

CH01 ALZ P1W*RGB

CH01 ALZ P1 W*R*G B

CH01 ALZ P1 W*R*G*B

CH01 ALZ P1 *W *R *G *B

CH01 EXT Ad P1 E1 [ ]

Settings Section

CH01 ALZ E5 *W *R G *B

● “E5” (after the key is pressed)

• Cause 1: Theluminescence characteristic for one of W, R, G and B has

not been input.

Action : Input the luminescence characteristic for the color for which

the luminescence characteristic has not been input, and then press the

key.

• Cause 2: The

key was pressed when the measuring range for target color (W) was exceeded.

Action : Input the target color values (W) that are within the measuring range, and press the

key.

8. Press the key.

The RGB luminescence characteristic for the display’s analyzer mode and target color (W) will be set.

* Steps 4 to 7 can be performed in any order. * Pressing the

, , or key before pressing the key allows you to re-enter the luminescence characteristic.

* To cancel luminescence characteristic setting, press the

key before pressing the key.

* To change the target color you set, change it as explained in “1. Setting/Changing the Target Color by Measurement” (page 61).

Even if the target color is changed, the currently set RGB luminescence characteristic for display’s analyzer mode will remain unchanged.

* Pressing the MR key displays “100.0” as the target color value for R, B and G.

Notes on When Inputting the RGB Luminescence Characteristic for Analyzer Mode

● By default (factory setting), the RGB luminescence characteristic for the display’s analyzer mode has not been

input. Thus, before performing measurement in analyzer mode, the RGB luminescence characteristic must be input.

● The target color is also set when the RGB luminescence characteristic is input. Note that the target color is common to all measurement modes (xyLv, T∆uvLv, analyzer, u'v'Lv, XYZ).

● If the intensity of the display to be measured is 0.1 cd/m

or less or if the ambient temperature has changed, zero

calibration must be performed before inputting the RGB luminescence characteristic.

● Static electricity on the display’s screen surface must be removed as much as possible.

● Make sure that the measuring probe is placed against the display. If it is tilted or moved, it is not possible to

input accurate luminescence characteristic.

● Take care not to let the measuring probe be exposed to excessive impact. In addition, do not pull or bend the cord excessively or exert excessive force on it. Failure to observe this may result in breakdown or wire-breakage.

●

keys may not be operable if “OVER” is displayed on the LCD display section.

● Never press the following keys during setting. Doing so will cancel setting of the luminescence characteristic and activate the mode corresponding to the pressed key. ( 0-CAL , MODE , MR , MEMORY CH , , )

● If the RGB luminescence characteristic for analyzer mode is input using a memory channel that has been matrix-calibrated, the correction factor for matrix calibration will be deleted. (Minolta’s calibration standard will be used for measurement if xyLv, T∆uvLv, u'v'Lv or XYZ measurement mode is selected.)

● In the case of the same memory channels and probes, the RGB luminescence characteristic for analyzer mode is stored in their common memory irrespective of measurement mode. Therefore, when matrix calibration is performed, the RGB luminescence characteristic for analyzer mode is also input at the same time.

User Calibration How the memory is used in the case of analyzer mode

Calibration values xyLv for W Calibration values xyLv for R Calibration values xyLv for G Calibration values xyLv for B

Measured value for W Measured value for R Measured value for G Measured value for B

Used for white calibration Used for analyzer mode RGB luminescence characteristic

Used for matrix calibration

Setting/Changing the Target Color

If you have input the RGB luminescence characteristic for user calibration/analyzer mode:

It is not necessary to set the target color in the following cases.

1 When you want to set the user-calibrated color as the target color for a memory channel 2 When you want to set the target color (W) which was set when the RGB luminescence characteristic for the

display’s analyzer mode was set as the target color

The target color set here is the same as those set by 1 and 2. Only when you want to change the currently set target color, should it be changed it as explained below.

By setting the target color, the difference between the measured value and the target color can be displayed in the analog display section. The target color can be set for each probe of each memory channel. The target color must be set in the following cases.

• When you want to set the target color for memory channel CH00

• When you want to perform measurement using Minolta’s calibration standard without user calibration and

want to use the analog display function

• When you want to set a color that differs from the color used for user calibration as the target color to a user-

calibrated memory channel

• When the optional 4-point expansion board CA-B14 is used

When you want to set the target color (W) that has already been set and another color as the target color to a memory channel for which the RGB luminescence characteristic for analyzer mode has been input

There are the following two methods of setting/changing the target color. Some memory channels do not allow you to set the target color.

1. Setting/changing the target ...................... The display’s measured value is set as the target color.

color by measurement This method can be used for any memory channels.

2. Setting/changing the target color ............. Set the desired values (x, y, Lv) by entering them directly using the

by entering values instrument’s ten-key. This method can be used for memory channel

CH00 only. (This method is not possible if analyzer measurement mode is selected.)

Settings Section

1. Setting/Changing the Target Color by Measurement

[Operating Procedure]

When the optional 4-point expansion board CA-B14 is used

Select the probe no. to which you want to set the target color. The target color can be set independently for each probe connector ([P1] to [P5]) for each memory channel.

1 Press the key.

The LCD display section will switch to the menu selection screen.

2 Press the key to open the PROBE selec-

tion screen.

3 Press the key to display the probe no.

you want to select.

Each time the key is pressed, the probe no. switches in the order [P1] ….

4 Press the key to confirm the selection.

* By default (factory setting), the instrument is set so that [P1] will be selected automatically when the POWER switch is set to ON. If you

want to change this setting, refer to page 29.

1. Press the MEMORY CH and keys until the memory

channel where you want to set the target color appears.

2. Place the measuring probe against the display and take mea-

surement.

3. While the probe is placed against the display,

press the HOLD key.

The latest measured values will be hold and the HOLD lamp lights up.

4. Press the key.

The measured color of the display will be set as the target color.

5. Press the HOLD key to start measurement.

The HOLD lamp will go out.

* To view the target color you set, press the MR key.

(For details, refer to page 71.)

* By default (factory setting), x=0.3127, y=0.3293 and Lv=160.0 (cd/cm

) are set

for each memory channel.

HOLD lamp

3,5

Menu selection screen

PROBE selection screen

Probe no.

Press the

key until the desired probe no. appears.

MENU : SELECT PUSH SPACE KEY

SELECT : PROBE P1 35881112

SELECT : PROBE P3 35881113

Memory channel

CH01 EXT Ad P1 [ ]

● Note that the target color is common to all measurement modes (xyLv, T∆uvLv, analyzer, u'v'Lv, XYZ).

● If the intensity of the display to be measured is 0.1 cd/m

or less or if the ambient temperature has changed, zero

calibration must be performed before setting the target color.

● Static electricity on the display’s screen surface must be removed as much as possible.

● Make sure that the measuring probe is placed straight against the display. If it is tilted or moved, it is not

possible to input accurate target color.

● Take care not to let the measuring probe be exposed to excessive impact. In addition, do not pull or bend the

cord excessively or exert excessive force on it. Failure to observe this may result in breakdown or wire-breakage.

● If “OVER” is currently displayed, it is not possible to set the currently measured color as the target color since

the instrument’s measurement range is exceeded.

…

For other error messages, refer to page 101.

●

“OVER” (after the HOLD key is pressed)

• It is not possible to set the currently measured color as the target color since the instrument’s measure-

ment range is exceeded by the measured value.

● “E1”

• Cause : The target color was set using a measuring probe which is differ-

ent from the one used to perform user calibration/input the RGB luminescence characteristic for the analyzer mode.

• Action : 1 Set the target color using the measuring probe that was used to

perform user calibration/input the RGB luminescence characteristic for the analyzer mode.

2 Perform user calibration/input the RGB luminescence charac-

teristic for the analyzer mode again using a measuring probe connected to the instrument, and then set the target color.

* For a description of how to check the probe serial no., refer to page 72.

OVER

CH01 P1 E1 [ ]

Settings Section

2. Setting/changing the target color by entering values

This method can be used for memory channel CH00 only.

[Operating Procedure]

When the optional 4-point expansion board CA-B14 is used

Select the probe no. to which you want to set the target color. The target color can be set independently for each probe connector ([P1] to [P5]) for each memory channel.

1 Press the key.

The LCD display section will switch to the menu selection screen.

2 Press the key to open the PROBE selec-

tion screen.

3 Press the key to display the probe no.

you want to select.

Each time the key is pressed, the probe no. switches in the order [P1] ….

4 Press the key to confirm the selection.

* By default (factory setting), the instrument is set so that [P1] will be selected automatically when the POWER switch is set to ON. If you

want to change this setting, refer to page 29.

1. Press the MEMORY CH and keys

until the memory channel CH00 appears.

2. Press the key.

In the LCD display section, the current target color values are displayed.

…

For other error messages, refer to page 101.

● “E3” (after the

key is pressed)

• Cause : An attempt was made to set Incorrect target

color values. Incorrect calibration values mean the following.

1 One of x, y and Lv is “0”. 2 1–x–y

3 Values which are beyond the instrument’s calculation capability or contradicting values.

• Action : Enter correct values and then press the

key.

Menu selection screen

PROBE selection screen

Probe no.

Press the

key until the desired probe no. appears.

MENU : SELECT PUSH SPACE KEY

SELECT : PROBE P1 35881112

SELECT : PROBE P3 35881113

E3 xyLvP1

0000 3293 160.0

Memory channel

CH00 EXT Ad P1 [ ]

CH00 x y Lv P1 3127 3293 160.0

6464

3. Enter target color values (x, y, Lv).

For x and y, a value 10000 times the calibration value must be entered. Use the ten-key (

to , ) to enter the value. The cursor moves to the right each time a value is entered. Each time the

key is pressed, the cursor moves in the order x→y→Lv→x.

In this example, x=0.3300, y=0.3000 and Lv=39.50 are entered. 1 Press the

, , and then key to enter the “x” value.

2 Press the

key.

The cursor (_) will move to “y”.

3 Press the

, , and then key to enter the “y” value.

4 Press the

key.

The cursor (_) will move to the “Lv” position.

5 Press the

, , , and then key to enter the “Lv” value.

4. Press the key.

The target color will be set to CH00.

* To cancel target color setting, press the key before pressing the key. *

To view the target color you set, press the MR key. (For details, refer to page 71.)

* By default (factory setting), x=0.3127, y=0.3293 and Lv=160.0 (cd/m

) are set for the memory channels for which no target color has been

set.

● The key may not be operable if “OVER” is displayed on the LCD display section.

● Note that the target color is common to all measurement modes (xyLv, T∆uvLv, analyzer, u'v'Lv, XYZ).

● Never press the following keys during target color setting.

Doing so will cancel setting and activate the mode corresponding to the pressed key. ( 0-CAL , MODE , REMOTE , MR , MEMORY CH , , )

CH00 x y Lv P1 3300 3000 160.0

CH00 x y Lv P1 3300 3000 39.50

CH00 x y Lv P1 3300 3293 160.0

6565

Settings Section

Other Settings

1. Setting an ID Name

An ID name is a name that can be assigned to each memory channel by entering it directly using keys. When measurement is performed, the ID name is displayed together with the memory channel no. and probe connector no. in the LCD display section.

• Number of characters you can enter ................. Up to 10 characters

• Type of characters you can enter ....................... “1” to “9”, “.” (comma), “A” to “Z”, “—”, “ ” (space)

For instance, if you set “EXT D-1.50” for CH01, the LCD display section will look like the one shown on the right. This function is useful when you want to specify that user calibration and target color have been set for what type of display with what colors.

[Operating Procedure]

1. Press the MEMORY CH and keys until the

memory channel to which you want to set an ID name appears.

2. Press the key.

The LCD display section will switch to the menu selection screen.

3. Press the key to open the ID name input screen.

4. Enter the desired ID name.

Ten-key ( to , ) .................... Used to enter values. (The cursor moves to the right each time a value

is entered.)

key ................................................ The to and keys on the key panel can be used to enter an

alphabet, hyphen (-) and space. Pressing this key again will restore the original function of the ten-key.

key................................................ Moves the cursor to the right each time this key is pressed.

CH01 EXT Ad P1 [ ]

MENU : SELECT PUSH SPACE KEY

CH01 EXT Ad P1 [ ]

Memory channel

CH01 EXT Ad P1 [EXT D-1.50]

Probe no. ID name

Memory channel

In this example, “EXT D-1.50” is set as the ID name. 1 Press the

key.

2 Press the

key twice.

“E” will appear at the cursor position.

3 Press the

key twice.

“X” will appear at the cursor position.

4 Press the

key once.

“T” will appear at the cursor position.

5 Press the

key twice.

“ ” will appear at the cursor position.

6 Press the

key once.

“D” will appear at the cursor position.

7 Press the

key once.

“-” will appear at the cursor position.

8 Press the

 key.

9 Press the

key.

“1” will appear at the cursor position.

0 Press the

, and then key.

“.”, “5” and then “0” will appear at the cursor position.

5. Press the key.

The ID name will be set for the selected memory channel.

* To cancel ID name setting, press the key.

● The ID name will be kept even if the POWER switch is set to OFF.

● Never press the following keys during ID name setting.

Doing so will cancel setting and activate the mode corresponding to the pressed key. ( 0-CAL , MODE , REMOTE , MR , MEMORY CH , ) If the

key is pressed while the key is not held down (i.e. the ten-key is not used as alphabet key), a screen

for setting the analog display range will appear.

● When the optional 4-point expansion board CA-B14 is used

Only one ID name can be set for each memory channel irrespective of the number of probes connected. (The specified ID name will be common to all probes [P1] to [P5].)

CH01 EXT Ad P1 [E ]

CH01 EXT Ad P1 [EX ]

CH01 EXT Ad P1 [EXT ]

CH01 EXT Ad P1 [EXT D ]

CH01 EXT Ad P1 [EXT D- ]

CH01 EXT Ad P1 [EXT D-1 ]

CH01 EXT Ad P1 [EXT D-1.50]

Settings Section

2. Setting the Analog Display Range

The analog display section displays the difference (%) between the measured value and the target color as well as the difference (%) between measured values in the case of a measurement mode other than flicker mode. In the case of flicker mode, the measured values will be displayed as they are. The range for each dot can be set as follows.

1 xyLv, T∆uvLv, u'v'Lv or XYZ measurement mode ..... ∆x, ∆y and ∆Lv

2 Analyzer Mode

For G-reference .............. R/G, B/G and ∆G

For R-reference............... ∆R, B/R and G/R

3 Flicker mode ................................................................ Flicker

The range must be set independently of 1, 2 and 3. In the case of 1, the range set here will be used commonly by all the modes. Thus, for instance, if ∆x and ∆y are set to 2% and ∆Lv is set to 10% for xyLv mode, ∆x and ∆y will be displayed in 2% and ∆Lv in 10% irrespective of the measurement mode (xyLv, T∆uvLv, u'v'Lv or XYZ). In the case of 2, the value set for G (G-reference), the value set for R (R-reference), the values set for R/G and B/G (G-reference) and those set for B/R and G/R (R-reference) will be common. Thus, for instance, if ∆G is set to 5% and both R/G and B/G are set to 3% in the case of G-reference, ∆R will be displayed in 5% and both B/R and G/R in 3% in the case of R-reference. In the case of 3, the analog display range for each dot can be set for flicker.

● Settable range ........... 0.1 to 99%

–

In 0.1% step for the range from 0.1 to 9.9%

–

In 1% step for the range from 10 to 99%

● How to Read Analog Display

When n% range is set

Below ±n% Below ±n×2% Below ±n×4% Below ±n×8%

– +

For xyLv, T∆uvLv, analyzer, u'v'Lv or XYZ mode

Red LED Green LED Red LED

–n×8%

or lower

+n×8% or higher

Below ±n% Below ±n×2% Below ±n×4% Below ±n×8%

8% or higher

For flicker mode

Red LED Green LED Red LED

• Values displayed in the analog display section For xyLv, T∆uvLv, u'v'Lv or XYZ mode

∆x =

x−xt

× 100 (%)

∆y =

y−yt

× 100 (%)

∆Lv =

Lv−Lvt

× 100 (%)

where, xt, yt, Lvt : Target color values x, y, Lv : Measured values

For analyzer mode (G reference)

− G

× 100 (%)

− G

× 100 (%)

R/G =

B/G =

∆G =

− G

× 100 = G − 100 (%)

For analyzer mode (R reference)

R − R

× 100 = R − 100 (%)

− R

× 100 (%)

∆R =

B/R =

G/R =

− R

× 100 (%)

where Gt, Rt : Luminous intensity of the target color, being 100 R, G, B: Luminous intensity of the measured display

For flicker mode

Measured values are displayed as they are. The display lights up crosswise.

• Display examples

∆x=15% when set to 2%

Measured flicker 13% when set to 5%

Green

Red

Green

Red

Settings Section

[Setting Procedure]

1. Press the MODE key to select the measurement mode

for which you want to set the range.

2. Press the key.

The LCD display section will switch to the menu selection screen.

3. Press the key to open the RANGE setting screen.

4. Enter the desired range value.

Use the ten-key ( to , ) to enter the value. (The cursor moves to the right each time a value is entered.) Each time the

key is pressed, the cursor moves between x, y and Lv, between G and B/G, R/G or between R and B/G, R/G. (This does not apply in the case of flicker mode.) In this example, the “x, y” range is set to 2.5%, and the “Lv” range is set to 2.0%. 1 Press the

, and then key to set the “x, y” range.

2 Press the

key.

The cursor (_) will move to the “Lv” position.

3 Press the

, and then key to set the “Lv” range.

5. Press the key.

The ranges will be set.

* To cancel range setting, press the key before pressing the key. * By default (factory setting), the ranges are set to 10%.

…

For other error messages, refer to page 101.

● “E4” (after the

key is pressed)

• Cause : 0.0% was entered.

• Action : Enter a correct value and then press the

key. The settable

range is from 0.1 to 99%.

RANGE x,y Lv (%) 10 10

RANGE x,y Lv (%) 2.5 10

RANGE x,y Lv (%) 2.5 2.0

RANGE x,y Lv E4(%) 0.0 10

RANGE x,y Lv (%) 10 10

RANGE G B/G,R/G (%) 10 10

RANGE R B/G,R/G (%) 10 10

RANGE FMA (%) 10

MENU : SELECT PUSH SPACE KEY

Menu selection screen

Range setting screen (For xyLv, T∆uvLv, u'v'Lv or XYZ mode)

For analyzer mode (G reference)

For analyzer mode (R reference)

For flicker mode

7070

● The range settings will be kept even if the POWER switch is set to OFF. The specified analog range will be

effective when the POWER switch is set to ON.

● The specified range settings are common to all the probe connector nos. and memory channels.

● Keys may not be operable if “OVER” is displayed on the LCD display section.

● Never press the following keys during range setting.

Doing so will cancel range setting and activate the mode corresponding to the pressed key. ( 0-CAL , MODE , REMOTE , MR , MEMORY CH , )

In the case of four-digit digital display, measured values are displayed in four digits with the fifth digit rounded off. Similarly, in the case of three-digit digital display, measured values are displayed in three digits with the fourth digit rounded off. However, the values calculated from the digital display may not match the values displayed in the analog display section.

7171

Settings Section

Settings Checking Method

1. Checking the Set Values

By pressing the MR key for less than two seconds in xyLv, T∆uvLv, u'v'Lv or XYZ mode, the values of the target color for the currently selected memory channel is displayed in the LCD display section as shown on the right.

When the optional 4-point expansion board CA-B14 is used

The values of the target color for the currently selected memory channel probe no. will be displayed.

● When white calibration is performed as user calibration

1 If only user calibration has been performed, the calibration values can be checked by checking the target

values. Since when user calibration is performed the color at the time of user calibration will be set as the target color automatically, the target color values match the calibration values. However, if a different color is set as the target color after user calibration, it is not possible to check the calibration values with this method.

2 It is possible to check the calibration value for W by performing steps 5 and 6 (

key→ key) of the

white calibration operating procedure (page 51). The value that appears first when the

key is pressed is the calibration value that was entered when the previous user calibration was performed. The values for the target color will be displayed if user calibration has not been performed.

● When matrix calibration is performed as user calibration 1 If only user calibration has been performed, the W calibration values can be checked by checking the

target values. Since when user calibration is performed the color at the time of W calibration will be set as the target color automatically, the target color values match the W calibration values. However, if a different color is set as the target color after user calibration, it is not possible to check the calibration values with this method.

2 It is possible to check the calibration value for W by performing steps 5 and 6 (

key→ key) of the

white calibration operating procedure (page 51). The value that appears first when the

3 To check the calibration values for R, G and B, perform steps 4 then 5 (

key→ key), steps 4 then

6 (

key→ key) or steps 4 and then 7 ( key→ key) of the matrix calibration operating

procedure (page 53). The value that appears first when these keys are pressed is the calibration value that was entered when the previous user calibration was performed. “0” will be displayed for R, G and B if user calibration has not been performed.

CH01 x y Lv P1 M3189 4079 366.0

7272

2. Checking the Probe Serial No. when Making Settings

To check the probe serial no. when making settings, press the MR key for two to four seconds (a bleep will sound after two seconds have elapsed) and check it in the LCD display section.

The serial number of the probe used when user calibration is performed or when target color is set will be displayed.

When the optional 4-point expansion board CA-B14 is used

The probe serial no. of the probe connector used for the current selected memory channel will be displayed.

1 Probe serial no. used when user calibration was performed 2 Probe serial no. used when the target color was set

By default (factory setting), “00000000” is set for both 1 and 2.

• When “00000000” is set for 1: If measurement is performed with this memory channel, Minolta’s cali-

bration standard will be used for the measurement. (Same as when measurement is performed with the memory channel CH00.)

• When “00000000” is set for 2: x=0.3127, y=0.3293 and Lv=160.0 (cd/m

) are set as the values of the

target color.

The probe serial no. that was used to input the analyzer mode RGB luminescence characteristic or set the target color for the currently selected memory channel will be displayed.

When the optional 4-point expansion board CA-B14 is used

The probe serial no. of the probe connector used for the current selected memory channel will be displayed.

1 Probe serial no. used to input the analyzer mode RGB luminescence characteristic 2 Probe serial no. used when the target color was set

By default (factory setting), “00000000” is set for both 1 and 2.

• When “00000000” is set for 1: The RGB luminescence characteristic for the display’s analyzer mode

has not been input.

* The serial no. of the currently used measuring probe can be viewed in the PROBE selection screen, that can be opened by pressing the

then keys. (If the 4-point expansion board CA-B14 is used, the probe connector no. will switch from one to another each time the

key is pressed.

For details, refer to page 41.)

“00000000” will be displayed for both data lines.

SELECT : PROBE

P1 35881112

0 2 4 (sec)

Period for which the MR key is pressed

Bleep Bleep Bleep

Target color is displayed.

The probe serial no. used to making settings is displayed.

The unit of intensity is displayed.

16790160 16790160

Measurement Section

This section explains measuring methods.

From the Settings Section

Measurement

Explains measuring methods, how to hold the measured values and how to read them.

White Balance Adjustment in Analyzer Mode

Explains how to adjust white balance.

Selecting the Measurement Speed

Explains how to select the measurement speed suitable for the display to be measured.

Page 74

Page 79

Page 82

Measurement

Before starting measurement, perform the following.

1. Performing Measurement

[Measuring Method]

1. Press the MEMORY CH and keys. keys to select

the memory channel for which user calibration has been performed (page 49), the RGB luminescence characteristic for analyzer mode that has been input (page 57) and the target color that has been set/changed (page 60).

2. Place the measuring probe against the display and per-

form measurement.

The measurement results will be displayed in the digital and analog display sections in the selected measurement mode.

● The digital and analog display sections are blinking.

• The measured Lv (intensity) is below 0.1 cd/m

for white calibration with Minolta’s calibration standard

or equivalent.

● Since the intensity of the display will be unstable for a while immediately after the display is turned ON, the

measured values must be read after they have stabilized.

● Static electricity on the display’s screen surface must be removed as much as possible.

● Perform zero calibration if the ambient temperature has changed.

● When measuring a display of intensity of 0.1cd/m

or less for a long period of time, perform zero calibration

approximately every hour.

● Make sure that the measuring probe is placed straight against the display. If it is tilted or moved, accurate

measurement cannot be performed.

● Take care not to let the measuring probe be exposed to excessive impact. In addition, do not pull or bend the

cord excessively or exert excessive force on it. Failure to observe these cautions may result in breakdown or wire-breakage.

CH01 NTSC Ad P1 [ ]

Install the instrument, connect the power cable, and turn ON the power.

Settings section (page 43)

Set up the instrument according to the setting method. This is not necessary if the instrument has already been set up or if you are going to perform measurement using Minolta’s calibration standard and are not going to use the analog display function

Installation/Connection section (page 23)

Measurement Preparation section (page 33)

Perform preparations (instrument setting, zero calibration) that are required prior to measurement.

Measurement Section

<Error Messages in LCD Display Section>......... For other error messages, refer to page 101.

● “OVER”

• Measurement is not possible since the instrument’s measurement range

is exceeded by the measured value. In the case of analyzer mode, the instrument’s measurement range or display range (100,000%) is exceeded by the measured value.

● “E1”

• Cause : In the case of xyLv, T∆uvLv, u'v'Lv or XYZ measurement mode,

the currently used measuring probe is different from the one used to perform user calibration and set the target color. In the case of analyzer mode, the currently used measuring probe is different from the one used to input RGB luminescence characteristic for analyzer mode and set the target color (W).

• Action: Use the same probe as the one used to input the RGB lumines-

cence characteristic and set the target color. Alternatively, input the RGB luminescence characteristic and set the target color using the currently used measuring probe.

● “E2”

• Cause : An error has occurred due to shift of the zero point because the

ambient temperature has changed since zero calibration.

• Action: Perform zero calibration.

* Measurement can still be performed even if “E2” is currently displayed. * “E2” will not appear if “E1” is currently displayed.

When the optional 4-point expansion board CA-B14 is used

● If two or more measuring probes are connected, measurement will be performed with all the probes simulta-

neously. However, the digital and analog display sections show only the measurement results taken by the one selected probe (page 41).

2. Holding the Measured Values

● To hold the measured values, press the HOLD key. The HOLD lamp

will light up. (Hold mode) Pressing the HOLD key again will cancel hold mode and resume measurement. This will cause the HOLD lamp to go out.

* If the conditions (e.g. measurement mode) set for hold mode are changed, the measured values

that are currently hold will be re-calculated according to the new conditions and then displayed. (This does not apply in the case of SYNC mode.)

● It is not possible to hold the measured values in the following cases.

1 Until the measured values appear after the POWER switch is set to ON and then 0-CAL key is pressed 2 Until the measured values appear after the 0-CAL key is pressed 3 When the error message “NO SYNC. SIGNAL” is currently displayed in the LCD display section

●

To cancel hold mode, press the 0-CAL key.

HOLD

OVER

CH01 NTSC Ad P1 E1 [ ]

CH01 NTSC Ad P1 E2 [ ]

HOLD key

HOLD lamp

3. Displaying the Measured Values

The measurement results will be displayed in the digital and analog display sections.

● The digital display section shows the measurement results.

The display frequency of the measurement results varies with the selected SYNC mode and measurement speed. (For the display frequency, refer to page 82.)

• Display contents : For xyLv mode: x, y, Lv

For u'v'Lv mode: u', v', Lv For ∆uvLv mode: T, ∆uv, Lv

T is displayed in three significant digits.

For XYZ mode: X, Y, Z

• Display range : 0.10 to 999.9 cd/m

or equivalent

When measured values are displayed in 4 digits

In 0.01 step for the range from 0.10 to 99.99 In 0.1 step for the range from 100.0 to 999.9

When measured values are displayed in 3 digits

In 0.01 step for the range from 0.10 to 9.99 In 0.1 step for the range from 10.0 to 99.9 In 1 step for the range from 100 to 999

For T∆uvLv mode:

2300

T 20000 (K)

| ∆uv | <0.1

● When the measurement range is exceeded Digital display section : “_ _ _”

Analog display section : Not lit LCD display section : “OVER”

● When white calibration is performed with When Lv (intensity) is below 0.10 cd/m

: The display

Minolta’s calibration standard Digital display section contents blink.

Analog display section, measurement mode

●

When T∆uvLv measurement mode is selected

Digital display section (T and ∆uv) : “_ _ _”

and T and ∆uv are out of the display range

● The analog display section shows the difference between the measured value and the

target color in percentage (%).

• Display contents: ∆x, ∆y, ∆Lv

* For details on the analog display function and how to set the range for each dot, refer to page 67.

● When the analog display range is set to n%

x y

∆x ∆y

∆Lv

∆uv

∆x ∆y

∆Lv

∆x ∆y

∆Lv

∆x ∆y

∆Lv

∆x ∆y

∆Lv

For xyLv or u'v'Lv mode

For T∆uvLv mode

For XYZ mode

For u'v'Lv mode

Red

Green

-n×8% or lower

Below ±n%

Below ±n×2% Below ±n×4% Below ±n×8%

+n×8% or higher

Measurement Section

If analyzer measurement mode is selected, measurement results will be displayed as shown below.

● Digital display section

• Display contents : R, B, G

Outputs of the currently measured monochrome lights R, B and G in ratio (%) to those of the specified target color (W)

• Display range : When measured values are displayed in 4 digits

0.01 to 99900% In 0.01 step for the range from 0.01 to 99.99% In 0.1 step for the range from 100.0 to 999.9% In 1 step for the range from 1000 to 9999% In 10 step for the range from 10000 to 99990%

When measured values are displayed in 3 digits

0.01 to 99900% In 0.01 step for the range from 0.01 to 9.99% In 0.1 step for the range from 10.0 to 99.9% In 1 step for the range from 100 to 999% In 10 step for the range from 1000 to 9,990% In 100 step for the range from 10000 to 99990%

● Analog display section

• Display contents : When analyzer mode (G-reference) is selected

R/G, B/G: Ratio of measured values ∆G: Difference from the target color in the case of monochrome light G

When analyzer mode (R-reference) is selected

∆R: Difference from the target color in the case of monochrome light R G/R, B/R: Ratio of measured values

* For details on the analog display function and how to set the range for each dot, refer to page 67.

● When the analog display range is set to n%

R/G

B/G

∆G

∆R R/G

B/R B/G

G/R ∆G

R B

R/G

B/G

∆G

Red

Green

-n×8% or lower

Below ±n%

Below ±n×2%

Below ±n×4%

Below ±n×8%

+n×8% or higher

7878

If flicker measurement mode is selected, measurement results will be displayed as shown below.

● Digital display section

• Display contents : Contrast flicker value (%)

• Display range : 0.0 to 100% (up to the first deci-

mal place)

● Analog display section

• Display contents : Contrast flicker value (%)

* For details on the analog display function and how to set the range for each

dot, refer to page 67.

● When the analog display range is set to n%

● Measurement range for flicker mode

The average intensity (Lv) is 0.1cd/m

or equivalent and the maximum intensity (Lv) is 2000cd/m2 or equivalent in the case of white calibration with Minolta’s calibration standard. Vertical scanning frequency 40 to 130 Hz

(Note) For measurement of flicker, make sure that the correct vertical synchronizing frequency is recognized by the instrument. If an incorrect vertical synchronizing frequency is set in the case of UNIV or INT mode, correct measured values will not be obtained.

<Error Messages in LCD Display Section>....... For other error messages, refer to page 101.

● “FLICKER ERROR UNDER”

• Measurement is not possible since Lv is below 0.1 cd/m

(white calibration with Minolta’s calibration

standard).

● “FLICKER ERROR OVER”

• Measurement is not possible since flicker value is beyond 100.0%.

● “FLICKER ERROR VSYNC OVER”

(EXT is selected as the SYNC mode)

• Measurement is not possible since the frequency of the vertical synchronizing signal input to this instru-

ment is beyond 130 Hz.

(INT is selected as the SYNC mode)

• Measurement is not possible since the currently set vertical scanning frequency is beyond 130 Hz.

Flicker mode

Red

Green

-n×8% or lower

Below ±n%

Below ±n×2%

Below ±n×4%

Below ±n×8%

+n×8% or higher

7979

Measurement Section

White Balance Adjustment in Analyzer Mode

Analyzer measurement mode is provided for adjustment of the display’s white balance. The measured colors are expressed in luminous intensity of each R, B and G monochromatic light based on the RGB luminescence characteristic for analyzer mode (page 57) and the target color (W) which are set to the instrument. Thus, adjusting the luminous intensity of R causes the measured value of R only to change, and measured values for B and G remain unchanged. This mode is useful when you adjust the luminous intensity of R, B and G to match the target color (W).

First, set the RGB luminescence characteristic for analyzer mode and target color (W) to the instrument. For the target color (W), the values of the white-balanced white must be entered. (Page 57)

If “100” is displayed for R, B and G in the digital display section when measurement is performed in analyzer mode, this indicates that the color of the display measured is the same as the target color (W) (i.e. the xyLv values are the same) for the selected memory channel. In the analog display section, only the center green segments light up.

When only the center green segments light up in the analog display section and all the values for R, B and G in the digital display section are the same (but not “100”), this indicates that the chromaticity coordinates (x, y) are the same as those of the target color (W), though Lv (intensity) differs. Even if the intensity of the display changes, the chromaticity coordinates (x, y) are the same as those of the target color (W) as long as the values for R, B and G are the same. In this case, in the analog display section, only the center green segments for R/G and B/G (G reference) or G/R and B/R (R reference) light up.

G-reference or R-reference must be chosen according to the display whose white balance is to be adjusted.

• G-reference: Must be used for displays whose G output cannot be adjusted independently.

• R-reference: Must be used for displays whose R output cannot be adjusted independently.

* Any of G-reference and R-reference can be used for displays whose R, G and B outputs can be adjusted independently.

R B

[Operating Procedure]

1. Set the POWER switch to ON.

2. Set the 0-CAL ring of the measuring probe

to the 0-CAL position.

Never direct the measuring probe toward a high-intensity illuminant.

When the optional 4-point expansion board CA-B14 is used

Set the 0-CAL ring of every measuring probe to the 0CAL position. Zero calibration will not be performed correctly if the 0-CAL ring of any of the measuring probes is not set to the 0-CAL position.

3. Press the 0-CAL key.

After zero calibration is complete, set the 0-CAL ring to the MEAS position and start measurement.

4. Press the MODE key to select analyzer

measurement mode (RGB).

5. Press the MEMORY CH and keys to select the

memory channel for which the RGB luminescence characteristic for analyzer mode has been set (page 57).

When the optional 4-point expansion board CA-B14 is used

Select the probe no. for which the RGB luminescence characteristic for the analyzer mode has been input.

1 Press the

key.

The LCD display section will switch to the menu selection screen.

2 Press the

key to open the PROBE selection screen.

Each time the

key is pressed, the screen will switch in the

order PROBE → SYNC → ID Name input → RANGE → Measurement Speed → Number of Digits → Calibration Standard → RS232C Baud Rate → PROBE.

3 Press the

key to display the probe no. you want to select.

Each time the

key is pressed, the probe no. switches in the

order [P1] ….

4 Press the

key to confirm the selection.

* By default (factory setting), the instrument is set so that [P1] will be selected automati-

cally when the POWER switch is set to ON. If you want to change this setting, refer to page 29.

6. Place the measuring probe against the display and

take measurement.

2,3

4 5

DARKEN PROBE PUSH 0-CAL KEY

ZERO CALIBRATION

CH00 EXT Ad P1 [ ]

CH01 EXT P3 [ ]

MENU : SELECT PUSH SPACE KEY

SELECT : PROBE P1 35881112

SELECT : PROBE P3 35881113

Place the probe against the display

Message displayed when the POWER switch is set to ON

Block entry of light

Press the 0-CAL key.

During zero calibration

End of zero calibration

Memory channel

Probe no.

Menu selection screen

PROBE selection screen

Probe no.

Press the key until the desired probe no. appears.

Measurement Section

7. Adjust the white balance.

Normally, white balance can be adjusted by performing cutoff and drive adjustment for the display. In this section, the method of adjusting the display’s color to the target color (W) is explained.

The method is explained by taking the following cases where the measured values are as follows compared to the target color (W).

• luminous intensity of R: Higher by 20%

• luminous intensity of B: Lower by 10%

• luminous intensity of G: Higher by 10%

7-1. When analyzer mode (G-reference) is se-

lected

1 Adjust the intensity (or luminous intensity of G)

so that the displayed value for G changes from “110” to “100.0”.

2 Adjust the output of R so that the displayed value

for R changes from “109.0” to “100.0”, and adjust the output of B so that the displayed value for B changes from “81.80” to “100.0”.

When all the values for R, B and G are changed to “100.0”, adjustment of the white color of the display to the target color (W) (i.e. the xyLv values are the same) is complete.

7-2. When analyzer mode (R-reference) is selected

1 Adjust the intensity (or luminous intensity of R)

so that the displayed value for R changes from “120.0” to “100.0”.

2 Adjust the output of B so that the displayed value

for B changes from “75.00” to “100.0”, and adjust the output of G so that the displayed value for G changes from “91.70” to “100.0”.

When all the values for R, B and G are changed to “100.0”, adjustment of the white color of the display to the target color (W) (i.e. the xyLv values are the same) is complete.

* The RGB values given in the above example are based on calculations, and may not correspond to the actual display.

∆G

12.0

90.0

110

R/G

109

81.8

B/G

∆R ∆G

120

90.0

110

B/R R/G

75.0

91.7

G/R B/G

Analog display (R/G, B/G)

Analog display (∆R)

Analog display (B/R, G/R)

Selecting the Measurement Speed

Select the measurement speed according to your application. If the measurement speed is changed, display frequency of the measurement results will change accordingly. The measurement results are displayed at the following frequency.

FAST mode

Requires short measurement time, but measurement accuracy is not sufficient in the case of measurement of a lowintensity display.

SLOW mode

Repeats measurement in FAST mode five times, and displays the average of the five measured values. This mode is used when you want to perform accurate measurement.

AUTO mode

Switches measurement speed to FAST or SLOW automatically according to the intensity of the display measures. Normally, this measurement speed is recommended. The measurement speed switches from FAST to SLOW or vice versa at the following intensity.

FAST → SLOW: When Lv drops below 2.0 cd/m

SLOW → FAST: When Lv exceeds 3.0 cd/m

* In the case of flicker mode, FAST measurement speed is always selected irrespective of the measurement speed setting.

When the optional 4-point expansion board CA-B14 is used

FAST → SLOW: When Lv for any of probes drops below 2.0 cd/m

SLOW → FAST: When Lv for all the probes exceed 3.0 cd/m

CH00 EXT Ad P1 [ ]

Currently selected measurement speed

F: FAST mode S: SLOW mode A: AUTO mode

Measurement Section

[Operating Procedure]

1. Press the key.

The LCD display section will switch to the menu selection screen.

2. Press the key to open the measurement

speed selection screen.

3. Press the key to display the desired mea-

surement speed.

Each time the key is pressed, the measurement speed switches in the order [AUTO] → [SLOW] → [FAST] → [AUTO].

4. Press the key to confirm the selection.

* By default (factory setting), the instrument is set so that [AUTO] will be selected automatically when the POWER switch is set to ON. If

you want to change this setting, refer to page 29.

* To cancel selection of measurement speed, press the

key.

● The selected measurement speed data will be kept even if the POWER switch is set to OFF.

The selected measurement speed will be effective when the POWER switch is set to ON.

PQRS7TUV8WXYZ

ALPHA

GHI4JKL5MNO LOCK

CAL

White1ABC2DEF- SPACE

ENTER

Red0Green.Blue

2 3 4

MENU : SELECT PUSH SPACE KEY

SELECT : M-SPD AUTO

SELECT : M-SPD SLOW

SELECT : M-SPD FAST

CH00 EXT Fd P1 [ ]

Press the key until the desired measurement speed appears.

Menu selection screen

Measurement speed selection screen

“F” is displayed when the [FAST] was selected.

Communications Section

This section explains communication with PC via RS-232C or USB.

Communicating with PC via RS-232C

Explains how to connect the RS-232C cable and select the RS-232C baud rate to enable two-way communication with PC via RS-232C.

Communicating with PC via USB

Explains how to connect the USB cable to enable communication with PC via USB.

Remote Measurement

Explains how to perform measurement from the PC remotely.

Page 86

Page 88

Communicating with PC

This instrument allows two-way communication via RS-232C or USB.

1. Communicating with PC via RS-232C

Before setting the POWER switch to ON, connect a RS-232C cable (foe 9-pin D-sub Female) to the RS-232C connector on the instrument. Refer to the following for the wiring diagram.

[Connecting Method]

1. Set the POWER switch to OFF.

2. Connect the instrument to the computer with the RS-

232C cable.

3. Connect the cable to the connector and secure them

with two screws firmly.

● When disconnecting the RS-232C cable, set the POWER switch to OFF

first, and pull the cable by holding the plug. Never pull the cable by its cord.

RS-232C connector

RS-232C Cable

Communications Section

2. Selecting the RS-232C Baud Rate

The RS-232C baud rate can be changed according to the setting made on the computer that is used for remote measurement.

[Operating Procedure]

1. Press the key.

The LCD display section will switch to the menu selection screen.

2. Press the key to open the RS232C baud rate

selection screen.

3. Press the key until the desired baud rate ap-

pears.

Each time the key is pressed, the baud rate switches in the order 38400 → 19200 → 9600 → 4800 → 2400 → 1200 → 600 → 300 → 38400.

4. Press the key to confirm the selection.

* By default (factory setting), the instrument is set so that [38400] will be selected automatically when the POWER switch is set to ON. * To cancel selection of RS-232C baud rate, press the

key.

● The specified RS-232C baud rate will be kept even if the POWER switch is set to OFF. The selected RS-232C

baud rate will be effective when the POWER switch is set to ON.

PQRS7TUV8WXYZ

ALPHA

GHI4JKL5MNO LOCK

CAL

White1ABC2DEF- SPACE

ENTER

Red0Green.Blue

2 3 4

MENU : SELECT PUSH SPACE KEY

SELECT : BAUD 38400

SELECT : BAUD 19200

SELECT : BAUD 9600

Press the key until the desired baud rate appears.

Menu selection screen

RS-232C baud rate selection screen

3. Communicating with PC via USB

The USB cable can be connected/disconnected even if the power to the instrument is ON. However, in this manual, the power must be turned OFF before connecting the USB cable.

[Connecting Method]

1. Set the POWER switch to OFF.

2. Connect the USB cable to the USB port on the in-

strument.

3. Check that the USB cable’s plug is fully inserted and

connected firmly.

● When disconnecting the USB cable, pull it by holding the plug. Never

pull the cable by its cord.

● Pay attention to the shape of the USB cable’s plug and make sure that

the correct USB plug is connected to the USB port on the instrument.

● If the computer has two or more USB ports, the USB cable can be

connected to any of them.

● One computer cannot control more than two instruments (i.e. only one instrument can be controlled by one

computer).

● If you want to control more than two instruments from one computer, connect them via RS-232C. It is not

possible for one computer to control one instrument via USB and another instrument via RS-232C.

4. Remote Measurement

In remote measurement mode, the instrument is controlled from the computer.

[Operating Procedure]

1. Press the REMOTE key.

The REMOTE lamp will light up, indicating the instrument is ready for remote measurement (i.e. ready for communication via RS-232C).

USB port

USB cable

RS-232C cable or USB cable

REMOTE lamp

Explanation Section

This section explains the following items.

Measuring Principle

Maintenance

Dimension Diagram

Error Messages

Please read when an error message appears in the LCD display section.

Breakdown Check

Please read when the instrument does not function correctly.

Specifications

Measurement/Quick Guide

Provides an outline of operations explained in the previous sections (Measurement Preparation - Settings).

Page 90

Page 99

Page 100

Page 108

Page 105

Page 109

Page 101

Measuring Principle

1. Measuring Principle

This instrument uses sensors of a spectral sensitivity similar to the CIE 1931 color-matching function (

––

x2λ, –yλ, –zλ)

to measure RGB luminescence energy of a color display, and displays the results in xyLv, T, ∆uvLv, u’v’Lv, flicker or XYZ values. Measurement is performed in the following sequence.

1 RGB luminescence energy of the color display is acquired through the measuring probe’s receptor, and

then converted to a voltage by the photoelectric conversion section. (Outputs: X

2, Y, Z)

2 The temperature of the probe is detected by the temperature detection section. (Output: T) 3 The outputs (X

2, Y and Z of 1) from the photoelectric conversion section and the output (T of 2) from the

temperature detection section are digitized in the A/D conversion section. A/D conversion is performed simultaneously within the measurement time according to SYNC mode.

4 The digitized values (counts) are sent to the instrument’s CPU, where they are calculated according to the

measurement mode, SYNC mode and correction factor (user calibration), which have been set using keys and switches.

5 The processing results are then displayed in the display sections, and output to a PC via RS-232C or USB.

Chromaticity coordinates (x, y) for Yxy (CIE 1931 color space) are obtained by the following formula.

X, Y and Z in the formula are tristimulus values (X = X

+ X2 = 0.16727Z + X2).

x =

X + Y + Z

,y =

X + Y + Z

350

0.5

0.0

1.0

z-λ y-λx

2λ

1λ

400 450 500 550 600 650 700 750

Fig. 1 Instrument’s Spectral Sensitivity

Relative sensitivity

Wavelength (nm)

Instrument’s spectral sensitivity CIE 1931 color-matching function

Measuring probe

Photoelectric conversion section

Temperature detection section

Main body

Probe connector [P1]

A/D

conver-

sion

section

USB

port

Fig. 2 Measurement Block Diagram

Photoelectric conversion section

C P U

Display section

VSYNC

connector

RS-232C connector

USB

driver

RS-232C

driver

SRAM

FROM

PIO

KEY

Multi-point expansion

board connector

Vertical synchronizing signal input

Explanation Section

2. About T∆uvLv

If the instrument’s measurement mode is set to T∆uvLv, the following values can be displayed in the digital display section.

• T : Correlated color temperature

•∆uv : Color difference from the blackbody locus

• Lv : Intensity

In T∆uvLv mode, colors are expressed in the correlated color temperature (T) and color difference from the blackbody locus (∆uv), and the intensity is expressed in Lv.

About Correlated Color T emperatur e T and Color Difference fr om Blackbody Locus ∆uv

The temperature of a blackbody (full radiator) that has the same chromaticity coordinates as that of a light is called the color temperature of that light. However, only the colors that are present along the blackbody locus can be expressed in color temperatures. Thus, with a widened concept of color temperature, correlated color temperatures are used to express colors that are slightly off the blackbody locus. When a color is on the isotemperature line, the color temperature at the point where that line crosses the blackbody locus is assumed to be the correlated color temperature of that color. The isotemperature line is the line that is drawn along the chromaticity coordinates of a collection of colors that you feel visually similar to color temperatures along the blackbody locus. However, since all the colors on the same isotemperature line are expressed by the same correlated color temperature, it is not possible to express colors using correlated color temperatures only. Thus, to express colors, ∆uv, that indicates positional relationship with the correlated color temperature T, is also used. ∆uv is signed with “+” if the color is located above the blackbody locus, and is signed with “–” if it is below the blackbody locus.

0.35

0.30

0.20

Δuv

13000K

5000K

3000K

2300K

0.25 0.30

Blackbody locus

Correlated color temperature T

Fig. 1 Relationship between Correlated Color Temperature T and ∆uv

For T∆uvLv mode

3. Principle of User Calibration

This instrument uses three detectors provided in the measuring probe’s receptor to measure the colors of the display. The spectral sensitivity of these detectors does not match that of CIE 1931 color-matching function perfectly. Because of this, some colors of the display are affected by slightly shifted spectral sensitivity, resulting in the situation that absolute values of the measured values differ from the values (true values) obtained when the CIE 1931 color-matching function is used. This instrument allows one of the user calibration methods; white calibration (single-color calibration) or matrix calibration (RGB+W calibration). By performing user calibration, the influences that occur due to slight differences between the spectral sensitivity of the detectors used in the instrument and that of CIE 1931 color-matching function can be corrected when measurement is performed. These user calibration methods have the following features, so the user calibration that best suits your application must be selected.

White Calibration

User’s own correction factor is set to the memory channels by measuring the white color of known values and setting the obtained calibration values (xyLv) to the instrument. Once this factor is set, the measured values will be displayed after correction by this factor and output each time measurement is taken. Performing user calibration provides higher accuracy for measurement of colors that are close to the white color.

Matrix Calibration

User’s own matrix correction factor is set to the memory channels by measuring three monochrome colors (R, G and B) of known values and setting the obtained calibration values (xyLv) and luminescence characteristic to the instrument. Once this factor is set, the measured values will be displayed after correction by this factor and output each time measurement is taken. Performing matrix calibration enables high-accuracy measurements of LCD displays that provide colors through additive color mixing of three monochrome colors (R, G and B). Since the matrix correction factor obtained from Minolta’s calibration standard has been set, measured values calculated based on this factor will be acquired when this instrument is used for the first time since shipment from the factory.

Correction of Reading Differences between Instruments using User Calibration

(When two or more instruments are used or when the optional 4-point expansion board CA-B14 is used to use two or more measuring probes) Some measuring probes may have a slightly different spectral sensitivity. As a result, even if you are measuring the same display, measured values may differ from one instrument to another (difference of readings between instruments). Such influences can be corrected by performing user calibration using the same display and the same calibration values.

Explanation Section

4. Optical System of CA-210 Probe

The optical system consists of an objective lens and optical fiber. Among the lights emitted from the LCD under measurement, only the lights that are emitted at within ±2.5 degrees perpendicular to the LCD are guided by the objective lens to the fiber. After being input to the fiber, the lights are divided into three portions, and each portion is received by a sensor that has a spectral sensitivity similar to the CIE 1931 color-matching function. (Three sensors in total).

EIAJ ED-2522 stipulates the following measuring requirements for LCD evaluation methods.

• Light receiving angle must be within 5 degrees.

• The measuring area must consist of 500 pixels or more.

This instrument satisfies the above requirements since it employs an optical system that receives only the lights emitted within ±2.5 degrees from a relatively wide measuring area (φ27).

Optical fiber

Sensor

Objective lens

5. Principle of Analyzer Mode

In analyzer mode, the luminescence characteristics of the display’s three monochrome lights (R, G, B) and the target color are set to the instrument’s memory. Once they are set, display’s screen colors obtained by measurement can be converted to luminous intensity of each monochromatic light and displayed. For instance, if the luminous intensity of R among R, G and B is adjusted, only the output of R will change and the outputs of B and G will remain the same, making white balance adjustment easy (white balance measurement is performed by adjusting the output of a monochrome color).

By setting the luminescence characteristics of the display’s three monochrome lights (R, G, B) and the target color to the instrument’s memory, the display’s screen colors can be displayed in values that correspond to the outputs of those monochrome colors. Since the outputs of the monochrome colors change according to the screen voltage and drive voltage for R, G and B, respectively, use of analyzer mode facilitates adjustment of display’s white balance.

Each sensor (spectral sensitivity: ––x

λ, –yλ, –zλ) of the measuring probe has sensitivity towards the display’s R, G and

B. Thus, even if R monochrome light is emitted on the display’s screen, an output will be provided from each sensor (–x

λ, –yλ, –zλ). This is also true in the case of G and B monochrome colors.

Therefore, to measure each of R, G and B monochrome colors independently, a certain technique is required. In this instrument’s analyzer mode, measurement is performed based on the following concept.

Fig. 1 shows measuring probe sensor’s spectral sensitivity and display’s R, G and B spectral distributions.

The outputs of sensors ––x

2λ,

–

yλ, and ––zλ when only the monochrome light R is emitted are the values equivalent to

the hatched areas X

2R, YR and ZR, respectively. Although the outputs of these sensors change according to the

output of the monochrome color R, the output ratio will be constant because of the spectral characteristic of the display and sensors.

y-λz-λ x

2λ

400

500 600 700

2λ

y-λ

z-λ

Fig. 1 Display’s Spectral Distribution and Sensor’s Spectral Sensitivity

Fig. 2 Outputs of Sensors –x

λ, –yλ, and –zλ by Emitted Monochrome Light R

Explanation Section

The above also applies when only monochrome light G is emitted as well as when only monochrome light B is emitted, and the outputs are shown in Figs. 3 and 4, respectively.

By emitting each monochrome light alone and setting the output ratio of each sensor as a constant (correction factor) to the memory, the output of each monochrome light (R, G, B) can be calculated based on the output of each sensor, even when three colors are emitted by the display at the same time. R, G and B are displayed in percentage (%) to each monochrome light of the target color (W), being 100.

Therefore, before performing measurement in analyzer mode, the display’s luminescence characteristic and target color (W) must always be set to the instrument’s memory. In addition, for measurement in analyzer mode, the memory channel to which the same luminescence characteristic and target color (W) as those for the display to be measured were set must be used.

2λ

X2G

y-λ

z-λ

λ

y-λ

Fig. 3 Outputs of Sensors –x2λ, –yλ, and –zλ by Emitted Monochrome Light G

Fig. 4 Outputs of Sensors –x

λ, –yλ, and –zλ by Emitted Monochrome Light B

6. Principle of Flicker Mode

What is Flicker?

“Blinking“ that appears on the display under certain conditions is called flicker. This symptom occurs when settings like refresh rate and resolution do not match those set on the display, and in the case of LCD, it may also occur depending on the displayed colors. Since flicker occurs periodically, it has an adverse effect on the user’s eyes. The relationship between the time axis (horizontal) and intensity level (vertical axis) is shown in Fig. 1. From this, it is obvious that the intensity level changes periodically and the larger its amplitude the more clearly the flicker is recognized. In addition, it is known that the frequency of intensity level change is twice as large as that of the display’s vertical synchronizing signal.

Flicker Measurement Method

Two kinds of quantifying measurement methods are available: contrast method and JEITA method. With the CA-210 alone, the contrast method is possible. Use of the software supplied with the instrument also allows JEITA method. This section gives an outline of both quantifying measurement methods.

(1)Contrast Method

If the intensity level of the display changes as Fig. 1, it is considered that AC component (b) overlaps on the DC component (a). With the contrast method, the ratio of AC component to DC component is defined as the flicker amount. AC component (a) is defined as Vmax – Vmin and DC component (b) as (Vmax + Vmin)/2, and the flicker amount is calculated by the following formula.

Flicker amount = AC component / DC component

= (Vmax – Vmin)/{(Vmax + Vmin)/2} ×100 [%]

Fig. 1

Explanation Section

(2)JEITA Method

With the JEITA method, the amount of flicker does not depend on its frequency, and is calculated based on the AC and DC components of the measured intensity. However, human sensitivity to flickering starts to drop gradually at about 30 Hz, and when the frequency exceeds 60 Hz, it is no longer possible for humans to sense it.

From this, it is possible that even if a flicker of a large amplitude and frequency of 60 Hz or higher exists the human eye cannot recognize it as a flicker. Thus, with the JEITA method of flicker measurement, it is very important to know the exact amplitude and frequency of flicker energy, in addition to the AC /DC component ratio, that is defined by the contrast method. With the JEITA method, the measuring devices shown below are required for measurement.

Fig. 3 shows that the output signal (Fig. 1) from the luminance meter (used to measure the LCD) is guided to the integrator. To reconstruct what is seen by the human eye, the integrator sends the signal through a filter that decreases the sensitivity because of frequency difference, and then outputs it to the FFT analyzer. The signal is processed by the FFT analyzer (Fast Fourier Transform Analyzer), and is displayed in a form of energy distribution of frequency components (Fig. 4).

level

Frequency HzFig. 2

LCD modulel

Fig. 3

Display surface

Luminance meter

Drive signal

Drive power

: Standard

observation distance = 50 cm

FFT analyzer

Integrator

9898

As shown in Fig. 4, when two or more frequency components (P0, Px1, Px2) exist, the maximum value among all the frequency components (Px1, Px2 in the case of Fig. 4) except for P0, that is the component of frequency 0, will be set as Px. With the JEITA method, the flicker amount in this example is calculated by the following formula.

Flicker amount = 10 × log (Px/P0) [dB]
