Page 1
CONTRACTOR
BY
INSTRUCTION MANUAL WARRANTY CERTIFICATE
Page 2
Manual design and all elements of manual design are protected by U.S. Federal and/or State Law, including Patent, Trademark and/or Copyright laws.
Page 3
The Minka-Aire® warranty is for one (1) year from the date of purchase from an authorized Minka-Aire® dealer.
This warranty is only valid to the original purchaser or user against all defects in material and workmanship (light bulbs
excluded) for one (1) full year. Additionally, Minka-Aire® warrants the motor only for the lifetime of the Minka Aire ceiling
fan (excluding wall controls and electrical components), to the original purchaser or user.
* The warranty is voided with the use of any non- Minka-Aire®electrical devices, E.g., wall controls or electrical dimmer switches, etc…
* The warranty is void once the original purchaser or user ceases to own the fan or the fan is moved from its original point of installation.
* The warranty is void with the use of any hanger bracket (non-Minka Aire or non-fan specific) other than the hanger bracket supplied & installed
with this specific fan.
Page 4
Warranty Service Information
To obtain warranty service during the warranty period, the purchaser should return the fan with the sales receipt to the original place of
purchase. The authorized Minka-Aire® dealer, at its sole discretion, will either repair or replace the fan after verifying the legitimacy of the warranty
claim. Replacement is subject to availability of the same model. If the model is unavailable it will be replaced by one of equal value. This is a
limited warranty; the original purchaser or user is responsible for the cost of removal and reinstallation of repaired or replacement product.
To obtain the name of the Minka-Aire® authorized dealer nearest you call the Minka-Aire® customer care department at 1-800-307-3267, or
contact Minka-Aire® through www.minkagroup.net and write to: “Ask Mr. Minka” to answer any questions or if you require assistance.
Date Purchased Store Purchased Model Number Serial Number
F647
Page 5
SAFETY RULES.....................................................................................
PACKAGE CONTENTS.....................................................................
INSTALLING THE FAN.....................................................................
HANGING THE FAN.........................................................................
ELECTRICAL CONNECTIONS.......................................................
FINISHING THE INSTALLATION................................................
1151 W. Bradford Court, Corona, CA 92882 For Customer Assistance Call: 1-800-307-3267
1
ATTACHING THE FAN BLADES..........................................................
2
LIGHT KIT INSTALLATION
OPERATING YOUR FAN.........................................................................
3
CARE OF YOUR FAN..............................................................................
4
TROUBLESHOOTING............................................................................
5
SPECIFICATIONS....................................................................................
6
.................................................................
10
11
12
7
8
9
CONTENTS
Page 6
1
Be cautious!
Caution:
SAFETY RULES
1. Before you begin installing the fan, shut power off at the circuit breaker of the fuse box.
2. Be cautious!
3. Make sure that all electrical connections comply with local codes, ordinances, or National Electrical Codes. Hire a qualified electrician or consult a
do-it-yourself wiring handbook if you are unfamiliar with installing electrical wiring.
4. Make sure the installation site you choose allows the fan blades to rotate without any obstructions. Allow a minimum clearance of 7 feet from the
floor and 18 inches from the tip of the blades to the wall.
5. If you are mounting the fan to a ceiling fan outlet box, use a U.L. Listed metal octagonal outlet box marked "Acceptable for Fan Support". Secure
the box directly to the building structure. The outlet box and its support must be able to support the moving weight of the fan (at least 50
pounds) Do not use a plastic box.
6. Caution:
7. If you are mounting the fan to a joist, make sure it is able to support the moving weight of the fan (at least 50 pounds).
8. After you install the fan, make sure that all mounting components are secured to prevent the fan from falling.
9. Do not insert anything into the fan blades while the fan is operating.
10. Turn the fan off and wait for the blades to stop completely before proceeding with maintenance or cleaning.
Read all instructions and safety information before installing your new fan. Review accompanying assembly diagrams.
To reduce the risk of injury use only the screws provided with the outlet box in conjunction with the lock washers provided with the fan.
Page 7
NOTE:
NOTE:
WARNING
ATTENTION:
ATTENTION:
ceiling fan's light kit will shut off automatically.
NOTE:
The important safeguards and instructions appearing in this manual are not meant to cover all possible conditions and situations that may
occur. It must be understood that common sense, caution and care are factors which can not be built into this product. These factors must be
supplied by the person(s) installing, caring for and operating the unit.
NOTE:
READ AND SAVE ALL INSTRUCTIONS!
SUPPORTING SYSTEM MARKED ACCEPTABLE FOR FAN SUPPORT AND USE MOUNTING SCREWS PROVIDED WITH THE OUTLET BOX IN
CONJUCTION WITH THE LOCK WASHERS PROVIDED WITH THE FAN. MOST OUTLET BOXES COMMONLY USED FOR FAN SUPPORT OF
LIGHTING FIXTURES ARE NOT ACCEPTABLE FOR FAN SUPPORT AND NEED TO BE REPLACED. CONSULT A QUALIFIED ELECTRICIAN IF IN DOUBT.
TO REDUCE THE RISK OF PERSONAL INJURY, DO NOT BEND THE BLADE HOLDERS WHILE INSTALLING, BALANCING THE BLADES OR CLEANING
The Energy Policy Act of 2005 requires this fan to be equipped with a 190 watt limiting device. If lamping exceeds 190 watts, the
WARNING
TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK OR OTHER PERSONAL INJURY, MOUNT FAN ONLY TO A U.L. LISTED OUTLET BOX OR
THE FAN. DO NOT INSERT FOREIGN OBJECTS BETWEEN ROTATING FAN BLADES.
TO REDUCE THE RISK OF FIRE OR ELECTRONIC SHOCK, DO NOT USE THIS FAN WITH ANY SOLID-STATE SPEED CONTROL DEVICE.
Page 8
2

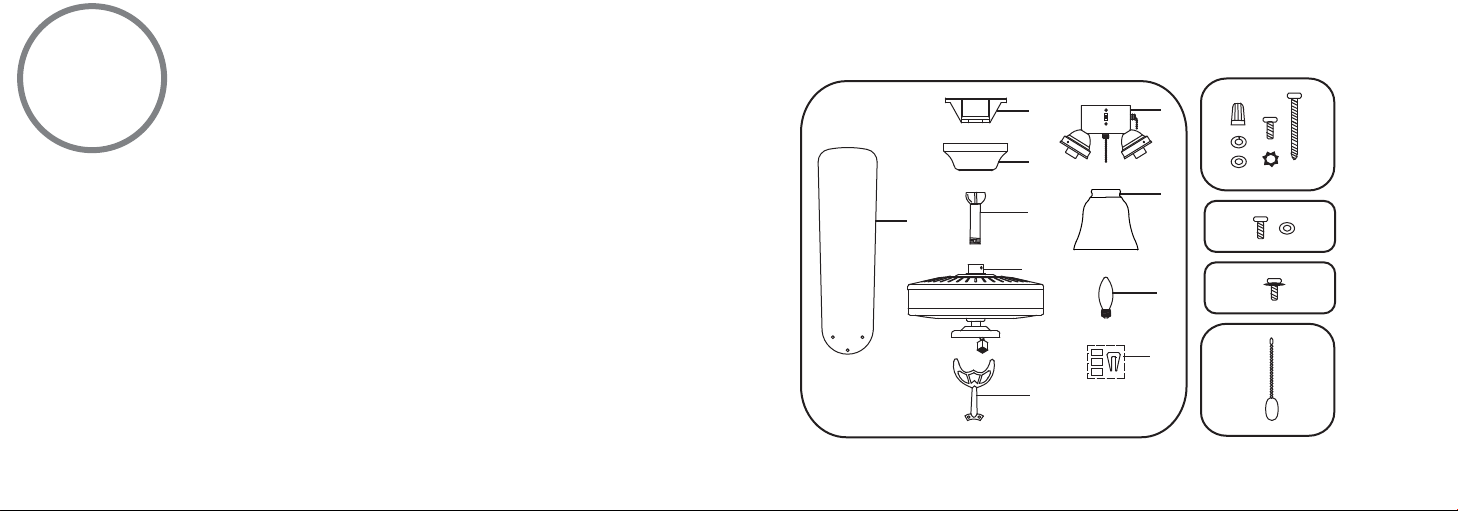

PACKAGE CONTENTS
Unpack your fan and check the contents. You should have the following items:
2
7
1. Fan blades (5)
2. Hanger bracket
3. Canopy
4. Standard downrod assembly
5. Fan motor/housing assembly
6. Blade holders (5)
7. Light kit
8. Glass shades (3)
9. 60W/E12 base candelabra bulbs (3)
10. Balancing kit
A. Mounting hardware:
#10 x 1.5" Wood screws (2 PCs.)
#8 x 3/4" Machine screws (2 PCs.)
Lock washers (2 PCs.)
4mm star washers (2 PCs.)
Wire nuts (3 PCs. )
Washers (2 PCs.)
B. Blade attachment hardware:
3/16" x 7.5 mm screws (16 PCs.)
Fiber washers (16 PCs.)
C. Bracket holder hardware:
1/4" x 1/2" Screws with lock washers (11
PCs.)
D. Switch cup hardware:
Pull chain fobs (2 PCs.)
3
1
4
A
8
B
5
9
C
10
6
D
Page 9
Tools Required: Phillips screw driver; slotted screw driver; step-ladder; wire cutters; electrical tape.
INSTALLING THE FAN
3
MOUNTING OPTIONS
If there isn't an existing mounting box, then read the following instructions. Disconnect the
power by removing fuses or turning off circuit breakers.
Secure the outlet box directly to the building structure. Use appropriate fasteners and building
materials. The outlet box and its support must be able to fully support the moving weight of
the fan (at least 50 lbs.). Use a UL Listed metal outlet box. Do not use a plastic outlet box.

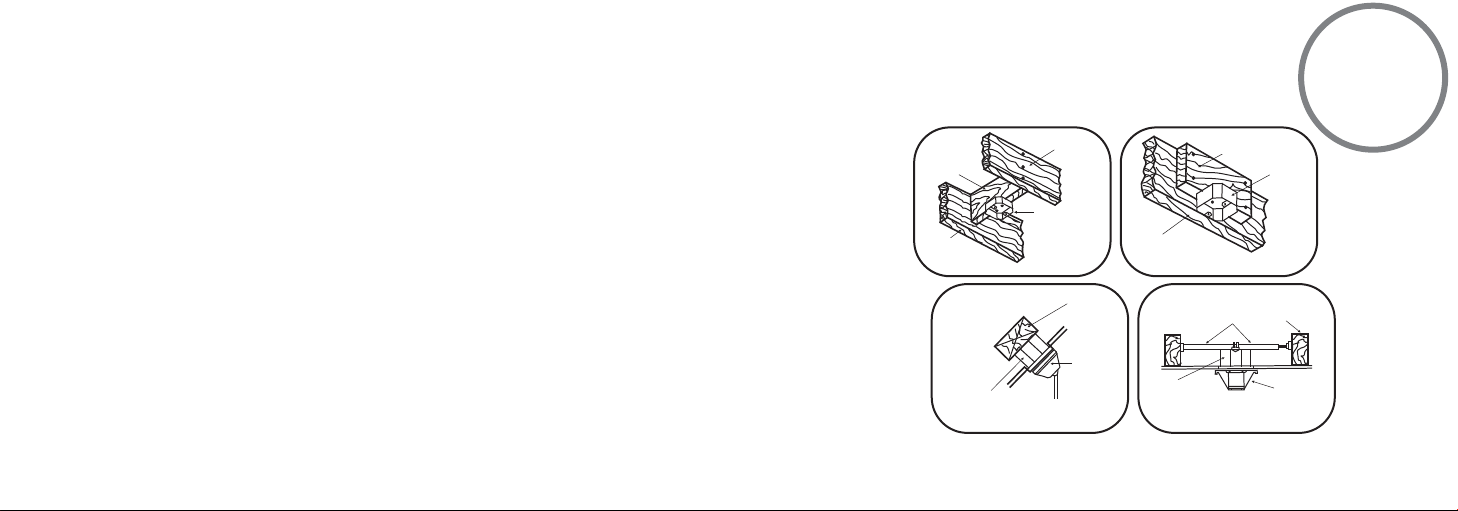

Figure 1, 2 and 3 are examples of different ways to mount the outlet box.
Note:You may need a longer downrod to maintain proper blade clearance when installing on a
steep, sloped ceiling. Longer downrods are available from your Minka-Aire
To hang your fan where there is an existing fixture but no ceiling joist, you may need to install
a hanger bar as shown in Fig. 4 (available at your Minka-Aire
®
dealer).
®
dealer.
CROSS
BRACE
CEILING
jOIST
FIG. 1
ANGLED CEILING
MAXIMUM 29°
ANGLE
RECESSED
OUTLET BOX
FIG. 3
CEILING
JOIST
OUTLET BOX
PROVIDE
STRONG
SUPPORT
HANGER
OPENING
MUST BE
FACING
UPSIDE
PARALLEL WOOD BRACE
CEILING JOIST
OR CROSS BRACE
FIG. 2
HANGER BAR
(OPTIONAL)
OUTLET BOX
FIG. 4
(MIN. 2" THICK)
OUTLET
BOX
CEILING
JOIST
HANGER
BRACKET
Page 10
4
WARNING:
REMEMBER
hanger bracket and hanger ball have been provided for your safety and
the proper installation of your new ceiling fan. The use of other parts,
hardware or components not supplied by Minka Aire
void the Minka Aire
REMEMBER
fan properly:

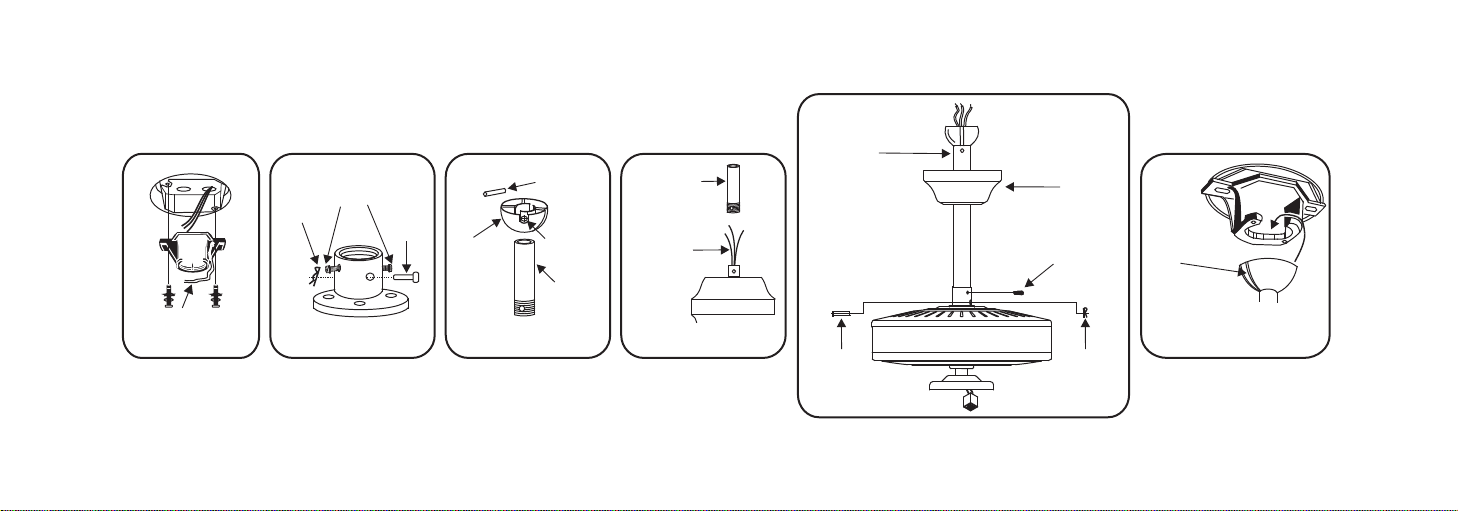

Step 1. Secure the Hanger Bracket to the ceiling outlet box using the screws
provided with your outlet box in conjunction with the lock washers
provided with the fan. (Fig. 5)
Step 2. Loosen the two Set Screws and remove the Hitch Pin and Lock Pin
from the coupling located on the top of the Motor Assembly. (Fig. 6)
HANGING THE FAN
WARNING:
All of the parts, hardware and components such as the
®
®
Warranty.
to turn off the power. Follow the steps below to hang your
with the fan will
Step 3. Remove the Hanger Ball from the Downrod Assembly by loosening
the Set Screw and removing the Cross Pin. (Fig. 7)
Step 4. Carefully feed fan wires up through the downrod. (Fig. 8) Thread
Downrod into the Coupling until the holes are lined up and secure with the
Lock Pin and Hitch Pin previously removed, tighten Set Screws. (Fig. 9)
Step 5. Slip Canopy onto Downrod. Carefully re-install the Hanger Ball onto
the Downrod being sure that it's properly positioned over the Cross Pin and
the wires are not twisted, tighten the Set Screws. (Fig. 9)
Step 6. Lift the Motor Assembly and place the Hanger Ball into the Hanger
Bracket. Rotate the Motor Assembly as needed until the check groove from
the Hanger Ball rests firmly over the registration tab from the Hanger
Bracket. Motor Assembly should not rotate if this is done correctly. (Fig. 10)
Page 11
OUTLET BOX
SET SCREWS
LOCK PIN
HANGER BRACKET
Fig. 5 Fig. 8
Fig. 6
HITCH
PIN
HANGER
BALL
Fig. 7
CROSS PIN
SET SCREW
DOWNROD
DOWNROD
SUPPLY
WIRES
DOWNROD
HITCH PIN
Fig. 9
CANOPY
SET SCREWS
LOCK PIN
REGISTRATION
SLOT
Fig. 10
Page 12
5
REMEMBER
NOTE:
ELECTRICAL CONNECTIONS
REMEMBER
to shut the power off at the circuit breaker or fuse box.
Follow the steps below to connect the fan to your house supply wires. Use the
wire nuts supplied with your fan. Secure the wire nuts by wrapping the
connection with electrical tape.
Step 1. Connect the black (hot) wire from the ceiling to the black and the blue
wires from the fan. Connect the white (Neutral) wire from the ceiling to the
white wire from the fan. (Fig 11)
Step 2. If your outlet has a ground wire (Green or Bare Copper) connect the fan
ground wires (on hanger ball and hanger bracket) to it; otherwise connect the
fan ground wire on hanger ball directly to the hanger bracket (Fig. 11)
Step 3. Figure 12 & 13 Illustrate the wiring connections using optional wall
unit. (Available at your Minka-Aire
If a light kit is not included with your fan, one can be purchased at your
NOTE:
Minka-Aire
®
Retailer.
®
Retailer.)
FAN CONTROLLED BY PULL CHAIN, LIGHT KIT CONTROLLED BY PULL CHAIN.
WHITE (NEUTRAL)
Fig. 11
HOUSE WIRE SUPPLY
BLACK (HOT)
WALL
BLUE (OPTIONAL LIGHT)
GREEN (GROUND)
BLACK (MOTOR)
CEILING
WHITE (NEUTRAL)
GROUND
(CONNECT TO GROUND
WIRE ON HANGER
BRACKET IF NO HOUSE
GROUND WIRE EXISTS.)
Page 13

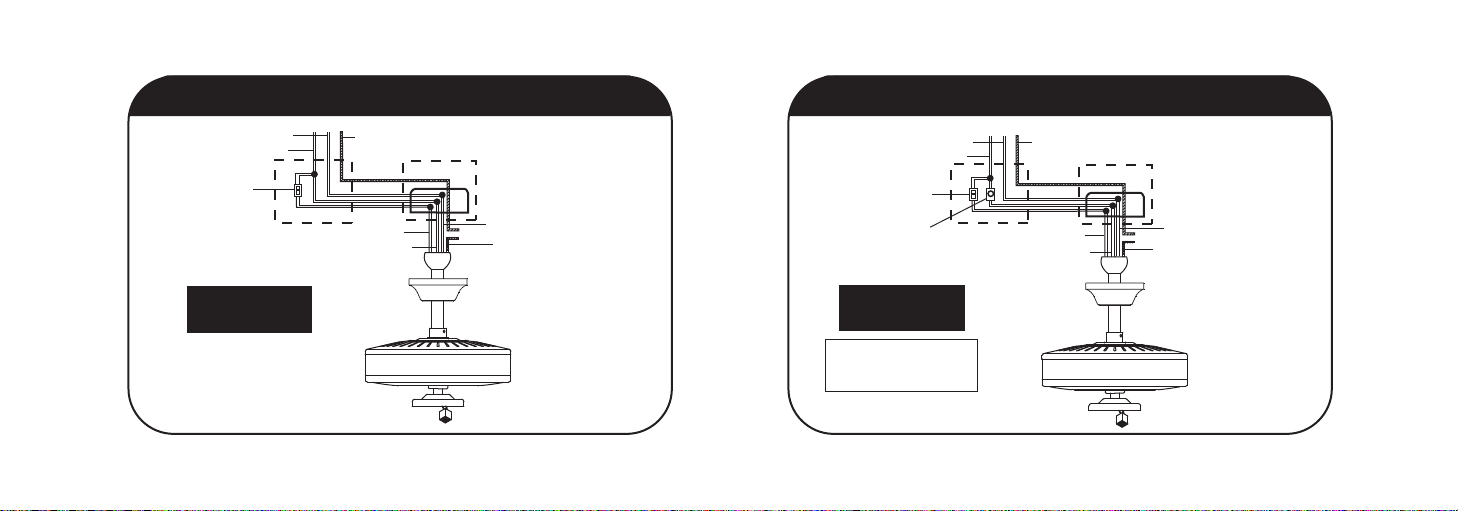

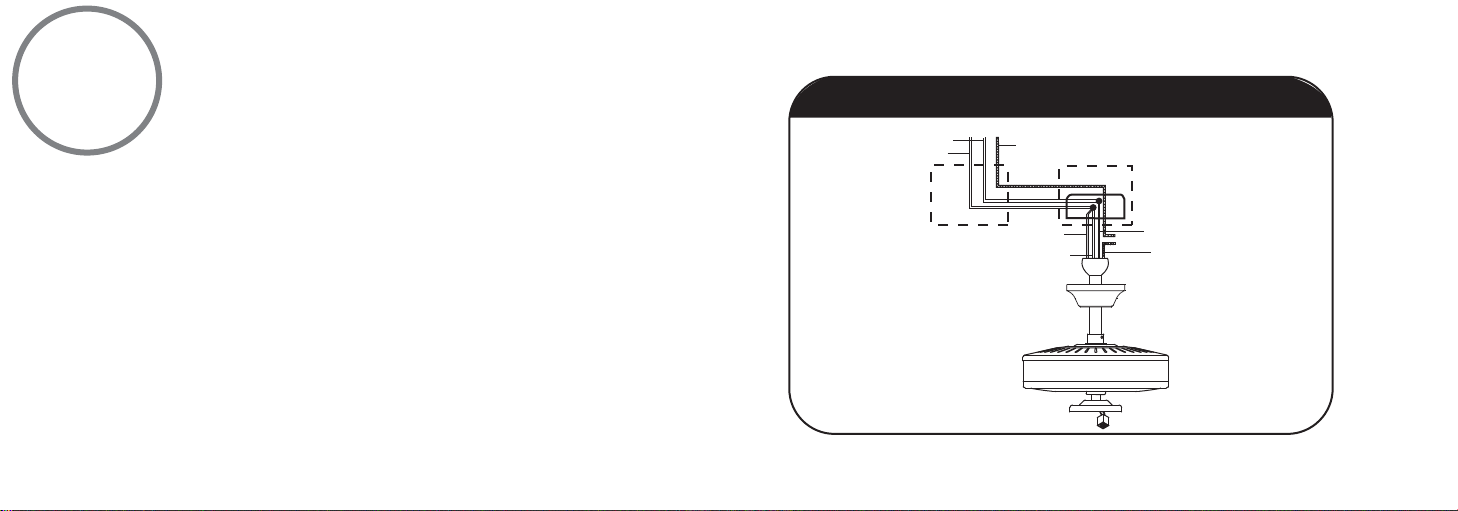

FAN CONTROLLED BY PULL CHAIN, LIGHT KIT CONTROLLED BY WALL SWITCH.
WHITE (NEUTRAL)
LIGHT SWITCH
HOUSE WIRE SUPPLY
BLACK (HOT)
WALL
BLUE (OPTIONAL LIGHT)
WIRING
OPTION 1
GREEN (GROUND)
BLACK (MOTOR)
CEILING
WHITE (NEUTRAL)
GROUND
(CONNECT TO GROUND
WIRE ON HANGER
BRACKET IF NO HOUSE
GROUND WIRE EXISTS.)
FAN CONTROLLED BY WALL CONTROL, LIGHT KIT CONTROLLED BY LIGHT SWITCH.
FAN WALL CONTROL
NOTE: SOME WALL UNITS
INCORPORATE BOTH LIGHT
SWITCH AND FAN WALL
CONTROL IN ONE HOUSING.
Fig. 12 Fig. 13
WHITE (NEUTRAL)
BLACK (HOT)
LIGHT SWITCH
WIRING
OPTION 2
HOUSE WIRE SUPPLY
BLUE (OPTIONAL LIGHT)
GREEN (GROUND)
WALL
BLACK (MOTOR)
CEILING
WHITE (NEUTRAL)
GROUND
(CONNECT TO GROUND
WIRE ON HANGER
BRACKET IF NO HOUSE
GROUND WIRE EXISTS.)
Page 14
6
Note:
Step 1. Remove 1 of the 2 screws from the bottom of the hanger bracket and loosen the other one
half a turn from the screw head.

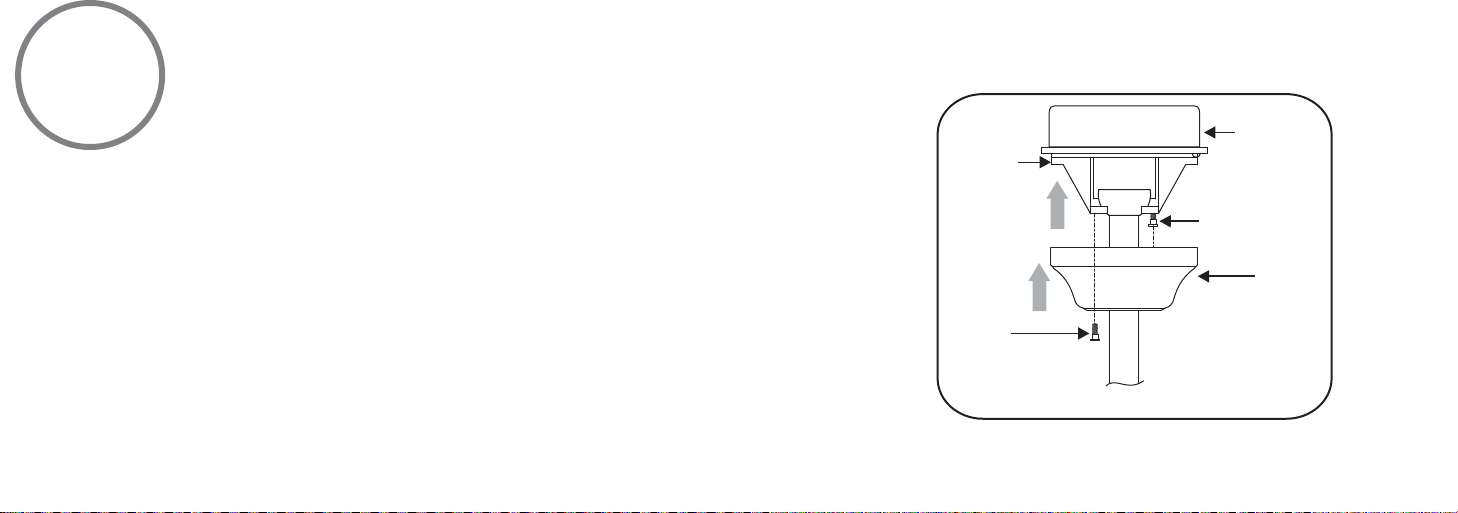

FINISHING THE INSTALLATION
Outlet Box
Hanger
Bracket
Step 2. Slide the canopy up towards the hanger bracket and place the key hole on the canopy
over the screw on the hanger bracket, turn canopy until it locks in place at the narrow section of
the key holes. (Fig. 14)
Step 3. Align the circular hole on canopy with the remaining hole on the hanger bracket, secure by
tightening the two set screws.
Note:
Adjust the canopy screws as necessary until the canopy are snug.
Screw
Canopy
Screw
Fig. 14
Page 15

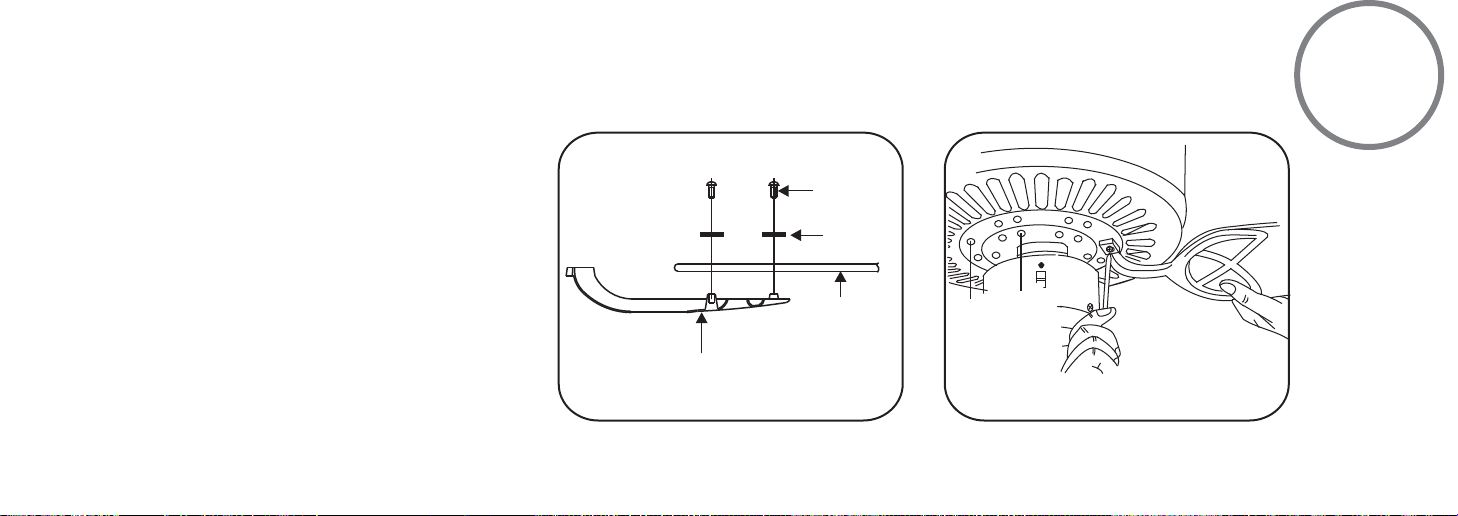

Step 1. Attach the fan blades to the blade holders
NOTE:
using the screws and fiber washers provided,
tighten screws securely. (Fig. 15)
Step 2. Remove rubber stops from motor. Align
motor holes to blade holders and secure with
screws provided, tighten screws securely. (Fig. 16)
NOTE:
You have the option of installing either five
or four blades. If you are using four blades, mount
blade holder to the inner screw holes of motor. If
you are using five blades, mount blade holder to
the outer screw holes of motor. (Fig. 16)
Fig 15
BLADES HOLDER
ATTACHING THE FAN BLADES
SCREWS
FIBER
WASHERS
FAN BLADE
OUTER
SCREW
HOLES
Fig 16
INNER
SCREW
HOLES
7
Page 16
8
REMEMBER:
ATTENTION:
CAUTION:
LIGHT KIT INSTALLATION
REMEMBER:
ATTENTION:
limiting device. If lamping exceeds 190 watts, the ceiling fan's light kit will shut off automatically.

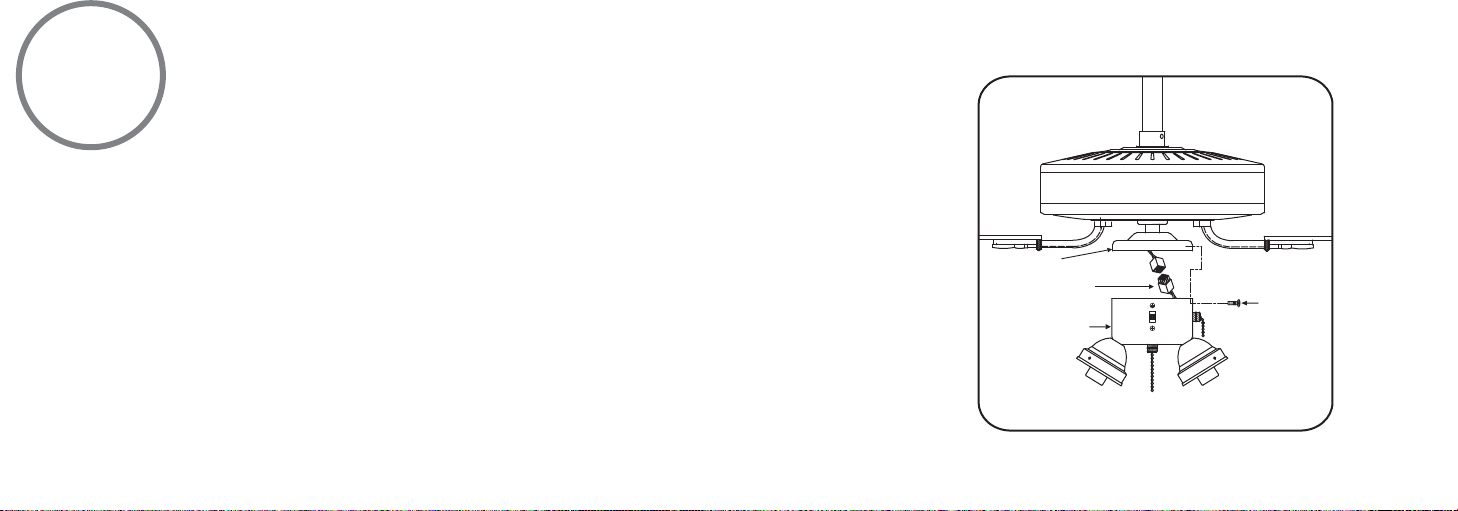

Step 1. Remove the screws from the light kit mounting plate. While holding the light kit, firmly snap
the wire molexes together. Next, slide light kit up against the mounting plate and rotate it
until the screw holes are aligned. Secure light kit to the mounting plate using the screws
removed earlier. (Fig. 17) CAUTION:
switch cup and the switch cup plate.
To disconnect the power. The fan blades must be already attached to the fan.
The Energy Policy Act of 2005 requires this fan to be equipped with a 190 watt
Make sure that the wires are not pinched between the
LIGHT KIT
MOUNTING PLATE
CONECTOR
LIGHT KIT
Fig. 17
SCREWS
Page 17

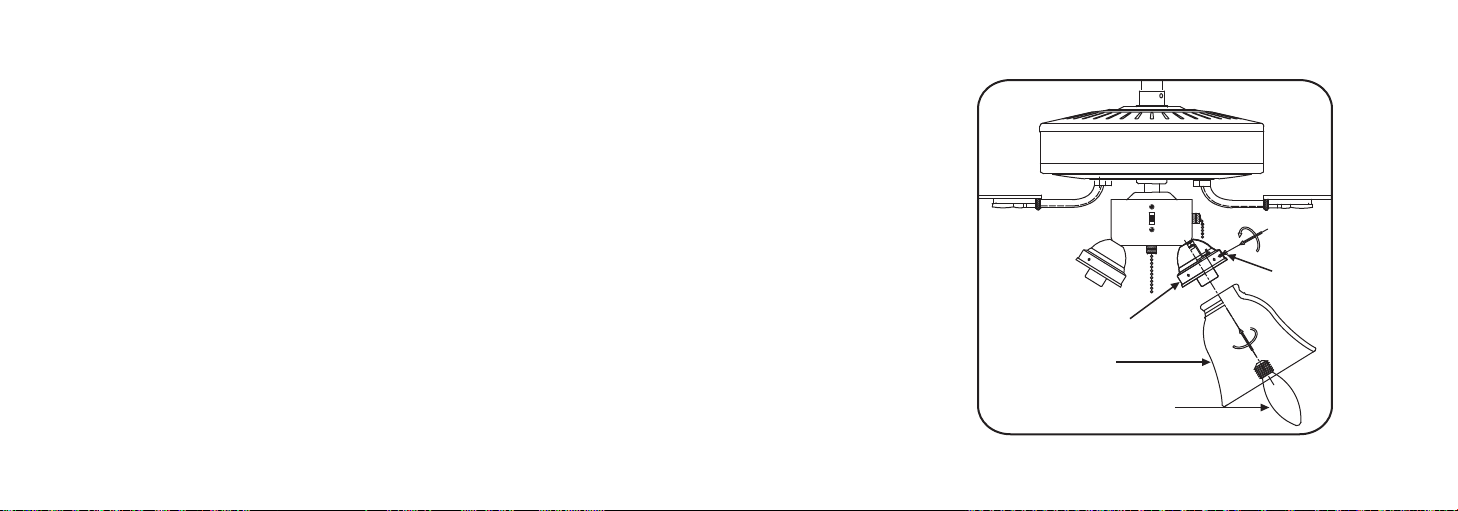

Step 2. Mount the glass shades to the light kit by unscrewing partway the thumb screws on the glass
DO NOT OVER TIGHTEN.
holders, inserting the glass, then gently tightening the thumb screws by hand evenly to the
glass. DO NOT OVER TIGHTEN.
(Fig. 18) Repeat process with other glass shades.
Step 3. Install 3 x 60W/E12 base candelabra bulbs (included).
LIGHT KIT
GLASS SHADES
THUMB
SCREWS
Fig. 18
BULBS
Page 18
9
NOTE:
Restore power to ceiling fan and test for proper operation.
Speed settings for warm or cool weather depend on factors such as the room size. Ceiling height, number of fans, etc.
The Reverse switch is located on the switch cup. Slide the switch to the Down for warm weather operation. Slide the switch to the Up for cool
weather operation.
NOTE:
Warm weather - (Forward)

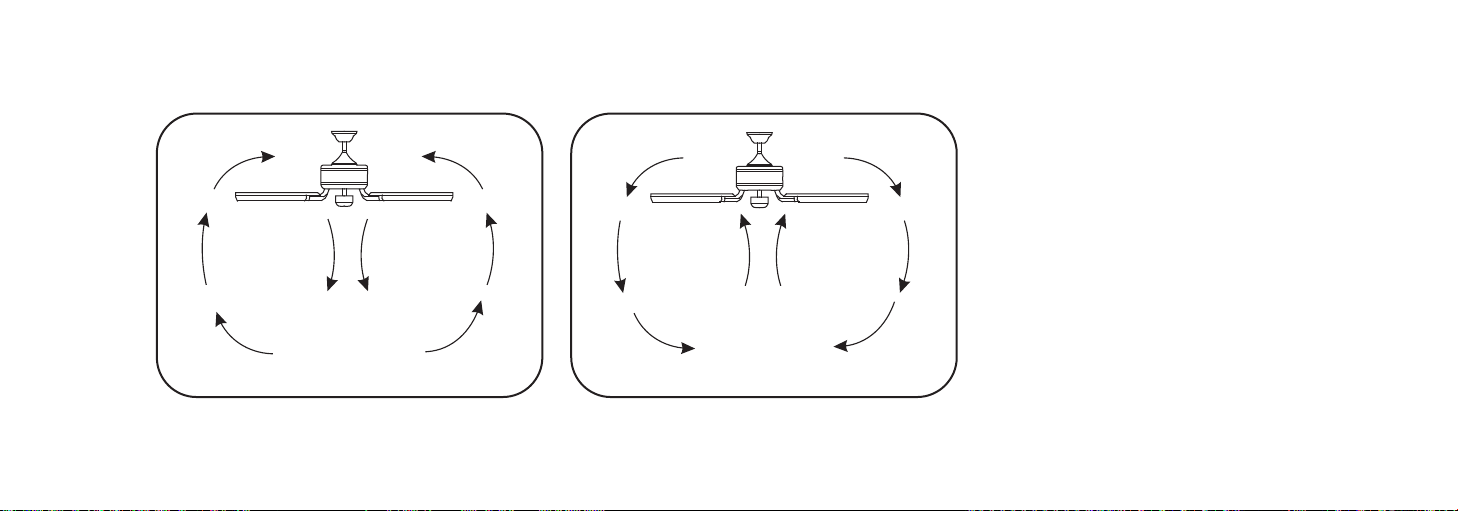

A downward airflow creates a cooling effect as shown in Fig. 19. This allows you to set your air conditioner on a warmer setting without affecting
your comfort.
Cool weather - (Reverse)
An upward airflow moves warm air off the ceiling area as shown in Fig. 20. This allows you to set your heating unit on a cooler setting without
affecting your comfort.
The pull chain controls the fan speed as follows: 1st pull - High , 2nd pul l - Med, 3rd pull - Low and 4th pul l - Off.
OPERATING YOUR FAN
Wait for fan to stop before changing the setting of the slide switch.
Page 19
SUMMER OPERATION
WINTER OPERATION
Fig. 19
Fig. 20
Page 20
10
WARNING!
CARE OF YOUR FAN
Here are some suggestions to help maintain your fan.
1. Because of the fan's natural movement some connections may
become loose. Check the support connections, brackets and blade
attachments twice a year. Make sure they are secure. (It is not necessary
to remove fan from the ceiling).
2. Clean your fan periodically to help maintain its new appearance over
the years. Use only a soft brush or lint free cloth to avoid scratching the
finish. Plated finishes are sealed with lacquer to minimize discoloration
or tarnishing. Do not use water when cleaning, this could damage the
motor, wood blades or possibly cause an electrical shock.
3. If your fan is provided with wood veneer blades; you can apply a light
coat of furniture polish for additional protection and enhanced beauty.
Cover small scratches with a light application of shoe polish.
4. Use a lint free lightly damp cloth or duster to remove dust from the
blades.
5. There is no need to oil your fan. The motor has permanently lubricated
bearings.
6. If your fan is provided with glass shades, clean with lukewarm soapy
water and a soft cloth or sponge. DO NOT IMMERSE GLASS SHADES IN
HOT WATER. DO NOT PUT GLASS SHADES INTO AN AUTOMATIC
DISHWASHER.
WARNING!
MAKE SURE THE POWER IS OFF AT THE
ELECTRICAL PANEL BOX BEFORE YOU
ATTEMPT ANY REPAIRS. REFER TO THE
SECTION, "ELECTRICAL CONNECTIONS".
Page 21
CAUTION:
SYMPTOM
Fan will not start
SOLUTION
SYMPTOM
Fan Sounds Noisy
SOLUTION
TROUBLESHOOTING
11
Check fuses or circuit breakers.
Check line wire connections to fan and switch wire connections in
switch housing.
CAUTION:
Check to make sure the reverse is set to one side. If switch is located
in the middle it might not make proper contact.
Make sure main power is off.
Allow a 24-hour "break-in" period. Most noises as sociated with a new
fan go away during this time.
Make sure all motor housing screws are snug.
Make sure the screws that attach the fan blade bracket to the motor
hub are tight.
Some fan motors are sensitive to signa ls from solid-state variable
speed controls. If you have installed this type of control, choose and
install another type of control.
Page 22
SYMPTOM
NOTE:
Fan Wobble
SOLUTION
SYMPTOM
Lights shut off and will not come back on.
SOLUTION
Check that all blade and blade holder screws are secured.
If a Balancing kit is provided follow the instructions included with
the balancing kit to help correct any excessive wobble.
NOTE:
All Blade sets are grouped by weight. Because blades vary in
density, the fan may wobble even though blades are weight matched.
This unit is equipped with a wattage limiting device. Lamping in excess
of 190 watts will disable your ceiling fan’s light kit. To reset your light
kit you must turn the power off and re lamp, keeping the wattage
under 190 watts. Restore power to your ceiling fan and continue
normal operation.
Page 23
SPECIFICATIONS
12
These are typical readings. Your actual fan may vary.
They do not include amps and wattage used by the
light(s).
For any additional information about your
Minka Aire Ceiling fan, please write to;
R
1151 W. Bradford Court, Corona, CA 92882 For Customer Assistance Call: 1-800-307-3267
Fan Size
52"
Low
Medium
High
Volts Speed
120
120
120
Amps
0.20
0.36
0.54
Watts
12
33
65
RPM
56
105
160
CFM
1300
2800
4800
N.W.
7.18
kgs
G.W.
8.17
kgs
C.F.
1.565'
Loading...
