1
SAFETY RULES
1. Before you begin installing the fan, shut power off at the circuit breaker of the fuse box.
2. Be cautious! Read all instructions and safety information before installing your new fan. Review accompanying assembly diagrams.
3. Make sure that all electrical connections comply with local codes, ordinances, or National Electrical Codes. Hire a qualified electrician or consult a
do-it-yourself wiring handbook if you are unfamiliar with installing electrical wiring.
4. Make sure the installation site you choose allows the fan blades to rotate without any obstructions. Allow a minimum clearance of 7 feet from the
floor and 18 inches from the tip of the blades to the wall.
5. If you are mounting the fan to a ceiling fan outlet box, use a U.L. Listed metal octagonal outlet box marked "Acceptable for Fan Support". Secure the
box directly to the building structure. The outlet box and its support must be able to support the moving weight of the fan (at least 50 pounds) Do
not use a plastic box.
6. Caution: To reduce the risk of injury use only the screws provided with the outlet box in conjunction with the lock washers provided with the fan.
7. If you are mounting the fan to a joist, make sure it is able to support the moving weight of the fan (at least 50 pounds).
8. After you install the fan, make sure that all mounting components are secured to prevent the fan from falling.
9. Do not insert anything into the fan blades while the fan is operating.
10. Turn the fan off and wait for the blades to stop completely before performing any maintenance or cleaning.
Page 7
NOTE: The important safeguards and instructions appearing in this manual are not meant to cover all possible conditions and situations that may
occur. It must be understood that common sense, caution and care are factors which can not be built into this product. These factors must be
supplied by the person (s) installing, caring for and operating the unit.
NOTE: READ AND SAVE ALL INSTRUCTIONS!
WARNING
TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK OR OTHER PERSONAL INJURY, MOUNT FAN ONLY TO A U.L. LISTED OUTLET BOX OR SUPPORTING SYSTEM MARKED
ACCEPTABLE FOR FAN SUPPORT AND USE MOUNTING SCREWS PROVIDED WITH THE OUTLET BOX IN CONJUCTION WITH THE LOCK WASHERS PROVIDED WITH THE
FAN. MOST OUTLET BOXES COMMONLY USED FOR FAN SUPPORT OF LIGHTING FIXTURES ARE NOT ACCEPTABLE FOR FAN SUPPORT AND NEED TO BE REPLACED.
CONSULT A QUALIFIED ELECTRICIAN IF IN DOUBT.
TO REDUCE THE RISK OF PERSONAL INJURY, DO NOT BEND THE BLADE HOLDERS WHILE INSTALLING, BALANCING THE BLADES OR CLEANING THE FAN. DO NOT
TO REDUCE THE RISK OF FIRE OR ELECTRONIC SHOCK, THIS FAN ONLY CAN USE UC7067RYV SOLID-STATE SPEED CONTROL WITH UC9040T WALL CONTROL ONLY.
INSERT FOREIGN OBJECTS BETWEEN ROTATING FAN BLADES.
Page 8
2

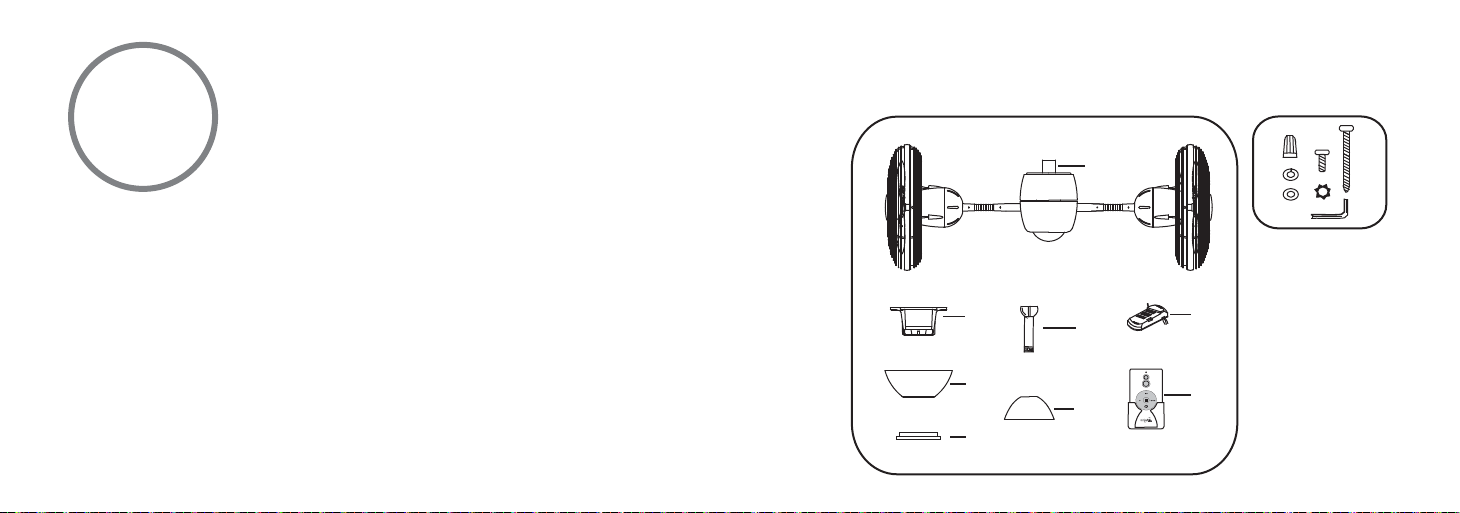

PACKAGE CONTENTS
Unpack your fan and check the contents.
You should have the following items:
1
1. Fan motor assembly
2. Hanger bracket
3. Canopy
4. Canopy cover
5. Downrod assembly
6. Coupling cover
7. Receiver with 6 wire nuts
8. Hand held remote with 2 Screws
A. Mounting hardware:
#10 x 1.5" Wood screws (2 PCs.)
#8 x 3/4" Machine screws (2PCs.)
Lock washers (2 PCs.)
Star washers (2 PCs.)
Wire nuts (3 PCs. )
Washers (2 PCs.)
Allen wrench
A
2
3
4
5
6
7
8
Page 9
Tools Required: Phillips screw driver; slotted screw driver; step-ladder; wire cutters; electrical tape.
MOUNTING OPTIONS
If there isn't an existing mounting box, then read the following instructions. Disconnect the
power by removing fuses or turning off circuit breakers.
Secure the outlet box directly to the building structure. Use appropriate fasteners and building
materials. The outlet box and its support must be able to fully support the moving weight of
the fan (at least 50 lbs.). Use a UL Listed metal outlet box. Do not use a plastic outlet box.

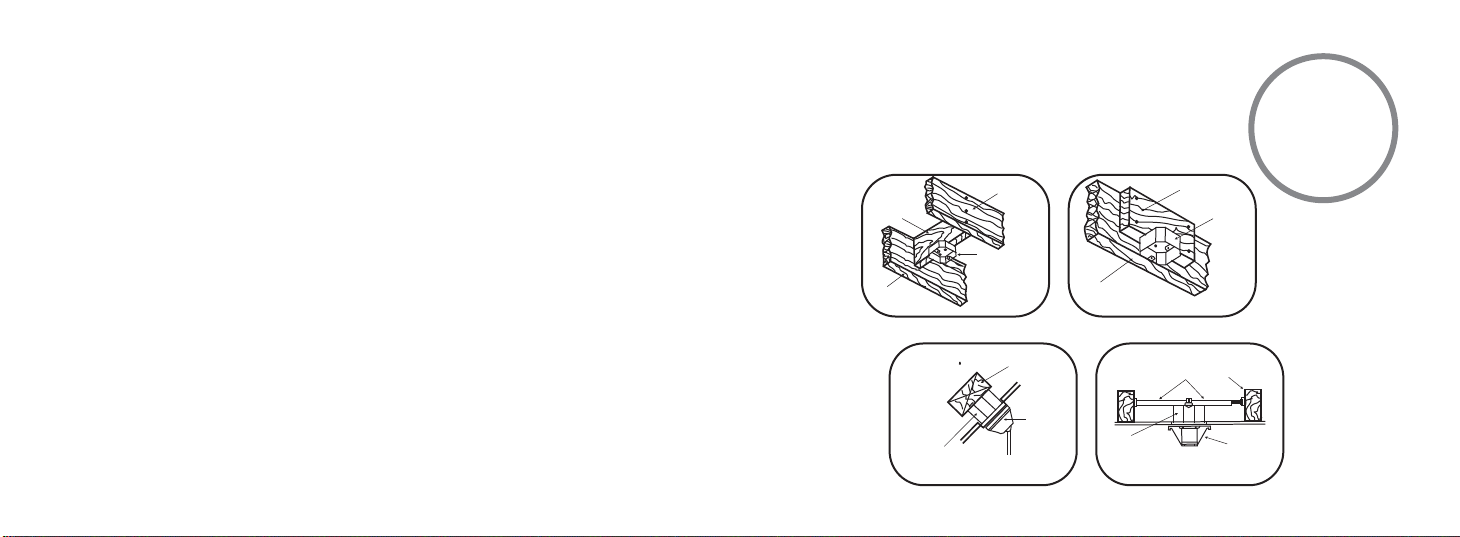

Figure 1, 2 and 3 are examples of different ways to mount the outlet box.
Note:You may need a longer downrod to maintain proper blade clearance when installing on a
steep, sloped ceiling. Longer downrods are available from your Minka-Aire
To hang your fan where there is an existing fixture but no ceiling joist, you may need to install
a hanger bar as shown in Fig. 4 (available at your Minka-Aire
®
dealer).
®
dealer.
INSTALLING THE FAN
CEILING JOIST OR
CROSS BRACE
FIG. 2
OUTLET BOX
FIG. 4
PARALLEL WOOD BRACE
HANGER BAR
(OPTIONAL)
CROSS BRACE
CEILING
jOIST
FIG. 1
ANGLED CEILING
MAXIMUM 29 ANGLE
RECESSED
OUTLET BOX
FIG. 3
CEILING
JOIST
OUTLET BOX
PROVIDE
STRONG
SUPPORT
HANGER
OPENING
must be
FACIN G
UPSIDE
(MIN. 2" THICK)
OUTLET
BOX
CEILING
JOIST
HANGER
BRACKET
3
Page 10
4
HANGING THE FAN
WARNING: All of the parts, hardware and components such as the
hanger bracket and hanger ball have been provided for your safety and
the proper installation of your new ceiling fan. The use of other parts,
hardware or components not supplied by Minka Aire
void the Minka Aire® Warranty.
REMEMBER to turn off the power. Follow the steps below to hang your
fan properly:

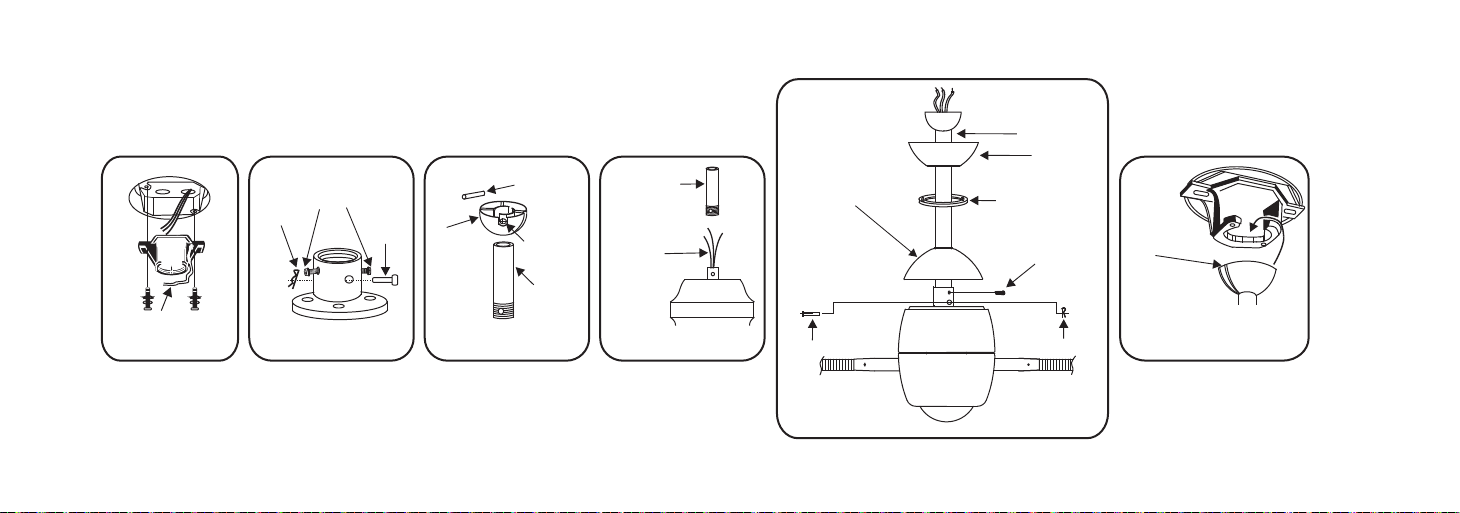

Step 1. Secure the hanger bracket to the ceiling outlet box using screws
included with your outlet box, lock washers included with the fan. (Fig.5)
Step 2. Loosen the two set screws and remove the hitch pin and lock pin
from the top coupling of the motor assembly. (Fig. 6)
Step 3. Remove hanger ball from downrod assembly by loosening set
screw, removing the cross pin, and sliding ball off rod. (Fig.7)
®
with the fan will
Step 4. Carefully feed fan wires up through the downrod. (Fig. 8)
Thread the rod into the coupling, next line up holes and replace lock
pin and hitch pin. Tighten set screws.
Step 5. Slip coupling cover, canopy cover and canopy onto downrod.
(Fig. 9) Carefully reinstall hanger ball onto rod being sure that cross pin
is in the correct position, set screws are tighten and wires are not
twisted.
Step 6. Now lift motor assembly into position and place hanger ball
into hanger bracket. Rotate until the check groove has dropped into the
registration slot and seats firmly. (Fig. 10) Rod should not rotate if this
is done correctly.
Page 11
OUTLET BOX
HANGER BRACKET
Fig. 5
LOCK
PIN
SET SC REWS
HITCH
PIN
HANGER
BALL
Fig. 7 Fig. 8Fig. 6
CROSS PIN
SET SCRE W
DOWNROD
DOWNROD
SUPPLY
WIRES
COUPLING COVER
HITCH PIN
Fig. 9
DOWNROD
CANOPY
CANOPY COVER
SET SCREWS
LOCK PIN
REGISTRATION
SLOT
Fig. 10
Page 12
5
.
ELECTRICAL CONNECTIONS
WARNING:: To avoid possible electrical shock be sure electricity is
turned off at the main fuse or breaker box before wiring.
NOTE: The Aire Control
function which has 256 code combinations to prevent potential
interference from other remote units. The frequency on your Receiver
and Transmitter units have been preset at the factory. (Fig. 11) No
frequency change is necessary, should you desire to install another fan
within the same home or area with a seperate frequency code please see
the "frequency interference" troubleshooting section of this instruction
manual to learn how to change the frequency.
Step 1.
Attach receiver to the motor housing using the double sided
tape pre-attached to the receiver. (Fig. 12)
®
System is equipped with a learning frequency
Step 2. Motor to Receiver Electrical Connections: Connect the WHITE
wire from the fan to the WHITE wire marked "TO MOTOR N" from the
Receiver. Connect the BLACK wire from the fan to the BLACK wire
marked "TO MOTOR L" from the Receiver. Connect the GRAY wire from
the fan to the GRAY wire marked "FOR CENTER MOTOR" from the
Receiver.
Note: Fan must be installed from a maximum distance of 40 feet from
the transmitting unit for proper signal transmission between the
transmitting unit and the fan's receiving unit.
Page 13
Step 3. Receiver to House Supply Wires Electrical Connections:
Connect the WHITE wire (Neutral) from the outlet box to the WHITE
wire marked "AC in N" from the receiver. Connect the BLACK wire
(Hot) from the outlet box to the BLACK wire marked "AC in L" from
the receiver. Secure all wire connections with the plastic wire nuts
provided. (Fig. 13)
RECEIVER
Step 4. If your outlet box has a GROUND wire (Green or Bare Copper)
connect this wire to the Hanger Ball and Hanger Bracket Ground
wires. If your outlet box does not have a Ground Wire, then connect
the Hanger Ball and Hanger Bracket Ground Wires together. Secure
wire connection with the plastic wire nut provided. (Fig. 13)
After all splices are made, check to make sure there are no loose
strands. As an additional precaution we suggest to secure the plastic
wire connectors to the wires with electrical tape.
HANGER BRACKET

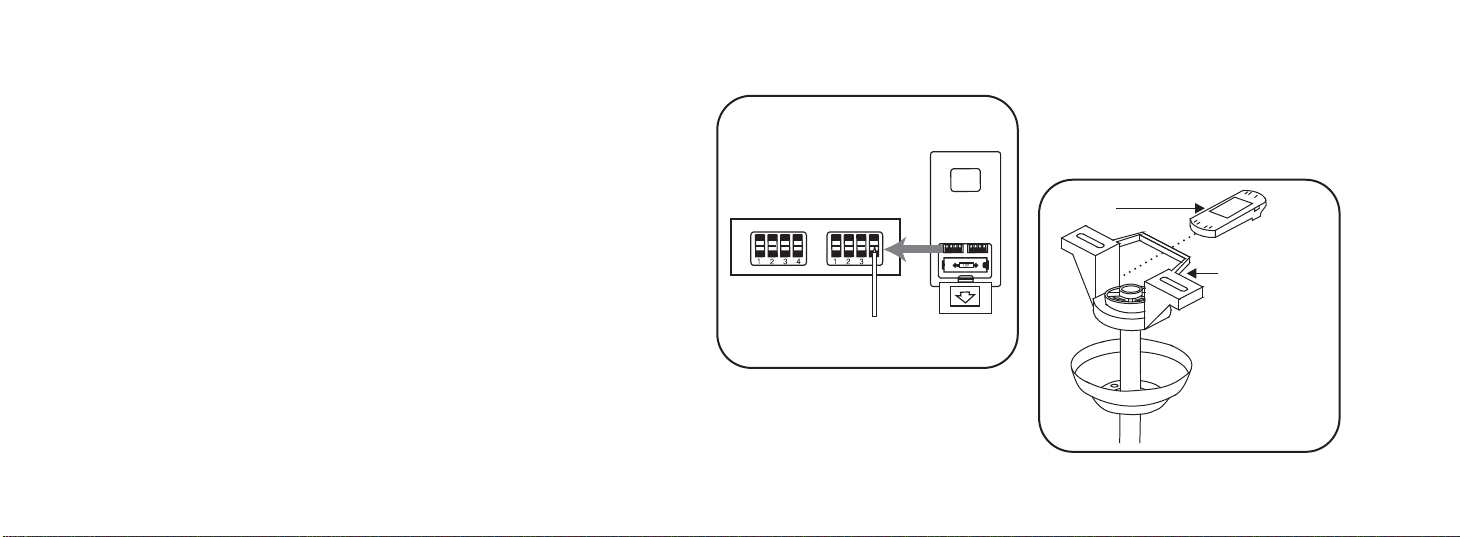

Fig. 11
Fig. 12
Page 14

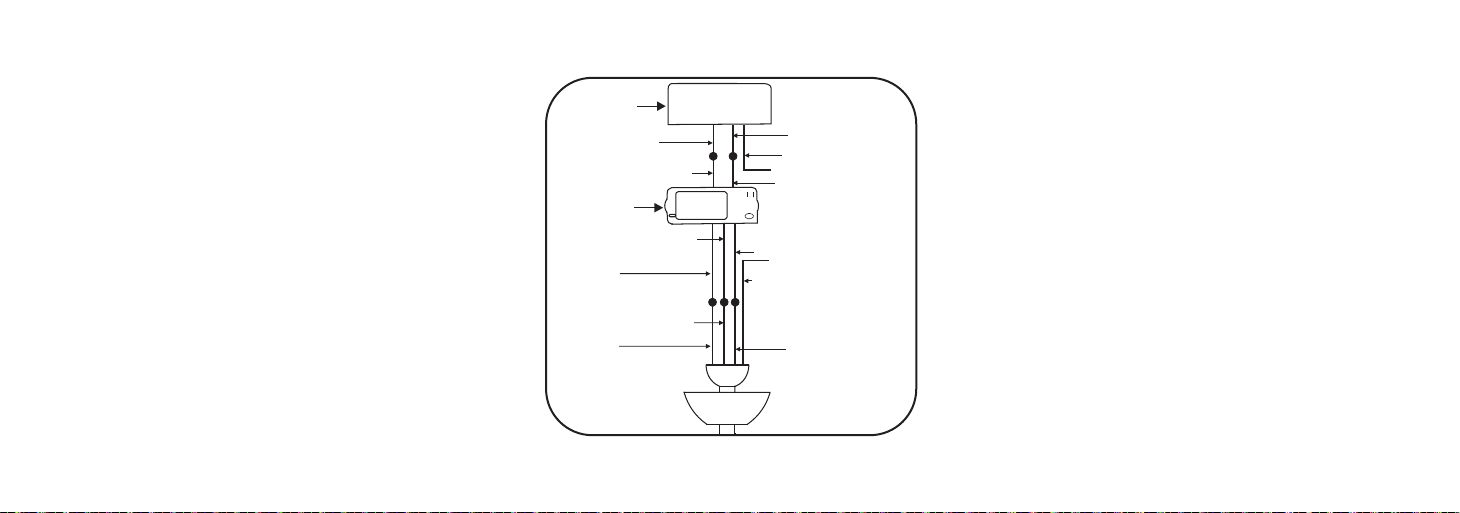

OUTLET BOX
BLACK (HOT)
BLACK ("AC IN L")
RECEIVER
BLACK ("TO MOTOR L")
GRAY
(FOR CENTER MOTOR)
BLACK (MOTOR)
GRAY
(FOR CENTER MOTOR)
Fig. 13
WHITE (NEUTRAL)
GREEN OR BARE
COPPER (GROUND)
WHITE ("AC IN N")
WHITE ("TO MOTOR N")
(CONNECT TO
GROUND-
GROUND WIRE ON
(GREEN)
HANGER BRACKE
IF NO HOUSE
GROUND WIRE
EXISTS.)
WHITE (NEUTRAL)
Page 15

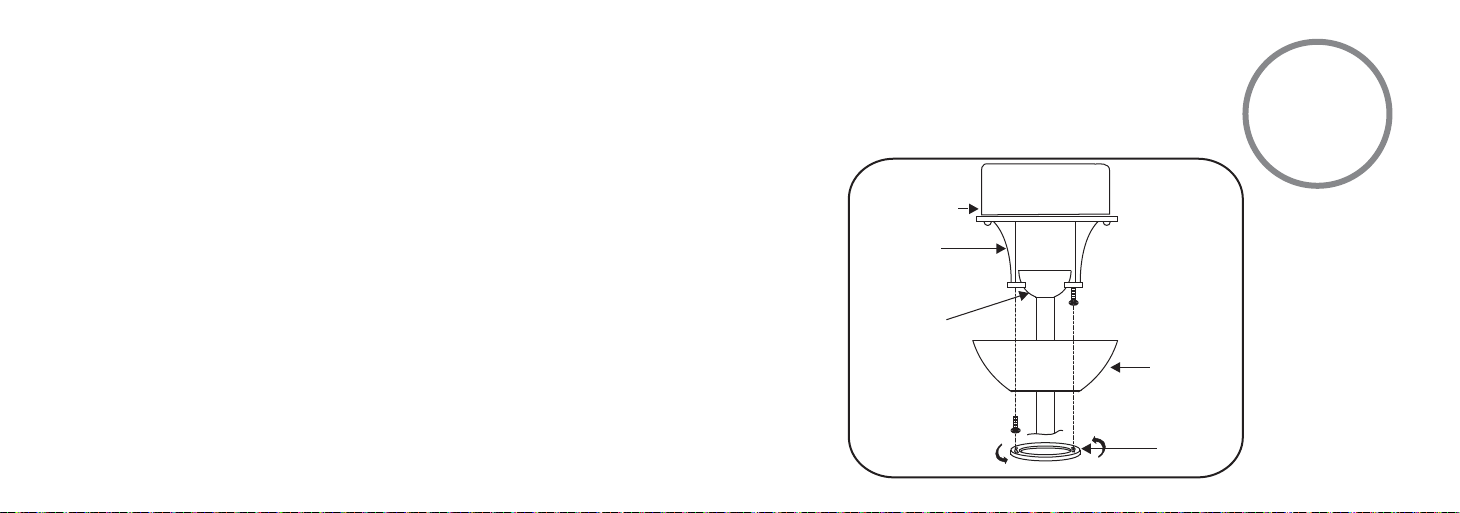

FINISHING THE INSTALLATION
Step 1. Remove the 1 of 2 screws from the bottom of the hanger bracket and loosen the other one
a half turn from the screw head.
Step 2. Slide the canopy up to hanger bracket and place the key hole on the canopy over the screw
on the hanger bracket, turn canopy until it locks in place at the narrow section of the key holes.
(Fig. 14)
Step 3. Align the circular hole on canopy with the remaining hole on the hanger bracket, secure by
tightening the two set screws, next, while holding the canopy with one hand, slide the canopy
cover over the screws and rotate counter-clockwise until tight.
Note: Adjust the canopy screws as necessary until the canopy and canopy cover are snug.
OUTLET BOX
HANGER
BRACKET
HANGER
BALL
Fig. 14
CANOPY
CANOPY
CANOPY
CANOPY
COVER
COVER
6
Page 16
7
OPERATING THE REMOTE CONTROL
Remote Control only: Install a A23 12 volt battery (included). To prevent damage to transmitter remove the battery if not used for long periods of time.
Restore Power to Ceiling Fan.
A. Buttons:
These buttons are used to set the fan speeds as follows;
= Low Speed
= Medium Speed
= High Speed
B. Button:
This button turns the fan off.
C. Button: This button rotates the fan assembly at 3 RPM.
NOTE: The complete fan assembly is designed to rotate in one direction however,
when blocked it will automatically turn to the opposite direction. The rotation
change will not have any effect on the performance of the fan.
Page 17
Step 1. While supporting the center fan body with one hand
you must adjust the position of the side fan from the body
housing.
Note: The fan heads can only be adjusted in a downward, left
or right direction up to a maximum of 30 degrees. This fan
will not maintain a upward position. Do not adjust the angle
of the fan by holding the fan cage. (Fig. 15)

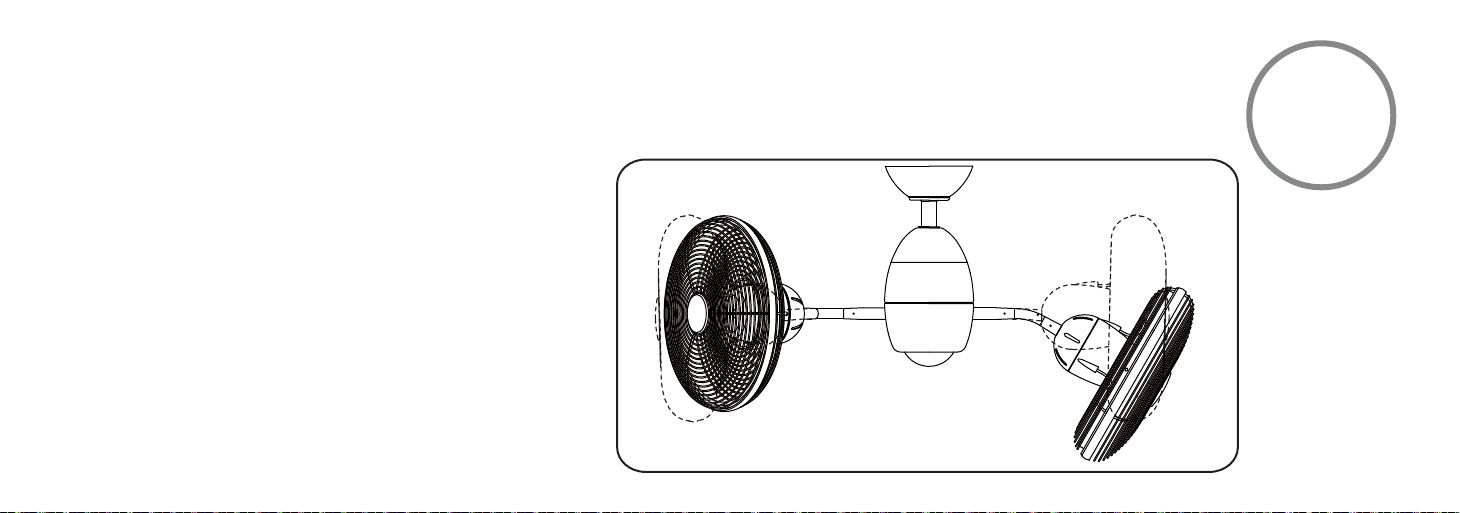

Fig. 15
ADJUSTING THE TILT ANGLE
8
Page 18
9
Here are some suggestions to help maintain your fan.
1. Because of the fan's natural movement some connections may become
loose. Check the support connections, brackets and blade attachments
twice a year. Make sure they are secure. (It is not necessary to remove
fan from the ceiling).
CARE OF YOUR FAN
ALLEN WRENCH
SCREWS
2. Clean your fan periodically to help maintain its new appearance over
the years. Use only a soft brush or lint free cloth to avoid scratching the
finish. Plated finishes are sealed with lacquer to minimize discoloration
or tarnishing. Do not use water when cleaning, this could damage the
motor, fan blades or possibly cause an electrical shock.

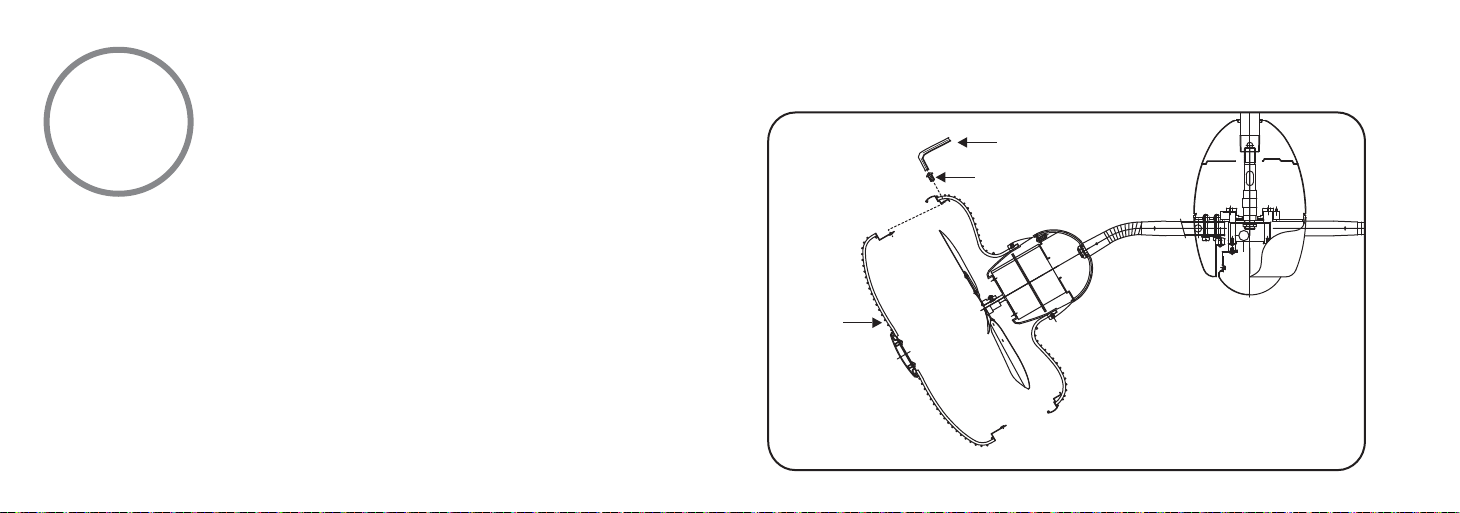

To access the blades inside the cage, use the Allen wrench in the parts
bag and unscrew the cage as shown in Fig. 16. Please use the Allen
wrench to secure the screws after cleaning the blades.
CAGE
Fig. 16
Page 19
3. Use a lint free lightly damp cloth or duster to remove dust from
the blades.
4. There is no need to oil your fan. The motor has permanently lubricated
bearings.
5. If your fan is provided with glass shades, clean with lukewarm soapy water
and a soft cloth or sponge. DO NOT IMMERSE GLASS SHADES IN HOT WATER.
DO NOT PUT GLASS SHADES INTO AN AUTOMATIC DISHWASHER.
MAKE SURE THE POWER IS OFF AT THE
WARNING!
ELECTRICAL PANEL BOX BEFORE YOU ATTEMPT
ANY REPAIRS. REFER TO THE SECTION,
"ELECTRICAL CONNECTIONS".
Page 20
10
TROUBLESHOOTING
SYMPTOM
Fan will not start
SOLUTION
Check to make sure the wall switch is turned on.
Check circuit fuses or breakers.
Caution! Make sure the power is turned off before performing the
following steps.
Remove canopy and check wire connections.
SYMPTOM
Fan Sounds Noisy
SOLUTION
Allow a 24-hour "break in" period. Most noises associated with a new
fan will go away during this time.
Make sure the screws that attach the fan blade holder to the motor
hub is tight.
Make sure outlet box is secured to building structure, if necessary
use the wood screws provided to further secure outlet box to joist.
Check wall control transmitter connections (if applicable).
Note: Fan must be installed at a maximum distance of 40 feet from
the transmitting unit for proper signal transmission between the
transmitting unit and the fan's receiving unit.
Make sure hanger bracket is secure to the outlet box, screws are
tight.
Page 21
SYMPTOM
Fan Wobble
SOLUTION
NOTE: All blade sets are grouped by weight. Because wood and plastic blades vary in density, the fan may wobble even though blades are
matched.
Make sure outlet box is secured to building structure, if necessary use the wood screws provided to further secure outlet box to joist.
Make sure hanger bracket is secure to the outlet box, screws are tight.
Use the balancing kit provided if the wobble is excessive (follow instructions included with balancing kit)
Page 22
SYMPTOM
Frequency Interference
SOLUTION
1.
Turn the power off to your ceiling fan.
2.
Please use a small size tool to change the frequency settings on the control system.
3.
Return power to the unit.
Note: After the AC power is on, do not press any other button on the transmitter before pressing the "Stop" button, doing so will cause the
procedure to fail.
4.
Within 60 seconds of turning the Fan's AC power ON. Press the transmitter's "Stop" button and hold the "Stop¡" button for 10 seconds.
5.
Once the receiver has detected the set frequency, the down light of your fan if applicable will blink twice. (there is no indication if your fan is not
equipped with a light).
6.
The receiver has now learn the frequency which has been selected on the transmitter. After completing the steps above, you should be able to
operate the ceiling fan and light. If the fan is not responding to the transmitter, please turn the power off to the receiver, and repeat the process.
Page 23
SPECIFICATIONS
11
These are typical readings. Your actual fan may vary.
They do not include amps and wattage used by the
light(s).
For any additional information about your
Minka Aire Ceiling fan, please write to;
R
1151 W. Bradford Court, Corona, CA 92882 For Customer Assistance Call: 1-800-307-3267
Fan Size
10"
Speed Volts
Low
Medium
High
120
120
120
Amps
0.38
0.42
0.53
Watts
28
38
53
RPM
878
1120
1335
CFM
1694
2047
2418
N.W. G.W. C.F.
8.8
kgs
11.11
kgs
4.89’
Loading...
