Mojo
CERTIFICATE
Page 2
Manual design and all elements of manual design are protected by U.S. Federal and/or State Law, including Patent, Trademark and/or Copyright laws.
Page 3
The Minka-Aire® warranty is for one (1) year from the date of purchase from an authorized Minka-Aire® dealer.
This warranty is only valid to the original purchaser or user against all defects in material and workmanship light bulbs (
excluded for one full year. Additionally, Minka-Aire® warrants the motor only for the lifetime of the Minka Aire ceiling ) (1)
fan excluding wall controls and electrical components , to the original purchaser or user. ( )
* The warranty is voided with the use of any non- Minka-Aire®electrical devices, E.g., wall controls or electrical dimmer switches, etc…
* The warranty is void once the original purchaser or user ceases to own the fan or the fan is moved from its original point of installation.
* The warranty is void with the use of any hanger bracket (non-Minka Aire or non-fan specific other than the hanger bracket supplied )
with this specific fan.
& installed
Page 4
Warranty Service Information
To obtain warranty service during the warranty period, the purchaser should return the fan with the sales receipt to the original place of
purchase. The authorized Minka-Aire® dealer, at its sole discretion, will either repair or replace the fan after verifying the legitimacy of the warranty
claim. Replacement is subject to availability of the same model. If the model is unavailable it will be replaced by one of equal value. This is a limited
warranty; the original purchaser or user is responsible for the cost of removal and reinstallation of repaired or replacement product.
To obtain the name of the Minka-Aire® authorized dealer nearest you call the Minka-Aire® customer care department at 1-800-307-3267, or
contact Minka-Aire® through www.minkagroup.net and write to: “Ask Mr. Minka” to answer any questions or if you require assistance.
Date Purchased Store Purchased Model Number Serial Number
F522
Page 5
CONTENTS
SAFETY RULES
PACKAGE CONTENTS
INSTALLING THE FAN
HANGING THE FAN
ELECTRICAL CONNECTIONS
FINISHING THE INSTALLATION
BLADE INSTALLATION
...................................................
......................................
......................................
..........................................
..........................
...................................
....................
1
INSTALLING THE LIGHT KIT ASSEMBLY
2
INSTALLING THE GLASS SHADE & LIGHT BULB
3
FAN WITHOUT LIGHT KIT
4
OPERATING YOUR FAN
5
CARE OF YOUR FAN
6
TROUBLESHOOTING
7
SPECIFICATIONS
..................................................................................
..................................................................
......................................................................
.............................................................................
..........................................................................
.........................................
............................
8
9
10
11
12
13
14
Page 6
1
SAFETY RULES
Before you begin installing the fan, shut power off the circuit breaker of the fuse box.
1.
2. Be cautious! Read all instructions and safety information before installing your new fan. Review accompanying assembly diagrams.
3. Make sure that all electrical connections comply with local codes, ordinance, or National Electrical Codes. Hire a qualified electrician or
consult a do-it-your self wiring handbook if you are unfamiliar with installing electrical wiring.
4. Make sure the installation site you choose allows the fan blades to rotate without any obstructions. Allow a minimum clearance of 7 feet
from the floor and 18 inches from the top of the blades to the wall.
5. If you are mounting the fan to a ceiling fan outlet box, use a U.L Listed metal octagonal outlet box marked"Acceptable For Fan Support".
Secure the box directly to the building structure. The outlet box and its support must be able to support the moving weight of the fan (at
least 50 pounds). Do not use a plastic box.
6. Caution: To reduce the risk of injury use only the screws provided with the outlet box in conjunction with the lock washers provided with
the fan.
7. If you are mounting the fan to a joist, make sure it is able to support the moving weight of the fan (at least 50 pounds).
8. After you install the fan, make sure that all mounting components are secured to prevent the fan from falling.
9. Do not insert anything into the fan blades while the fan is operating.

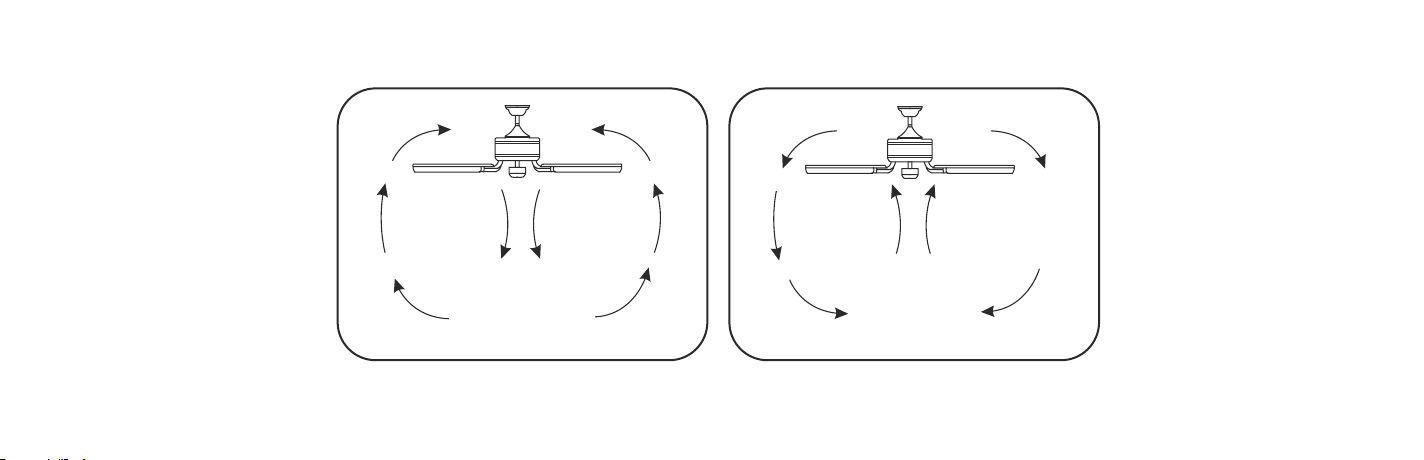

10. To operate the reverse function on this fan, press the reverse button while the fan isn’t running.
Page 7

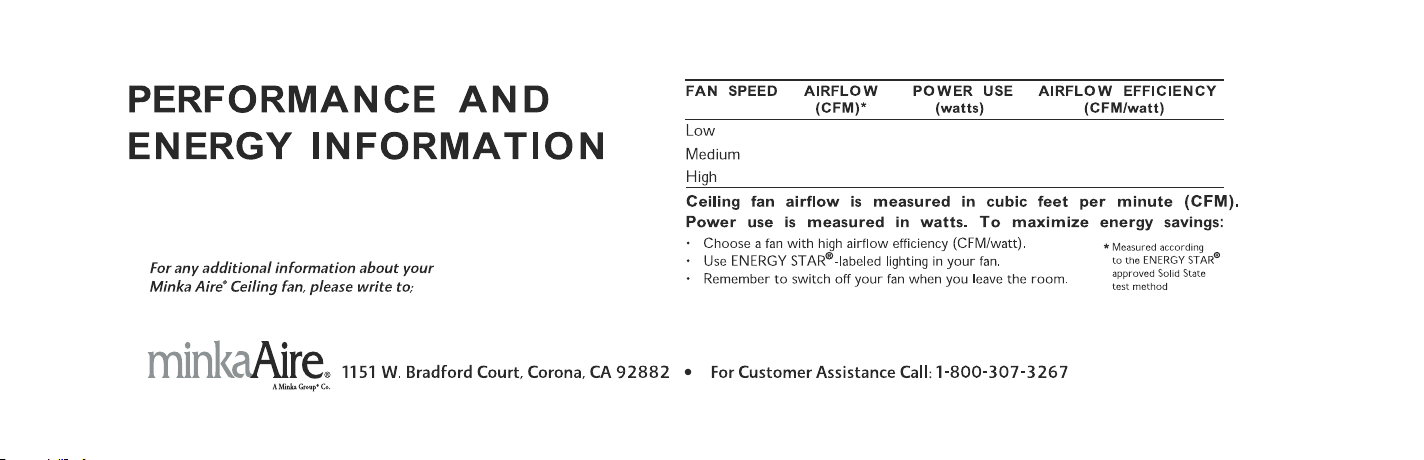

ATTENTION: The Energy Policy Act of 2005 requires this fan to be equipped with a 190 watt limiting device, If lamping exceeds
190watts, the ceiling fan’s light kit will shut off automatically.
NOTE: The important safeguards and instructions appearing in this manual are not meant to cover all possible conditions and
situations that may occur. It must be understood that common sense, caution and care are factors which can not be built into
this product. These factors must be supplied by the person(s) installing, caring for and operating the unit.
NOTE: READ AND SAVE ALL INSTRUCTIONS!
TO REDUCE THE RISK OF FIRE,ELECTRIC SHOCK OR OTHER PERSONAL INJURY, MOUNT FAN ONLY TO A U.L LISTED OUTLET BOX OR SUPPORTING
SYSTEM MARKED ACCEPTABLE FOR FAN SUPPORT AND USE MOUNTING SCREWS PROVIDED WITH THE OUTLET BOX IN CONJUCTION WITH THE
LOCK WASHERS PROVIDED WITH THE FAN. MOST OUTLET BOXS COMMONLY USED FOR FAN SUPPORT OF LIGHTING FIXTURES ARE NOT
ACCEPTABLE FOR FAN SUPPORT AND NEED TO BE REPLACED. CONSULT A QUALIFIDE ELECTRICIAN IF IN DOUBT.
TO REDUCE THE RISK OF PERSONAL INJURY, DO NOT BEND THE BLADE HOLDERS WHILE INSTALLING BALANCING THE BLADES OR CLEANING
THE FAN. DO NOT INSERT FOREIGN OBJECTS BETWEEN ROTATING FAN BLADES.
TO REDUCE THE RISK OF FIRE OR ELECTRONIC SHOCK, DO NOT USE THIS FAN WITH ANY SOLID-STATE SPEED CONTROL DEVICE .
WARNING
Page 8
2
PACKAGE CONTENTS
Unpack your fan and check the contents. You should have the following items:
1. Fan blades(5)
2. Hanger bracket
3. Canopy
4. Canopy cover
5. Coupling cover
6. Standard downrod assembly(6")
Minimum-length downrod(3.5")
7. Fan motor/housing assembly
8. Blade holders (5)
9. Light kit assembly
10.Glass shade
11. 60W E12 blubs(3)
12.Extra cap
13.Extra finial
14.Balancing kit
A. Mounting hardware:
Wire nuts(3)
#8x3/4”Machine screws (2)
#10x1.5Wood screws (2)
4mm Star washers (2)
Metal washers (2)
Lock washers (2)
B. Blade attachment hardware:
3/16“x6mm Screws(16)
Fiber washers (16)
C. Blade holder attachment hardware:
1/4“x13.5mm screws with lock
washers(11)
D. Pull chain fobs (2)
E. Plastic plug (1)
5
1
2
3
4
6
7
8
9
10
11
12
13
14
A
B
C
D
E
Page 9
INSTALLING THE FAN
Tools Required: Philips screw driver, slotted screw driver, step-ladder, wire cutters, electrical tape.
MOUNTING OPTIONS
If there isn't an existing mounting box, then read the following instructions. Disconnect the
power by removing fuses or turning off circuit breakers.
Secure the outlet box directly to the building structure. Use appropriate fasteners and
building materials. The outlet box and its support must be able to fully support the moving
weight of the fan (at least 50 lbs.).Use a UL listed metal outlet box.
Do not use a plastic outlet box.

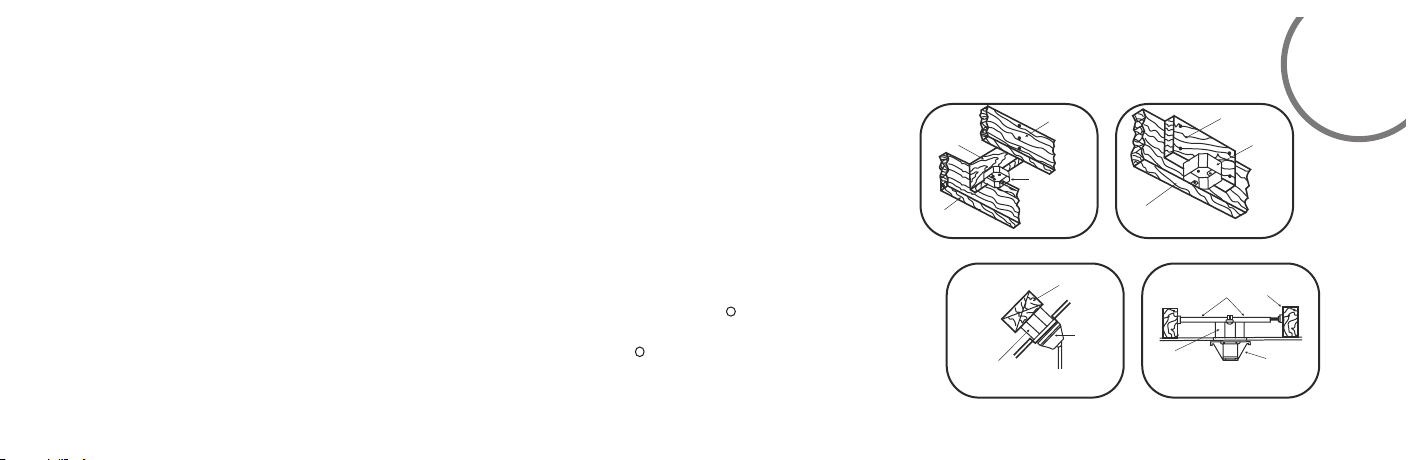

Figure1,2 and 3 are examples of different ways to mount the outlet box.
Note: You may need a longer downrod to maintain proper blade clearance when installing on
a steep, sloped ceiling. Longer downrods are available from your Minka-Aire dealer.
To hang your fan where there is an existing fixture but no ceiling joist, you may need to
install a hanger bar as shown in Fig.4(available at your Minka Aire dealer or local hardware store)
R
R
CROS S BRACE
CEIL ING
jOIS T
FIG. 1
ANGL ED CEIL ING
MAXI MUM 20°AN GLE
RECE SSED
OUTL ET BOX
FIG. 3
CEIL ING
JOIS T
OUTL ET BOX
PROV IDE
STRO NG
SUPP ORT
HANG ER
OPEN ING
must be
FACING
UPSI DE
CEIL ING JOIS T OR
CROS S BRACE
FIG. 2
OUTL ET BOX
FIG. 4
PARAL LEL WOOD BRACE
(MIN . 2’’ THICK )
OUTL ET
BOX
CEIL ING
HANG ER BAR
(OPT IONAL )
JOIS T
HANG ER
BRAC KET
3
Page 10
4
HANGING THE FAN
WARNING: All of the parts, hardware and components such as the
hanger bracket and hanger ball have been provided for your safety and
the proper installation of your new ceiling fan. The use of other
parts,hardware or components not supplied by Minka Aire with the fan
will void the Minka Aire Warranty.

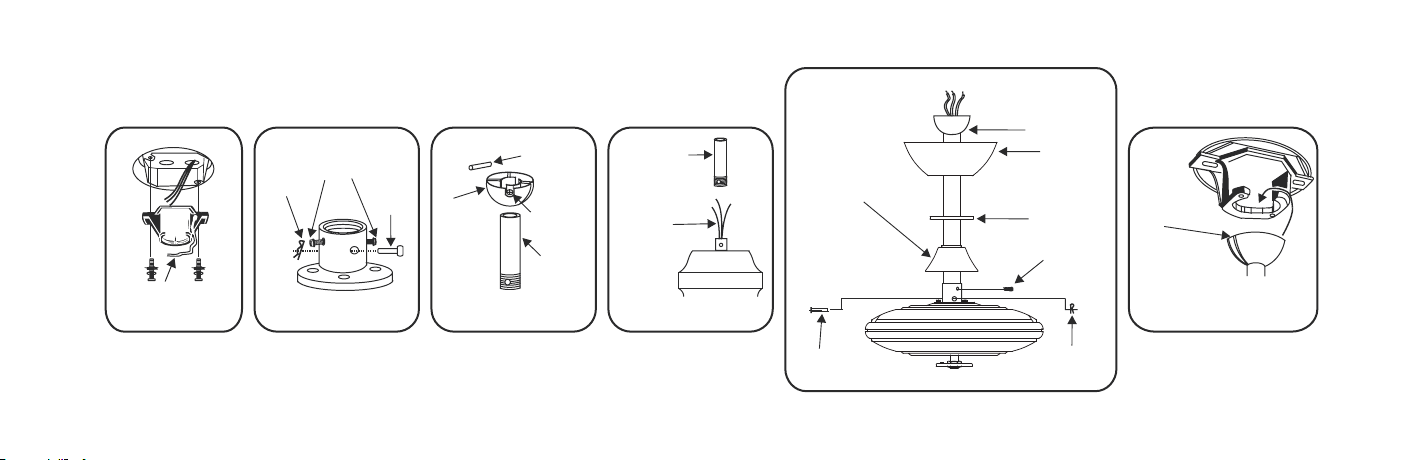

REMEMBER to turn off the power. Follow the steps below to hang your
fan properly:
Step 1.Secure the hanger bracket to the ceiling outlet box using screws
and washers included with mounting hardware.(Fig.5)
Stpe 2.Lossen the two set screws and remove the hitch pin and lock pin
from the top coupling of the motor assembly.(Fig 6)
Step 3.Remove hanger ball from downrod assembly by loosening set
screw,removing the cross pin, and sliding ball off rod.(Fig 7)
R
R
Step 4.Carefully feed fan wires up through the downrod(Fig 8).
Thread the rod into the coupling, next line up holes and replace lock
pin and hitch pin. Tighten set screws.

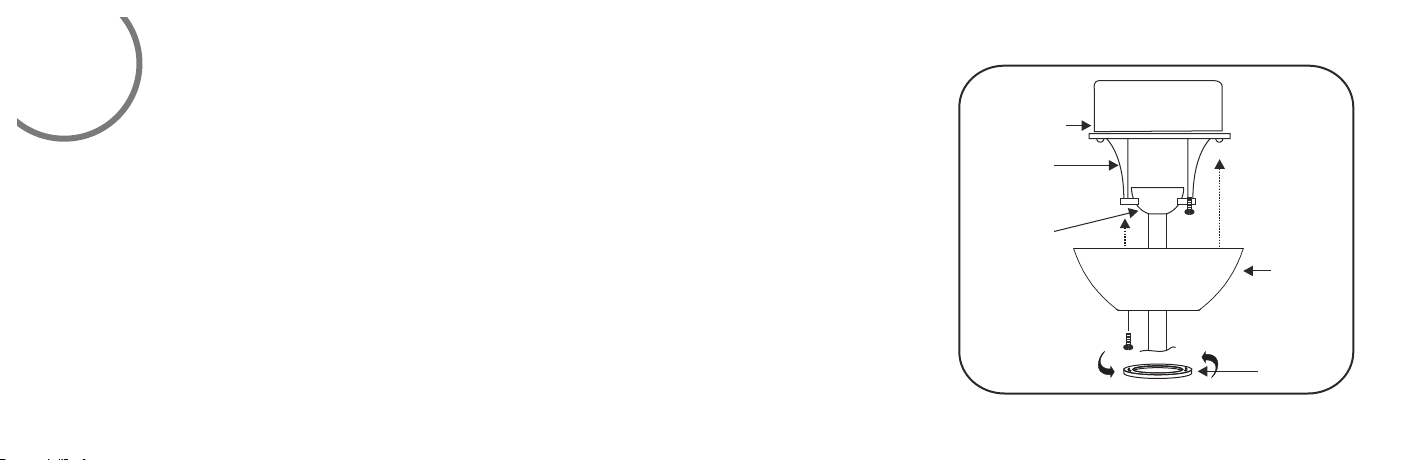

Step5.Slip coupling cover, canopy cover, and canopy onto downrod
(Fig.9).Carefully reinstall hanger ball onto rod being sure that cross
pin is in the correct position, set screws are tighten and wires are
not twisted.
NOTE:DO NOT INSTALL THE COUPLING COVER IF YOU PLAN TO USE
THE MINIMUM LENGTH DOWNROD.
Step 6. Now lift motor assembly into position and place hanger ball
into hanger bracket. Rotate until the check groove has dropped into
the registration slot and seats firmly.(Fig 10)Rod should not rotate
if this is done correctly.
Page 11
Fig. 9
LOCK PIN
CAN OPY
COV ER
DOWNROD
CAN OPY
SCR EWS
HITCH PIN
COUPLING
*OMIT COUPLING
COVER WHEN USING
DOWNROD
THE MINIMUM-LENGTH
HAN GER BR ACK ET
Fig. 5
OUT LET BOX
HIT CH
PIN
Fig. 6
SET SCREW S
LOC K
PIN
HAN GER
BAL L
Fig. 7
CRO SS PIN
SET SCREW
DOW NROD
DOW NROD
SUP PLY
WIR ES
Fig. 8
REGISTRATION
SLOT
Fig. 10
Page 12
5
ELECTRICAL CONNECTIONS
REMEMBER to shut the power off at the circuit breaker or fuse
box.
Follow the steps below to connect the fan to your house supply wires.
Use the wire nuts supplied with your fan. Secure the wire nuts by
wrapping the connection with electrical tape.
Step 1. Connect the black (hot) wire from the ceiling to the black and
the blue wires from the fan. Connect the white (Neutral) wire
from the ceiling to the white wire from the fan. (Fig 11)
Step 2. If your outlet has a ground wire (Green or Bare Copper) connect
the fan ground wires ((from hanger ball and hanger bracket) to it;
otherwise connect the fan ground wire wires from the hanger ball
and hanger bracket together. (Fig. 11)

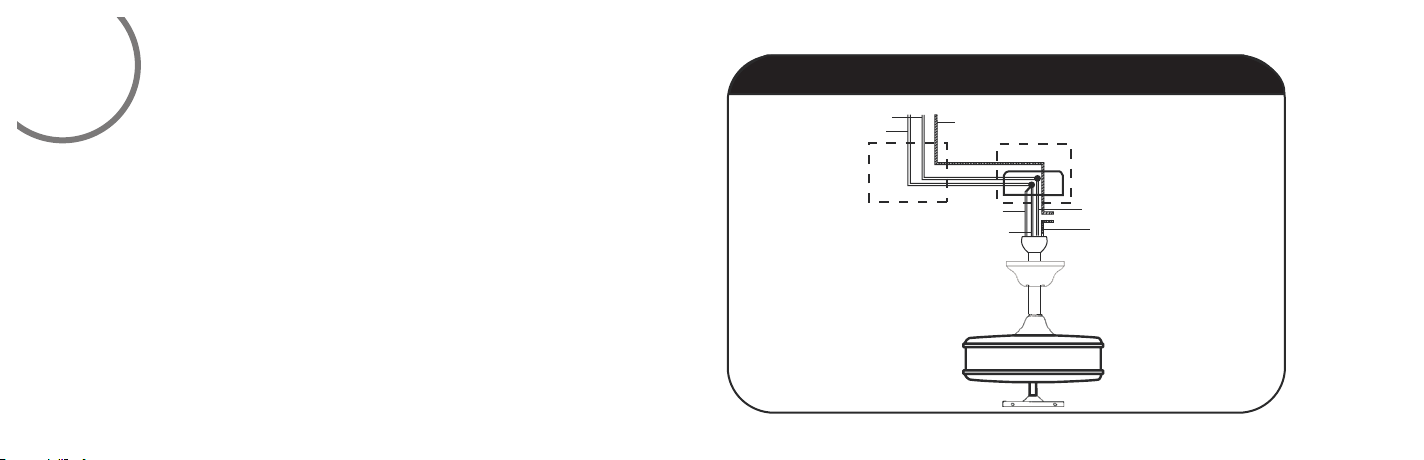

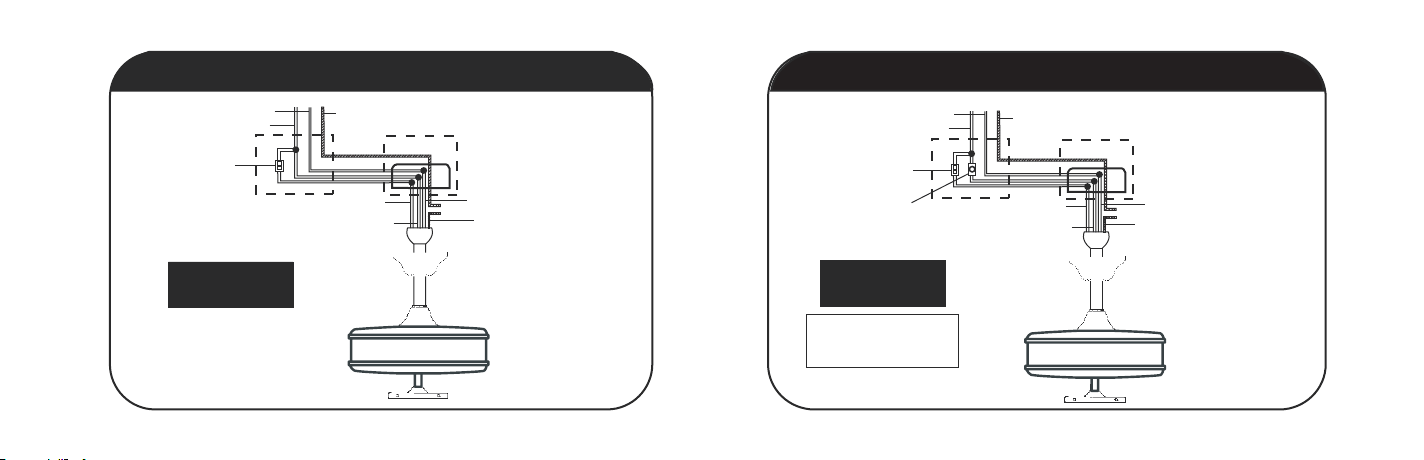

Step 3. Figure 12 & 13 Illustrate the wiring connections using optional
wall unit. (Available at your Minka-Aire® Retailer.)
NOTE: If a light kit is not included with your fan, one can be purchased
at your Minka-Aire®Retailer.
FAN CONTROLLED BY PULL CHAIN, LIGHT KIT CONTROLLED BY PULL CHAIN.
WHITE (NEUTRAL)
Fig.11
BLACK (HOT)
HOUSE WIRE SUPPLY
GREEN (GROUND)
WALL
BLUE (OPTIONAL LIGHT)
BLACK (MOTOR)
CEILING
WHITE (NEUTRAL)
GROUND
(CONNECT TO GROUND WIRE ON
HANGER BRACKET IF NO HOUSE
GROUND WIRE EXISTS.)
Page 13
FAN CONTROLLED BY PULL CHAIN, LIGHT KIT CONTROLLED BY WALL SWITCH.
BLACK (HOT)
HOUSE WIRE SUPPLY
WALL
BLUE (OPTIONAL LIGHT)
GREEN (GROUND)
BLACK (MOTOR)
CEILING
WHITE (NEUTRAL)
GROUND
(CONNECT TO GROUND WIRE ON
HANGER BRACKET IF NO HOUSE
GROUND WIRE EXISTS.)
WHITE (NEUTRAL)
LIGHT SWITCH
FAN CONTROLLED BY WALL CONTROL, LIGHT KIT CONTROLLED BY LIGHT SWITCH.
WIRING
OPTION 1
Fig.12 Fig.13
WHITE (NEUTRAL)
BLACK (HOT)
LIGHT SWITCH
FAN WALL CONTROL
WIRING
OPTION 2
NOTE: SOME WALL UNITS
INCORPORATE BOTH LIGHT
SWITCH AND FAN WALL
CONTROL IN ONE HOUSING.
HOUSE WIRE SUPPLY
BLUE (OPTIONAL LIGHT)
GREEN (GROUND)
WALL
BLACK (MOTOR)
CEILING
WHITE (NEUTRAL)
GROUND
(CONNECT TO GROUND WIRE ON
HANGER BRACKET IF NO HOUSE
GROUND WIRE EXISTS.)
Page 14
6
FINISHING THE INSTALLATION
Step 1. Tuck connections neatly into ceiling outlet box.
Step 2. Remove one screw from the hanger bracket and loosen the other screw around 1/4. ”
Step 3. Align the canopy up to ceiling and over the loose screw. Place the canopy into key hole
and rotate canopy clockwise. (Figure 14)
Step 4. Secure the canopy by use previous removed screw.
Step 5. Place the canopy cover to the canopy and rotate canopy cover clockwise until it is
locked into right position. (Figure 14)
OUTLET BOX
HANGER
BRACKET
HANGER
BALL
Fig. 14
CANOPY
CANOPY
COVER
Page 15
THE FOLLOWING OPERATION MUST BE ACCOMPLISHED BEFORE
Fi ber
Was her
Bl ade
Scr ew
Bl ade ho lde r
INSTALLING THE SWITCH CUP.
BLADE INSTALLATION
7

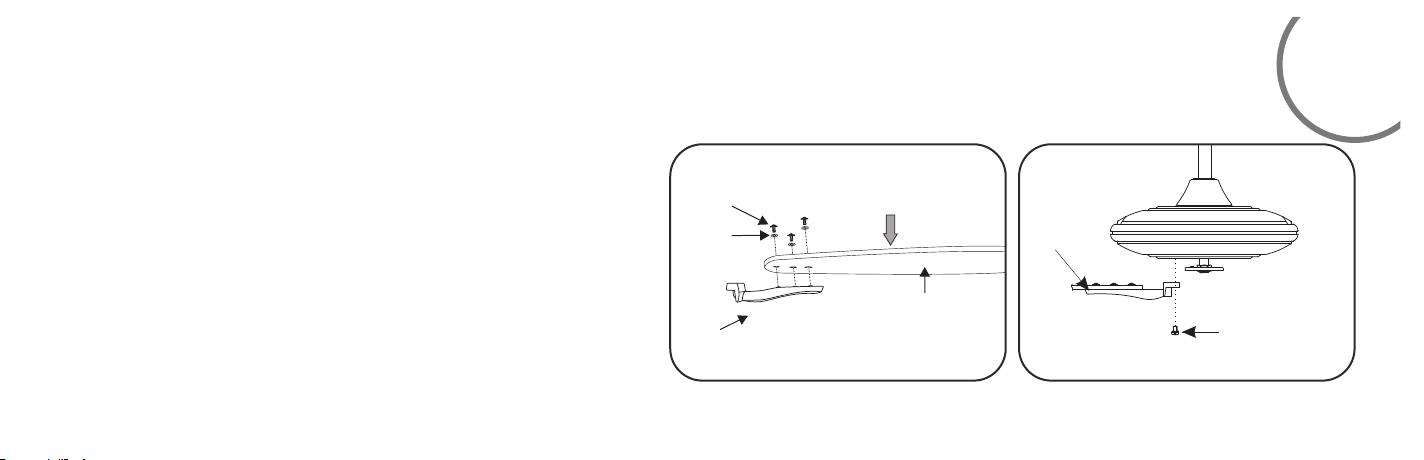

Step 1.Attach the fan blade to the blade holder using the screws
and fiber washers provided. Tighten screws securely. Repeat
process for remaining blades.(Fig.15)
Step2.Remove the rubber stops from motor. Rotate the motor so
that the screw holes in motor are aligned with the holes in blade
holder and secure with proper screws. Repeat process for the other
blade holders.(Fig. 16)
Fig. 15
Bl ade
ho lder
Fig. 16
Bl ade ho lde r
scr ews
Page 16
8
Fig. 17
Mou nting r ing
Scr ew
Lig ht kit pl ate
Lig ht kit
ass embly
Scr ew
Con necti on plug
Conne ction p lug
INSTALLING THE LIGHT KIT
ASSEMBLY

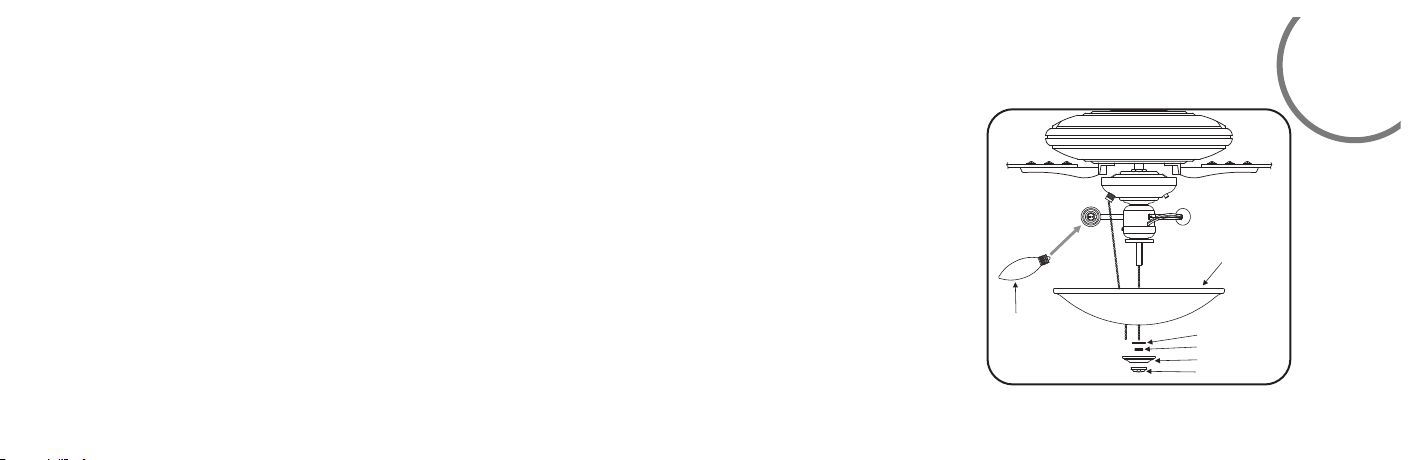

Step1. Remove the light kit plate from the light kit assembly by removing three
screws from the rim of the light kit plate and reserve the screws.

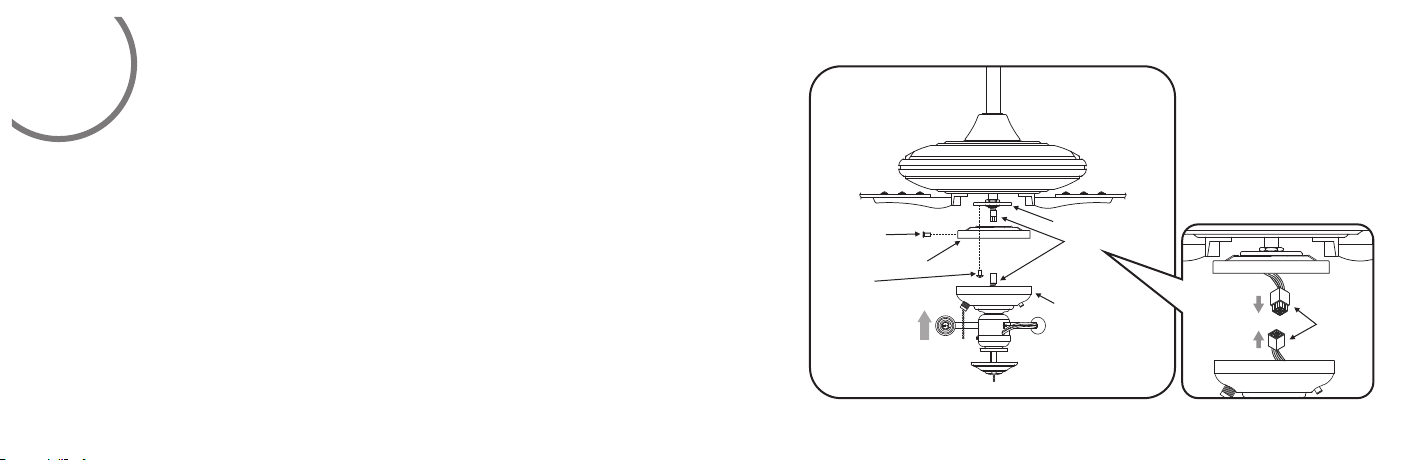

Step2.Remove 1of 3screws from the mounting ring and loosen the other 2
screws.(Do not remove.) (Fig.17)
Step3.Place the key holes from the light kit plate over the 2 screws previously
loosened from the mounting ring , turn light kit plate until it locks in place at
the narrow section of the key holes. Secure by tightening the 2 screws
previously loosened and the one previously removed.(Fig.17)
Step4.While holding the light kit assembly under your fan, firmly snap the wire
connection plugs together.(Fig.17)
Step5.Align the holes in the light kit assembly with the holes in the light kit plate.
Tighten the three screws removed in step1.(Fig. 17)
Page 17
Fig . 18

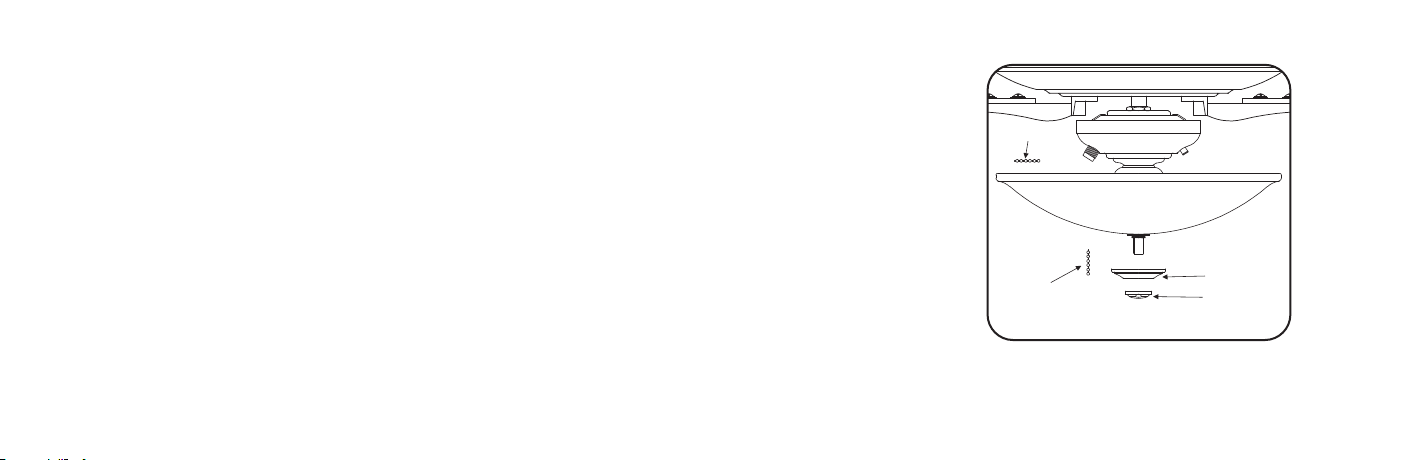

INSTALLING THE GLASS SHADE & LIG HT BULB
WARNING:Shut of the power supply before removing or replacing lamp. If you accidentally come
into contact,wipe thoroughly with a clean,lint-free,cotton cloth. Use light bulb in accordance with
the fan’s specification.TO REDUCE THE RISK OF FIRE DO NOT EXCEED MAXIMUM WATTAGE
RATING.
ATTENTION:The Energy Policy Act of 2005 requires this fan to be equipped with a 190 watt
limiting device.If lamping execeeds 190 watts,the ceiling fan’s light kit will shut off automatically.
Step1. Install 3*60W E12 bulbs (included) into socket.(Fig.18)
Step2. Remove the rubber washer,metal nut, metal cup and finial from the light kit assembly. Place
glass shade over the light kit stem, secure with the rubber washer, metal nut, metal cap and finial.
Do not over tighten.(Fig.18)
Step3. Attach the pull chain fob to the chain on the light kit assembly.
Bul b
Gla ss shad e
Rub ber was her
Met al nut
Met al cap
Fin ial
9
Page 18
Remarked: the fan is provided extra cap and finial, which can be used when the fan is installed with
Fig . 19
univeral remote control(Not Provided)
a) Before install the univeral remote control(Not Provided), please make sure the fan speed pull
chain control is set to "high speed"and the light pull chain control is set to " on" status.
b)Cut off the unnecessary length of pull chain.
c) Remove the original cap and finial with hole and replace the extra cap and finial without hole.
Pul l chain
Pul l chain
Ext ra cap
Ext ra fini al
Page 19

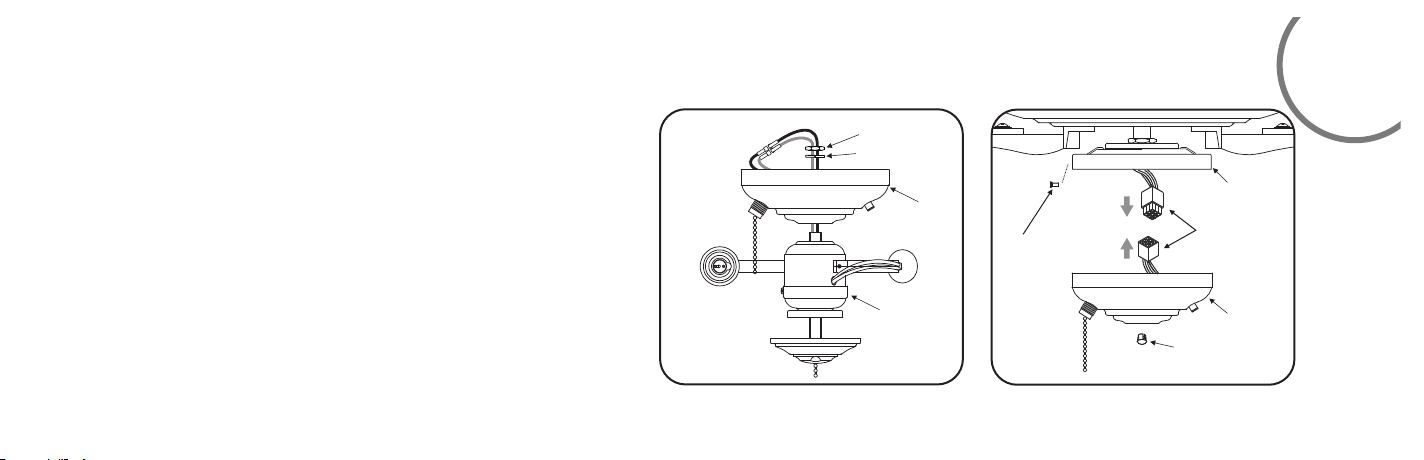

Step 1. Disassemble the switch cup from the light kit. You can
keep the light kit for future use. (Fig 20)
Step 2. Attach the plastic plug to the switch cup. (Fig 21)
Step 3. Holding the switch cup under your fan, snap together
the wire connection plugs. (Fig 21)
Step 4. Install the switch cup to the light kit plate with the
screws previously removed. (Fig 21)
Fig . 20
FAN WITHOUT LIGHT KIT
Nut
Was her
Swi tch cup
Scr ew
Lig ht kit
Fig . 21
Lig ht kit pl ate
Con necti on plug
Swi tch cup
Pla stic pl ug
10
Page 20
11
Restore power to ceiling fan and test for proper operation.
Speed settings for warm or cool weather depend on factors such as the room size. Ceiling height, number of fans, etc.
The Reverse switch is located on the switch cup. Slide the switch to the Left for warm weather operation. Slide the switch to the Right for
cool weather operation.
NOTE: Wait for fan to stop before changing the setting of the slide switch.
Warm weather - (Forward)
A downward airflow creates a cooling effect as shown in Fig. 22. This allows you to set your air conditioner on a warmer setting without affecting
your comfort.
Cool weather - (Reverse)
An upward airflow moves warm air off the ceiling area as shown in Fig. 23. This allows you to set your heating unit on a cooler setting without
affecting your comfort.
The fan pull chain controls the fan speed as follows: 1st pull - High , 2nd pul l - Med, 3rd pull - Low and 4th pul l - Off.
The light kit pull chain controls the light kit in “ON” or “OFF”.
OPERATING YOUR FAN
Page 21
SUMMER OPERATION
WINTER OPERATION
Fig. 22
Fig. 23
Page 22
12
CARE OF YOUR FAN
Here are some suggestions to help maintain your fan.
1.Because of the fan’s natural movement some connections may
become loose. Check the support connections, brackets and blade
attachment twice a year. Make sure they are secure.(It is not necessary
to remove fan from the ceiling).
2.Clean your fan periodically to help maintain its new appearance over
the years. Use only a soft brush or lint free cloth to avoid scratching
the finish. Plated finishes are sealed with lacquer to minimize
discoloration or tarnishing.
Do not use water when cleaning, this could damage the motor, wood
blades or possibly cause an electrical shock.
3.Use a lint free lightly damp cloth or duster to remove dust from the
blades.
4.There is no need to oil your fan. The motor has
permanently lubricated bearings.
5.If your fan is provided with glass shades, clean with lukewarm
soapy water and a soft cloth or sponge.DO NOT IMMERSE
GLASS SHADES IN HOT WATER. DO NOT PUT GLASS SHADES
INTO AN AUTOMATIC DISHWASHER.
WARNING
MAKE SURE THE POWER IS OFF AT THE ELECTRLCAL PAEL BOX
BEORE YOU ATTEMPT ANY REPAIRS. REFER TO THE
SECTION”ELECTRICAL CONECTIONS”.
Page 23
TROUBLESHOOTING
13
SYMPTOM
Fan will not start
SOLUTION
Check to make sure the wall switch is turned on.
Check circuit fuses or breakers.
Caution! Make sure the power is turned off before performing the
following steps.
SYMPTOM
Fan Sounds Noisy
SOLUTION
Allow a 24 - hour “ break in ” period. Most noises associated
with a new fan will go away during this time.
Make sure the screws that attach the fan blade holder to the
motor hub is tight.
Make sure outlet box is secured to building structure, if
necessary use the wood screws provided to further secure
outlet box to joist.
Make sure hanger bracket is secure to the outlet box, screws are
tight.
Page 24
SYMPTOM
Fan Wobble
SOLUTION
NOTE:All b lade sets ar e grouped by w eight. Because wood and plastic
blades var y in density , the fan may wo bble even though blades are
matched.
Make sure ou tlet box is se cured to bui lding structure, if necessary use
the wood scr ews provid ed to furthe r secure outlet box to joist.
Make sure ha nger brack et is secure t o the outlet box, screws are tight.
If a Balanci ng kit is prov ided follo w the instructions included with the
balancin g kit to help co rrect any ex cessive wobble.
SYMPTOM
Lights shu t off and will n ot come back o n
SOLUTION
This unit is e quipped wi th a wattage l imiting device. Lamping in
excess of 19 0 watts will d isable you r ceiling fan’s light kit. To reset
your light k it you must tu rn the power o ff and re lamp, keeping the
wattage un der 190 watt s.
Page 25
These are typical readings. Your actual fan may vary.
They do not include amps and wattage used by
the light (s).
For any additional information about your
Minka Aire Ceiling fan, please write to:
R
R
52”
120
120
120
0.27
0.42
0.57
SPECIFICATIONS
13.68
34.03
67.39
80
128
176
1935
3384
4682
7.93
kgs
9.35
kgs
14
1.96’
Page 26
1935
3384
4682
13.68
34.03
67.39
141.45
99.44
69.48
Loading...
