CERTIFICATE
Page 2
This product is protected by United States and/ or State Law,including Patent, Trademark and/or Copyright laws.
Manual design is protected by United State Federal and/or State Law, including Patent. Trademark and/or Copyright laws.
Page 3
Minka-Aire warrants to the original owner that this fan will be free from defects in material and workmanship for one year
from the date of purchase, excluding the motor. Minka-Aire warrants to the original owner that the motor in this fan shall be free
R
R
from defects in material and workmanship for as long as the original purchaser owns the fan, and it remains in the original
installation.
This is a limited warranty. Minka-Aire ’s only obligation under this limited warranty is to replace or repair, or refund the purchase price, in Minka-
R R
Aire ’s sole discretion without charge to the original owner, of the fan once Minka-Aire confirms that the fan has a defect covered by this limited
Call our customer service department at 1-800-307-3267 to obtain the name of the
contact us through our web site, www.minkagroup.net and write to: Ask Mr.Minka if you have any questions or require further assistance.
To obtain warranty service, the owner should return the fan along with proof of purchase to a
authorized dealer shall then, at its sole discretion: repair the fan, replace the fan,refund the purchase price less the amount directly attributable to the
consumer’s prior usage of the fan, or if necessary instruct the consumer to contact Minka-Aire directly for warranty service. Minka-Aire will be
responsible for the cost of any repair, or replacement for any warranty service provided by a Minka-Aire authorized dealer for product under warranty.
You may also at your preference obtain warranty service by returning the fan directly to
return address, and a description of the claimed product defect. Pack carefully; damage sustained in return transit to Minka-Aire will be the original
R
Minka-Aire authorized dealer closest to your location, or
R
Minka-Aire authorized dealer. The Minka-Aire
R R
Minka-Aire along with proof of purchase, your name and
R R
R
R
R
owner’s responsibility. Original owner shall be responsible to pay all shipping charges. To obtain warranty service, you may return a fan that proves
to be defective during the warranty period to the following address:
Minka-Aire -Warranty Service,1151W.Bradford Court,Corona,CA 92882
R
Page 4
This warranty shall not apply to fans which have been damaged in any way, including improper installation, damage as result of the removal
of the fan from the original installation, or damage in shipping. This warranty shall not apply to fans which have been subjected to use for which
the fan was not designed. The purchaser of the fan shall be responsible for any cost of removing the old fan, installing a new fan,or any other costs.
This limited warranty is in lieu of all other express warranties. This limited warranty excludes all incidental and consequential damages, and
Minka-Aire shall not under any circumstances be liable for incidental or consequential damages. Some states do not allow the exclusion of or
limitation of incidental or consequential damages, so the foregoing limitation or exclusion may not apply to you.
This warranty gives you specific legal rights, and you may also have other rights which vary from state to state. We encourage you to promptly
complete and return the enclosed warranty registration card.However, return of the warranty registration card is not a condition of this warranty.
Date Purchased Store Purchased Model No. F513 Serial No.
R
Page 5
SAFETY RULES
PACKAGE CONTENTS
INSTALLING THE FAN
HANGING THE FAN
ELECTRICAL CONNECTIONS
FINISHING THE INSTALLATION 6
1
BLADE INSTALLATION 7
INSTALLING THE SWITCH BOX PLATE&SWITCH CAP 8
2
OPERATING THE REMOTE CONTROL/WALL CONTROL 9
3
CARE OF YOUR FAN
4
TROUBLESHOOTING 11
5

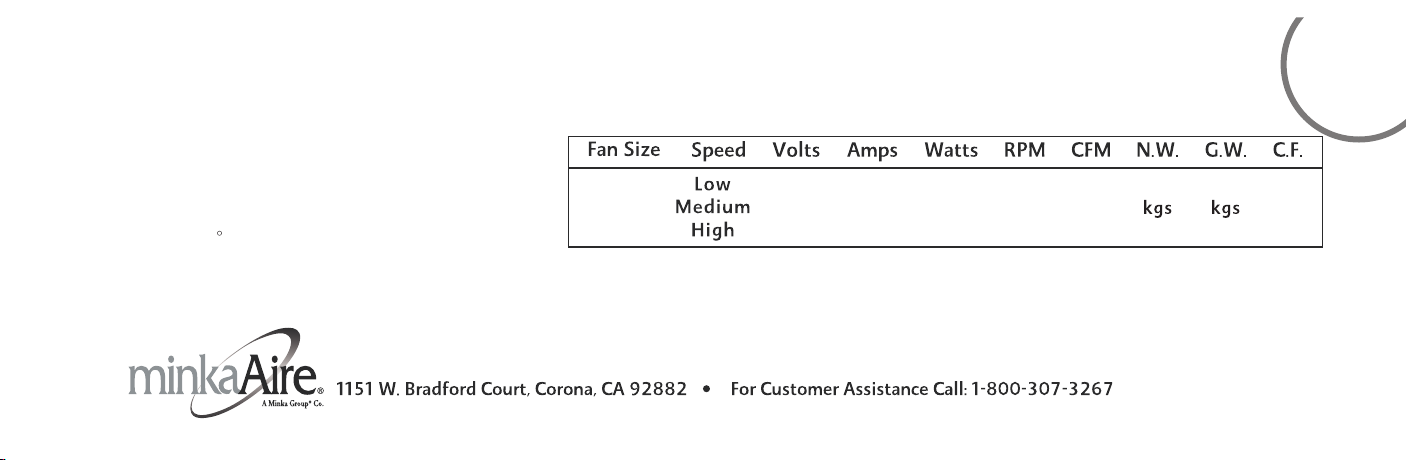

SPECIFICATIONS
CONTENTS
10
12
E163438
Page 6
1
SAFETY RULES
Before you begin installing the fan, shut power off the circut breaker of the fuse box.
1.
2. Be cautious!Read all instuctions and safety information before installing your new fan. Review accompanying assembly diagrams.
3. Make sure that all electrical connections comply with local codes, ordinance, or National Electrical Codes.Hire a qualified electrician or
consult a do-it-your self wiring handbook if you are unfamiliar with installing electrical wiring.
4. Make sure the installation site you choose allows the fan blades to rotate without any obstructions. Allow a minimum clearance of 7 feet
from the floor and 18 inches from the top of the blades to the wall.
5. If you are mounting the fan to a ceiling fan outlet box, use a U.L Listed metal octagonal outlet box marked"Acceptable For Fan Support".
Secure the box directly to the building structure. The outlet box and its support must be able to support the moving weight of the fan (at
least 50 pounds). Do not use a plastic box.
6. Caution: To reduce the risk of injury use only the screws provided with the outlet box in conjunction with the lock washers provided with
the fan.
7. If you are mounting the fan to a joist, make sure it is able to support the moving weight of the fan (at least 50 pounds).
8. After you install the fan, make sure that all mounting components are secured to prevent the fan from falling.
9. Do not insert anything into the fan blades while the fan is operating.
10. To operate the reverse function on this fan, press the reverse button while the fan is running.
Page 7
NOTE: The important safeguards and instructions appearing in this manual are not meant to cover all possible conditions and
situations that may occur. It must be understoood that common sense,caution and care are factors which can not be built into
this product. These factors must be spplied by the person(s) installing, caring for and operating the unit.
NOTE: READ AND SAVE ALL INSTRUCTIONS!
TO REDUCE THE RISK OF FIRE,ELECTRIC SHOCK OR OTHER PERSONAL INJURY, MOUNT FAN ONLY TO A U.L LISTED OUTLET BOX OR SUPPORTING
SYSTEM MARKED ACCEPTABLE FOR FAN SUPPORT AND USE MOUNTING SCREWS PROVIDED WITH THE OUTLET BOX IN CONJUCTION WITH THE
LOCK WASHERS PROVIDED WITH THE FAN. MOST OUTLET BOXS COMMONLY USED FOR FAN SUPPORT OF LIGHTING FIXTURES ARE NOT
ACCEPTABLE FOR FAN SUPPORT AND NEED TO BE REPLACED. CONSULT A QUALIFIDE ELECTRICIAN IF IN DOUBT.
TO REDUCE THE RISK OF PERSONAL INJURY, DO NOT BEND THE BLADE HOLDERS WHILE INSTALLING BALANCING THE BLADES OR CLEANING
THE FAN. DO NOT INSERT FOREIGN OBJECTS BETWEEN ROTATING FAN BLADES.
TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK.DO NOT USE THIS FAN WITH ANY SOLID-STATE SPEED CONTROL DEVICE.
WARNING
Page 8
2
PACKAGE CONTENTS
Unpack your fan and check the contents.You should have the following items:
1. Fan blades(4)
2. Hanger bracket
3. Canopy
4. Canopy cover
5. Coupling cover
6. Standard downrod assembly(6")
Minimum-length downrod(3.5")
7. Fan motor/housing assembly
8. Blade holders (4)
9. Switch box plate
10. Switch cup
11. Receiver with 6 wire nuts
12. Transmitter+holder+2 mounting screws
13. Balancing kit
A. Mounting hardware:
Wire nuts(3)
Machine screws (2)
Wood screws (2)
Star washers (2)
Lock washers (2)
Spring washers (2)
B. Blade attatchment hardware:
3/16*1/4mm Screws(13)
Paper washers(13)
C. Blade holder attachment hardware:
Blade holder screws(9)
3
1
2
4
5
6
7
8
9
10
11
12
13
A
B
C
Page 9
INSTALLING THE FAN
Tools Required: Philips screw driver, slotted screw driver,step-ladder, wire cutters,electrical tape.
MOUNTING OPTIONS
If there isn't an existing mounting box, then read the following instructions. Disconnect the
power by removing fuses or turning off circuit breakers.
Secure the outlet box directly to the building structure. Use appropriate fasteners and
building mateials. The outlet box and its support must be able to fully support the moving
weight of the fan (at least 50 lbs.).Use a UL listed metal outlet box. Do not use a plastic
outlet box.

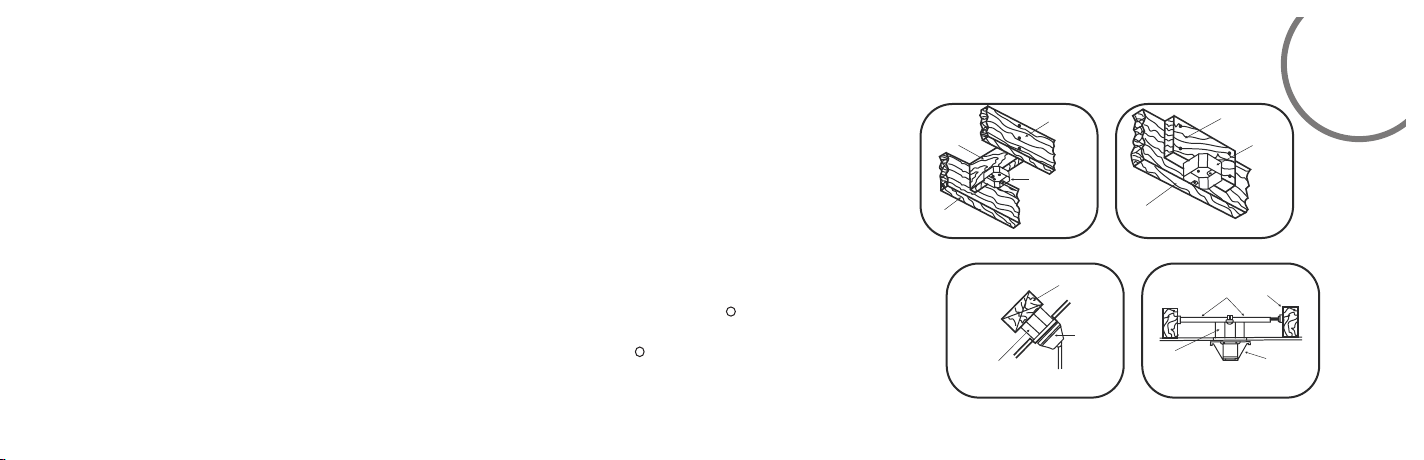

Figure1,2 and 3 are examples of different ways to mount the outlet box.
Note: You may need a longer downrod to maintain proper blade clearance when installing on
a steep, sloped ceiling. Longer downrods are available from your Minka-Aire dealer.
To hang your fan where there is an existing fixture but no ceiling joist, you may need to
install a hanger bar as shown in Fig.4(available at your Minka Aire dealer or local hardware
R
store)
R
CROS S BRACE
CEIL ING
jOIS T
FIG. 1
ANGL ED CEIL ING
MAXI MUM 20°AN GLE
RECE SSED
OUTL ET BOX
FIG. 3
CEIL ING
JOIS T
OUTL ET BOX
PROV IDE
STRO NG
SUPP ORT
HANG ER
OPEN ING
must be
FACING
UPSI DE
CEIL ING JOIS T OR
CROS S BRACE
FIG. 2
OUTL ET BOX
FIG. 4
PARAL LEL WOOD BRACE
(MIN . 2’’ THICK )
OUTL ET
BOX
CEIL ING
HANG ER BAR
(OPT IONAL )
JOIS T
HANG ER
BRAC KET
3
Page 10
4
HANGING THE FAN
WARNING: All of the parts, hardware and components such as the
hanger bracket and hanger ball have been provided for your safety and
the proper installation of your new ceiling fan. The use of other
parts,hardware or components not supplied by Minka Aire with the fan
will void the Minka Aire Warranty.
REMEMBER to turn off the power. Follow the steps below to hang your
fan properly:

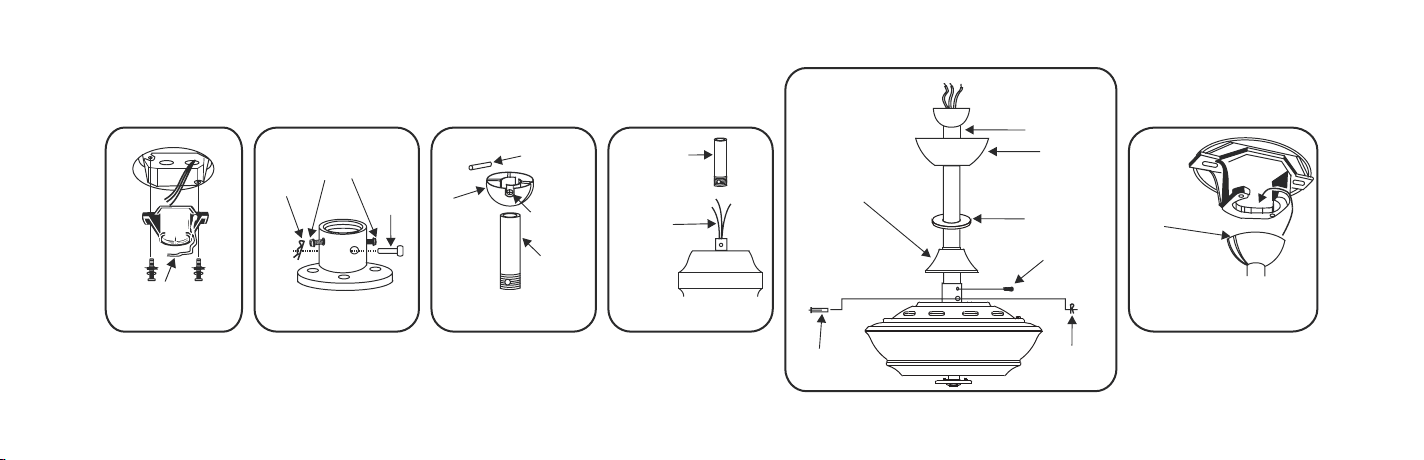

Step 1.Secure the hanger bracket to the ceiling outlet box using screws
and washers included with mounting hardware.(Fig.5)
Stpe 2.Lossen the two set screws and remove the hitch pin and lock pin
from the top coupling of the motor assembly.(Fig 6)
Step 3.Remove hanger ball from downrod assembly by loosening set
screw,removing the cross pin, and sliding ball off rod.(Fig 7)
R
R
Step 4.Carefully feed fan wires up through the downrod(Fig 8).
Thread the rod into the coupling, next line up holes and replace lock
pin and hitch pin. Tighten set screws.

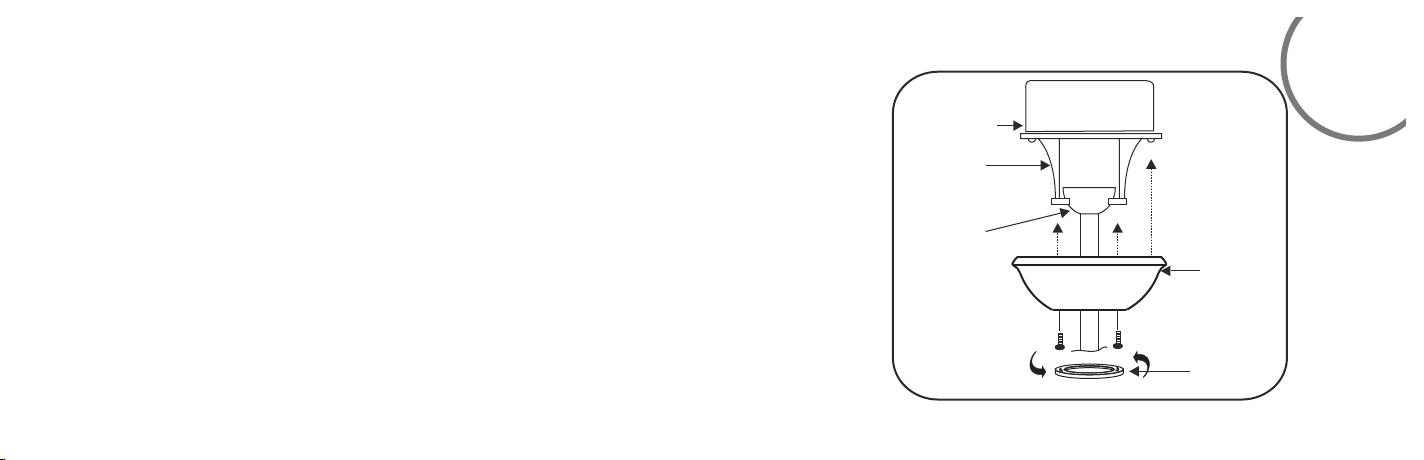

Step5.Slip coupling cover, canopy cover, and canopy onto downrod
(Fig.9).Carefully reinstall hanger ball onto rod being sure that cross
pin is in the correct position, set screws are tighten and wires are
not twisted.
NOTE:DO NOT INSTALL THE COUPLING COVER IF YOU PLAN TO USE
THE MINIMUM LENGTH DOWNROD.
Step 6. Now lift motor assembly into position and place hanger ball
into hanger bracket. Rotate until the check groove has dropped into
the registration slot and seats firmly.(Fig 10)Rod should not rotate
if this is done correctly.
Page 11
OUT LET BOX
HAN GER BR ACK ET
Fig. 5
HIT CH
PIN
Fig. 6
SET SCREW S
LOC K
PIN
HAN GER
BAL L
Fig. 7
CRO SS PIN
SET SCREW
DOW NROD
DOW NROD
SUP PLY
WIR ES
Fig. 8
COUPLING
*OMIT COUPLING
COVER WHEN USING
THE MINIMUM-LENGTH
DOWNROD
DOWNROD
CAN OPY
CAN OPY
COV ER
SET SCREWS
REGISTRATION
SLOT
Fig. 10
LOCK PIN
Fig. 9
HITCH PIN
Page 12
5
WARNING:To avoid possible electrical shock be sure electricity
NOTE: The Aire Control System is equipped with a learning frequency
function which has 256 code combinations to prevent potential
interference from other remote units.The frequency on your Receiver
and Transmitter units have been preset at the factory. (Fig.11) No
frequency change is necessary, should you desire to install another
fan whithin the same home or area with a separate frequency code
please see the ”frequency interference ”troubleshooting section
of this instruction manual to learn how to change the frequency.

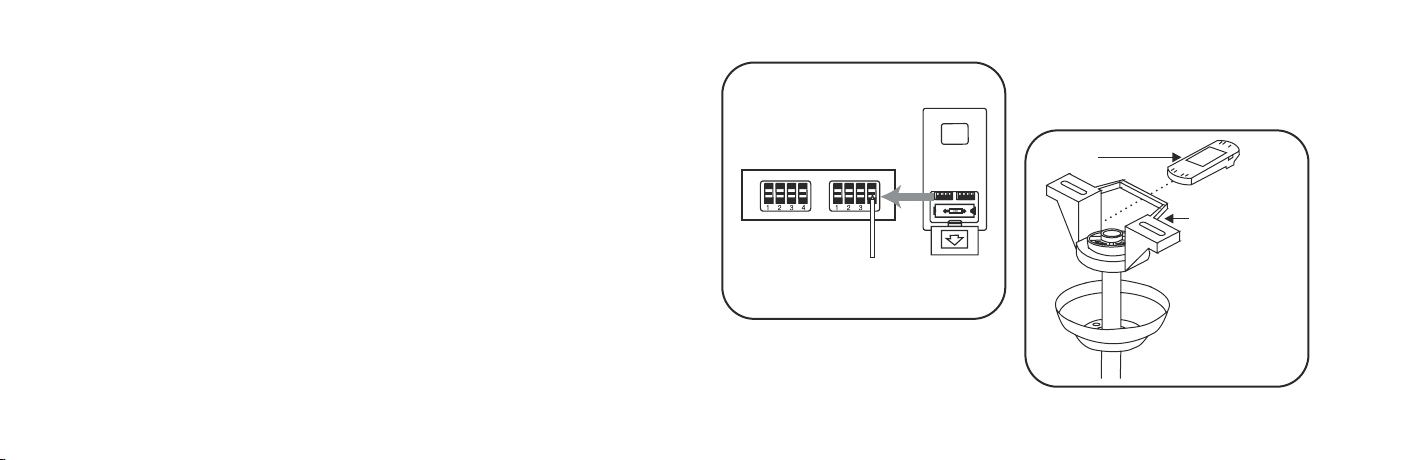

Step 1. Insert Receiver into Hanger Bracket with the flat side of
the Receiver facing the ceiling.(Fig.12)
ELECTRICAL CONNECTIONS
is turned off at the main fuse or breaker box before wiring.
R
Step 2. Motor to Receiver Electrical Connections: Connect the WHITE
wire from the fan to the WHITE wire marked”TO MOTOR N” from
the Receiver. Connect the BLACK wire from the fan to the BLACK
wire marked”TO MOTOR L” from the Receiver. Connect the BLUE wire
from the fan to the BLUE wire marked”For Light” from the Receiver.
NOTE: If your ceiling fan features an UP Light: Connect the ORANGE
wire from the fan to the ORANGE wire marked “ For Up Light ” from
the Receiver. Otherwise disregard this step and proceed to secure all
wire connections with the plastic wire nuts provided.(Fig.13)
Note:Fan must be installed from a maximum distance of 40 feet from
the transmitting unit for proper signal transmission between the
transmitting unit and the fan’s receiving unit.
Page 13

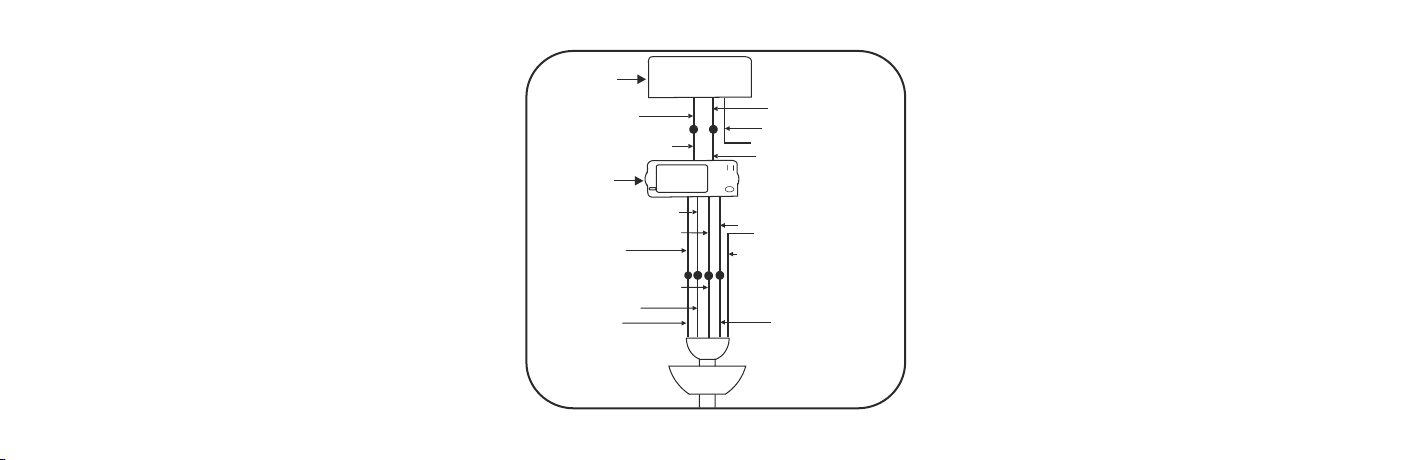

Step 3.Receiver to House Supply Wires Electrical connections:Connect
the WHITE wire(Neutral) from the outlet box to the WHITE wire
marked”AC in N” from the receiver. Connect the BLACK wire(Hot) from
the outlet box to the BLACK wire marked “AC in L” from the receiver.
Secure all wire connections with the plastic wire nuts provided.(Fig.13)
Step 4.If your outlet box has a GROUND wire (Green or Bare Copper)
connect this wire to the Hanger Ball and Hangerf Bracket Ground wires.
If your outlet box does not have a Ground Wire, then connect the
Hanger Ball and Hanger Bracket Ground Wire together. Secure wire
connection with the plastic wire nut provided.(Fig. 13)
After all splices are made,check to make sure there are no loose strands.
As an additional precaution we suggest to secure the plastic wire
connectors to the wires with electrical tape.
RECEIVER
HANGER BRACKET
Fig. 11
Fig. 12
Page 14
OUTLET BOX
BLACK (HOT)
BLACK ( AC IN L )" "
RECEIVER
BLACK ( TO MOTOR L )" "
BLUE (FOR LIGHT)
ORANGE
(FOR UPPER LIGHT)
BLUE (FOR LIGHT)
BLACK (MOTOR)
ORANGE
(FOR UPPER LIGHT)
Fig. 13
WHITE (NEUTRAL)
GREEN OR BARE
COPPER (GROUND)
WHITE ( AC IN N )" "
WHITE ( TO MOTOR N )" "
(CONNECT TO
GROUND-
GROUND WIRE ON
(GREEN)
HANGER BRACKE
IF NO HOUSE
GROUND WIRE
EXISTS.)
WHITE (NEUTRAL)
Page 15
FINISHING THE INSTALLATION
Step1.Remove the two screws from the hanger bracket.
Step2.Slide the canopy up to the ceiling, then secure the two screws previously removed.
Step3. Slide the canopy cover up to the canopy. Rotate canopy clockwise until snug.(Fig.14)
OUTLET BOX
HANGER
BRACKET
HANGER
BALL
6
CANOPY
Fig. 14
CANOPY
COVER
Page 16
7
THE FOLLOWING OPERATION MUST BE ACCOMPLISHED BEFORE
INSTALLING THE GLASS SHADE.

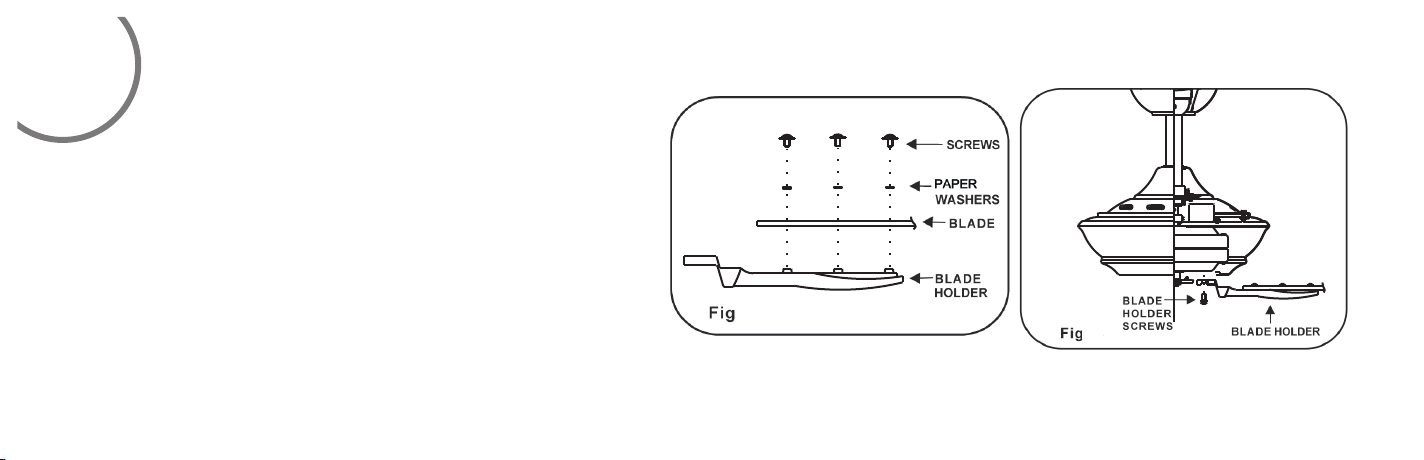

Step 1.Attach the fan blade to the blade holder using the screws
and paper washers provided. Tighten screws securely. Repeat
process for remaining blades.(Fig.15)
Step2.Remove the rubber stops from motor.Rotate the motor so
that the screw holes in motor are aligned with the holes in blade
holder and secure with proper screws. Repeat process for the other
blade holders.(Fig. 16)
BLADE INSTALLATION
15
16
Page 17
INSTALLING THE SWITCH BOX
PLATE&SWITCH CUP
Step1.Remove 1of 3screws from the mounting ring and loosen the other 2
screws.(Do not remove.) (Fig.17)
Step2.Place the key holes from the switch box plate over the 2 screws previously
loosened from the mounting ring , turn switch box plate until it locks in place
at the narrow section of the key holes. Secure by tightening the 2 screws
previously loosened and the one previously removed.(Fig.17)

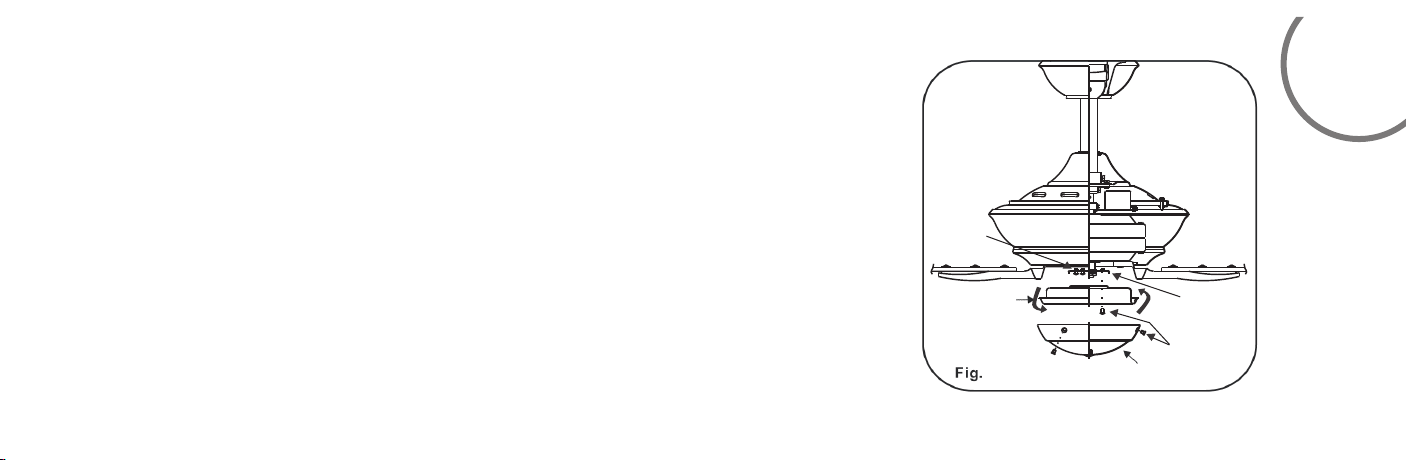

Step3.Remove the three screws from the rim of the switch box plate. Align the holes
in the switch cup with the holes in the switch box plate. Tighten the three
screws.(Fig. 17)
LOO SENED
SCR EWS
SWI TCH B OX
PLAT E
17
mount ing
ring
SCREWS
SWI TCH C UP
8
Page 18
9
Restone Power to ceiling Fan.
A. Buttons:
These buttons are used to set the fan speeds as follows;
=Low Speed
=Medium Speed
=High speed
B. Button:
This button turns the fan off.
C. Button:
These buttons turn the light ON or OFF and also control
the brightness settings of the light . The following
OPERATING THE REMOTE CONTROL /WALL CONT ROL
Remote Control only:Install a A23,12 Volt battery(included.)To prevent damage to transmitter remove the battery if not used for long periods of time.
instructions apply to ceiling fans that feature a
DOWN light ( button) only or ceiling fans that
feature an UP light( button ) and a DOWN light
( button ) that are controlled independent of
each other;
Press and release the button for the desired light
to turn the light ON or OFF. Press and hold the
button to set the desired light brightness. The
light will cycle between bright and dim setting as
long as the button is pressed.The light key has an
automatic auto-resume feature that allows the
light to remain at the same brightness as the last
time it was turned off.
Please note: If using light kit Model K9380 or any
other Light kit which uses CFL bulbs your Dimming
function will be disabled
D.OFF-ON Slide Button(Wall Control
fans Only)
This button turns the power Off and
On to the fan and light(s).
E. Button :(Full Function Remote
Control Units Only)
This button is used to change the
direction of the rotation of the
blades:forward for warm weather or
reverse for cool weather.
NOTE:If your Remote Control or wall
control does not have a” ” button,
please look for a slide reverse switch
on the motor housing.
Page 19
speed settings for warm or cold weather depend
on factors such as room size, ceiling height and
number of fans.
NOTE : Wait for fan to stop before changing the
setting of the slide switch.
Warm Weather(forward)

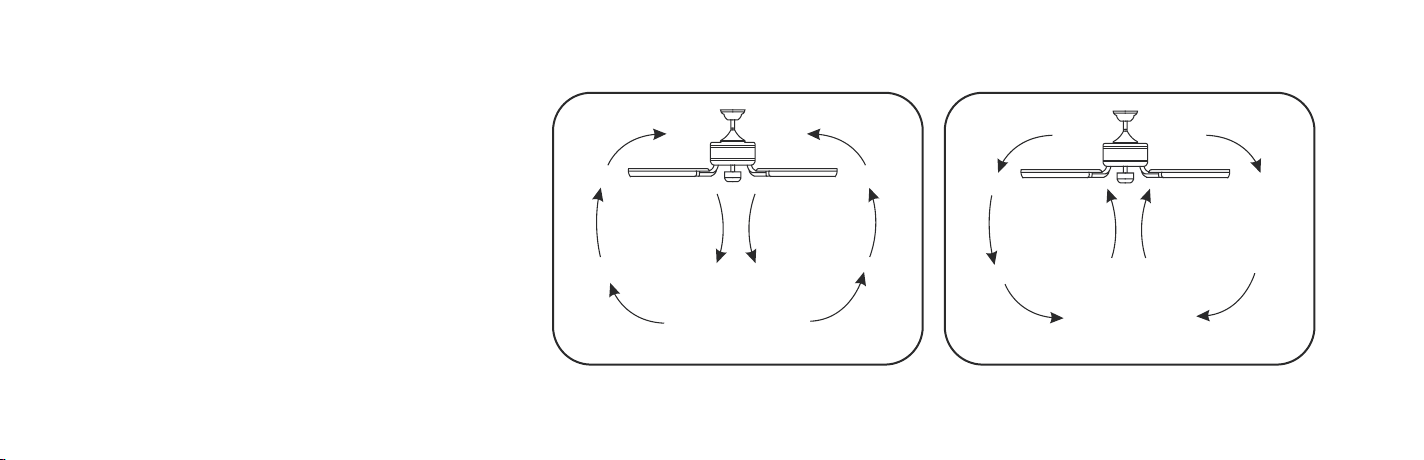

A DOWNWARD airflow creates a cooling effect
as shown in Figure18.This allows you to set
your air conditioner on a warmer setting without
affecting your comfort.
Cool Weather(Reverse)
An UPWARD airflow moves warmer air off the
ceiling area as shown in Figure 19. This allows
you to set your heating unit on a cooler setting
without affecting your comfort.
Fig. 18
SUMMER OPERATION
WINTER OPERATION
Fig. 19
Page 20
CARE OF YOUR FAN
10
Here are some suggestions to help maintain your fan.
1.Because of the fan’s natural movement some connections may
become loose. Check the support connections, brackets and blade
attachment twice a year. Make sure they are secure.(It is not necessary
to remove fan from the ceiling).
2.Clean your fan periodically to help maintain its new appearance over
the years. Use only a soft brush or lint free cloth to avoid scratching
the finish. Plated finishes are sealed with lacquer to minimize
discoloration or tarnishing.
Do not use water when cleaning, this could damage the motor, wood
blades or possibly cause an electrical shock.
3.Use a lint free lightly damp cloth or duster to remove dust from the
blades.
4.There is no need to oil your fan. The motor has permanently
lubricated bearings.
5.If your fan is provided with glass shades, clean with lukewarm
soapy water and a soft cloth or sponge.DO NOT IMMERSE
GLASS SHADES IN HOT WATER. DO NOT PUT GLASS SHADES
INTO AN AUTOMATIC DISHWASHER.
WARNING
MAKE SURE THE POWER IS OFF AT THE ELECTRLCAL PAEL BOX
BEORE YOU ATTEMPT ANY REPAIRS. REFER TO THE
SECTION”ELECTRICAL CONECTIONS”.
Page 21
TROUBLESHOOTING
11
SYMPTOM
Fan will not start
SOLUTION
Check to make sure the wall switch is turned on.
Check circult fuses or breakers.
Caution! Make sure the power is turned off before performing the
following steps.
Remove canopy and check wire connections.
Check wall control transmitter connections(if applicable).
Note:fan must be installed at a maximum distance of 40 feet from
the transmitting unit for proper signal transmission between the
transmitting unit and the fan’s receiving unit.
SYMPTOM
Fan Sounds Noisy
SOLUTION
Allow a 24 - hour “ break in ” period. Most noises associated
with a new fan will go away during this time.
Make sure the screws that attach the fan blade holder to the
motor hub is tight.
Make sure outlet box is secured to building structure, if
necessary use the wood screws provided to fruther secure
outlet box to joist.
Make sure hanger bracket is secure to the outlet box,screws are
tight.
Page 22
SYMPTOM
Fan Wobble
SOLUTION
NOTE:All b lade sets ar e grouped by w eight. Because wood and plastic
blades var y in density , the fan may wo bble even though blades are
matched.
Make sure ou tlet box is se cured to bui lding structure, if necessary use
the wood scr ews provid ed to furthe r secure outlet box to joist.
Make sure ha nger brack et is secure t o the outlet box, screws are tight.
Use the bala ncing kit pr ovided if th e wobble is excessive (follow
instruct ions inclu ded with bal ancing kit)
SYMPTOM
Fans/Lig ht Turn on and O ff Unexpec tedly
SOLUTION
This is caus ed by interf erence. Pl ease see “Freduency interference” for step
to charge th e frequenc y.
SYMPTOM
Frequenc y Interfer ence
SOLUTION
1.Turn the p ower off to yo ur ceiling f an.
2.Please u se a small siz e tool to chan ge the frequency settings on the control
system.
3.Returm p ower to the un it.
Note:Aft er the AC powe r is on, do not pr ess any other button on the
transmit ter before p ressing th e “Stop” button,doing so will cause the
procedur e to fail.
4.Within 6 0 secounds o f turning th e fan’s AC power ON. Press the
transmit ter’s “Sto p” button an d hold the “Stop ” butto n for 10 secon ds.
5.Once the r eceiver ha s detected t he set frequency, the down light of your fan
i
if applica ble will bli nk twice.( there is no indication if your fan is not equipped
with a light ).
6.The rece iver has now l earn the fre quency which has been selected on the
transmit ter. After c ompletin g the steps above,you should be able to operate
the ceilin g fan and ligh t. If the fan is n ot responding to the transmitter. please
turn the pow er off to the re ceiver,a nd repeat the process.
Page 23
These are typical readings. Your actual fan may vary.
They do not include amps and wattage used by
the light (s).
For any additional information about your
Minka Aire Ceiling fan, please write to:
R
R
52”
120
120
120
0.306
0.507
0.611
SPECIFICATIONS
11.40
37.20
72.90
71
138
194
1882.33
3841.84
5532.56
8.70
10.00
1.74
12
12
Page 24
1991.49
4214.18
6132.42
11.80
35.10
69.90
168.77
116.74
87.73
Loading...
