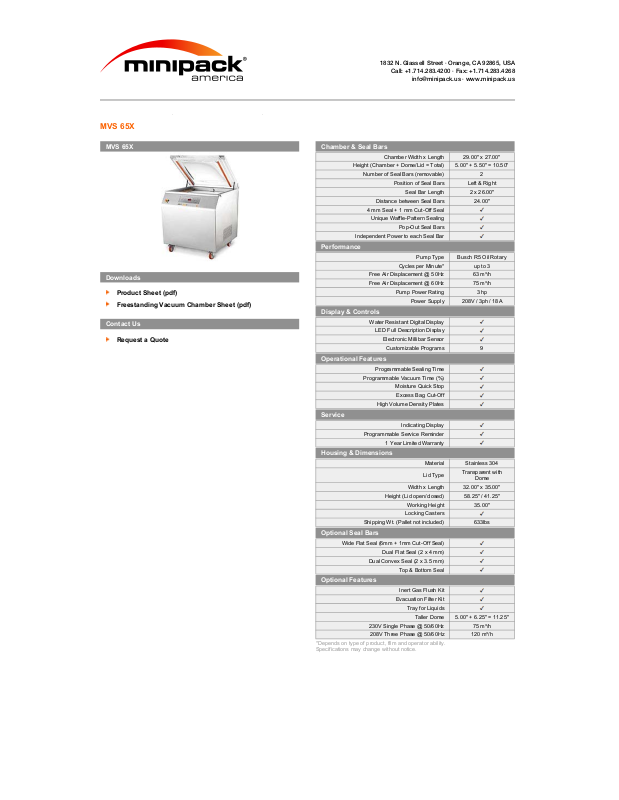

MVS 65X

1832 N. Glassell Street · Orange, CA 92865, USA

Call: +1.714.283.4200 · Fax: [phone]

[e-mail] · www.minipack.us

MVS 65X

Downloads

Product Sheet (pdf)

Freestanding Vacuum Chamber Sheet (pdf)

Contact Us

Request a Quote

*Depends on type of product, film and operator ability.
Specifications may change without notice.

Chamber & Seal Bars

Chamber Width x Length 29.00" x 27.00"

Height (Chamber + Dome/Lid = Total) 5.00" + 5.50" = 10.50"

Number of Seal Bars (removable) 2

Position of Seal Bars Left & Right

Distance between Seal Bars 24.00"

4 mm Seal + 1 mm Cut-Off Seal

Unique Waffle-Pattern Seal ing

Independent Power to each Seal Bar

Performance

Free Air Displacement @ 50Hz 63 m³/h

Free Air Displacement @ 60Hz 75 m³/h

Display & Controls

Water Resistant Digital Displa y

LED Full Description Display

Electronic Millibar Sensor

Customizable Programs 9

Operational Features

Programmable Sealing Time

Programmable Vacuum Time (%)

High Volume Density Plates

Service

Programmable Service Reminder

1 Year Limited Warranty

Housing & Dimensions

Height (Lid open/closed) 58.25" / 41.25"

Shipping Wt. (Pallet not included) 633lbs

Optional Seal Bars

Wide Flat Seal (6mm + 1mm Cut-Off Seal)

Dual Flat Seal (2 x 4 mm)

Dual Convex Seal (2 x 3.5 mm)

Optional Features

230V Single Phase @ 50/60Hz 75 m³/h

208V Three Phase @ 50/60Hz 120 m³/h

Seal Bar Length 2 x 26.00"

Pop-Out Seal Bars

Pump Type Busch R5 Oil Rota ry

Cycles per Minute* up to 3

Pump Power Rating 3 hp

Power Supply 208V / 3ph / 18A

Moisture Quick Stop

Excess Bag Cut-Off

Indicating Display

Material Stainless 304

Lid Type

Width x Length 32.00" x 35.00"

Working Height 35.00"

Locking Casters

Top & Bottom Seal

Inert Gas Flush Kit

Evacuation Filter Kit

Tray for Liquids

Taller Dome 5.00" + 6.25" = 11.25"

Transparent with

Dome
