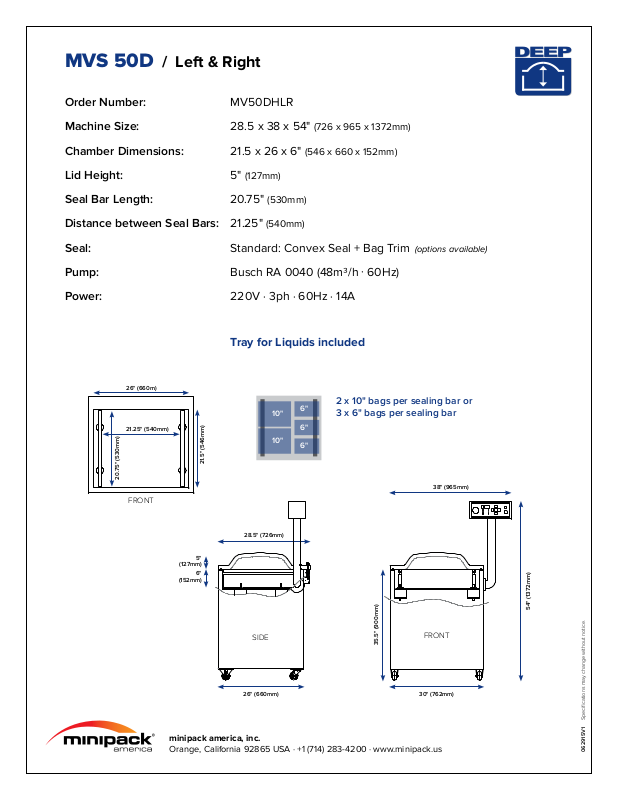

minipack MVS 50D User Manual

MVS 50D / Left & Right

Order Number: MV50DHLR

Machine Size: 28.5 x 38 x 54" (726 x 965 x 1372mm)

Chamber Dimensions: 21.5 x 26 x 6" (546 x 660 x 152mm)

Lid Height: 5" (127mm)

Seal Bar Length: 20.75" (530mm)

Distance between Seal Bars: 21.25" (540mm)

Seal: Standard: Convex Seal + Bag Trim (options available)

Pump: Busch RA 0040 (48m/h  60Hz)

Power: 220V · 3ph · 60Hz · 14A

Tray for Liquids included

26" (660m)

21.25" (540mm)

20.75" (530mm)

FRONT

(127mm)

(152mm)

21.5" (546mm)

5"

6"

10"

10"

28.5" (726mm)

SIDE

6"

6"

6"

2 x 10" bags per sealing bar or
3 x 6" bags per sealing bar

38" (965mm)

35.5" (900mm)

FRONT

54" (1372mm)

26" (660mm)

30" (762mm)

minipack america, inc.

Orange, California 92865 USA · [phone] · www.minipack.us

062915V1 Specifications may change without notice.
