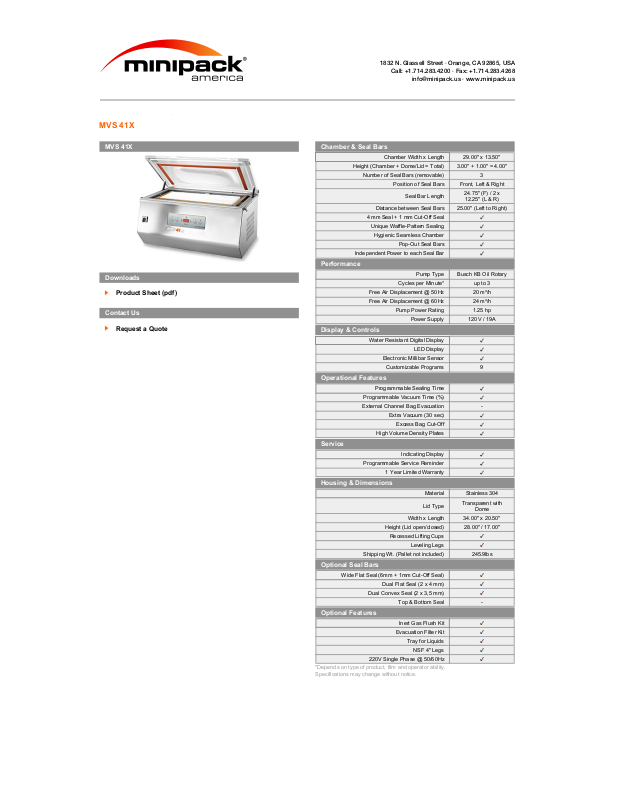

MVS 41X
1832 N. Glassell Street · Orange, CA 92865, USA
Call: +1.714.283.4200 · Fax: +1.714.283.4268
info@minipack.us · www.minipack.us
MVS 41X
Chamber & Seal Bars
Height (Chamber + Dome/Lid = Total) 3.00" + 1.00" = 4.00"
Number of Seal Bars (removable) 3
Distance between Seal Bars 25.00" (Left to Right)
4 mm Seal + 1 mm Cut-Off Seal
Unique Waffle-Pattern Se aling
Hygienic Seamless Chamber
Independent Power to each Seal Bar
Chamber Width x Length 29.00" x 13.50"
Position of Seal Bars Front, Left & Right
Pop-Out Seal Bars
Performance
Downloads
Product Sheet (pdf)
Contact Us
Request a Quote
Display & Controls
Cycles per Minute* up to 3
Free Air Displacement @ 50Hz 20 m³/h
Free Air Displacement @ 60Hz 24 m³/h
Pump Power Rating 1.25 hp
Water Resistant Digital Display
Electronic Millibar Sensor
Customizable Programs 9
Operational Features
Programmable Sealing Time
Programmable Vacu um Time (%)
External Channel Bag Evacuation -
Extra Vacuum (30 sec)
Excess Bag Cut-Off
High Volume Density Plates
Service
Programmable Service Reminder
1 Year Limited Warranty
Housing & Dimensions
Height (Lid open/closed) 28.00" / 17.00"
Recessed Lifting Cups
Shipping Wt. (Pallet not included) 245.9lbs
Optional Seal Bars
Wide Flat Seal (6mm + 1mm Cut-Off Seal)
Dual Flat Seal (2 x 4 mm)
Dual Convex Seal (2 x 3,5 mm)
Top & Bottom Seal -
Optional Features
Inert Gas Flush Kit
Evacuation Filter Kit
*Depends on type of product, film and operator ability.
Specifications may change without notice.
220V Single Phase @ 50/60Hz
Seal Bar Length
Pump Type Busch KB Oil Rotary
Power Supply 120V / 19A
LED Display
Indicating Display
Material Stainless 304
Lid Type
Width x Length 34.00" x 20.50"
Leveling Legs
Tray for Liquids
NSF 4" Legs
24.75" (F) / 2 x
12.25" (L & R)
Transparent with
Dome
