Mini Cooper 2007 User Manual

Download
Contents
A-Z
Owner's Manual
MINI
COOPER
COOPER S
Congratulations on your new MINI
This Owner's Manual should be considered a permanent part of this vehicle. It should stay with the vehicle when sold to provide the next owner with important operating, safety and mainte­nance information.
We wish you an enjoyable driving experience.
© 2006 Bayerische Motoren Werke
Aktiengesellschaft Munich, Germany Reprinting, including excerpts, only with the written consent of BMW AG, Munich. Order No. 01 41 0 013 096 US English XI/06 Printed in Germany Printed on environmentally friendly paper, bleached without chlorine, suitable for recycling.

Contents

The fastest way to find information on a particu­lar topic or item is by using the index, refer to page 134.
Using this Owner's Manual
4 Notes 6 Reporting safety defects
At a glance
10 Cockpit
Controls
18 Opening and closing 28 Adjustments 33 Transporting children safely 35 Driving 44 Everything under control 53 Technology for driving comfort and safety 59 Lamps 64 Climate 69 Practical interior accessories
Driving tips
76 Things to remember when driving
Mobility
84 Refueling 86 Wheels and tires 94 Under the bonnet 98 Maintenance 100 Care 102 Replacing components 112 Giving and receiving assistance 116 Indicator and warning lamps
Reference
130 Technical data 134 From A to Z
Reference At a glanceControlsDriving tipsMobility
3

Notes

Using this Owner's Man-
Notes
ual
We have tried to make all the information in this Owner's Manual easy to find. The fastest way to find specific topics is to refer to the detailed index at the back of the manual. If you wish to gain an initial overview of your vehicle, you will find this in the first chapter.
Should you wish to sell your MINI at some time in the future, remember to hand over this Owner's Manual to the new owner; it is an important part of the vehicle.
Additional sources of information
Should you have any other questions, your MINI Dealer will be glad to advise you at any time.
You can find more information about the MINI, for example on its technology, on the Internet at www.MINI.com.

Symbols used

Indicates precautions that must be fol-
lowed precisely in order to avoid the pos­sibility of personal injury and serious damage to the vehicle.
Indicates information that will assist you in
gaining the optimum benefit from your vehicle and enable you to care more effectively for your vehicle.
Refers to measures that can be taken to
help protect the environment.
< Marks the end of a specific item of informa-
tion.
*
Indicates special equipment, country-specific equipment and optional extras, as well as equip­ment and functions not yet available at the time of printing.
Symbols on vehicle components
Indicates that you should consult the rele­vant section of this Owner's Manual for
information on a particular part or assembly.
4

The individual vehicle

For your safety

The manufacturer of your MINI is the Bayerische Motoren Werke Aktiengesellschaft, BMW AG.
When you ordered your MINI, you chose various items of equipment. This Owner's Manual describes the entire array of options and equip­ment that the manufacturer of your MINI makes available with a specific model range.
Bear in mind that the manual may contain infor­mation on accessories and equipment that you have not specified for your own vehicle. Sections describing options and special equipment are
*
marked by asterisks possible differences between the descriptions in this manual and your own vehicle's equipment.
If your MINI features equipment not described in this Owner's Manual, observe the enclosed Sup­plementary Owner's Manuals.
to assist you in identifying

Editorial notice

The manufacturer pursues a policy of continu­ous, ongoing development that is conceived to ensure that MINI vehicles continue to embody the highest quality and safety standards com­bined with advanced, state-of-the-art technol­ogy. For this reason, it is possible in exceptional cases that features described in this Owner's Manual could differ from those on your vehicle.
Maintenance and repair
Advanced technology, e.g. the use of
modern materials and powerful electron­ics, requires specially adapted maintenance and repair methods. Therefore, have the necessary work on your MINI only carried out by a MINI Dealer or a workshop that has specially trained personnel working in accordance with the spec­ifications of the MINI manufacturer. If this work is not carried out properly, there is a danger of subsequent damage and related safety haz­ards.<
Parts and accessories
For your own safety, use genuine parts
and accessories approved by the manu­facturer of the MINI.
When you purchase accessories tested and approved by the manufacturer of the MINI and Original MINI Parts, you simultaneously acquire the assurance that they have been thor­oughly tested by the manufacturer of the MINI to ensure optimum performance when installed on your vehicle.
The manufacturer of the MINI warrants these parts to be free from defects in material and workmanship.
The manufacturer of the MINI will not accept any liability for damage resulting from installation of parts and accessories not approved by the man­ufacturer of the MINI.
The manufacturer of the MINI cannot test every product made by other manufacturers to verify if it can be us ed on a MINI safel y and w ithou t ris k to either the vehicle, its operation, or its occu­pants.
Original MINI Parts, MINI Accessories and other products approved by the manufacturer of the MINI, together with professional advice on using these items, are available from all MINI Dealers.
Installation and operation of non-MINI approved accessories such as alarms, radios, amplifiers, radar detectors, wheels, suspension components, brake dust shields, telephones,
Reference At a glanceControlsDriving tipsMobility
5
including operation of any mobile phone from
within the vehicle without using an externally mounted antenna, or transceive r equipment, for instance, CBs, walkie-talkies, ham radio or simi­lar accessories, may cause extensive damage to
Notes
the vehicle, compromise its safety, interfere with the vehicle's electrical system or affect the valid­ity of the MINI Limited Warranty. See your MINI Dealer for additional information.<
Maintenance, replacement, or repair of
the emission control devices and systems may be performed by any automotive repair establishment or individual using any certified automotive part.<
California Proposition 65 warning
California law requires us to issue the following warning:
Engine exhaust and a wide variety of
automobile components and parts, including components found in the interior fur­nishings in a vehicle, contain or emit chemicals known to the State of California to cause cancer and birth defects and reproductive harm. In addition, certain fluids contained in vehicles and certain products of component wear contain or emit chemicals known to the State of California to cause cancer and birth defects or other repro­ductive harm.
Battery posts, terminals and related accessories contain lead and lead compounds. Wash your hands after handling.
Used engine oil contains chemicals that have caused cancer in laboratory animals. Always protect your skin by washing thoroughly with soap and water.<

Service and warranty

We recommend that you read this publication thoroughly.
Your MINI is covered by the following warran­ties:
> New Vehicle Limited Warranty > Rust Perforation Limited Warranty > Federal Emissions System Defect Warranty > Federal Emissions Performance Warranty > California Emission Control System Limited
Warranty
Detailed information about these warranties is listed in the Service and Warranty Information Booklet for US models or in the Warranty and Service Guide Booklet for Canadian models.

Reporting safety defects

For US customers
The following applies only to vehicles owned and operated in the US.
If you believe that your vehicle has a defect which could cause a crash or could cause injury or death, you should immediately inform the National Highway Traffic Safety Administration, NHTSA, in addition to notifying MINI of North America, LLC, P.O. Box 1227, Westwood, New Jersey 07675-1227, Telephone 1-800-831-
1117. If NHTSA receives similar complaints, it may
open an investigation, and if it finds that a safety defect exists in a group of vehicles, it may order a recall and remedy campaign. However, NHTSA cannot become involved in individual problems between you, your dealer, or MINI of North America, LLC.
To contact NHTSA, you may call the Vehicle Safety Hotline toll-free at 1-888-327-4236 (TTY: 1-800-424-9153); go to http://www.safercar.gov; or write to: Administrator, NHTSA, 400 Seventh Street, SW., Washington, DC 20590. You can also obtain
6
other information about motor vehicle safety
from http://www.safercar.gov
For Canadian customers
Canadian customers who wish to report a safety-related defect to Transport Canada, Defect Investigations and Recalls, may call 1-800-333-0510 toll-free from anywhere in Canada or 1-613-993-9851 from the Ottawa region and from other countries, or contact Transport Canada by mail at: Transport Canada, ASFAD, Place de Ville, Tower C, 330 Sparks Street, Ottawa, ON, K1A 0N5.
You can also obtain other information about motor vehicle safety from http://www.tc.gc.ca
Reference At a glanceControlsDriving tipsMobility
7

At a glance

At a glance
Controls
Driving tips
Mobility
Reference

Cockpit

Around the steering wheel: Controls and displays

Cockpit
10
1 Folding exterior mirrors in and out*31
2
Parking lamps 59
Low beams 59
Automatic headlamp control
Turn signals 39
*
59
Buttons
*
on left of steering wheel
Telephone*:
> Press: accepting and ending a
call, starting dialing selected phone number and redialing if no phone number is selected
> Press longer: redialing
*
of
High beams, headlamp flasher 61
Roadside parking lamps
Computer
3 Tachometer 12
Instrument lighting 62
4
5
6 Ignition lock 35 7 Buttons
Wiper system 40
Switching the ignition on/off and starting/stopping the engine 35
*
on right of steering wheel
Continuing cruise control
Storing speed and accelerating or decelerating
Volume
*
61
*
45
8 Horn: the entire surface 9 Adjusting the steering wheel 32 10 Releasing the bonnet 94
*
42
Activating/deactivating voice com­mand system
Changing radio station Selecting music track Scrolling through phone book and lists with stored phone numbers
*
Activating/deactivating cruise
*
control
42
Reference At a glanceControlsDriving tipsMobility
11

Displays

Cockpit
1 Tachometer 44
> Indicator and warning lamps 13
2 Display for
> Clock 44 > Outside temperature 44 > Current vehicle speed 44 > Indicator and warning lamps 13
3 Resetting the trip odometer 44
4 Display for
> Position of automatic transmission > Computer > Date of next scheduled service, and
remaining distance to be driven 49
> Odometer and trip odometer 44 > Initializing Flat Tire Monitor 55 > Settings and information 46 > Personal Profile settings 18
5 Instrument lighting 62 6 Speedometer
> Indicator and warning lamps 13
7 Fuel gauge 45 8 Radio display, refer to separate Owner's
Manual
9 Radio, refer to separate Owner's Manual
*
45
*
37
12
Indicator and warning
lamps
The concept
Indicator and warning lamps can light up in var­ious combinations and colors in the indicator areas 1 and 2.
Some lamps are checked for proper functioning and thus come on briefly when the engine is started or the ignition is switched on.
What to do in case of a malfunction
A list of all indicator and warning lamps, as well as notes on possible causes of malfunctions and on how to respond, can be found starting on page 116.
Reference At a glanceControlsDriving tipsMobility
13

Around the center console

Cockpit
14
1 Microphone for voice command system
and for telephone in hands-free mode
2 Indicator/warning lamp* for front passen-
ger airbags 58
3
Reading lamps
*
63
*
*
Automatic air distribution and flow
*
67
rate
Maximum cooling
Cooling function
*
*
65, 68
67
Color of ambient lighting
Glass sunroof, electric
Interior lamps 62
4 Hazard warning flashers 5 Speedometer 12 6 Audio CD drive 7 Switching audio sources on/off and adjust-
ing volume
8 Heating, air conditioner or automatic cli-
mate control
*
*
Temperature 65, 67
Recirculated-air mode 65, 67
AUC automatic recirculated-air con­trol
*
and recirculated-air mode 67
Air distribution for air conditioner 65
Air distribution to the
*
windshield Air distribution to the upper body
*
area
67
67
*
63
*
26
Defrosting windows
Rear window defroster 65, 67
Windshield heating
Air flow rate 65, 66
9 Switches in center console
Seat heating
Power windows 26
Rear fog lamp
Central locking system, inside 22
Fog lamps
10 Driving stability control systems
> ASC All-Season Traction Control > DSC Dynamic Stability Control
11 Sport button
*
*
39
*
*
*
30
*
62
62
66, 67
66, 68
*
*
54
54
Air distribution to the footwell
*
67
Reference At a glanceControlsDriving tipsMobility
15
At a glance

Controls

Controls
Driving tips
Mobility
Reference

Opening and closing

Keys/remote controls

Remote control with integrated key
Each remote control contains a rechargeable battery that is automatically recharged when it
Opening and closing
is in the ignition lock while the car is being driven. You should therefore use each remote control at least twice a year to maintain the charge status. In vehicles equipped with conve-
*
nient access replaceable battery, page 25.
If more than one remote control is used, the set­tings called up and implemented depend on which remote control is recognized when the car is unlocked, refer to Personal Profile, page 18.
In addition, information about service require­ments is stored in the remote control, refer to Service data in the remote control, page 98.
Integrated key
Press button 1 to release the key. The integrated key fits the following locks:
> Driver's door, page 21
, the remote control contains a
New remote controls
Your MINI Dealer can supply new remote con­trols with integrated keys as additional units or as replacements in the event of loss.

Personal Profile

The concept
The functions of your MINI can be set individu­ally. By means of Personal Profiles, most of these settings are stored for the remote control cur­rently in use. When you unlock the car, the remote control is recognized and the settings stored for it are called up and implemented.
This means that your settings will be activated for you, even if in the meantime your car was used by someone else with another remote con­trol and the corresponding settings.
At most three remote controls can be set for three different people. A prerequisite is that each person uses a separate remote control.
Personal Profile settings
For more information on specific settings, refer to the specified pages.
> Response of the central locking system
when the car is being unlocked 19
> Automatic locking of the vehicle 22 > 12h/24h mode of the clock, refer to Formats
and units of measure 47
> Date format, refer to Formats and units of
measure 47
> Units of measure for fuel consumption, dis-
tance covered/remaining distances and temperature, refer to Formats and units of measure 47
> Automatic climate control
activating/deactivating cooling function and automatic recirculated-air control, setting temperature, air flow rate and distribution 66
*
: AUTO program,
18
> Pathway lighting 59
> Daytime running lamps 60 > Triple turn signal activation 40 > Audio volume, refer to separate Owner's
Manual
> Speed-dependent volume, refer to separate
Owner's Manual

Central locking system

The concept
The central locking system is ready for operation whenever the driver's door is closed.
The system simultaneously engages and releases the locks on the following:
> Doors > Tailgate > Fuel filler door
Operating from outside
> Via the remote control > Via the door lock > In cars with convenient access
handles on the driver's and passenger's sides
The anti-theft system is also operated at the same time. It prevents the doors from being unlocked using the lock buttons or door han­dles. The remote control can also be used to switch on/off the welcome lamps and interior lamps.
Operating from inside
Button for central locking system, page 22. In the event of a sufficiently severe accident, the
central locking system unlocks automatically. In addition, the hazard warning flashers and inte­rior lamps come on.
*
, via the door

Opening and closing: from outside

Using the remote control
Persons or animals in a parked vehicle
could lock the doors from the inside. Take the key with you when you leave the vehicle so that the vehicle can be opened from the out­side.<
Unlocking
Press the button. The welcome lamps and interior lamps come on.
Unlocking mode
You can also set which parts of the car are unlocked. The setting is stored for the remote control in use.
1. Switch on the ignition, refer to page 35.
2. Briefly press the button in the turn indicator
lever repeatedly until "SET/INFO" is dis­played.
3. Press and hold the button until the display
changes.
4. Briefly press the button repeatedly until the
symbol and "SET" are displayed.
Reference At a glanceControlsDriving tipsMobility
19
5. Press and hold the button until the display
changes.
6. Briefly press the button repeatedly until the
display shows the illustrated symbol, arrow.
1. Switch on the ignition, refer to page 35.
2. Briefly press the button in the turn indicator
lever repeatedly until "SET/INFO" is dis­played.
7. Press and hold the button until the display
changes.
8. Briefly press the button to select:
Opening and closing
>
Press the button once to unlock only the driver's door and the fuel filler door. Press the button twice to unlock the entire vehicle.
>
Press the button once to unlock the entire vehicle.
9. Press and hold the button until the display
changes. The setting is stored for the remote control currently in use.
Convenient opening
Hold the button down. The power windows are opened and the glass
*
sunroof
is raised.
Convenient closing is not possible by means of the remote control.<
Locking
Press the button.
3. Press and hold the button until the display
changes.
4. Briefly press the button repeatedly until the
symbol and "SET" are displayed.
5. Press and hold the button until the display
changes.
6. Briefly press the button to select, arrow:
> Confirmation signal during unlocking > Confirmation signal during locking
Setting confirmation signals
To have the vehicle confirm when it has been locked or unlocked.
20
7. Press and hold the button until the display
changes.
8. Briefly press the button to select:
>
The hazard warning flashers light up dur­ing unlocking/locking.
>
An acoustic signal sounds during unlock­ing/locking.
>
The hazard warning flashers light up and an acoustic signal sounds during unlock­ing/locking.
>
The function is deactivated.
9. Press and hold the button until the display
changes. The setting is stored.
Switching on interior lamps
While the car is locked: Press the button. You can also use this function to locate your vehicle in parking garages, etc.
Unlocking the tailgate
Press the button.
In order to avoid damage, make sure
there is sufficient clearance before open­ing the tailgate. A previously locked tailgate is locked again after closing. Before and after each trip, check that the tail­gate has not been inadvertently unlocked.<
Commission regulations. Operation is governed by the following:
FCC ID: LX8766S LX8766E LX8CAS
Compliance statement: This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:
> This device must not cause harmful interfer-
ence, and
> This device must accept any interference
received, including interference that may cause undesired operation.
Any unauthorized modifications or changes to these devices could void the
user's authority to operate this equipment.<
Using the door lock
You can set which parts of the car are unlocked, page 19.
Malfunctions
The remote control may malfunction due to local radio waves. If this occurs, unlock and lock the car at the door lock with the integrated key.
If the car can no longer be locked with a remote control, the battery in the remote control is dis­charged. Use this remote control during an extended drive; this will recharge the battery, page 18.
For US owners only
The transmitter and receiver units comply with part 15 of the FCC/Federal Communications
Convenient operation
You can operate the windows and glass sun-
*
via the door lock.
roof Hold the key in the position for unlocking or
locking.
Watch during the closing process to be sure that no one is injured. Releasing the
key stops the operation.<
Manual operation
In the event of an electrical malfunction, the driver's door can be unlocked or locked by turn-
21
Reference At a glanceControlsDriving tipsMobility
ing the integrated key in the door lock to the end
positions.

Opening and closing: from inside

The switch locks or unlocks the doors and tail­gate when the doors are closed, but the anti-
Opening and closing
theft system is not activated. The fuel filler door
*
remains unlocked
Unlocking and opening
> Either unlock the doors together using the
switch for the central locking system and then pull the door handle above the armrest or
> pull on the door handle of either door twice:
the first time unlocks the door, the second time opens it.
Locking
> Press the switch or > press down the safety lock button of a door.
To prevent you from being locked out, the open driver's door cannot be locked using the lock button.
Persons or animals in a parked vehicle
could lock the doors from the inside. Take the key with you when you leave the vehicle so that the vehicle can be opened from the out­side.<
Automatic locking
You can also set the situations in which the car locks. The setting is stored for the remote con­trol in use.
.
1. Switch on the ignition, refer to page 35.
2. Briefly press the button in the turn indicator
lever repeatedly until "SET/INFO" is dis­played.
3. Press and hold the button until the display
changes.
4. Briefly press the button repeatedly until the
symbol and "SET" are displayed.
5. Press and hold the button until the display
changes.
6. Briefly press the button repeatedly until the
display shows the illustrated symbol, arrow.
7. Press and hold the button until the display
changes.
8. Briefly press the button to select:
>
The central locking system automatically
22
locks the vehicle after some time if no
door has been opened.
>
The central locking system automatically locks the vehicle as soon as you drive off.
>
The central locking system automatically locks the vehicle after some time if no door has been opened, or as soon as you drive off.
>
The central locking system remains unlocked.
9. Press and hold the button until the display
changes. The setting is stored.

Tailgate

In order to avoid damage, make sure there is sufficient clearance before open-
ing the tailgate.<
Opening
1. Fold the rear seat bench upward.
2. Pull the ring.
The tailgate is released.
The tailgate is locked as soon as it is pressed shut.
Closing
Press the button in the handle, arrow, or the
button of the remote control, for an extended period. The tailgate is unlocked and can be opened.
In some national-market versions, the tail­gate cannot be unlocked using the remote
control unless the vehicle is unlocked first.<
Opening manually
In the event of an electrical malfunction.
The handle recesses on the interior trim panel of the tailgate make it easier to pull it down.
Make sure that the closing path of the tail­gate is clear, otherwise injuries may
result.<
Reference At a glanceControlsDriving tipsMobility
23
Alarm system prepara-
tion package*
In vehicles with an alarm system preparation package, LEDs are located on the tachometer. If the vehicle is equipped with an alarm system, the LEDs indicate the various functional states.
For more information on the alarm system, refer
Opening and closing
to the separate Owner's Manual for the alarm system.
> The engine can only be started when the
vehicle detects that the remote control is inside the vehicle.
> Doors and tailgate must be closed to be able
to operate the windows and glass sunroof.
Comparison to standard remote controls
In general, there is no difference between using convenient access or pressing the buttons on the remote control to carry out the functions mentioned above. Instructions on opening and closing are found starting on page 18.
Special features regarding the use of convenient access are described below.
If you notice a brief delay while opening or
closing the windows or glass sunroof, the system is checking whether a remote control is inside the vehicle. Repeat the opening or closing procedure, if necessary.<

Convenient access*

Convenient access enables you to enter your vehicle without having to hold the remote con­trol in your hand. All you need to do is wear the remote control close to your body, e.g. in your jacket pocket. The vehicle automatically detects the remote control within the immediate vicin ity or in the passenger compartment.
Convenient access supports the following func­tions:
> Unlocking/locking the vehicle > Unlocking the tailgate separately > Starting the engine > Convenient operation
Functional requirement
> The vehicle or the tailgate can only be
locked when the vehicle detects that the remote control currently in use is outside of the vehicle.
> The vehicle cannot be locked or unlocked
again until after approx. 2 seconds.
Unlocking
Press button 1. If a remote control is detected inside the car
after the vehicle is unlocked, the electric steer­ing wheel lock is audibly released.
For convenient opening, press and hold button 1.
Locking
Press button 1. For convenient closing, press and hold button 1.
Unlocking the tailgate separately
Press the button on the outside of the tailgate.
24
If the vehicle detects that a remote control
has been accidentally left inside the locked vehicle's cargo area after the tailgate is closed, the tailgate will reopen. The hazard warning flashers flash and an acoustic signal sounds.<
*
Windows and glass sunroof, electric*
If the engine is switched off, you can still operate the windows and glass sunroof so long as a door or the tailgate has not been opened.
If the doors and tailgate are closed again and the remote control is located inside the vehicle, the windows and the glass sunroof can be operated again.
Insert the remote control into the ignition lock to be able to operate the windows or glass sunroof when the engine is switched off and the doors are open.
Switching on radio readiness
Switch on radio readiness by briefly pressing the start/stop button, page 35.
Do not depress the brake or the clutch,
otherwise the engine will start.<
Starting the engine
The engine can be started or the ignition can be switched on when a remote control is inside the vehicle. It is not necessary to insert a remote control into the ignition lock, page 35.
Switching off the engine in cars with automatic transmission
The engine can only be switched off when the selector lever is in position P, page 36. To switch the engine off when the selector lever is in position N, the remote control must be in the ignition lock.
The vehicle can roll.
Malfunction
Convenient access may malfunction due to local radio waves.
If this happens, open or close the vehicle via the buttons on the remote control or using the inte­grated key. Insert the remote control into the ignition lock and start the engine.
Warning lamps
The warning lamp comes on when an attempt is made to start the engine: the
engine cannot be started. The remote control is not inside the vehicle or is malfunc­tioning. Take the remote control with you inside the vehicle or have it checked. If necessary, insert another remote control into the ignition lock.
The warning lamp comes on when the
engine is running: the remote control is
no longer inside the vehicle. After the engine is switched off, the engine can only be restarted within approx. 10 seconds.
The indicator lamp comes on: replace
the battery in the remote control.
Replacing the battery
The remote control for convenient access con­tains a battery that will need to be replaced from time to time.
1. Remove the cover.
Before driving a vehicle with automatic transmission into a car wash
1. Insert remote control into ignition lock.
2. Depress the brake.
3. Move the selector lever to position N.
4. Switch off the engine.
2. Insert the new battery with the plus side fac-
ing up.
3. Press the cover on to close.
25
Reference At a glanceControlsDriving tipsMobility
Take the old battery to a battery collection
point or to your MINI Dealer.<

Windows

Take the key with you when you leave the
car, otherwise children could operate the electric windows and possibly injure them­selves.<
To prevent injuries, exercise care when
closing the windows and keep them in your field of vision until they are shut. Take the remote control with you when you leave the car, otherwise children could operate the electric windows and possibly injure them­selves.<
If, after a window is opened and closed
several times in close succession, the win­dow can only be closed and not opened, the sys­tem is overheated. Let the system cool for sev­eral minutes with the ignition switched on or the engine running.<
Opening and closing
Opening, closing
> Press the switch downwards.
The window opens until you release the switch.
> Tap the switch downwards.
The window opens automatically if the igni­tion is switched on. Briefly press the switch again to stop the opening movement.
To close, press the switch upwards. The window closes until you release the switch.
After switching off the ignition
When the ignition is switched off, the windows can still be operated for approx. 1 minute as long as no door is opened.
For information on convenient operation via the remote control or door lock, page 20 or 21.

Glass sunroof, electric*

The glass sunroof is operational when the igni­tion is switched on, page 35.
To prevent injuries, exercise care when
closing the glass sunroof and keep it in your field of vision until it is shut. Take the key with you when you leave the car, otherwise children could operate the sunroof and possibly injure themselves.<
Raising
With the ignition switched on, press the switch back beyond the pressure point.
Both closed sunroofs are automatically raised.
Opening, closing
With the glass sunroof raised, press the switch back as far as the pressure point and hold it there. The front glass sunroof opens. The rear glass sunroof is closed. Releasing the switch stops the movement.
The glass sunroof can be closed in the same way by pressing the switch forward.
The front glass sunroof remains in a raised posi­tion. The rear glass sunroof is raised. Pressing on the switch again closes both sunroofs com­pletely.
Convenient operation via door lock or conve­nient access, refer to page 20, 21, 24.
26
Sun blind
The sun blind can be opened and closed inde­pendently of the glass sunroof.
Following interruptions in electrical power supply
After a power failure, there is a possibility that the glass sunroof can only be raised. In this case, have the system initialized. The manufacturer of your MINI recommends that you have this work done by your MINI Dealer.
Closing manually
If the vehicle is not equipped with an alarm sys­tem, you can manually move the glass sunroof in the event of an electrical fault.
1. Pry out the cover using the screwdriver from
the onboard tool kit.
2. Remove the control unit.
3. Insert the Allen wrench supplied with the
onboard tool kit into the opening provided.
4. Move the glass sunroof in the desired direc-
tion.
5. Reinstall the cover.
Reference At a glanceControlsDriving tipsMobility
27

Adjustments

Sitting safely

The ideal sitting position can make a vital contri­bution to relaxed, fatigue-free driving. In con­junction with the safety belts, the head restraints and the airbags, the seated position has a major influence on your safety in the event of an acci­dent. To ensure that the safety systems operate
Adjustments
with optimal efficiency, we strongly urge you to observe the instructions contained in the follow­ing section.
For additional information on transporting chil­dren safely, refer to page 33.
Airbags
Always maintain an adequate distance
between yourself and the airbags. Always grip the steering wheel on the rim, with your hands in the 3 o'clock and 9 o'clock positions, to minimize the risk of injury to the hands or arms in the event of the airbag being triggered off. No one and nothing is to come between the air­bags and the seat occupant. Do not use the cover of the front airbag on the front passenger side as a storage area. Ensure that the front passenger is correctly seated, e.g. that no feet or legs are propped against the dashboard. Otherwise, leg injury could result if the front airbag suddenly deployed. Make sure that passengers do not lean their heads against the side airbags, otherwise seri­ous injuries could result if the airbags suddenly deployed.<
Even if you follow all the instructions, injuries resulting from contact with airbags cannot be fully excluded, depending on the circumstances. The ignition and inflation noise may provoke a mild hearing loss in extremely sensitive individ­uals. This effect is usually only temporary.
For airbag locations and additional information on airbags, refer to page 57.
Head restraint
A correctly adjusted head restraint reduces the risk of neck injury in the event of an accident.
Adjust the head restraint in such a way
that its center is at approx. ear level. Oth­erwise, there is an increased risk of injury in the event of an accident.<
Head restraints, refer to page 30.
Safety belt
Before every drive, make sure that all occupants wear their safety belts. Airbags complement the safety belt as an additional safety device, but they do not represent a substitute.
Never allow more than one person to
wear a single safety belt. Never allow infants or small children to ride in a passenger's lap. Make sure that the belt in the lap area sits low across the hips and does not press against the abdomen. The safety belt must not rest against the throat, run across sharp edges, pass over hard or fragile objects or be pinched. Fasten the safety belt so that it is pulled taut across the lap and shoulder, fitting the body snugly without any twists. Otherwise the belt could slide over the hips in the event of a frontal collision and injure the abdomen. Avoid wearing bulky cloth­ing and regularly pull the belt in the upper-body area taut, otherwise its restraining effect could be impaired.<
Safety belts, refer to page 30.

Seats

Note before adjusting
Never attempt to adjust your seat while
the vehicle is moving. The seat could respond with unexpected movement, and the ensuing loss of vehicle control could lead to an accident. On the front passenger seat as well, do not
28
incline the backrest too far to the rear while the
vehicle is being driven, otherwise there is a dan­ger in the event of an accident of sliding under the safety belt, eliminating the protection nor­mally provided by the belt.<
Comply with the instructions on head restraint height on page 30 and on damaged safety belts on page 31.
Seat adjustment
Observe the instructions on page 28 to ensure the best possible personal protec-
tion.<
Longitudinal adjustment
Pull the lever and slide the seat to the desired position. After releasing the lever, move the seat gently forward or back to make sure it engages prop­erly.
Backrest
Pull the lever and apply your weight to the back­rest or lift it off, as necessary.
Lumbar support*
You can also adjust the contour of the backrest to obtain additional support in the lumbar region.
The upper hips and spinal column receive sup­plementary support to help you maintain a relaxed, upright sitting position.
Height
Pull up or push down the lever repeatedly until the desired height is reached.
Turn the wheel to increase or decrease the cur­vature.
Entry to the rear
Convenient entry
The convenient entry feature includes a mechanical memory function for the longitudi­nal adjustment and backrest angle.
Reference At a glanceControlsDriving tipsMobility
29
1. Pull up the lever on the seat backrest,
Adjustments
arrow 1. The backrest folds forward.
2. Slide the seat forward, arrow 2.
Height adjustment
To raise: pull up. To lower: press the button, arrow 1, and slide
the head restraint down.
Previous position
1. Push the seat back into its previous position.
Do not fold the backrest up until the seat is in its previous position. Other-
wise, the seat will engage in its current posi­tion. In this case, adjust the longitudinal position manually, page 29.<
2. Fold the backrest back up to lock the seat.
When moving the seat backwards, ensure
that you do not cause personal injury or property damage. Before driving off, engage the front seats and seat backrests. Otherwise there is a risk of acci­dent due to unexpected movement.<

Head restraints

A correctly adjusted head restraint reduces the risk of neck injury in the event of an accident.
Adjust the head restraint in such a way
that its center is at approx. ear level. Oth­erwise, there is an increased risk of injury in the event of an accident. Only remove a head restraint if no one will be sitting on the seat in question. Reinstall the head restraint before transporting anyone on that seat. Otherwise, the passenger will be without protection from the head restraint.<
Removing
1. Pull up as far as it will go.
2. Press the button, arrow 1, and pull the head
restraint all the way out.

Seat heating*

Press once for each temperature level. Three LEDs indicate the highest temperature.
If you continue driving within the next 15 min­utes, the seat heating is automatically activated at the previously set temperature.
Switching off
Press button longer.

Safety belts

Observe the instructions on page 28 to ensure the best possible personal protec-
tion.<
30
Before every drive, make sure that all occupants
wear their safety belts. Airbags complement the safety belt as an additional safety device, but they do not represent a substitute.
Closing
Make sure you hear the lock engage in the belt buckle.
The upper belt anchor is suitable for adults of any stature as long as the seat is adjusted prop­erly, page 28.
Opening
1. Grasp the belt firmly.
2. Press the red button in the buckle.
3. Guide the belt into its reel.
only by a MINI Dealer or by a workshop that has specially trained personnel working in accor­dance with the specifications of the MINI manu­facturer, otherwise correct operation of these safety systems is not ensured.<

Mirrors

Exterior mirrors
The front passenger's mirror is more con-
vex than the driver's mirror. The objects seen in the mirror are closer than they appear. Do not gauge your distance from traffic behind you on the basis of what you see in the mirror; otherwise there is an increased risk of an acci­dent.<
Seat belt reminder
Front seats
The indicator lamps come on and an acoustic signal sounds. Check whether the safety belt has been fastened cor-
rectly. The 'Fasten safety belts' reminder is issued when the driver's safety belt has not been fastened. The 'Fasten safety belts' reminder is also activated at road speeds above approx. 5 mph or 8 km/h if the front passenger's safety belt has not been fastened, if objects are placed on the front passenger seat, or if driver or front passenger unfasten their safety belts.
Damage to safety belts
If the safety belts are damaged or stressed
in an accident: have the safety belt system and its seat-belt tensioners replaced and the belt anchors checked. Have th is work carried out
1 Adjusting the left or right exterior mirror 2 Folding mirrors in and out
*
Manual adjustment
The mirrors can also be adjusted manually: press the edge of the glass.
Folding mirrors in and out*
Turn the knob beyond the pressure point in direction 2. The mirrors can be folded in at road speeds up to approx. 20 mph/30 km/h.
This can be beneficial in narrow streets, for example, or for moving mirrors that were folded in by hand back out into their correct positions.
Automatic heating*
At outside temperatures below a certain limit, both exterior mirrors are automatically heated while the engine is running or the ignition switched on.
31
Reference At a glanceControlsDriving tipsMobility
Interior rearview mirror
To reduce glare from vehicles behind you when
Adjustments
you are driving at night: Turn the knob.
Interior mirror, automatic dimming*
The automatic dimming feature of the interior rearview mirror* is controlled by two photo cells in the mirror. One photo cell is in the mirror frame, arrow; the other is on the back of the mir­ror.
In order to ensure that the system functions cor­rectly, keep the photo cells clean, do not cover the area between the interior rearview mirror and windshield, and do not affix adhesive labels or stickers of any kind to the windshield directly in front of the mirror.
1. Fold the lever down.
2. Move the steering wheel to the preferred
distance and angle to suit your seated posi­tion.
3. Swing the lever back up.
Do not use force to swing the lever back up, otherwise the mechanism
will be damaged.<
Electric steering wheel lock
The steering wheel locks or unlocks automati­cally when the key is removed or inserted.
When using convenient access wheel locks or unlocks automatically when the vehicle is locked and unlocked or when the remote control is detected inside the vehicle.
*
, the steering

Steering wheel

Adjustments
Do not adjust the steering wheel position
while the car is in motion, otherwise there is a risk of accident due to an unexpected move­ment.<
32

Transporting children safely

The right place for chil­dren
Do not leave children unattended in the
vehicle, otherwise they could endanger themselves and/or other persons by opening the doors, for example.<
In general, every seat in your MINI, with the exception of the driver's seat, can be used to install child restraint systems for children of all ages that are approved for the respective age group.
Also comply with the following instructions.
Children should always sit in the rear
Only install child's seats in the rear when
the rear seat backrest is folded all the way back and engaged. Otherwise there will be an increased risk of injury in the event of an acci­dent.<
Accident research has shown that the safest place for children is on the rear seat.
Only transport children under the age of
13 or smaller than 5 ft/150 cm in the rear in a child-restraint system suitable for their age, weight and size. Otherwise there is an increased risk of injury in the event of an accident.<
Children 13 years of age or older must be buck­led in with a safety belt as soon as there no longer is any child-restraint system that is appropriate for their age, size and weight.
Exception for front passenger seat
Should it be necessary to use a child-
restraint system on the front passenger seat, the front and side airbags must be deacti­vated. Otherwise, there is an increased risk of injury to the child if the airbags deploy, even if the child is seated in a child-restraint system.<
For more information on automatic deactivation of the front passenger airbags, refer to page 57.

Child-restraint systems, installation

Observe the child-restraint system manu-
facturer's instructions when selecting, installing and using child-restraint systems. Oth­erwise the protective effect may be dimin­ished.<
On the front passenger's seat
After installing a child-restraint system on
the front passenger's seat, make sure that the front and side airbags for the front passen­ger are deactivated, otherwise there is an increased risk of injury if the airbags deploy.<
Child seat security
All rear safety belts and the safety belt for the front passenger can be prevented from being pulled out in order to secure child-restraint sys­tems.
To lock the safety belt
1. Secure the child-restraint system with the
belt.
2. Pull the belt strap all the way out.
3. Allow the belt strap to retract and pull it taut
against the child-restraint system.
The safety belt is locked.
To unlock the safety belt
1. Open the belt buckle
2. Remove the child-restraint system.
Reference At a glanceControlsDriving tipsMobility
33
3. Allow the safety belt strap to retract all the
way.
LATCH child-restraint fix­ing system
LATCH: Lower Anchors and Tethers for CHildren.
When installing and using a LATCH child's seat, comply with the system manufac-
turer's operating and safety instructions.<
Anchor points for LATCH anchors
Before installing the child's seat, pull the belt out of the area for the child-restraint fixing system.
The anchor points for the lower LATCH anchors
Transporting children safely
are located behind the labeled protective caps.
Make sure that the two LATCH anchors are
properly engaged and that the child­restraint system rests firmly against the seat backrest.<
Child-restraint system with tether strap
Placement of the tether strap
1 Direction of travel 2 Head restraint 3 Hook of upper retaining strap 4 Cargo area floor 5 Anchor 6 Seat backrest 7 Upper retaining strap of child-restraint sys-
tem
Make sure the upper retaining strap does
not run over sharp edges and is not twisted as it passes to the top anchor. Otherwise the strap will not properly secure the child­restraint system in the event of an accident.<
1. Push the head restraint upward.
2. Guide the upper retaining strap between the
head restraint holders.
3. Use the hook to clip the retaining strap to
the anchor.
4. Push the head restraint into its lowermost
position.
5. Pull the retaining strap tight.
There are two additional anchors for child­restraint systems with tether straps, arrows.
34

Driving

Ignition lock

Insert the key all the way into the ignition lock.
> Radio readiness
Individual electrical consumers can operate.
> The electric steering wheel lock disengages
audibly.
Insert the key into the ignition lock before
you move the vehicle, otherwise the elec­tric steering wheel lock will not disengage and you will not be able to steer the car.<
Removing the key from the ignition lock
Press in the key briefly. It is ejected slightly. At the same time:
> The ignition is switched off if it was on
beforehand.
> The electric steering wheel lock engages
audibly.

Start/stop button

Briefly press the start/stop button to switch radio readiness or the ignition on or off. Do not depress the brake or clutch while doing so.
Briefly pressing the start/stop button while the brake or clutch is depressed starts the
engine.<
Radio readiness
Individual electrical consumers can operate. The time and outside temperature are displayed in the tachometer.
Radio readiness is switched off automatically:
> When the key is removed from the ignition
lock
> When using convenient access
the button on the door handle or the button on the remote control, refer to Lock­ing on page 24
*
by pushing
Automatic transmission
You cannot take out the key unless the selector lever is in the P position: interlock.
Ignition on
Most indicator and warning lamps in indicator area 1 of the displays, page 13, light up for vary- ing lengths of time.
When the engine is off, turn off the igni­tion and any unnecessary electrical con-
sumers in order to preserve the battery.<
Radio readiness and ignition off
All indicator and warning lamps in the displays go out.
35
Reference At a glanceControlsDriving tipsMobility

Starting the engine

Do not allow the engine to run in enclosed
spaces; otherwise inhalation of the nox­ious exhaust gases can lead to unconsciousness and death. Exhaust gases contain carbon mon­oxide, an odorless and colorless, but highly toxic
Driving
gas. Never leave an unattended vehicle with the engine running, otherwise such a vehicle repre­sents a potential safety hazard. Before leaving the car with the engine running, place the transmission in idle or move the selec­tor lever to position P and apply the parking brake to prevent the car from moving.<
When starting the engine, do not depress the accelerator pedal.
Do not let the engine warm up with the vehicle at a standstill. Move off immediately at a moder­ate engine speed.
The engine is started immediately when
you briefly press the start/stop button and depress the brake if the car has automatic trans­mission, or the clutch if the car has manual transmission. Do not depress either the brake or the clutch until you are ready to start the engine.<
Automatic transmission
1. Depress the brake.
2. Move the selector lever to position P.
3. Briefly press the start/stop button.
The starter operates automatically for a certain time, and stops automatically as soon as the engine has started.
Special starting conditions
In the following situations, press the accelerator pedal halfway down when starting the engine:
> If the engine does not start on the first
attempt, for instance when it is extremely hot or cold.
> If the engine is started at very low tempera-
tures, below approx. + 57/–15 6, at high altitudes above approx. 3,300 ft/1,000 m.
Avoid frequent starting in quick succes-
sion or repeated start attempts in which the engine does not start. Otherwise, the fuel is not burned or inadequately burned and there is a danger of overheating and damaging the cat­alytic converter.<
Manual transmission
1. Depress the brake or apply the parking
brake.
2. Depress the clutch.
3. Briefly press the start/stop button.
The starter operates automatically for a certain time, and stops automatically as soon as the engine has started.
36

Switching off the engine

Always take the key with you when you
leave the vehicle. When parking on a downhill incline, apply the parking brake, otherwise the vehicle could roll away.<
Manual transmission
1. Depress the brake or apply the parking
brake.
2. With the car at a standstill, briefly press the
start/stop button.
3. Shift into first gear or reverse.
Automatic transmission
1. With the car at a standstill, move the selector
lever to position P.
2. Briefly press the start/stop button.
3. Apply the parking brake.

Parking brake

The parking brake is primarily intended to pre­vent the vehicle from rolling while parked; it brakes the rear wheels.
Reverse gear
Select this only when the vehicle is stationary. When the gearshift lever is pressed to the left, a slight resistance has to be overcome.
Applying
The lever locks in position automatically.
Releasing
Pull slightly upwards, press the button and lower the lever.
In exceptional cases, if the parking brake
has to be used to slow or stop the car, do not pull the lever up too hard. In doing so, con­tinuously press the button of the parking brake lever. Otherwise, excessive force could lead to over­braking and loss of traction, i.e. fishtailing, at the rear axle.<

Automatic transmission* with Steptronic

In addition to the fully automatic mode, you can shift gears manually using Steptronic, page 38.
Parking the vehicle
To prevent the vehicle from rolling, always
select position P and apply the parking brake before leaving the vehicle with the engine running.<
Removing the key
1. Move the selector lever to position P.
2. Switch off the engine.
3. Remove the key.
Selector lever positions
P R N D M/S + –
Displays in the tachometer

Manual transmission

When shifting into 5th or 6th gear, press
the gearshift lever to the right. Otherwise the engine could be damaged if you inadvert­ently shift into 3rd or 4th gear.<
P R N D DS M1 to M6 The selector lever position is displayed, or the
current gear in the manual mode.
Changing selector lever positions
> With the ignition switched on or the engine
running, the selector lever can be moved out of position P: interlock.
37
Reference At a glanceControlsDriving tipsMobility
> Before moving the lever away from P or N
with the vehicle stationary, first depress the brake; otherwise the selector lever will refuse to move: shiftlock.
To prevent the vehicle from creeping after you select a driving position,
Driving
depress the brake until you are ready to start.<
A lock prevents accidental shifting into selector lever positions R and P.
Overriding the selector lever lock
Press the button on the front of the selector lever, arrow.
P Park
Select this only when the vehicle is stationary. The transmission locks to prevent the drive wheels from turning.
R Reverse
Select this only when the vehicle is stationary.
N Neutral, idle
Select this when you are in a car wash, for exam­ple. The vehicle can roll.
D Drive, automatic position
Position for normal vehicle operation. All for­ward gears are selected automatically.
Under normal operation conditions, fuel con­sumption is lowest when you drive in position D.
Kick-down
Kick-down enables you to achieve maximum performance.
Depress the accelerator pedal beyond the full­throttle resistance point.
Sport program and manual operation M/S
Move the selector lever from position D to the left into the M/S shifting slot: The Sport program is activated and DS is dis­played.
Shifting with the selector lever
Push the selector lever forward or pull it back to activate manual operation. Steptronic shifts the gear.
> Pull the selector lever in the + direction.
Transmission shifts up.
> Push the selector lever in the – direction.
Transmission shifts down. M1 to M6 is displayed in the gear indicator. To use the automatic mode again, move the
selector lever to the right into position D. Upshifts and downshifts are executed only when
they will result in a plausible combination of engine and vehicle speed; thus, for example, a downshift that would cause the engine to over­rev will not be executed by the system. The selected gear is displayed briefly, followed by the actual gear.
Shifting on the steering wheel
With the selector lever in position D, automatic drive, you can shift gears using the shift paddles on the steering wheel. The transmission auto­matically switches to manual mode.
If you do not shift gears with the shift paddles or accelerate for a certain amount of time, the
38
transmission automatically returns to D, auto-
matic drive.
> Pull one of the shift paddles.
Transmission shifts up.
> Push one of the shift paddles.
Transmission shifts down.
M1 to M6 is displayed in the gear indicator.
Overriding the selector lever lock
Should the selector lever refuse to move out of position P although the button on the selector lever is pressed, the selector lever lock can be overridden:
1. Unclip the sleeve of the selector lever.
2. Pull the sleeve up over the selector lever
until the sleeve is inside out. Disconnect the cable connector if necessary.
> Engine responds more spontaneously to
movements of the accelerator.
> Steering response is more direct.
With automatic transmission:
> More rapid gear shifting in Sport program
Activating the system
Press the SPORT button.
Deactivating the system
> Press the SPORT button again or > switch off the engine.

Turn signals/ headlamp flasher

3. Depress the brake.
4. Pull up the loop on the passenger side while
at the same time moving the selector lever into the desired position.
Sport button*
Pressing the button causes your MINI to respond even more sportily.
1 Turn signal indicators 2 Headlamp flasher
Using turn signals
Press the lever beyond the resistance point. To turn off manually, press the lever to the resis-
tance point.
Unusually rapid flashing of the indicator lamp indicates that a bulb has failed.<
39
Reference At a glanceControlsDriving tipsMobility
Indicating a turn briefly
Press the lever as far as the resistance point for as long as you wish to indicate a turn.
Triple turn signal activation
Press the lever as far as the resistance point.
Driving
Turn signal flashes once. You can set whether the turn signal is to flash
once or three times.
1. Switch on the ignition, refer to page 35.
2. Briefly press the button in the turn indicator
lever repeatedly until "SET/INFO" is dis­played.
6. Briefly press the button repeatedly until the
display shows the illustrated symbol, arrow.
7. Press and hold the button until the display
changes.
8. Briefly press the button to select:
>
Brief indication of a turn.
>
Triple turn signal.
9. Press and hold the button until the display
changes. The setting is stored.
3. Press and hold the button until the display
changes.
4. Briefly press the button repeatedly until the
symbol and "SET" are displayed.
5. Press and hold the button until the display
changes.
40

Wiper system

0 Wipers parked 1 Intermittent wipe or rain sensor 2 Normal wiper speed 3 Fast wiper speed 4 Switching off wipers or brief wipe 5 Cleaning windshield and headlamps
Intermittent wipe or rain sensor*
If the car is not equipped with a rain sensor, the intermittent-wipe time is a preset.
*
*
If the car is equipped with a rain sensor, the time
between wipes is controlled automatically and depends on the intensity of the rainfall. The sen­sor is mounted on the windshield, directly in front of the interior rearview mirror.
Activating intermittent wipe or rain sensor
Press the lever upward once, arrow 1.
Deactivate the rain sensor before entering
an automatic car wash. Failure to do so could result in damage caused by undesired wiper activation.<
In cars equipped with an alarm system, the headlamps cannot be cleaned when the bonnet is open.
Do not use the washers when the washer
fluid reservoir is empty, otherwise you will damage the washer pump. Only use the washers if the bonnet has been completely closed, otherwise the headlamp
*
washer system the washers if there is any danger that the fluid will freeze on the windshield. If you do, your vision could be obscured. For this reason, use antifreeze.<
may be damaged. Do not use
Deactivating intermittent wipe or rain sensor
Press the lever downward once, arrow 4.
Brief wipe
Press the lever downward once, arrow 4.
Switching on wipers
Press the lever upward. The lever automatically returns to its initial posi-
tion when released.
Normal wiper speed
Press twice, arrow 2. The system switches to intermittent operation
when the vehicle is stationary.
Fast wiper speed
Press three times or press beyond the pressure point, arrow 3.
The system switches to normal speed when the vehicle is stationary.
Cleaning windshield and headlamps*
Pull the lever, arrow 5. Washer fluid is sprayed onto the windshield and
the wipers are operated for a short time. When the vehicle lighting system is switched on,
the headlamps are cleaned at regular and appropriate intervals.
Window washer nozzles
The window washer nozzles are heated auto­matically while the engine is running or the igni-
*
tion is switched on
.
Rear window wiper
6 Intermittent operation:
Turn the cap to level 6. Operation is continuous in reverse gear.
Cleaning the rear window
7 Intermittent operation:
Turn the cap further to level 7 and hold it there.
8 Wiper parked:
Turn the cap to level 8 and hold it there.
Do not use the washers when the washer
fluid reservoir is empty, otherwise you will damage the washer pump.<
Reference At a glanceControlsDriving tipsMobility
41

Washer fluid

Washer fluid antifreeze is flammable.
Always keep it well away from sparks and open flames, and store it in the tightly closed original container, well out of the reach of chil­dren. Comply with the instructions on the con-
Driving
tainer.<
Washer fluid reservoir
Activating

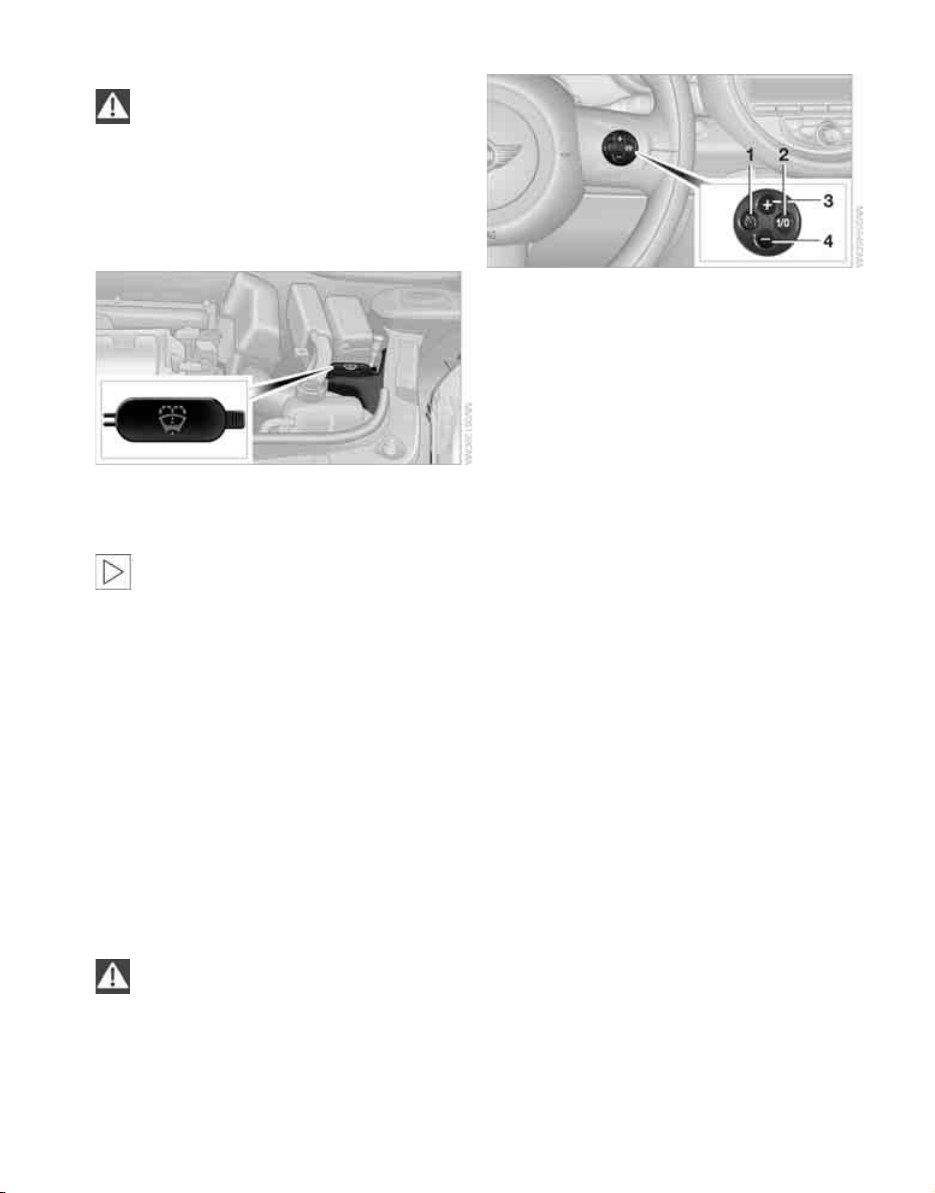

1 Resuming cruise control 2 Activating/deactivating cruise control 3 Maintaining, storing and increasing speed 4 Maintaining, storing and decreasing speed
The indicator lamp in the speedometer comes on. Cruise control is ready and can be activated.
Fill with water and, if required, with a washer antifreeze, according to manufacturer's recom­mendations.
Mix the water and antifreeze before filling
the washer fluid reservoir to make sure the correct concentration is maintained.<
Capacity
Approx. 2.6 US quarts/2.5 liters. With headlamp washer system:
Approx. 4.8 US quarts/4.5 liters.

Cruise control*

The concept
Cruise control is available for use at speeds above approx. 20 mph or 30 km/h. The car then stores and maintains the speed that you specify using the button on the steering wheel.
Do not use cruise control when driving at
constant speed is prevented by adverse conditions, e.g. winding roads, dense traffic or poor road conditions due to, e.g., snow, rain, ice or loose surfaces. Otherwise you could lose con­trol of the vehicle and cause an accident as a result.<
Activating/deactivating cruise control
Press button 2. In addition, the system is automatically deacti-
vated:
> When the brakes are applied > When the clutch is depressed > When the automatic transmission is in selec-
tion lever position N
> When the driving stability control system is
active
Cruise control is not deactivated by depressing the accelerator pedal. Once the accelerator pedal is released, the stored speed is achieved again and maintained.
The stored speed is cleared when the ignition is switched off.
Maintaining current speed
Press button 3. The system maintains and stores the current
vehicle speed. If, on a downhill grade, the engine braking effect
is not sufficient, the controlled speed may be exceeded. On uphill grades vehicle speed may drop if the engine output is insufficient.
42
Increasing speed
Press button 3 repeatedly until the desired speed is reached. Every time you press the but­ton, the speed increases by approx. 2 mph or 2km/h.
Accelerating using the button
Press and hold button 3. The vehicle accelerates without pressure on the
accelerator pedal. After the button is released, the driving speed is maintained and stored.
Decreasing speed
Press button 4 repeatedly until the desired speed is reached.
The functions here are the same as for increas­ing the speed or accelerating, except that the speed will be decreased.
Resuming a speed stored beforehand
Press button 1. The last speed stored is achieved again and
maintained. The stored speed is cleared when the ignition is
switched off.
Reference At a glanceControlsDriving tipsMobility
43

Everything under control

Odometer, outside tem­perature display, clock
1 Outside temperature display and clock or
current speed
2 Odometer and trip odometer 3 Resetting the trip odometer
Units of measure
Select the respective units of measure, miles or
Everything under control
km for the odometer as well as 7 or 6 for the outside temperature, page 47.
Outside temperature display, time
Setting the time, refer to page 50.
The outside temperature then appears in the bottom display.
Odometer and trip odometer
Resetting the trip odometer
With the ignition switched on, press knob 3 in the tachometer.
When the vehicle is parked
To display the time, outside temperature and odometer briefly after the key is removed from the ignition lock: Press knob 3 in the tachometer.

Tachometer

Outside temperature warning
When the displayed temperature sinks to approx. +377/+36, a signal sounds and a warning lamp lights up. There is an increased risk of black ice.
Black ice can also form at temperatures
above +37 7/+36. You should therefore drive carefully on bridges and shaded roads, for example, otherwise there is an increased risk of an accident.<
Current vehicle speed
To have the current speed shown in the upper display for the outside temperature and time.
Press and hold the button in the turn indicator lever until the display changes.
44
Never operate the engine with the needle in the red overspeed zone of the gauge. In this range, the fuel supply is interrupted to protect the engine.

Coolant temperature

A warning lamp will come on if the coolant, and therefore the engine, becomes too hot.
Check coolant level, refer to page 96.

Fuel gauge

Fuel tank capacity
You can find information on refueling on page 84.
If the tilt of the vehicle varies for a longer period, when you are driving in mountainous areas, for example, the indicator may fluctuate slightly.
MINI Cooper
Approx. 10.6 US gallons/40 liters.
MINI Cooper S
Approx. 13.2 US gallons/50 liters.
Reserve
Once the fuel level has fallen to the reserve zone of approx. 2.1 US gallons/8 liters, the remaining indicator lamps change from orange to red, arrow. The tachometer displays the remaining cruising range. An indicator lamp comes on if the remaining range is less than approx. 30 miles/50 km.
Do not continue driving to the point where
the fuel tank is totally empty. Otherwise engine performance is not guaranteed and damage could occur.<

Computer*

Displays in tachometer
Press the button in the turn indicator lever repeatedly to call up various items of informa­tion.
The following items of information are displayed in the order listed:
> Cruising range > Average fuel consumption > Current fuel consumption > Average speed > Current vehicle speed
To set the corresponding units of measure, refer to Formats and units of measure on page 47.
Cruising range
Displays the estimated cruising range available with the remaining fuel. The range is calculated on the basis of the way the car has been driven over the last 18 miles/30 km and the amount of fuel currently in the tank.
If the range displayed is less than
30 miles/50 km, be sure to refuel; other­wise engine functions are not guaranteed and damage could occur.<
Average fuel consumption
Calculated for the time the engine has been run­ning.
To reset average fuel consumption: press the button in the turn indicator lever for approx. 2seconds.
Reference At a glanceControlsDriving tipsMobility
45
Current fuel consumption
Displays the current fuel consumption to allow you to see whether your current driving style is conducive to fuel economy with minimum exhaust emissions.
Average speed
Periods with the vehicle parked and the engine switched off are not included in the calculations of average speed.

Settings and information

Operating principle
Everything under control
To reset average speed: press the button in the turn indicator lever for approx. 2 seconds.
Current vehicle speed
To have the current speed shown in the upper display for the outside temperature and time.
Press and hold the button in the turn indicator lever until the display changes.
The outside temperature then appears in the bottom display of the computer.
Certain settings and information are only avail­able when the ignition is switched on and the vehicle is at a standstill.
1 Button for:
> Selecting display > Setting values > Confirming selected display or set values > Calling up computer information 45
2 Calling up Check Control 51 3 Displaying vehicle check 52
46
4 Initializing Flat Tire Monitor 55 5 Setting formats and units of measure, reset-
ting to factory settings 48
6 Adjusting settings
> Confirmation signals when locking and
unlocking the vehicle 20
> Response during unlocking
procedure 19
> Automatic locking 22 > Pathway lighting 59 > Daytime running lamps 60 > Triple turn signal activation 40
7 Setting the time 50 8 Setting the date 51 9 Exiting the menu
Exiting displays
1. Briefly press the button in the turn indicator
lever repeatedly until "HOME" is displayed.
2. Press the button for a longer period.
The display again shows the outside tempera­ture and the time.
Displays are also exited if no entries are made for approx. 8 seconds.
Next setting or item of information

Formats and units of measure

To set the formats and units of measure. The set­tings are stored for the remote control currently in use, refer also to Personal Profile on page 18.
1. Switch on the ignition, refer to page 35.
2. Briefly press the button in the turn indicator
lever repeatedly until "SET/INFO" is dis­played.
3. Press and hold the button until the display
changes.
4. Briefly press the button repeatedly until the
symbol and "SET" are displayed.
1. Within a setting or item of information,
briefly press the button in the turn indicator lever repeatedly until "NEXT" is displayed.
2. Press the button for a longer period.
The display changes directly to the next setting or item of information.
Reference At a glanceControlsDriving tipsMobility
47
5. Press and hold the button until the display
changes.
6. Briefly press the button repeatedly until the
display shows the illustrated symbol, arrow.
> Fuel consumption: l/100 km, mpg,
km/l
*
> Distance covered: mls, km > Time: 12h, 24h mode > Date: day.month dd.mm,
month/day mm/dd
> Temperature: 7, 6
7. Press and hold the button until the display
Everything under control
changes.
8. Press the button briefly to change the for-
mat or unit of measure.
9. Press and hold the button until the display
changes. The settings are stored.
Resetting to factory settings
The settings for formats and units of measure can be reset to the factory settings. The settings are stored for the remote control currently in use, refer also to Personal Profile on page 18.
1. Briefly press the button in the turn indicator
lever repeatedly until "SET/INFO" is dis­played.
2. Press and hold the button until the display
changes.
3. Briefly press the button repeatedly until the
symbol and "SET" are displayed.
4. Press and hold the button until the display
changes.
5. Briefly press the button repeatedly until
"RESET" is displayed.
48
6. Press and hold the button until the display
changes to the first setting. The settings are reset.

Service requirements

The remaining driving distance and the date of the next scheduled service are briefly displayed immediately after you start the engine or switch on the ignition.
The extent of service work required can be read out from the remote control by your
MINI Dealer.<
Displaying vehicle check
For certain maintenance operations, you can view the respective distance remaining or due date individually in the tachometer.
1. Switch on the ignition, refer to page 35.
2. Briefly press the button in the turn indicator
lever repeatedly until "SET/INFO" is dis­played.
4. Briefly press the button repeatedly until the
corresponding symbol and "SERVICE-INFO" are displayed.
5. Press and hold the button until the display
changes.
6. Briefly press the button to display the indi-
vidual service items, refer to the following information.
3. Press and hold the button until the display
changes.
Reference At a glanceControlsDriving tipsMobility
49
Possible displays
1 Button for selecting information 2 Engine oil 3 Front brakes
Everything under control
4 Rear brakes 5 Vehicle check

Clock

Setting the time
To set the 12h/24h mode, refer to Formats and units of measure on page 47.
1. Briefly press the button in the turn indicator
lever repeatedly until "SET/INFO" is dis­played.
6 Roadworthiness test 7 Brake fluid 8 Exit display 47 9 Next setting or item of information 47
More information on the MINI Maintenance Sys­tem can be found on page 98.
2. Press and hold the button until the display
changes.
3. Briefly press the button repeatedly until the
symbol and "SET" are displayed.
4. Press and hold the button until the display
changes.
5. Press the button to set the hours.
50
6. Wait for the display to change to minutes.
7. Press the button to set the minutes.
8. Wait for the display to change.
The settings are stored.

Date

Setting the date
To set the dd/mm or mm/dd date format, refer to Formats and units of measure on page 47.
1. Briefly press the button in the turn indicator
lever repeatedly until "SET/INFO" is dis­played.
2. Press and hold the button until the display
changes.
3. Briefly press the button repeatedly until the
symbol and "SET" are displayed.

Check Control

The concept
The Check Control monitors vehicle functions and alerts you to any malfunctions in the sys­tems monitored. Such a Check Control message includes indicator or warning lamps in the dis­plays and, in some circumstances, an acoustic signal.
Indicator and warning lamps can light up in var­ious combinations and colors in the indicator areas 1 and 2.
What to do in case of a malfunction
The meaning of each lamp in the event of a mal­function and tips on how to respond are listed starting on page 116.
Hiding Check Control messages
4. Press and hold the button until the display
changes.
5. Press the button to set the day of the month.
6. Wait for the display to change to month.
7. Set the month and year in the same way.
8. Wait for the display to change.
The settings are stored.
Press the button in the turn indicator lever. Some Check Control messages remain visible
until the respective malfunction has been recti­fied. They cannot be hidden. If several malfunc­tions occur at the same time, they are displayed in succession.
51
Reference At a glanceControlsDriving tipsMobility
Other Check Control messages are automatic ally
hidden after approx. 20 seconds, but remain stored.
This symbol indicates that Check Control messages have been stored. Check Control mes­sages can be viewed whenever it is convenient.
Viewing stored Check Control messages
Stored Check Control messages can only be dis­played if the driver's door is closed.
1. Briefly press the button in the turn indicator
lever repeatedly until "SET/INFO" is dis­played.
Everything under control
4. Hold the button down.
"CHECK OK" appears if there are no Check Control messages. If a Check Control message has been stored, the corresponding message is displayed.
5. Briefly press the button to check for other
messages.
2. Press and hold the button until the display
changes.
3. Press the button repeatedly until the display
shows the corresponding symbol and "CHECK INFO".
52
Technology for driving comfort and
safety
PDC Park Distance Con­trol*
The concept
PDC assists you with parking backwards. Acous­tic signals warn you of the presence of an object behind the vehicle. To measure the distance, there are four ultrasonic sensors in either bumper.
However, an acoustic warning does not sound until an object is approx. 24 in/60 cm from the corner sensors, or approx. 5 ft/1.50 m from the center sensors.
PDC is a parking aid that can indicate
objects when they are approached slowly, as is usually the case when parking. Avoid approaching an object at high speed, otherwise physical circumstances may lead to the system warning being issued too late.<
Automatic mode
With the engine running or the ignition switched on, the system is activated automatically after approx. 1 second when you en gage reverse gear or move the automatic transmission selector lever to position R. Wait this short period before driving.
Acoustic signals
As the distance between vehicle and object decreases, the intervals between the tones become shorter. If the distance to the nearest object falls to below roughly 1 ft/30 cm, then a continuous tone sounds.
If the distance remains constant, e.g. when driv­ing parallel to a wall, the acoustic signal stops after approx. 3 seconds.
Malfunction
Indicator lamp comes on: PDC is mal­functioning. Have the system checked.
To avoid this problem, keep the sensors clean and free of ice or snow in order to ensure that they will continue to operate effectively. When using a high-pressure cleaner, do not spray the sensors for extended periods of time and only from a distance of at least 4 in/10 cm.
System limitations
Even with PDC, final responsibility for esti-
mating the distance between the vehicle and any obstructions always remains with the driver. Sensors, too, have blind spots in which objects cannot be detected. Moreover, ultra­sonic detection can reach its physical limits with objects such as trailer tow bars and couplings, thin and wedge-shaped objects, etc. Low objects already indicated, such as curbs, may enter the sensors' blind spots before or after a continuous audible signal is given. Higher, pro­truding objects, such as wall ledges, may not be detectable. Loud sound sources outside or inside the car can drown out the PDC signal.<

Driving stability control systems

Your MINI has a number of systems that help to maintain the vehicle's stability even in adverse driving conditions.
The laws of physics cannot be repealed,
even with driving stability control systems. An appropriate driving style always remains the responsibility of the driver. Therefore, do not reduce the additional safety margin again by taking risks.<
Reference At a glanceControlsDriving tipsMobility
53
ABS Antilock Brake System
ABS prevents locking of the wheels during brak­ing. Safe steering response is maintained even during full braking. Active safety is thus increased.
Braking safely, refer to page 77. ABS includes the following functions:
> CBC Cornering Brake Control > Electronic brake-force distribution
Cornering Brake Control
Driving stability and steering characteristics are further enhanced while braking in turns or dur­ing a lane change.
Electronic brake-force distribution
The system controls the brake pressure in the rear wheels to ensure stable braking behavior.
Brake Assist
Rapid braking causes the system to automati­cally develop maximum braking force. The sys­tem helps keep the braking distance to a mini­mum.
Do not reduce the pressure on the brake for the duration of the full braking application.
ASC All-Season Traction Control*
ASC prevents slip at the drive wheels while start­ing off and accelerating the vehicle. This system optimizes driving stability and trac­tion, especially when driving off, accelerating and cornering, by reducing engine output and, if necessary, braking the front wheels.
ASC encompasses the following functions:
> ABS Antilock Brake System > Brake Assist
Technology for driving comfort and safety
> Hill Start Assist
DSC Dynamic Stability Control*
DSC prevents the driving wheels from losing traction when you pull away from rest or accel­erate. DSC also recognizes unstable driving con­ditions, for example if the rear of the car is about to swerve or if momentum is acting at an angle
past the front wheels. In these cases, DSC helps the vehicle maintain a safe course within physi­cal limits by reducing engine output and through braking actions at the individual wheels.
DSC also encompasses the following functions:
> ASC All-Season Traction Control > ABS Antilock Brake System > Brake Assist > Hill Start Assist
Deactivating ASC or DSC
Press the button repeatedly until the indicator lamp for the ASC or DSC comes on. ASC or DSC are deactivated. Stabilizing and drive-output promoting actions are no longer executed.
When driving with snow chains or to 'rock free' in snow, it can be helpful to switch off ASC/DSC for a brief period.
To increase vehicle stability, activate ASC/DSC again as soon as possible.
Activating ASC or DSC
Press the button again. The indicator lamps go out.
For better control
If the indicator lamp flashes: ASC or DSC controls the driving and braking forces.
If the indicator lamps are on: ASC or DSC is fully deactivated.
54
Malfunction in the driving stability
control systems
The warning lamps come on. ASC or DSC is malfunctioning. The vehicle remains operational. Have the system checked as soon as possible.
Drive cautiously and think well ahead, otherwise unstable driving conditions
could result.<
Hill Start Assist*
Hill Start Assist is a component of DSC and assists you in comfortably driving off on inclines. It is not necessary to use the parking brake for this.
1. Hold the MINI with the brake.
2. Release the brake and immediately drive
off.
Hill Start Assist holds the car in place for approx. 2 seconds after the brake is released.
Depending on vehicle load and road incli-
nation, the car may roll backwards a little during this time span. Drive off immediately after releasing the brake. Otherwise, Hill Start Assist will no longer hold the car in place after approx. 2 seconds and the car will start to roll backwards.<

Flat Tire Monitor FTM*

The concept
The Flat Tire Monitor monitors tire pressures while the car is being driven. The system reports any significant loss of pressure in one tire in rela­tion to another.
If a tire loses pressure, its rolling radius changes, and this in turn alters the speed of rotation. This change is detected and is reported as a flat tire.
Each time you correct the pressure in a tire, or change a wheel or tire, the system
must be reinitialized.<
System limitations
The Flat Tire Monitor is unable to warn the
driver of sudden, severe tire damage caused by external factors, nor can it identify the gradual loss of pressure that will inevitably occur in all four tires over a lengthy period of time.<
In the following situations, the system could be delayed or malfunction:
> System has not been initialized > Driving on snowy or slippery road surface > Performance-oriented style of driving: slip in
the drive wheels, high lateral acceleration
> Snow chains are attached
When the vehicle is driven with a space-saver spare tire tion.
*
, the Flat Tire Monitor cannot func-
Initializing the system
The initialization is completed during driv-
ing, which can be interrupted at any time. When driving resumes, the initialization is con­tinued automatically. Do not initialize the system if you are driving
*
with snow chains or a space-saver spare tire
1. Start the engine, but do not start driving.
2. Briefly press the button in the turn indicator
lever repeatedly until "SET/INFO" is dis­played.
.<
Functional requirement
In order to assure the reliable reporting of a flat tire, the system must be initialized for the cor­rect tire inflation pressure.
3. Press and hold the button until the display
changes.
55
Reference At a glanceControlsDriving tipsMobility
4. Briefly press the button repeatedly until the
corresponding symbol and "RESET" are dis­played.
5. Press and hold the button until the display
changes.
6. Start driving.
Initialization is completed while the car is on the move, without any feedback.
Indication of a flat tire
The warning lamps come on in yellow and red. An acoustic signal also sounds. There is a flat tire or substantial loss of tire pressure.
1. Reduce speed and stop the vehicle with cau-
tion. Avoid sudden braking and steering maneuvers.
2. Check whether your vehicle is equipped
with normal tires or Run-Flat Tires.
The symbol identifying Run-Flat Tires is a circle with the letters RSC on the
sidewall, refer to Run-Flat Tires, page 92.<
Normal tires
1. Determine which tire is damaged.
If this cannot be determined, contact your MINI Dealer.<
2. Repair the flat tire, refer to page 106, or
Technology for driving comfort and safety
change the damaged tire, refer to page 108.
steering maneuvers. Do not exceed a speed of 50 mph or 80 km/h.
Do not contin ue driving if the vehicle is
not equipped with Run-Flat Tires, page 92, otherwise a serious accident could result.<
2. At the next opportunity, check the air pres-
sure in all four tires.
If all four tires are inflated to the cor-
rect pressures, the Flat Tire Monitor might not have been initialized. The system must then be initialized.<
3. In the event of complete tire pressure loss,
0 psi/0 kPa, you can estimate the possible distance for continued driving on the basis of the following guidelines:
> With a light load:
1 to 2 persons without luggage: approx. 155 miles/250 km
> With a medium load:
2 persons, cargo area full, or 4 persons without luggage: approx. 90 miles/150 km
> With a full load:
4 persons, cargo area full: approx. 30 miles/50 km
Drive cautiously and do not exceed a
speed of 50 mph or 80 km/h. In the event of pressure loss, vehicle handling changes. This includes reduced tracking stability in braking, extended braking distance and altered natural steering characteristics. If unusual vibration or loud noises occur during the journey, this may be an indication that the damaged tire has finally failed. Reduce the vehi­cle speed and stop as soon as possible. Other­wise, sections of the tire may come loose and cause accidents. Do not continue driving and contact your MINI Dealer.<
Run-Flat Tires*
1. Cautiously reduce speed to below 50 mph
or 80 km/h. Avoid sudden braking and
56
Malfunction
The warning lamps light up in yellow. There is a malfunction in the Flat Tire Monitor or the system has failed. Have the system checked as soon as possible.

Airbags

The following airbags are located under the marked covers:
1 Front airbags 2 Side airbag 3 Head airbag
Protective action
Observe the instructions on page 28 to ensure the best possible personal protec-
tion.< The front airbags help protect the driver and
front passenger by responding to frontal impacts in which safety belts alone cannot pro­vide adequate restraint. When needed, the head and side airbags help provide protection in the event of side impact. The relevant side airbag supports the side upper body area. The head air bag supports the head.
The airbags are designed to not be triggered in every type of collision, e.g. not in minor acci­dents, certain rollover situations or rear impacts.
Do not apply adhesive materials to the
cover panels of the airbags, cover them or modify them in any other way. Do not attach seat covers, cushions or other objects not specif­ically approved for seats with integral side air­bags to the front seats. Do not hang items of clothing such as coats or jackets over the back­rests. Do not attempt to remove the airbag retention system from the vehicle. Do not mod­ify the individual components of the system or its wiring in any way. This includes the uphol­stered covers on the steering wheel, instrument panel, seats and roof posts, as well as the sides of the roof lining. Do not attempt to remove or
dismantle the steering wheel. Do not touch the individual components imme­diately after the system has been triggered, because there is a danger of burns. In the event of malfunctions, deactivation, or triggering of the airbag restraint system, have the testing, repair, removal, and disposal of air­bag generators executed only by a MINI Dealer or a workshop that works according to repair procedures of the manufacturer of your MINI with correspondingly trained personnel and has the required explosives licenses. Unprofessional attempts to service the system could lead to fail­ure in an emergency or undesired airbag activa­tion, either of which could result in personal injury.<
Warning notices and information about the air­bags can also be found on the sun visors.
Automatic deactivation of the front passenger airbags
An analysis of the impression in the front pas­senger seat cushion determines whether and how the seat is occupied. The front and side air­bags for the front passenger are activated or deactivated by the system accordingly.
The indicator lamp above the interior rear-
view mirror shows the current status of the front passenger airbags, deactivated or acti­vated, refer to Status of front passenger airbags below.<
Before transporting a child on the front
passenger seat, read the safety precau­tions and handling instructions under Transport­ing children safely, page 33. The front and side airbags can also be deacti-
Reference At a glanceControlsDriving tipsMobility
57
vated by adolescents and adults sitting in certain
positions; the indicator lamp for the front pas­senger airbags comes on. In such cases, the pas­senger should change his or her sitting position so that the front passenger airbags are activated and the indicator lamp goes out. If the desired airbag status cannot be achieved by changing the sitting position, transport the relevant pas­senger on a rear seat. Do not attach covers, cushions, ball mats or other items to the front passenger seat unless they are specifically rec­ommended by the manufacturer of your MINI. Do not place any items under the seat which could press against the seat from below. Other­wise a correct analysis of the seat cushion is not ensured.<
Status of front passenger airbags
The indicator lamp for the front passenger air­bags shows the functional status of the front passenger's front and side airba gs in accordance with whether and how the front passenger seat is occupied. The indicator lamp shows whether the front passenger airbags are activated or deactivated.
> The indicator lamp comes on as intended
when a child in a specially designated child­restraint system is detected on the seat. The front and side airbags for the front pas­senger are not activated.
Technology for driving comfort and safety
Most child-restraint systems are
detected by the system. This particu­larly applies to child-restraint systems that were required by the NHTSA at the time of manufacture of the vehicle. After installing a child-restraint system, check that the indica­tor lamp for the front passenger airbags comes on. It indicates that the child-restraint
system has been detected and that the front passenger airbags are deactivated.<
> Th e ind icator lamp do es no t c om e o n a s l ong
as a person of sufficient size and in a correct sitting position is detected on the seat. The front and side airbags for the front pas­senger are activated.
> The indicator lamp does not come on if the
seat is empty. The front and side airbags for the front pas­senger are not activated.
Operational readiness of airbag system
As of radio readiness, page 35, the warning lamp comes on briefly to indicate that the entire airbag system and the belt tensioners are oper­ational.
Airbag system malfunction
> The warning lamp does not come on when
radio readiness or the ignition is switched on.
> The warning lamp stays lit continuously.
In the event of a fault in the airbag system,
have it checked without delay, otherwise there is the risk that the system will not function as intended even if a sufficiently severe accident occurs.<
58

Lamps

Parking lamps/low beams

0 Lamps off and daytime running lamps 1 Parking lamps and daytime running lamps 2 Low beams 3 Automatic headlamp control
Parking lamps
Turn the light switch to position 1. The front, rear and side vehicle lighting is switched on.
Activation of lights on one side of the vehicle for parking, page 61.
The parking lamps will discharge the bat-
tery. Therefore, do not leave them on for unduly long periods of time, otherwise the bat­tery might not have enough power to start the engine.<
Low beams
Turn the light switch to position 2. The low beams come on when the ignition is on.
The exterior lamps are automatically switched off after the vehicle is parked.
Switch on the parking lamps separately if needed.
Automatic headlamp control*
When the switch is in position 3, the low beams are switched on and off automatically depend­ing on ambient light conditions, e.g. in a tunnel, in twilight, or if there is precipitation.
*
The headlamps may also come on when the sun is sitting low on a blue sky.
When driving into tunnels with bright overhead lights, there may be a delay before the head­lamps come on.
The low beams remain switched on indepen­dent of the ambient lighting conditions when you switch on the fog lamps
If the daytime running lamps are activated, page 60, the low beams are always switched on with the light switch in position 3 and the igni­tion on. The exterior lamps are automatically switched off after the vehicle is parked.
The automatic headlamp control cannot
serve as a substitute for your personal judgment in determining when the lamps should be switched on in response to ambient lighting conditions. For example, the system cannot detect fog or hazy weather. To avoid safety risks, you should respond to these kinds of low-visibility situations by switching the head­lamps on manually.<
*
.
Welcome lamps
If you leave the light switch in the low beam or automatic headlamp control position when you switch off the ignition, the parking lamps and interior lamps come on for a certain time as soon as the vehicle is unlocked.
Pathway lighting
If you activate the headlamp flasher after park­ing the car, with the lights switched off, the low beams come on and remain on for a certain time.
The setting is stored for the remote control in use, refer to Personal Profile, page 18.
Reference At a glanceControlsDriving tipsMobility
59
Setting the duration or deactivating the
function
1. Switch on the ignition, refer to page 35.
2. Briefly press the button in the turn indicator
Lamps
lever repeatedly until "SET/INFO" is dis­played.
3. Press and hold the button until the display
changes.
4. Briefly press the button repeatedly until the
symbol and "SET" are displayed.
8. Briefly press the button to select:
>
The function is deactivated.
> ...
Select the corresponding duration, e.g. 40 seconds.
9. Press the button for a longer period.
The setting is stored.
Daytime running lamps
The light switch can remain in the lamps off or parking lamps position. In the lamps off position, the exterior lighting is automatically switched off after the vehicle is parked. In the parking lamps position, the park­ing lamps will stay on after the ignition is switched off.
Switch on the parking lamps separately if needed.
Activating/deactivating daytime running lamps
The setting is stored for the remote control in use, refer to Personal Profile, page 18.
1. Switch on the ignition, refer to page 35.
2. Briefly press the button in the turn indicator
lever repeatedly until "SET/INFO" is dis­played.
5. Press and hold the button until the display
changes.
6. Briefly press the button repeatedly until the
display shows the illustrated symbol.
7. Press and hold the button until the display
changes.
60
3. Press and hold the button until the display
changes.
4. Briefly press the button repeatedly until the
symbol and "SET" are displayed.
5. Press and hold the button until the display
changes.
6. Briefly press the button repeatedly until the
display shows the illustrated symbol, arrow.
7. Press and hold the button until the display
changes.
8. Briefly press the button to select:
>
Daytime running lamps activated.
>
Daytime running lamps deactivated.
9. Press the button for a longer period.
The setting is stored.

High beams/roadside parking lamps

1 Turn signal indicators/roadside parking
*
lamps
2 Switching on high beams 3 Switching off high beams/headlamp flasher
Roadside parking lamps, left or right*
The vehicle can be illuminated on one side for parking. Comply with local regulations when doing so.
Switching on
After parking the vehicle, press the lever up or down, arrow 1.
The roadside parking lamps drain the bat-
tery. Therefore, do not leave them on for unduly long periods of time, otherwise the bat­tery might not have enough power to start the engine.<
Switching off
Press the lever up or down to the pressure point.
Reference At a glanceControlsDriving tipsMobility
61

Fog lamps*

Lamps
1 Fog lamps 2 Rear fog lamp
Press the respective switch to turn the lamps on/ off.
Fog lamps*
The parking lamps or low beams must be switched on for the fog lamps to operate. The green indicator lamp comes on when the fog lamps are switched on.
Depending on your vehicle's equipment, the fog lamps are switched off when you activate the headlamp flasher or switch on the high beams.
If the automatic headlamp control is acti­vated, the low beams will come on auto-
matically when you switch on the fog lamps.<
*
*
Increasing brightness
Press and hold the button until the desired brightness is reached.
Reducing brightness
Press the button briefly. The brightness decreases every time the button
is pressed briefly.

Interior lamps

The interior lamps, the footwell lamps* and the cargo area lamp are controlled automatically.
To avoid draining the battery, all lamps
inside the car are switched off about 30 minutes after the ignition is switched off, refer to Start/stop button on page 35.<
Rear fog lamp*
The low beams or parking lamps with fog lamps must be switched on. The yellow indicator lamp comes on when rear fog lamp is switched on.

Instrument lighting

You can adjust the brightness of the instrument lighting only when the parking lamps or the low beams are on.
62
Switching interior lamps on/off manually
To switch the interior lamps on/off. Press the switch. To switch off the interior lamps permanently,
press the button for about 3 seconds.
Reading lamps*
To switch the reading lamps on and off. Press the switch.
Ambient lighting*
The color of the ambient lighting can be changed.
> Press the switch forward.
The color changes in stages, ultimately to orange.
> Press the switch toward the rear.
The color changes in stages, ultimately to blue.
Intermediate settings and colors are possible.
Reference At a glanceControlsDriving tipsMobility
63

Climate

Climate
Equipment versions
Depending on your vehicle's equipment, your MINI may contain an air conditioner matic climate control*.
1 Air conditioner 2 Automatic climate control
or an auto-
*
64
Air vents
3 Airflow directed toward the windshield and
side windows
4 Air to the upper body area 5 Air to the footwell

Air conditioner

1 Air flow rate 2 Cooling function 3 Recirculated-air mode 4 Temperature
Air flow rate
Adjust the air flow rate. The higher the rate, the more effective the heating or cooling will be.
Switching the system on/off
Turn the air flow rate rotary switch to 0. Blower and air conditioner are completely switched off and the air supply is cut off.
Set any desired air flow rate to switch on the air conditioner.
Cooling function
When the cooling function is on, the air is cooled, dried, then
reheated according to the temper­ature setting. The recirculated-air mode may be switched on automatically.
Depending on the weather, the windshield may fog over briefly when the engine is started.
Recirculated-air mode
If the air outside the car has an
unpleasant odor or contains pollut-
ants, shut off the supply to the inte­rior of the car temporarily. The system then recirculates the air currently within the vehicle.
5 Rear window defroster 6 Air distribution 7 Windshield heating
If condensation starts to form on the
inside window surfaces, switch off the recirculated-air mode and, if necessary, switch on the cooling function rate.<
To prevent the air quality inside the vehi-
cle from deteriorating during extended use of the recirculated-air mode, fresh air is added briefly at regular intervals.<
or increase the air flow
Temperature
Turn upward, red, to increase the temper-
ature.
Turn downward, blue, to decrease the
temperature.
Rear window defroster
The defroster is switched off auto­matically after a certain time.
Air distribution
Direct the flow of air to the win­dows , to the upper body area
or to the footwell . Interme-
diate settings are possible.
Reference At a glanceControlsDriving tipsMobility
65
Windshield heating*
The windshield heating is switched off automatically after a short time.
Defrosting windows and removing condensation
Climate
1. Set air flow rate to the maximum level.
2. Set air distribution to position .
Condensation is removed from the windows

Automatic climate control*

more quickly when the cooling function also activated.
3. Set to the highest temperature, red.
4. Deactivate recirculated-air mode.
5. Turn on windshield heating if necessary.
6. Turn on rear window defroster if necessary.
*
Microfilter
The microfilter captures dust and pollen. The microfilter is changed by your MINI Dealer dur­ing routine maintenance work.
is
1 Air flow rate, manual 2 AUTO program 3 AUC Automatic recirculated-air control/
Recirculated-air mode
4 Maximum cooling 5 Air distribution, manual
Comfortable interior climate
AUTO program 2 offers the ideal air distribution and air flow rate for almost all conditions, refer to AUTO program below. All you need to do is select an interior temperature which is comfort­able for you.
The following sections inform you in detail about how to adjust the settings.
Most settings are stored for the remote control currently in use, refer also to Personal Profile set­tings on page 18.
66
6 Temperature 7 Defrosting windows and removing conden-
sation
8 Cooling function 9 Rear window defroster 10 Windshield heating
*
Air flow rate, manual
Press the – button to reduce air flow. Press the + button to increase it.
You can reactivate the automatic mode for the air flow rate with the AUTO button.
Switching the system on/off
Reduce the air flow by pressing the – button repeatedly until the system is switched off. All indicators go out.
Press the AUTO button to switch the automatic climate control back on.
AUTO program
The AUTO program adjusts the air
distribution to the windshield and side windows, towards the upper body area and into the footwell for you. The air flow rate and your temperature specifications will be adapted to outside influences in accordance with sea­sonal changes, e.g. sunlight.
The cooling function is automatically switched on along with the AUTO program.
AUC Automatic recirculated-air control/ Recirculated-air mode
Switch on the desired operating
mode by pressing the button
repeatedly.
Display of operating modes
No display: outside air flows in continuously.
AUC mode: a sensor detects pollutants in the outside air. If necessary, the system
blocks the supply of outside air and recir­culates the inside air. As soon as the concentra­tion of pollutants in the outside air has decreased sufficiently, the system automatically switches back to outside air supply.
At outside temperatures below approx. 41 7/ +5 6, the AUC mode may be restricted due to the increased risk of window condensation.
Recirculated-air mode: the supply of out-
side air is permanently shut off. The sys-
tem then recirculates the air currently within the vehicle.
If condensation starts to form on the
inside window surfaces, switch off the recirculated-air mode and, if necessary, switch on the cooling function or increase the air flow rate. <
To prevent the air quality inside the vehi-
cle from deteriorating during extended use of the recirculated-air mode, fresh air is added briefly at regular intervals.<
Maximum cooling
At outside temperatures above 32 7/0 6 and when the engine is running, you obtain a maximum
cooling effect as soon as possible. The automatic climate control switches to the
lowest temperature and operates in recircu­lated-air mode. Air flows at maximum rate only from the vents for the upper body area. You should therefore open them for maximum cool­ing.
Air distribution, manual
The flow of air is directed to the windows, to the upper body area or to the footwell.
You can switch the automatic air distribution back on by pressing the AUTO but­ton.
Temperature
Set the desired temperature individually. The automatic climate control achieves
this temperature as quickly as possible
regardless of the season, using maximum cooling or heating power if necessary, and then maintains it.
If you switch between different tempera-
ture settings in quick succession, the auto­matic climate control does not have enough time to achieve the set temperature.<
Rear window defroster
The defroster is switched off auto­matically after a certain time.
Defrosting windows and removing condensation
Quickly removes ice and condensa­tion from the windshield and front side windows. The windshield heat-
*
is switched on automatically.
ing
Reference At a glanceControlsDriving tipsMobility
67
Windshield heating*
The windshield heating is switched off automatically after a certain time.
Cooling function
Climate
When the cooling function is on, the air is cooled, dried, then reheated according to the temper­ature setting.
Depending on the weather, the windshield may fog over briefly when the engine is started or the cooling function is switched off. The recircu­lated-air mode may is switched on automati­cally.
The cooling function is automatically switched on along with the AUTO program. The passenger compartment can only be cooled while the engine is running.
Microfilter/activated-charcoal filter
The microfilter captures dust and pollen. The activated-charcoal filter provides additional pro­tection by filtering gaseous pollutants from the outside air. Your MINI Dealer replaces this com­bined filter as a standard part of your scheduled maintenance. You can call up further information in the service requirements display, page 49.
Opening/closing
Turn the knob.
Direction of air flow
Swivel the entire jet.

Ventilation

1 Knob for continuous opening and closing 2 Jet for direction of air flow
68

Practical interior accessories

Integrated universal remote control*

The concept
The integrated universal remote control can replace as many as three hand-held transmitters for various remote-controlled devices, such as door openers and house alarm systems. The integrated universal remote control registers and stores signals from the original hand-held transmitters.
The signal of an original hand-held transmitter can be programmed on one of the three mem­ory buttons 1. The system in question can then be operated by means of the programmed memory button 1. The LED 2 flashes to confirm transmission of the signal.
If you decide to sell your vehicle one day, in the interest of your own security, remember to clear the stored programs before the vehicle leaves your possession, page 70.
To prevent possible damage or injury,
before programming or using the inte­grated universal remote control, always inspect the immediate area to make certain that no people, animals or objects are within the pivot­ing or travel range of the device being operated. Comply also with the safety instructions supplied with the original hand-held transmitter.<
Checking compatibility
If this symbol appears on the package or in the instructions supplied with the
original hand-held transmitter, you can assume that the radio remote control device will be compatible with the integrated universal remote control.
For additional information, please contact your MINI Dealer or call: 1-800-355-3515. You can also obtain information on the Internet at: www.MINI.com or www.homelink.com.
HomeLink is a registered trademark of Johnson Controls, Inc.<
Programming
1 Memory buttons 2 LED
Fixed-code hand-held transmitters
1. Switch on the ignition, page 35.
2. When starting operation for the first time:
press both outer memory buttons 1 for approx. 20 seconds until the LED 2 flashes rapidly. All stored programs are cleared.
3. Hold the original hand-held transmitter at a
distance of approx. 2 to 12 in/5 to 30 cm from the memory buttons 1.
The required distance between the
hand-held transmitter and the mem­ory buttons 1 depends on the system of the respective original hand-held transmitter used.<
4. Simultaneously press the transmit key on
the original hand-held transmitter and the desired memory button 1 on the integrated universal remote control. The LED 2 flashes slowly at first. As soon as the LED 2 flashes rapidly, release both buttons. If the LED 2 does not flash rapidly after approx. 15 sec­onds, alter the distance.
5. To program other original hand-held trans-
mitters, repeat steps 3 and 4.
Reference At a glanceControlsDriving tipsMobility
69
The corresponding memory button 1 is now
programmed with the signal of the original hand-held transmitter.
You can operate the system with the engine running or with the ignition switched on.
If the system fails to function even after
repeated programming, check whether the original hand-held transmitter uses an alter­nating-code system. To do so, either read the instructions for the original hand-held transmit­ter or hold down the programmed memory button 1 of the integrated universal remote con­trol. If the LED 2 on the integrated universal remote control flashes rapidly for a short while and then remains lit for about two seconds, the original hand-held transmitter uses an alternat­ing-code system. If it uses an alternating-code system, program the memory buttons 1 as described under Alternating-code hand-held transmitters.<
Alternating-code hand-held transmitters
To program the integrated universal remote control, consult the operating instructions for the device to be set. You will find information there on the possibilities for synchronization.
Practical interior accessories
When programming hand -held transmitters that employ an alternating code, please observe the following supplementary instructions:
Programming will be easier with the aid of
a second person.<
1. Park your vehicle within the range of the
remote-controlled device.
2. Program the integrated universal remote
control as described above in the section Fixed-code hand-held transmitters.
3. Locate the button on the receiver of the
device to be set, e.g. on the drive unit.
4. Press the button on the receiver of the
device to be set. After step 4, you have approx. 30 seconds for the next step 5.
5. Press the programmed memory button 1 of
the integrated universal remote control three times.
The corresponding memory button 1 is now programmed with the signal of the original hand-held transmitter.
Clearing stored programs
Press both outer memory buttons 1 for approx. 20 seconds until the LED 2 flashes: all stored programs are cleared.
It is not possible to clear individual programs.

Glove compartment

Opening
Press the button to open the cover. The light in the glove compartment comes on.
Closing
Fold cover up.
To prevent injury in the event of an acci­dent, close the glove compartment after
use while the vehicle is being driven.<
Ventilation*
Depending on your vehicle's equipment, it may be possible to ventilate the glove compartment.
70
Opening
Turn the switch to the horizontal position, see arrow.
Closing
Turn the switch to the vertical position. Depending on the temperature setting of the air
conditioning or the automatic climate control, high temperatures may result in the glove com­partment.

Center armrest*

Connection for external audio device

You can connect an external audio device such as a CD or MP3 player and play audio recordings over the vehicle loudspeakers. The volume and tone settings can be adjusted via the car radio, refer to the Owner's Manual for Radio.
> Connection for audio playback:
3.5 mm jack
> Power supply for the additional device via
the cigarette lighter socket or the socket in the center console, page 72
Storage compartment
The center armrest between the front seats con­tains either a compartment or the cover for the
*
mobile phone base plate
*
adapter
.
or the snap-in
Opening
The cover slides along guide rails and can be opened fully by pushing it back and lifting it.
Closing
Push the cover forwards.

Storage compartments inside the vehicle

Depending on your vehicle's equipment, you will find storage compartments in the doors, next to the rear seats and in the center console
*
are located in the passenger footwell and
Nets on the backs of the front seat backrests.
*
71
.
Reference At a glanceControlsDriving tipsMobility
Storage compartment on the front
passenger side*
Opening
Briefly press the bottom edge of the cover.
Closing
Push the cover back into its original position.
To prevent injury in the event of an acci-
dent, close the storage compartment after use while the vehicle is being driven.<
Clothes hooks
There are clothes hooks on the grab handles in the rear passenger compartment.
Items of clothing hung from the hooks
Practical interior accessories
must not obstruct the driver's view. Do not hang heavy objects from the hooks, otherwise they could endanger the car's occupants, e.g. in case of heavy braking or sudden swerving.<
Emptying
Remove the entire ashtray.
Lighter
With the engine running or the ignition switched on, press in the cigarette lighter.
The lighter can be pulled out as soon as it pops back out.
Hold or touch the hot cigarette lighter by
the knob only. Holding or touching it in other areas could result in burns. When leaving the car, always remove the key so that children cannot operate the cigarette lighter and burn themselves.<

Connecting electrical appliances

In your MINI, you can use electrical devices such as a flashlight, car vacuum cleaner, etc., up to approx. 200 watts at 12 volts, as long as one of the following sockets is available. Avoid damag­ing the sockets by attempting to insert plugs of unsuitable shape or size.
Cigarette lighter socket
Remove the lighter* or cover from the socket.
Socket in the cargo area
Cup holders and ash­tray*
Cup holders
Two cup holders are located in the front of the center console, another is in the rear at the back of the center console.
Do not place glass containers in the cup holders, as this increases the risk of injury
in the event of an accident.<
Ashtray*
The ashtray is located in one of the cup holders in the center console.
72
Pull out the cover.
Reference At a glanceControlsDriving tipsMobility
73
At a glance
Controls

Driving tips

Driving tips
Mobility
Reference

Things to remember when driving

Break-in period

Moving parts need breaking-in time to adjust to each other. Please follow the instructions below in order to achieve the optimal service life and economy of operation for your vehicle.
Engine and differential
Always obey all official speed limits.
Up to 1,200 miles/2,000 km
Drive at varying engine and road speeds, but do not exceed the following:
> 4,500/min or 100 mph/160 km/h
Avoid full-throttle operation and use of the transmission's kick-down mode.
After driving 1,200 miles/2,000 km
Engine and vehicle speeds can be gradually increased.
Tires
Due to technical factors associated with their manufacture, tires do not achieve their full trac­tion potential until after an initial break-in period. Therefore, drive cautiously during the
Things to remember when driving
first 200 miles/300 km.
Brake system
Brakes require an initial break-in period of approx. 300 miles/500 km to achieve optimized contact and wear patterns between brake pads and rotors. Drive cautiously during this break-in period.
Following part replacement
The same break-in procedures should be observed if any of the components mentioned above have to be renewed in the course of the vehicle's operating life.

General driving notes

Close the tailgate
Drive the vehicle only when the tailgate is
closed. Otherwise, exhaust fumes could penetrate the interior of the vehicle.<
If special circumstances make it absolutely nec­essary to drive with the tailgate open:
1. Close all windows and the glass sunroof.
2. Increase the air flow rate of the air condi-
tioner or automatic climate control consid­erably, page 65 or 66.
Hot exhaust system
In all vehicles, extremely high tempera-
tures are generated in the exhaust sys­tem. Do not remove the heat shields installed adjacent to various sections of the exhaust sys­tem, and never apply undercoating to them. When driving, standing at idle and while park­ing, take care to avoid possible contact between the hot exhaust system and any highly flamma­ble materials such as hay, leaves, grass, etc. Such contact could lead to a fire, with the risk of seri­ous personal injuries and property damage. Do not touch hot exhaust tail pipes. Otherwise there is a risk of burns.<
Clutch
The function of the clutch reaches its optimal level only after a distance driven of approx. 300 miles/500 km. During this break-in period, engage the clutch gently.
76
Mobile phones in the vehicle
The manufacturer of your MINI recom-
mends that you do not use mobile devices, e.g. mobile phones, inside the vehicle without directly connecting them to an outside antenna. Otherwise, the vehicle electronics and mobile communications device can influence one another. In addition, there is no assurance
that the radiation which results from transmis-
sion will be dissipated from the vehicle inte­rior.<
helps dry the pads and rotors to ensure that Then full braking force will be immediately avail­able when it is needed.
Hydroplaning
When driving on wet or slushy roads,
reduce road speed. If you do not, a wedge of water can form between tires and road sur­face. This situation, known as hydroplaning, can cause partial or complete loss of tire contact with the road surface, so that the car cannot be steered or braked properly.<
The risk of hydroplaning increases with declining tread depth on the tires, refer also to Tread depth on page 91.
Driving through water
Drive through water on the road only if it is
not deeper than 1 ft/30 cm, and then only at walking speed at the most. Otherwise, the vehicle's engine, the electrical systems and the transmission may be damaged.<
Parking brake on inclines
On inclines, do not hold the vehicle with
the clutch; use the parking brake. Other­wise greater clutch wear will result.<
For information on driving off using Hill Start Assist*, refer to page 55.
Braking safely
Your MINI is equipped with ABS. If you are in a situation which requires full braking, it is best to brake using maximum brake pressure. Since the vehicle maintains steering responsiveness, you can still avoid possible obstacles with a mini­mum of steering effort.
The pulsation of the brake pedal, together with the sound of hydraulic regulation, indicates that ABS is actively taking effect.
Driving in wet conditions
When roads are wet or there is heavy rain, briefly exert gentle pressure on the brake pedal every few miles. Monitor traffic conditions to ensure that this maneuver does not endanger other road users. The heat generated in this process
Hills
To prevent overheating and the resulting
reduced efficiency of the brake system, drive long or steep downhill gradients in the gear in which the least braking is required. Even light but consistent brake pressure can lead to high temperatures, brake wear and possibly even brake failure.<
You can increase the engine's braking effect by shifting down, all the way to first gear if neces­sary. This strategy helps you avoid placing excessive loads on the brake system. Downshift­ing in manual mode of the automatic transmis­sion, page 38.
Never drive with the clutch held down,
with the transmission in idle or with the engine switched off; otherwise, engine braking action will not be present or there will be no power assistance to the brakes or steering. Never allow floor mats, carpets or any other objects to protrude into the area around the pedals, otherwise pedal function could be impaired.<
Corrosion on brake rotors
When the vehicle is driven only occasionally, during extended periods when the vehicle is not used at all, and in operating conditions where brake applications are less frequent, there is an increased tendency for corrosion to form on rotors, while contaminants accumulate on the brake pads. This occurs because the minimum pressure which must be exerted by the pads during brake applications to clean the rotors is not reached.
Should corrosion form on the brake rotors, the brakes will tend to respond with a pulsating effect that even extended application will fail to cure.
When the vehicle is parked
Condensation forms while the automatic climate control is in operation, and then exits under the
Reference At a glanceControlsDriving tipsMobility
77
vehicle. Traces of condensed water under the
vehicle are therefore normal. In the Cooper S, the coolant pump may continue
to run for some time after the engine is switched off. This will generate noise in the engine com­partment.
Before driving into a car wash
For general information about vehicle care for your MINI, refer to the chapter beginning on page 100.
With convenient access and automatic transmission
Insert the key into the ignition lock. The engine can be switched off when the selec­tor lever is in position N. Refer also to page 25.

Cargo loading

To avoid loading the tires beyond their
approved carrying capacity, never over­load the vehicle. Overloading can lead to over­heating and increases the rate at which damage develops inside the tires. The ultimate result can assume the form of a sudden blow-out.<
Cargo area cover
When the tailgate is opened, the cargo area
Things to remember when driving
cover is raised.
Do not place any objects on the cover,
otherwise they could endanger the car's occupants, e.g. in the case of braking or sudden swerving.<
Removing
To load bulky luggage, the cargo area cover can be removed.
1. Unhook the lift straps from the tailgate.
2. Pull the cover out of the holders toward the
rear.
Expanding the cargo area
The rear seat backrest is split and can be folded. Both sides can be folded separately to expand the cargo area.
1. Pull the lever.
2. Fold rear seat backrests forward.
When folding the backrest back up, make
sure that the seat's locking mechanisms engage properly. Otherwise, cargo could be thrown around in the event of sharp braking or swerving and endanger the occupants.<
Adjusting rear seat backrest*
To expand the cargo area without keeping the rear seat backrests folded forward.
78
1. Pull the lever, arrow 1, and fold the rear seat
backrest forward.
2. Fold up the lever of the backrest lock until it
audibly engages, arrow 2.
3. Fold back the backrest until it engages.
If the cargo area has been expanded, do
not install child-restraint systems in the rear of the vehicle as their protective features may be ineffective.<
Determining cargo limit
1,400 lbs. and there will be four 150-lb. pas­sengers in your vehicle, the amount of avail­able cargo and luggage load capacity is 650 lbs: 1,400 lbs. minus 750 lbs. = 650 lbs.
5. Determine the combined weight of luggage
and cargo being loaded on the vehicle. That weight may not safely exceed the available cargo and luggage load capacity calculated in step 4.
6. If your veh icle will be towin g a tra iler, part of
the load from your trailer will be transferred to your vehicle. Consult the manual for transporting a trailer to determine how this may reduce the available cargo and luggage load capacity of your vehicle.
Load
1. Locate the following statement on your
vehicle's placard
The combined weight of occupants
and cargo should never exceed XXX kg or YYY lbs. Otherwise, overloading can result in damage to the vehicle and unstable driving conditions.<
2. Determine the combined weight of the
driver and passengers that will be riding in your vehicle.
3. Subtract the combined weight of the driver
and passengers from XXX kilograms or YYY pounds.
4. The resulting figure equals the available
amount of cargo and luggage load capacity. For example, if the XXX amount equals
*
:
The permissible load is the sum of the occu­pants' weights and the weight of the cargo. The greater the weight of the occupants, the less cargo/luggage can be transported.
Stowing cargo
> Position heavy objects as low and as far for-
ward as possible, ideally directly behind the respective seat backrests.
> Cover sharp edges and corners.
79
Reference At a glanceControlsDriving tipsMobility
> For very heavy cargo when the rear seat is
not occupied, secure each safety belt in the respective opposite buckle.
Securing cargo
> Secure smaller and lighter items using
*
retaining or draw straps
> Heavy-duty cargo straps
and heavier objects are available at your MINI Dealer. Four lashing eyes are provided for attaching the cargo straps. Two of them are located on the sidewalls of the cargo area. Comply with the information enclosed with the load-securing devices.
Always position and secure the cargo as
described above, so that it cannot endan­ger the car's occupants, for example if sudden braking or swerves are necessary. Do not exceed the approved gross weight and
Things to remember when driving
axle loads, page 132; otherwise the vehicle's operating safety is no longer assured and it will not be in compliance with the certification regu­lations. Heavy or hard objects should not be carried loose inside the car, since they could be thrown around, for example as a result of heavy braking, sudden swerves, etc., and endanger the occu­pants.<
.
*
for securing larger
Mounting points
Remove the cover panel
Loading roof-mounted luggage rack
Because roof racks raise the vehicle's center of gravity when loaded, they have a major effect on vehicle handling and steering response. You should therefore always remember not to exceed the approved roof load capacity, the approved gross vehicle weight or the axle loads when loading the rack.
You can find the applicable data under Weights on page 132.
The roof load must be distributed uniformly and should not be too large in area. Heavy items should always be placed at the bottom.
When loading, make sure that there is sufficient space for the movement of the glass sunroof and that no objects protrude into the swiveling area of the tailgate; otherwise damage can occur.
Fasten roof-mounted cargo correctly and securely to prevent it from shifting or falling off during the trip.
Drive smoothly. Avoid sudden acceleration and braking maneuvers. Take corners gently.

Roof-mounted luggage rack*

A special rack system is available as an option for your MINI. Your MINI Dealer will be glad to advise you. Comply with the installation instruc­tions supplied with the rack system.
80
Reference At a glanceControlsDriving tipsMobility
81
At a glance
Controls
Driving tips

Mobility

Mobility
Reference

Refueling

Switch off the engine before refueling,
otherwise fuel cannot be added to the tank and a message will be displayed.<
Take all precautionary measures and
Refueling
observe all applicable regulations when handling fuel. Do not carry any spare fuel con­tainers in your vehicle. They can develop a leak and cause an explosion or cause a fire in the event of an accident.<

Gas cap

Opening
1. Open fuel filler door.
2. Turn the gas cap counterclockwise.
3. Place the gas cap in the bracket attached to
the fuel filler door.
Closing
Fit the cap and turn it clockwise until you clearly hear a click.
Do not jam the strap between the gas cap
and the vehicle. A message will be dis­played if the gas cap is loose or missing.<
Manually releasing the fuel filler door
In the event of an electrical malfunction, you can manually unlock the fuel filler door:
1. Remove the cover from the right-hand side-
wall of the cargo area.
2. Pull on the green knob with the fuel pump
symbol. The fuel filler door is released.
Observe the following when refueling
When handling fuels always observe any safety guidelines posted at the service sta-
tion.< When refueling, insert the filler nozzle com-
pletely into the filler pipe. Avoid lifting the filler nozzle while filling the tank, as that would lead to
> premature pump shutoff > a reduced efficiency of the fuel-vapor recov-
ery system
The fuel tank is full when the filler nozzle clicks off the first time.
Fuel tank capacity
84
MINI Cooper
Approx. 10.6 US gallons/40 liters, including the reserve capacity of 2.1 US gallons/8 liters.
MINI Cooper S
Approx. 13.2 US gallons/50 liters, including the reserve capacity of 2.1 US gallons/8 liters.
Do not continue driving to the point where
the fuel tank is totally empty. Otherwise engine performance is not guaranteed and damage could occur.<

Fuel specifications

Do not fill the tank with leaded fuel, as this
would cause damage to the catalytic con­verter. Do not fill the tank with E85, i.e. fuel containing 85% ethanol, nor with FlexFuel. Otherwise the engine and fuel supply system will be dam­aged.<
Required fuel
Super Premium gasoline/AKI 91
This gasoline is highly recommended. However, you may also use gasoline with less
AKI. The minimum AKI Rating is 87. If you use gasoline with this minimum AKI Rat-
ing, the engine may produce knocking sounds when starting at high outside temperatures. This has no effect on the engine life.
Do not use any gasoline below the speci-
fied minimum fuel grade. Otherwise the engine could be damaged.<
tions such as high ambient temperature and high altitude. Should you encounter driveability problems which you suspect could be related to the fuel you are using, we recommend that you respond by switching to a recognized high-quality brand such as gasoline that is advertised as Top Tier Detergent Gasoline. Failure to comply with these recommendations may also result in unscheduled maintenance.<
Use high-quality brands
Field experience has indicated significant differ­ences in fuel quality: volatility, composition, additives, etc., among gasolines offered for sale in the United States and Canada. Fuels contain­ing up to and including 10% ethanol or other oxygenates with up to 2.8% oxygen by weight, that is, 15% MTBE or 3% methanol plus an equivalent amount of co-solvent, will not void the applicable warranties with respect to defects in materials or workmanship.
The use of poor-quality fuels may result in
drivability, starting and stalling problems especially under certain environmental condi-
Reference At a glanceControlsDriving tipsMobility
85

Wheels and tires

Tire inflation pressures

Information for your safety
It is not merely the tires' service life, but also driving comfort and, to a great extent, driving safety that depend on the condition of the tires and the maintenance of the specified tire pres­sure.
Checking pressure
Wheels and tires
Check the tire inflation pressure regularly
and correct it, if necessary: at least twice a month and before starting long trips. If you fail to observe this precaution you may be driving on tires with incorrect tire pressures, a condition that can not only compromise your vehicle's driving stability, but also lead to tire damage and the risk of an accident. Do not drive with deflated, i.e. flat tires, except when using Run­Flat Tires. A flat tire will seriously impair your vehicle's handling and braking response. Attempts to drive on a flat tire can lead to loss of control over the vehicle.<
Check the tire inflation pressures only on cold tires. This means after a maximum of 1.25 miles/ 2 km driving or when the vehicle has been parked for at least 2 hours. When tires are warm, the tire inflation pressure is higher.
Checking the inflation pressure on the space-saver spare tire*
After correcting the tire inflation pressure, reinitialize the Flat Tire Monitor,
page 55.<
Inflation pressure specifications
The tables below provide all the correct inflation pressures for the specified tire sizes at ambient temperature.
The tire inflation pressures apply to the
tire sizes approved and the tire brands recommended by the manufacturer of your MINI. Your MINI Dealer will be glad to advise you.<
For correct identification of the right tire infla­tion pressures, observe the following:
> Tire sizes for your vehicle > Load conditions > Maximum allowable driving speed
Tire inflation pressures for driving up to 100 mph or 160 km/h
For normal driving up to 100 mph or 160 km/h and to achieve optimum driving comfort, adjust pressures to the respective tire inflation pres­sures listed on the following pages in the col­umns for traveling speeds up to a maximum of 100 mph or 160 km/h.
These tire inflation pressures can also be found on the driver's-side door post when the driver's door is open.
A valve extension for checking the inflation pres­sure is located behind the bumper.
86
The maximum permissible speed for these
tire pressures is 100 mph or 160 km/h. Do
not exceed this speed, otherwise tire damage
and accidents could occur.<
Tire inflation pressures for driving above 100 mph or 160 km/h
In order to drive at maximum speeds in
excess of 100 mph or 160 km/h, adjust pressures to the respective tire inflation pres­sures listed on the following pages in the col­umns for traveling speeds including those exceeding 100 mph or 160 km/h. Otherwise tire damage and accidents could occur.<
Observe all national and local maximum speed limits, otherwise violations of the laws could occur.
Reference At a glanceControlsDriving tipsMobility
87
MINI Cooper tire inflation pressures
Tire size Pressure specifications in psi/kPa
Speeds up to a
max. of 100 mph /
160 km/h
All pressure specifications in the table are indicated in psi/kilopascal with cold tires. Cold = ambient tem­perature
175/65 R 15 84 T M+S
Wheels and tires
175/65 R 15 84 H M+S 175/60 R 16 82 H M+S RSC 195/55 R 16 87 H RSC 195/55 R 16 87 H M+S RSC 205/45 R 17 84 V RSC 205/45 R 17 84 V M+S RSC 205/40 R 18 82 V RSC
Emergency wheel: 115/70 R 15 90 M
More details on the permissible load and weights can be found on page 132.
33/230 33/230 33/230 33/230 36/250 36/250
61/420 61/420 – – 61/420 61/420
Speeds including those exceeding
100 mph / 160 km/h
88
MINI Cooper S tire inflation pressures
Tire size Pressure specifications in psi/kPa
Speeds up to a
max. of 100 mph /
160 km/h
All pressure specifications in the table are indicated in psi/kilopascal with cold tires. Cold = ambient tem­perature
195/55 R 16 87 V RSC 195/55 R 16 87 H M+S RSC 195/55 R 16 87 V M+S RSC
205/45 R 17 84 V M+S RSC 205/45 R 17 84 V RSC
205/40 R 18 82 W RSC 175/60 R 16 82 H M+S RSC
More details on the permissible load and weights can be found on page 132.
33/230 33/230 33/230 33/230 36/250 36/250
36/250 36/250 36/250 36/250 41/280 41/280
38/260 38/260 38/260 38/260 41/280 41/280
Speeds including those exceeding
100 mph / 160 km/h
Reference At a glanceControlsDriving tipsMobility
89

Tire coding

Knowledge of the labeling on the side of the tire makes it easier to identify and choose the right tires.
Tire size
e.g. Nominal width in mm
Aspect ratio in Ξ Radial belt construction Rim diameter in inches Load rating, not on ZR tires Speed code letter, in
Wheels and tires
front of the R on ZR tires
Speed code letter
Q = up to 100 mph or 160 km/h T = up to 118 mph or 190 km/h H = up to 131 mph or 210 km/h V = up to 150 mph or 240 km/h W = up to 167 mph or 270 km/h Y = up to 186 mph or 300 km/h
Tire Identification Number
Tires with DOT codes meet the guidelines of the US Department of Transportation.
DOT code:
e.g. Manufacturer's code
for tire make Tire size and tire design Tire age
Uniform Tire Quality Grading
Quality grades can be found where applicable on the tire sidewall between tread shoulder and maximum section width. For example:
Tread wear 200 Traction AA Temperature A
225/45 R 17 91 V
DOT xxxx xxx 4706
DOT Quality Grades
Tread wear Traction AA A B C Temperature A B C
All passenger car tires must conform to Federal Safety Requirements in addition
to these grades.<
Tread wear
The tread wear grade is a comparative rating based on the wear rate of the tire when tested under controlled conditions on a specified gov­ernment test course. For example, a tire graded 150 would wear one and one-half (1γ) times as well on the government course as a tire graded
100. The relative performance of tires depends upon the actual conditions of their use, how­ever, and may depart significantly from the norm due to variations in driving habits, service practices and differences in road characteristics and climate.
Traction
The traction grades, from highest to lowest, are AA, A, B, and C. Those grades represent the tire's ability to stop on wet pavement as measured under controlled conditions on specified government test sur­faces of asphalt and concrete. A tire marked C may have poor traction performance.
The traction grade assigned to this tire is
based on straight-ahead braking traction tests, and does not include acceleration, corner­ing, hydroplaning, or peak traction characteris­tics.<
Temperature
The temperature grades are A, the highest, B, and C, representing the tire's resistance to the generation of heat and its ability to dissipate heat when tested under controlled conditions on a specified indoor laboratory test wheel. Sus­tained high temperature can cause the material of the tire to degenerate and reduce tire life, and excessive temperature can lead to sudden tire failure. The grade C corresponds to a level of performance which all passenger car tires must
90
meet under the Federal Motor Vehicle Safety
Standard No. 109. Grades B and A represent higher levels of performance on the laboratory test wheel than the minimum required by law.
The temperature grade for this tire is
established for a tire that is properly inflated and not overloaded. Excessive speed, underinflation, or excessive loading, either sep­arately or in combination, can cause heat buildup and possible tire failure.<
Minimum tread depth
RSC – Run-Flat Tires
You will recognize Run-Flat Tires by a circular symbol containing the letters RSC on the side of the tire, page 92.
M+S
Winter and all-season tires. These have better winter properties than sum­mer tires.
XL
Designation for specially reinforced tires.

Tire condition

Inspect your tires regularly for tread wear, signs of damage and for foreign objects lodged in the tread. Check the tread depth.
Tread depth
The tread depth should not drop below 1/8 in/ 3 mm, although, for example, European legisla­tion only specifies a minimum tread depth of 1/16 in/1.6 mm. At tread depths below 1/8 in/ 3 mm there is an increased risk of high-speed hydroplaning, even when only small amounts of water are present on the road surface.
Winter tires
When winter tires wear down past a tread depth of 1/6 in/4 mm, they become perceptibly less suitable for winter conditions. In the interest of safety, new tires should be installed.
Wear indicators in the base of the tread groove are distributed around the tire's circumference; the letters TWI, for Tread Wear Indicator, on the tire's sidewalls identify tires that incorporate these wear indicators. When tire tread is worn down to the level of the wear indicators, the remaining tread depth is 1/16 in/1.6 mm.
Tire damage
Please note that low-profile tires cause wheels, tires and suspension parts to be more suscepti­ble to road hazard and consequential damages.
Unusual vibrations encountered during normal vehicle operation can indicate tire failure or some other vehicle defect. This can, for exam­ple, be caused by driving over curbs. The same applies to any other abnormal road behavior, such as pulling severely to the right or left.
In these cases, reduce speed immediately
and have wheels and tires thoroughly checked. To do so, drive carefully to the nearest MINI Dealer or tire shop that works according to MINI repair procedures with correspondingly trained personnel. If necessary, have the vehicle towed there. Tire damage can be extremely dangerous for vehicle occupants and other road users.<
Tire age
The manufacturing date of tires is contained in the tire coding: DOT ... 4706 means that the tire was manufac­tured in week 47 of 2006.
For various reasons, such as the development of brittleness, the manufacturer of your MINI rec­ommends tire replacement after no more than
Reference At a glanceControlsDriving tipsMobility
91
6 years, regardless of the actual wear of the
tires.

Run-Flat Tires*

Wheels and tires
The symbol identifying Run-Flat Tires is a circle with the letters RSC on the sidewall. Run-Flat Tires comprise a conditionally self-sup­porting tire and a special rim. The reinforcement in the sidewalls ensures that the tire can con­tinue to be used subject to certain restrictions, even if depressurized.
For information on continuing to drive with a flat tire, refer to Indication of a flat tire, page 56.
Correct wheels and tires
The manufacturer of your MINI recom-
mends mounting only wheels and tires that it has specifically approved for use on your particular model. Although other wheels and tires may theoretically have the same dimen­sions, variations in factors such as manufactur­ing tolerances can result in contact between tire and bodywork, ultimately leading to serious accidents. The manufacturer of your MINI can­not evaluate non-approved wheels and tires to determine if they are suited for use, and there­fore cannot ensure the operating safety of the vehicle if they are mounted.<
Your MINI Dealer will be glad to inform you about the correct wheel and tire combination for your vehicle.
The correct combination of wheels and tires is also necessary to ensure reliable operation of various vehicle systems such as ABS and DSC.
To maintain good handling and vehicle response, use only tires of a single brand and tread configuration. After a tire has been dam­aged, mount the previous wheel and tire combi­nation again as soon as possible.

New wheels and tires

Have new wheels and tires mounted only
by your MINI Dealer or a specialized tire shop that has specially trained personnel work­ing in accordance with the specifications of the MINI manufacturer. If this work is not carried out properly, there is a danger of subsequent dam­age and related safety hazards. Make sure that the new wheels are balanced.<
Retreaded tires
The manufacturer of your MINI recom-
mends that you avoid using retreaded tires, as this could impair driving safety. The causes for this include potentially different tire casing structures and often wide variations in tire age, which can result in a limited service life.<
92
Recommended tire brands
For each tire size, the manufacturer of your MINI recommends certain tire brands. They are marked with a clearly visible MINI designation on the sidewall of the tire.
When properly used, these tires meet the high­est standards in terms of safety and handling characteristics.
Run-Flat Tires*
When mounting new tires or changing over from summer to winter tires and vice versa, mount Run-Flat Tires for your own safety. Keep in mind that no space-saver spare tire is available in the event of a flat. Your MINI Dealer will be glad to advise you.
For safety reasons, the manufacturer of
your MINI recommends having Run-Flat Tires replaced, not repaired, if they are dam­aged.<
Special characteristics of winter tires
The manufacturer of your MINI recommends winter tires for driving in adverse winter road conditions. Although all-season M+S tires pro­vide better winter traction than summer tires, they generally fail to provide the same levels of cold-weather performance as winter tires.
Pay attention to speed
Always comply with the speed limit for the
winter tires mounted on your car; failure to do so could result in tire damage and acci­dents.<
If the car is capable of speeds higher than that permitted for the winter tires, a label stating the maximum permitted speed for the mounted tires must be displayed in your field of view. Spe­cialist tire dealers and your MINI Dealer can sup­ply these labels.
the handling characteristics of your MINI. The direction in which the tires rotate should be kept the same.

Snow chains*

Only certain types of fine-link snow chains have been tested by the manufacturer of your MINI, classified as road-safe and recommended. Con­tact your MINI Dealer for more details.
Only attach snow chains in pairs to the front wheels with the following tires.
> 175/65 R 15 M+S > 175/60 R 16 M+S
Observe the manufacturer's instructions when mounting snow chains. Do not exceed a speed of 30 mph or 50 km/h.
Do not initialize the Flat Tire Monitor if snow chains are mounted, otherwise the
instrument might issue an incorrect reading.<
Storage
Always store wheels and tires in a cool, dry place with as little exposure to light as possible. Always protect tires against all contact with oil, grease and fuels.
Do not exceed the maximum tire inflation pres­sure indicated on the sidewall of the tire.
Swapping wheels among the axles
The manufacturer of your MINI recommends that you swap the front wheels with the rear wheels and vice-versa at intervals of 3,000 to 4,000 miles/5,000 to 7,000 km. This will counter the varying rates of tire wear at the front and rear axles, which will have a positive effect on
Reference At a glanceControlsDriving tipsMobility
93

Under the bonnet

Do not work on the car unless you possess
the necessary technical knowledge. If you are not familiar with the regulations to be observed, have the necessary work on your vehicle carried out only by a MINI Dealer or a workshop that has specially trained personnel working in accordance with the specifications of the MINI manufacturer. If this work is not carried out properly, there is a danger of subsequent damage and related safety hazards.<

Bonnet

Under the bonnet
Releasing
Pull the lever.
Do not clean the windshield and head-
lamps if the bonnet is unlocked as this may damage the headlamp washer system
Closing
Close the bonnet from a height of approx. 16 in/ 40 cm with momentum. It must be clearly heard to engage.
If you notice any signs while driving your
vehicle that the bonnet is not completely closed, stop at once and close it securely. Make sure that the closing path of the bonnet is clear, otherwise injuries may result.<
*
.<
Opening
To avoid damage, make sure that the wiper arms are against the windshield
before you open the bonnet.< Press the release handle and open the bonnet.
94

Important parts of the engine compartment

1 Vehicle identification number 2 Battery, under the cover 112 3 Engine oil dipstick 95 4 Engine oil filler neck 96

Engine oil

The engine oil consumption is dependent on driving style and driving conditions.
Checking engine oil level
1. With the vehicle's engine at normal operat-
ing temperature, i.e. after uninterrupted driving for at least 6 miles/10 km, park the vehicle on a level surface.
2. Switch off the engine.
3. Pull the dipstick out after approx. 5 minutes
and wipe it off with a lint-free cloth, paper towel or similar material.
4. Carefully push the dipstick all the way into
the guide tube and pull it out again. The oil level should be between the two marks on the dipstick.
5 Coolant expansion tank 96 6 Reservoir for washer fluid for the headlamp
and window washer system 42
7 Fuses 111
The oil quantity at a level between the two marks on the dipstick is approx. 1 US quart/ 1liter.
Do not fill beyond the upper mark on the dipstick. Excess oil will damage the
engine.<
Reference At a glanceControlsDriving tipsMobility
95
Adding engine oil
Add no more than 1 US quart/1 liter of oil after the following message appears in the tachome­ter or when the oil level has fallen to near the bottom mark on the dipstick, page 95.
Under the bonnet
Add oil within the next 125 miles/200 km, otherwise the engine could be dam-
aged.<
Keep oils, greases, etc. out of the reach of
children and comply with the warnings on the containers. Otherwise, health hazards may result.<
Oil change
Have the oil changed only by a MINI Dealer or a workshop that has specially trained personnel working in accordance with the specifications of the MINI manufacturer.
Approved engine oils
The quality of the engine oil selected has critical significance for the operation and service life of an engine. Based on extensive testing, the man­ufacturer of your MINI approves only certain grades of engine oil on a regular basis.
Only use High Performance Synthetic Oil approved by the manufacturer of your MINI.
If MINI High Performance Synthetic Oil is not available, you can add small quantities of another synthetic oil in between oil changes. Only use oils with the API SH specification or higher.
If you have any further questions regard-
ing MINI High Performance Synthetic Oil or approved synthetic oils, your MINI Dealer will be glad to advise you.<
Do not use any oil additives, as they could
cause engine damage under some cir­cumstances.<
Viscosity grades
Viscosity is a measure of an oil's flow rating and is categorized in SAE classes.
The correct SAE grade for your MINI is deter­mined by the climatic conditions of the region in which you normally drive your MINI.
Approved oils belong to the 5W-40 and
5W-30 classes.< These oils can be used for driving at all outside
temperatures.

Coolant

Do not add coolant to the cooling system
when the engine is hot. Escaping coolant can cause burns.<
Coolant is a mixture of water and an additive. Not all commercially available additives are suit­able for your MINI. Your MINI Dealer knows which additives are suitable and will be glad to advise you.
Only use suitable additives, otherwise
engine damage may result. The additives are hazardous to your health.<
Comply with the appropriate environmen-
tal protection regulations when disposing of coolant additives.<
Checking coolant level
1. Let the engine cool down.
2. Turn the cap of the expansion tank a little
counterclockwise to allow any accumulated
96
pressure to escape, then continue turning to
open.
3. The coolant level is correct if it is between
the Min and Max markings.
4. If the coolant is low, slowly add coolant up to
the specified level; do not overfill.
5. Turn the cap until there is an audible click.
6. Have the reason for the coolant loss elimi-
nated as soon as possible.
Reference At a glanceControlsDriving tipsMobility
97

Maintenance

MINI Maintenance System

Maintenance
The MINI Maintenance System supports the preservation of the traffic and operating safety of your MINI. The objective is to optimize efforts with respect to minimal vehicle maintenance costs.
If and when you come to sell your MINI, a com­prehensive record of servicing will prove a signif­icant benefit.
CBS Condition Based Service
Sensors and special algorithms take the different driving conditions of your MINI into account. Condition Based Service uses this to determine the current and future service requirements. By letting you define a service and maintenance regimen that reflects your own individual requirements, the system builds the basis for trouble-free driving.
In the tachometer, you can have the remaining times or distances for selected maintenance tasks and any legally prescribed dates displayed, page 49:
Make sure that the date in the tachometer
is always set co rrectly, pag e 51; otherwise the effectiveness of Condition Based Service CBS is not assured.<
Service and Warranty Information Booklet for US models and Warranty and Service Guide Booklet for Canadian models
Please consult your Service and Warranty Infor­mation Booklet for US models and Warranty and Service Guide Booklet for Canadian models for additional information on service requirements.
The manufacturer of the MINI recom-
mends that you have service and repair operations performed at your MINI Dealer. Take the time to ensure that these service pro­cedures are confirmed by entries in your vehi­cle's Service and Warranty Information Booklet for US models and Warranty and Service Guide Booklet for Canadian models. These entries ver­ify that your vehicle has received the specified regular maintenance.<
Socket for Onboard Diag­nosis OBD
Service data in the remote control
Your vehicle continuously stores service­requirement information in the remote control while you are driving. Your MINI Dealer can read out this data from the remote control unit, and propose an optimized maintenance approach. Whenever you take your car in for servicing you should therefore hand your MINI Dealer the remote control unit that you last used.
98
Primary components that make up exhaust emissions can be checked by a device via the OBD socket.
This socket is located to the left of the driver's side, on the bottom of the instrument panel.
Loading...
Buy Points How it Works FAQ Contact Us Questions and Suggestions Privacy Policy Cookie Policy Terms of Use
