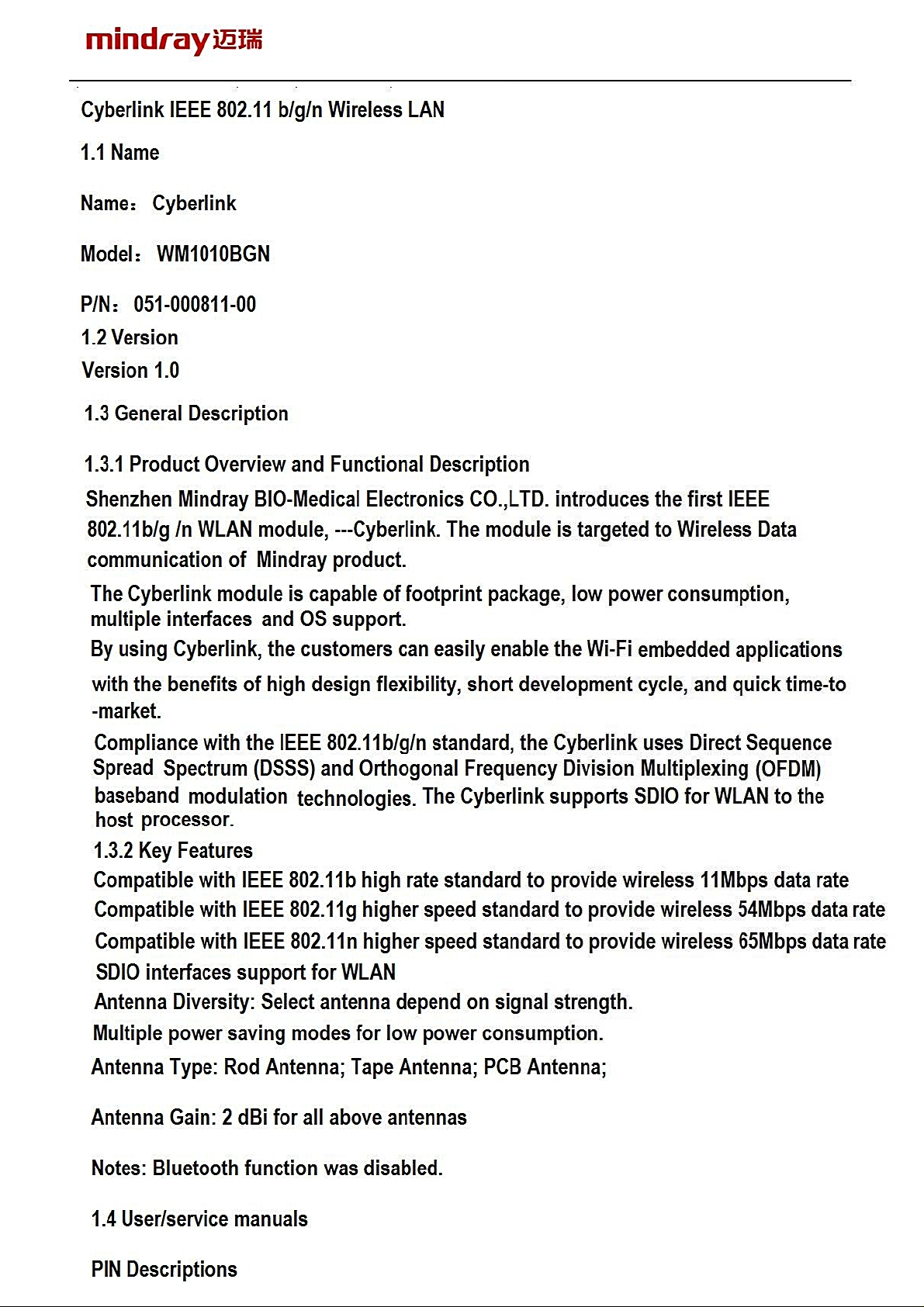

KF-XXXX-X-XXX-版本
No.
Pin name Type System Description
1 SD_CLK I WLAN SDIO Clock.
2 VIN I Common 3.3V Power supply input.
3 SD_CMD I/O WLAN SDIO Command Line.
4 GND I Common Ground.
5 SD_D0 I/O WLAN SDIO Data Line 0.
6 /WL_RESET I WLAN Low asserting reset for WLAN core.
7 SD_D1 I/O WLAN SDIO Data Line 1.
8 SLEEP_CLK I Common Low Power Clock input (32.768kHz).
9 SD_D2 I/O WLAN SDIO Data Line 2.
Used by PMU to decide whether or not to power down
10
POW_ON I Common
internal BCM4329 regulators. If POW_ON is low, then the
regulators will be disabled.
11
/CD O Common Cyberlink On-line Detect. PIN tie to ground.
12
13
14
15
16
17
18
NC No use
SD_D3 I/O WLAN SDIO Data Line 3.
VIN I Common 3.3V Power Input
LED O Common 3.3V Output
VIN I Common 3.3V Power Input
GND I Common Ground.
GND I Common Ground.
19 WL_WAKE_IN I WLAN WLAN device wake-up signal input from host to WLAN.
20 BT_UART_TXD
21
NC No use
22 BT_UART_RXD
23
NC No use
O BT
I BT
Bluetooth UART serial output .Serial data output for the HCI
UART interface.
Bluetooth UART serial input. Serial data input for the HCI
UART interface.
24 BT_UART_RTS
O BT
Bluetooth UART request to send. Active-low request-to
send signal for the HCI UART interface.
Antenna select.
25
SW1 I Common
SW1 and SW2 are floating, Select antenna 1
SW1=1,SW2=0,Select antenna 1
KF-XXXX-X-XXX-版本
SW1=0,SW2=1,Select antenna 2
26 BT_UART_CTS
I BT
Bluetooth UART clear to send. Active-low clear-to-send
signal for the HCI UART interface.
Antenna select.
SW1 and SW2 are floating, Select antenna 1
27
SW2 I Common
SW1=1,SW2=0,Select antenna 1
SW1=0,SW2=1,Select antenna 2
28
29
30
31
TYPE O Common Cyberlink type Detect. PIN tie to 3.3V.
GND I Common Ground.
VIN I Common 3.3V Power Input
/BT_RESET I BT Low asserting reset for Bluetooth core.
Bluetooth device wake-up signal input from host to
32
BT_WAKE_IN I BT
Bluetooth. The polarity of this signal is software
configurable and can be asserted high or low.
33 BT_WAKE_OUT O BT Host wake-up signal output from WLAN to host.
34
35
GND I Common Ground.
NC Tie 10k to ground
36 WL_WAKE_OUT O WLAN Host wake-up signal output from WLAN to host.
37 BT_PCM_CLK I/O BT PCM clock, can be master (output) or slave (input).
38
NC Reserved for MIMO
39 BT_PCM_SYNC I/O BT PCM sync signal, can be master (output) or slave (input).
40
GND I Common Ground.
41 BT_PCM_OUT I BT PCM data input.
42
43
44
45
46
47
NC No use
BT_PCM_IN O BT PCM data output.
NC Reserved for MIMO
NC No use
NC Reserved for MIMO
NC No use
48
49
50
NC No use
WL_TXD O WLAN TX pin of debug UART
NC No use
KF-XXXX-X-XXX-版本
51
52
WL_RXD I WLAN RX pin of debug UART
NC No use
1.7.2 Power On Sequence
1.7.2.1 Power On Sequence 1
VIN
VIN
VINVIN

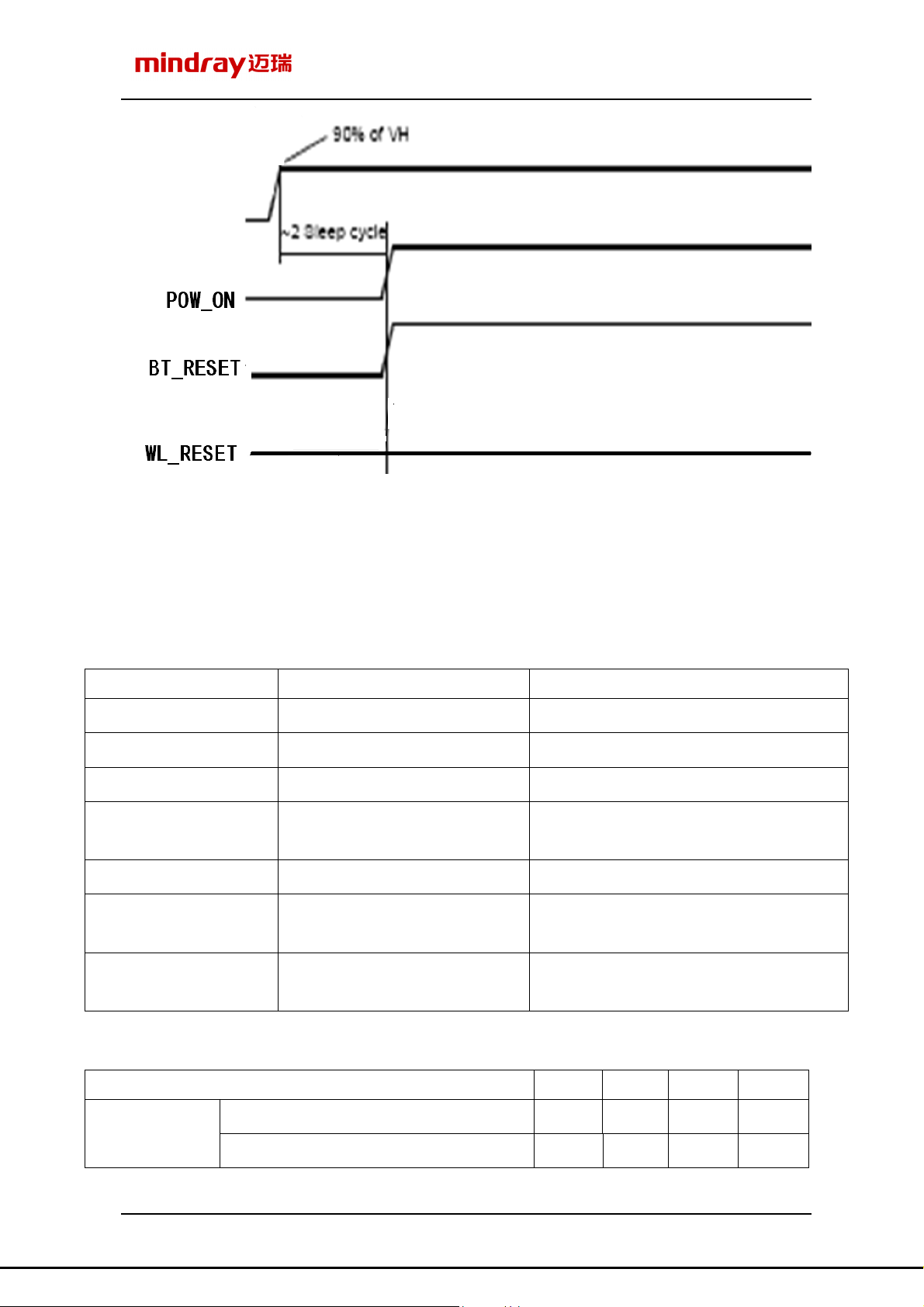

Figure 2 Power On Sequence
1.7.2.2 Power On Sequence 2
VIN
VIN
VINVIN
1

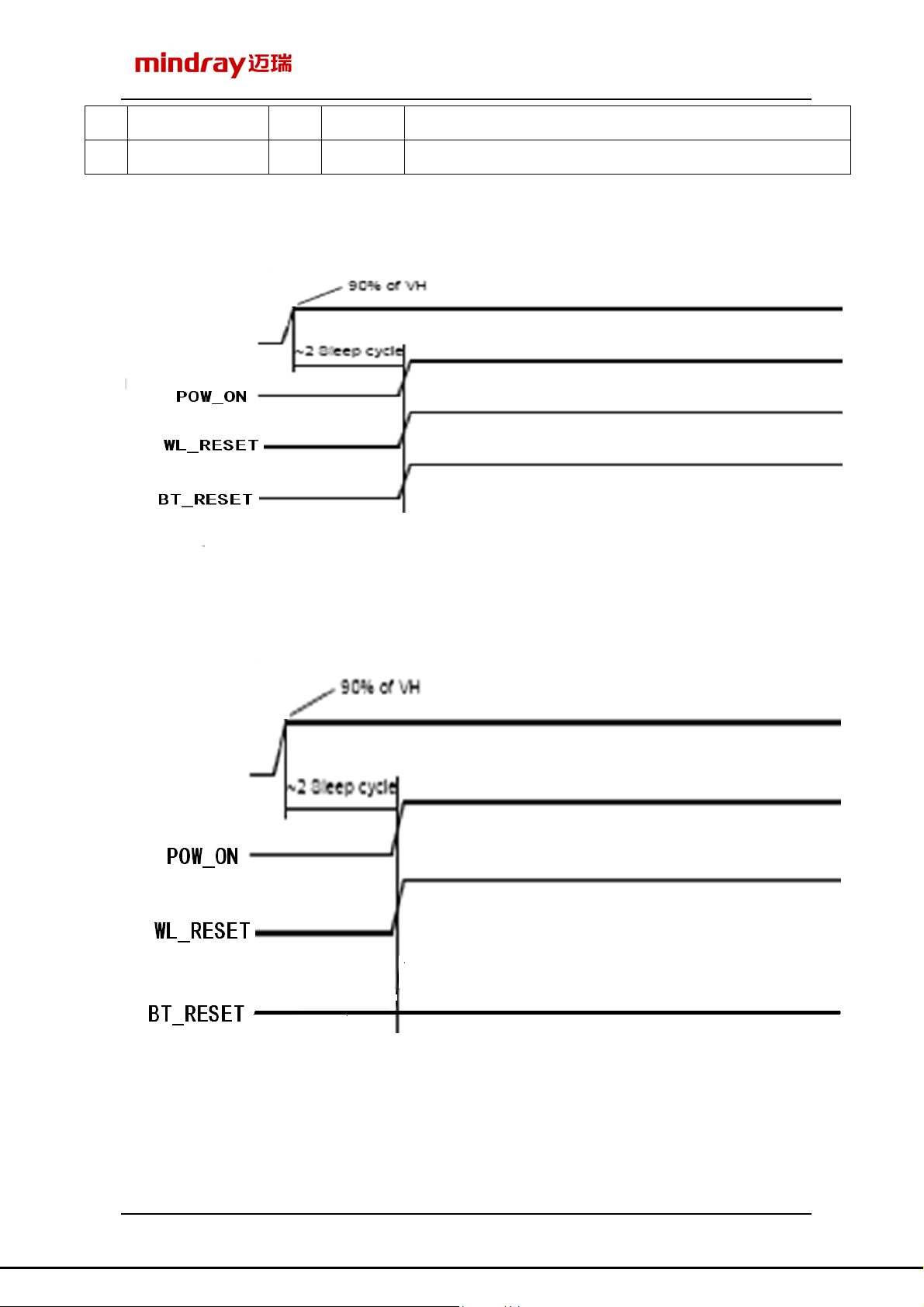

Figure 3 Power On Sequence
1.7.2.3
Power On Sequence
3
2
VIN
VIN
VIN
VIN
VINVIN
VINVIN
KF-XXXX-X-XXX-版本
Figure 4 Power On Sequence
3
1.7.3 Interface
1.7.3.1 External Clock Reference (
Table 7 External Clock Reference
Parameter Description Remarks
Nominal input frequency 32.768 KHz
Frequency accuracy +/-200 ppm
Duty cycle 30-70 %
Input signal amplitude 200 to 1800 mVp-p 200-1800 mVp-p to avoid additional
Signal type Square-wave or sine-wave
Input impedance
Clock jitter (integrated
over 300Hz – 15kHz)
100KΩ；< 5 pF when power is
applied or power is off
<1 Hz
SLEEP_CLK
)
current consumption. 3.3Vp-p maximum.
1.7.3.2 Input/Output DC Terminal Characteristics
Input Voltage
Table 8 Input/Output DC Terminal Characteristics
Digital Terminals Min Typ Max Unit
V
IL
input logic level low - - 0.8 V
IH
input logic level high 2.0 - - V
V
KF-XXXX-X-XXX-版本
V
OL
output logic level low (100μA load)
- - 0.4 V
Output Voltage
V
OH
output logic level high (-100μA load)
I
IL
input logic level low - 0.3 - uA
2.4 - - V
Input Current:
I
IH
input logic level high - 0.3 - uA
I
OL
output logic level low (V
OL
=0.4V) - - 3.0 mA
Output Current
I
OH
output logic level high (V
OH
=2.9V) - - 3.0 mA
Input Capacitance :CIN - - 5 pF

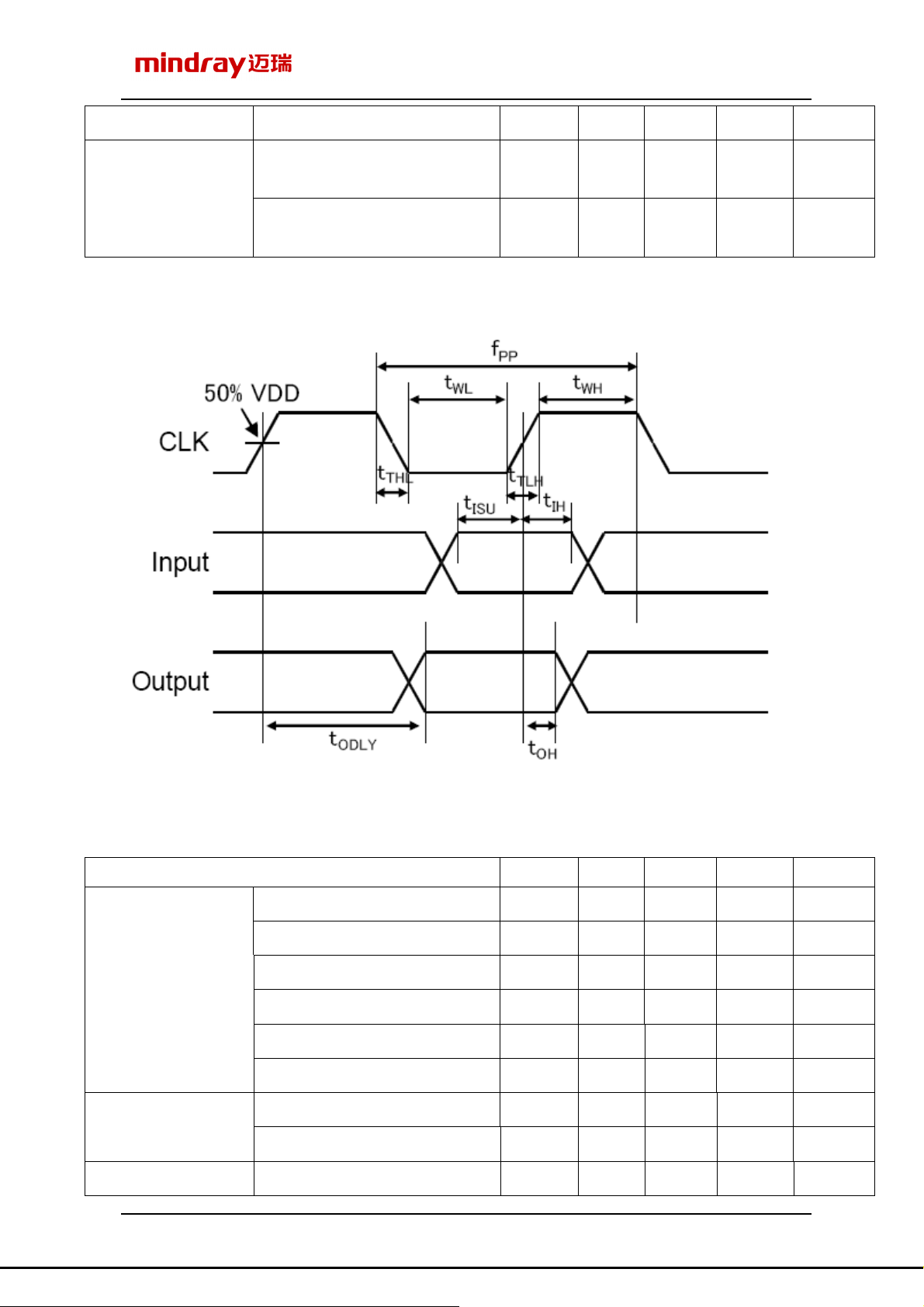

1.7.3.3 WLAN SDIO Timing
1.7.3.3.1 Default Mode

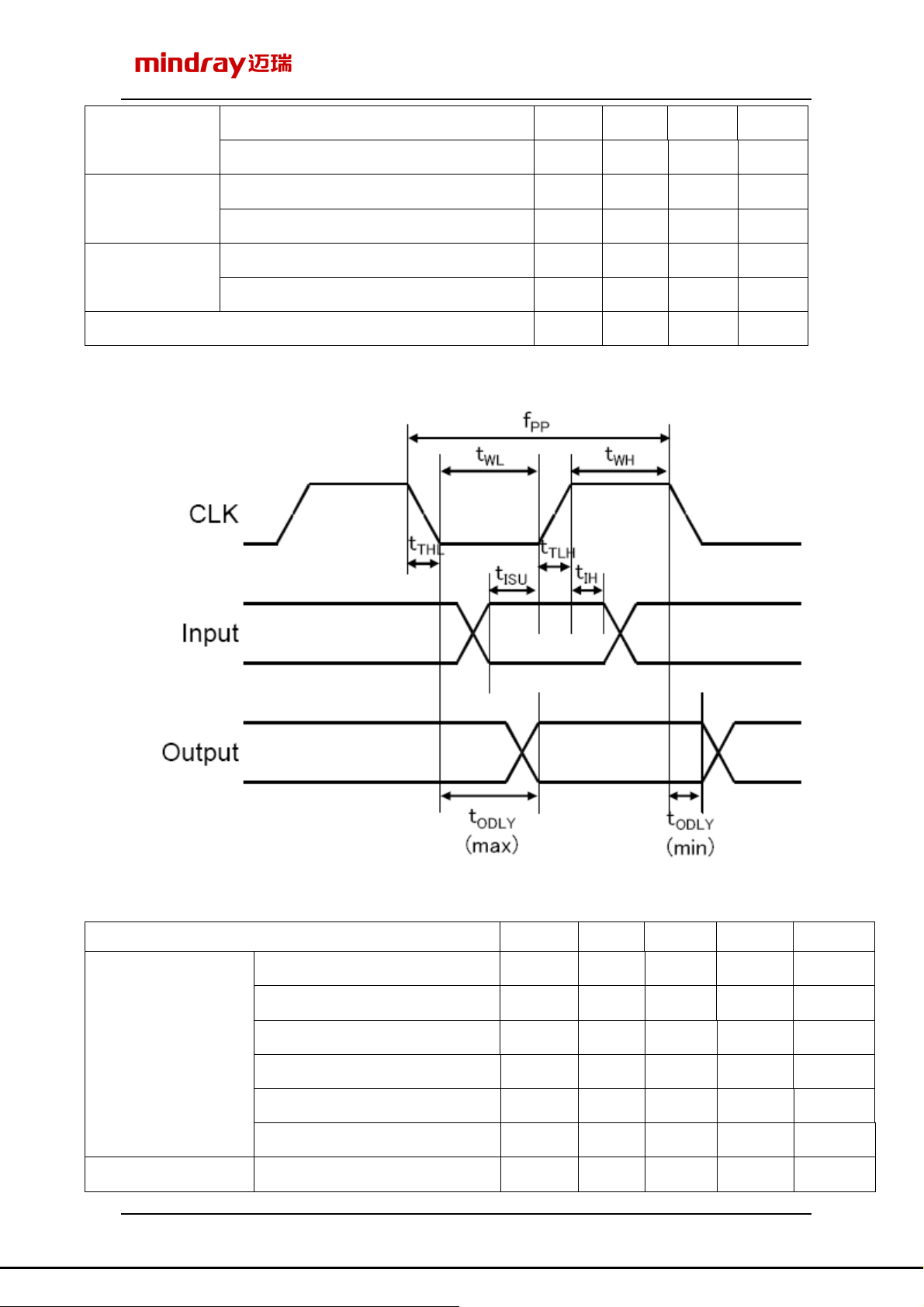

Figure 5 WLAN SDIO Timing, Default Mode
Table 9 WLAN SDIO Timing, Default Mode
Parameter Symbol Min Typ Max Unit
Clock CLK (All
Frequency-Data Transfer Mode
fPP 0 - 25 MHz
values are referred
to min. VIH and max.
VIL)
Min (Vih) = 0.7*VIN
Frequency-Identification Mode fOD 0 - 400- KHz
Clock Low Time tWL 10 - - ns
Clock High Time tWH 10 - - ns
and max (Vil) =
0.2*VIN
Clock Rise Time tTLH - - 10 ns
Clock Falling Time tTHL - - 10 ns
Inputs: CMD, DAT Input Setup Time tISU 5 - - ns
KF-XXXX-X-XXX-版本
(referenced to CLK)
Outputs: CMD, DAT
(referenced to CLK)
Input Hold Time tIH 5 - - ns
Output Delay time-Data
tODLY - - 14 ns
Transfer Mode
Output Delay time-Identification
tODLY - - 50 ns
Mode
Remark: Timing is based on CL < 40pF load on CMD and Data.
1.7.3.3.2
High Speed Mode
Figure 6 WLAN SDIO Timing, High Speed Mode
Table 10 WLAN SDIO Timing, High Speed Mode
Parameter Symbol Min Typ Max Unit
Clock CLK (All
Frequency-Data Transfer Mode
fPP 0 - 50 MHz
values are referred
to min. VIH and max.
VIL)
Min (Vih) = 0.7*VIN
Frequency-Identification Mode fOD 0 - 400- KHz
Clock Low Time tWL 7 - - ns
Clock High Time tWH 7 - - ns
and max (Vil) =
0.2*VIN
Clock Rise Time tTLH - - 3 ns
Clock Falling Time tTHL - - 3 ns
Inputs: CMD, DAT
(referenced to CLK)
Input Setup Time tISU 6 - - ns
Input Hold Time tIH 2 - - ns
Outputs: CMD, DAT Output Delay time-Data tODLY - - 14 ns
KF-XXXX-X-XXX-版本
This device complies with Industry Canada licence-exempt RSS standard(s).
Operation is subject to the following two conditions: (1) this device may not cause
interference, and (2) this device must accept any interference, including interference
that may cause undesired operation of the device.
Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux
appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions
suivantes : (1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de
l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est
susceptible d'en compromettre le fonctionnement.
The distance between user and products should be no less than 20cm
La distance entre l'utilisateur et de produits ne devrait pas être inférieure à 20cm
The host device must be labelled to display the IC ID of the module "Contains IC:
9726A-WM1010BGN10"
(referenced to CLK)
Remark: Timing is based on CL < 40pF load on CMD and Data.
Transfer Mode
Output Hold time tOH - - 50 ns
Total System Capacitance
(each line)
CL - - 40 pF

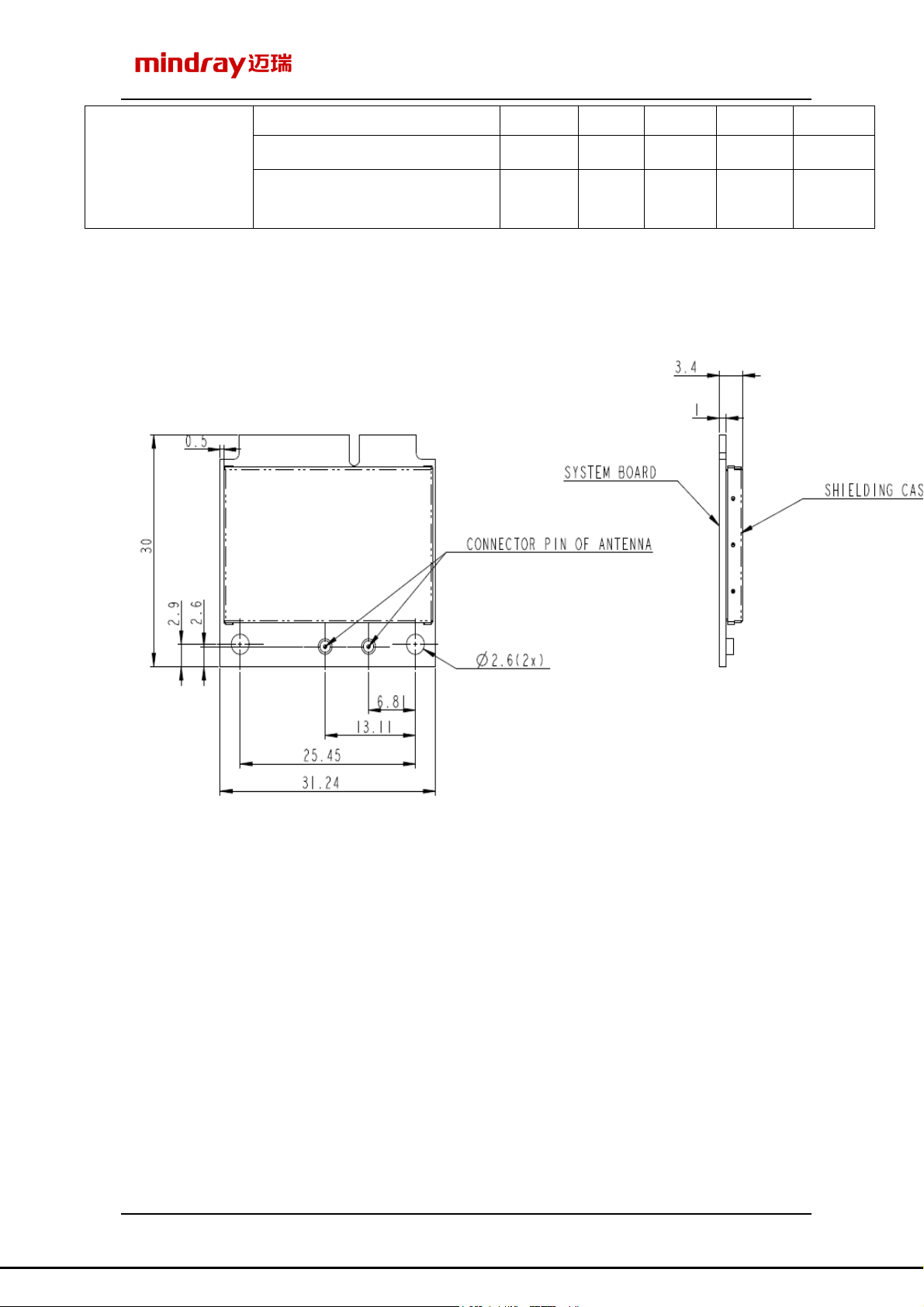

1.7.4 Mechanical
KF-XXXX-X-XXX-版本
The host device must be labelled to display the FCC ID of the module "Contains
FCC ID: ZLZWM1010BGN10"
