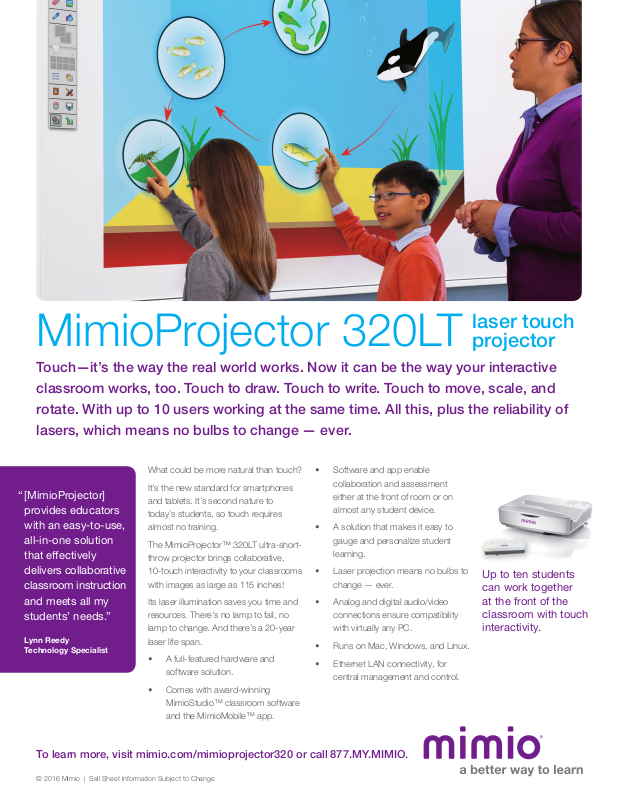

Mimio 320LT Product Sheet

laser touch

MimioProjector 320LT

projector

Touch—it’s the way the real world works. Now it can be the way your interactive

classroom works, too. Touch to draw. Touch to write. Touch to move, scale, and

rotate. With up to 10 users working at the same time. All this, plus the reliability of

lasers, which means no bulbs to change — ever.

“ [MimioProjector]
provides educators
with an easy-to-use,
all-in-one solution
that eectively
delivers collaborative
classroom instruction
and meets all my
students’ needs.”

Lynn Reedy
Technology Specialist

What could be more natural than touch?

It’s the new standard for smartphones
and tablets. It’s second nature to
today’s students, so touch requires
almost no training.

The MimioProjector™ 320LT ultra-short­throw projector brings collaborative,
10-touch interactivity to your classrooms
with images as large as 115 inches!

Its laser illumination saves you time and
resources. There’s no lamp to fail, no
lamp to change. And there’s a 20-year
laser life span.

• A full-featured hardware and
software solution.

• Comes with award-winning
MimioStudio™ classroom software
and the MimioMobile™ app.

• Software and app enable
collaboration and assessment
either at the front of room or on
almost any student device.

• A solution that makes it easy to
gauge and personalize student
learning.

• Laser projection means no bulbs to
change — ever.

• Analog and digital audio/video
connections ensure compatibility
with virtually any PC.

• Runs on Mac, Windows, and Linux.

• Ethernet LAN connectivity, for
central management and control.

Up to ten students
can work together
at the front of the
classroom with touch
interactivity.

To learn more, visit mimio.com/mimioprojector320 or call 877.MY.MIMIO.

© 2016 Mimio | Sell Sheet Information Subject to Change

Key Features



Package Contents

Projector, with integrated IR camera, Laser Curtain module with DC power cord-2m, 2 passive styli, MimioStudio software license,

power cord-4m, HDMI VGA cable-5m, mini-USB cable-5m, remote with battery, wall mount.

Specifications

Software Requirements MimioStudio 11.6 or higher on a

OSDisplay

Windows, Mac, or Linux OS

Brightness 3,300 lumens

Light Source Laser Diode x 23

Laser Life (typical) 20,000 hours

Native Aspect Ratio 16:10

Native Resolution WXGA 1280 x 800

Image Size (diagonal) 85” - 115” (2.16 m - 2.92 m)

Keystone Correction Vertical: ±5°

Contrast Ratio (typical) 1,800:1

Color Reproduction 1.07 billion colors (R/G/B 10 bit)

Color Uniformity

Δu’v’ ≦0.03

Projection Lens f/2.4

Throw Ratio Ultra short-throw of 0.25

Focus Type Manual

Projection Technology Digital Light Processing (DLP),

utilizing a 6-segment color
wheel.

Closed Captioning Based on TI DDP4421 spec,

CC1/CC2/CC3/CC4 supported

3D DLP Link 3D and HDMI 1.4a 3D

Digital A/V Inputs HDMI x 2

Video Analog Inputs - VGA x 1

- VGA in/out switched* x 1

- Composite x 1

Video Analog Outputs VGA in/out switched x 1

Audio Analog Inputs - Stereo line 3.5 mm x 1

- Stereo line RCA jacks x 1

- Mic level 3.5 mm x 1

Audio Analog Outputs Line out 3.5 mm x 1

Audio/Video Connections

Speaker 8 Watts x 2 stereo (16 W total)

LAN Standard using RJ-45 connector

LAN Control Protocols Crestron

ControlGeneral

Laser Curtain DC Power 3.5 mm

Mounting Front or rear projection, wall,

ceiling, or table mount**

Mech

Security Kensington Lock >36 kg

Power Supply AC 100 – 240 V 50-60 Hz

Power Consumption
(typical)

- Normal Mode: 350 W

- ECO Mode: 290 W

- Standby: < 0.5 W Touch
Mode***

Operating Temperature 5 - 40° C (41 - 104° F)

Fan Noise Full mode: 37±2dB (A), w/o filter

ECO mode: 33±2dB (A), w/o
filter

Touch Points 10

Calibration Auto/Manual

Laser Curtain Module IR Laser 825 nm, 20,000 hrs

Laser Curtain Power 12V/0.3A from proijector

Visible Laser Curtain
Alignment

Interactivity

Whiteboard Non-planarity <3 mm

- Visible light 650 nm

- Optical power < 0.39 mW

- Dot size at focus point 10 mm

Laser Safety IEC 60825-1 Class-1

Interactivity USB Mini (5m x 1 provided)

* One connector switchable between VGA in or out.
** Ceiling and table mount require third-party bracket.
*** LAN/RS232/VGA out are o.

Dimensions and Weight

Projector

Weight: 8 kg

(17.6 lb)

103 mm

(4.06 in.)

383 mm (15.08 in.)

310 mm (12.2 in.)

86 mm
(3.39 in.)

Laser Curtain Module

49.28 mm

RJ-45

(1.94 in.)

WiFi Dongle/

USB Disk

Weight: .35 kg

Connections

Laser Curtain

(.77 lb)

(1.88 in.)

Audio In-R

146.05 mm (5.75 in.)47.75 mm

Audio In-L Audio Out Audio In-1 Microphone

To learn more, visit mimio.com/mimioprojector320
or call 877.MY.MIMIO.
