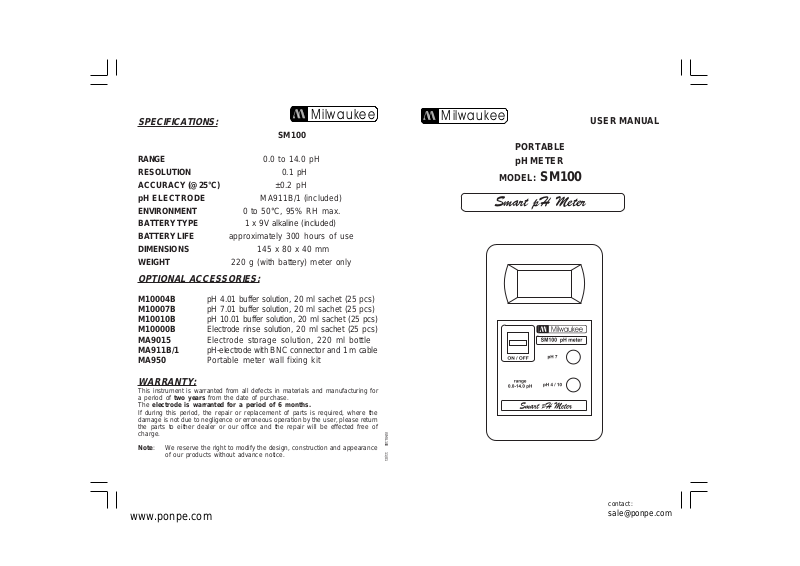

Milwaukee SM100 User Manual

SPECIFICATIONS:

www.ponpe.com

contact:

[e-mail]

SM100

RANGE 0.0 to 14.0 pH
RESOLUTION 0.1 pH
ACCURACY (@25°C) ±0.2 pH
pH ELECTRODE MA911B/1 (included)
ENVIRONMENT 0 to 50°C, 95% RH max.
BATTERY TYPE 1 x 9V alkaline (included)
BATTERY LIFE approximately 300 hours of use
DIMENSIONS 145 x 80 x 40 mm
WEIGHT 220 g (with battery) meter only

Milwaukee

OPTIONAL ACCESSORIES:

M10004B pH 4.01 buffer solution, 20 ml sachet (25 pcs)
M10007B pH 7.01 buffer solution, 20 ml sachet (25 pcs)
M10010B pH 10.01 buffer solution, 20 ml sachet (25 pcs)
M10000B Electrode rinse solution, 20 ml sachet (25 pcs)
MA9015 Electrode storage solution, 220 ml bottle
MA911B/1 pH-electrode with BNC connector and 1 m cable
MA950 Portable meter wall fixing kit

WARRANTY:

This instrument is warranted from all defects in materials and manufacturing for
a period of two years from the date of purchase.
The electrode is warranted for a period of 6 months.
If during this period, the repair or replacement of parts is required, where the
damage is not due to negligence or erroneous operation by the user, please return
the parts to either dealer or our office and the repair will be effected free of
charge.

Note: We reserve the right to modify the design, construction and appearance

of our products without advance notice.

ISMIL100 11/01

Milwaukee

MODEL: SM100

Smart pH Meter

USER MANUAL

PORTABLE

pH METER

OPERATION:

www.ponpe.com

contact:

[e-mail]

• The meter is supplied complete with
a 9V battery. Slide off the battery com­partment cover on the back of the
meter. Install the battery while paying
attention to its polarity.

• Always remove the electrode protective
cap before taking any measurement. If
the electrode has been left dry, soak
the tip (bottom 2.5 cm) in rinse solu­tion (M10000B) for a few minutes to
reactivate it.

• Connect the pH electrode to the BNC
socket on the top of the meter.

• Make sure that the meter has been
calibrated before taking any measure­ments (see Calibration Procedure)

• Immerse the tip (2.5 cm) of the pH
electrode into the sample.

• Turn the instrument on by pressing the ON/OFF key.

• Allow the reading to stabilize before taking mea­surements.

• After measurements, switch the meter off and
store the electrode with a few drops of storage
solution in the protective cap.

CALIBRATION PROCEDURE:

• Remove the protective cap from the electrode.

• Immerse the electrode tip into a new sachet of
pH7 calibration solution and allow the reading
to stabilize.

• Adjust the pH7 (OFFSET) calibration knob to

display "7.0 pH".

• Open a new sachet of pH4 cali­bration solution and use a small
quantity to rinse the electrode.

• Immerse the electrode tip inside
the pH4 sachet and allow the read­ing to stabilize.

• Adjust the pH4/pH10 (SLOPE) cali­bration knob to read "4.0 pH".

• The calibration is now complete and the meter is ready to
take measurements.

• It is suggested to recalibrate the meter at least once a
month, after a prolonged stocking time and after electrode
replacement.

BATTERY REPLACEMENT:

When the battery becomes weak the
meter will display "V".

When the low battery indicator appears,
the battery has only about 50 hours of
working time left. A low battery will result
in unreliable measurements. It is recom­mended to replace immediately the
battery.

Battery replacement must only take place
in a non-hazardous area using an alka­line 9V battery.

Turn the meter off, slide off the battery
compartment cover at the rear of the meter
and replace the 9V battery with a new
one. Make sure the battery contacts are
tight and secure, seat the battery in its
compartment and insert the cover again.
