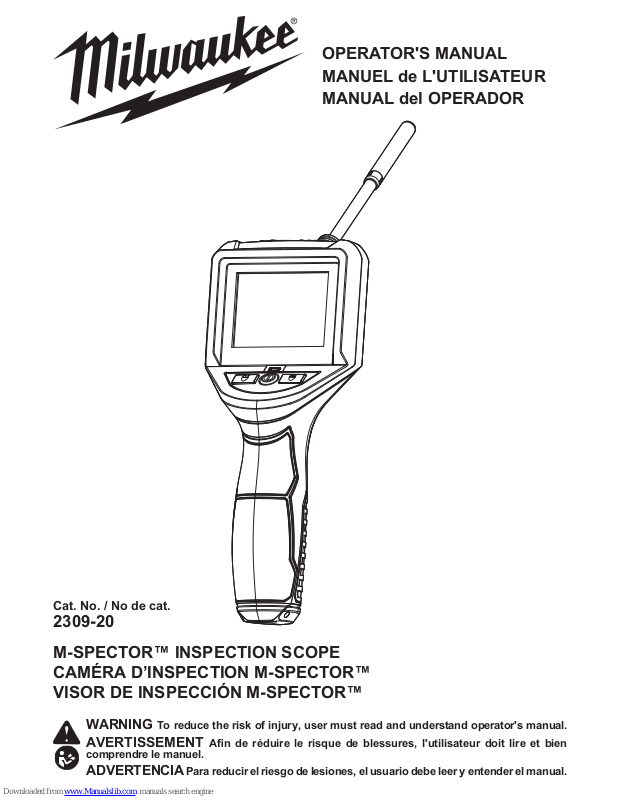

Milwaukee M-SPECTOR 2309-20 Operator's Manual
Cat. No. / No de cat.
2309-20
M-SPECTOR™ INSPECTION SCOPE
CAMÉRA D’INSPECTION M-SPECTOR™
VISOR DE INSPECCIÓN M-SPECTOR™
OPERATOR'S MANUAL
MANUEL de L'UTILISATEUR
MANUAL del OPERADOR
WARNING To reduce the risk of injury, user must read and understand operator's manual.
AVERTISSEMENT An de réduire le risque de blessures, l'utilisateur doit lire et bien
comprendre le manuel.
ADVERTENCIA Para reducir el riesgo de lesiones, el usuario debe leer y entender el manual.
2
GENERAL POWER TOOL
SAFETY WARNINGS
WARNING
Read all safety warnings and all
instructions, illustrations and
specications provided with this power tool.
Failure to follow all instructions listed below may
result in electric shock, re and/or serious injury.
Save all warnings and instructions for future
reference. The term "power tool" in the warnings
refers to your mains-operated (corded) power tool or
battery-operated (cordless) power tool.
WORK AREA SAFETY
• Keep work area clean and well lit. Cluttered or
dark areas invite accidents.
• Do not operate power tools in explosive atmospheres, such as in the presence of ammable
liquids, gases or dust. Power tools create sparks
which may ignite the dust or fumes.
• Do not operate power tool in an area where it
could contact electrical wiring or an electrically
charged object. Contact with a “live” wire or
object will make exposed metal parts of the tool
“live” and shock the operator.
• Do not operate power tool near moving ma-
chinery. The cable can be tangled in moving parts,
pulling in the power tool and your hands and arms.
• Do not use near any heat sources such as ra-
diators, heat registers, stoves, or other apparatus
(including ampliers) that produce heat.
• Keep children and bystanders away while oper-
ating a power tool. Distractions can cause you to
lose control.
ELECTRICAL SAFETY
• Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the
risk of electric shock. Dry hands before turning tool
on or off and before removing or installing the battery
pack.
PERSONAL SAFETY
• Stay alert, watch what you are doing and use
common sense when operating a power tool. Do
not use a power tool while you are tired or under
the inuence of drugs, alcohol or medication. A
moment of inattention while operating power tools
may result in serious personal injury.
• Use personal protective equipment. Always
wear eye protection. Protective equipment such
as dust mask, non-skid safety shoes, hard hat, or
hearing protection used for appropriate conditions
will reduce personal injuries.
• Do not overreach. Keep proper footing and bal-
ance at all times. This enables better control of the
power tool in unexpected situations.
POWER TOOL USE AND CARE
• This Inspection Scope is not intended for medical use or personal inspection.
• Store idle power tools out of the reach of children and do not allow persons unfamiliar with
the power tool or these instructions to operate
the power tool. Power tools are dangerous in the
hands of untrained users.
• Maintain power tools. Check for misalignment or
binding of moving parts, breakage of parts and
any other condition that may affect the power tool
operation. Do not use if power tool smokes or
gives off fumes. If damaged, have the power tool
repaired before use. Many accidents are caused by
poorly maintained power tools.
• Use the power tool, accessories and tool bits
etc., in accordance with these instructions,
taking into account the working conditions and
the work to be performed. Use of the power tool
for operations different from those intended could
result in a hazardous situation. Only use accessories
specically recommended for this tool. Others may
be hazardous.
• Clean only with dry cloth. Certain cleaning agents
and solvents are harmful to plastics and other
insulated parts. Some of these include: gasoline,
turpentine, lacquer thinner, paint thinner, chlorinated
cleaning solvents, ammonia and household deter-
gents containing ammonia. Clean dust and debris
from vents. Keep the apparatus handle clean, dry
and free of oil or grease.
BATTERY USE AND CARE
• This tool is designed to be powered by one (1)
9V battery properly inserted into the tool. Do
not attempt to use with any other voltage or power
supply.
•Do not leave battery within the reach of children.
• Install battery according to polarity (+ / –)
diagrams.
• Properly dispose of used batteries immediately.
• Do not incinerate or dismantle batteries.
• Under abusive conditions, liquid may be ejected
from the battery, avoid contact. If contact accidentally occurs, flush with water. If liquid
contacts eyes, additionally seek medical help.
Liquid ejected from the battery may cause irritation
or burns.
SERVICE
• Contact a MILWAUKEE service facility for ALL
repairs. Have your power tool serviced by a
qualied repair person using only identical re-
placement parts. This will ensure that the safety
of the power tool is maintained.
• Never disassemble the power tool or try to do any
rewiring on the power tool’s electrical system.
SPECIFIC SAFETY RULES FOR
INSPECTION SCOPE
• Maintain labels and nameplates. These carry
important information. If unreadable or missing,
contact a MILWAUKEE service facility for a free
replacement.
SYMBOLOGY
Volts
Direct Current
To prevent electric shock, do not allow
product to contact live electrical parts
Federal Communications Commission
SPECIFICATIONS
Cat. No. ..................................................... 2309-20
Volts ..................................................9 DC (one 9V)
Cable Length ......................................................3 ft
3
Federal
Communications
Commission
WARNING
This is a class
A product. In
a domestic environment this
product may cause radio
interference in which case the user may be required
to take adequate measures.
This equipment has been tested and found to comply
with the limits for a Class A digital device, pursuant to
Part 15 of the FCC Rules. These limits are designed
to provide reasonable protection against harmful
interference when the equipment is operated in a
commercial environment. This equipment generates, uses, and can radiate radio frequency energy
and, if not installed and used in accordance with the
instruction manual, may cause harmful interference
to radio communications. Operation of this equipment in a residential area is likely to cause harmful
interference in which case the user will be required
to correct the interference at his own expense.
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:
(1) this device may not cause harmful interference,
and
(2) this device must accept any interference received,
including interference that may cause undesired
operation.
FUNCTIONAL DESCRIPTION
1. Camera
2. Camera LEDs
3. Cable
4. LCD
5. Low battery indicator
6. Power button
7. LED brightness increase/
decrease buttons
1
2
3
7
6
5
4
ASSEMBLY
Loading/Changing the Battery
1. Using a at screwdriver, rotate the battery door
lock to the unlocked position and open the battery
door.
2. Connect one (1) 9V battery to the connector
block. Install battery according to polarity (+ / –)
diagrams. Fit the battery into the compartment.
3. Close the battery door. Turn the battery door lock
to the locked position.
Attaching/Removing Accessories
To attach an accessory, hook the two front hooks
over the front of the camera. Press the clip over the
back end of the camera to snap it into the detents.
To remove, pull up on the clip and then unhook the
accessory.
OPERATION
WARNING
To reduce the risk of injury, always
wear safety goggles or glasses
with side shields.
Turning On/Off
Press the Power button to turn the tool on. Press and
hold the Power button to turn the tool off.
Sleep Mode
The tool will shut off automatically if unused for 5
minutes. To reset, press the Power button again.
Low Battery Indicator
Replace the battery soon when the low battery
indicator lights.
Camera LED
The camera LEDs can be adjusted to 4 levels of
brightness and turned off. Press the camera LED
brightness increase and decrease buttons to change
the level of brightness or turn it off.
WARNING
To reduce the risk of explosion,
electric shock and property dam-
age, always check the work area before beginning
a job. Do not allow cable to contact electrical,
chemical, or moving hazards.
4
SERVICE - UNITED STATES
1-800-SAWDUST (1.800.729.3878)
Monday-Friday, 7:00 AM - 6:30 PM CST
or visit www.milwaukeetool.com
Contact Corporate After Sales Service Technical
Support with technical, service/repair, or warranty
questions.
Email: metproductsupport@milwaukeetool.com
Become a Heavy Duty Club Member at
www.milwaukeetool.com to receive important
notications regarding your tool purchases.
SERVICE - CANADA
Milwaukee Tool (Canada) Ltd
1.800.268.4015
Monday-Friday, 7:00 AM - 4:30 PM CST
or visit www.milwaukeetool.ca
LIMITED WARRANTY
USA & CANADA
Every MILWAUKEE power tool (including cordless product – tool,
battery pack(s) - see separate & distinct CORDLESS BATTERY
PACK LIMITED WARRANTY statements & battery charger and Work
Lights*) is warranted to the original purchaser only to be free from
defects in material and workmanship. Subject to certain exceptions,
MILWAUKEE will repair or replace any part on an electric power tool
which, after examination, is determined by MILWAUKEE to be defective in material or workmanship for a period of ve (5) years* after the
date of purchase unless otherwise noted. Return of the power tool
to a MILWAUKEE factory Service Center location or MILWAUKEE
Authorized Service Station, freight prepaid and insured, is required.
A copy of the proof of purchase should be included with the return
product. This warranty does not apply to damage that MILWAUKEE
determines to be from repairs made or attempted by anyone other
than MILWAUKEE authorized personnel, misuse, alterations, abuse,
normal wear and tear, lack of maintenance, or accidents.
*The warranty period for, Job Site Radios, M12™ Power Port, M18™
Power Source, Jobsite Fan and Trade Titan™ Industrial Work Carts
is one (1) year from the date of purchase. The warranty period for a
LED Work Light and LED Upgrade Bulb is a limited LIFETIME warranty to the original purchaser only, if during normal use the LED bulb
fails the Work Light or Upgrade Bulb will be replaced free of charge.
*This warranty does not cover Air Nailers & Stapler, Airless Paint Spray-
er, Cordless Battery Packs, Gasoline Driven Portable Power Genera-
tors, Hand Tools, Hoist – Electric, Lever & Hand Chain, M12™ Heated
Jackets, Reconditioned product and Test & Measurement products.
There are separate and distinct warranties available for these products.
Warranty Registration is not necessary to obtain the applicable war-
ranty on a MILWAUKEE power tool product. The manufacturing date
of the product will be used to determine the warranty period if no proof
of purchase is provided at the time warranty service is requested.
ACCEPTANCE OF THE EXCLUSIVE REPAIR AND REPLACEMENT
REMEDIES DESCRIBED HEREIN IS A CONDITION OF THE CONTRACT FOR THE PURCHASE OF EVERY MILWAUKEE PRODUCT.
IF YOU DO NOT AGREE TO THIS CONDITION, YOU SHOULD NOT
PURCHASE THE PRODUCT. IN NO EVENT SHALL MILWAUKEE BE
LIABLE FOR ANY INCIDENTAL, SPECIAL, CONSEQUENTIAL OR
PUNITIVE DAMAGES, OR FOR ANY COSTS, ATTORNEY FEES,
EXPENSES, LOSSES OR DELAYS ALLEGED TO BE AS A CONSEQUENCE OF ANY DAMAGE TO, FAILURE OF, OR DEFECT IN
ANY PRODUCT INCLUDING, BUT NOT LIMITED TO, ANY CLAIMS
FOR LOSS OF PROFITS. SOME STATES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL
DAMAGES, SO THE ABOVE LIMITATION OR EXCLUSION MAY NOT
APPLY TO YOU. THIS WARRANTY IS EXCLUSIVE AND IN LIEU
OF ALL OTHER EXPRESS WARRANTIES, WRITTEN OR ORAL.
TO THE EXTENT PERMITTED BY LAW, MILWAUKEE DISCLAIMS
ANY IMPLIED WARRANTIES, INCLUDING WITHOUT LIMITATION
ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS
FOR A PARTICULAR USE OR PURPOSE; TO THE EXTENT SUCH
DISCLAIMER IS NOT PERMITTED BY LAW, SUCH IMPLIED WARRANTIES ARE LIMITED TO THE DURATION OF THE APPLICABLE
EXPRESS WARRANTY AS DESCRIBED ABOVE. SOME STATES
DO NOT ALLOW LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY LASTS, SO THE ABOVE LIMITATION MAY NOT APPLY TO
YOU, THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS,
AND YOU MAY ALSO HAVE OTHER RIGHTS WHICH VARY FROM
STATE TO STATE.
Behind walls: Shut off circuit breakers to the
entire area.
Inside Pipes: Ensure there is no electrical charge
to the pipes before beginning inspection. Do not
allow liquid to ow down cable and into tool.
Auto use: Turn off the engine and allow to cool
before beginning inspection. Do not allow the
camera or cable to contact oil, gas, or other
corrosive materials.
CAUTION
To reduce the risk of damage to the
tool, do not use excessive force or
“kink” the cable. Do not use in areas where camera and cable will contact corrosive or oily sub-
stances.
Do not use the cable to clear clogs or move ob-
structions. This is not a drain cleaner!
Using the Inspection Scope
1. Adjust the cable to best t the opening.
2. After checking the workspace for hazards, insert
the cable and adjust the lighting as necessary.
MAINTENANCE
WARNING
To reduce the risk of injury, always
remove the batteries from the tool
before performing any maintenance. Never disassemble the tool. Contact a MILWAUKEE service
facility for ALL repairs.
Maintaining Tool
Keep your tool in good repair by adopting a regular
maintenance program. After six months to one year,
depending on use, return the tool to a MILWAUKEE
service facility for repairs.
If the tool does not start or operate at full power with
new batteries, clean the contacts on the battery door.
If the tool still does not work properly, return the tool
to a MILWAUKEE service facility for repairs.
WARNING
T
o reduce the risk of personal injury
and damage, never immerse your
tool in liquid or allow a liquid to ow inside it.
Cleaning
Clean dust and debris from tool. Keep tool handles
clean, dry and free of oil or grease. Use only mild
soap and a damp cloth to clean the tool since certain cleaning agents and solvents are harmful to
plastics and other insulated parts. Some of these
include gasoline, turpentine, lacquer thinner, paint
thinner, chlorinated cleaning solvents, ammonia and
household detergents containing ammonia. Never
use ammable or combustible solvents around tools.
Repairs
For repairs, return the tool to the nearest service cen-
ter listed on the back cover of this operator's manual.
ACCESSORIES
WARNING
Use only recommended accesso-
ries. Others may be hazardous.
For a complete listing of accessories, go online to
www.milwaukeetool.com or contact a distributor.
Loading...
