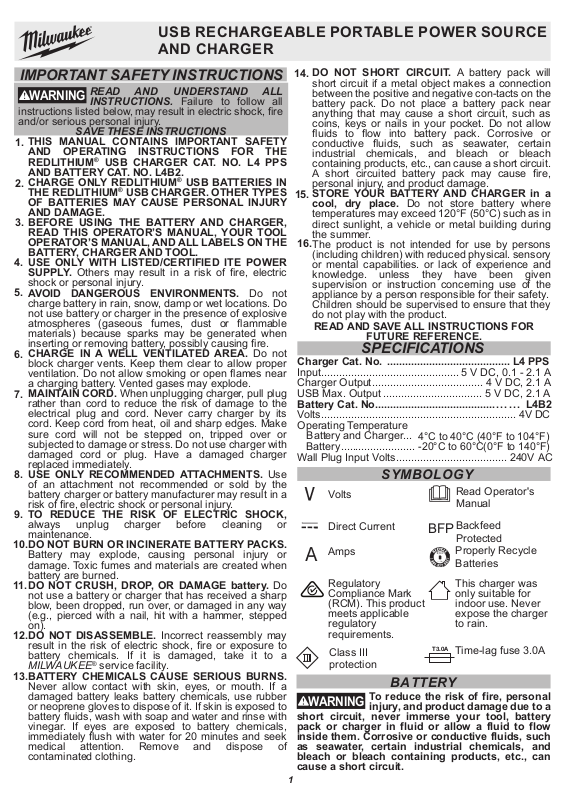

Milwaukee L4 PPS User Manual

USB RECHARGEABLE PORTABLE POWER SOURCE
AND CHARGER

IMPORTANT SAFETY INSTRUCTIONS

WARNING

instructions listed below, may result in electric shock, fire
and/or serious personal injury.

THIS MANUAL CONTAINS IMPORTANT SAFETY

1.
AND OPERATING INSTRUCTIONS FOR THE
REDLITHIUM
AND BATTERY CAT. NO. L4B2.
CHARGE ONLY REDLITHIUM

2.
THE REDLITHIUM
OF BATTERIES MAY CAUSE PERSONAL INJURY
AND DAMAGE.

3.

BEFORE USING THE BATTERY AND CHARGER,
READ THIS OPERATOR’S MANUAL, YOUR TOOL
OPERATOR’S MANUAL, AND ALL LABELS ON THE
BATTERY, CHARGER AND TOOL.
USE ONLY WITH LISTED/CERTIFIED ITE POWER

4.
SUPPLY. Others may result in a risk of fire, electric

shock or personal injury.

5.

AVOID DANGEROUS ENVIRONMENTS. Do not

charge battery in rain, snow, damp or wet locations. Do
not use battery or charger in the presence of explosive
atmospheres (gaseous fumes, dust or flammable
materials) because sparks may be generated when
inserting or removing battery, possibly causing fire.

CHARGE IN A WELL VENTILATED AREA. Do not

6.

block charger vents. Keep them clear to allow proper
ventilation. Do not allow smoking or open flames near
a charging battery. Vented gases may explode.

MAINTAIN CORD. When unplugging charger, pull plug

7.

rather than cord to reduce the risk of damage to the
electrical plug and cord. Never carry charger by its
cord. Keep cord from heat, oil and sharp edges. Make
sure cord will not be stepped on, tripped over or
subjected to damage or stress. Do not use charger with
damaged cord or plug. Have a damaged charger
replaced immediately.

8.

USE ONLY RECOMMENDED ATTACHMENTS. Use

of an attachment not recommended or sold by the
battery charger or battery manufacturer may result in a
risk of fire, electric shock or personal injury.

9.

TO REDUCE THE RISK OF ELECTRIC SHOCK,

always unplug charger before cleaning or
maintenance.

10.

DO NOT BURN OR INCINERATE BATTERY PACKS.

Battery may explode, causing personal injury or
damage. Toxic fumes and materials are created when
battery are burned.

11.

DO NOT CRUSH, DROP, OR DAMAGE battery. Do

not use a battery or charger that has received a sharp
blow, been dropped, run over, or damaged in any way
(e.g., pierced with a nail, hit with a hammer, stepped
on).

DO NOT DISASSEMBLE. Incorrect reassembly may

12.

result in the risk of electric shock, fire or exposure to
battery chemicals. If it is damaged, take it to a

MILWAUKEE

BATTERY CHEMICALS CAUSE SERIOUS BURNS.

13.

Never allow contact with skin, eyes, or mouth. If a
damaged battery leaks battery chemicals, use rubber
or neoprene gloves to dispose of it. If skin is exposed to
battery fluids, wash with soap and water and rinse with
vinegar. If eyes are exposed to battery chemicals,
immediately flush with water for 20 minutes and seek
medical attention. Remove and dispose of
contaminated clothing.

READ AND UNDERSTAND ALL
INSTRUCTIONS. Failure to follow all

SAVE THESE INSTRUCTIONS

®

®

service facility.

USB CHARGER CAT. NO. L4 PPS

®

®

USB CHARGER. OTHER TYPES

USB BATTERIES IN

DO NOT SHORT CIRCUIT. A battery pack will

14.

short circuit if a metal object makes a connection
between the positive and negative con-tacts on the
battery pack. Do not place a battery pack near
anything that may cause a short circuit, such as
coins, keys or nails in your pocket. Do not allow
fluids to flow into battery pack. Corrosive or
conductive fluids, such as seawater, certain
industrial chemicals, and bleach or bleach
containing products, etc., can cause a short circuit.
A short circuited battery pack may cause fire,
personal injury, and product damage.

STORE YOUR BATTERY AND CHARGER in a

15.
cool, dry place. Do not store battery where

temperatures may exceed 120°F (50°C) such as in
direct sunlight, a vehicle or metal building during
the summer.

16.

The product is not intended for use by persons
(including children) with reduced physical. sensory
or mental capabilities. or lack of experience and
knowledge. unless they have been given
supervision or instruction concerning use of the
appliance by a person responsible for their safety.
Children should be supervised to ensure that they
do not play with the product.

READ AND SAVE ALL INSTRUCTIONS FOR

FUTURE REFERENCE.

SPECIFICATIONS

Charger Cat. No. ......................................... L4 PPS

Input.............................................. 5 V DC, 0.1 - 2.1 A

Charger Output ..................................... 4 V DC, 2.1 A

USB Max. Output ................................. 5 V DC, 2.1 A

Battery Cat. No.............................................. L4B2

Volts ................................................................. 4V DC

Operating Temperature
Battery and Charger...

Battery .........................

Wall Plug Input Volts ..................................... 240V AC

Volts

Direct Current

Amps

Regulatory
Compliance Mark
(RCM). This product
meets applicable
regulatory
requirements.

Class III
protection

WARNING

short circuit, never immerse your tool, battery
pack or charger in fluid or allow a fluid to flow
inside them. Corrosive or conductive fluids, such
as seawater, certain industrial chemicals, and
bleach or bleach containing products, etc., can
cause a short circuit.

1

To reduce the risk of fire, personal
injury, and product damage due to a

4°C to 40°C (40°F to 104°F)

-20°C to 60°C(0°F to 140°F)

SYMBOLOGY

Read Operator's
Manual

Backfeed

BFP

Protected
Properly Recycle
Batteries

This charger was
only suitable for
indoor use. Never
expose the charger
to rain.

T3.0A

Time-lag fuse 3.0A

BATTERY

Do not expose your battery or cordless tools to water or
rain, or allow them to get wet. This could damage the tool
and battery. Do not use oil or solvents to clean or lubricate
your battery. The plastic casing will become brittle and
crack, causing a risk of injury.
Store batteries at room temperature away from moisture.
Do not store in damp locations where corrosion of
terminals may occur. As with other battery types,
permanent capacity loss can result if the pack is stored for
long periods of time at high temperatures (over 50

MILWAUKEE

during storage longer than other battery types. After about
a year of storage, charge the battery as normal.

WARNING

battery pack even if it is damaged, dead or completely
discharged. When burned, toxic fumes and materials
are created.

Disposing of MILWAUKEE

MILWAUKEE
friendly than some other types of power tool batteries.
Always dispose of your battery according to federal, state
and local regulations. Contact a recycling agency in your
area for recycling locations.
Even discharged batteries contain some energy. Before
disposing, use electrical tape to cover the terminals to
prevent the battery from shorting, which could cause a fire
or explosion.

The RBRC™ Battery Recycling Seals (see "Symbology")
on your batteries indicate that MILWAUKEE
arranged for the recycling of that battery with the
Rechargeable Battery Recycling Corporation (RBRC). At
the end of your battery's useful life, return the battery to a

MILWAUKEE

participating retailer nearest you. For more information,
visit the RBRC web site at www.rbrc.org.

Maintenance and Storage

®

Li-Ion batteries maintain their charge

To reduce the risk of injury or
explosion, never burn or incinerate a

®

®

Li-Ion batteries are more environmentally

Li-Ion Battery

RBRC Battery Recycling Seals

®

has

®

Branch Office/Service Centre or the

o

C).

CHARGER

WARNING

charger. Other types of batteries may cause personal
injury and damage.

1. Plug your USB cable into a power source such as an AC
wall adaptor, computer or car port.

2. Insert the micro USB into the micro USB port.

3. Twist the charger cap and remove the cap.

4. Align the battery arrow with the charger arrow and insert
the battery completely.

5. Line up the arrows on the cap with the battery holder
and twist the cap to lock.

6. The indicator light will display:
Red Solid: Charging, 0-79% charged
Green Flashing: Charging, 80-99% charged
Green Solid: 100% Charged
Red/Green Flashing: Damaged or Faulty Battery

Charge only REDLITHIUM® USB
batteries in the REDLITHIUM

How to Charge the Battery Pack

®

USB

When the charger is unplugged and a battery is
inserted, push the battery button to illuminate
indicator light. This will display the current battery
charge:

Red Flashing: 0-3% remaining
Red Solid: 3-10% remaining
Yellow Solid: 11-49% remaining
Green Solid: 50-100% remaining

WARNING

battery from the charger before performing any
maintenance. The charger and battery have no
internal serviceable parts. Never disassemble the
battery or charger.

Store your charger in a cool, dry place.
As a general practice, it is best to unplug battery
chargers and remove batteries when not in use. No
battery damage will occur, however, if the charger
and battery are left plugged in.

WARNING

battery or charger in liquid or allow a liquid to
flow inside them.

Clean out dust and debris from charger vents and
electrical contacts by blowing with compressed air.
Use only mild soap and a damp cloth to clean the
battery and charger, keeping away from all electrical
contacts. Certain cleaning agents and solvents are
harmful to plastics and other insulated parts. Some of
these include gasoline, turpentine, lacquer thinner,
paint thinner, chlorinated cleaning solvents, ammonia
and household detergents containing ammonia.
Never use flammable or combustible solvents around
batteries, charger, or tools.

The USB A port can be used to charge a cell phone,
or other personal device that is in compliance with the
USB Standard. To turn on the USB, press the battery
button. The USB A port will remain on until it fully
charges the device before turning off automatically.
NOTE: USB A Port (for device charging) is shut down
when the battery is charging.

Fuel Gauge

To reduce the risk of injury, always
unplug the charger and remove the

Maintenance and Storage

To reduce the risk of injury and
damage, never immerse your

Cleaning

Using the USB A Port

If the light indicator flashes red and green, check that
the battery is fully seated into the bay. Remove the
battery and reinsert. If the light continues to flash red
and green, the battery may be extremely hot or cold, or
wet. Allow the battery to cool down, warm up, or dry out
and then reinsert. If the problem persists, contact a

MILWAUKEE

®

service facility.
