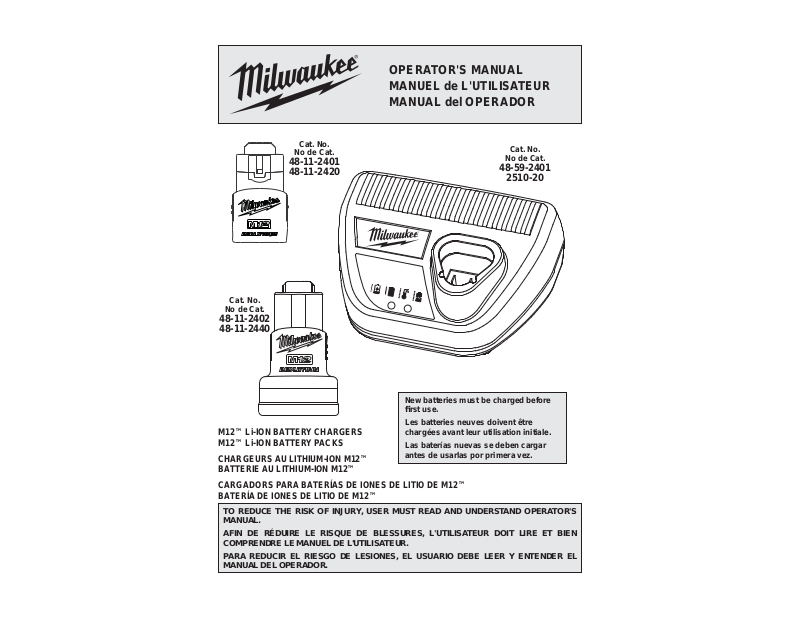

OPERATOR'S MANUAL MANUEL de L'UTILISATEUR MANUAL del OPERADOR

Cat. No.

No de Cat.

48-11-2401 48-11-2420

Cat. No.

No de Cat.

Cat. No.

No de Cat.

48-59-2401

2510-20

48-11-2402 48-11-2440

New batteries must be charged before ﬁ rst use.

Les batteries neuves doivent être

M12™ Li-ION BATTERY CHARGERS M12™ Li-ION BATTERY PACKS

CHARGEURS AU LITHIUM-ION M12™ BATTERIE AU LITHIUM-ION M12™

CARGADORS PARA BATERÍAS DE IONES DE LITIO DE M12™ BATERÍA DE IONES DE LITIO DE M12™

TO REDUCE THE RISK OF INJURY, USER MUST READ AND UNDERSTAND OPERATOR'S MANUAL.

AFIN DE RÉDUIRE LE RISQUE DE BLESSURES, L'UTILISATEUR DOIT LIRE ET BIEN COMPRENDRE LE MANUEL DE L'UTILISATEUR.

PARA REDUCIR EL RIESGO DE LESIONES, EL USUARIO DEBE LEER Y ENTENDER EL MANUAL DEL OPERADOR.

chargées avant leur utilisation initiale. Las baterías nuevas se deben cargar

antes de usarlas por primera vez.

READ AND SAVE ALL

INSTRUCTIONS FOR

FUTURE REFERENCE.

IMPORTANT SAFETY INSTRUCTIONS

WARNING READ AND UNDERST AND ALL INSTRUCTIONS. Failure to follow all

instructions listed below, may result in electric shock, ﬁ re and/or serious personal injury.

SAVE THESE INSTRUCTIONS

1. SAVE THESE INSTRUCTIONS - THIS OP-

ERAT OR’S MANUAL CONT AINS IMPORT ANT SAFETY AND OPERATING INSTRUCTIONS FOR MILW AUKEE M12™ LI-ION BA TTERIES AND THE MILWAUKEE M12™ LI-ION BATTERY CHARGER.

2. BEFORE USING THE BATTERIES AND CHAR-

GER, READ THIS OPERATOR’S MANUAL, YOUR TOOL OPERATOR’S MANUAL, AND ALL LABELS ON THE BATTERY PACK, CHARGER AND TOOL.

3. CAUTION! TO REDUCE THE RISK OF INJURY ,

CHARGE MILWAUKEE M12™ LITHIUM-ION BATTERIES ONLY IN MILWAUKEE M12™ LITHIUM-ION CHARGERS. Other types of char-

gers may cause personal injury or damage. Do not wire a battery pack to a power supply plug or car cigarette lighter. Batteries will be permanently disabled or damaged.

4. USE MILWAUKEE M12™ LITHIUM-ION

BATTERIES ONLY ON MILWAUKEE M12™ LITHIUM-ION TOOLS. Use with other tools may

result in a risk of ﬁ re, electric shock or personal injury.

5. AVOID DANGEROUS ENVIRONMENTS. Do not charge battery pack in rain, snow, damp or wet locations. ger in the presence of explosive atmospheres (gaseous fumes, dust or ﬂ ammable materials) because sparks may be generated when inserting or removing battery pack, possibly causing ﬁ re.

6. CHARGE IN A WELL VENTILATED AREA. Do not block charger vents. Keep them clear to allow proper ventilation. Do not allow smoking or open ﬂ ames near a charging battery pack. Vented gases may explode.

7. MAINTAIN CHARGER CORD. When unplug- ging charger, pull plug rather than cord to reduce the risk of damage to the electrical plug and cord. Never carry charger by its cord. Keep cord from heat, oil and sharp edges. Make sure cord will not be stepped on, tripped over or subjected to damage or stress. Do not use charger with damaged cord or plug. Have a damaged cord replaced immediately with identical replacement parts (see “Maintenance”).

8. DO NOT USE AN EXTENSION CORD UNLESS IT IS ABSOLUTELY NECESSARY. Using the wrong, damaged or improperly wired extension cord could result in the risk of ﬁ re and electrical shock. If an extension cord must be used, plug the charger into a properly wired 16 gauge or larger extension cord with pins that are the same number, size and shape as the pins on the charger. Make sure that the extension cord is in good electrical condition.

Do not use battery pack or char-

9. CHARGER 48-59-2401 IS RATED FOR 120

VOLT AC ONL Y . CHARGER 2510-20 IS RA TED FOR 12 VOLT DC AND 120 VOLT AC. Charger

must be plugged into an appropriate receptacle.

10. USE ONLY RECOMMENDED A TT ACHMENTS. Use of an attachment not recommended or sold by the battery charger or battery pack manufacturer may result in a risk of ﬁ re, electric shock or personal injury.

11. UNPLUG CHARGER when not in use. Remove battery pack from unplugged chargers.

12. TO REDUCE THE RISK OF ELECTRIC SHOCK, always unplug charger before cleaning or maintenance. Do not allow water to ﬂ ow into AC/DC plug. Use a Ground Fault Circuit Interrupter (GFCI) to reduce shock hazards.

13. DO NOT BURN OR INCINERATE BATTERIES. Batteries may explode, causing personal injury or damage. Toxic fumes and materials are created when batteries are burned.

14. DO NOT CRUSH, DROP, OR DAMAGE batter- ies. Do not use a battery pack or charger that has received a sharp blow, been dropped, run over, or damaged in any way (e.g., pierced with a nail, hit with a hammer, stepped on).

15. DO NOT DISASSEMBLE. Incorrect reassembly may result in the risk of electric shock, ﬁ re or exposure to battery chemicals. If it is damaged, take it to a MILWAUKEE service facility.

16. BATTERY CHEMICALS CAUSE SERIOUS BURNS. Never allow contact with skin, eyes, or mouth. If a damaged battery pack leaks battery chemicals, use rubber or neoprene gloves to dispose of it. If skin is exposed to battery ﬂ uids, wash with soap and water and rinse with vinegar. If eyes are exposed to battery chemicals, immediately ﬂ ush with water for 20 minutes and seek medical attention. Remove and dispose of contaminated clothing.

17. DO NOT SHORT CIRCUIT. A battery pack will short circuit if a metal object makes a connection between the positive and negative contacts on the battery pack. Do not place a battery pack near anything that may cause a short circuit, such as coins, keys or nails in your pocket. A short circuited battery pack may cause ﬁ re and personal injury.

18. STORE YOUR BATTERY PACK AND CHAR- GER in a cool, dry place. Do not store battery pack where temperatures may exceed 120°F (50°C) such as in direct sunlight, a vehicle or metal building during the summer.

READ AND SAVE ALL

INSTRUCTIONS FOR

FUTURE REFERENCE.

Charger Cat. No.

48-59-2401

2510-20

AC Input

Volts

120 120

AC Input

Milliamps

750 750

DC Input

Volts

- 12

DC Input

Amps

4.4

SYMBOLOGY

SPECIFICATIONS

Volts Direct Current

Alternating Current Double Insulated

Properly Recycle Batteries Hertz Amps

Milliamps Underwriters Laboratories, Inc.

United States and Canada

FUNCTIONAL DESCRIPTION

1. Contacts

2. Release buttons

3. Vents

4. Bay

5. Light indicators - when a battery pack is inserted into the charger, the light will indicate the following situations:

Continuous red: Charging Continuous green: Charging complete Flashing red: Battery pack is too hot/cold-

Charging will begin when battery reaches correct charging temperature

Flashing red/green: Damaged or faulty battery pack

Battery

Cat. No.

48-11-2401 48-11-2420 48-11-2402 48-11-2440

- -

DC Output

Volts

12 DC 12 DC

DC Output

Amps

3 3

MILWAUKEE 12 V LITHIUM-ION

BATTERY PACKS

Maintenance and Storage

Do not expose your battery pack or cordless tools to water or rain, or allow them to get wet. This could damage the tool and battery pack. Do not use oil or solvents to clean or lubricate your battery pack. The plastic casing will become brittle and crack, causing a risk of injury. Store batteries at room temperature away from moisture. Do not store in damp locations where corrosion of terminals may occur. As with other battery types, permanent capacity loss can result if the battery pack is stored for long periods of time at high temperatures (over 120° F). MILWAUKEE Lithium- Ion batteries maintain their charge during storage longer than other battery types. After about six months of storage, charge the battery pack as normal.

WARNING To reduce the risk of in-

jury or explosion, never burn or incinerate a battery pack even if it is damaged, dead or completely discharged. When burned, toxic fumes and materials are created.

Disposing of MILWAUKEE Lithium-Ion Batteries

MILWAUKEE Lithium-Ion batteries are more environmentally friendly than some other types of power tool batteries (e.g., nickel-cadmium). Always dispose of your battery pack according to federal, state and local regulations. Contact a recycling agency in your area for recycling locations. Even discharged batteries contain some energy. Before disposing, use electrical tape to cover the terminals to prevent the battery pack from shorting, which could cause a ﬁ re or explosion.

RBRC Battery Recycling Seals

The RBRC™ Battery Recycling Seals (see "Sym-

bology") on your tool battery pack indicates that MILWAUKEE has arranged for the recycling of that battery pack with the Rechargeable Battery Recycling Corporation (RBRC). At the end of your battery pack's useful life, return the battery pack to a MILWAUKEE Branch Ofﬁ ce/Service Center or the participating retailer nearest you. For more information, visit the RBRC web site at www.rbrc.org.

Volts

12 12 12 12
