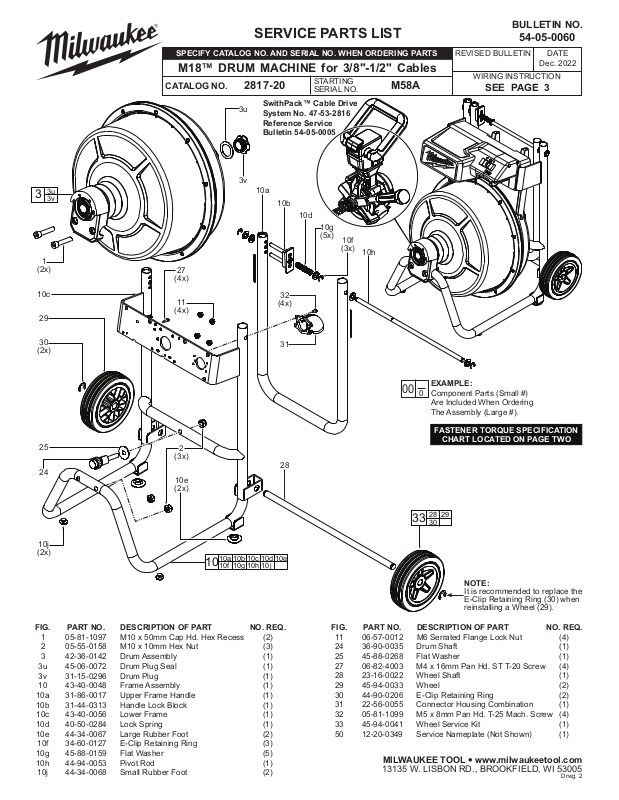

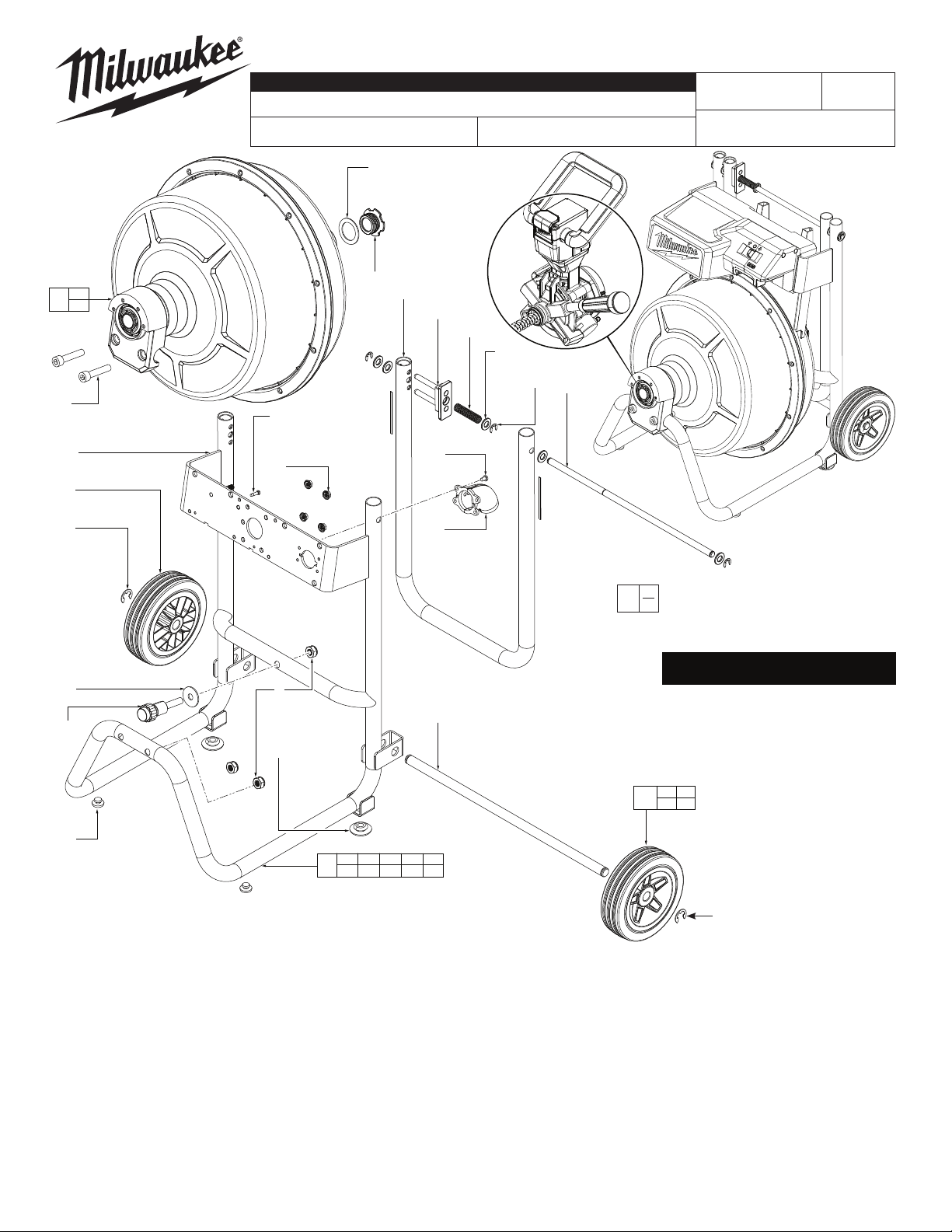

Page 1
3
DRAFT
(2x)
10c
29
BULLETIN NO.
SERVICE PARTS LIST
SPECIFY CATALOG NO. AND SERIAL NO. WHEN ORDERING PARTS
M18™ DRUM MACHINE for 3/8"-1/2" Cables
CATALOG NO. 2817-20
SwithPack™ Cable Drive
3u
System No. 47-53-2816
Reference Service
Bulletin 54-05-0005
3v
3u
3v
1
27
(4x)
11
(4x)
10a
10b
32
(4x)
STARTING
SERIAL NO.
10d
10g
(5x)
10f
(3x)
M58A
10h
REVISED BULLETIN
WIRING INSTRUCTION
SEE PAGE 3
54-05-0060
DATE
Dec. 2022
30
(2x)
25
24
10j
(2x)
FIG. PART NO. DESCRIPTION OF PART NO. REQ.
1 05-81-1097 M10 x 50mm Cap Hd. Hex Recess (2)
2 05-55-0158 M10 x 10mm Hex Nut (3)
3 42-36-0142 Drum Assembly (1)
3u 45-06-0072 Drum Plug Seal (1)
3v 31-15-0296 Drum Plug (1)
10 43-40-0048 Frame Assembly (1)
10a 31-86-0017 Upper Frame Handle (1)
10b 31-44-0313 Handle Lock Block (1)
10c 43-40-0056 Lower Frame (1)
10d 40-50-0284 Lock Spring (1)
10e 44-34-0067 Large Rubber Foot (2)
10f 34-60-0127 E-Clip Retaining Ring (3)
10g 45-88-0159 Flat Washer (5)
10h 44-94-0053 Pivot Rod (1)
10j 44-34-0068 Small Rubber Foot (2)
2
(3x)
10e
(2x)
10a 10b 10c 10d 10e
10
10f 10g 10h 10j
31
28
EXAMPLE:
00
Component Parts (Small #)
0
Are Included When Ordering
The Assembly (Large #).
FASTENER TORQUE SPECIFICATION
CHART LOCATED ON PAGE TWO
28 29
33
30
NOTE:
It is recommended to replace the
E-Clip Retaining Ring (30) when
reinstalling a Wheel (29).
FIG. PART NO. DESCRIPTION OF PART NO. REQ.
11 06-57-0012 M6 Serrated Flange Lock Nut (4)
24 36-90-0035 Drum Shaft (1)
25 45-88-0268 Flat Washer (1)
27 06-82-4003 M4 x 16mm Pan Hd. ST T-20 Screw (4)
28 23-16-0022 Wheel Shaft (1)
29 45-94-0033 Wheel (2)
30 44-90-0206 E-Clip Retaining Ring (2)
31 22-56-0055 Connector Housing Combination (1)
32 05-81-1099 M5 x 8mm Pan Hd. T-25 Mach. Screw (4)
33 45-94-0041 Wheel Service Kit (1)
50 12-20-0349 Service Nameplate (Not Shown) (1)
MILWAUKEE TOOL l www.milwaukeetool.com
13135 W. LISBON RD., BROOKFIELD, WI 53005
Drwg. 2

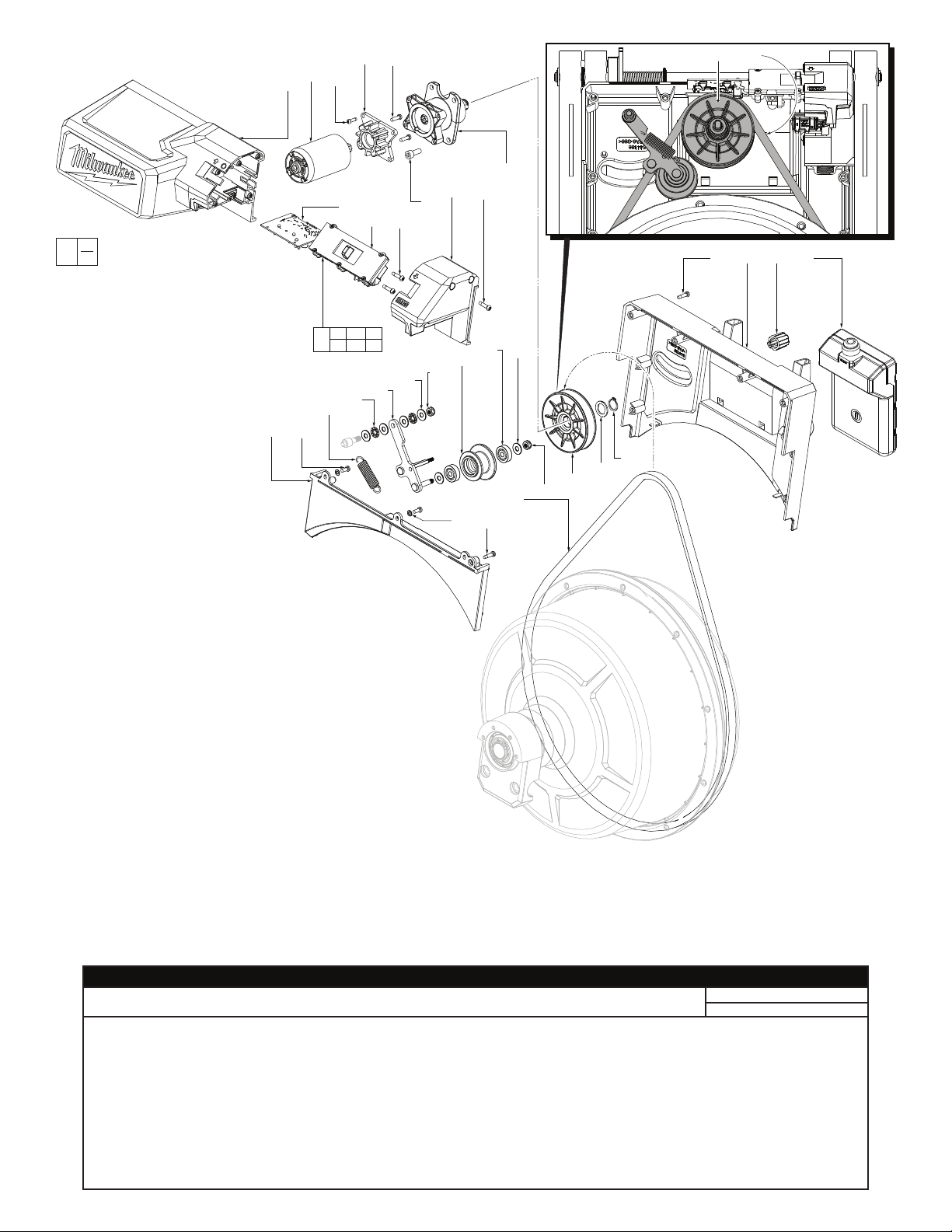

Page 2
EXAMPLE:
00
Component Parts (Small #)
0
Are Included When Ordering
The Assembly (Large #).
4n
4m
4h
(2x)
8
27
26
5
27
(2x)
(4x)
4f
(6x)
7
4j
(4x)
9
34 33
27
22 18 23
(8x)
4f 4g 4h
4
4j 4m 4n
16
13
15
14
12
39
37
(2x)
FIG. PART NO. DESCRIPTION OF PART NO. REQ.
4 14-30-0128 Motor/Electronics Assembly (1)
4f --------------- Switch Hall Board Assembly (1)
4h --------------- PCB Assembly (1)
4j --------------- Motor Assembly (1)
4m --------------- Motor Mount (1)
4n --------------- M4 x 14mm Pan Hd. T-20 Mach. Screw (2)
5 05-81-1098 M6 x 16mm Cap Hd. Hex Recess Scr. (4)
7 05-78-0106 M3.5 x 12.5mm Pan Hd. Tapt. T-10 Scr. (4)
8 14-29-0107 Gearbox Assembly (1)
9 28-50-0032 Front Housing - Left (1)
12 40-50-0248 Tensioner Spring (1)
13 45-88-0266 Flat Head Washer (4)
14 02-50-0031 Thrust Needle Bearing (2)
15 42-05-0013 Tensioner Arm (1)
16 05-55-0156 M6 Hex Nut with Nylon Insert (1)
17 45-88-0267 Flat Washer (2)
18 43-98-0117 Manual Crank Knob (1)
19 42-36-0084 Tensioner Pulley (1)
20 02-02-0128 Ball Bearing (2)
21 05-55-0157 M5 Hex Nut with Nylon Insert (1)
22 31-17-0025 Cord Wrap (1)
23 14-02-0012 Foot Pedal Assembly (1)
26 31-17-0025 Front Housing - Right (1)
27 05-74-0413 M4 x 16mm Pan Hd. ST T-20 Screw (22)
33 40-50-0294 Single V Drive Belt - Type A51 (1)
34 44-77-0028 Driver Pulley (1)
(2x)
(4x)
19
38
(2x)
17
20
(2x)
(2x)
36
35
34
21
33
27
(6x)
FIG. PART NO. DESCRIPTION OF PART NO. REQ.
35 45-88-0269 Flat Washer (1)
36 34-80-0026 Retaining Ring (1)
37 42-92-0101 Belt Cover (1)
38 05-74-0133 Flat Washer (2)
39 05-81-1101 M4 x 10mm Pan Hd. T-20 Mach. Scr. (2)
SEAT TORQUE
SCREW TORQUE SPECIFICATIONS
FIG. PART NO. DESCRIPTION OF FASTENER WHERE USED (kgf-cm) (lb-in)
1 05-81-1097 M10 x 50mm Cap Hd. Hex Recess Pillow Block to Frame 70-75 60.7-65.1
2 05-55-0158 M10 x 10mm Hex Nut Pillow Block to Frame & Drum Shaft 70-75 60.7-65.1
4n --------------- M4 x 14mm Pan Hd. T-20 Mach. Screw Motor Mount to Motor 10-12 8.6-10.4
5 45-04-1090 M6 x 16mm Cap Hd. Hex Recess Scr. Gearbox Assembly to Frame 55-60 47-7-52.0
7 05-78-0106 M3.5 x 12.5mm Pan Hd. Tapt. T-10 Scr. Motor Mount to Gearbox 8-9 6.9-7.8
11 06-57-0012 M6 Serrated Flange Lock Nut Gearbox Assembly to Frame N/A N/A
16 05-55-0156 M6 Hex Nut with Nylon Insert To welded stud on Lower Frame 13-15 11.2-13.0
21 05-55-0157 M5 Hex Nut with Nylon Insert To welded stud on Tensioner Arm 13-15 11.2-13.0
27 06-82-4003 M4 x 16mm Pan Hd. ST T-20 Screw All Locations 10-12 8.6-10.4
32 05-78-0029 M5 x 8mm Pan Hd. T-25 Mach. Screw Connector Housing to Frame 13-15 11.2-13.0
39 05-81-1101 M4 x 10mm Pan Hd. T-20 Mach. Scr. Belt Cover to Frame 10-12 8.6-10.4

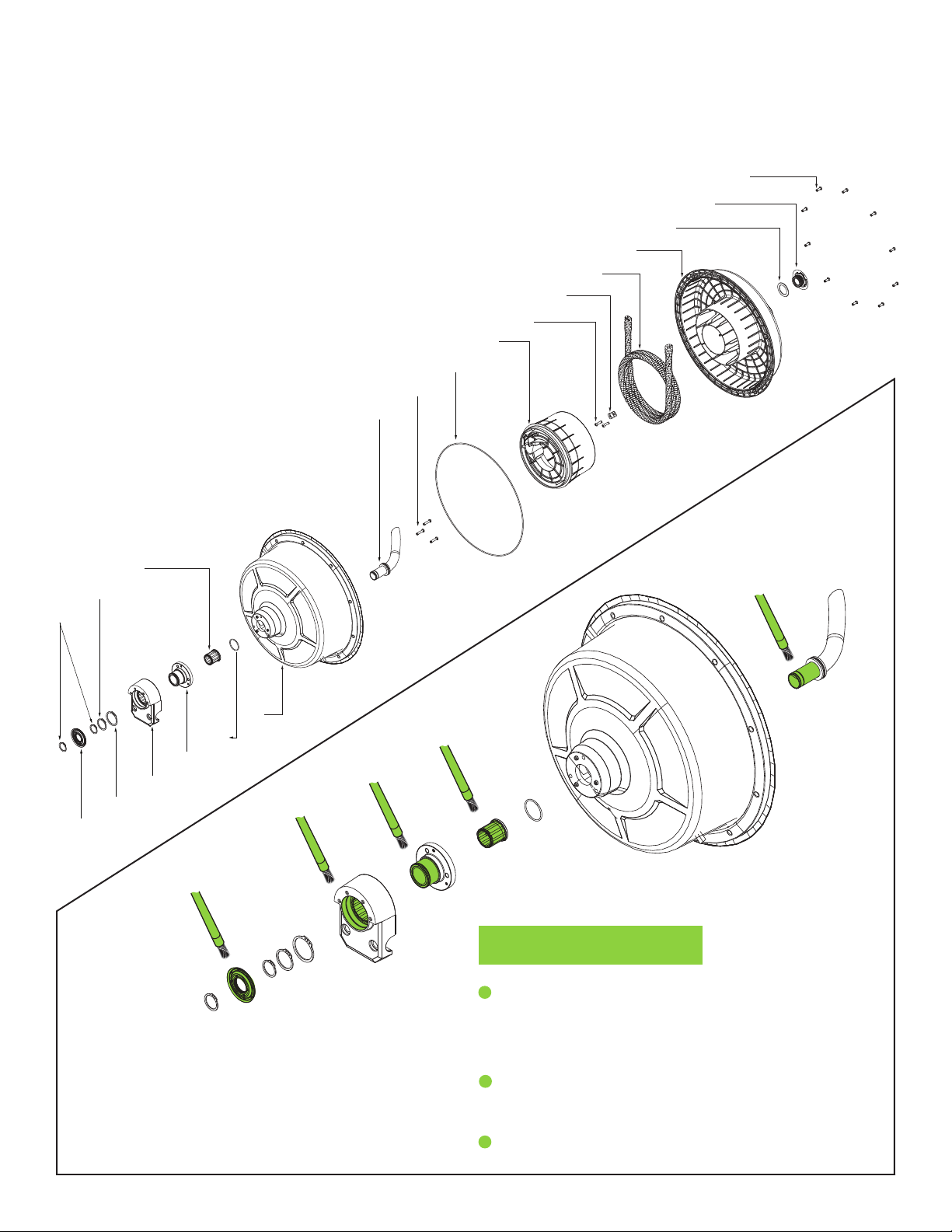

Page 3
LUBRICATION NOTES:
FIG. PART NO. DESCRIPTION OF PART NO. REQ.
3a 34-60-0112 Retaining Ring (2)
3b 43-40-0202 Rubber Sealing for Feed Tube (1)
3c 34-60-0113 Retaining Ring for Feed Tube (1)
3d 34-60-0114 Retaining Ring for Front Mount (1)
3e 43-56-0026 Front Pillow Block (1)
3f 31-10-0122 Front Mount for Feed Tube (1)
3g 42-40-0153 Feed Tube Bushing (1)
3h 34-40-0319 O-Ring (1)
3j 43-62-0213 Feed Tube and Flange Welding (1)
3k 31-55-0041 Drum Front (1)
3m 05-81-1102 M-Screw (3)
3n 45-06-0071 Rubber Drum Sealing (1)
3p 31-55-0042 Drum Center (1)
3q 05-81-1103 M-Screw (2)
3r 43-11-0028 Cable Drum Attachment (1)
3s 40-50-0178 Anchor Cable Assembly (1)
3t 31-55-0043 Drum Back (1)
3u 45-06-0072 Rubber Drum Plug Sealing (1)
3v 31-15-0296 Plug (1)
3w 05-81-1104 M Screw (10)
3m
(3x)
3j
3n
3w
(10x)
3v
3u
3t
3s
3r
3q
(2x)
3p
3g
3c
3a
3f
3e
3d
3b
3h
3k
Type ‘GE 00’ Urethyn Grease
No. 49-08-5355, 2.8 oz./80g tube
NOTE: When servicing, remove 90-95% of the existing grease prior to installing
Type ‘GE 00’. Original grease may be similar in color but not compatible with
‘GE 00’. Prior to reinstalling, clean gear assemblies with a clean, dry cloth.
Lightly coat all individual parts highlighted here with grease. Apply a greater
amount of grease to all internal and external gear teeth.
Prior to reinstalling, clean gear assemblies with a clean, dry cloth.
Lightly coat all parts highlighted here with ‘GE 00’ grease.
Apply a greater amount of grease to all internal and external gear teeth.
Lightly coat all parts highlighted here with ‘GE 00’ grease
unless directed otherwise.
