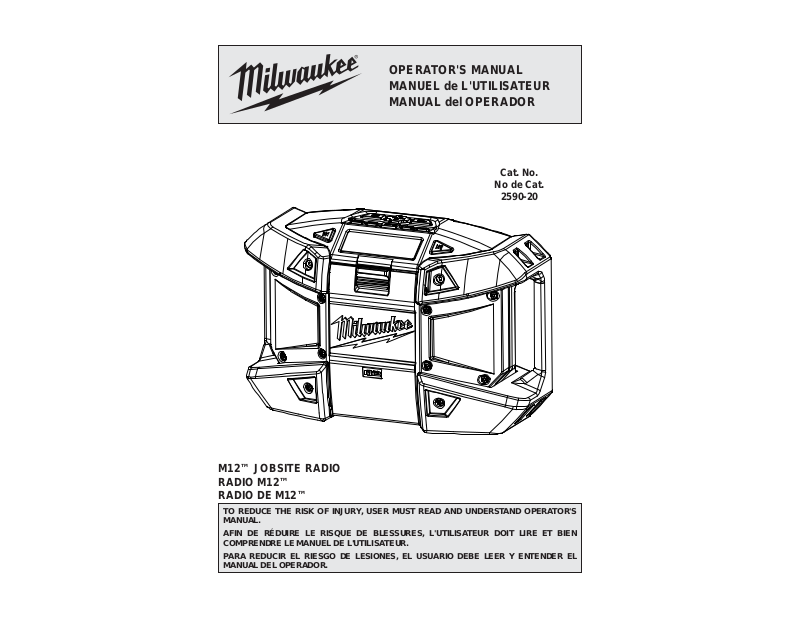

OPERATOR'S MANUAL
MANUEL de L'UTILISATEUR
MANUAL del OPERADOR
Cat. No.
No de Cat.
2590-20
M12™ JOBSITE RADIO
RADIO M12™
RADIO DE M12™
TO REDUCE THE RISK OF INJURY, USER MUST READ AND UNDERSTAND OPERATOR'S
MANUAL.
AFIN DE RÉDUIRE LE RISQUE DE BLESSURES, L'UTILISATEUR DOIT LIRE ET BIEN
COMPRENDRE LE MANUEL DE L'UTILISATEUR.
PARA REDUCIR EL RIESGO DE LESIONES, EL USUARIO DEBE LEER Y ENTENDER EL
MANUAL DEL OPERADOR.
IMPORTANT SAFETY INSTRUCTIONS
WARNING READ, UNDERSTAND AND FOLLOW ALL INSTRUCTIONS.
Failure to heed all warnings listed below, may result in electric shock,
fi re and/or serious personal injury. KEEP THESE INSTRUCTIONS.
• Read these instructions.
• Keeps these instructions.
• Heed all warnings.
• Follow all instructions.
• Do not use this apparatus near water. Never
immerse the apparatus in liquid or allow a liquid
to fl ow inside the apparatus. Water entering an ap-
paratus will increase the risk for electric shock.
• Clean only with dry cloth. Certain cleaning
agents and solvents are harmful to plastics and
other insulated parts. Some of these include:
gasoline, turpentine, lacquer thinner, paint thinner, chlorinated cleaning solvents, ammonia and
household detergents containing ammonia. Clean
dust and debris from vents. Keep the apparatus
handle clean, dry and free of oil or grease.
• Do not block any ventilation openings. Install in
accordance with the manufacturer’s instructions.
• Do not install near any heat sources such as
radiators, heat registers, stoves, or other apparatus (including amplifi ers) that produce heat.
• Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug
has two blades with one wider than the other. A
grounding type plug has two blades and a third
grounding prong. The wide blade or the third prong
are provided for your safety. If the provided plug
does not fi t into your outlet, consult an electrician
for replacement of the obsolete outlet.
• Protect the power cord from being walked on
or pinched particularly at plugs, convenience
receptacles, and the point where they exit from
the apparatus. Do not abuse the cord. Never use
the cord to carry the radio or pull the plug from
an outlet. Keep cord away from heat, oil, sharp
edges or moving parts. Replace damaged cords
immediately. Damaged cords increase the risk of
electric shock and may create a fi re.
• Use only attachments/accessories specifi ed
by the manufacturer.
• Unplug this apparatus during lightning storms
or when unused for long periods. Remove
power supply from outlet when not in use.
• Only plug power supply into readily accessibly
outlet to allow the appliance to be unplugged
quickly.
• Only operate this apparatus in a well ventilated
area.
• Refer all servicing to qualifi ed service personnel.
Servicing is required when the radio has been damaged in any way, such as power-supply cord or plug
is damaged, liquid has been spilled or objects have
fallen into the radio, the radio has been exposed
to rain or moisture or does not operate normally.
Service or maintenance performed by unqualifi ed
personnel could result in a risk of injury.
• A battery operated radio with integral batteries
or a separate battery pack must be recharged
only with the specifi ed charger for the battery . A
2
charger that may be suitable for one type of battery
may create a risk of fi re when used with another
battery.
• Use battery operated radio only with specifi -
cally designated battery packs. Use of any other
batteries may create a risk of fi re.
• When battery pack is not in use, keep it away
from other metal objects like: paper clips, coins,
keys, nails, screws, or other small metal objects
that can make a connection from one terminal
to another. Shorting the battery terminals together
may cause sparks, burns, or a fi re.
• Avoid body contact with grounded surfaces
such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock
if your body is grounded.
• Do not use any adaptor plugs.
• When operating a radio outside, use an outdoor extension cord marked “W-A” or “W”.
These cords are rated for outdoor use and reduce
the risk of electric shock.
• Never disassemble the radio or try to do any
rewiring on the radio's electrical system.
• Do not expose this apparatus to dripping and
splashing, or place objects fi lled with liquids
on this unit.
SPECIFIC SAFETY RULES
• Maintain labels and nameplates. These carry
important information. If unreadable or missing,
contact a MILWAUKEE service facility for a free
replacement.
• This radio is designed to be powered by the
Milwaukee 12 volt AC/DC power supply Cat. No.
23-81-0700, or a 12 volt MILWAUKEE Li-ion bat-
tery pack. Do not attempt to use with any other
voltage or power supply.
Federal Communications Commission
• WARNING: Changes or modifi cations to this unit
not expressly approved by the party responsible
for compliance could void the user’s authority to
operate the equipment.
This equipment has been tested and found to com-
ply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against
harmful interference in a residential installation. This
equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference
will not occur in a particular installation. If this
equipment does cause harmful interference to
radio or television reception, which can be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference
by one or more of the following measures:
• Reorient or relocate the receiving antenna.
3
• Increase the separation between the equipment
and receiver.
• Connect the equipment into an outlet on a circuit
different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV
technician for help.
FUNCTIONAL DESCRIPTION
1
2
3
9
14
1. Auxiliary Compartment
2. Antenna
3. 12 V DC jack
4. Backup-battery
compartment
5. 12V Battery port
6. On/off button
7. Volume control
8. Mute button
5
4
7
6
10
11
16
12
STEREO
SCAN
8
13
15
9. Mode button
10. Scan button
11. Preset button
12. EQ button
13. Clock button
14. Seek/adjust
down
15. Seek/adjust up
16. Display
SYMBOLOGY
To reduce the risk of injury, user
must read operator’s manual.
Volts Direct Current
mA
Milliamps
Underwriters Laboratories, Inc.,
United States and Canada
Federal Communications
Commission
SPECIFICATIONS
Cat. No. DC Volts DC Amps
2590-20 13.5 1.2
GROUNDING
Double Insulated Radios:
Radios with Two Prong Plugs
Radios marked “Double Insulated” do not require
grounding. They have a special double insulation
system which satisfi es OSHA requirements and
complies with the applicable standards of Underwriters Laboratories, Inc.,
the Canadian Standard Association and the National
Electrical Code. Double
Insulated radios may be
used in either of the 120 volt
outlets shown in Figures A
and B.
Fig. A Fig. B
EXTENSION CORDS
Double insulated tools can use either a two or
three wire extension cord. As the distance from the
supply outlet increases, you must use a heavier
gauge extension cord. Using extension cords with
inadequately sized wire causes a serious drop in
voltage, resulting in loss of power and possible tool
damage. Refer to the table shown to determine the
required minimum wire size.
The smaller the gauge number of the wire, the
greater the capacity of the cord. For example, a 14
gauge cord can carry a higher current than a 16
gauge cord. When using more than one extension
cord to make up the total length, be sure each cord
contains at least the minimum wire size required. If
you are using one extension cord for more than one
tool, add the nameplate amperes and use the sum
to determine the required minimum wire size.
Guidelines for Using Extension Cords
• If you are using an extension cord outdoors, be
sure it is marked with the suffi x “W-A” (“W” in Cana-
da) to indicate that it is acceptable for outdoor use.
• Be sure your extension cord is properly wired
and in good electrical condition. Always replace a
damaged extension cord or have it repaired by a
qualifi ed person before using it.
• Protect your extension cords from sharp objects,
excessive heat and damp or wet areas.
4
• Unplug all cords during lightning storms or when
unused for long periods of time.
Recommended Min. Wire Gauge for Extension Cords*
Nameplate
Amperes
0 - 2.0
2.1 - 3.4
3.5 - 5.0
5.1 - 7.0
7.1 - 12.0
12.1 - 16.0
16.1 - 20.0
* Based on limiting the line voltage drop to fi ve volts at
150% of the rated amperes.
Extension Cord Length
75'
50'
25'
18
18
18
18
16
14
12
18
18
18
18
16
18
14
16
12
14
10
12
10
100'
18
16
14
12
10
150'
16
14
12
12
ASSEMBLY
WARNING Recharge only with the char-
ger specifi ed for the battery. For specifi c
charging instructions, read the operator’s manual supplied with your charger and battery.
Inserting/Removing Battery Pack
Insert the battery
pack by sliding it into
the battery bay on
the back of the radio.
Insert the battery pack
until clicks in place.
To remove the battery
pack, press in both battery
latches and slide the battery pack out.
Fuel Gauge
The fuel gauge is displayed in the upper right corner
of the display.
Full Battery Life
2/3 Battery Life
Battery Pack Protection
T o protect the life of the battery pack, the radio will
shut off when the battery’s charge becomes too low .
If this happens, remove the battery pack and charge
it according to the charger’s instructions.
Installing an Auxiliary Device
Open the Auxiliary Compartment to connect an
MP3 player, CD player, or
other audio device using
the stereo auxiliary jack.
Small devices (less than
2¼” wide, 4½” high, and ¾”
thick) can be stored in the
compartment during use.
Using the AC/DC Power Supply
Only use Milwaukee 12 volt AC/DC power supply
Cat. No. 23-81-0700. Insert the power supply into
the 12V DC jack on the back of the radio. Plug the
adaptor into a suitable wall outlet.
1/3 Battery Life
Charge Battery
WARNING Batteries may leak
chemicals or may explode if used
incorrectly. The following care should be
taken to prevent such an incident:
• Make sure the positive (+) and negative (-)
battery terminals are positioned correctly.
• Do not mix new and old batteries together,
or mix different types of batteries.
• Do not try to recharge non-rechargeable
batteries.
If chemicals from the batteries come in
contact with your skin, wash them off immediately with water. If chemicals leak onto the
radio, clean the radio completely.
Changing Back-up Batteries
T o hold station presets and clock time when the 12V
battery pack is removed and the radio is unplugged,
2 AAA batteries are required.
1. Remove 12V battery
pack and unplug radio.
2. Remove the screw and
battery cover.
3. Insert two (2) AAA
batteries according to
matching positive (+)
and negative (-) marks.
4. Replace the battery
cover and screw.
5
OPERATION
WARNING Always remove battery pack
before changing or removing accessories.
Only use accessories specifi cally recommend-
ed for this radio. Others may be hazardous.
WARNING To reduce the risk of fi re
or electric shock, do not expose this radio
to rain or moisture.
Turning On/Off
Press the Power button to turn the radio on and
off. The radio station (frequency) is displayed. To
display the time, press the CLOCK button.
Volume
Use the
To instantly silent the radio, press the MUTE but-
ton. To return to the set volume, press the MUTE
button again.
Setting the Clock
1. Press and hold the CLOCK button until the hour
begins to fl ash.
2. Use the buttons to change the hour.
3. Press the CLOCK button again. Use the
to change the minutes.
4. Press the CLOCK button again to save.
EQ Adjustment
To manually adjust the Bass/Treble sound, press
the EQ button. Set the bass sound using the
buttons. Press the EQ button again to set the treble
sound, using the buttons.
Selecting Band
Push the MODE button to select AM, FM, or AUX.
Tuning (Seeking and Scanning)
Press and hold the buttons to SEEK through
the band. When a station is found, the SEEK will
stop. Use the SCAN button to continue through the
stations, pausing at each.
PRESET Stations
To set the PRESET stations:
1. Tune to desired station.
2. Press and hold the PRESET button until the PRESET indicator on the display begins to fl ash.
3. Use the buttons to select the PRESET
location for the station. Ten locations (0-9) are
available.
4. Press the PRESET button to save the location.
To tune to a PRESET station:
Press and release the PRESET button to step
through the PRESET stations.
Using the Stereo AUX Jack
1. Open the Auxiliary Compartment
2. Plug the auxiliary device into the Stereo AUX
jack.
3. Use the MODE button to select AUX.
4. Start the auxiliary device.
to increase or decrease the volume.
MAINTENANCE
WARNING To reduce the risk of injury ,
always unplug the charger and remove the
battery pack from the charger or tool before
performing any maintenance. Never disassemble the tool, battery pack or charger.
Contact a MILWAUKEE service facility for
ALL repairs.
Maintaining Tool
Keep your tool, battery pack and charger in good
repair by adopting a regular maintenance program.
If the tool does not start or operate at full power
with a fully charged battery pack, clean the contacts
on the battery pack. If the tool still does not work
properly, return the tool, charger and battery pack,
to a MILWAUKEE service facility for repairs.
WARNING To reduce the risk of per-
sonal injury and damage, never immerse your
tool, battery pack or charger in liquid or allow
a liquid to fl ow inside them.
Cleaning
Clean dust and debris from charger and tool
vents. Keep tool handles clean, dry and free of oil
or grease. Use only mild soap and a damp cloth
to clean the tool, battery pack and charger since
certain cleaning agents and solvents are harmful to
plastics and other insulated parts. Some of these
include gasoline, turpentine, lacquer thinner, paint
thinner, chlorinated cleaning solvents, ammonia
and household detergents containing ammonia.
Never use flammable or combustible solvents
around tools.
Repairs
For repairs, return the tool, battery pack and charger to the nearest service center listed on the back
cover of this operator's manual.
ACCESSORIES
WARNING Always remove battery
pack before changing or removing accessories. Only use accessories specifically
recommended for this tool. Others may be
hazardous.
For a complete listing of accessories refer to your
MILWAUKEE Electric Tool catalog or go online to
www.milwaukeetool.com. To obtain a catalog, contact your local distributor or a service center.
6
LIMITED WARRANTY - USA AND CANADA
Every MILWAUKEE power tool (including cordless product – tool, battery pack(s) - see separate & distinct CORDLESS BAT-
TERY P ACK LIMITED W ARRANTY statements & battery charger and W ork Lights*) is warranted to the original purchaser only
to be free from defects in material and workmanship. Subject to certain exceptions, MILWAUKEE will repair or replace any part
on an electric power tool which, after examination, is determined by MILWAUKEE to be defective in material or workmanship
for a period of fi ve (5) years* after the date of purchase unless otherwise noted. Return of the power tool to a MILWAUKEE
factory Service Center location or MILWAUKEE Authorized Service Station, freight prepaid and insured, is required. A copy of
the proof of purchase should be included with the return product. This warranty does not apply to damage that MILWAUKEE
determines to be from repairs made or attempted by anyone other than MILWAUKEE authorized personnel, misuse, alterations,
abuse, normal wear and tear, lack of maintenance, or accidents.
*The warranty period for, Job Site Radios, M12™ Power Port and T rade T itan™ Industrial W ork Carts is one (1) year from the
date of purchase. The warranty period for a LED Work Light and LEDUpgrade Bulb is a limited LIFETIME warranty to the original
purchaser only, if during normal use the LED bulb fails the Work Light or Upgrade Bulb will be replaced free of charge.
*This warranty does not cover Air Nailers & Stapler, Airless Paint Sprayer, Cordless Battery Packs, Gasoline Driven Portable
Power Generators, Hand T ools, Hoist – Electric, Lever & Hand Chain, M12™ Heated Jackets, Reconditioned product and Test
& Measurement products. There are separate and distinct warranties available for these products.
Warranty Registration is not necessary to obtain the applicable warranty on a MILWAUKEE power tool product. The manu-
facturing date of the product will be used to determine the warranty period if no proof of purchase is provided at the time
warranty service is requested.
ACCEPTANCE OF THE EXCLUSIVE REP AIR AND REPLACEMENT REMEDIES DESCRIBED HEREIN IS A CONDITION OF
THE CONTRACT FOR THE PURCHASE OF EVERY MILWAUKEE PRODUCT. IF YOU DO NOT AGREE TO THIS CONDITION,
YOU SHOULD NOT PURCHASE THE PRODUCT. IN NO EVENT SHALL MILWAUKEE BE LIABLE FOR ANY INCIDENTAL,
SPECIAL, CONSEQUENTIAL OR PUNITIVE DAMAGES, OR FOR ANY COSTS, ATTORNEY FEES, EXPENSES, LOSSES
OR DELAYS ALLEGED T O BE AS A CONSEQUENCE OF ANY DAMAGE TO, FAILURE OF , OR DEFECT IN ANY PRODUCT
INCLUDING, BUT NOT LIMITED TO, ANY CLAIMS FOR LOSS OF PROFITS. SOME ST A TES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO THE ABOVE LIMITATION OR EXCLUSION
MAY NOT APPLY TO YOU. THIS WARRANTY IS EXCLUSIVE AND IN LIEU OF ALL OTHER EXPRESS WARRANTIES,
WRITTEN OR ORAL. TO THE EXTENT PERMITTED BY LAW, MILWAUKEE DISCLAIMS ANY IMPLIED WARRANTIES,
INCLUDING WITHOUT LIMITA TION ANY IMPLIED W ARRANTY OF MERCHANT ABILITY OR FITNESS FOR A P ARTICULAR
USE OR PURPOSE; TO THE EXTENT SUCH DISCLAIMER IS NOT PERMITTED BY LAW, SUCH IMPLIED WARRANTIES
ARE LIMITED TO THE DURA TION OF THE APPLICABLE EXPRESS WARRANTY AS DESCRIBED ABOVE. SOME ST A TES
DO NOT ALLOW LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY LASTS, SO THE ABOVE LIMITATION MAY NOT
APPLY T O YOU, THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, AND YOU MAY ALSO HAVE OTHER RIGHTS
WHICH VARY FROM STATE TO STATE.
This warranty applies to product sold in the U.S.A. and Canada only.
Please consult the ‘Service Center Search’ in the Parts & Service section of MILWAUKEE’s website www .milwaukeetool.com
or call 1.800.SAWDUST (1.800.729.3878) to locate your nearest MILWAUKEE factory Service Center location.
LIMITED WARRANTY - MEXICO, CENTRAL AMERICA AND CARIBBEAN
TECHTRONIC INDUSTRIES' warranty is for 5 year since the original purchase date.
This warranty card covers any defect in material and workmanship on this Power Tool.
To make this warranty valid, present this warranty card, sealed/stamped by the distributor or store where you purchased the
product, to the Authorized Service Center (ASC). Or, if this card has not been sealed/stamped, present the original proof of
purchase to the ASC.
Call toll-free 1 800 832 1949 to fi nd the nearest ASC, for service, parts, accessories or components.
Procedure to make this warranty valid
T ake the product to the ASC, along with the warranty card sealed/stamped by the distributor or store where you purchased the
product, and there any faulty piece or component will be replaced without cost for you. We will cover all freight costs relative
with this warranty process.
Exceptions
This warranty is not valid in the following situations:
a) When the product is used in a different manners from the end-user guide or instruction manual.
b) When the conditions of use are not normal.
c) When the product was modifi ed or repaired by people not authorized by TECHTRONIC INDUSTRIES.
Note: If cord set is damaged, it should be replaced by an Authorized Service Center to avoid electric risks.
SERVICE AND ATTENTION CENTER
Model:
Rafael Buelna No.1.
Col. Tezozomoc Mexico, Azcapotzalco D.F.
Date of Purchase:
Ph. 01 800 832 1949
Distributor or Store Stamp:
IMPORTED AND COMMERCIALIZED BY:
TECHTRONIC INDUSTRIES MEXICO, .S.A. DE C.V.
Av. Santa Fe 481 piso 6, Col. Curz Manca.
CP 05349, Cuajimalpa, D.F.
7
Loading...
