Milwaukee 2409-22 Operator’s Manual

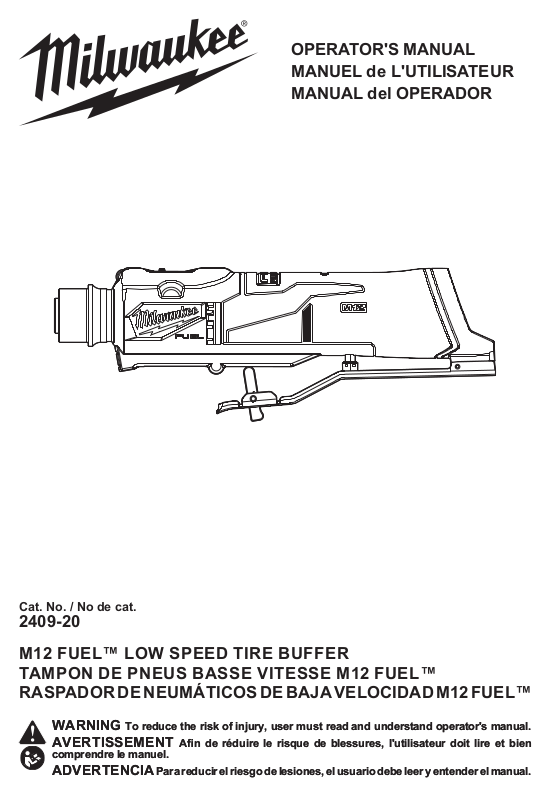

OPERATOR'S MANUAL
MANUEL de L'UTILISATEUR
MANUAL del OPERADOR
Cat. No. / No de cat.
2409-20
M12 FUEL™ LOW SPEED TIRE BUFFER
TAMPON DE PNEUS BASSE VITESSE M12 FUEL™
RASPADOR DE NEUMÁTICOS DE BAJA VELOCIDAD M12 FUEL™
WARNING To reduce the risk of injury, user must read and understand operator's manual.
WARNING To reduce the risk of injury, user must read and understand operator's manual.
AVERTISSEMENT An de réduire le risque de blessures, l'utilisateur doit lire et bien
AVERTISSEMENT An de réduire le risque de blessures, l'utilisateur doit lire et bien
comprendre le manuel.
comprendre le manuel.
ADVERTENCIA Para reducir el riesgo de lesiones, el usuario debe leer y entender el manual.
ADVERTENCIA Para reducir el riesgo de lesiones, el usuario debe leer y entender el manual.
GENERAL POWER TOOL
WARNING
SAFETY WARNINGS
Read all safety warnings, instruc-
tions provided with this power tool. Failure to
follow all instructions listed below may result in
electric shock, re and/or serious injury. Save all
warnings and instructions for future reference.
The term "power tool" in the warnings refers to your
mains-operated (corded) power tool or battery-oper-
ated (cordless) power tool.
tions, illustrations and specica-
WORK AREA SAFETY
• Keep work area clean and well lit. Cluttered or
dark areas invite accidents.
• Do not operate power tools in explosive atmo-
spheres, such as in the presence of ammable
liquids, gases or dust. Power tools create sparks
which may ignite the dust or fumes.
• Keep children and bystanders away while operating
a power tool. Distractions can cause you to lose control.
ELECTRICAL SAFETY
• Power tool plugs must match the outlet. Never
modify the plug in any way. Do not use any
adapter plugs with earthed (grounded) power
tools. Unmodied plugs and matching outlets will
reduce risk of electric shock.
• Avoid body contact with earthed or grounded
surfaces, such as pipes, radiators, ranges and
refrigerators. There is an increased risk of electric
shock if your body is earthed or grounded.
• Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the
risk of electric shock.
• Do not abuse the cord. Never use the cord for
carrying, pulling or unplugging the power tool.
Keep cord away from heat, oil, sharp edges or
moving parts. Damaged or entangled cords increase
the risk of electric shock.
• When operating a power tool outdoors, use an ex-
tension cord suitable for outdoor use. Use of a cord
suitable for outdoor use reduces the risk of electric shock.
• If operating a power tool in a damp location is
unavoidable, use a ground fault circuit interrupter
(GFCI) protected supply. Use of an GFCI reduces
the risk of electric shock.
PERSONAL SAFETY
• Stay alert, watch what you are doing and use
common sense when operating a power tool. Do
not use a power tool while you are tired or under
the inuence of drugs, alcohol or medication. A
moment of inattention while operating power tools
may result in serious personal injury.
• Use personal protective equipment. Always
wear eye protection. Protective equipment such
as a dust mask, non-skid safety shoes, hard hat or
hearing protection used for appropriate conditions
will reduce personal injuries.
• Prevent unintentional starting. Ensure the switch
is in the o-position before connecting to power
source and/or battery pack, picking up or carrying
the tool. Carrying power tools with your nger on
the switch or energizing power tools that have the
switch on invites accidents.
• Remove any adjusting key or wrench before
turning the power tool on. A wrench or a key left
attached to a rotating part of the power tool may
result in personal injury.
• Do not overreach. Keep proper footing and
balance at all times. This enables better control
of the power tool in unexpected situations.
• Dress properly. Do not wear loose clothing or
jewelry. Keep your hair and clothing away from
moving parts. Loose clothes, jewelry or long hair
can be caught in moving parts.
• If devices are provided for the connection of
dust extraction and collection facilities, ensure
these are connected and properly used. Use of
dust collection can reduce dust-related hazards.
• Do not let familiarity gained from frequent use
of tools allow you to become complacent and
ignore tool safety principles. A careless action can
cause severe injury within a fraction of a second.
POWER TOOL USE AND CARE
• Do not force the power tool. Use the correct power
tool for your application. The correct power tool
will do the job better and safer at the rate for which
it was designed.
• Do not use the power tool if the switch does not turn
it on and o. Any power tool that cannot be controlled
with the switch is dangerous and must be repaired.
• Disconnect the plug from the power source and/
or remove the battery pack, if detachable, from
the power tool before making any adjustments,
changing accessories, or storing power tools.
Such preventive safety measures reduce the risk of
starting the power tool accidentally.
• Store idle power tools out of the reach of children
and do not allow persons unfamiliar with the
power tool or these instructions to operate the
power tool. Power tools are dangerous in the hands
of untrained users.
• Maintain power tools and accessories. Check
for misalignment or binding of moving parts,
breakage of parts and any other condition that
may aect the power tool’s operation. If damaged,
have the power tool repaired before use. Many ac-
cidents are caused by poorly maintained power tools.
• Keep cutting tools sharp and clean. Properly
maintained cutting tools with sharp cutting edges
are less likely to bind and are easier to control.
• Use the power tool, accessories and tool bits
etc. in accordance with these instructions,
taking into account the working conditions and
the work to be performed. Use of the power tool
for operations dierent from those intended could
result in a hazardous situation.
• Keep handles and grasping surfaces dry, clean
and free from oil and grease. Slippery handles and
grasping surfaces do not allow for safe handling and
control of the tool in unexpected situations.
BATTERY TOOL USE AND CARE
• Recharge only with the charger specied by the
manufacturer. A charger that is suitable for one type
of battery pack may create a risk of re when used
with another battery pack.
• Use power tools only with specically designated
battery packs. Use of any other battery packs may
create a risk of injury and re.
• When battery pack is not in use, keep it away
from other metal objects, like paper clips, coins,
keys, nails, screws or other small metal objects,
that can make a connection from one terminal
to another. Shorting the battery terminals together
may cause burns or a re.
2
• Under abusive conditions, liquid may be ejected
from the battery; avoid contact. If contact accidentally occurs, ush with water. If liquid contacts
eyes, additionally seek medical help. Liquid
ejected from the battery may cause irritation or burns.
• Do not use a battery pack or tool that is damaged or modied. Damaged or modied batteries
may exhibit unpredictable behavior resulting in re,
explosion or risk of injury.
• Do not expose a battery pack or tool to re or
excessive temperature. Exposure to re or tem-
perature above 265°F (130°C) may cause explosion.
• Follow all charging instructions and do not charge
the battery pack or tool outside the temperature
range specied in the instructions. Charging im-
properly or at temperatures outside the specied range
may damage the battery and increase the risk of re.
SERVICE
• Have your power tool serviced by a qualied
repair person using only identical replacement
parts. This will ensure that the safety of the power
tool is maintained.
• Never service damaged battery packs. Service
of battery packs should only be performed by the
manufacturer or authorized service providers.
SPECIFIC SAFETY RULES FOR
TIRE BUFFER
Safety Warnings Common for Grinding, Sanding,
or Polishing Operations:
• This power tool is intended to function as a
grinder, sander, or polisher tool. Read all safety
warnings, instructions, illustrations and speci-
cations provided with this power tool. Failure
to follow all instructions listed below may result in
electric shock, re and/or serious injury.
• Operations such as wire brushing or cutting-o
are not recommended to be performed with this
power tool. Operations for which the power tool
was not designed may create a hazard and cause
personal injury.
• Do not use accessories which are not specically
designed and recommended by the tool manufac-
turer. Just because the accessory can be attached
to your power tool, it does not assure safe operation.
• The rated speed of the grinding accessories must
be at least equal to the maximum speed marked
on the power tool. Grinding accessories running
faster than their rated speed can break and y apart.
• The outside diameter and the thickness of your
accessory must be within the capacity rating
of your power tool. Incorrectly sized accessories
cannot be adequately controlled.
• The arbour size of wheels, sanding drum or any
other accessory must properly t the spindle or
collet of the power tool. Accessories that do not
match the mounting hardware of the power tool will
run out of balance, vibrate excessively and may
cause loss of control.
•Mandrel mounted wheels, sanding drums, cut-
ters or other accessories must be fully inserted
into the collet or chuck. If the mandrel is insuciently held and/or the overhang of the wheel is too
long, the mounted wheel may become loose and be
ejected at high velocity.
• Do not use a damaged accessory. Before each
use inspect the accessory such as abrasive
wheels for chips and cracks, sanding drum for
cracks, tear or excess wear. If power tool or accessory is dropped, inspect for damage or install
an undamaged accessory. After inspecting and
installing an accessory, position yourself and
bystanders away from the plane of the rotating
accessory and run the power tool at maximum
no-load speed for one minute. Damaged acces-
sories will normally break apart during this test time.
• Wear personal protective equipment. Depending
on application, use face shield, safety goggles or
safety glasses. As appropriate, wear dust mask,
hearing protectors, gloves and workshop apron
capable of stopping small abrasive or workpiece
fragments. The eye protection must be capable of
stopping ying debris generated by various operations. The dust mask or respirator must be capable
of ltrating particles generated by your operation.
Prolonged exposure to high intensity noise may
cause hearing loss.
• Keep bystanders a safe distance away from work
area. Anyone entering the work area must wear
personal protective equipment. Fragments of
workpiece or of a broken accessory may y away and
cause injury beyond immediate area of operation.
• Hold power tool by insulated gripping surfaces
only, when performing an operation where the
cutting accessory may contact hidden wiring.
Cutting accessory contacting a "live" wire may make
exposed metal parts of the power tool "live" and
could give the operator an electric shock.
• Always hold the tool rmly in your hand(s) during
the start-up. The reaction torque of the motor, as it
accelerates to full speed, can cause the tool to twist.
• Use clamps to support workpiece whenever
practical. Never hold a small workpiece in one
hand and the tool in the other hand while in use.
Clamping a small workpiece allows you to use your
hand(s) to control the tool. Round material such as
dowel rods, pipes or tubing have a tendency to roll
while being cut, and may cause the bit to bind or
jump toward you.
• Never lay the power tool down until the accessory has come to a complete stop. The spinning
accessory may grab the surface and pull the power
tool out of your control.
• After changing the bits or making any adjust-
ments, make sure the collet nut, chuck or any
other adjustment devices are securely tightened.
Loose adjustment devices can unexpectedly shift,
causing loss of control, loose rotating components
will be violently thrown.
• Do not run the power tool while carrying it at
your side. Accidental contact with the spinning
accessory could snag your clothing, pulling the ac-
cessory into your body.
• Regularly clean the power tool’s air vents. The
motor’s fan will draw the dust inside the housing
and excessive accumulation of powdered metal
may cause electrical hazards.
• Do not operate the power tool near ammable
materials. Sparks could ignite these materials.
• Do not use accessories that require liquid cool-
ants. Using water or other liquid coolants may result
in electrocution or shock.
3
WARNING
WARNING
Kickback and Related Warnings
Kickback is a sudden reaction to a pinched or
snagged rotating wheel, sanding band, brush or
any other accessory. Pinching or snagging causes
rapid stalling of the rotating accessory which in turn
causes the uncontrolled power tool to be forced in
the direction opposite of the accessory’s rotation. For
example, if an abrasive wheel is snagged or pinched
by the workpiece, the edge of the wheel that is entering into the pinch point can dig into the surface of the
material causing the wheel to climb out or kick out.
The wheel may either jump toward or away from the
operator, depending on direction of the wheel’s move-
ment at the point of pinching. Abrasive wheels may
also break under these conditions. Kickback is the
result of power tool misuse and/or incorrect operat-
ing procedures or conditions and can be avoided by
taking proper precautions as given below.
• Maintain a rm grip on the power tool and position your body and arm to allow you to resist
kickback forces. The operator can control kickback
forces, if proper precautions are taken.
• Use special care when working corners, sharp
edges etc. Avoid bouncing and snagging the accessory. Corners, sharp edges or bouncing have a
tendency to snag the rotating accessory and cause
loss of control or kickback.
• Do not attach a toothed saw blade. Such blades
create frequent kickback and loss of control.
• Always feed the bit into the material in the same
direction as the cutting edge is exiting from the
material (which is the same direction as the chips
are thrown). Feeding the tool in the wrong direction
causes the cutting edge of the bit to climb out of the
work and pull the tool in the direction of this feed.
• When using rotary les, high-speed cutters or
tungsten carbide cutters, always have the work
securely clamped. These wheels will grab if they
become slightly canted in the groove, and can kick-
back. When a cut-o wheel grabs, the wheel itself
usually breaks. When the rotary le, high-speed cutter or tungsten carbide cutter grabs, it may jump from
the groove and you could lose control of the tool.
Additional Drill Safety Warnings
• Hold power tool by insulated gripping surfaces
only, when performing an operation where the
cutting accessory may contact hidden wiring.
Cutting accessory contacting a "live" wire may make
exposed metal parts of the power tool "live" and
could give the operator an electric shock.
Safety instructions when using long drill bits
•Never operate at higher speed than the maxi-
mum speed rating of the drill bit. At higher
speeds, the bit is likely to bend if allowed to rotate
freely without contacting the workpiece, resulting
in personal injury.
• Always start drilling at low speed and with the
bit tip in contact with the workpiece. At higher
speeds, the bit is likely to bend if allowed to rotate
freely without contacting the workpiece, resulting in
personal injury.
• Apply pressure only in direct line with the bit
and do not apply excessive pressure. Bits can
bend causing breakage or loss of control, resulting
in personal injury.
Additional Safety Warnings
• Do not force the power tool or use battery for
leverage. Using the battery for leverage may cause
damage to the battery pack.
•
appropriate respiratory protection or use an
OSHA compliant dust extraction solution.
• Always use common sense and be cautious when
using tools. It is not possible to anticipate every
situation that could result in a dangerous outcome.
Do not use this tool if you do not understand these
operating instructions or you feel the work is beyond
your capability; contact Milwaukee Tool or a trained
professional for additional information or training.
• Maintain labels and nameplates. These carry
important information. If unreadable or missing,
contact a MILWAUKEE service facility for a free
replacement.
•
construction activities contains chemicals known to
cause cancer, birth defects or other reproductive
harm. Some examples of these chemicals are:
• lead from lead-based paint
• crystalline silica from bricks and cement and other
masonry products, and
• arsenic and chromium from chemically-treated
lumber.
Your risk from these exposures varies, depending on
how often you do this type of work. To reduce your
exposure to these chemicals: work in a well ventilated
area, and work with approved safety equipment, such
as those dust masks that are specially designed to
lter out microscopic particles.
To reduce the risk of injury, when
working in dusty situations, wear
Some dust created by power sanding,
sawing, grinding, drilling, and other
SPECIFICATIONS
Cat. No. ..................................................... 2409-20
Volts.............................................................. 12 DC
Battery Type .................................................M12™
Charger Type................................................M12™
Bung RPM ................................................ 0-2500
Drilling RPM ................................................. 0-1200
Quick Change Collet................................7/16" Hex
Max Buffing Accessory Ø .................................... 3"
Max Drilling Accessory Ø ...................................3/8"
Recommended Ambient
Operating Temperature ......................0°F to 125°F
FUNCTIONAL DESCRIPTION
1
5
1. Quick change collet
2. Mode selector
3. Fuel gauge
4. Handle
4
2
7
6
3
4
5. LED
6. Paddle switch
7. Switch lock-o
SYMBOLOGY
C
US
WARNING
WARNING
WARNING
WARNING
WARNING
Volts
Direct Current
Rated Revolutions per Minute (RPM)
UL Listing for Canada and U.S.
ASSEMBLY
Recharge only with the charger
cic charging instructions, read the operator’s
manual supplied with your charger and battery.
To remove the battery, push in the release buttons
and pull the battery pack away from the tool.
is not in use.
To insert the battery, slide the pack into the body
of the tool. Make sure it latches securely into place.
may be hazardous.
Only use accessories with Maximum Safe Operat-
ing Speed rated at least equal to the maximum
speed marked on the power tool. This speed is
based on the strength of the accessory, allowing for a reasonable measure of safety. It is not
meant to imply a best or most ecient operating
speed. Do not exceed the Maximum Safe Operating Speed.
Do not touch the accessories with bare hands
immediately after drilling or bung; they may
be hot and could burn skin.
Drilling and bung accessories should be protected
from:
• wetness and extreme humidity
• any type of solvent
• extreme changes in temperature
• dropping and bumping
Points, cones and plugs should be stored:
• in an organized way so points, cones, or plugs can
be removed without disturbing or damaging other
points, cones, or plugs
• with their safety information
Points, cones and plugs should NOT be dropped,
rolled or bumped.
Discard points, cones, or plugs that have been
dropped, rolled, bumped, subjected to extreme
changes in temperature, or come into contact with
solvents or wetness.
A 7/16" hex adapter is required to use a drilling bit.
1. Remove the battery pack.
2. To attach an accessory, pull the collet out and
hold.
3. Press the 7/16" hex adapter into the collet and
release the collet to lock it in place.
4. To remove the accessory, pull the collet out and
hold.
5. Pull out the 7/16" hex adapter and remove the
accessory. Release the collet.
specied for the battery. For spe-
Removing/Inserting the Battery
Always lock the trigger or remove
the battery pack any time the tool
Only use accessories specically
recommended for this tool. Others
Accessories
Installing Drill Bits into Collet
1. Remove the battery pack.
2. Install one of the nuts provided onto the threaded
3. Insert the bung wheel.
4. Insert the washer.
5. Install and tighten the second nut securely with a
NOTE: Use a 7/16" open end wrench to hold the
6. Reverse the procedure when removing the ac-
the tire buer and clean mandrels before inserting them into the collet. Otherwise the high-speed
rotation of the tool could force the accessory to
y out of the collet.
Installing the Bung Wheel
end of the coupler and tighten the nut securely
with a 9/16" open end wrench.
Collet
Coupler
9/16" open end wrench.
coupler to assist in tightening the nut.
cessory.
To reduce the risk of injury, always
securely tighten the accessory to
Bung Wheel
Nuts
Washer
OPERATION
To reduce the risk of injury, always
to comply with ANSI Z87.1.
When working in dusty situations, wear appro-
priate respiratory protection or use an OSHA
compliant dust extraction solution.
To determine the amount of charge left in the battery,
turn the tool ON. The Fuel Gauge will light up for 2-3
seconds. When less than 10% of charge is left, 1 light
on the fuel gauge will ash 4 times.
To signal the end of charge, 1 light on the fuel gauge
will ash 8 times and the tool will not run. Charge
the battery pack.
If the battery becomes too hot, the fuel gauge lights
will ash and the tool will not run. Allow the battery
to cool down.
The mode selector button is used to adjust
the rotation speed (RPM) for the application.
To select the mode:
Push the mode selector forward to select
bung mode.
inside the inner liner inside of the tire.
Push the mode selector button downward
to select drilling mode.
application is used on inside and outside
of the tire.
Mode Drilling Mode Bung Mode
RPM 0-1200 0-2500
wear proper eye protection marked
Fuel Gauge
Using the Mode Selector
This application is used
This
5
1. If you have just installed an accessory or are
WARNING
WARNING
WARNING
beginning a period of work, test it by letting it spin
for one minute before applying it to the workpiece.
WARNING! Never use an accessory that has been
dropped. Out-of-balance or damaged accessories
can mar workpiece, damage the tool, and cause
stress that may cause accessory failure.
2. Use a clamp, vise or other practical means to
hold your work.
3. To start the tool, push the switch lock-o forward
(1) and squeeze the paddle switch (2). NOTE: An
LED is turned on when the switch is pulled.
4. Allow accessory to come to full speed before
beginning work.
5. To vary the speed, increase or decrease pressure
on the switch. The further the switch is pulled, the
greater the speed, up to the maximum speed set
by the mode selector.
6. Control pressure and surface contact between ac-
cessory and workpiece. WARNING! Never bang
accessories onto work. Too much pressure causes
accessory failure or slows speed.
7. To stop the tool, release the switch. Make sure the
tool comes to a complete stop before laying the
tool down.
If the tire buer begins vibrating, immediately
stop the motor and check to see if the accessory
is dull. Dull accessories will cause the tool to vi-
brate and could force the accessory to y o the
tool. Always replace or sharpen dull accessories.
Accessories are designed for specic uses. Only use
drilling and bung accessories for applications for
which they were designed. Follow manufacturer's
care and use instructions.
General Operation
2
1
MAINTENANCE
To reduce the risk of injury, always
battery pack from the charger or tool before
performing any maintenance. Never disassemble
the tool, battery pack or charger. Contact a
MILWAUKEE service facility for ALL repairs.
Keep your tool, battery pack and charger in good
repair by adopting a regular maintenance program.
Inspect your tool for issues such as undue noise,
misalignment or binding of moving parts, breakage of
parts, or any other condition that may aect the tool
operation. Return the tool, battery pack, and charger
to a MILWAUKEE service facility for repair. After six
months to one year, depending on use, return the
tool, battery pack and charger to a MILWAUKEE
service facility for inspection.
If the tool does not start or operate at full power with
a fully charged battery pack, clean the contacts on
the battery pack. If the tool still does not work properly, return the tool, charger and battery pack, to a
MILWAUKEE service facility for repairs.
your tool, battery pack or charger in liquid or
allow a liquid to ow inside them.
Clean dust and debris from any vents. Keep tool
clean, dry and free of oil or grease. Use only mild
soap and a damp cloth to clean, since certain cleaning agents and solvents are harmful to plastics and
other insulated parts. Some of these include gasoline,
turpentine, lacquer thinner, paint thinner, chlorinated
cleaning solvents, ammonia and household deter-
gents containing ammonia. Never use ammable or
combustible solvents around tools.
For repairs, return the tool, battery pack and charger
to the nearest authorized service center.
unplug the charger and remove the
Maintaining Tool
To reduce the risk of personal injury and damage, never immerse
Cleaning
Repairs
ACCESSORIES
Use only recommended accesso-
For a complete listing of accessories, go online to
www.milwaukeetool.com or contact a distributor.
ries. Others may be hazardous.
SERVICE - UNITED STATES
1-800-SAWDUST (1.800.729.3878)
Monday-Friday, 7:00 AM - 6:30 PM CST
or visit www.milwaukeetool.com
Contact Corporate After Sales Service Technical
Support with technical, service/repair, or warranty
questions.
Email: metproductsupport@milwaukeetool.com
Become a Heavy Duty Club Member at
www.milwaukeetool.com to receive important
notications regarding your tool purchases.
SERVICE - CANADA
Milwaukee Tool (Canada) Ltd
Monday-Friday, 7:00 AM - 4:30 PM CST
1.800.268.4015
or visit www.milwaukeetool.ca
6
