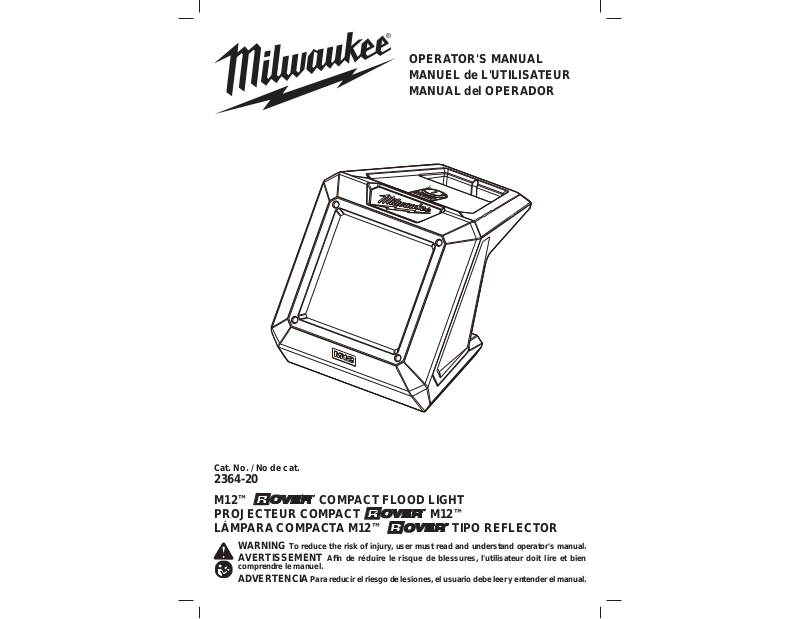

Milwaukee 2364-20 Operator’s Manual

OPERATOR'S MANUAL
MANUEL de L'UTILISATEUR
MANUAL del OPERADOR

Cat. No. / No de cat.

2364-20
M12™ COMPACT FLOOD LIGHT

PROJECTEUR COMPACT M12™
LÁMPARA COMPACTA M12™ TIPO REFLECTOR

WARNING To reduce the risk of injury, user must read and understand operator's manual.
AVERTISSEMENT Afi n de réduire le risque de blessures, l'utilisateur doit lire et bien

comprendre le manuel.

ADVERTENCIA Para reducir el riesgo de lesiones, el usuario debe leer y entender el manual.

IMPORTANT SAFETY INSTRUCTIONS

Read all safety warn-

W ARNING

the warnings and instructions may result in electric
shock, fi re and/or serious injury. Save all warnings and

instructions for future reference.

ings and all instruc­tions. Failure to follow

WORK AREA SAFETY

• To reduce the risk of injury, close supervision is

necessary when an appliance is used near children.

• Store idle light out of reach of children. W arm lights

can become hazardous in the hands of children.

• Do not use outdoors.

PERSONAL SAFETY

• Do not overreach. Keep proper footing and balance

at all times. This enables better control of the light in

unexpected situations.

• Do not use on a ladder or unstable support. Stable
footing on a solid surface enables better control of the
light in unexpected situations.

• To reduce the risk of injury, do not look directly
into the light when the fl ood light is on.

BATTERY TOOL USE AND CARE

• Recharge only with the charger specifi ed by the
manufacturer. A charger that is suitable for one type

of battery pack may create a risk of fi re when used with
another battery pack.

• Use light only with specifi cally designated battery
packs. Use of any other battery packs may create a

risk of injury and fi re.

• When battery pack is not in use, keep it away from
other metal objects, like paper clips, coins, keys,
nails, screws or other small metal objects, that can
make a connection from one terminal to another.

Shorting the battery terminals together may cause
burns or a fi re.

• Under abusive conditions, liquid may be ejected
from the battery; avoid contact. If contact ac­cidentally occurs, fl ush with water. If liquid con-
tacts eyes, additionally seek medical help. Liquid

ejected from the battery may cause irritation or burns.

• Do not use a battery pack or tool that is damaged or
modifi ed. Damaged or modifi ed batteries may exhibit

unpredictable behavior resulting in fi re, explosion or
risk of injury.

• Do not expose a battery pack or tool to fi re or ex-
cessive temperature. Exposure to fi re or temperature

above 265°F (130°C) may cause explosion.

• Follow all charging instructions and do not charge
the battery pack or tool outside the temperature
range specifi ed in the instructions. Charging im-

properly or at temperatures outside the specifi ed range
may damage the battery and increase the risk of fi re.

• Have your light serviced by a qualifi ed repair per-
son using only identical replacement parts. This

will ensure that the safety of the light is maintained.

• Never service damaged battery packs. Service of
battery packs should only be performed by the manu­facturer or authorized service providers.

service

SPECIFIC SAFETY RULES

• Maintain labels and nameplates. These carry im-
portant information. If unreadable or missing, contact
a MILWAUKEE service facility for a free replacement.

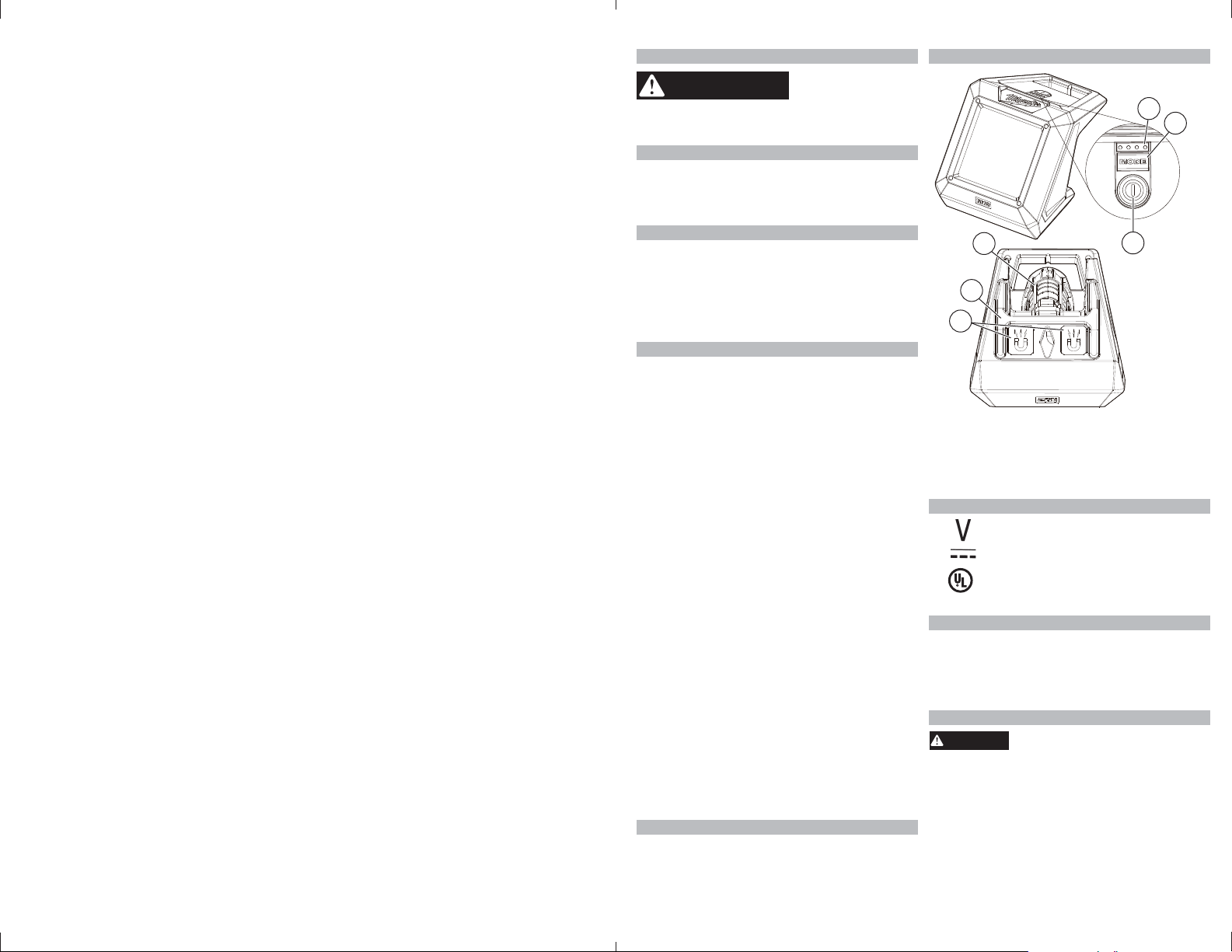

FUNCTIONAL DESCRIPTION

1

2

4

3

5

6

1. Fuel gauge

2. Mode button

3. Power button

4. Battery bay

5. Clamp

6. Magnets

SYMBOLOGY

Volts
Direct Current

United States and Canada

Underwriters Laboratories, Inc.

US

C

SPECIFICATIONS

Cat. No. ....................................................2364-20

Battery Type ................................................M12™

Charger Type ...............................................M12™

DC Input Volts....................................................12

Max DC Input Amps..........................................1.2

ASSEMBLY

WARNING

cifi c charging instructions, read the operator’s
manual supplied with your charger and battery.

Insert the battery pack by sliding battery pack into

the body of the tool. Insert the battery pack until the
battery latches lock.
To remove the battery pack, press in both battery
latches and slide the battery pack off of the tool.

Recharge only with the charger
specifi ed for the battery. For spe-

Inserting/Removing the Battery

2

3

OPERATION

WARNING

fl ood light is on.

To turn on the fl ood light, press the Power button

. Press the MODE button to cycle through High,
Medium and Low settings. To turn off the fl ood light,
press the Power button

To determine the amount of charge left in the battery,
press the Power button . The Fuel Gauge will light
up for 2-3 seconds.
To signal the end of charge, 1 light on the fuel gauge
will fl ash for 2-3 seconds.

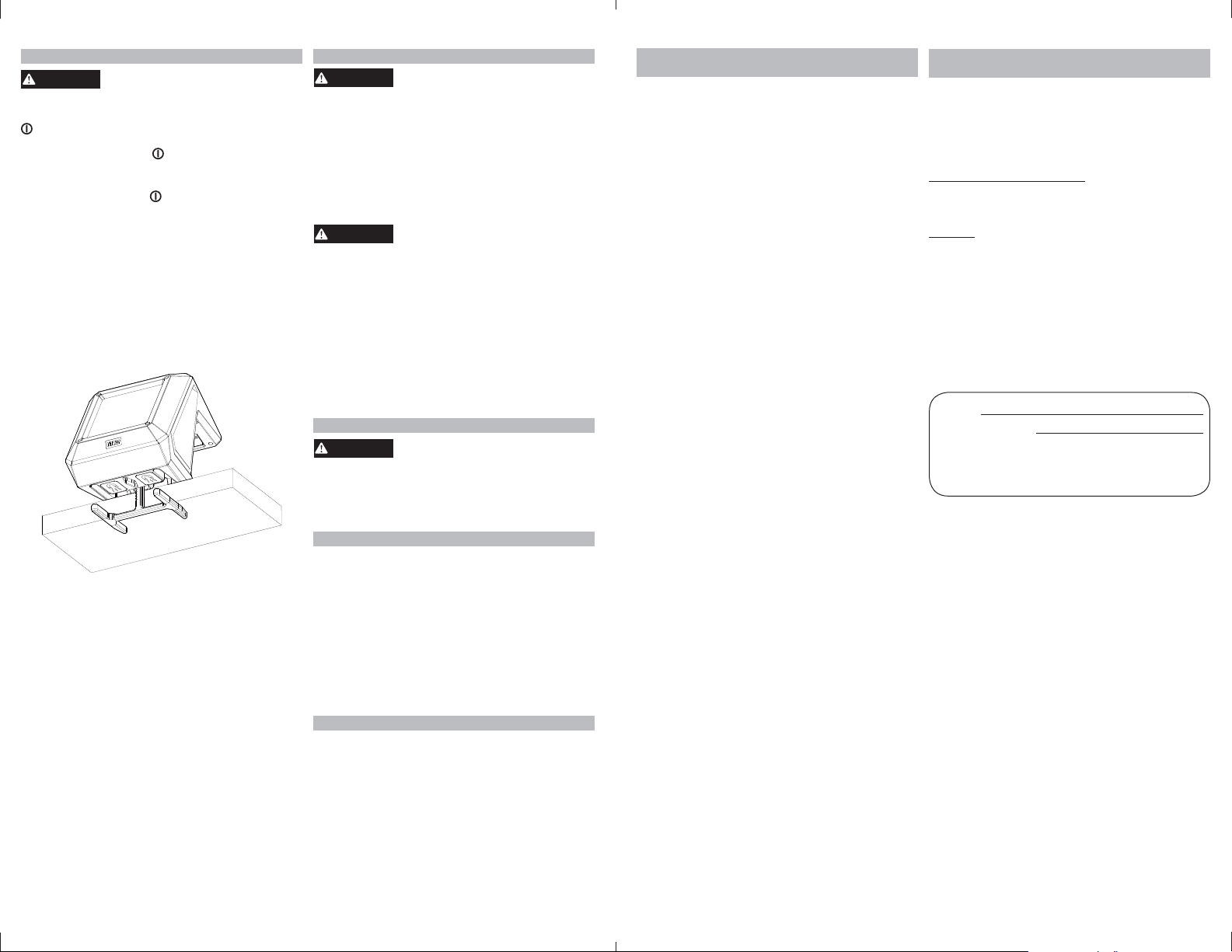

There are many ways to orient the fl ood light to best
suit your job.

• Securely hang or hold the fl ood light from the top

handle.

• Use the key-hole to hang the fl ood light on a screw.

• Use the magnets to secure the fl ood light to a metal

surface at least 1/8" thick.

• Use the clamp to secure the fl ood light to a surface no

more than 1-1/2" thick.

To reduce the risk of injury, do not
look directly into the light when the

again.

Fuel Gauge

Hang/Mount

MAINTENANCE

WARNING

move the battery pack from the charger or tool be­fore performing any maintenance. Never disas­semble the tool, battery pack or charger. Contact a
MILWAUKEE service facility for ALL repairs.

Keep your fl ood light, battery pack and charger in
good repair by adopting a regular maintenance
program. If the fl ood light does not work properly,
return the fl ood light to a MILWAUKEE service facil-
ity for repairs.

WARNING

your tool, battery pack or charger in liquid or
allow a liquid to fl ow inside them.

Clean dust and debris from vents. Keep handles
clean, dry and free of oil or grease. Use only mild
soap and a damp cloth to clean, since certain clean­ing agents and solvents are harmful to plastics and
other insulated parts. Some of these include gasoline,
turpentine, lacquer thinner, paint thinner , chlorinated
cleaning solvents, ammonia and household deter­gents containing ammonia. Never use fl ammable or
combustible solvents around tools.

To reduce the risk of injury, always
unplug the tool and charger and re-

Maintain Flood Light

To reduce the risk of personal in­jury and damage, never immerse

Cleaning

ACCESSORIES

WARNING

removing accessories. Only use accessories
specifi cally recommended for this tool. Others
may be hazardous.

For a complete listing of accessories, go online to
www.milwaukeetool.com or contact a local distributor .

Always remove battery pack and
unplug tool before changing or

SERVICE - UNITED STATES

1-800-SAWDUST (1.800.729.3878)

Monday-Friday, 7:00 AM - 6:30 PM CST

or visit www.milwaukeetool.com

Contact Corporate After Sales Service Technical
Support with technical, service/repair, or warranty
questions.

Email: [e-mail]
Become a Heavy Duty Club Member at
www.milwaukeetool.com to receive important
notifi cations regarding your tool purchases.

SERVICE - CANADA

Milwaukee Tool (Canada) Ltd

Monday-Friday, 7:00 AM - 4:30 PM CST

1.800.268.4015

or visit www.milwaukeetool.ca

LIMITED WARRANTY

Every MILW AUKEE power tool* (see exceptions below) is warranted
to the original purchaser only to be free from defects in material and
workmanship. Subject to certain exceptions, MILW AUKEE will repair
or replace any part on an electric power tool which, after examination,
is determined by MILW AUKEE to be defective in material or workman­ship for a period of fi ve (5) years** after the date of purchase unless
otherwise noted. Return of the power tool to a MILWAUKEE factory
Service Center location or MILWAUKEE Authorized Service Station,
freight prepaid and insured, is required. A copy of the proof of purchase
should be included with the return product. This warranty does not
apply to damage that MILWAUKEE determines to be from repairs
made or attempted by anyone other than MILWAUKEE authorized
personnel, misuse, alterations, abuse, normal wear and tear, lack of
maintenance, or accidents.
Normal Wear: Many power tools need periodic parts replacement and
service to achieve best performance. This warranty does not cover
repair when normal use has exhausted the life of a part including,
but not limited to, chucks, brushes, cords, saw shoes, blade clamps,
o-rings, seals, bumpers, driver blades, pistons, strikers, lifters, and
bumper cover washers.
*This warranty does not cover Air Nailers & Staplers; Airless Paint
Sprayer; Cordless Battery Packs; Gasoline Driven Portable Power
Generators; Hand Tools; Hoist – Electric, Lever & Hand Chain;
M12™ Heated Gear; Reconditioned Product; and Test & Measure­ment Products. There are separate and distinct warranties available
for these products.
**The warranty period for Job Site Radios, M12™ Power Port, M18™
Power Source, Jobsite Fan and Trade Titan™ Industrial Work Carts
is one (1) year from the date of purchase. The warranty period for the
Cables for the Drain Snake is two (2) years from the date of purchase.
The warranty period for the LED in the LED Work Light and the LED
Upgrade Bulb for the Work Light is the lifetime of the product subject
to the limitations above. If during normal use the LED or LED Bulb
fails, the part will be replaced free of charge.
Warranty Registration is not necessary to obtain the applicable war­ranty on a MILW AUKEE power tool product. The manufacturing date
of the product will be used to determine the warranty period if no proof
of purchase is provided at the time warranty service is requested.
ACCEPTANCE OF THE EXCLUSIVE REP AIR AND REPLACEMENT
REMEDIES DESCRIBED HEREIN IS A CONDITION OF THE CON­TRACT FOR THE PURCHASE OF EVERY MIL W AUKEE PRODUCT .
IF YOU DO NOT AGREE T O THIS CONDITION, YOU SHOULD NOT
PURCHASE THE PRODUCT . IN NO EVENT SHALL MIL W AUKEE BE
LIABLE FOR ANY INCIDENTAL, SPECIAL, CONSEQUENTIAL OR
PUNITIVE DAMAGES, OR FOR ANY COSTS, ATTORNEY FEES,
EXPENSES, LOSSES OR DELAYS ALLEGED TO BE AS A CON­SEQUENCE OF ANY DAMAGE TO, FAILURE OF, OR DEFECT IN
ANY PRODUCT INCLUDING, BUT NOT LIMITED TO, ANY CLAIMS
FOR LOSS OF PROFITS. SOME STA TES DO NOT ALLOW THE EX­CLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL
DAMAGES, SO THE ABOVE LIMIT A TION OR EXCLUSION MA Y NOT
APPLY TO YOU. THIS WARRANTY IS EXCLUSIVE AND IN LIEU
OF ALL OTHER EXPRESS WARRANTIES, WRITTEN OR ORAL.
TO THE EXTENT PERMITTED BY LAW, MILWAUKEE DISCLAIMS
ANY IMPLIED WARRANTIES, INCLUDING WITHOUT LIMITATION
ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS
FOR A PARTICULAR USE OR PURPOSE; TO THE EXTENT SUCH
DISCLAIMER IS NOT PERMITTED BY LAW, SUCH IMPLIED WAR­RANTIES ARE LIMITED TO THE DURATION OF THE APPLICABLE
EXPRESS WARRANTY AS DESCRIBED ABOVE. SOME STATES
DO NOT ALLOW LIMITATIONS ON HOW LONG AN IMPLIED W AR­RANTY LASTS, SO THE ABOVE LIMITATION MAY NOT APPLY T O
YOU, THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS,
AND YOU MAY ALSO HAVE OTHER RIGHTS WHICH VARY FROM
STATE TO STATE.
This warranty applies to product sold in the U.S.A. and Canada only.
Please consult the ‘Service Center Search’ in the Parts & Service
section of MILWAUKEE’s website www.milwaukeetool.com or call

1.800.SAWDUST (1.800.729.3878) to locate your nearest service
facility for warranty and non-warranty service on a MILWAUKEE
electric power tool.

USA & CANADA

LIMITED WARRANTY - MEXICO,

CENTRAL AMERICA & CARIBBEAN

TECHTRONIC INDUSTRIES' warranty is for 5 year since the original
purchase date.
This warranty card covers any defect in material and workmanship
on this Power Tool.
To make this warranty valid, present this warranty card, sealed/
stamped by the distributor or store where you purchased the product,
to the Authorized Service Center (ASC). Or, if this card has not been
sealed/stamped, present the original proof of purchase to the ASC.
Call toll-free 1 800 832 1949 to fi nd the nearest ASC, for service, parts,
accessories or components.
Procedure to make this warranty valid
Take the product to the ASC, along with the warranty card sealed/
stamped by the distributor or store where you purchased the product,
and there any faulty piece or component will be replaced without
cost for you. We will cover all freight costs relative with this warranty
process.
Exceptions
This warranty is not valid in the following situations:
a) When the product is used in a different manners from the end-user
guide or instruction manual.
b) When the conditions of use are not normal.
c) When the product was modifi ed or repaired by people not authorized
by TECHTRONIC INDUSTRIES.
Note: If cord set is damaged, it should be replaced by an Authorized
Service Center to avoid electric risks.
SERVICE AND ATTENTION CENTER:
Av Presidente Mazarik 29 Piso 7, 11570 Chapultepec Morales
Miguel Hidalgo, Distrito Federal, Mexico
Ph. 52 55 4160-3547
IMPORTED AND COMMERCIALIZED BY:
TECHTRONIC INDUSTRIES MEXICO, .S.A. DE C.V.
Av Presidente Mazarik 29 Piso 7, 11570 Chapultepec Morales
Miguel Hidalgo, Distrito Federal, Mexico

Model:
Date of Purchase:
Distributor or Store Stamp:

4

5
