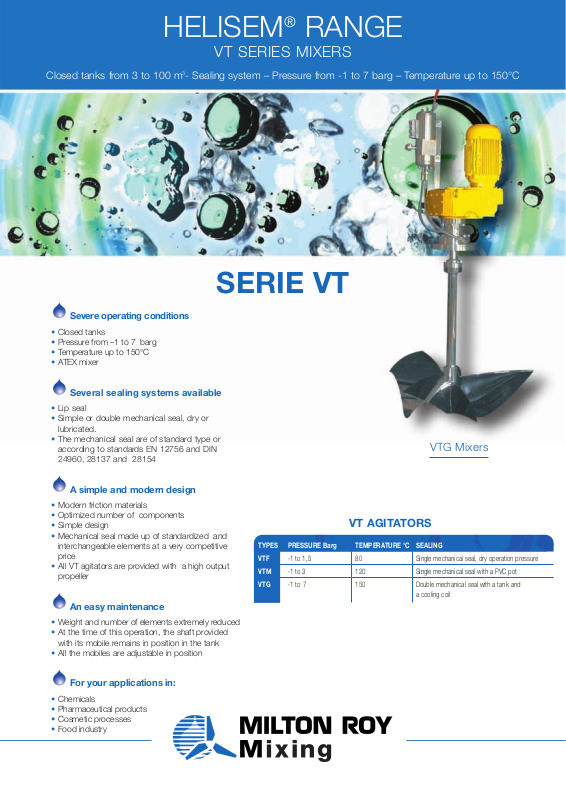

VT SERIES MIXERS

Closed tanks from 3 to 100 m3- Sealing system – Pressure from -1 to 7 barg – Temperature up to 150°C

SERIE VT

Severe operating conditions

• Closed tanks

• Pressure from –1 to 7 barg

• Temperature up to 150°C

• ATEX mixer

Several sealing systems available

• Lip seal

• Simple or double mechanical seal, dry or

lubricated.

• The mechanical seal are of standard type or

according to standards EN 12756 and DIN
24960, 28137 and 28154

A simple and modern design

• Modern friction materials

• Optimized number of components

• Simple design

• Mechanical seal made up of standardized and

interchangeable elements at a very competitive
price

• All VT agitators are provided with a high output

propeller

An easy maintenance

• Weight and number of elements extremely reduced

• At the time of this operation, the shaft provided

with its mobile remains in position in the tank

• All the mobiles are adjustable in position

VTG Mixers

VT AGITATORS

TYPES PRESSURE Barg TEMPERATURE °C SEALING

VTF -1 to 1,5 80 Single mechanical seal, dry operation pressure

VTM -1 to 3 120 Single mechanical seal with a PVC pot

VTG -1 to 7 150 Double mechanical seal with a tank and

a cooling coil

For your applications in:

• Chemicals

• Pharmaceutical products

• Cosmetic processes

• Food industry

VT AGITATORS TECHNICAL CHARACTERISTICS (HELISEM® RANGE)

Type Rated Power Motor Speed Maximum Height Impeller Diameter Impeller flow Axial load Torque Minimum hole for

(kW) (rpm) (mm) (mm) (m3/h) (DaN) (DaNm) impeller introduction (mm)

2061 0.55 111 2100 630 750 26 10

2062 0.75 125 1900 630 840 25 12 270

2063 0.75 145 1700 630 980 24 10

2081 0.75 84 2400 800 1165 31,2 17

2082 1.1 104 2050 800 1435 30 20 270

2083 1.1 113 1900 800 1565 30 19

2084 1.5 125 1750 800 1730 30 23

3101 1.1 75 2850 1000 2030 42 28

3102 1.5 81 2700 1000 2220 43 35 360

3103 2.2 96 2450 1000 2600 42 44

3104 2.2 104 2300 1000 2735 52 40

3121 1.5 55 3150 1250 2900 55 52

3122 2.2 67 2800 1250 3530 54 63 360

3123 3 75 2550 1250 4000 53 77

3124 3 82 2350 1250 4300 55 70

4141 1.5 48 3900 1400 3600 82 60

4142 2.2 53 3700 1400 3930 81 79 360

4143 3 58 3500 1400 4300 81 99

4144 4 70 3050 1400 5164 79 110

4161 2.2 40 4300 1600 4400 94 105

4162 3 48 3700 1600 5310 93 120 360

4163 4 55 3250 1600 6030 100 140

4164 5.5 60 3100 1600 6600 100 175

5201 3 36 5300 2000 7820 162 160

5202 4 40 5000 2000 8620 159 190 450

5203 5.5 44 4400 2000 9460 172 240

5204 7.5 48 4300 2000 10300 173 300

5251 4 29 5400 2500 12150 238 264

5252 7.5 33 4700 2500 14000 235 434 560

5253 7.5 37 3700 2500 15660 269 390

Extract of the range, thanks to consult us for any other request.

MILTON ROY MIXING

10, rue du bois Gasseau BP N°94
77212 AVON Cedex
FRANCE
Tel : [phone]
Fax : [phone]
www.miltonroymixing.com

www.miltonroy.com

Ref: MRM8212201-06/09-Rev02-All rights reserved for modification without prior notice-non binding informations
