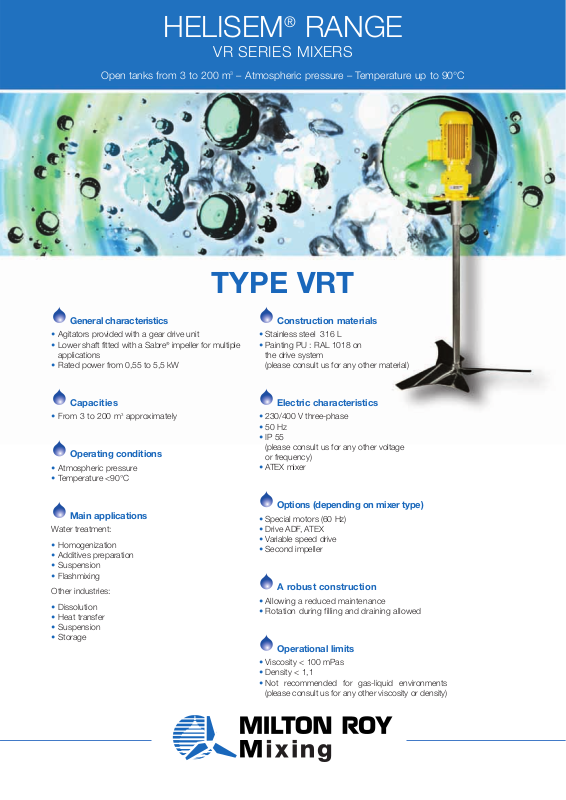

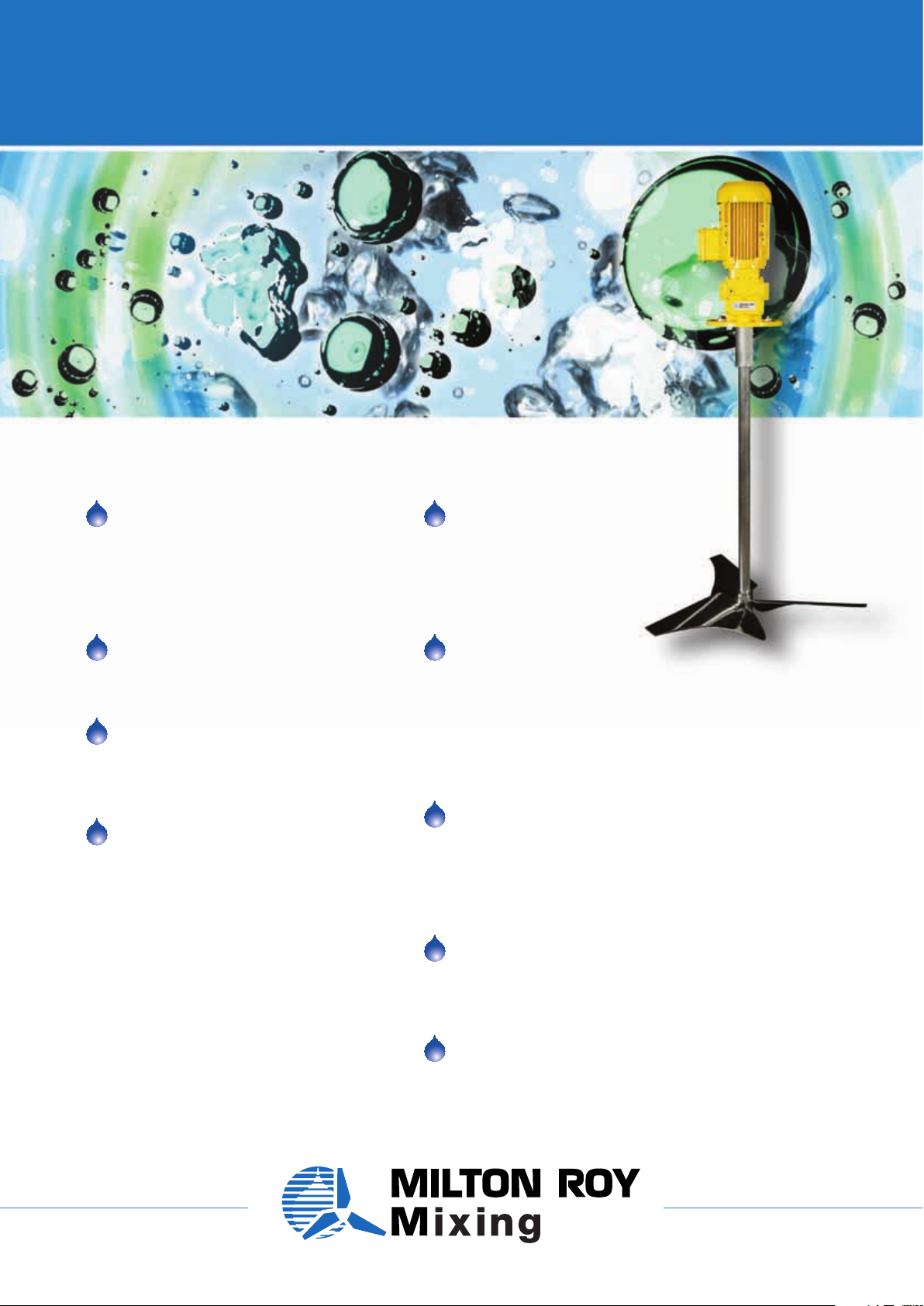

HELISEM

RANGE

VR SERIES MIXERS

Open tanks from 3 to 200 m3– Atmospheric pressure – Temperature up to 90°C

TYPE VRT

General characteristics

• Agitators provided with a gear drive unit

• Lower shaft fitted with a Sabre

applications

• Rated power from 0,55 to 5,5 kW

Capacities

• From 3 to 200 m3approximately

Operating conditions

• Atmospheric pressure

• Temperature <90°C

Main applications

Water treatment:

• Homogenization

• Additives preparation

• Suspension

• Flashmixing

Other industries:

• Dissolution

• Heat transfer

• Suspension

• Storage

impeller for multiple

Construction materials

• Stainless steel 316 L

• Painting PU : RAL 1018 on

the drive system (please consult us for any other material)

Electric characteristics

• 230/400 V three-phase

• 50 Hz

• IP 55

(please consult us for any other voltage or frequency)

• ATEX mixer

Options (depending on mixer type)

• Special motors (60 Hz)

• Drive ADF, ATEX

• Variable speed drive

• Second impeller

A robust construction

• Allowing a reduced maintenance

• Rotation during filling and draining allowed

Operational limits

• Viscosity < 100 mPas

• Density < 1,1

• Not recommended for gas-liquid environments

(please consult us for any other viscosity or density)

Page 2

SPECIFICATIONS

Type Rated power Rotation speed Maximum height Propeller diameter Propeller flowrate Weight Axial load Couple

(kW) (rpm) (mm) H (mm) D (m3/h) (Kg) (DaN) (DaNm)

2081S 0.75 118.4 1600 850 1615 44 36 12

2101S 0.75 87 2400 1050 2225 72 45 17

4123S 1.5 86.9 3100 1200 3333 110 75 33

5103S 2.2 122.8 3200 1050 3156 135 87 34

5144S 2.2 69.3 4900 1400 4222 195 88 61

5182S 2.2 49.7 3200 1800 6416 177 121 85

6143S 3 81.6 4200 1400 4974 217 121 70

7124S 4 112.9 4000 1200 4333 214 124 68

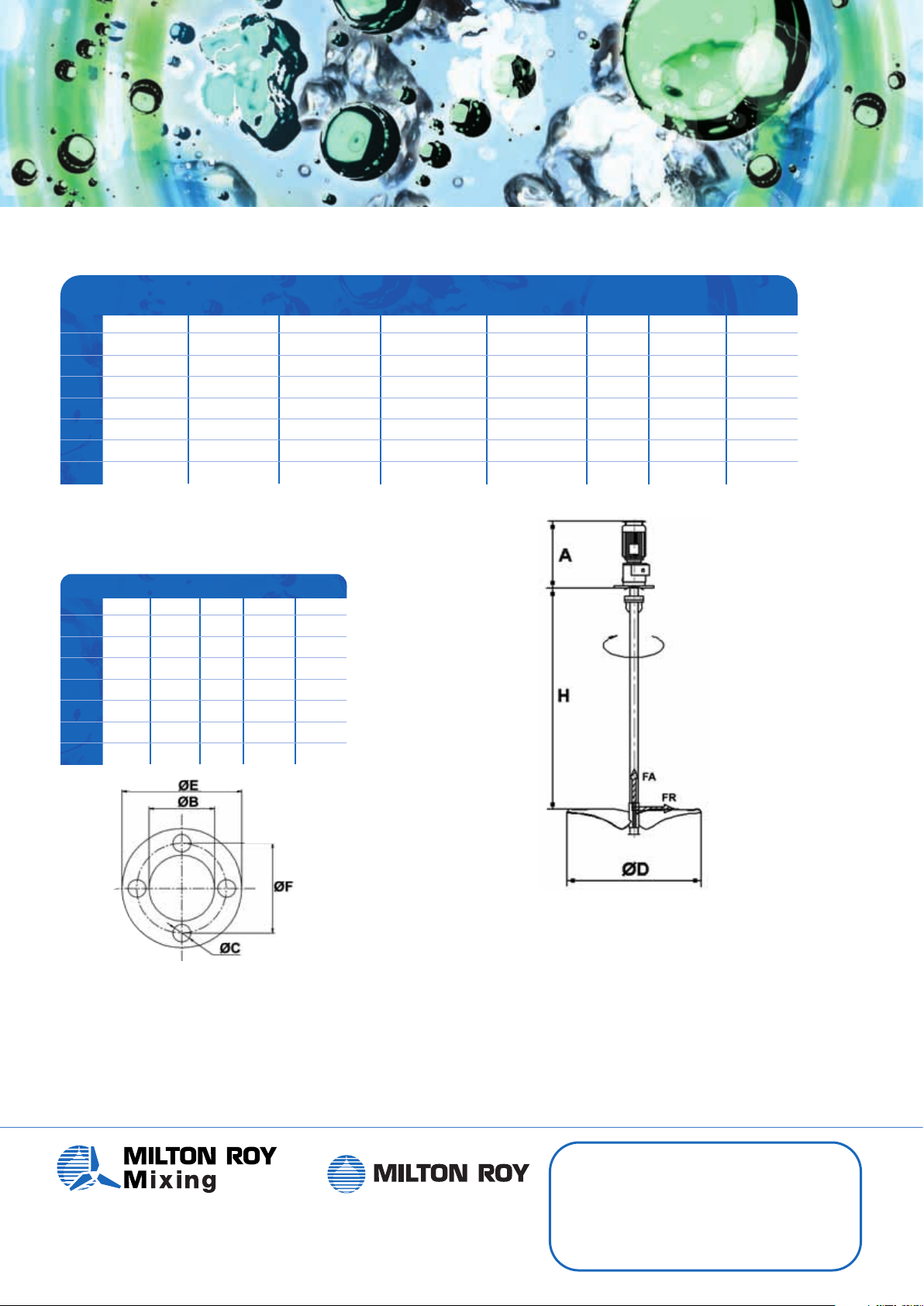

DIMENSIONS (MM)

Type A B C E F

2081S 398 130 11 200 165

2101S 442 180 13.5 250 215

4123S 470 180 13.5 250 215

5103S 546 230 13.5 300 265

5144S 546 250 17.5 350 300

5182S 546 230 13.5 300 265

6143S 585 250 17.5 350 300

7124S 599 250 17.5 350 300

Extract of the range, please consult us for any other request.
