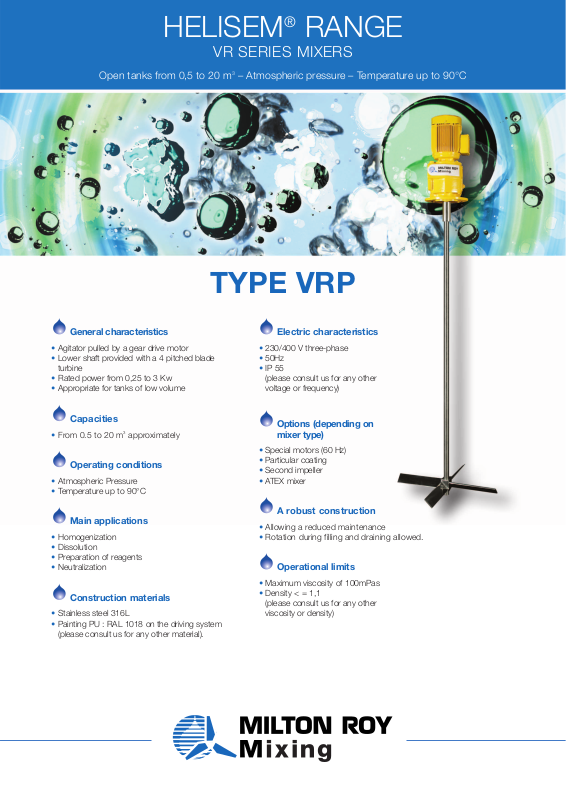

HELISEM

®

RANGE

VR SERIES MIXERS

General characteristics

• Agitator pulled by a gear drive motor

• Lower shaft provided with a 4 pitched blade

turbine

• Rated power from 0,25 to 3 Kw

• Appropriate for tanks of low volume

Capacities

• From 0.5 to 20 m3approximately

Operating conditions

• Atmospheric Pressure

• Temperature up to 90°C

Main applications

• Homogenization

• Dissolution

• Preparation of reagents

• Neutralization

Construction materials

• Stainless steel 316L

• Painting PU : RAL 1018 on the driving system

(please consult us for any other material).

TYPE VRP

Open tanks from 0,5 to 20 m3– Atmospheric pressure – Temperature up to 90°C

Electric characteristics

• 230/400 V three-phase

• 50Hz

• IP 55

(please consult us for any other
voltage or frequency)

Options (depending on
mixer type)

• Special motors (60 Hz)

• Particular coating

• Second impeller

• ATEX mixer

A robust construction

• Allowing a reduced maintenance

• Rotation during filling and draining allowed.

Operational limits

• Maximum viscosity of 100mPas

• Density < = 1,1

(please consult us for any other
viscosity or density)

Type A B C E F

0021S

355 110 9 160 130

0031S 425 130 11 200 165

0051S 370 130 11 200 165

1051S 425 130 11 200 165

2061S 398 130 11 200 165

3051S 525 180 13,5 250 215

4071S 555 230 14 300 265

4072S 470 180 13.5 250 215

4081S 470 180 13.5 250 215

5081S 645 250 18 350 300

6081S 516 180 13.5 250 215

Please consult us for any other request.

DIMENSIONS (MM)

SPECIFICATIONS

Type Rated power Rotation speed Maximum height Propeller diameter Propeller flowrate Weight Axial load Torque

(kW) (rpm) (mm) H (mm) D (m3/h) (Kg) (DaN) (DaNm)

0021S

0.25 103 1300 200 46 25 1 5

0031S 0.37 126 1300 350 243 25 7 6

0051S 0.37 97 2500 500 545 51 17 7

1051S 0.55 100 1500 500 468 28 18 11

2061S 0.75 99 2500 600 955 56 37 14

3051S 1.1 137 1750 550 750 48 50 15

4071S 1.5 102 1900 700 1349 125 73 28

4072S 1.5 96 2500 700 1469 87 65 30

4081S 1.5 73 2500 800 1683 88 64 39

5081S 2.2 100 2000 800 1728 125 120 42

6081S 3 96 2000 800 2201 89 110 60

Ref: MRM8212201-06/09-Rev02-All rights reserved for modification without prior notice-non binding informations
