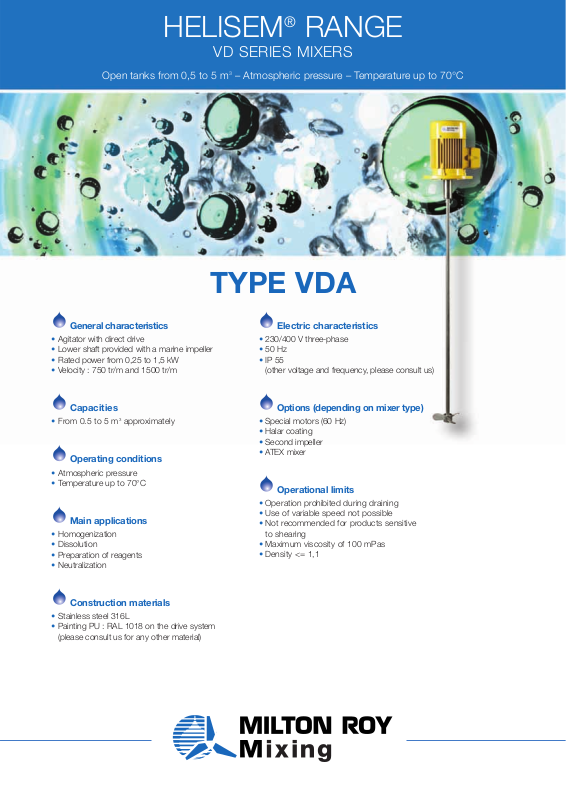

HELISEM

RANGE

VD SERIES MIXERS

Open tanks from 0,5 to 5 m3– Atmospheric pressure – Temperature up to 70°C

TYPE VDA

General characteristics

• Agitator with direct drive

• Lower shaft provided with a marine impeller

• Rated power from 0,25 to 1,5 kW

• Velocity : 750 tr/m and 1500 tr/m

Capacities

• From 0.5 to 5 m3approximately

Operating conditions

• Atmospheric pressure

• Temperature up to 70°C

Main applications

• Homogenization

• Dissolution

• Preparation of reagents

• Neutralization

Electric characteristics

• 230/400 V three-phase

• 50 Hz

• IP 55

(other voltage and frequency, please consult us)

Options (depending on mixer type)

• Special motors (60 Hz)

• Halar coating

• Second impeller

• ATEX mixer

Operational limits

• Operation prohibited during draining

• Use of variable speed not possible

• Not recommended for products sensitive

to shearing

• Maximum viscosity of 100 mPas

• Density <= 1,1

Construction materials

• Stainless steel 316L

• Painting PU : RAL 1018 on the drive system

(please consult us for any other material)

SPECIFICATIONS

Type Rated power Rotation speed Maximum height Propeller Diameter Propeller Flowrate Weight Torque

(kW) (rpm) (mm) H (mm) D (m3/h) (Kg) (Nm)

1210S 0.25 1500 1000 80 32 10 3

2210S 0.25 1500 1000 128 104 10 3

2110S 0.25 750 1000 128 52 12 6

2520S 0.75 1500 1250 128 104 14 9

4310S 0.37 750 1000 160 101 19 10

4630S 1.5 1500 1500 160 203 20 18

The minimum height of the liquid at the top of the impeller might be 300 mm.
It is necessary to respect a distance of 150 mm between the flange and the level of the liquid.

DIMENSIONS (MM)

Type A B C E F

1210S 250 110 9 160 130

2210S 250 110 9 160 130

2110S 285 130 11 200 165

2520S 285 130 11 200 165

4310S 300 130 11 200 165

4630S 320 130 11 200 165

Please consult us for any other request.

MILTON ROY MIXING

10, rue du bois Gasseau BP N°94
77212 AVON Cedex
FRANCE
Tel : [phone]
Fax : [phone]
www.miltonroymixing.com

Ref: MRM8212201-06/09-Rev02-All rights reserved for modification without prior notice-non binding informations
