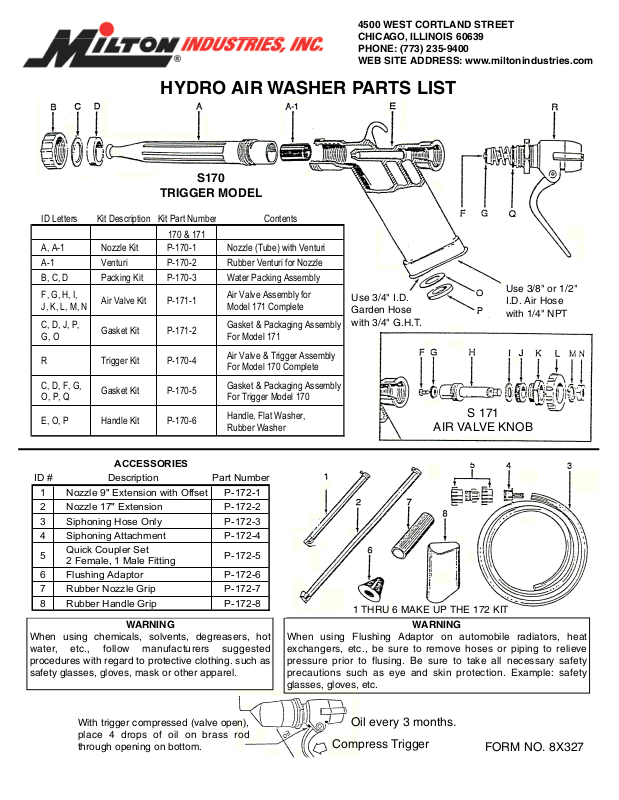

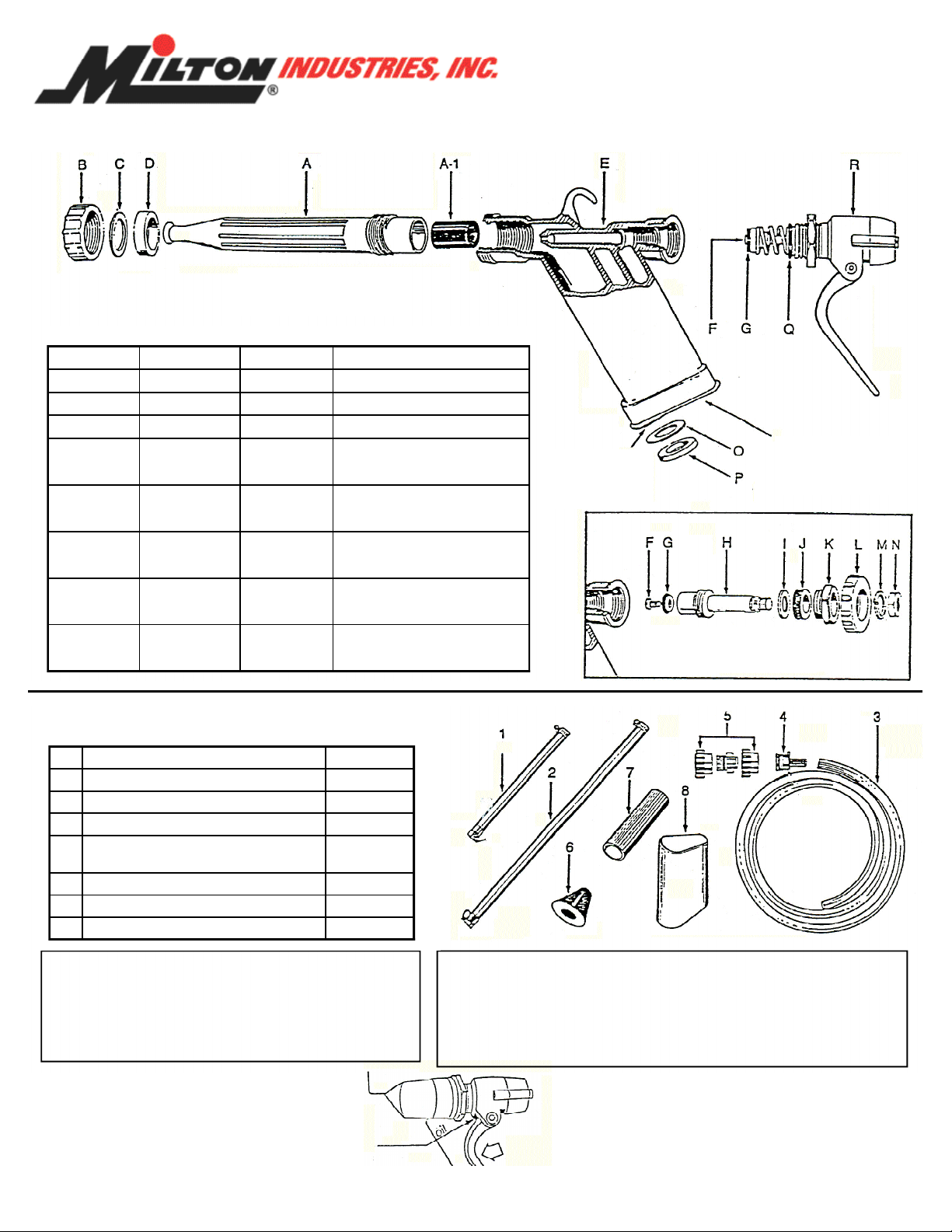

HYDRO AIR WASHER PARTS LIST
S170
TRIGGER MODEL
Use 3/8" or 1/2"
I.D. Air Hose
with 1/4" NPT
S 171
AIR VALVE KNOB
Use 3/4" I.D.
Garden Hose
with 3/4" G.H.T.
1 THRU 6 MAKE UP THE 172 KIT
WARNING
When using Flushing Adaptor on automobile radiators, heat
exchangers, etc., be sure to remove hoses or piping to relieve
pressure prior to flusing. Be sure to take all necessary safety
precautions such as eye and skin protection. Example: safety
glasses, gloves, etc.
WARNING
When using chemicals, solvents, degreasers, hot
w a t e r , etc., follow manufacturers suggested
procedures with regard to protective clothing. such as
safety glasses, gloves, mask or other apparel.
Oil every 3 months.
Compress Trigger
FORM NO. 8X327
ID # Description Part Number
1 Nozzle 9" Extension with Offset P-172-1
2 Nozzle 17" Extension P-172-2
3 Siphoning Hose Only P-172-3
4 Siphoning Attachment P-172-4
5
Quick Coupler Set
2 Female, 1 Male Fitting
P-172-5
6 Flushing Adaptor P-172-6
7 Rubber Nozzle Grip P-172-7
8 Rubber Handle Grip P-172-8
ACCESSORIES
With trigger compressed (valve open),
place 4 drops of oil on brass rod
through opening on bottom.
ID Letters Kit Description
Kit Part Number
Contents
170 & 171
A, A-1 Nozzle Kit P-170-1 Nozzle (Tube) with Venturi
A-1 Venturi P-170-2 Rubber Venturi for Nozzle
B, C, D Packing Kit P-170-3 Water Packing Assembly
F, G, H, I,
J, K, L, M, N
Air Valve Kit P-171-1
Air Valve Assembly for
Model 171 Complete
C, D, J, P,
G, O
Gasket Kit P-171-2
Gasket & Packaging Assembly
For Model 171
R Trigger Kit P-170-4
Air Valve & Trigger Assembly
For Model 170 Complete
C, D, F, G,
O, P, Q
Gasket Kit P-170-5
Gasket & Packaging Assembly
For Trigger Model 170
E, O, P Handle Kit P-170-6
Handle, Flat Washer,
Rubber Washer
