Miller Electric Big Blue 300 User Manual

OM-4433 218 314P

2007−11

Processes

Stick (SMAW) Welding

TIG (GTAW) Welding

MIG (GMAW) Welding

Flux Cored (FCAW) Welding

Air Carbon Arc (CAC-A)
Cutting and Gouging

Description

Engine Driven Welding Generator

®

Big Blue 300 P

Visit our website at

www.MillerWelds.com

File: Engine Drive

From Miller to You

Thank you and congratulations on choosing Miller. Now you can get
the job done and get it done right. We know you don’t have time to do
it any other way.

That’s why when Niels Miller first started building arc welders in 1929,
he made sure his products offered long-lasting value and superior
quality. Like you, his customers couldn’t afford anything less. Miller
products had to be more than the best they could be. They had to be the
best you could buy.

Today, the people that build and sell Miller products continue the
tradition. They’re just as committed to providing equipment and service
that meets the high standards of quality and value established in 1929.

This Owner’s Manual is designed to help you get the most out of your
Miller products. Please take time to read the Safety precautions. They
will help you protect yourself against potential hazards on the worksite.

We’ve made installation and operation quick
and easy. With Miller you can count on years
of reliable service with proper maintenance.
And if for some reason the unit needs repair,
there’s a Troubleshooting section that will
help you figure out what the problem is. The

Miller is the first welding
equipment manufacturer in
the U.S.A. to be registered to
the ISO 9001:2000 Quality
System Standard.

parts list will then help you to decide the
exact part you may need to fix the problem.
Warranty and service information for your
particular model are also provided.

Working as hard as you do

− every power source from
Miller is backed by the most
hassle-free warranty in the
business.

Miller Electric manufactures a full line
of welders and welding related equipment.
For information on other quality Miller
products, contact your local Miller distributor to receive the latest full
line catalog or individual specification sheets. To locate your nearest

distributor or service agency call 1-800-4-A-Miller, or visit us at
www.MillerWelds.com on the web.

Mil_Thank 4/05

TABLE OF CONTENTS

SECTION 1 − SAFETY PRECAUTIONS − READ BEFORE USING 1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

1-1. Symbol Usage 1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

1-2. Arc Welding Hazards 1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

1-3. Engine Hazards 3 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

1-4. Compressed Air Hazards 3 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

1-5. Additional Symbols For Installation, Operation, And Maintenance 4 . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

1-6. California Proposition 65 Warnings 5 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

1-7. Principal Safety Standards 5 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

1-8. EMF Information 5 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

SECTION 2 − CONSIGNES DE SÉCURITÉ − LIRE AVANT UTILISATION 6 . . . . . . . . . . . . . . . . . . . . . . . . . . . .

2-1. Signification des symboles 6 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

2-2. Dangers relatifs au soudage à l’arc 6 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

2-3. Dangers existant en relation avec le moteur 8 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

2-4. Dangers liés à l’air comprimé 9 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

2-5. Dangers supplémentaires en relation avec l’installation, le fonctionnement et la maintenance 9 . . . . . .

2-6. Proposition californienne 65 Avertissements 11 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

2-7. Principales normes de sécurité 11 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

2-8. Information EMF 11 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

SECTION 3 − DEFINITIONS 12 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

3-1. Warning Label Definitions 12 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

3-2. Manufacturer’s Rating Label 13 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

3-3. Symbols And Definitions 14 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

SECTION 4 − SPECIFICATIONS 15 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

4-1. Weld, Power, And Engine Specifications 15 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

4-2. Dimensions, Weights, And Operating Angles 15 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

4-3. Volt-Ampere Curves 16 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

4-4. Fuel Consumption 17 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

4-5. Duty Cycle And Overheating 17 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

4-6. AC Generator Power Curve 18 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

SECTION 5 − INSTALLATION 19 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

5-1. Installing Welding Generator 19 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

5-2. Mounting Welding Generator 20 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

5-3. Installing Exhaust Pipe 21 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

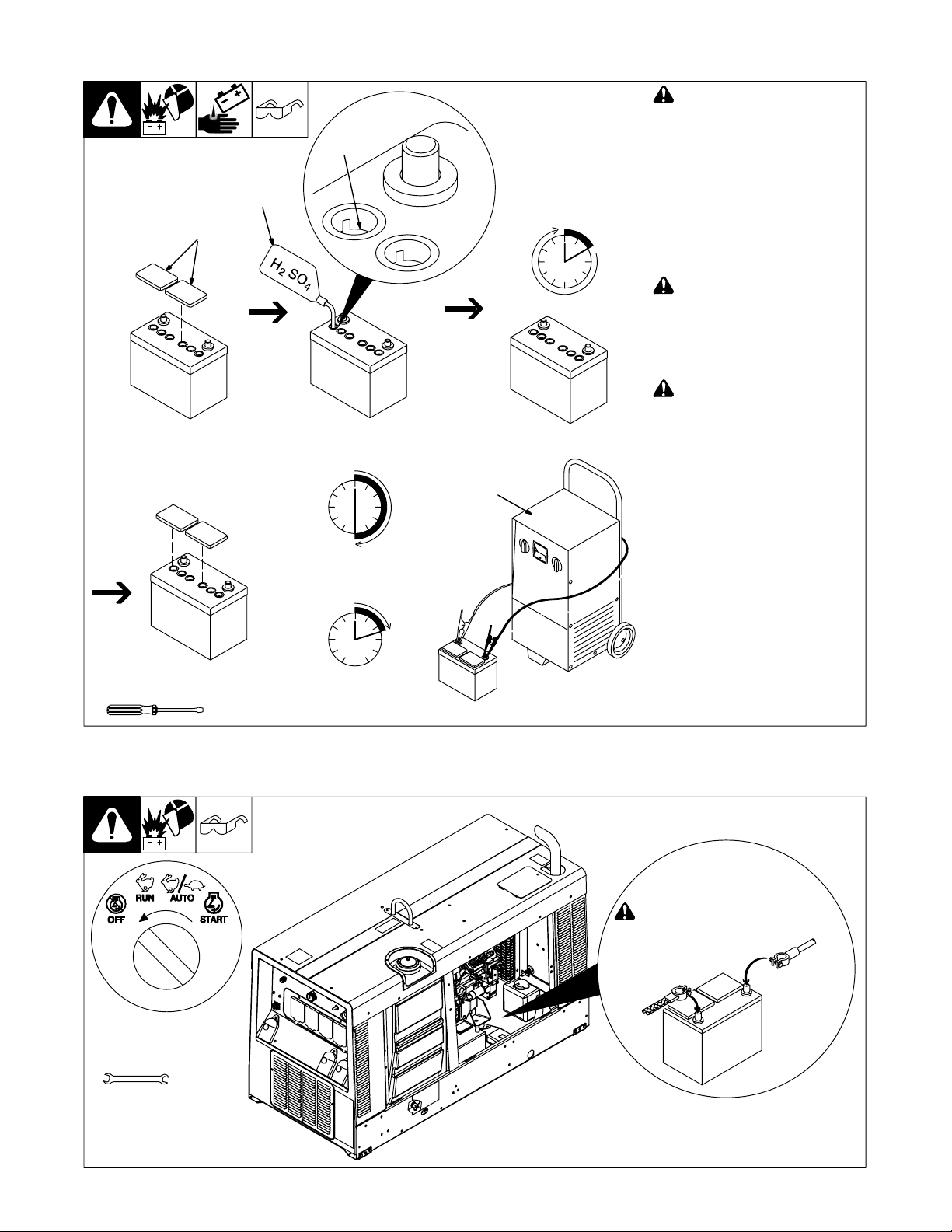

5-4. Activating The Dry Charge Battery (If Applicable) 22 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

5-5. Connecting The Battery 22 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

5-6. Engine Prestart Checks 23 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

5-7. Connecting To Weld Output Terminals 24 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

5-8. Selecting Weld Cable Sizes* 25 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

5-9. Connecting To Remote 14 Receptacle RC14 26 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

SECTION 6 − OPERATING WELDING GENERATOR 28 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

6-1. Front Panel Controls (See Section 6-2) 28 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

6-2. Description Of Front Panel Controls (See Section 6-1) 29 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

6-3. Process/Contactor Switch 30 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

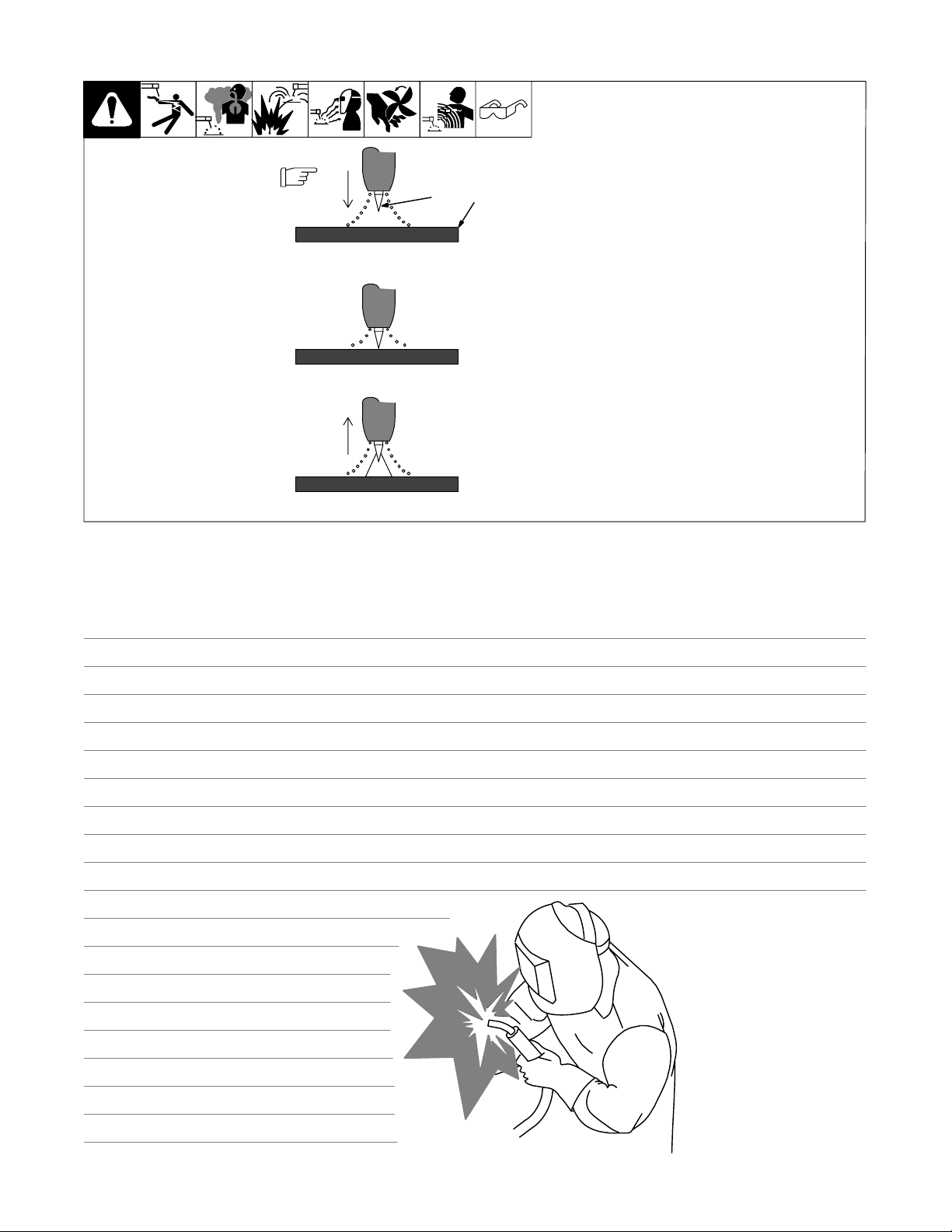

6-4. Lift-Arc Start Procedure 31 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

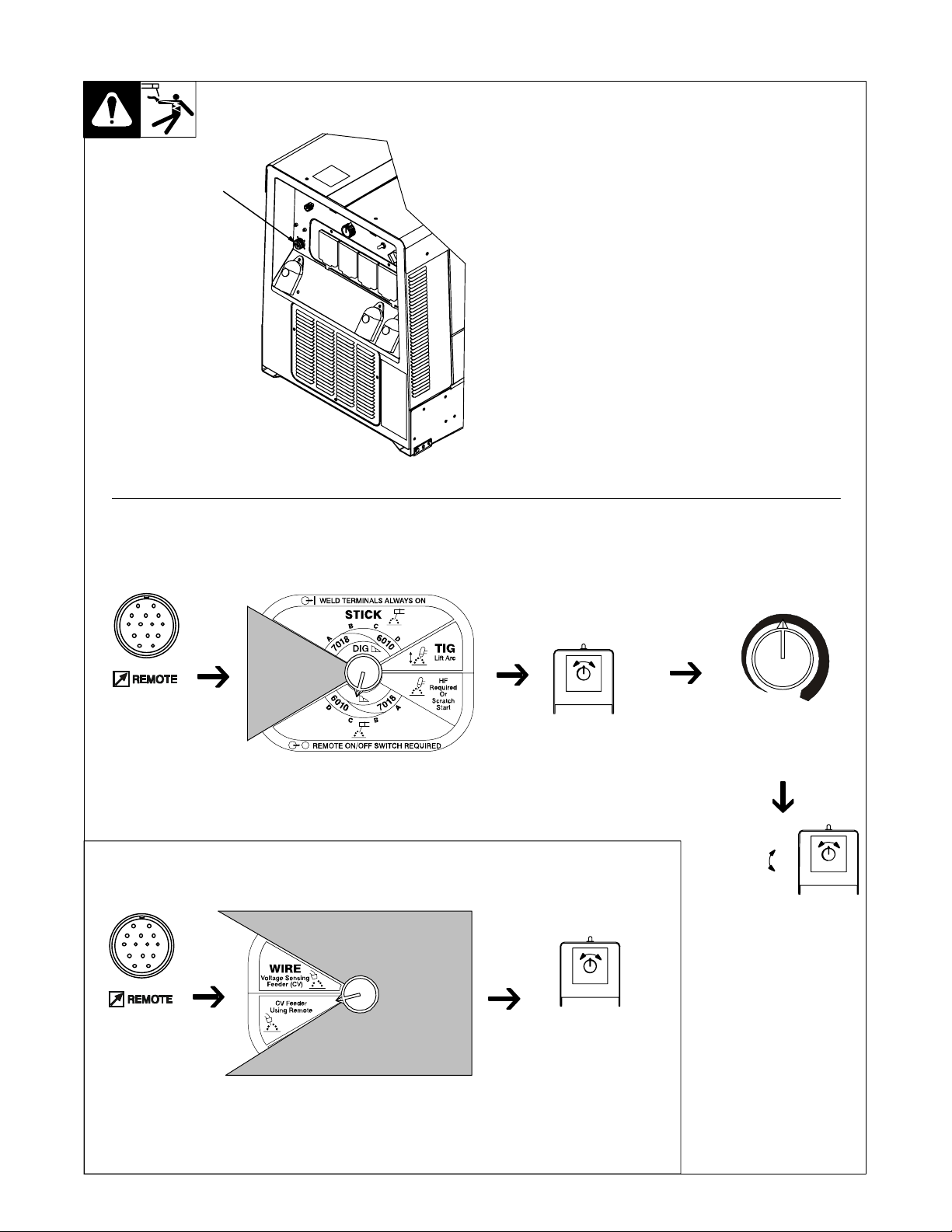

6-5. Remote Voltage/Amperage Control 32 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

SECTION 7 − OPERATING AUXILIARY EQUIPMENT 33 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

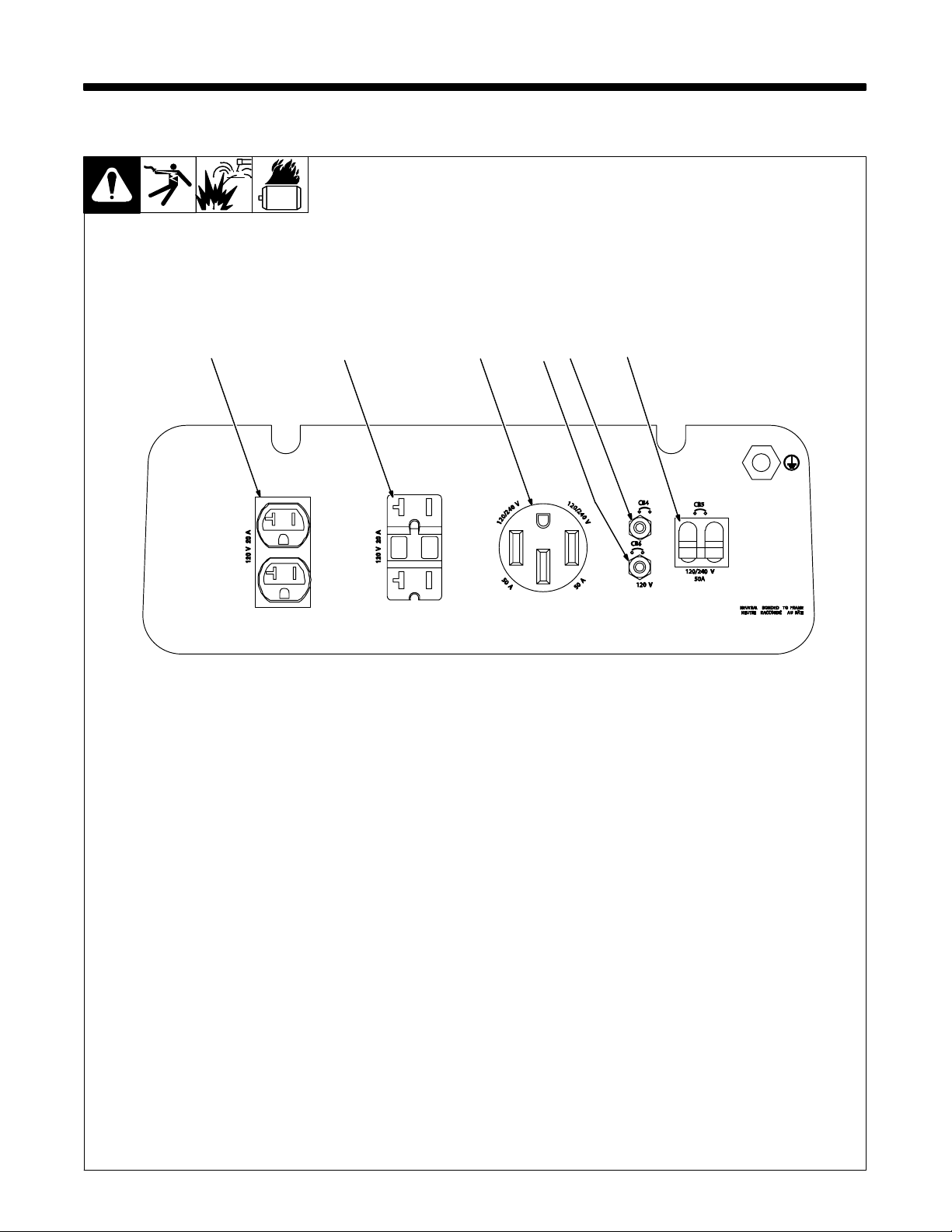

7-1. Generator Power Receptacles 33 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

SECTION 8 − MAINTENANCE & TROUBLESHOOTING 34 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

8-1. Routine Maintenance 34 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

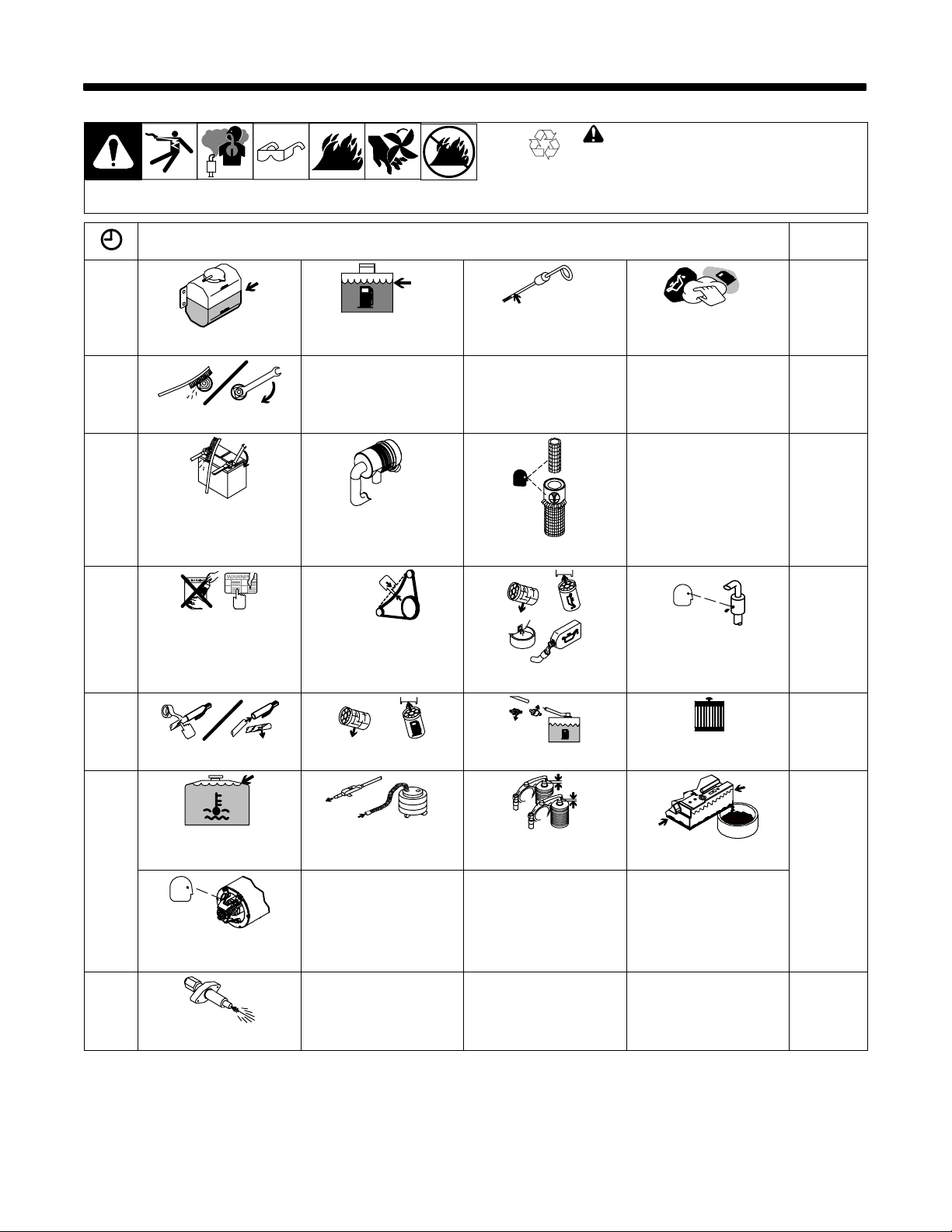

8-2. Maintenance Label 35 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

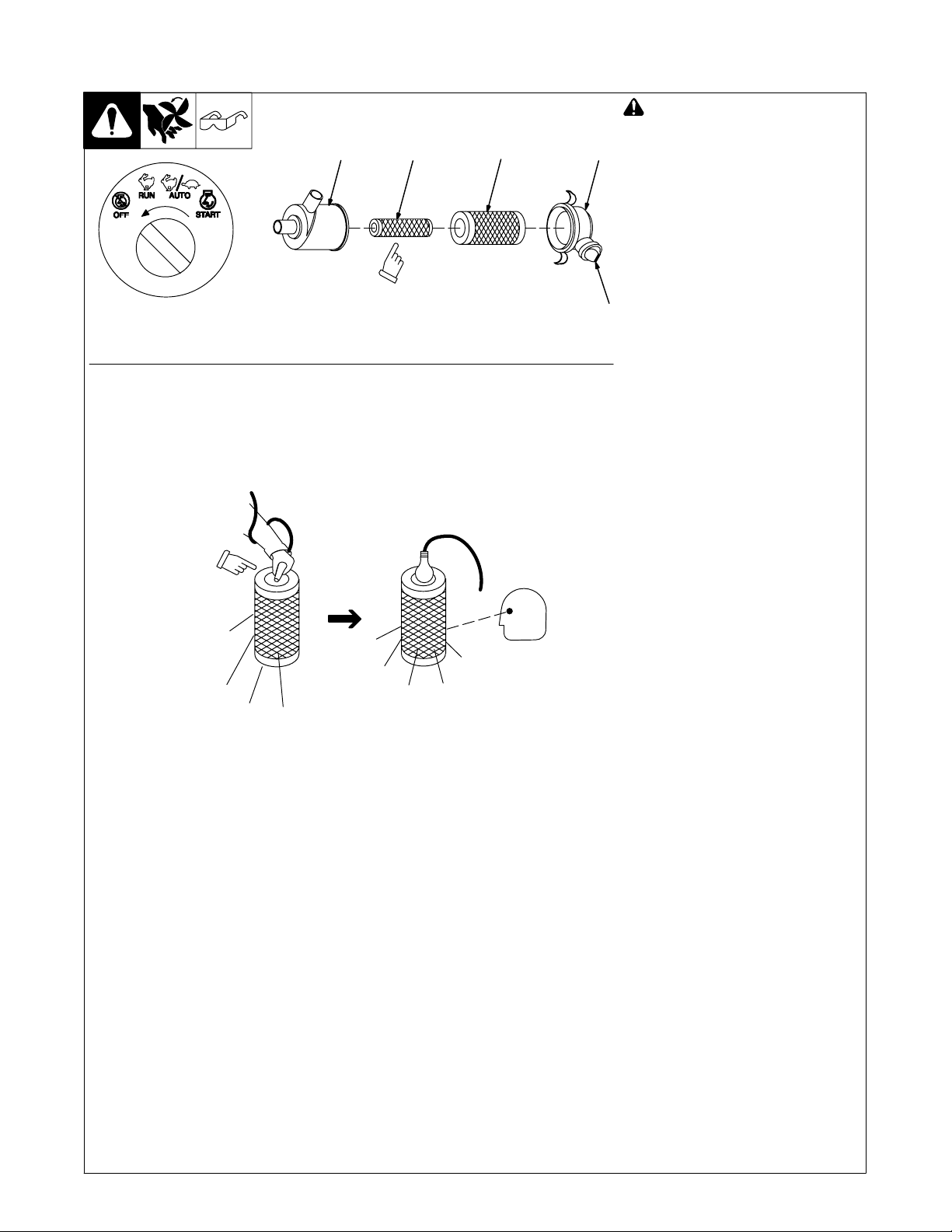

8-3. Servicing Air Cleaner 36 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

8-4. Inspecting And Cleaning Optional Spark Arrestor Muffler 37 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

TABLE OF CONTENTS

8-5. Servicing Engine Cooling System 37 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

8-6. Adjusting Engine Speed On Standard Models 38 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

8-7. Adjusting Engine Speed On Models With Automatic Idle (Optional) 39 . . . . . . . . . . . . . . . . . . . . . . . . . . . .

8-8. Servicing Fuel And Lubrication Systems 40 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

8-9. Overload Protection 41 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

8-10. Checking Generator Brushes 42 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

8-11. Voltmeter/Ammeter Help Displays 43 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

8-12. Troubleshooting 44 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

SECTION 9 − ELECTRICAL DIAGRAMS 48 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

SECTION 10 − RUN-IN PROCEDURE 50 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

10-1. Wetstacking 50 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

10-2. Run-In Procedure Using Load Bank 51 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

10-3. Run-In Procedure Using Resistance Grid 52 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

SECTION 11 − GENERATOR POWER GUIDELINES 53 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

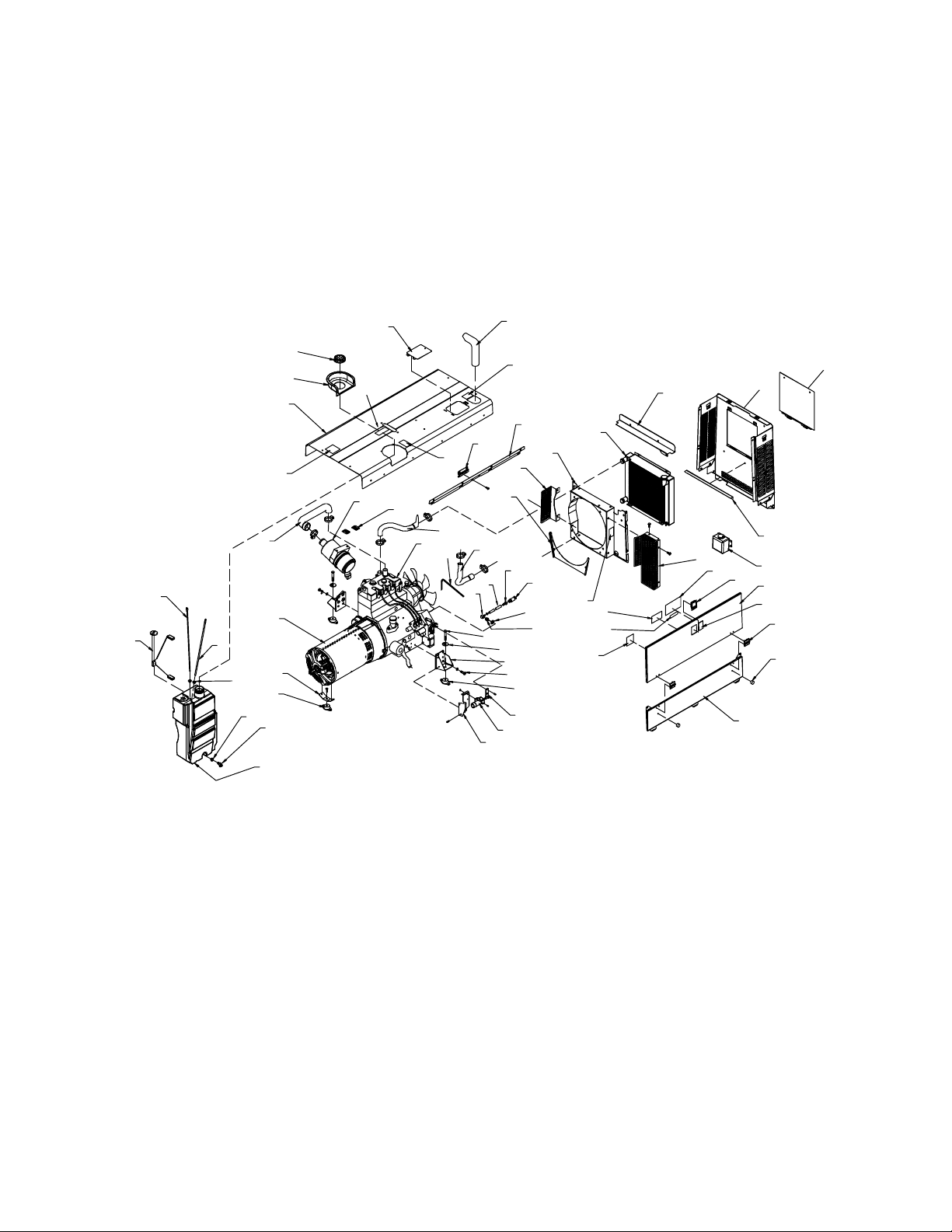

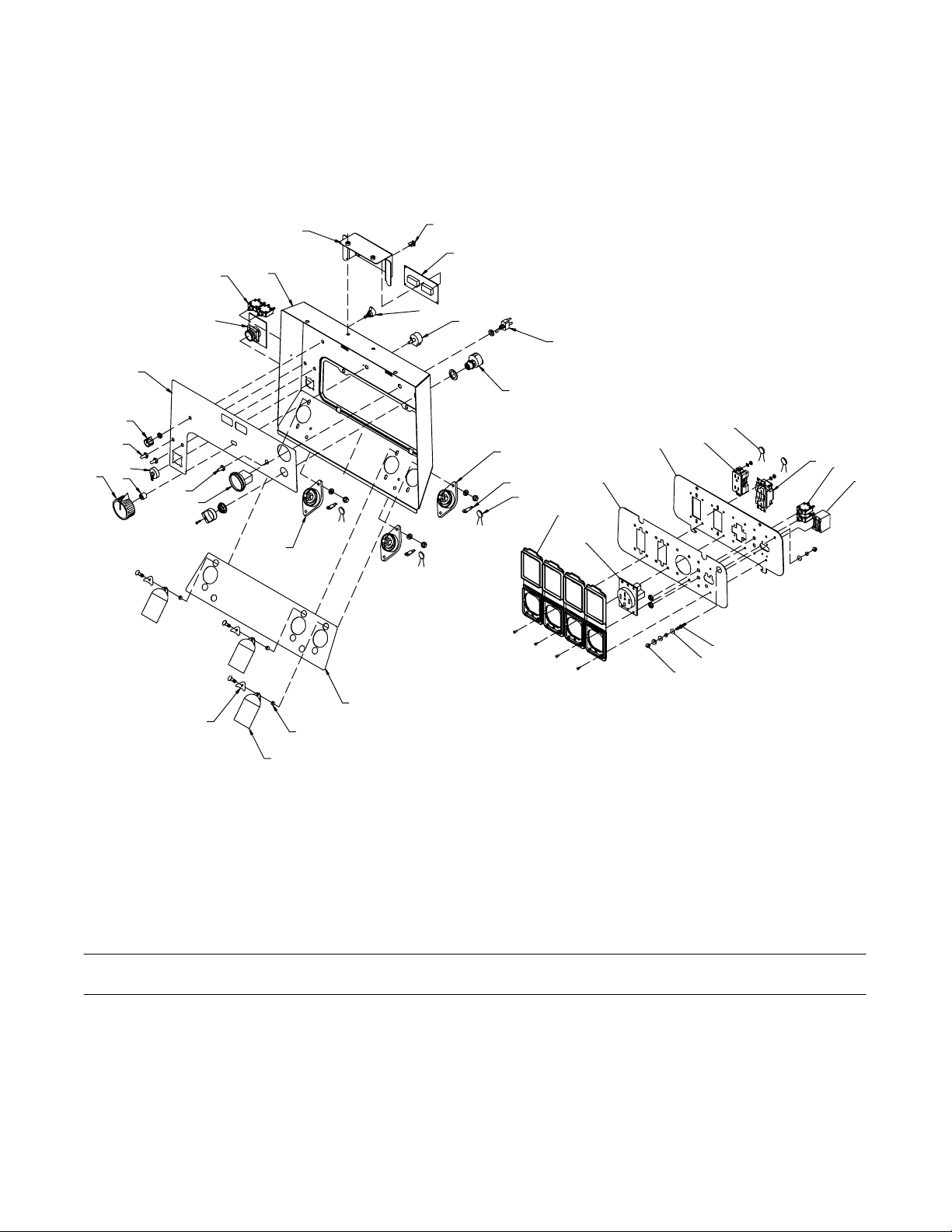

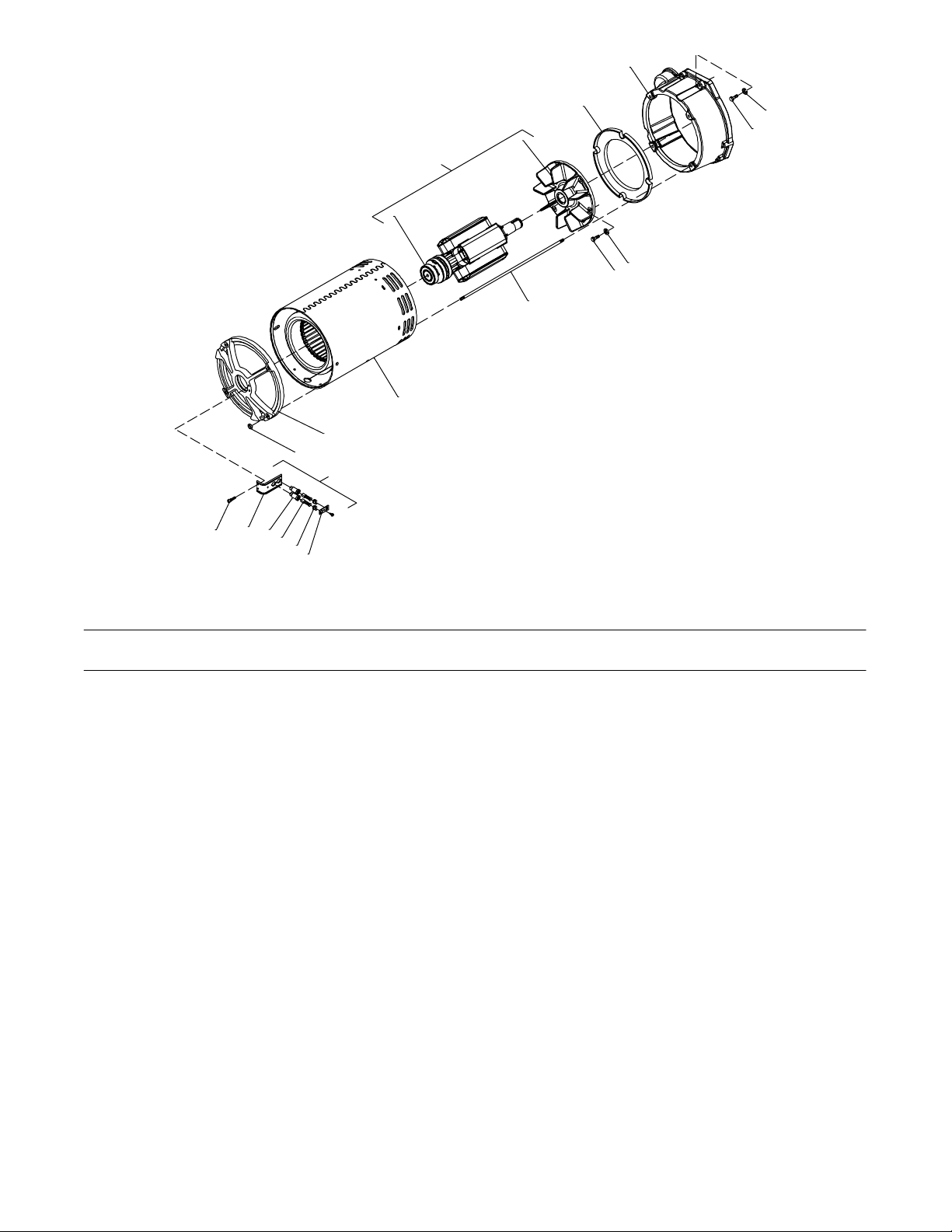

SECTION 12 − PARTS LIST 60 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

WARRANTY

SECTION 1 − SAFETY PRECAUTIONS − READ BEFORE USING

rom_2007−04

Protect yourself and others from injury — read and follow these precautions.

1-1. Symbol Usage

DANGER! − Indicates a hazardous situation which, if
not avoided, will result in death or serious injury. The
possible hazards are shown in the adjoining symbols
or explained in the text.

Indicates a hazardous situation which, if not avoided,
could result in death or serious injury. The possible
hazards are shown in the adjoining symbols or ex­plained in the text.

NOTICE − Indicates statements not related to personal injury.

1-2. Arc Welding Hazards

The symbols shown below are used throughout this manual
to call attention to and identify possible hazards. When you
see the symbol, watch out, and follow the related instructions
to avoid the hazard. The safety information given below is
only a summary of the more complete safety information
found in the Safety Standards listed in Section 1-7. Read and
follow all Safety Standards.

Only qualified persons should install, operate, maintain, and
repair this unit.

During operation, keep everybody, especially children, away.

ELECTRIC SHOCK can kill.

Touching live electrical parts can cause fatal shocks or
severe burns. The electrode and work circuit is

electrically live whenever the output is on. The input
power circuit and machine internal circuits are also live when power is
on. In semiautomatic or automatic wire welding, the wire, wire reel,
drive roll housing, and all metal parts touching the welding wire are
electrically live. Incorrectly installed or improperly grounded equip­ment is a hazard.

 Do not touch live electrical parts.
 Wear dry, hole-free insulating gloves and body protection.
 Insulate yourself from work and ground using dry insulating mats

or covers big enough to prevent any physical contact with the work
or ground.

 Do not use AC output in damp areas, if movement is confined, or if

there is a danger of falling.

 Use AC output ONLY if required for the welding process.
 If AC output is required, use remote output control if present on

unit.

 Additional safety precautions are required when any of the follow-

ing electrically hazardous conditions are present: in damp
locations or while wearing wet clothing; on metal structures such
as floors, gratings, or scaffolds; when in cramped positions such
as sitting, kneeling, or lying; or when there is a high risk of unavoid­able or accidental contact with the workpiece or ground. For these
conditions, use the following equipment in order presented: 1) a
semiautomatic DC constant voltage (wire) welder, 2) a DC manual
(stick) welder, or 3) an AC welder with reduced open-circuit volt­age. In most situations, use of a DC, constant voltage wire welder
is recommended. And, do not work alone!

 Disconnect input power or stop engine before installing or

servicing this equipment. Lockout/tagout input power according to
OSHA 29 CFR 1910.147 (see Safety Standards).

 Properly install and ground this equipment according to its

Owner’s Manual and national, state, and local codes.

 Indicates special instructions.

This group of symbols means Warning! Watch Out! ELECTRIC
SHOCK, MOVING PARTS, and HOT PARTS hazards. Consult sym­bols and related instructions below for necessary actions to avoid the
hazards.

 Always verify the supply ground — check and be sure that input

power cord ground wire is properly connected to ground terminal in
disconnect box or that cord plug is connected to a properly
grounded receptacle outlet.

 When making input connections, attach proper grounding conduc-

tor first − double-check connections.

 Keep cords dry, free of oil and grease, and protected from hot metal

and sparks.

 Frequently inspect input power cord for damage or bare wiring —

replace cord immediately if damaged — bare wiring can kill.

 Turn off all equipment when not in use.
 Do not use worn, damaged, undersized, or poorly spliced cables.
 Do not drape cables over your body.
 If earth grounding of the workpiece is required, ground it directly

with a separate cable.

 Do not touch electrode if you are in contact with the work, ground,

or another electrode from a different machine.

 Use only well-maintained equipment. Repair or replace damaged

parts at once. Maintain unit according to manual.

 Do not touch electrode holders connected to two welding ma-

chines at the same time since double open-circuit voltage will be
present.

 Wear a safety harness if working above floor level.
 Keep all panels and covers securely in place.
 Clamp work cable with good metal-to-metal contact to workpiece

or worktable as near the weld as practical.

 Insulate work clamp when not connected to workpiece to prevent

contact with any metal object.

 Do not connect more than one electrode or work cable to any

single weld output terminal.

SIGNIFICANT DC VOLTAGE exists in inverters after stop­ping engine.

 Stop engine on inverter and discharge input capacitors according

to instructions in Maintenance Section before touching any parts.

HOT PARTS can cause severe burns.

 Do not touch hot parts bare handed.
 Allow cooling period before working on equip-

ment.

 To handle hot parts, use proper tools and/or wear heavy, insu-

lated welding gloves and clothing to prevent burns.

FLYING METAL or DIRT can injure eyes.

 Welding, chipping, wire brushing, and grinding

cause sparks and flying metal. As welds cool,
they can throw off slag.

 Wear approved safety glasses with side shields even under your

welding helmet.

OM-4433 Page 1

FUMES AND GASES can be hazardous.

Welding produces fumes and gases. Breathing these

fumes and gases can be hazardous to your health.

 Keep your head out of the fumes. Do not breathe the fumes.
 If inside, ventilate the area and/or use local forced ventilation at the

arc to remove welding fumes and gases.

 If ventilation is poor, wear an approved air-supplied respirator.
 Read and understand the Material Safety Data Sheets (MSDSs)

and the manufacturer’s instructions for metals, consumables,
coatings, cleaners, and degreasers.

 Work in a confined space only if it is well ventilated, or while

wearing an air-supplied respirator. Always have a trained watch­person nearby. Welding fumes and gases can displace air and
lower the oxygen level causing injury or death. Be sure the breath­ing air is safe.

 Do not weld in locations near degreasing, cleaning, or spraying op-

erations. The heat and rays of the arc can react with vapors to form
highly toxic and irritating gases.

 Do not weld on coated metals, such as galvanized, lead, or

cadmium plated steel, unless the coating is removed from the weld
area, the area is well ventilated, and while wearing an air-supplied
respirator. The coatings and any metals containing these elements
can give off toxic fumes if welded.

 Do not weld on closed containers such as tanks, drums, or pipes,

unless they are properly prepared according to AWS F4.1 (see
Safety Standards).

 Do not weld where the atmosphere may contain flammable dust,

gas, or liquid vapors (such as gasoline).

 Connect work cable to the work as close to the welding area as

practical to prevent welding current from traveling long, possibly
unknown paths and causing electric shock, sparks, and fire haz­ards.

 Do not use welder to thaw frozen pipes.
 Remove stick electrode from holder or cut off welding wire at

contact tip when not in use.

 Wear oil-free protective garments such as leather gloves, heavy

shirt, cuffless trousers, high shoes, and a cap.

 Remove any combustibles, such as a butane lighter or matches,

from your person before doing any welding.

 After completion of work, inspect area to ensure it is free of sparks,

glowing embers, and flames.

 Use only correct fuses or circuit breakers. Do not oversize or by-

pass them.

 Follow requirements in OSHA 1910.252 (a) (2) (iv) and NFPA 51B

for hot work and have a fire watcher and extinguisher nearby.

NOISE can damage hearing.

BUILDUP OF GAS can injure or kill.

 Shut off shielding gas supply when not in use.
 Always ventilate confined spaces or use ap-

proved air-supplied respirator.

ARC RAYS can burn eyes and skin.

Arc rays from the welding process produce intense

visible and invisible (ultraviolet and infrared) rays that

can burn eyes and skin. Sparks fly off from the weld.
 Wear an approved welding helmet fitted with a proper shade of filter

lenses to protect your face and eyes from arc rays and sparks
when welding or watching (see ANSI Z49.1 and Z87.1 listed in
Safety Standards).

 Wear approved safety glasses with side shields under your

helmet.

 Use protective screens or barriers to protect others from flash,

glare, and sparks; warn others not to watch the arc.

 Wear protective clothing made from durable, flame-resistant mate-

rial (leather, heavy cotton, or wool) and foot protection.

WELDING can cause fire or explosion.

Welding on closed containers, such as tanks, drums,

or pipes, can cause them to blow up. Sparks can fly off

from the welding arc. The flying sparks, hot workpiece,
and hot equipment can cause fires and burns. Accidental contact of
electrode to metal objects can cause sparks, explosion, overheating,
or fire. Check and be sure the area is safe before doing any welding.

 Remove all flammables within 35 ft (10.7 m) of the welding arc. If

this is not possible, tightly cover them with approved covers.

 Do not weld where flying sparks can strike flammable material.
 Protect yourself and others from flying sparks and hot metal.
 Be alert that welding sparks and hot materials from welding can

easily go through small cracks and openings to adjacent areas.

 Watch for fire, and keep a fire extinguisher nearby.
 Be aware that welding on a ceiling, floor, bulkhead, or partition can

cause fire on the hidden side.

Noise from some processes or equipment can dam­age hearing.

 Wear approved ear protection if noise level is

high.

MAGNETIC FIELDS can affect Implanted
Medical Devices.

 Wearers of Pacemakers and other Implanted

Medical Devices should keep away.

 Implanted Medical Device wearers should consult their doctor

and the device manufacturer before going near arc welding, spot
welding, gouging, plasma arc cutting, or induction heating
operations.

CYLINDERS can explode if damaged.

Shielding gas cylinders contain gas under high pres­sure. If damaged, a cylinder can explode. Since gas
cylinders are normally part of the welding process, be
sure to treat them carefully.

 Protect compressed gas cylinders from excessive heat, mechani-

cal shocks, physical damage, slag, open flames, sparks, and arcs.

 Install cylinders in an upright position by securing to a stationary

support or cylinder rack to prevent falling or tipping.

 Keep cylinders away from any welding or other electrical circuits.
 Never drape a welding torch over a gas cylinder.
 Never allow a welding electrode to touch any cylinder.
 Never weld on a pressurized cylinder — explosion will result.
 Use only correct shielding gas cylinders, regulators, hoses, and fit-

tings designed for the specific application; maintain them and
associated parts in good condition.

 Turn face away from valve outlet when opening cylinder valve.
 Keep protective cap in place over valve except when cylinder is in

use or connected for use.

 Use the right equipment, correct procedures, and sufficient num-

ber of persons to lift and move cylinders.

 Read and follow instructions on compressed gas cylinders,

associated equipment, and Compressed Gas Association (CGA)
publication P-1 listed in Safety Standards.

OM-4433 Page 2

1-3. Engine Hazards

BATTERY EXPLOSION can BLIND.

 Always wear a face shield, rubber gloves, and

protective clothing when working on a battery.

 Stop engine before disconnecting or connect-

ing battery cables or servicing battery.

 Do not allow tools to cause sparks when working on a battery.
 Do not use welder to charge batteries or jump start vehicles.
 Observe correct polarity (+ and −) on batteries.
 Disconnect negative (−) cable first and connect it last.

FUEL can cause fire or explosion.

 Stop engine and let it cool off before checking or

adding fuel.

 Do not add fuel while smoking or if unit is near

any sparks or open flames.

 Do not overfill tank — allow room for fuel to expand.
 Do not spill fuel. If fuel is spilled, clean up before starting engine.
 Dispose of rags in a fireproof container.
 Always keep nozzle in contact with tank when fueling.

MOVING PARTS can cause injury.

 Keep away from fans, belts, and rotors.
 Keep all doors, panels, covers, and guards

closed and securely in place.

 Stop engine before installing or connecting unit.
 Have only qualified people remove doors, panels, covers, or

guards for maintenance and troubleshooting as necessary.

 To prevent accidental starting during servicing, disconnect

negative (−) battery cable from battery.

 Keep hands, hair, loose clothing, and tools away from moving

parts.

 Reinstall doors, panels, covers, or guards when servicing is

finished and before starting engine.

 Before working on generator, remove spark plugs or injectors to

keep engine from kicking back or starting.

 Block flywheel so that it will not turn while working on generator

components.

STEAM AND HOT COOLANT can burn.

 If possible, check coolant level when engine is

cold to avoid scalding.

 Always check coolant level at overflow tank, if

present on unit, instead of radiator (unless told
otherwise in maintenance section or engine
manual).

 If the engine is warm, checking is needed, and there is no over-

flow tank, follow the next two statements.

 Wear safety glasses and gloves and put a rag over radiator cap.
 Turn cap slightly and let pressure escape slowly before

completely removing cap.

Using a generator indoors CAN KILL
YOU IN MINUTES.

 Generator exhaust contains carbon monoxide.

This is a poison you cannot see or smell.

 NEVER use inside a home or garage, EVEN IF

doors and windows are open.

 Only use OUTSIDE and far away from windows, doors, and

vents.

BATTERY ACID can BURN SKIN and EYES.

 Do not tip battery.
 Replace damaged battery.
 Flush eyes and skin immediately with water.

ENGINE HEAT can cause fire.

 Do not locate unit on, over, or near combustible

surfaces or flammables.

 Keep exhaust and exhaust pipes way from

flammables.

HOT PARTS can cause severe burns.

 Do not touch hot parts bare handed.
 Allow cooling period before working on equip-

ment.

 To handle hot parts, use proper tools and/or

wear heavy, insulated welding gloves and
clothing to prevent burns.

1-4. Compressed Air Hazards

BREATHING COMPRESSED AIR can
cause serious injury or death.

 Do not use compressed air for breathing.
 Use only for cutting, gouging, and tools.

COMPRESSED AIR can cause injury.

 Wear approved safety goggles.
 Do not direct air stream toward self or others.

EXHAUST SPARKS can cause fire.

 Do not let engine exhaust sparks cause fire.
 Use approved engine exhaust spark arrestor in

required areas — see applicable codes.

TRAPPED AIR PRESSURE AND WHIPPING
HOSES can cause injury.

 Release air pressure from tools and system be-

fore servicing, adding or changing attach­ments, or opening compressor oil drain or oil fill
cap.

OM-4433 Page 3

HOT METAL from air arc cutting and

READ INSTRUCTIONS.

gouging can cause fire or explosion.

 Do not cut or gouge near flammables.
 Watch for fire; keep extinguisher nearby.

HOT PARTS can cause burns and injury.

 Do not touch hot compressor or air system

parts.

 Let system cool down before touching or ser-

vicing.

 Read Owner’s Manual before using or servic-

ing unit.

 Stop engine and release air pressure before

servicing.

 Use only genuine replacement parts from the

manufacturer.

1-5. Additional Symbols For Installation, Operation, And Maintenance

FIRE OR EXPLOSION hazard.

 Do not install or place unit on, over, or near

combustible surfaces.

 Do not install unit near flammables.

 Do not overload building wiring − be sure power supply system is

properly sized, rated, and protected to handle this unit.

FALLING UNIT can cause injury.

 Use lifting eye to lift unit and properly installed

accessories only, NOT gas cylinders. Do not
exceed maximum lift eye weight rating (see
Specifications).

 Lift and support unit only with proper equipment

and correct procedures.

 If using lift forks to move unit, be sure forks are long enough to

extend beyond opposite side of unit.

OVERHEATING can damage motors.

 Turn off or unplug equipment before starting or

stopping engine.

 Do not let low voltage and frequency caused by

low engine speed damage electric motors.

 Do not connect 50 or 60 Hertz motors to the 100 Hertz receptacle

where applicable.

FLYING SPARKS can cause injury.

WELDING WIRE can cause injury.

 Do not press gun trigger until instructed to do

so.

 Do not point gun toward any part of the body,

other people, or any metal when threading
welding wire.

OVERUSE can cause OVERHEATING.

 Allow cooling period; follow rated duty cycle.
 Reduce current or reduce duty cycle before

starting to weld again.

 Do not block or filter airflow to unit.

STATIC (ESD) can damage PC boards.

 Put on grounded wrist strap BEFORE handling

boards or parts.

 Use proper static-proof bags and boxes to

store, move, or ship PC boards.

TILTING OF TRAILER can cause injury.

 Use tongue jack or blocks to support weight.
 Properly install welding generator onto trailer

according to instructions supplied with trailer.

 Wear a face shield to protect eyes and face.
 Shape tungsten electrode only on grinder with

proper guards in a safe location wearing proper
face, hand, and body protection.

 Sparks can cause fires — keep flammables away.

MOVING PARTS can cause injury.

 Keep away from moving parts.
 Keep away from pinch points such as drive

rolls.

OM-4433 Page 4

READ INSTRUCTIONS.

 Read Owner’s Manual before using or servic-

ing unit.

 Use only genuine replacement parts from the

manufacturer.

 Perform engine and air compressor mainte-

nance and service according to this manual
and the engine/air compressor (if applicable)
manuals.

H.F. RADIATION can cause interference.

ARC WELDING can cause interference.

 High-frequency (H.F.) can interfere with radio

navigation, safety services, computers, and
communications equipment.

 Have only qualified persons familiar with

electronic equipment perform this installation.

 The user is responsible for having a qualified electrician

promptly correct any interference problem resulting from the
installation.

 If notified by the FCC about interference, stop using the

equipment at once.

 Have the installation regularly checked and maintained.
 Keep high-frequency source doors and panels tightly shut, keep

spark gaps at correct setting, and use grounding and shielding to
minimize the possibility of interference.

1-6. California Proposition 65 Warnings

Welding or cutting equipment produces fumes or gases
which contain chemicals known to the State of California to
cause birth defects and, in some cases, cancer. (California
Health & Safety Code Section 25249.5 et seq.)

Battery posts, terminals and related accessories contain lead
and lead compounds, chemicals known to the State of
California to cause cancer and birth defects or other
reproductive harm. Wash hands after handling.

 Electromagnetic energy can interfere with

sensitive electronic equipment such as micro­processors, computers, and computer-driven
equipment such as robots.

 Be sure all equipment in the welding area is

electromagnetically compatible.

 To reduce possible interference, keep weld cables as short as

possible, close together, and down low, such as on the floor.

 Locate welding operation 100 meters from any sensitive elec-

tronic equipment.

 Be sure this welding machine is installed and grounded

according to this manual.

 If interference still occurs, the user must take extra measures

such as moving the welding machine, using shielded cables,
using line filters, or shielding the work area.

For Gasoline Engines:

Engine exhaust contains chemicals known to the State of
California to cause cancer, birth defects, or other reproduc­tive harm.

For Diesel Engines:

Diesel engine exhaust and some of its constituents are
known to the State of California to cause cancer, birth
defects, and other reproductive harm.

1-7. Principal Safety Standards

Safety in Welding, Cutting, and Allied Processes, ANSI Standard Z49.1,
from Global Engineering Documents (phone: [phone], website:
www.global.ihs.com).

Recommended Safe Practices for the Preparation for Welding and Cut­ting of Containers and Piping, American Welding Society Standard

AWS F4.1, from Global Engineering Documents (phone:
1-877-413-5184, website: www.global.ihs.com).

National Electrical Code, NFPA Standard 70, from National Fire Protec­tion Association, P.O. Box 9101, Quincy, MA 02269-9101 (phone:
617-770-3000, website: www.nfpa.org and www. sparky.org).

Safe Handling of Compressed Gases in Cylinders, CGA Pamphlet P-1,
from Compressed Gas Association, 4221 Walney Road, 5th Floor,
Chantilly, VA 20151 (phone: [phone], website:www.cganet.com).

Code for Safety in Welding and Cutting, CSA Standard W117.2, from
Canadian Standards Association, Standards Sales, 5060 Mississauga,

1-8. EMF Information

Considerations About Welding And The Effects Of Low Frequency
Electric And Magnetic Fields

Welding current, as it flows through welding cables, will cause electro­magnetic fields. There has been and still is some concern about such
fields. However, after examining more than 500 studies spanning 17
years of research, a special blue ribbon committee of the National
Research Council concluded that: “The body of evidence, in the
committee’s judgment, has not demonstrated that exposure to power­frequency electric and magnetic fields is a human-health hazard.”
However, studies are still going forth and evidence continues to be
examined. Until the final conclusions of the research are reached, you
may wish to minimize your exposure to electromagnetic fields when
welding or cutting.

To reduce magnetic fields in the workplace, use the following
procedures:

Ontario, Canada L4W 5NS (phone: [phone] or in Toronto
416-747-4044, website: www.csa-international.org).

Safe Practice For Occupational And Educational Eye And Face Protec­tion, ANSI Standard Z87.1, from American National Standards Institute,

25 West 43rd Street, New York, NY 10036–8002 (phone:
212-642-4900, website: www.ansi.org).

Standard for Fire Prevention During Welding, Cutting, and Other Hot
Work, NFPA Standard 51B, from National Fire Protection Association,

P.O. Box 9101, Quincy, MA 02269-9101 (phone: [phone], web­site: www.nfpa.org.

OSHA, Occupational Safety and Health Standards for General Indus­try, Title 29, Code of Federal Regulations (CFR), Part 1910, Subpart Q,
and Part 1926, Subpart J, from U.S. Government Printing Office, Super­intendent of Documents, P.O. Box 371954, Pittsburgh, PA 15250-7954
(phone: [phone]) (there are 10 Regional Offices—phone for
Region 5, Chicago, is 312-353-2220, website: www.osha.gov).

1. Keep cables close together by twisting or taping them, or using a
cable cover.

2. Arrange cables to one side and away from the operator.

3. Do not coil or drape cables around your body.

4. Keep welding power source and cables as far away from
operator as practical.

5. Connect work clamp to workpiece as close to the weld as
possible.

About Implanted Medical Devices:

Implanted Medical Device wearers should consult their doctor and the
device manufacturer before performing or going near arc welding, spot
welding, gouging, plasma arc cutting, or induction heating operations.
If cleared by your doctor, then following the above procedures is recom­mended.

OM-4433 Page 5

SECTION 2 − CONSIGNES DE SÉCURITÉ − LIRE AVANT

UTILISATION

rom_2007−04fre

Se protéger, ainsi que toute autre personne travaillant sur les lieux, contre les étincelles et le métal chaud.

2-1. Signification des symboles

DANGER! − Indique une situation dangereuse qui si on
l’évite pas peut donner la mort ou des blessures graves.
Les dangers possibles sont montrés par les symboles
joints ou sont expliqués dans le texte.

Indique une situation dangereuse qui si on l’évite pas
peut donner la mort ou des blessures graves. Les dan­gers possibles sont montrés par les symboles joints ou
sont expliqués dans le texte.

NOTE − Indique des déclarations pas en relation avec des blessures
personnelles.

2-2. Dangers relatifs au soudage à l’arc

Les symboles présentés ci-après sont utilisés tout au long du
présent manuel pour attirer votre attention et identifier les ris­ques de danger. Lorsque vous voyez un symbole, soyez
vigilant et suivez les directives mentionnées afin d’éviter tout
danger. Les consignes de sécurité présentées ci-après ne
font que résumer l’information contenue dans les normes de
sécurité énumérées à la section 2-7. Veuillez lire et respecter
toutes ces normes de sécurité.

L’installation, l’utilisation, l’entretien et les réparations ne
doivent être confiés qu’à des personnes qualifiées.

Au cours de l’utilisation, tenir toute personne à l’écart et plus
particulièrement les enfants.

UN CHOC ÉLECTRIQUE peut tuer.

Un simple contact avec des pièces électriques peut
provoquer une électrocution ou des blessures graves.

L’électrode et le circuit de soudage sont sous tension
dès que l’appareil est sur ON. Le circuit d’entrée et les circuits
internes de l’appareil sont également sous tension à ce moment-là.
En soudage semi-automatique ou automatique, le fil, le dévidoir, le
logement des galets d’entraînement et les pièces métalliques en
contact avec le fil de soudage sont sous tension. Des matériels mal
installés ou mal mis à la terre présentent un danger.

 Ne jamais toucher les pièces électriques sous tension.
 Porter des gants et des vêtements de protection secs ne compor-

tant pas de trous.

 S’isoler de la pièce et de la terre au moyen de tapis ou d’autres

moyens isolants suffisamment grands pour empêcher le contact
physique éventuel avec la pièce ou la terre.

 Ne pas se servir de source électrique à courant électrique dans les

zones humides, dans les endroits confinés ou là où on risque de
tomber.

 Se servir d’une source électrique à courant électrique UNIQUE-

MENT si le procédé de soudage le demande.

 Si l’utilisation d’une source électrique à courant électrique s’avère

nécessaire, se servir de la fonction de télécommande si l’appareil
en est équipé.

 Des précautions de sécurité supplémentaires sont requises dans

des environnements à risque comme: les endroits humides ou
lorsque l’on porte des vêtements mouillés; sur des structures mé­talliques au sol, grillages et échafaudages; dans des positions
assises, à genoux et allongées; ou quand il y a un risque important
de contact accidentel avec la pièce ou le sol. Dans ces cas utiliser
les appareils suivants dans l’ordre de préférence: 1) un poste à
souder DC semi−automatique de type CV (MIG/MAG), 2) un poste
à souder manuel (électrode enrobée) DC, 3) un poste à souder

OM-4433 Page 6

 Indique des instructions spécifiques.

Ce groupe de symboles veut dire Avertissement! Attention! DANGER
DE CHOC ELECTRIQUE, PIECES EN MOUVEMENT, et PIECES
CHAUDES. Consulter les symboles et les instructions ci-dessous y
afférant pour les actions nécessaires afin d’éviter le danger.

manuel AC avec tension à vide réduite. Dans la plupart des cas, un
poste courant continu de type CV est recommandé. Et, ne pas tra­vailler seul!

 Couper l’alimentation ou arrêter le moteur avant de procéder à

l’installation, à la réparation ou à l’entretien de l’appareil.
Déverrouiller l’alimentation selon la norme OSHA 29 CFR

1910.147 (voir normes de sécurité).

 Installer et mettre à la terre correctement cet appareil conformé-

ment à son manuel d’utilisation et aux codes nationaux,
provinciaux et municipaux.

 Toujours vérifier la terre du cordon d’alimentation − Vérifier et

s’assurer que le fil de terre du cordon d’alimentation est bien
raccordé à la borne de terre du sectionneur ou que la fiche du
cordon est raccordée à une prise correctement mise à la terre.

 En effectuant les raccordements d’entrée fixer d’abord le conduc-

teur de mise à la terre approprié et contre-vérifier les connexions.

 Les câbles doivent être exempts d’humidité, d’huile et de graisse;

protégez−les contre les étincelles et les pièces métalliques chau­des.

 Vérifier fréquemment le cordon d’alimentation pour voir s’il n’est

pas endommagé ou dénudé − remplacer le cordon immédiatement
s’il est endommagé − un câble dénudé peut provoquer une électro­cution.

 Mettre l’appareil hors tension quand on ne l’utilise pas.
 Ne pas utiliser des câbles usés, endommagés, de grosseur insuffi-

sante ou mal épissés.

 Ne pas enrouler les câbles autour du corps.
 Si la pièce soudée doit être mise à la terre, le faire directement

avec un câble distinct − ne pas utiliser le connecteur de pièce ou le
câble de retour.

 Ne pas toucher l’électrode quand on est en contact avec la pièce,

la terre ou une électrode provenant d’une autre machine.

 Ne pas toucher des porte électrodes connectés à deux machines

en même temps à cause de la présence d’une tension à vide dou­blée.

 N’utiliser qu’un matériel en bon état. Réparer ou remplacer

sur-le-champ les pièces endommagées. Entretenir l’appareil
conformément à ce manuel.

 Porter un harnais de sécurité quand on travaille en hauteur.
 Maintenir solidement en place tous les panneaux et capots.
 Fixer le câble de retour de façon à obtenir un bon contact métal-

métal avec la pièce à souder ou la table de travail, le plus près
possible de la soudure.

 Isoler la pince de masse quand pas mis à la pièce pour éviter le

contact avec tout objet métallique.

Une tension DC importante subsiste à l’intérieur
des onduleurs après avoir coupé l’alimentation.

 Couper l’alimentation du poste et décharger les condensateurs

d’entrée comme indiqué dans la Section Maintenance avant de
toucher des composants.

DES PIÈCES CHAUDES peuvent

-

e

­r

e

s

u

e

n

o
e

e

e

u
n

e

f

e

c

e

provoquer des brûlures graves.

 Ne pas toucher à mains nues les parties chau

des.

 Prévoir une période de refroidissement avant d

travailler à l’équipement.

 Ne pas toucher aux pièces chaudes, utiliser les outils recomman

dés et porter des gants de soudage et des vêtements épais pou
éviter les brûlures.

DES PIECES DE METAL ou DES SA­LETES peuvent provoquer des bles­sures dans les yeux.

 Le soudage, l’écaillement, le passage de la pièce à la brosse en

fil de fer, et le meulage génèrent des étincelles et des particules
métalliques volantes. Pendant la période de refroidissement des
soudures, elles risquent de projeter du laitier.

 Porter des lunettes de sécurité avec écrans latéraux ou un écran

facial.

LES FUMÉES ET LES GAZ peuvent êtr
dangereux.

Le soudage génère des fumées et des gaz. Leur
inhalation peut être dangereux pour votre santé.

 Eloigner votre tête des fumées. Ne pas respirer les fumées.
 À l’intérieur, ventiler la zone et/ou utiliser une ventilation forcée au

niveau de l’arc pour l’évacuation des fumées et des gaz de soudage.

 Si la ventilation est médiocre, porter un respirateur anti-vapeurs

approuvé.

 Lire et comprendre les spécifications de sécurité des matériaux

(MSDS) et les instructions du fabricant concernant les métaux, les
consommables, les revêtements, les nettoyants et les dégraisseurs.

 Travailler dans un espace fermé seulement s’il est bien ventilé ou

en portant un respirateur à alimentation d’air. Demander toujours à
un surveillant dûment formé de se tenir à proximité. Des fumées et
des gaz de soudage peuvent déplacer l’air et abaisser le niveau
d’oxygène provoquant des blessures ou des accidents mortels.
S’assurer que l’air de respiration ne présente aucun danger.

 Ne pas souder dans des endroits situés à proximité d’opérations

de dégraissage, de nettoyage ou de pulvérisation. La chaleur et
les rayons de l’arc peuvent réagir en présence de vapeurs et for­mer des gaz hautement toxiques et irritants.

 Ne pas souder des métaux munis d’un revêtement, tels que l’acier

galvanisé, plaqué en plomb ou au cadmium à moins que le revête­ment n’ait été enlevé dans la zone de soudure, que l’endroit soit
bien ventilé, et en portant un respirateur à alimentation d’air. Les
revêtements et tous les métaux renfermant ces éléments peuvent
dégager des fumées toxiques en cas de soudage.

LES ACCUMULATIONS DE GAZ ri
quent de provoquer des blessures o
même la mort.

 Fermer l’alimentation du gaz protecteur en cas d

non utilisation.

 Veiller toujours à bien aérer les espaces confinés ou se servir d’u

respirateur d’adduction d’air homologué.

LES RAYONS DE L’ARC peuvent pr
voquer des brûlures dans les yeux
sur la peau.

Le rayonnement de l’arc du procédé de soudag

génère des rayons visibles et invisibles intense
(ultraviolets et infrarouges) susceptibles de provoquer des brûlure
dans les yeux et sur la peau. Des étincelles sont projetées pendant l
soudage.

 Porter un casque de soudage approuvé muni de verres filtrants

approprié pour protéger visage et yeux pendant le soudage
(voir ANSI Z49.1 et Z87.1 énuméré dans les normes de sécurité).

 Porter des lunettes de sécurité avec écrans latéraux même sous

votre casque.

 Avoir recours à des écrans protecteurs ou à des rideaux pour

protéger les autres contre les rayonnements les éblouissements
et les étincelles ; prévenir toute personne sur les lieux de ne pas
regarder l’arc.

 Porter des vêtements confectionnés avec des matières résistan-

tes et ignifuges (cuir, coton lourd ou laine) et des bottes de
protection.

LE SOUDAGE peut provoquer un in
cendie ou une explosion.

Le soudage effectué sur des conteneurs fermés tel
que des réservoirs, tambours ou des conduites pe

provoquer leur éclatement. Des étincelles peuve
être projetées de l’arc de soudure. La projection d’étincelles, des pièce
chaudes et des équipements chauds peut provoquer des incendies
des brûlures. Le contact accidentel de l’électrode avec des objet
métalliques peut provoquer des étincelles, une explosion, un surchau
fement ou un incendie. Avant de commencer le soudage, vérifier
s’assurer que l’endroit ne présente pas de danger.

 Déplacer toutes les substances inflammables à une distance de

10,7 m de l’arc de soudage. En cas d’impossibilité les recouvrir
soigneusement avec des protections homologués.

 Ne pas souder dans un endroit là où des étincelles peuvent tomber

sur des substances inflammables.

 Se protéger et d’autres personnes de la projection d’étincelles et

de métal chaud.

 Des étincelles et des matériaux chauds du soudage peuvent

facilement passer dans d’autres zones en traversant de petites
fissures et des ouvertures.

 Surveiller tout déclenchement d’incendie et tenir un extincteur à

proximité.

 Le soudage effectué sur un plafond, plancher, paroi ou séparation

peut déclencher un incendie de l’autre côté.

 Ne pas effectuer le soudage sur des conteneurs fermés tels que

des réservoirs, tambours, ou conduites, à moins qu’ils n’aient été
préparés correctement conformément à AWS F4.1 (voir les nor­mes de sécurité).

 Ne soudez pas si l’air ambiant est chargé de particules, gaz, ou va-

peurs inflammables (vapeur d’essence, par exemple).

 Brancher le câble de masse sur la pièce le plus près possible de la

zone de soudage pour éviter le transport du courant sur une
longue distance par des chemins inconnus éventuels en provo­quant des risques d’électrocution, d’étincelles et d’incendie.

 Ne pas utiliser le poste de soudage pour dégeler des conduites ge-

lées.

 En cas de non utilisation, enlever la baguette d’électrode du porte-

électrode ou couper le fil à la pointe de contact.

 Porter des vêtements de protection dépourvus d’huile tels que des

gants en cuir, une chemise en matériau lourd, des pantalons sans
revers, des chaussures hautes et un couvre chef.

 Avant de souder, retirer toute substance combustible de vos po-

ches telles qu’un allumeur au butane ou des allumettes.

 Une fois le travail achevé, assurez−vous qu’il ne reste aucune tra-

ce d’étincelles incandescentes ni de flammes.

 Utiliser exclusivement des fusibles ou coupe−circuits appropriés.

Ne pas augmenter leur puissance; ne pas les ponter.

 Suivre les recommandations dans OSHA 1910.252(a)(2)(iv) et

NFPA 51B pour les travaux à chaud et avoir de la surveillance et un
extincteur à proximité.

LE BRUIT peut affecter l’ouïe.

Le bruit des processus et des équipements peut affe
l’ouïe.

 Porter des protections approuvés pour les or

les si le niveau sonore est trop élevé.

OM-4433 Page 7

LES CHAMPS MAGNETIQUES peuv-

a

a

a
n

e

s
s

o

e

s

e

t

o

,

-

e

­r

 Placer les bouteilles debout en les fixant dans un support station-

ent affecter des implants médicaux.

 Porteur de simulateur cardiaque ou autre im-

plants médicaux, rester à distance.

 Les porteurs d’implants doivent d’abord consulter leur médecin

avant de s’approcher des opérations de soudage à l’arc, de sou­dage par points, de gougeage, du coupage plasma ou de chauf­fage par induction.

 Tenir les bouteilles éloignées des circuits de soudage ou autres

 Ne jamais placer une torche de soudage sur une bouteille à gaz.
 Une électrode de soudage ne doit jamais entrer en contact avec

 Ne jamais souder une bouteille pressurisée − risque d’explosion.
 Utiliser seulement des bouteilles de gaz protecteur, régulateurs,

Si des BOUTEILLES sont endomm
gées, elles pourront exploser.

Des bouteilles de gaz protecteur contiennent du g

sous haute pression. Si une bouteille est endomm
gée, elle peut exploser. Du fait que les bouteilles de gaz fo
normalement partie du procédé de soudage, les manipuler av
précaution.

 Protéger les bouteilles de gaz comprimé d’une chaleur excessive,

des chocs mécaniques, des dommages physiques, du laitier, des
flammes ouvertes, des étincelles et des arcs.

 Ne pas tenir la tête en face de la sortie en ouvrant la soupape de la

 Maintenir le chapeau de protection sur la soupape, sauf en cas

 Utiliser les équipements corrects, les bonnes procédures et suffi-

 Lire et suivre les instructions sur les bouteilles de gaz comprimé,

2-3. Dangers existant en relation avec le moteur

naire ou dans un porte-bouteilles pour les empêcher de tomber ou
de se renverser.

circuits électriques.

une bouteille.

tuyaux et raccords convenables pour cette application spécifique;
les maintenir ainsi que les éléments associés en bon état.

bouteille.

d’utilisation ou de branchement de la bouteille.

samment de personnes pour soulever et déplacer les bouteilles.

l’équipement connexe et le dépliant P-1 de la CGA (Compressed Gas
Association) mentionné dans les principales normes de sécurité.

L’EXPLOSION DE LA BATTERIE peu
RENDRE AVEUGLE.

 Toujours porter une protection faciale, des gant

en caoutchouc et vêtements de protection lor
d’une intervention sur la batterie.

 Arrêter le moteur avant de débrancher ou de brancher les câbles

de batterie.

 Eviter de provoquer des étincelles avec les outils en travaillant sur

la batterie.

 Ne pas utiliser le poste de soudage pour charger les batteries ou

des véhicules de démarrage rapide.

 Observer la polarité correcte (+ et −) sur les batteries.

 Débrancher le câble négatif (–) en premier lieu. Le rebrancher en

dernier lieu.

LE CARBURANT MOTEUR peut prov
quer un incendie ou une explosion.

 Arrêter le moteur avant de vérifier le niveau d

carburant ou de faire le plein.

 Ne pas faire le plein en fumant ou proche d’une source d’étincelle

ou d’une flamme nue.

 Ne pas faire le plein de carburant à ras bord; prévoir de l’espac

pour son expansion.

 Faire attention de ne pas renverser de carburant. Nettoyer tou

carburant renversé avant de faire démarrer le moteur.

 Jeter les chiffons dans un récipient ignifuge.
 Toujours garder le pistolet en contact avec le réservoir lors du

remplissage.

DES ORGANES MOBILES peuvent pr
voquer des blessures.

 Ne pas approcher les mains des ventilateurs

courroies et autres pièces en mouvement.

 Maintenir fermés et fixement en place les portes, panneaux, re-

couvrements et dispositifs de protection.

 Arrêter le moteur avant d’installer ou brancher l’appareil.

OM-4433 Page 8

 Seules des personnes qualifiées sont autorisées à enlever les por-

tes, panneaux, recouvrements ou dispositifs de protection pour
effectuer, s’il y a lieu, des travaux d’entretien et de dépannage.

 Pour empêcher tout démarrage accidentel pendant les travaux

d’entretien, débrancher le câble négatif (−) de batterie de la borne.

 Ne pas approcher les mains, cheveux, vêtements lâches et outils

des organes mobiles.

 Remettre en place les panneaux ou les dispositifs de protection et

fermer les portes à la fin des travaux d’entretien et avant de faire
démarrer le moteur.

 Avant d’intervenir, déposer les bougies ou injecteurs pour éviter la

mise en route accidentelle du moteur.

 Bloquer le volant moteur pour éviter sa rotation lors d’une interven-

tion sur le générateur.

DES PIÈCES CHAUDES peuvent
provoquer des brûlures graves.

 Ne pas toucher à mains nues les parties chau

des.

 Prévoir une période de refroidissement avant d

travailler à l’équipement.

 Ne pas toucher aux pièces chaudes, utiliser les outils recomman

dés et porter des gants de soudage et des vêtements épais pou
éviter les brûlures.

LA VAPEUR ET LE LIQUIDE DE
REFROIDISSEMENT CHAUD peuvent
provoquer des brûlures.

 Il est préférable de vérifier le liquide de refroi-

dissement une fois le moteur refroidi pour éviter
de se brûler.

 Toujours vérifier le niveau de liquide de refroidissement dans le

vase d’expansion (si présent), et non dans le radiateur (sauf si pré­cisé autrement dans la section maintenance du manuel du
moteur).

 Si le moteur est chaud et que le liquide doit être vérifié, opérer com-

me suivant.

 Mettre des lunettes de sécurité et des gants, placer un torchon sur

le bouchon du radiateur.

 Dévisser le bouchon légèrement et laisser la vapeur s’échapper

avant d’enlever le bouchon.

L’utilisation d’un groupe autonome

t
,

e

-

e

s

r

u

à l’intérieur PEUT VOUS TUER EN
QUELQUES MINUTES.

 Les fumées d’un groupe autonome contient du

monoxyde de carbone. C’est un poison invisi­ble et inodore.

 JAMAIS utiliser dans une maison ou garage,

même avec les portes et fenêtres ouvertes.

 Uniquement utiliser à l’EXTERIEUR, loin des portes, fenêtres et

bouches aération.

LA CHALEUR DU MOTEUR peut pro­voquer un incendie.

 Ne pas placer l’appareil sur, au-dessus ou à

proximité de surfaces inflammables.

 Tenir à distance les produits inflammables de l’échappement.

L’ACIDE DE LA BATTERIE peut pro­voquer des brûlures dans les YEUX et
sur la PEAU.

 Ne pas renverser la batterie.
 Remplacer une batterie endommagée.

 Rincer immédiatement les yeux et la peau à l’eau.

2-4. Dangers liés à l’air comprimé

RESPIRER L’AIR COMPRIMÉ peut pro­voquer des blessures graves ou causer
la mort.

 Ne pas utiliser l’air comprimé pour respirer.
 Utiliser l’air comprimé seulement pour le cou-

page, gougeage et les outils pneumatiques.

L’AIR COMPRIMÉ peut provoquer
des blessures.

 Porter des lunettes de sécurité approuvées.
 Ne pas diriger le jet d’air vers d’autres ou

soi-même.

L’AIR COMPRIME EMMAGASINE ET DES
TUYAUX SOUS PRESSION peuvent provo­quer des blessures.

 Relâcher la pression d’air de l’outillage ou du

système avant d’effectuer la maintenance,
avant de changer ou de rajouter des éléments
ou avant d’ouvrir la purge ou le bouchon de
remplissage d’huile.

LES ÉTINCELLES À L’ÉCHAPPEMENT
peuvent provoquer un incendie.

 Empêcher les étincelles d’échappement du

moteur de provoquer un incendie.

 Utiliser uniquement un pare-étincelles

approuvé − voir codes en vigueur.

Le METAL CHAUD lors du coupage et
gougeage plasma peut provoquer un in­cendie ou une explosion.

 Ne pas couper ou gouger à proximité de pro-

duits inflammables.

 Surveillez et garder un extincteur à proximité.

DES PIECES CHAUDES peuvent provo­quer des brûlures et blessures.

 Ne pas toucher le compresseur ou d’autres

éléments du circuit air comprimé chauds.

 Laisser l’ensemble se refroidir avant de toucher ou d’effectuer la

maintenance.

LIRE LES INSTRUCTIONS.

 Lisez le manuel d’instructions avant l’utilisation

ou la maintenance de l’appareil.

 Arrêter le moteur et relâcher la pression avant

d’effectuer la maintenance.

 N’utiliser que les pièces de rechange recommandées par le

constructeur.

2-5. Dangers supplémentaires en relation avec l’installation, le fonctionnement et la maintenance

Risque D’INCENDIE OU D’EXPLO­SION.

 Ne pas placer l’appareil sur, au-dessus ou

à proximité de surfaces inflammables.

 Ne pas installer l’appareil à proximité de pro-

duits inflammables.

 Ne pas surcharger l’installation électrique − s’assurer que l’ali-

mentation est correctement dimensionnée et protégée avant de
mettre l’appareil en service.

 En utilisant des fourches de levage pour déplacer l’unité, s’assure

que les fourches sont suffisamment longues pour dépasser d
côté opposé de l’appareil.

LA CHUTE DE L’APPAREIL peut blesser.

 Utiliser l’anneau de levage pour lever l’appareil e

les accessoires correctement installées seuls
PAS les bouteilles de gaz. Ne pas dépasser l
poids nominal maximal de l’œilleton (voir les spé
cifications).

 Ne lever et ne soutenir l’appareil qu’avec d

l’équipement approprié et en suivant le
procédures adéquates.

OM-4433 Page 9

LE SURCHAUFFEMENT peut endom-

e

-

-

,

t

a

-

n

u

-

mager le moteur électrique.

 Arrêter ou déconnecter l’équipement avant d

démarrer ou d’arrêter le moteur.

 Ne pas laisser tourner le moteur trop lentement sous risque d’en

dommager le moteur électrique à cause d’une tension et d’une fré
quence trop faibles.

 Ne pas brancher de moteur de 50 ou de 60 Hz à la prise de 100 Hz

s’il y a lieu.

LES ÉTINCELLES VOLANTES ris­quent de provoquer des blessures.

 Porter un écran facial pour protéger le visage e

les yeux.

 Affûter l’électrode au tungstène uniquement à l

meuleuse dotée de protecteurs. Cette manœuv
re est à exécuter dans un endroit sûr lorsque l’o
porte l’équipement homologué de protection d
visage, des mains et du corps.

 Les étincelles risquent de causer un incendie − éloigner toute sub

stance inflammable.

DES ORGANES MOBILES peuvent
provoquer des blessures.

 Ne pas s’approcher des organes mobiles.
 Ne pas s’approcher des points de coincement

tels que des rouleaux de commande.

LES FILS DE SOUDAGE peuvent
provoquer des blessures.

 Ne pas appuyer sur la gâchette avant d’en

avoir reçu l’instruction.

 Ne pas diriger le pistolet vers soi, d’autres per-

sonnes ou toute pièce mécanique en enga­geant le fil de soudage.

L’EMPLOI EXCESSIF peut
SURCHAUFFER L’ÉQUIPEMENT.

 Laisser l’équipement refroidir ; respecter le fac-

teur de marche nominal.

 Réduire le courant ou le facteur de marche

avant de poursuivre le soudage.

 Ne pas obstruer les passages d’air du poste.

LES CHARGES ÉLECTROSTATI­QUES peuvent endommager les
circuits imprimés.

 Établir la connexion avec la barrette de terre

avant de manipuler des cartes ou des pièces.

 Utiliser des pochettes et des boîtes antistatiques pour stocker,

déplacer ou expédier des cartes de circuits imprimes.

UNE REMORQUE QUI BASCULE peut
entraîner des blessures.

 Utiliser les supports de la remorque ou des

blocs pour soutenir le poids.

 Installer convenablement le poste sur la remor-

que comme indiqué dans le manuel s’y rappor­tant.

LIRE LES INSTRUCTIONS.

 Lisez le manuel d’instructions avant l’utilisation

ou la maintenance de l’appareil.

 N’utiliser que les pièces de rechange recom-

mandées par le constructeur.

 Effectuer la maintenance et le service du moteur et du compres-

seur d’air suivant les instructions dans ce manuel ou le manuel
du moteur/compresseur (si applicable).

LE RAYONNEMENT HAUTE FRÉ­QUENCE (H.F.) risque de provoquer
des interférences.

 Le rayonnement haute fréquence (H.F.) peut

provoquer des interférences avec les équipe­ments de radio−navigation et de communica­tion, les services de sécurité et les ordinateurs.

 Demander seulement à des personnes qualifiées familiarisées

avec des équipements électroniques de faire fonctionner l’instal­lation.

 L’utilisateur est tenu de faire corriger rapidement par un électri-

cien qualifié les interférences résultant de l’installation.

 Si le FCC signale des interférences, arrêter immédiatement l’ap-

pareil.

 Effectuer régulièrement le contrôle et l’entretien de l’installation.
 Maintenir soigneusement fermés les portes et les panneaux des

sources de haute fréquence, maintenir les éclateurs à une dis­tance correcte et utiliser une terre et un blindage pour réduire les
interférences éventuelles.

LE SOUDAGE À L’ARC risque de
provoquer des interférences.

 L’énergie électromagnétique risque de provo-

quer des interférences pour l’équipement élec­tronique sensible tel que les ordinateurs et
l’équipement commandé par ordinateur tel que
les robots.

 Veiller à ce que tout l’équipement de la zone de soudage soit

compatible électromagnétiquement.

 Pour réduire la possibilité d’interférence, maintenir les câbles de

soudage aussi courts que possible, les grouper, et les poser
aussi bas que possible (ex. par terre).

 Veiller à souder à une distance de 100 mètres de tout équipe-

ment électronique sensible.

 Veiller à ce que ce poste de soudage soit posé et mis à la terre

conformément à ce mode d’emploi.

 En cas d’interférences après avoir pris les mesures précéden-

tes, il incombe à l’utilisateur de prendre des mesures supplé­mentaires telles que le déplacement du poste, l’utilisation de câ­bles blindés, l’utilisation de filtres de ligne ou la pose de protec­teurs dans la zone de travail.

OM-4433 Page 10

2-6. Proposition californienne 65 Avertissements

Les équipements de soudage et de coupage produisent des
fumées et des gaz qui contiennent des produits chimiques
dont l’État de Californie reconnaît qu’ils provoquent des mal­formations congénitales et, dans certains cas, des cancers.
(Code de santé et de sécurité de Californie, chapitre 25249.5
et suivants)

Les batteries, les bornes et autres accessoires contiennent
du plomb et des composés à base de plomb, produits chimi­ques dont l’État de Californie reconnaît qu’ils provoquent des
cancers et des malformations congénitales ou autres
problèmes de procréation. Se laver les mains après manipu­lation.

2-7. Principales normes de sécurité

Safety in Welding, Cutting, and Allied Processes, ANSI Standard Z49.1,
de Global Engineering Documents (téléphone : 1-877-413-5184, site
Internet : www.global.ihs.com).

Recommended Safe Practices for the Preparation for Welding and Cut­ting of Containers and Piping, American Welding Society Standard

AWS F4.1 de Global Engineering Documents (téléphone :
1-877-413-5184, site Internet : www.global.ihs.com).

National Electrical Code, NFPA Standard 70, de National Fire Protec­tion Association, P.O. Box 9101, Quincy, MA 02269-9101 (téléphone :
617-770-3000, site Internet : www.nfpa.org).

Safe Handling of Compressed Gases in Cylinders, CGA Pamphlet P-1,
de Compressed Gas Association, 4221 Walney Road, 5th Floor, Chan­tilly, VA 20151 (téléphone : 703-788-2700, site Internet :
www.cganet.com).

Code for Safety in Welding and Cutting, CSA Standard W117.2, de
Canadian Standards Association, 5060 Mississauga, Ontario, Canada

Pour les moteurs à essence :

Les gaz d’échappement des moteurs contiennent des pro­duits chimiques dont l’État de Californie reconnaît qu’ils
provoquent des cancers et des malformations congénitales
ou autres problèmes de procréation.

Pour les moteurs diesel :

Les gaz d’échappement des moteurs diesel et certains de
leurs composants sont reconnus par l’État de Californie com­me provoquant des cancers et des malformations
congénitales ou autres problèmes de procréation.

L4W 5NS (téléphone : 800-463-6727 ou à Toronto 416-747-4044, site
Internet : www.csa-international.org).

Safe Practice For Occupational And Educational Eye And Face Protec­tion, ANSI Standard Z87.1, de American National Standards Institute,

11 West 43rd Street, New York, NY 10036-8002 (téléphone :
212-642-4900, site Internet : www.ansi.org).

Standard for Fire Prevention During Welding, Cutting, and Other Hot
Work, NFPA Standard 51B, de National Fire Protection Association,

P.O. Box 9101, Quincy, MA 02269-9101 (téléphone : 617-770-3000,
site Internet : www.nfpa.org).

OSHA, Occupational Safety and Health Standards for General Indus­try, Title 29, Code of Federal Regulations (CFR), Part 1910, Subpart Q,
and Part 1926, Subpart J, de U.S. Government Printing Office, Superin­tendent of Documents, P.O. Box 371954, Pittsburgh, PA 15250-7954
(téléphone : 1-866-512-1800) (il y a 10 bureaux régionaux−−le télépho-
ne de la région 5, Chicago, est 312-353-2220, site Internet :
www.osha.gov).

2-8. Information EMF

Considérations sur le soudage et les effets de basse fréquence et des
champs magnétiques et électriques.

Le courant de soudage, pendant son passage dans les câbles de sou­dage, causera des champs électromagnétiques. Il y a eu et il y a encore
un certain souci à propos de tels champs. Cependant, après avoir exa­miné plus de 500 études qui ont été faites pendant une période de
recherche de 17 ans, un comité spécial ruban bleu du National
Research Council a conclu : « L’accumulation de preuves, suivant le
jugement du comité, n’a pas démontré que l’exposition aux champs
magnétiques et champs électriques à haute fréquence représente un
risque à la santé humaine ». Toutefois, des études sont toujours en
cours et les preuves continuent à être examinées. En attendant que les
conclusions finales de la recherche soient établies, il vous serait
souhaitable de réduire votre exposition aux champs électromagnéti­ques pendant le soudage ou le coupage.

Pour réduire les champs magnétiques sur le poste de travail, appliquer
les procédures suivantes :

1. Garder les câbles ensemble, les torsader, les scotcher, ou les
recouvrir d’une housse.

2. Disposer les câbles d’un côté et à distance de l’opérateur.

3. Ne pas courber pas et ne pas entourer pas les câbles autour de
votre corps.

4. Garder le poste de soudage et les câbles le plus loin possible de
vous.

5. Connecter la pince sur la pièce aussi près que possible de la
soudure.

En ce qui concerne les implants médicaux :

Les porteurs d’implants doivent d’abord consulter leur médecin avant
de s’approcher des opérations de soudage à l’arc, de soudage par
points, de gougeage, du coupage plasma ou de chauffage par induc­tion. Si le médecin approuve, il est recommandé de suivre les
procédures précédentes.

OM-4433 Page 11

SECTION 3 − DEFINITIONS

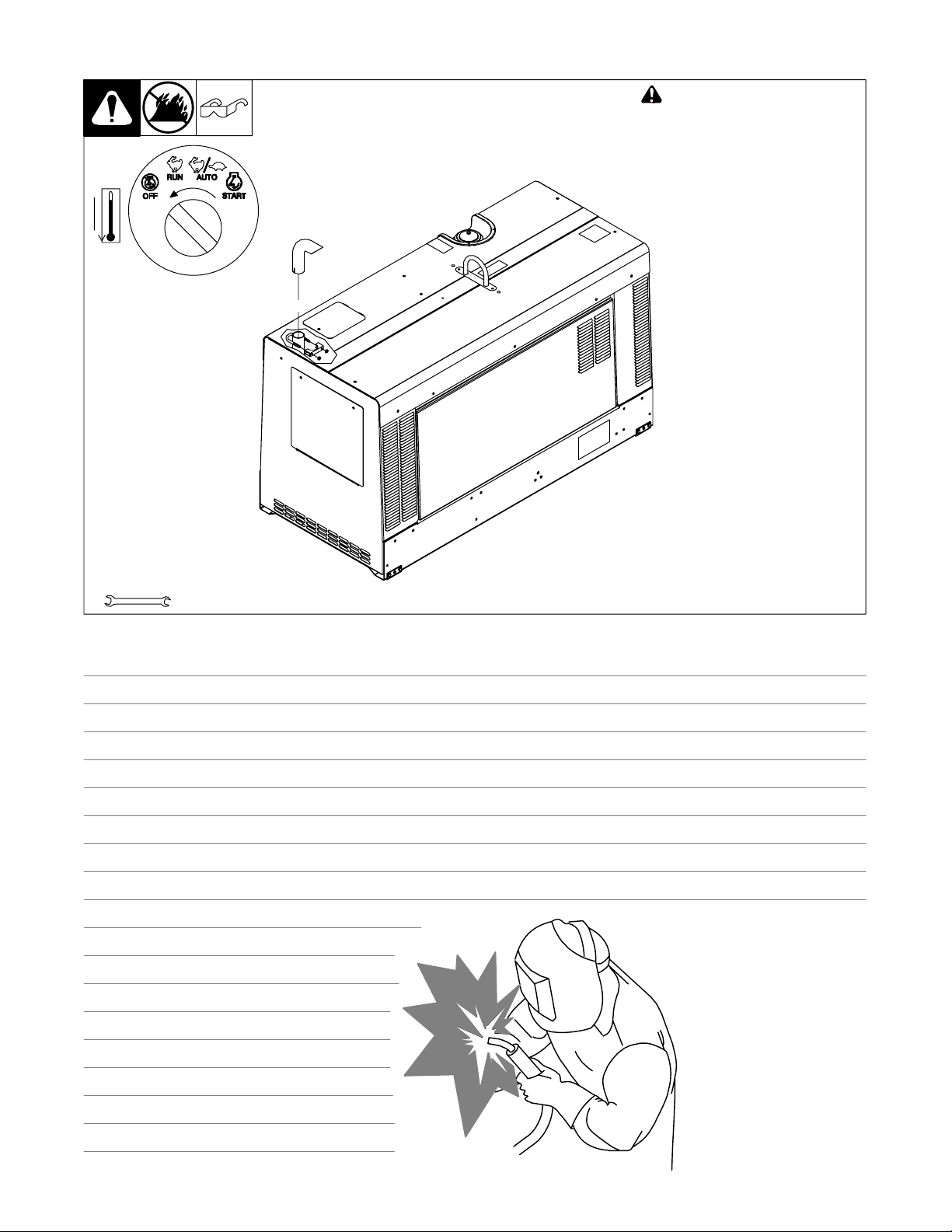

3-1. Warning Label Definitions

1

2

3

4

5

0 − 50 h Std.

50 h Std.

+

DIESEL

200A

S-177 571

+

0 − 200A

1 Remove unit from shipping

crate. Remove Owner’s
Manual from unit. Follow
instructions to install muffler.

2 Read Owner’s Manual. Read

labels on unit.

3 Use Diesel Fuel only, and fill

fuel tank. Leave room for
expansion.

4 Warning! Watch Out! There

are possible hazards as
shown by the symbols. Read
Owner’s Manual. Follow
instructions to activate
battery.

5 Check oil level. Add oil if

necessary.

6 During the first 50 hours of

operation, keep welding load
above 200 amperes. Do not
weld below 200 amperes of
output.

7 After the first 50 hours of

operation, change the oil and
oil filter.

Notes

API CD-MIL L 2104D,

CD/SE, CD/SF

3/96

Work like a Pro!

Pros weld and cut

safely. Read the

safety rules at
the beginning
of this manual.

OM-4433 Page 12

3-2. Manufacturer’s Rating Label

228 417-B / 803 562-F

OM-4433 Page 13

3-3. Symbols And Definitions

A

 Some symbols are found only on CE products.

Stop Engine

Starting Aid

(Preheat)

Check Injectors/

Pump

Positive Negative

Amperes

Fast (Run, Weld/

Battery (Engine)

Check Valve

V

Engine

Stick (SMAW)

Welding

Air Temperature Or

Temperature

Constant Current

Power)

Clearance

Volts Panel/Local Remote

Engine

(CC)

Slow (Idle) Start Engine

Engine Oil

Pressure

Fuel

Certified/Trained

Mechanic

Output

MIG (GMAW)

Welding

Engine Oil

Protective Earth

(Ground)

Welding Arc

Alternating

Current

TIG (GTAW)

3

X

n

Time

h

Three Phase

Electrode

Connection

Duty Cycle

Rated Idle

1

Speed n

Contactor On Arc Force (Dig) Lift-Arc TIG

U

0

0

Hours

Read Operator’s

Manual

Work Connection

Rated No Load

Voltage (Average)

Rated No Load

Speed

s

G

3

U

I

2

Seconds

Circuit Protector

Engine-Driven,

Three-Phase

Alternator With

Rectifier

Conventional
Load Voltage

Current

1

Hz

n

I

Single Phase

Do Not Switch
While Welding

Hertz

Rated Load

Speed

Rated Welding

2

Current

OM-4433 Page 14

SECTION 4 − SPECIFICATIONS

20 410 A

300 A, 32 Volts DC

6

10 kVA/kW, 84/42 A

11.5 gal

p

A

°

D

4-1. Weld, Power, And Engine Specifications

Maximum

Welding

Mode

CC/DC

CV/DC

(CC/CV

Models

Only)

4-2. Dimensions, Weights, And Operating Angles

Height

Width

Depth 56 in (1422 mm)

A 56 in (1422 mm)
B 54 in (1372 mm)
C 52 in in (1321 mm)
D 2 in (51 mm)
E 26 in (660 mm)
F 7/8 in (22 mm)
G 27-3/4 in (705 mm)

H

Weld Output

Range

20 − 410 A

(CC Models)

14 − 40 V

Dimensions

32 in (813 mm)

35-3/4 in (908 mm)

(to top of lift eye)

26-1/4 in (667 mm)

(mtg. brackets turned in)

28-3/4 in (730 mm)

(mtg. brackets turned out)

9/16 in (14 mm) Dia.

4 Holes

Weight

No fuel: 1100 lb (499 kg)

w/ fuel: 1199 lb (544 kg)

Lifting Eye Weight Rating:

1500 lb (680 Kg) Maximum

Rated Welding

Output

400 A, 23 Volts DC,

40% Duty Cycle

300 A, 32 Volts DC

60% Duty Cycle

250 A, 30 Volts DC

100% Duty cycle

400 A, 23 Volts DC,

30% Duty Cycle

300 A, 29 Volts DC

60% Duty Cycle

250 A, 26.5 Volts DC

100% Duty cycle

A

B

Open-

Circuit

Voltage

5

G

C

H

Front Panel End

E

Generator Power

Rating

Single-Phase,

10 kVA/kW, 84/42 A,

120/240 V AC,

60 Hz

! Do not exceed tilt angles or engine could

! Do not move or operate unit where it

20
20°

F

Engine

Perkins

,

be damaged or unit could tip.

could tip.

Perkins 403C-15

Water-Cooled,

Three-Cylinder,

21.7 HP Diesel Engine

°

Fuel

Capacity

11.5 gal
(43.5 L)

30°

30°

OM-4433 Page 15

4-3. Volt-Ampere Curves

A. Stick Mode

100

90
80
70

60
50
40

DC VOLTS

30
20

MIN

10

0

0 100 200 300 400 500

B. MIG Mode

100

DC AMPERES

300

The volt-ampere curves show the
minimum and maximum voltage
and amperage output capabilities of
the welding generator. Curves of all
other settings fall between the
curves shown.

MAX

80

60

40

DC VOLTS

20

0

0 100 200 300 400 500

C. TIG Mode

100

80

60

DC AMPERES

40

DC VOLTS

20

0

OM-4433 Page 16

MIN

0 100 200

DC AMPERES

300

MAX300

400 500

217 517 / 217 516 / 217 518

4-4. Fuel Consumption

2.00

1.75

1.50

1.25

1.00

0.75

U.S. GAL/HR.

0.50

The curve shows typical fuel use
under weld or power loads.

0.25

IDLE

0.00
0 50 100 150 200 250 300 350 400

DC WELD AMPERES AT 100% DUTY CYCLE

4-5. Duty Cycle And Overheating

1000

800

217 509

1 100% Duty Cycle

1

Duty Cycle is percentage of 10 min­utes that unit can weld at rated load
without overheating.

 This unit is rated for welding at

250 amperes continuously.

NOTICE − Exceeding duty cycle
can damage unit and void warranty.

600
500

400
300

250
200

WELD AMPERES

150

100

10 15 20 25 30 40 50 60 80 100

CV

% DUTY CYCLE

CC

217 515

OM-4433 Page 17

4-6. AC Generator Power Curve

300

150

250

125

200

100

150

75

100

50

AC VOLTS

50

25

0

0

0 20406080

AC AMPERES IN 240 V MODE

0 40 80 120 160

AC AMPERES IN 120 V MODE

The ac power curve shows the gen­erator power in amperes available
at the 120 and 240 volt receptacles.

217 519

Notes

MATERIAL THICKNESS REFERENCE CHART

24 Gauge (.025 in)
22 Gauge (.031 in)
20 Gauge (.037 in)

18 Gauge (.050 in)
16 Gauge (.063 in)
14 Gauge (.078 in)

1/8 in (.125 in)

3/16 in (.188 in)

1/4 in (.25 in)

5/16 in (.313 in)

3/8 in (.375 in)

OM-4433 Page 18

1/2 in (.5 in)

SECTION 5 − INSTALLATION

5

-1. Installing Welding Generator

! Always securely fasten weld-

ing generator onto transport

Movement

OR

Location/Airflow Clearance

18 in

(460 mm)

18 in

(460 mm)

OR

18 in

(460 mm)

18 in

(460 mm)

18 in

(460 mm)

OR

vehicle or trailer and comply
with all DOT and other applica­ble codes.

! Always ground generator

frame to vehicle frame to pre­vent electric shock and static
electricity hazards.

! If unit does not have GFCI re-

ceptacles, use GFCI-protected
extension cord.

NOTICE − Do not install unit where
air flow is restricted or engine may
overheat.

 See Section 4-2 for lifting eye

rating.

 See Section 5-2 for mounting

information.

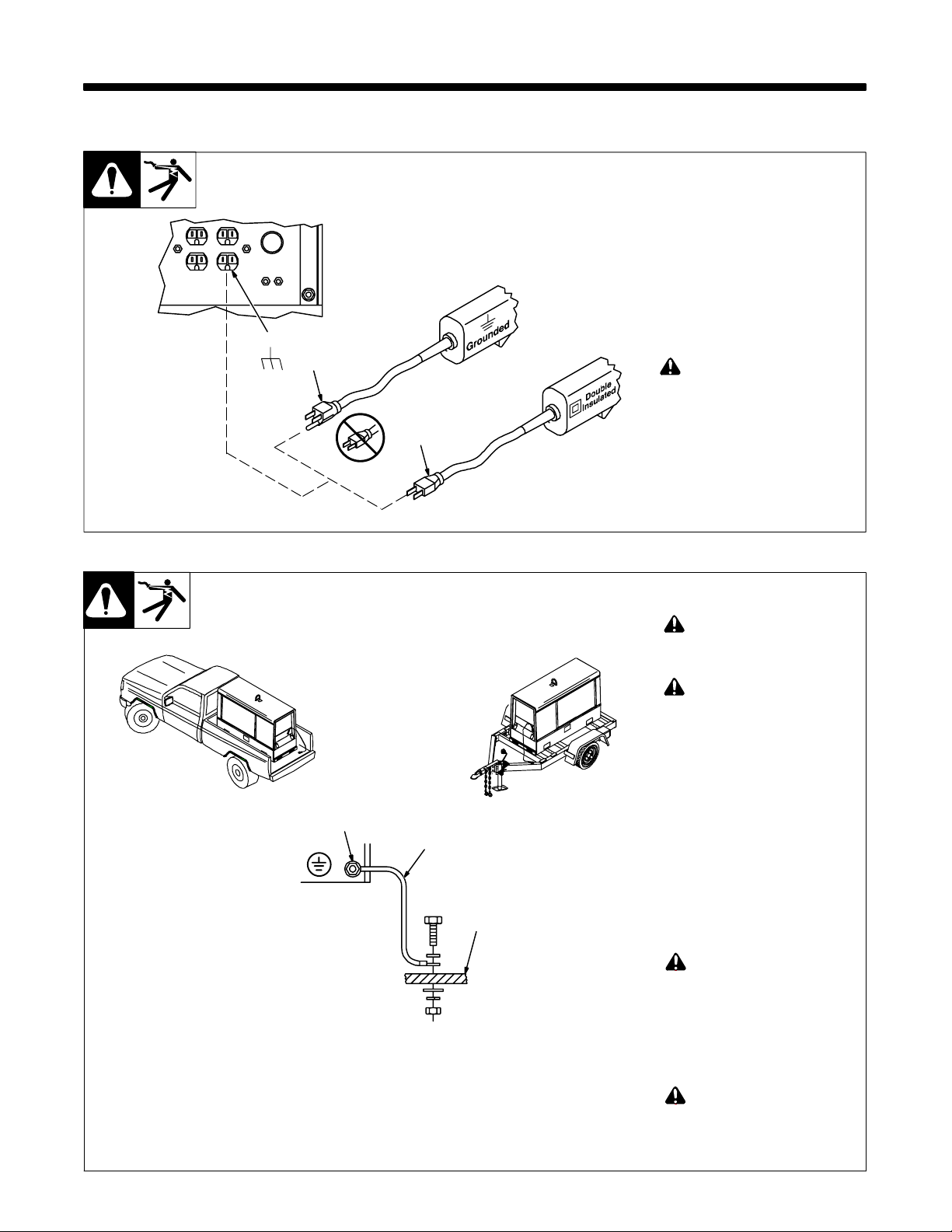

Grounding:

1 Equipment Grounding Terminal

(On Front Panel)
2 Grounding Cable (Not Supplied)
3 Metal Vehicle Frame

 Electrically bond generator

frame to vehicle frame by met-

al-to-metal contact.

Connect cable from equipment
ground terminal to metal vehicle
frame. Use #10 AWG or larger insu­lated copper wire.

! Bed liners, shipping skids,

and some running gears insu-

late the welding generator

from the vehicle frame. Al-

ways connect a ground wire

from the generator equipment

grounding terminal to bare

metal on the vehicle frame as

shown.

Grounding

GND/PE

1

2

3

install3 2007−04 − Ref. 800 652 / Ref. 800 477-A / 803 274 / 804 712

OM-4433 Page 19

5-2. Mounting Welding Generator

Supporting The Unit

Inadequate support.

! Do not use flexible mounts.

Using Mounting Brackets

! Do not weld on base. Weld-

ing on base can cause fuel
tank fire or explosion. Weld
only on the four mounting
brackets or bolt unit down.

NOTICE − Do not mount unit by
supporting the base only at the four
mounting brackets. Use cross-

2

OR

1

1

supports to adequately support unit
and prevent damage to base.

Mounting Surface:

1 Cross-Supports
2 Mounting Brackets (Supplied)
Mount unit on flat surface or use

cross-supports to support base.
Secure unit with mounting brack­ets.

3 1/2 in Bolt And Washer

(Minimum − Not Supplied)

4 3/8-16 x 1 in Screws

(Supplied)

To Bolt Unit In Place:

Remove hardware securing the
four mounting brackets to the base.
Reverse brackets and reattach to
base with original hardware.

Mount unit to truck or trailer with 1/2
in (12 mm) or larger hardware (not
supplied).

To Weld Unit In Place:

Weld unit to truck or trailer only at
the four mounting brackets.

Tools Needed:

9/16 in

2

Welding Unit In Place

Bolting Unit In Place

2

4

3

install3 2007−04 803 274 / 200 864-A / 803 562

OM-4433 Page 20

5-3. Installing Exhaust Pipe

! Stop engine and let cool.

 Point exhaust pipe in desired di-

rection but always away from front
panel and direction of travel.

Tools Needed:

1/2 in

Notes

803 582 / Ref. 217 357-A

Work like a Pro!

Pros weld and cut

safely. Read the

safety rules at
the beginning
of this manual.

OM-4433 Page 21

5-4. Activating The Dry Charge Battery (If Applicable)

3

2

1

4

! Always wear a face shield,

rubber gloves and protective
clothing when working on a
battery.

Remove battery from unit.
5 Vent Caps
6 Sulfuric Acid Electrolyte

(1.265 Specific Gravity)
7 Well
Fill each cell with electrolyte to

bottom of well (maximum).

! Do not overfill battery cells.

Wait ten minutes and check electro­lyte level. If necessary, add electro­lyte to raise to proper level. Reins­tall vent caps.

8 Battery Charger

! Read and follow all instruc-

tions supplied with battery

charger.

Charge battery for 12 minutes at 30
amperes or 30 minutes at 5 am­peres. Disconnect charging cables
and install battery.

 When electrolyte is low, add

only distilled water to cells to

maintain proper level.

5 A For 30 Minutes

Tools Needed:

30 A For 12 Minutes

5-5. Connecting The Battery

OR

+

−

drybatt1 6/05 − S-0886

 Close door after connecting battery.

! Connect Negative (−) Cable Last.

+

−

Tools Needed:

OM-4433 Page 22

1/2 in

803 563 / Ref. 217 357-A / S-0756-C

5-6. Engine Prestart Checks

Full

Diesel

Check radiator coolant

level when fluid is low in

recovery tank.

Full

Capacity:

6 qt (5.7 L)

Coolant Recovery Tank

Hot Full

Cold Full

Full

 Check all engine fluids daily.

Engine must be cold and on a level surface.
Unit is shipped with 20W break-in oil.

Automatic shutdown system stops engine if
oil pressure is too low or coolant tempera­ture is too high.

 This unit has a low oil pressure shut-

down switch. However, some condi­tions may cause engine damage before
the engine shuts down. Check oil level
often and do not use the oil pressure
shutdown system to monitor oil level.

Follow run-in procedure in engine manual.
If unburned fuel and oil collect in exhaust
pipe during run-in, see Section 10.

Fuel

NOTICE − Do not use gasoline. Gasoline
will damage engine.

The unit is shipped with enough fuel to pre­vent air from entering fuel system. Add fresh
diesel fuel before starting (see engine main­tenance label for fuel specifications). Leave
filler neck empty to allow room for
expansion.

Do not run out of fuel or air will enter fuel sys­tem and cause starting problems. See en­gine manual to bleed air from fuel system.

Oil

After fueling, check oil with unit on level sur­face. If oil is not up to full mark on dipstick,
add oil (see maintenance label).

Coolant

Check coolant level in radiator before start­ing unit the first time. If necessary, add cool­ant to radiator until coolant level is at bottom
of filler neck.

Check coolant level in recovery tank daily.
If necessary, add coolant to recovery tank
until coolant level is between Cold Full and
Hot Full levels. If recovery tank coolant level
was low, also check coolant level in radiator.
Add coolant if level is below bottom of radia­tor filler neck.

Unit is shipped with an engine coolant mix­ture of water and ethylene glycol base anti-

freeze rated to −34° F (−37° C). Add anti-

803 563

freeze to mixture if using the unit in tempera­tures below −34° F (−37° C).

Keep radiator and air intake clean and free
of dirt.

NOTICE − Incorrect engine temperature
can damage engine. Do not run engine with­out a properly working thermostat and ra­diator cap.

 To improve cold weather starting:

Use Preheat switch (see Section 6-1).

Keep battery in good condition. Store
battery in warm area.

Use fuel formulated for cold weather
(diesel fuel can gel in cold weather).
Contact local fuel supplier for fuel in­formation.

Use correct grade oil for cold weather
(see Section 8-2).

OM-4433 Page 23

5-7. Connecting To Weld Output Terminals

! Stop engine.

1 Work/Negative (−) Weld Output Terminal
2 CV (wire) Weld Output Terminal
3 CC (Stick/TIG) Weld Output Terminal

! Failure to properly connect weld

cables may cause excessive heat and
start a fire, or damage your machine.

4 Weld Output Terminal
5 Supplied Weld Output Terminal Nut
6 Weld Cable Terminal
7 Copper Bar
Remove supplied nut from weld output termi-

nal. Slide weld cable terminal onto weld output
terminal and secure with nut so that weld cable
terminal is tight against copper bar. Do not

place anything between weld cable termi­nal and copper bar. Make sure that the sur­faces of the weld cable terminal and cop­per bar are clean.

Stick and TIG Welding

For Stick and TIG welding Direct Current Elec­trode Positive (DCEP), connect electrode
holder cable to CC (Stick/TIG) terminal on
right and work cable to Work/Negative (−) ter­minal on left.

For Direct Current Electrode Negative
(DCEN), reverse cable connections.

Use Process/Contactor switch to select type
of weld output (see Section 6-3).

2

1

MIG and FCAW Welding

For MIG and FCAW welding Direct Current
Electrode Positive (DCEP) connect wire feed­er cable to CV (Wire) terminal on right and
work cable to Work/Negative (−) terminal on
left. Use Process/Contactor switch to select
type of weld output (see Section 6-3).

For Direct Current Electrode Negative
(DCEN), reverse cable connections.

3

Tools Needed:

3/4 in

7

4

5

6

Correct Installation

Do not place

anything between

weld cable terminal

and copper bar.

123

Incorrect Installation

803 562 / 803 778-A

OM-4433 Page 24

5-8. Selecting Weld Cable Sizes*

Terminals

Weld Output

Terminals

! Stop engine before

connecting to weld
output terminals.

! Do not use worn, dam-

aged, undersized, or
poorly spliced cables.

Welding

Amperes

100 4 (20) 4 (20) 4 (20) 3 (30) 2 (35) 1 (50) 1/0 (60) 1/0 (60)

150 3 (30) 3 (30) 2 (35) 1 (50) 1/0 (60) 2/0 (70) 3/0 (95) 3/0 (95)

200 3 (30) 2 (35) 1 (50) 1/0 (60) 2/0 (70) 3/0 (95) 4/0 (120) 4/0 (120)

100 ft (30 m) or Less

10 − 60%

Duty

Cycle

Weld Cable Size** and Total Cable (Copper) Length in Weld Circuit

Not Exceeding***

150 ft

(45 m)

200 ft

(60 m)

250 ft

(70 m)

300 ft

(90 m)

350 ft

(105 m)

60 − 100%

Duty

10 − 100% Duty Cycle

Cycle

400 ft

(120 m)

250 2 (35) 1 (50) 1/0 (60) 2/0 (70) 3/0 (95) 4/0 (120)

300 1 (50) 1/0 (60) 2/0 (70) 3/0 (95) 4/0 (120)

350 1/0 (60) 2/0 (70) 3/0 (95) 4/0 (120)

400 1/0 (60) 2/0 (70) 3/0 (95) 4/0 (120)

500 2/0 (70) 3/0 (95) 4/0 (120)

* This chart is a general guideline and may not suit all applications. If cables overheat, use next size larger cable.

**Weld cable size (AWG) is based on either a 4 volts or less drop or a current density of at least 300 circular mils per ampere.
( ) = mm2 for metric use S-0007-F

***For distances longer than those shown in this guide, call a factory applications representative at 920-735-4505.

2 ea. 2/0

(2x70)

2 ea. 2/0

(2x70)

2 ea. 2/0

(2x70)

2 ea. 3/0

(2x95)

2 ea. 2/0

(2x70)

2 ea. 3/0

(2x95)

2 ea. 3/0

(2x95)

2 ea. 4/0

(2x120)

2 ea. 2/0

(2x70)

2 ea. 3/0

(2x95)

2 ea. 3/0

(2x95)

2 ea. 4/0

(2x120)

3 ea. 3/0

(3x95)

2 ea. 2/0

(2x70)

2 ea. 3/0

(2x95)

2 ea. 4/0

(2x120)

2 ea. 4/0

(2x120)

3 ea. 3/0

(3x95)

Notes

OM-4433 Page 25

5-9. Connecting To Remote 14 Receptacle RC14

24 VOLTS AC

p)

OR

24 VOLTS AC

Socket* Socket Information

A 24 volts ac. Protected by sup-

plementary protector CB8.

B Contact closure to A completes

24 volt ac contactor control
circuit.

C Output to remote control:+10

volts dc in MIG mode; 0 to +10
volts dc in Stick or TIG mode.

LDR-14 long

distance remote

(includes 120 V

receptacle)

*The remaining sockets are not used.

803 562

REMOTE

D Remote control circuit common.

OUTPUT

CONTROL

115 VOLTS AC

GND

NEUTRAL G Circuit common for 24 and 115

E DC input command signal: 0 to

+10 volts from min. to max. of
remote control with Voltage/
Amperage Adjust control at
max.

115 volts, 10 amperes, 60 Hz
ac. Protected by supplementary

I

protector CB7.

Contact closure to I completes
115 volt ac contactor control

J

circuit.

Current feedback: 1 volt per

F

100 amperes.

H Voltage feedback: 1 volt per 10

arc volts.

K Chassis common.

volt ac circuit.

OM-4433 Page 26

Notes

Work like a Pro!

Pros weld and cut

safely. Read the

safety rules at
the beginning
of this manual.

Notes

Welding Symbols

Ref. AWS/ANSI A2.4

OM-4433 Page 27

SECTION 6 − OPERATING WELDING GENERATOR

6-1. Front Panel Controls (See Section 6-2)

6

78

910

1

2

54

3

OM-4433 Page 28

217 357-B / 803 563

6-2. Description Of Front Panel Controls (See Section 6-1)

Engine Starting Controls

1 Preheat Switch
Use switch to energize starting aid for cold

weather starting (see starting instructions fol­lowing).

2 Engine Control Switch
Use switch to start engine, select engine

speed (if unit has auto idle option), and stop
engine.

In Run position, engine runs at weld/power
speed. In Auto position (optional), engine
runs at idle speed at no load and weld speed
with load applied.

3 Engine Stop Lever
Use lever to stop engine if Engine Control

switch does not work.

 The Engine Stop lever shuts off the fuel

supply. However, the Engine Stop lever
will not stop the engine if the engine can
draw fuel-rich air from the surrounding
atmosphere (oil refineries).

To Start:

NOTICE − Do not use ether.

 If engine does not start, let engine come

to a complete stop before attempting re­start.

Above 325 F (05 C): turn Engine Control
switch to Start. Release Engine Control
switch when engine starts.

Below 325 F (05 C): turn engine control switch
to Auto position. Push Preheat switch up for
60 seconds. Turn Engine Control switch to
Start. Release Engine Control switch and
Preheat switch when engine starts.

To Stop: turn Engine Control switch to Off
position.

Engine Gauges, Meters, And Lights

4 Fuel Gauge/Hourmeter
Use gauge to check fuel level or total engine

operating hours.
To check fuel level or engine hours when en-

gine is not running, turn Engine Control switch
to Run or Auto (optional) position.

5 Engine Indicator Light
Light goes on and engine stops if engine tem-

perature exceeds 230° F (110° C) or engine
oil pressure is below 10 psi (69 kPa).

 Normal engine temperature is 180 - 203

F (82 - 95 C). Normal oil pressure is 30

- 60 psi (207 - 414 kPa).

NOTICE − Do not run engine until trouble is
fixed.

Weld Controls

6 Remote Control Receptacle
Use receptacle to connect remote controls,

wire feeders, and tools.
When a remote control is connected to the

Remote receptacle, the Auto Sense Remote
feature automatically switches voltage/am­perage control to the remote control (see Sec­tion 5-9).

With remote control connected, weld output is
determined by a combination of front panel
and remote control voltage/amperage set­tings.

If no remote control is connected to the Re­mote receptacle, the front panel Voltage/Am­perage control adjusts voltage and amper­age.

 If a remote device connected to Remote

Receptacle RC14 is faulty or is discon­nected, the meters display Help 25 (see
Section 8-11). Clear fault by stopping and
restarting the unit or by turning Process/
Contactor switch to another position.

7 Process/Contactor Switch
See Section 6-3 for Process/Contactor

switch information.
8 Voltage/Amperage Control
With Process/Contactor switch in any Stick or

TIG setting, use control to adjust amperage.
With Process/Contactor switch in any Wire
(MIG) position, use control to adjust voltage.
With Voltage/Amperage Adjust Switch in Re­mote position, control limits the remote am­perage in Stick or TIG mode, but has no effect
in Wire (MIG) modes.

Weld Meters

 Weld meters also work in combination to

display troubleshooting help codes (see
Section 8-11).

9 DC Voltmeter
Voltmeter displays preset voltage (MIG weld-

ing) with contactor off, and actual output volt­age with the contactor on. Voltmeter displays
voltage at the weld output terminals, but not
necessarily the welding arc due to resistance
of cable and connections.

To set voltage, turn contactor off and turn Pro­cess/Contactor switch to Wire position. Turn
V/A control until desired voltage is displayed
on Voltmeter. When welding is finished, volt­meter displays weld voltage and then defaults
to preset voltage.

10 DC Ammeter
Ammeter displays preset amperage (Stick

and TIG only) when not welding, and actual
output amperage when welding.

To set amperage, turn Process/Contactor
switch to Stick or TIG position. Turn V/A con­trol until desired amperage is displayed on
Ammeter. When welding is finished, ammeter
displays weld amperage and then defaults to
preset amperage.

OM-4433 Page 29

6-3. Process/Contactor Switch

1

1 Process/Contactor Switch

! Weld output terminals are ener-

gized when Process/Contactor
switch is in a Weld Terminals Al­ways On position and the engine
is running.

Use switch to select weld process and
weld output on/off control (see table be­low).

Place switch in Remote On/Off Switch
Required positions to turn weld output on
and off with a device connected to the
Remote 14 receptacle.

Place switch in Weld Terminals Always
On positions for weld output to be on
whenever the engine is running.

Use Stick mode for air carbon arc
(CAC-A) cutting and gouging.

When switch is in Stick mode, select one
of four arc drive (dig) settings to provide
additional amperage during low voltage
(short arc length) conditions and prevent
“sticking” electrodes. Turn control from A
to D to increase arc drive (dig) from min
to max.

Use the Lift-Arc TIG mode for TIG
(GTAW) welding using the Lift-Arc TIG
starting procedure (see Section 6-4).

Process/Contactor Switch Settings

Switch Setting Process Output On/Off Control Engine Auto Idle (Optional)

Remote On/Off Switch Re-

quired −TIG HF Required Or

Scratch Start

Remote On/Off Switch

Required − Stick

Remote On/Off Switch
Required − CV Feeder

Using Remote

Weld Terminals Always On −

Wire

Weld Terminals Always On −

Stick

Weld Terminals Always On −

TIG Lift-Arc

GTAW With HF Unit, Pulsing

Device, Or Remote Control

Stick (SMAW) With Remote On/Off At Remote 14 Receptacle Active

MIG (GMAW)

w/Constant Speed Feeder

MIG (GMAW)

w/Voltage Sensing Feeder

Stick (SMAW),

Air Carbon Arc (CAC-A) Cutting

And Gouging

TIG Lift-Arc (GTAW) Electrode Hot Active

At Remote 14 Receptacle Active

At Remote 14 Receptacle Active

Electrode Hot Active

Electrode Hot Active

803 562 / 217 357

OM-4433 Page 30

6-4. Lift-Arc™ Start Procedure

Lift-Arc Start Method

“Touch”

Do NOT Strike Like A Match!

1

1 − 2

Seconds

Lift-Arc  TIG

With Lift-Arc TIG selected, start
arc as follows:

1 TIG Electrode
2 Workpiece

2

Turn gas on. Touch tungsten
electrode to workpiece at weld start
point. Hold electrode to
workpiece for 1-2 seconds, and
slowly lift electrode. Arc is formed
when electrode is lifted.

Normal open-circuit voltage is not
present before tungsten electrode
touches workpiece; only a low
sensing voltage is present between
electrode and workpiece. The
solid-state output contactor does
not energize until after electrode is
touching workpiece. This allows
electrode to touch workpiece
without overheating, sticking, or be­ing contaminated.

Application:

Lift-Arc is used for the DCEN
GTAW process when HF Start
method is not permitted, or to
replace the scratch method.

Notes

Work like a Pro!

Pros weld and cut

safely. Read the

safety rules at
the beginning
of this manual.

OM-4433 Page 31

6-5. Remote Voltage/Amperage Control

1

1 Remote 14 Receptacle RC14
Connect optional remote control to RC14 (see

Section 5-9).

 When a remote control is connected to the

Remote receptacle, the Auto Sense Re­mote feature automatically switches volt­age/amperage control to the remote con­trol. When a device is connected to the Re­mote receptacle, remote voltage/amper­age control is always available regardless
of the position of the Process/Contactor
switch.

In Example:

Min = 20 A DC

Max = 205 A DC

Connect Remote

Control To Remote

Receptacle RC14

Set TIG or STICK Process

Adjust Optional Remote

Control to 100%

Set V/A Control

To Desired Maximum

Weld Output Using Weld

Meters

Max (205 A DC)

Min (20 A DC)

Adjust Optional Remote

Control to desired

weld output

Connect Remote

Control To Remote

Receptacle RC14

OM-4433 Page 32

Set WIRE Process

Adjust Optional Remote

Control to desired

weld output

Weld meters will always
show the combined main
and remote control setting
and machine welds at
nominal output setting of
the meter.

Weld meters show preset
output when not welding.

0774 / Ref.217 357−B / 803 562

SECTION 7 − OPERATING AUXILIARY EQUIPMENT

7-1. Generator Power Receptacles

1 2

3456

1 120 V 20 A AC (shown)

Receptacle RC5 and/or GFCI1

2 120 V 20 A AC GFCI (shown)

Receptacle RC6 and/or GFCI2

3 240 V 50 A AC

Receptacle RC11

RC5 / 6 and GFCI1 / 2 supply 60 Hz single­phase power at weld/power speed. Recep­tacle configuration varies depending on
machine model and serial number.

Maximum output from these receptacles is

2.4 kVA/kW.
If a ground fault is detected, GFCI Reset

button pops out and receptacle does not
work. Check for faulty equipment plugged
in receptacle. Press button to reset GFCI
receptacle.

 At least once a month, run engine at

weld/power speed and press test but­ton to verify GFCI is working properly.

RC11 supplies 60 Hz single-phase power
at weld/power speed. Maximum output
from RC11 is 10 kVA/kW.

4 Supplementary Protector CB4
5 Supplementary Protector CB6
6 Supplementary Protector CB5
CB4 protects RC6 / GFCI2 and CB6 pro-

tects RC5 / GFCI1 from overload. If a sup­plementary protector opens, the receptacle
does not work. Press button to reset.

Supplementary protector CB5 protects re­ceptacles and the generator winding from

217 357-A

overload. If CB5 opens, the receptacles do
not work. Place CB5 switch in On position
to reset circuit breaker.

 If a supplementary protector continues

to open, contact Factory Authorized
Service Agent.

 Generator power decreases as weld

output increases.

Combined output of all receptacles is limit­ed to the 10 kVA/kw rating of the generator.

EXAMPLE: If 15 A is drawn from each 120
V receptacle , only 26 A is available at the
240 V receptacle:

2 x (120 V x 15 A) + (240 V x 26 A) =

10.0 kVA/kW

OM-4433 Page 33

SECTION 8 − MAINTENANCE & TROUBLESHOOTING

8-1. Routine Maintenance

! Stop engine before maintaining.

Recycle engine

fluids.

 See Engine Manual and Maintenance Label

for important start-up, service, and storage
information. Service engine more often if
used in severe conditions.

Every

8

Hours

Every

50

Hours

Every

100

Hours

Every

250

Hours

Every

500

Hours

 = Check  = Change  = Clean  = Replace
* To be done by Factory Authorized Service Agent

 Coolant Level  Fuel Level  Oil Level  Oil, Fuel Spills

 Weld Terminals

 Battery Terminals  Air Cleaner Hoses  Air Cleaner Element

1/2 in.

(13 mm)

 Unreadable Labels  Fan Belt Tension  Oil  Oil Filter  Spark Arrestor

Reference

Section 5-6,
8-8

Section 8-3

Engine
Manual,
Section 8-4

 Weld Cables  Fuel Filter  Inline Fuel Filter  Radiator Thermostat

Every

1000

Hours

 Radiator Fluid Level  Inside Unit  Valve Clearance*  Drain Sludge

 Slip Rings*
 Brushes*

Every

2000

Hours

 Injectors*

OM-4433 Page 34

OR

SLUDGE

FUEL

Section 5-6,
8-10, 8-8
and Engine
Manual

8-2. Maintenance Label

OM-4433 Page 35

8-3. Servicing Air Cleaner

Keep nozzle

2 in (51 mm)

from element.

Blow Inspect

Optional

! Stop engine.

NOTICE − Do not run engine without air
cleaner or with dirty element. Engine

2

41 3

damage caused by using a damaged ele­ment is not covered by the warranty.

 The air cleaner primary element can

be cleaned but the dirt holding capac­ity of the filter is reduced with each
cleaning. The chance of dirt reaching
the clean side of the filter while clean­ing and the possibility of filter damage
makes cleaning a risk. Consider the
risk of unwarrantable equipment

5

damage when determining whether
to clean or replace the primary ele­ment.

If you decide to clean the primary ele­ment, we strongly recommend instal­ling an optional safety element to pro­vide additional engine protection.
Never clean a safety element. Re­place the safety element after servic­ing the primary element three times.

Clean or replace primary element if dirty
(see note above before cleaning). Re-
place primary element if damaged. Re­place primary element yearly or after six
cleanings.

1 Housing
2 Safety Element (Optional)
3 Primary Element
4 Dust Cap
5 Dust Ejector

To clean air filter:

Wipe off cap and housing. Remove cap
and dump out dust. Remove element(s).
Wipe dust from inside cap and housing
with damp cloth. Reinstall safety element
(if present). Reinstall cap.

NOTICE − Do not clean housing with air
hose.

Clean primary element with compressed
air only.

Air pressure must not exceed 100 psi
(690 kPa). Use 1/8 in (3 mm) nozzle and
keep nozzle at least 2 in (51 mm) from
inside of element. Replace primary ele­ment if it has holes or damaged gaskets.

Reinstall primary element and cap (dust
ejector down).

OM-4433 Page 36

aircleaner1 2/01− ST-153 929-B / ST-153 585 / Ref. S-0698-B / Ref. 217 357-A

8-4. Inspecting And Cleaning Optional Spark Arrestor Muffler

Tools Needed:

3/8 in

! Stop engine and let cool.

1 Spark Arrestor Muffler
2 Cleanout Plug
Remove plug and remove any dirt

covering cleanout hole.
3 Exhaust Pipe
Start engine and run at idle speed to

blow out cleanout hole. If nothing
blows out of hole, briefly cover end
of exhaust pipe with fireproof
material.

! Stop engine and let cool.

3

1

2

Reinstall cleanout plug.

8-5. Servicing Engine Cooling System

803 582 / Ref. 214 778-B

! Stop engine and let cool.

1 Radiator Draincock
2 Radiator Cap Cover

2

Change coolant according to engine
manual. Add coolant according to Sec­tion 5-6).

Run engine until engine reaches normal
operating temperature. Check coolant
level in recovery tank. Add coolant if nec­essary.

After engine cools, check coolant level
again and add coolant if necessary.

1

803 563

OM-4433 Page 37

8-6. Adjusting Engine Speed On Standard Models

Engine Speed

(No Load)

Weld/Power

RPM (Hz)

1880 (61.7)

Maximum

3

! Stop engine and let cool.

Engine speed is factory set and
should not require adjustment. Af­ter tuning engine, check engine
speed with tachometer or frequen­cy meter. See table for proper no
load speed. If necessary, adjust
speed as follows:

Start engine and run until warm.
Turn Process/Contactor switch to

Weld Terminals Always On − Stick
position.

1 Lock Nut
2 Adjustment Screw
Loosen nut. Turn screw until engine

runs at weld/power speed. Tighten
nut.

 Do not set engine speed higher

than specified. Tampering with
adjustments other than shown
may affect engine warranty

3 Engine Stop Lever

! Stop engine.

Close door.

2

1

OM-4433 Page 38

Tools Needed:

803 563-E

8-7. Adjusting Engine Speed On Models With Automatic Idle (Optional)

Engine Speed

(No Load)

1880 rpm max
(62.6 Hz)

1500 rpm
(50 Hz)

Engine Speed Adjustment

After tuning engine, check en­gine speed with tachometer or
frequency meter. See table for
proper no load speed. If neces­sary, adjust speed as follows:

Start engine and run until warm.
Turn Process/Contactor switch

to Stick − Weld Terminals Al­ways On position.

1 Throttle Rod / Plunger
2 Lock Nut
3 Rubber Boot
4 Adjustment Screw
Adjustment screw is not used to

adjust engine speed when auto­matic idle option is installed.
However, it must be at least 1/8
in (3 mm) away from the throttle
arm when engine is running at
idle rpm.

Unhook rubber boot from the so­lenoid housing but leave con­nected to plunger.

Loosen lock nut. Place Engine
Control Switch in Auto position.

Turn throttle rod and plunger un­til engine runs at idle speed.
Tighten lock nut.

Hook rubber boot back onto so­lenoid housing.

 Be sure solenoid plunger

pulls all the way in (“bot­toms”) when energized.

Weld/Power Speed
Adjustment

 Weld/power speed adjust-

ment must be done by the
engine manufacturer’s fac­tory authorized service
agent.
Tampering with adjustments

1

other than shown may affect
engine warranty.

! Stop engine.

4

 To prevent solenoid

damage, be sure a 1/8
in (3 mm) gap exists be­tween the engine low
speed screw and
throttle lever when the
solenoid is held in the

2

3

energized position.

803 563-G

OM-4433 Page 39

8-8. Servicing Fuel And Lubrication Systems

6

4

5

2

3

! Stop engine and let cool.
! After servicing, start engine

and check for fuel leaks.
Stop engine, tighten connec­tions as necessary, and wipe
up spilled fuel.

1 Oil Filter
2 Oil Drain Valve And Hose
3 Oil Fill Cap
4 Primary (Canister) Fuel Filter

5 Secondary (In-Line) Fuel

Filter

6 Fuel Tank Sludge Drain Valve

To change oil and filter:

Route oil drain hose and valve
through hole in base. See engine
manual and engine maintenance
label for oil/filter change in­formation.

To replace primary (canister) fuel
filter:

Turn filter counterclockwise. Re­move filter.

Fill new filter with fresh fuel. Apply
thin coat of fuel to gasket on new fil­ter. Install new filter and turn clock­wise.

Inspect fuel lines, and replace if
cracked or worn.

To drain water from fuel system:

See engine manual.

To replace secondary (in-line)
fuel filter:

Note direction of fuel flow as indi­cated by arrow on side of filter. Re­move fuel line clamps and discon­nect fuel lines from fuel filter. Re­place filter, reconnect fuel lines, and
reinstall clamps.

To drain sludge from fuel tank:

! Beware of fire. Do not smoke

and keep sparks and flames
away from drained fuel. Dis­pose of drained fuel in an en­vironmentally-safe manner.
Do not leave unit unattended
while draining fuel tank.

! Properly lift unit and secure

in a level position. Use ade­quate blocks or stands to
support unit while draining
fuel tank.

Attach 1/2 ID hose to drain valve.
Put metal container under drain,
and use screwdriver to open
sludge drain valve. Close valve
when sludge has drained. Remove
hose.

Close door.

Tools Needed:

OM-4433 Page 40

1

802 490 / Ref. 801 434

8-9. Overload Protection

3

7

4

! Stop engine.

 When a circuit breaker, supple-

mentary protector, or fuse
opens, it usually indicates a
more serious problem exists.
Contact Factory Authorized
Service Agent.

1 Fuse F1
F1 protects the stator exciter wind-

ing from overload. If F1 opens, weld
and generator power is low or stops
entirely.

2 Circuit Breaker CB1 (Not

Shown)
3 Supplementary Protector CB2
4 Supplementary Protector CB3

5 Supplementary Protector CB7
6 Supplementary Protector CB8
7 Circuit Breaker CB9
CB1 protects the engine battery cir-

cuit. If CB1 opens, the engine will not

1

crank. CB1 automatically resets
when the fault is corrected.

CB2 protects the engine wiring har­ness. If CB2 opens, the engine will
not crank.

CB3 protects part of the weld control
wiring harness. If CB3 opens, weld
and generator power output stops.

CB7 protects the 115 volt ac output
to remote receptacle RC14. If CB7
opens, 115 volt output to RC14
stops.

CB8 protects the 24 volt ac output to
remote receptacle RC14. If CB8
opens, 24 volt output to RC14 stops.

Press button to reset supplementary
protector.

CB9 protects the throttle solenoid
against overload. If CB9 opens, the
engine does not automatically idle
down. Check the linkage and sole­noid. CB9 automatically resets.

5

6

803 562 / 803 566

OM-4433 Page 41

8-10. Checking Generator Brushes

Damaged Brushes

5/16 in. (8 mm)

Minimum Length

Replace

9/16 in. (14.3 mm)

New Length

1

! Stop engine and let cool.

1 Generator Brush With Spring
Mark and disconnect leads at brush hold-

er cap. Remove brushes.
Replace brushes if damaged or if brush

material is at or near minimum length.

Ref 2114 778−D / S−0233−A

Notes

MATERIAL THICKNESS REFERENCE CHART

24 Gauge (.025 in)
22 Gauge (.031 in)
20 Gauge (.037 in)

18 Gauge (.050 in)
16 Gauge (.063 in)
14 Gauge (.078 in)

1/8 in (.125 in)

3/16 in (.188 in)

1/4 in (.25 in)

5/16 in (.313 in)

3/8 in (.375 in)

OM-4433 Page 42

1/2 in (.5 in)

8-11. Voltmeter/Ammeter Help Displays

1

HL.P

2

HL.P

3

HL.P

4

HL.P

5

HL.P

6

HL.P

20

21

22

23

24

25

Use the Voltmeter/Ammeter help
displays to diagnose and correct
fault conditions.

 When a help code is displayed

normally weld output has
stopped but generator power
output may be okay.

 To reset help displays, stop

unit and then restart. See item
6 below to reset Help 25 dis­play.

1 Help 20 Display
Indicates a failure of meter display

module PC2, or the wiring between
PC2 and main control module PC1.
If this display is shown, have Facto­ry Authorized Service Agent check
PC1, PC2, and the wiring between
PC1 and PC2.

2 Help 21 Display
Indicates thermistor TH1 on the

main rectifier heat sink has failed.
If this display is shown, have Facto­ry Authorized Service Agent check
TH1, and the wiring between TH1
and PC1.

3 Help 22 Display
Indicates the rectifier heat sink has

overheated. If this display is shown,
check generator cooling system
and/or reduce duty cycle. Keep en­gine access door closed when run­ning to maintain proper cooling air
flow past rectifier. Allow unit to cool
before restarting. If problem contin­ues, have Factory Authorized Ser­vice Agent check unit.

4 Help 23 Display
Indicates one of the rectifier output

SCR’s has failed. If this display is
shown, have Factory Authorized
Service Agent check the rectifier
SCR’s.

5 Help 24 Display
Indicates weld open circuit voltage

(OCV) is too high (above 41 volts
dc). If this display is shown, have
Factory Authorized Service Agent
check main control module PC1.

6 Help 25 Display
Indicates a remote device con-

nected to Remote Receptacle
RC14 may be faulty. Help 25 is also
displayed whenever a remote de­vice has been connected to RC14
and then disconnected. Clear fault
by stopping and restarting the unit
or by turning Process/Contactor
switch to another position. If prob­lem continues, have Factory Autho­rized Service Agent check the re­mote device, filter board PC6, and
main control module PC1.

803 562 / 217 357-A

OM-4433 Page 43

8-12. Troubleshooting

 Also see Voltmeter/Ammeter help displays to assist in troubleshooting weld problems (see Section 8-11).

A. Welding

Trouble Remedy

No weld output; generator power output
okay at ac receptacles.

No weld output, or generator power out­put at ac receptacles.

Erratic weld output. Check and tighten connections inside and outside unit.

Place Process/Contactor switch in a Weld Terminals Always On position, or place switch in a Remote
On/Off Switch Required position and turn remote contactor on (see Section 5-9).

Reset supplementary protector CB7 or CB8 (see Section 8-9). Check for faulty remote device connected
to RC14.

Check and secure connections to Remote Control receptacle RC14 (see Section 5-9).

Check Voltmeter/Ammeter help displays (see Section 8-11).

Disconnect equipment from generator power receptacles during start-up.

Reset supplementary protector CB3. (see Section 8-9).

Check fuse F1, and replace if open (see Section 8-9). If F1 is open, have Factory Authorized Service
Agent check the voltage regulator module PC3.

Check Voltmeter/Ammeter help displays (see Section 8-11).

Have Factory Authorized Service Agent check brushes and slip rings, voltage regulator module PC3, and
field excitation circuit.

Be sure connection to work piece is clean and tight.

Use dry, properly stored electrodes.

Remove excessive coils from weld cables.

Have Factory Authorized Service Agent check brushes and slip rings.

High weld output. Have Factory Authorized Service Agent check main control module PC1 and hall device HD1.

Low weld output. Check engine speed, and adjust if necessary.

Check fuse F1, and replace if open (see Section 8-9). If F1 is open, have Factory Authorized Service
Agent check the rotor.

Low open-circuit voltage. Check engine speed, and adjust if necessary.

Have Factory Authorized Service Agent check main control module PC1, voltage regulator module PC3,
and main rectifier.

No remote fine amperage control. Repair or replace remote control device.

Check and secure connections to Remote Amperage Adjust receptacle RC14 (see Section 5-9).

No 24 volt or 115 volt ac output at Re­mote receptacle RC14.

OM-4433 Page 44

Reset supplementary protector CB7 (24 volt) or CB8 (115 volt) (see Section 8-9).

B. Generator Power

Trouble Remedy

No generator power output at ac recep­tacles; weld output okay.

No generator power or weld output. Disconnect equipment from generator power receptacles during start-up.

High output at generator power ac re­ceptacles.

Low output at generator power ac recep­tacles.

Reset receptacle supplementary protector(s) (see Section 7-1).

Check fuse F1, and replace if open (see Section 8-9). Have Factory Authorized Service Agent check vol­tage regulator module PC3.

Reset supplementary protector CB3 (see Section 8-9).

Check Voltmeter/Ammeter help displays (see Section 8-11).

Have Factory Authorized Service Agent check brushes and slip rings, and field excitation circuit.
Have Factory Authorized Service Agent check voltage regulator module PC3.

Check engine speed, and adjust if necessary.

Check fuse F1, and replace if open (see Section 8-9). If F1 is open, have Factory Authorized Service
Agent check the rotor.

C. Engine

Trouble Remedy

Engine will not crank. Check battery, and replace if necessary.

Check battery connections and tighten if necessary.

Circuit breaker CB1 may be open. CB1 automatically resets when fault is corrected (see Section 8-9).
Have Factory Authorized Service Agent check engine wiring harness and components.

Reset supplementary protector CB2 (see Section 8-9).

Check engine wiring harness plug connections.

Have Factory Authorized Service Agent check Engine Control switch S1, and control relay CR2.

Engine cranks but does not start. Check fuel level.

Check battery and replace if necessary. Check engine charging system according to engine manual.

Have Factory Authorized Service Agent check control relay CR1, fuel solenoid FS1, and the fuel
pump.

Air in fuel system. See engine manual.

Engine hard to start in cold weather. Use Preheat switch (see Section 6-1).

Keep battery in good condition. Store battery in warm area off cold surface.

Use fuel formulated for cold weather (diesel fuel can gel in cold weather). Contact local fuel supplier for
fuel information.

Use correct grade oil for cold weather (see Section 8-2).

Have Factory Authorized Service Agent check Preheat switch S4, control relay CR3, and the glow
plug.

Engine suddenly stops. Check oil and coolant levels. Automatic shutdown system stops engine if oil pressure is too low or coolant

temperature is too high (see Section 5-6 ).

Circuit breaker CB1 may be open. CB1 automatically resets when fault is corrected (see Section 8-9).
Reset supplementary protector CB2 (see Section 8-9). Have Factory Authorized Service Agent check
engine alternator, engine harness, throttle solenoid TS1, fuel solenoid FS1, and the fuel pump.

Have Factory Authorized Service Agent check Engine Control switch S1, control relay CR1, inte­grated rectifier SR2, fuel solenoid FS1, and the fuel pump.

See engine manual.

OM-4433 Page 45

Trouble Remedy

Engine slowly stopped and cannot be
restarted.

Battery discharges between uses. Turn Engine Control switch off when unit is not running.

Engine idles, but does not come up to
weld speed (units with idle option only).

Engine does not run at idle speed
(units with idle option only).

Engine uses oil during run-in period;
wetstacking occurs.

Check fuel level.

Check engine air and fuel filters (see Sections 8-3 and 8-8).

See engine manual.

Clean top of battery with baking soda and water solution; rinse with clear water.

Recharge or replace battery if necessary.

Periodically recharge battery (approximately every 3 months).

Have Factory Authorized Service Agent check idle module PC5 and current transformer CT1.

Check for obstructed throttle solenoid.

Check for obstructed throttle solenoid.

Circuit breaker CB9 may be open. CB9 automatically resets when fault is corrected (see Section 8-9).

Have Factory Authorized Service Agent check idle module PC5, and control relay CR4.

Dry engine according to run-in procedure (see Section 10).

Notes

OM-4433 Page 46

Notes

MATERIAL THICKNESS REFERENCE CHART

24 Gauge (.025 in)
22 Gauge (.031 in)
20 Gauge (.037 in)

18 Gauge (.050 in)
16 Gauge (.063 in)
14 Gauge (.078 in)

1/8 in (.125 in)

3/16 in (.188 in)

1/4 in (.25 in)

5/16 in (.313 in)

3/8 in (.375 in)

1/2 in (.5 in)

OM-4433 Page 47

SECTION 9 − ELECTRICAL DIAGRAMS

OM-4433 Page 48

Figure 9-1. Circuit Diagram For Welding Generator

OM-4433 Page 49

219 228−E

10-1. Wetstacking

1

SECTION 10 − RUN-IN PROCEDURE

NOTICE − Do not perform run-in
procedure at less than 20 volts
weld output and do not exceed duty
cycle or equipment damage may
occur.

1 Welding Generator

2

Run diesel engines near rated volt­age and current during run-in period
to properly seat piston rings and
prevent wetstacking. See name­plate, rating label, or specifications
section in this manual to find rated
voltage and current.

NOTICE − Do not idle engine longer
than necessary. Piston rings seat
faster if engine runs at weld/power
rpm, and the welding generator is
kept loaded during run-in.

2 Engine Exhaust Pipe
Wetstacking is unburned fuel and

oil in the exhaust pipe and occurs
during run-in if the engine is run too
long at light load or idle rpm.

If exhaust pipe is coated with a wet,
black, tar-like substance, dry the
engine using one of the following
run-in procedures.

See the engine manual for addition­al engine run-in information.

run_in1 2007−04

OM-4433 Page 50

10-2. Run-In Procedure Using Load Bank

4

2

3

! Stop engine.
! Do not touch hot exhaust

pipe, engine parts, or load
bank/grid.

! Keep exhaust and pipe away

from flammables.

NOTICE − Do not perform run-in
procedure at less than 20 volts weld

1

output and do not exceed duty
cycle or equipment damage may
occur.

1 Load Bank
Turn all load bank switches Off. If

needed, connect load bank to 115
volts ac wall receptacle or genera­tor auxiliary power receptacle.

2 Welding Generator
Place A/V range switch in maxi-

mum position, A/V control in mini­mum position, and Output Selector
switch (if present) in either DC
position.

3 Weld Cables
Connect load bank to generator

weld output terminals using proper
size weld cables with correct
connectors. Observe correct
polarity.

Start engine and run for several
minutes.

Set load bank switches and then
adjust generator A/V control so
load equals rated voltage and
current of generator (see name­plate, rating label, or the specifi­cations section in this manual).

Check generator and load bank
meters after first five minutes then
every fifteen minutes to be sure
generator is loaded properly.

NOTICE − Check oil level frequent-
ly during run-in; add oil if needed.

It is recommended to run the weld­ing generator for two hours mini­mum and up to four hours under
load. Place A/V control in minimum
position, then turn off load bank to
remove load. Run engine several
minutes at no load.

! Stop engine and let cool.

4 Engine Exhaust Pipe
Repeat procedure if wetstacking is

present.

S-0683

OM-4433 Page 51

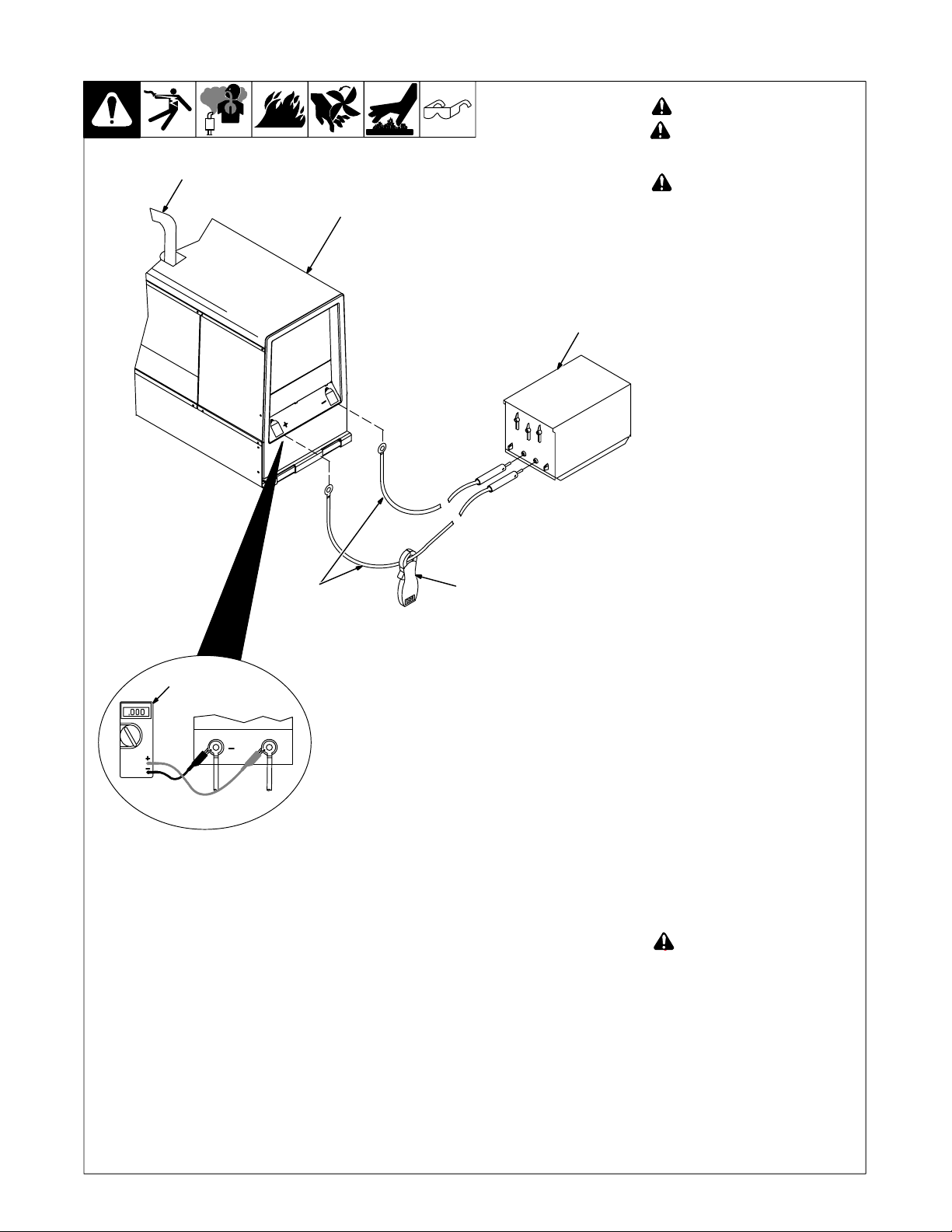

10-3. Run-In Procedure Using Resistance Grid

6

2

3

4

+

5

! Stop engine.
! Do not touch hot exhaust

pipe, engine parts, or load
bank/grid.

! Keep exhaust and pipe away

from flammables.

NOTICE − Do not perform run-in
procedure at less than 20 volts weld
output and do not exceed duty
cycle or equipment damage may
occur.

1 Resistance Grid

1

Use grid sized for generator rated
output.

Turn Off grid.
2 Welding Generator

Place A/V range switch in maxi­mum position, A/V control in mini­mum position, and Output Selector
switch (if present) in either DC
position.

3 Weld Cables
Connect grid to generator weld

output terminals using proper size
weld cables with correct connec­tors (polarity is not important).

4 Voltmeter
5 Clamp-On Ammeter
Connect voltmeter and ammeter as

shown, if not provided on generator.
Start engine and run for several

minutes.

Set grid switches and then ad­just generator A/V control so
load equals rated voltage and
current of the generator (see
nameplate, rating label, or the
specifications section in this
manual).

Check generator and meters after
first five minutes then every fifteen
minutes to be sure generator is
loaded properly.

NOTICE − Check oil level frequent-
ly during run-in; add oil if needed.

It is recommended to run the weld­ing generator for two hours mini­mum and up to four hours under
load. Place A/V control in minimum
position, then shut down grid to
remove load. Run engine several
minutes at no load.

! Stop engine and let cool.

6 Engine Exhaust Pipe
Repeat procedure if wetstacking is

present.

OM-4433 Page 52

S-0684

SECTION 11 − GENERATOR POWER GUIDELINES

 The views in this section are intended to be representative of all engine-driven welding generators. Your unit may differ from those shown.

11-1. Selecting Equipment

1 Generator Power Receptacles

− Neutral Bonded To Frame

2 3-Prong Plug From Case

Grounded Equipment

3 2-Prong Plug From Double

Insulated Equipment

 Be sure equipment has double

1

2

3

OR

insulated symbol and/or word­ing on it.

! Do not use 2-prong plug un-

less equipment is double in­sulated.

gen_pwr 2007−04 − Ref. ST-159 730 / ST-800 577

11-2. Grounding Generator To Truck Or Trailer Frame

1

GND/PE

2

3

! Always ground generator

frame to vehicle frame to pre­vent electric shock and static
electricity hazards.

! Also see AWS Safety &

Health Fact Sheet No. 29,
Grounding of Portable And
Vehicle Mounted Welding
Generators.

1 Equipment Grounding

Terminal (On Front Panel)

2 Grounding Cable (Not

Supplied)
3 Metal Vehicle Frame
Connect cable from equipment

ground terminal to metal vehicle
frame. Use #10 AWG or larger
insulated copper wire.

 Electrically bond generator

frame to vehicle frame by met-

al-to-metal contact.

! Bed liners, shipping skids,

and some running gear insu-

late the welding generator

from the vehicle frame. Al-

ways connect a ground wire

from the generator equip-

ment grounding terminal to

bare metal on the vehicle

frame as shown.

! If unit does not have GFCI re-

ceptacles, use GFCI-pro-

tected extension cord.

S-0854

OM-4433 Page 53

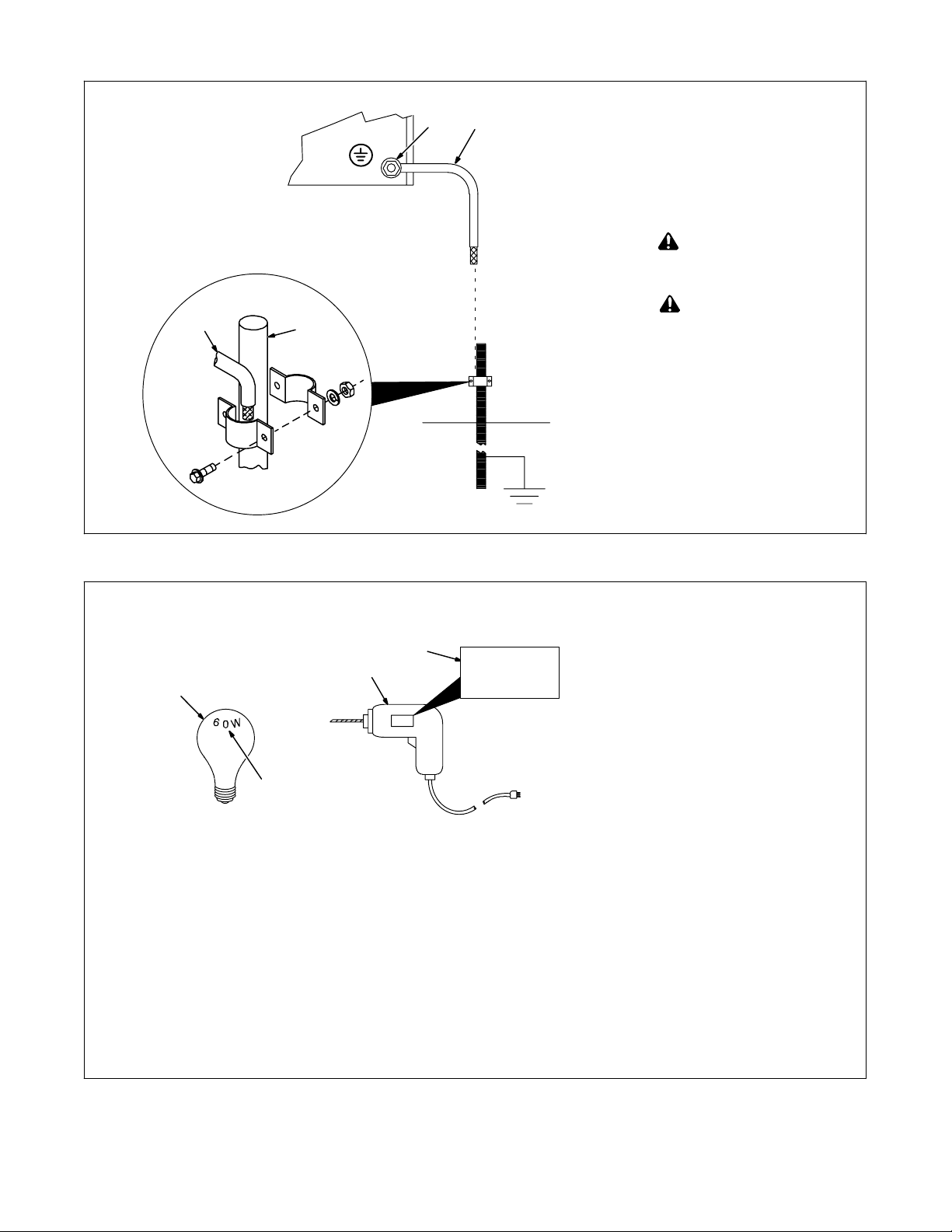

11-3. Grounding When Supplying Building Systems

1 2

GND/PE

2

3

1 Equipment Grounding

Terminal
2 Grounding Cable
Use #10 AWG or larger insulated

copper wire.
3 Ground Device

 Use ground device as stated in

electrical codes.

! Ground generator to system

earth ground if supplying

power to a premises (home,

shop, farm) wiring system.

! Also see AWS Safety &

Health Fact Sheet No. 29,

Grounding of Portable And

Vehicle Mounted Welding

Generators.

11-4. How Much Power Does Equipment Require?

3

2

1

3

VOLTS 115
AMPS
Hz

4.5
60

ST-800 576-B

1 Resistive Load
A light bulb is a resistive load and

requires a constant amount of power.
2 Non-Resistive Load
Equipment with a motor is a non-re-

sistive load and requires approxi­mately six times more power while
starting the motor than when running
(see Section 11-8).

3 Rating Data
Rating shows volts and amperes, or

watts required to run equipment.

Amperes x Volts = Watts

Example 1: If a drill uses 4.5 am-

peres at 115 volts, calculate its run­ning power requirement in watts.

4.5 A x 115 V = 520 W
The load applied by the drill is 520

watts.
Example 2: If three 200 watt flood

lamps are used with the drill from Ex­ample 1, add the individual loads to
calculate total load.

(3 x 200W) + 520 W = 1120 W
The total load applied by the three

flood lamps and drill is 1120 watts.

OM-4433 Page 54

S-0623

11-5. Approximate Power Requirements For Industrial Motors

Industrial Motors Rating Starting Watts Running Watts

Split Phase 1/8 HP 800 300

1/6 HP 1225 500
1/4 HP 1600 600
1/3 HP 2100 700
1/2 HP 3175 875

Capacitor Start-Induction Run 1/3 HP 2020 720

1/2 HP 3075 975
3/4 HP 4500 1400

1 HP 6100 1600

1-1/2 HP 8200 2200

2 HP 10550 2850
3 HP 15900 3900
5 HP 23300 6800

Capacitor Start-Capacitor Run 1-1/2 HP 8100 2000

5 HP 23300 6000

7-1/2 HP 35000 8000

10 HP 46700 10700

Fan Duty 1/8 HP 1000 400

1/6 HP 1400 550
1/4 HP 1850 650
1/3 HP 2400 800
1/2 HP 3500 1100

11-6. Approximate Power Requirements For Farm/Home Equipment

Farm/Home Equipment Rating Starting Watts Running Watts

Stock Tank De-Icer 1000 1000
Grain Cleaner 1/4 HP 1650 650
Portable Conveyor 1/2 HP 3400 1000
Grain Elevator 3/4 HP 4400 1400
Milk Cooler 2900 1100
Milker (Vacuum Pump) 2 HP 10500 2800
FARM DUTY MOTORS 1/3 HP 1720 720
Std. (e.g. Conveyors, 1/2 HP 2575 975
Feed Augers, Air 3/4 HP 4500 1400
Compressors) 1 HP 6100 1600

1-1/2 HP 8200 2200

2 HP 10550 2850
3 HP 15900 3900

5 HP 23300 6800
High Torque (e.g. Barn 1-1/2 HP 8100 2000
Cleaners, Silo Unloaders, 5 HP 23300 6000
Silo Hoists, Bunk Feeders) 7-1/2 HP 35000 8000

10 HP 46700 10700
3-1/2 cu. ft. Mixer 1/2 HP 3300 1000
High Pressure 1.8 Gal/Min 500 PSI 3150 950
Washer 2 gal/min 550 PSI 4500 1400
2 gal/min 700 PSI 6100 1600
Refrigerator or Freezer 3100 800
Shallow Well Pump 1/3 HP 2150 750

1/2 HP 3100 1000

Sump Pump 1/3 HP 2100 800

1/2 HP 3200 1050

OM-4433 Page 55

11-7. Approximate Power Requirements For Contractor Equipment

Contractor Rating Starting Watts Running Watts

Hand Drill 1/4 in 350 350

3/8 in 400 400
1/2 in 600 600

Circular Saw 6-1/2 in 500 500

7-1/4 in 900 900
8-1/4 in 1400 1400

Table Saw 9 in 4500 1500

10 in 6300 1800
Band Saw 14 in 2500 1100
Bench Grinder 6 in 1720 720

8 in 3900 1400

10 in 5200 1600
Air Compressor 1/2 HP 3000 1000

1 HP 6000 1500

1-1/2 HP 8200 2200

2 HP 10500 2800
Electric Chain Saw 1-1/2 HP, 12 in 1100 1100

2 HP, 14 in 1100 1100

Electric Trimmer Standard 9 in 350 350

Heavy Duty 12 in 500 500
Electric Cultivator 1/3 HP 2100 700
Elec. Hedge Trimmer 18 in 400 400
Flood Lights HID 125 100

Metal Halide 313 250

Mercury 1000

Sodium 1400

Vapor 1250 1000
Submersible Pump 400 gph 600 200
Centrifugal Pump 900 gph 900 500
Floor Polisher 3/4 HP, 16 in 4500 1400

1 HP, 20 in 6100 1600

High Pressure Washer 1/2 HP 3150 950

3/4 HP 4500 1400

1 HP 6100 1600
55 gal Drum Mixer 1/4 HP 1900 700
Wet & Dry Vac 1.7 HP 900 900

2-1/2 HP 1300 1300

OM-4433 Page 56

11-8. Power Required To Start Motor

Single-Phase Induction Motor Starting Requirements

Motor Start

Code

KVA/HP 6.3 7.1 8.0 9.0 10.0 11.2 12.5 14.0

G H J K L M N P

1 Motor Start Code
2 Running Amperage

4
1
3

VOLTS AMPS

CODE 60

HP

AC MOTOR

230 2.5

M

1/4

Hz
PHASE

1

2

3 Motor HP
4 Motor Voltage
To find starting amperage:

Step 1: Find code and use table to
find kVA/HP. If code is not listed,
multiply running amperage by six to
find starting amperage.

Step 2: Find Motor HP and Volts.
Step 3: Determine starting amper-

age (see example).
Welding generator amperage out-

put must be at least twice the
motor’s running amperage.

(kVA/HP x HP x 1000) / Volts =

Starting Amperage

Example: Calculate starting amper­age required for a 230 V, 1/4 HP mo­tor with a motor start code of M.

Volts = 230, HP = 1/4, kVA/HP =

11.2
(11.2 x 1/4 x 1000) / 230 = 12.2A
Starting the motor requires 12.2

amperes.

S-0624

11-9. How Much Power Can Generator Supply?

1

2

1 Limit Load To 90% Of

Generator Output

Always start non-resistive (motor)
loads in order from largest to small­est, and add resistive loads last.

2 5 Second Rule
If motor does not start within 5

seconds, turn off power to prevent
motor damage. Motor requires
more power than generator can
supply.

Ref. ST-800 396-A / S-0625

OM-4433 Page 57

11-10. Typical Connections To Supply Standby Power

123

Utility

Electrical

Service

Transfer Switch

5

Essential

Loads

Fused

Disconnect

Switch

(If Required)

4

Welding

Generator

Output

! Have only qualified persons

perform these connections
according to all applicable
codes and safety practices.

! Properly install and ground

this equipment according to
its Owner’s Manual and na­tional, state, and local codes.

 Customer-supplied equipment

is required if generator will sup­ply standby power during
emergencies or power out­ages.

1 Utility Electrical Service
2 Transfer Switch (Double-Throw)
Switch transfers the electrical load

from electric utility service to the
generator. Transfer load back to
electric utility when service is re­stored.

Install correct switch (customer­supplied). Switch rating must be
same as or greater than the branch
overcurrent protection.

3 Fused Disconnect Switch
Install correct switch (customer-

supplied) if required by electrical
code.

4 Welding Generator Output
Generator output voltage and wir-

ing must be consistent with regular
(utility) system voltage and wiring.

Connect generator with temporary
or permanent wiring suitable for the
installation.

Turn off or unplug all equipment
connected to generator before
starting or stopping engine. When
starting or stopping, the engine has
low speed which causes low volt­age and frequency.

5 Essential Loads
Generator output may not meet the

electrical requirements of the prem­ises. If generator does not produce
enough output to meet all require­ments, connect only essential
loads (pumps, freezers, heaters,
etc. − See Section 11-4).

OM-4433 Page 58

11-11. Selecting Extension Cord (Use Shortest Cord Possible)

Cord Lengths for 120 Volt Loads

If unit does not have GFCI receptacles, use GFCI-protected extension cord.

Maximum Allowable Cord Length in ft (m) for Conductor Size (AWG)*

Current

(Amperes)

5 600 350 (106) 225 (68) 137 (42) 100 (30)

7 840 400 (122) 250 (76) 150 (46) 100 (30) 62 (19)

10 1200 400 (122) 275 (84) 175 (53) 112 (34) 62 (19) 50 (15)

15 1800 300 (91) 175 (53) 112 (34) 75 (23) 37 (11) 30 (9)

20 2400 225 (68) 137 (42) 87 (26) 50 (15) 30 (9)

25 3000 175 (53) 112 (34) 62 (19) 37 (11)

30 3600 150 (46) 87 (26) 50 (15) 37 (11)

35 4200 125 (38) 75 (23) 50 (15)

40 4800 112 (34) 62 (19) 37 (11)

45 5400 100 (30) 62 (19)

50 6000 87 (26) 50 (15)

*Conductor size is based on maximum 2% voltage drop

Cord Lengths for 240 Volt Loads

Load (Watts) 4 6 8 10 12 14

If unit does not have GFCI receptacles, use GFCI-protected extension cord.

Maximum Allowable Cord Length in ft (m) for Conductor Size (AWG)*

Current

(Amperes)

5 1200 700 (213) 450 (137) 225 (84) 200 (61)

7 1680 800 (244) 500 (152) 300 (91) 200 (61) 125 (38)

10 2400 800 (244) 550 (168) 350 (107) 225 (69) 125 (38) 100 (31)

15 3600 600 (183) 350 (107) 225 (69) 150 (46) 75 (23) 60 (18)

20 4800 450 (137) 275 (84) 175 (53) 100 (31) 60 (18)

25 6000 350 (107) 225 (69) 125 (38) 75 (23)

30 7000 300 (91) 175 (53) 100 (31) 75 (23)

35 8400 250 (76) 150 (46) 100 (31)

40 9600 225 (69) 125 (38) 75 (23)

45 10,800 200 (61) 125 (38)

50 12,000 175 (53) 100 (31)

*Conductor size is based on maximum 2% voltage drop

Load (Watts) 4 6 8 10 12 14

OM-4433 Page 59

 Hardware is common and not

available unless listed.

Wirng harnesses are listed at
the end of parts section.

SECTION 12 − PARTS LIST

5

4 (Fig.12−5)

110 (Fig.12−3)

108 (Fig.12−2)

6

3

2

1

111

109

7

8

14

100

16

99

17

98

97

22

21

20

23

19

96

18

24

25

95

26

94

93

92

91

90

15

9

10

11

12

13

101

102

103

OM-4433 Page 60

106

104

105

107

Figure 12-1. Main Assembly

89

88

80(Fig.12−4)

87

86

85

79

83

82

81

84

27

28

29

30

31

78

32

77

75

74

76

35

72

36

73

71

59

66

38

65

39

60

64

63

70

33

62

61

34

37

68

69

67

40

58

55

41

57

56

42

47

48

49

44

43

45

46

50

51

52

53

54

803 683-F

OM-4433 Page 61

Item

No.

Dia.

Mkgs.

Part

No.

Description

Figure 12-1. Main Assembly

1 HD1 168829 Transducer, Current 1000a Module Max Open Loop 1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

2 R3 213027 Resistor, WW Tap 300 W 40 Ohm 1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

3 217070 Bracket, Rectifier 1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

4 Figure 12-5 Rectifier Assembly 1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

181853 Insulator, Screw (For Rectifier Mtg) 2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

5 214742 Capacitor Assy (Includes) 1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

213489 Bus Bar, Capacitor Bank Negative 1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

213490 Bus Bar, Capacitor Bank Positive 1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

C10 163535 Capacitor, Elctlt 16000 Uf 60 Vdc Can 1.75 Dia 6. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

6 +213488 Panel, Engine Side 1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

7 PC1 231705 Module, Main Control/Scr Gating 1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

8 PC3 214770 Module, Voltage Regulator 1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

9 215522 Bracket, Vault 1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

10 Z1 213929 Stabilizer 1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

192303 Angle, Mtg Stabilizer 2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

11 TE1 172661 Block, Stud Connection 6 Position 1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

173734 Link, Jumper 3. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

12 213500 Brkt, Beam Support 1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

13 213602 Gasket, Exhaust Outlet Cat 3013 1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

14 214753 Bracket, Holddown Fuel Tank 1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

15 213493 Upright, Center Assy 1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

16 189464 Seal, Weather Lift Eye 1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

17 213501 Bracket, Fuel Pump/Filter 1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

18 Bracket, Fuel Filter Mtg. (Order Thru Engine Manufacturer) 1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

19 217687 Filter, Fuel Spin−on 1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

20 207721 Pump, Fuel 1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

21 *213858 Filter, Fuel In−line 5/16x5/16 Mic 125 −175 1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

22 212621 Pipe, Exhaust Flexible Inlet Cat 3013 1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

23 183314 Clamp, Muffler 1.625 Dia U Pld 3. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

24 212604 Baffle, Air Lower Radiator 1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

25 201528 Muffler, Exhaust Engine 1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

26 212605 Pipe, Exhaust Blue Fuel 1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

27 233088 Label, Danger Using A Generator Indoors Can Kill You In Minutes 1. . . . . . . . . . . . . . . . . . . . . . . .

28 +213470 Cover, Top 1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

049525 Nut, 312−18 U−nut Multi−thread 15. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

29 189052 Grommet, Plastic Neck Filler Fuel 1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

30 190198 Cap, Tank Screw−on 3.500 In W/Vent W/Lanyard 8” 1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

31 222513 Label, Warning Falling Equipment Can Cause Serious 1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

32 201851 Cover, Radiator Access 1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

33 214604 Pipe, Exhaust Elbow 1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

34 224265 Label, Warning Hot Exhaust Parts Do Not Touch 1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

35 192041 Label, Use Diesel Fuel Only 1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

36 213472 Keeper, Latch Engine Access 1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

37 213471 Bracket, Cover Top 2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

38 217387 Baffle, Fan 1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

39 213503 Guard, Fan 1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

40 +212607 Shroud, Radiator 1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

41 233256 Radiator, W/14# Cap 3 Row Core 1.25 In Inlet/Outlet (Includes) 1. . . . . . . . . . . . . . . . . . . . . . . . . .

187120 Cap, Radiator Pressure 14lb 1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

42 212603 Baffle, Air Upper Radiator 1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

43 +225400 Upright, Rear 1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

44 225412 Cover, Radiator Access 1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

45 220295 Bracket, Stiffener 1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

46 190190 Tank, Coolant Recovery 1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

47 213502 Guard, Fan 1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

48 215268 Label, Diesel Engine Maintenance Cat 3013c 1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Quantity

OM-4433 Page 62

Item

No.

Dia.

Mkgs.

Part

No.

Description

Figure 12-1. Main Assembly (Continued)

49 199592 Latch, Paddle Series 20 (Black) 1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

50 +213487 Door, Engine Access 1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

191626 Bumper, Door Engine Access 2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

51 225120 Label, Warning Moving Parts Can Cause Injury 3. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

52 189975 Hinge, Door Access 180 Deg 2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

53 087341 Bumper, Door 1.000 Od X .750 High Rbr 50 Duro W/O 2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

54 213486 Panel, Rocker 1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

55 217698 Label, Help Codes 1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

56 168385 Label, Warning Battery Explosion Can Blind 1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

57 203260 Label, Caution Do Not Use Ether 1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

58 225120 Label, Warning Moving Parts Can Cause Injury 1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

♦230637 Idle, Solenoid Assy (consisting of) 1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

59 ♦230828 Bracket, Mtg Solenoid Idle 1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

60 TS1 ♦230634 Solenoid, Throttle W/4−8.4 Lb Spring 1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

♦198109 Screw, Shld Stl Sch .250−20 X .437 X .500 Shld 1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

61 ♦198018 Linkage, Throttle Solenoid 1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

♦230830 Arm, Throttle 1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

62 213266 Mount, Engine/Generator Flange Mtg 2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

63 197506 Screw, M14−1.5x 30 Hex Hd−pln 8.8 Pln 6. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

64 213480 Bracket, Mtg Engine 2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

65 083883 Washer, Lock .402idx0.709odx.087t Stl Split10mm 2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

66 049026 Screw, M10−1.5x 25 Hex Hd−pln 8.8 Pln 2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

67 Washer, Oil Drain (Order Thru Engine Manufacturer) 1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

68 212612 Ftg, Adapter Oil Drain Cat 3013 1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

199505 Hose Assy, Oil Drain 32.000 Lg (Includes) 1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

69 165271 Valve, Oil Drain 3/8−18 Nptf 1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

70 176529 Ftg, Hose Brs Barbed Fem 1/2 Tbg X 3/8 Npt 1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

71 113854 Hose, Sae .500 Id X .780 Od Xcoil 2.6 Ft.. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

72 197448 Ftg, Hose Brs Barbed Elbow M 1/2 Tbg X 3/8 Npt 1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

73 212614 Hose, Radiator Lower Cat 3013 1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

74 217686 Belt, Alternator 1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

75 217651 Engine, Perkins (Includes) 1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

212600 Flywheel 1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

. . . . . . . . . . . . .

*202166 Filter, Oil 1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

217695 Switch, Coolant Temp N.c. 110c 1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

217696 Switch, Lubricating Oil Pressure N.O. 1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

76 212613 Hose, Radiator Upper Cat 3013 1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

77 216811 Clip, Nut Retaining 2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

78 197613 Air Cleaner, Intake 5.250 In (Includes) 1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

197675 Dust Ejector, Air Cleaner 1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

*197676 Element, Air Cleaner 1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

197677 Cover Assy, Air Cleaner 1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

197678 Body, Air Cleaner 1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

♦*197679 Element, Air Cleaner Safety 1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

197829 Bracket, Mtg Air Cleaner 1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

79 212617 Hose, Air Intake Cat 3013 1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

80 Figure 12-4 Generator Assembly 1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

81 213461 Bracket, Mtg Generator 1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

82 213266 Mount, Engine/Generator Flange Mtg 1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

83 212623 Tank, Fuel (Includes Fuel Cap And Items Below) 1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

84 189908 Valve, Drain Fuel 180 Deg Zinc Pld 1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

85 181572 Bushing, Tank Fuel 1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

86 124253 Bushing, Tank Fuel 1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

87 212611 Hose, Fuel Stand Pipe W/3/16 In Ftg (Return) 1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

88 212610 Hose, Fuel Stand Pipe W/5/16 In Ftg (Supply) 1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

89 SENDER 213265 Sender, Fuel Gauge 1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Quantity

OM-4433 Page 63

Item

No.

Dia.

Mkgs.

Part

No.

Description

Quantity

Figure 12-1. Main Assembly (Continued)

172071 Clamp, Hose .520 − .605 Clp Dia Slfttng Black 8. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

211961 Hose, Sae .312 Id X .560 Od X 16.000 2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

213804 Hose, Sae .312 Id X .560 Od X 2.500 1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

191819 Hose, Sae .312 Id X .560 Od X 15.000 1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

145054 Hose, Sae .187 Id X .410 Od X 26.000 1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

90 213465 Bolt, J Stl .312−18 X 7.250 Pld 2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

91 213466 Bracket, Battery Holddown 1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

92 BATT 146237 Battery, Stor 12v 585 Crk 95 Rsv Gp 55 Maint Free 1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

93 190207 Cable, Bat Pos 45 In Lg No 1 Awg W/Clamp & .406 Rng 1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

94 213668 Bracket, Mtg Unit 4. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

95 213458 Base 1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

96 213483 Support, Engine Rh Cat 1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

97 190206 Cable, Bat Neg 42 In Lg 2 Awg W/Clamp & .375 Rng 1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

98 224266 Label, Warning Do Not Weld On Base 2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

99 213462 Pad, Mtg Generator 1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

213670 Screw, 500−13x2.25 Hex Flange−hd Gr8 Pln Chem/Phys 2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

071731 Washer, Flat .656idx2.250odx.187t Stl Pld 2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

100 213463 Spacer/Snubber, Generator Mtg 1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

101 213485 Support, Engine Lh 1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

102 213459 Crossmember, Engine 1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

103 213460 Crossmember, Generator 1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

213600 Screw, 500−13x3.00 Hex Flange−hd Gr8 Pln 1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

071731 Washer, Flat .656idx2.250odx.187t Stl Pld 2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

213464 Bracket, Battery Locator (In Base − Not Shown) 1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

213506 Bracket, Hold−Down Fuel Tank (Not Shown) 1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

104 +226104 Upright, Front 1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

105 233953 Label, Warning General Precautionary CSA 1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

106 216347 Label, Rating Card Code 133 (Provide Serial No. When Ordering) 1. . . . . . . . . . . . . . . . . . . . . .

107 220955 Panel, Front Access 1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

108 Figure 12-2 Front Panel Assembly 1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

109 ♦105370 Xfmr, Current 1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

110 Figure 12-3 Control Panel 1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

111 213504 Tray, Reactor&Rectifier 1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

213491 Insulator, Capacitor Bank (Applies To Reactor /Redtifier Tray) 1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

215328 Kit, Label (Includes Safety And Informational Labels) 1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

+ When ordering a component originally displaying a precautionary label, the label should also be ordered.
* Recommended Spare Parts.

♦Optional

To maintain the factory original performance of your equipment, use only Manufacturer’s Suggested
Replacement Parts. Model and serial number required when ordering parts from your local distributor.

OM-4433 Page 64

 Hardware is common and not

available unless listed.

Wirng harnesses are listed at
the end of parts section.

13

11

12

14

15

16

25

30

24

29

28

24

26

27

17

18

23

22

19

20

21

10

9

8

7

6

5

4

3

2

1

37

36

34

35

31

32

33

Figure 12-2. Panel, Front w/Components

Item

No.

Dia.

Mkgs.

Part

No.

Description

Figure 12-2. Panel, Front w/Components (Figure 12-1 Item 108)

1 097926 Knob, Pointer 2.375 Dia X .250 Id W/Set Screwsplstc 1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

2 072590 Lock, Shaft Pot .375−32 X .250 Dia Shaft Tall 1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

3 170391 Conn, Circ Ms Protective Cap Size 20 Nylon 1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

4 190323 Boot, Circuit Breaker Clear Hex Nut 2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

5 097922 Knob, Pointer .875 Dia X .250 Id W/Set Screwsplstc 1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

6 Nameplate, Control (Order By Model & Serial No.) 1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

7 PC6 229949 Circuit Card Assy, Connector/Receptacle 1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

8 CB7, CB8 083432 Supplementary Pro, Man Reset 1p 10a 250vac Frict 2. . . . . . . . . . . . . . . . . . . . . . . . . .

9 213655 Panel, Front Engine/Weld Control 1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

OM-4433 Page 65

803 684-B

Quantity

Item

No.

Dia.

Mkgs.

Part

No.

Description

Figure 12-2. Panel, Front w/Components (Continued)

10 214543 Enclosure, Circuit Card Assy 1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

11 134201 Stand−off Support, Pc Card .312/.375w/Post&lock .43 4. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

12 PC2 214660 Circuit Card Assy, Display W/Program 1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

13 R1 214760 Switch, Rotary 12 Posn 1p 200ma 28vdc W/Resistors 1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

14 R2 193118 Pot, Cp Flat 1t 2. W 1k Ohm Linear 1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

15 S4 021467 Switch, Tgl Spst 3a 250v Off−none−(On) Spd Term 1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

16 S1 212436 Switch, Ignition 4 Position (Includes Knob) 1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

17 039047 Terminal, Pwr Output Red 2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

18 010381 Connector, Rectifier 3. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

19 C13, 14, 15 128750 Capacitor, Cer Disc .1 Uf 500 Vdc W/Terms 3. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

20 209056 Cover, Receptacle W/Gasket 4. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

21 RC11 182954 Rcpt, Str 3p4w 50a 125/250v Flush Mtg *14−50 1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

22 Nameplate, Generator Power (Order By Model & Serial No.) 1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

23 213509 Panel, Power 1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

24 RC5,6 214918 Rcpt,Str Dx Grd 2p3w 20a 125v *5−20r (Order By Model & Serial No.). . . . . . . . . . .

24 GFCI1, 2 151981 Rcpt, Str Dx Grd 2p3w 15/20a 125v *5−20r Gfi (Order By Model & Serial No.). . . . . . . . .

25 C11, C12 217054 Capacitor, Cer Disc .0047 Uf 3000 Vdc W/Terms 2. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

26 CB4, CB6 093996 Supplementary Pro, Man Reset 1p 20a 250vac Frict 2. . . . . . . . . . . . . . . . . . . . . . . . . .

27 CB5 203026 Supplementary Protector, Man Reset 2p 50a 240vac 1. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

28 GRD 083030 Stud, Brs .250−20 X 1.750 W/Hex Collar 1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

29 010915 Washer, Flat .257idx0.640odx.031t Brs 4. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

30 601836 Nut, 250−20 .50hex .19h Brs 3. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

31 Nameplate, Weld Terminal (Order By Model & Serial No.) 1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

32 181169 Spacer, Output Stud 3. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

33 186621 Boot, Generic Output Stud 3. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

34 180735 Washer, Output Stud 3. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

35 039046 Terminal, Pwr Output Black 1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

36 FUEL/HM 214768 Gauge, Fuel Elec/Hour Meter 1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

37 021385 Boot, Toggle Switch Lever 1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Quantity

♦Optional

+ When ordering a component originally displaying a precautionary label, the label should also be ordered.

To maintain the factory original performance of your equipment, use only Manufacturer’s Suggested
Replacement Parts. Model and serial number required when ordering parts from your local distributor.

OM-4433 Page 66

 Hardware is common and not

available unless listed.

Wirng harnesses are listed at
the end of parts section.

2

5

4

3

6

7

8

1

11

12

13

14

15

9

10

803 689-D

Figure 12-3. Control Panel

Item

No.

Dia.

Mkgs.

Part

No.

Description

Figure 12-3. Control Panel (Figure 12-1 Item 110)

1 220981 Bracket, Mtg Components 1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

2 129524 Term, Frict 250x032 Uninsul Male .130 Stud Mtg 3pr 2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

3 CR2 214876 Relay, Encl 6vdc Spst 35a/14vdc 5 Pin 1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

4 CB1 190374 Circuit Breaker, Auto Reset 12vdc 40 Amp 1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

5 CR1 223710 Relay, Encl 12vdc Dpst−no 25a 6pin Flange 1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

6 046432 Holder, Fuse Mintr .250 X 1.250 Panel Mtg 1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

7 F1 085874 Fuse, Mintr Cer Slo−blo 10. Amp 250 Volt 1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

8 R4 217335 Resistor Board 1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

9 CR4 ♦090104 Relay, Encl 12vdc Spst 30a/15vdc 5pin Flange Mtg 1. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

10 CR3 197325 Relay, Encl 12vdc Spst 70a 4pin Flange Mtg 1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

11 SR3 ♦035704 Rectifier, Integ Bridge 40. Amp 800v 1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

12 SR1, SR2 035704 Rectifier, Integ Bridge 40. Amp 800v 2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

13 PC5 ♦214761 Module, Pull To Idle 1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

14 CB2, CB3 083432 Supplementary Pro, Man Reset 1p 10a 250vac Frict 2. . . . . . . . . . . . . . . . . . . . . . . . . .

15 CB9 ♦230635 Circuit Breaker, Auto Reset 12vdc 8 Amp 1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Quantity

♦Optional

+ When ordering a component originally displaying a precautionary label, the label should also be ordered.

To maintain the factory original performance of your equipment, use only Manufacturer’s Suggested
Replacement Parts. Model and serial number required when ordering parts from your local distributor.

OM-4433 Page 67

 Hardware is common and not

available unless listed.

Wirng harnesses are listed at
the end of parts section.

13

12

14

5

4

3

1

2

8

9

10

11

6

7

19

20

18

17

16

15

803 686-B

Figure 12-4. Generator

Item

No.

Dia.

Mkgs.

Part

No.

Description

Quantity

Figure 12-4. Generator (Figure 12-1 Item 80)

1 ROTOR 212474 Rotor, Generator 4 Pole (Includes) 1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

2 053390 Bearing, Ball Rdl Sgl Row 1.370 X 2.830 X .6 1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

3 192600 Fan, Generator 1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

4 159918 Baffle, Fan 1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

5 212126 Adapter, Engine Machined 1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

6 602211 Washer, Lock .318idx0.586odx.078t Stl Pld Split.312 6. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

7 192686 Screw, M 8−1.25x 25 Hex Hd−pln 8.8 Pld Din933 6. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

8 602211 Washer, Lock .318idx0.586odx.078t Stl Pld Split.312 6. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

9 192686 Screw, M 8−1.25x 25 Hex Hd−pln 8.8 Pld Din933 6. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

10 212641 Stud, Stl .375−16 1.625x 19.000 4. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

11 STATOR 212470 Stator, Generator 4 Pole 1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

12 160943 Endbell 1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

13 167788 Nut, 375−16 .56hex .34h Stl Pld Sem Cone Wshr.88d 4. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

14 218552 Brush, Assembly 2 Pole (Includes) 1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

15 047879 Bar, Retaining Brushholder 2 Brushes 1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

16 161306 Cap, Brushholder 2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

17 126984 Brush w/Spring 2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

18 005614 Holder, Brush 2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

19 125548 Holder, Brush Elect 1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

20 158832 Screw, 010−32x .50 Hex Hd−slt Stl Pld Sq Cone Sems 2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

+ When ordering a component originally displaying a precautionary label, the label should also be ordered.
*Recommended Spare Parts.

♦Optional

To maintain the factory original performance of your equipment, use only Manufacturer’s Suggested
Replacement Parts. Model and serial number required when ordering parts from your local distributor.

OM-4433 Page 68

 Hardware is common and not

available unless listed.

Wirng harnesses are listed at
the end of parts section.

10

8

6

1

3

2

7

5

4

9

Figure 12-5. Rectifier Assembly

Item

No.

Dia.

Mkgs.

Part

No.

Description

Figure 12-5. Rectifier Assembly (Figure 12-1 Item 4)

217081 Rectifier, Assembly (Includes) 1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

1 211984 Heat Sink 1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

2 MOD1,2,3 218296 Kit, Module SCR 3. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

3 MOD4,5,6 218292 Kit, Module SCR 3. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

4 212602 Bus Bar, Rectifier 1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

5 212639 Bus Bar, Rectifier 3. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

6 212601 Insulator, Rectifier 1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

7 TH1 213930 Thermistor, Ntc 30k Ohm @ 25 Deg C 8.5in Lead 1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

8C1−6 215611 Capacitor Assy 3. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

9 C7,8,9 048420 Capacitor, Cer Disc .01 Uf 1000 Vdc W/Terms 3. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

10 217085 Bus Bar, Rectifier 1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

181853 Insulator, Screw (For Mounting Rectifier) 4. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

803 685-A

Quantity

To maintain the factory original performance of your equipment, use only Manufacturer’s Suggested
Replacement Parts. Model and serial number required when ordering parts from your local distributor.

OM-4433 Page 69

 Some wiring harness components (switches, relays, supplementary protectors) are also referenced elsewhere in this parts list. Purchase compo-

nents separately or as part of the associated wiring harness.

Item

No.

Dia.

Mkgs.

Part

No.

Description

Quantity

Wiring Harnesses

231122 Harness, Engine (Includes) 1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

S4 021467 Switch, Tgl Spst 3a 250v Off−none−(On) Spd Term 1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

SR1, SR2 035704 Rectifier, Integ Bridge 40. Amp 800v 2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

CB1 190374 Circuit Breaker, Auto Reset 12vdc 40 Amp 1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

CB2, CB3 083432 Supplementary Pro, Man Reset 1p 10a 250vac Frict 2. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

CR3 197325 Relay, Encl 12vdc Spst 70a 4pin Flange Mtg 1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

CR2 214876 Relay, Encl 6vdc Spst 35a/14vdc 5 Pin 1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

R4 217335 Resistor Board, 1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

148850 Socket, Relay 5 Pin 1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

212116 Conn, Deutsch 2p 1row Female Plug 3. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

212117 Conn, Deutsch Wedge Lock 2 Position 3. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

PLG1 214932 Conn, Rect Univ 039 8p/S 2row Plug Cable Lkg Seal 1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

214933 Seal, Wire Univ 039 7. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

214934 Seal, Plug Univ 039 1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

For S1 211292 Conn, Pack 4p 1row Female 1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

For S1 211293 Conn, Pack Terminal Position Assurance(Lock) 1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

129524 Term, Frict 250x032 Uninsul Male .130 Stud Mtg 3pr 2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

217002 Harness, Weld Control (Includes) 1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

PLG2 150316 Conn, Rect Univ 039 6p/S 3row Plug Cable Lkg 1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

PLG9 214951 Conn, Rect Univ 039 6p/S 3row Plug Cable Lkg Seal 1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

214933 Seal, Wire Univ 039 3. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

214934 Seal, Plug Univ 039 3. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

PLG8 147992 Conn, Rect Univ 039 10p/S 2row Plug Cable Lkg 1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

PLG6 193184 Conn, Rect Cinch 30 Pin 1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

PLG7 193183 Conn, Rect Cinch 18 Pin 1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

PLG9 215261 Conn, Deutsch 12p 2row Female Plug 1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

PLG10 215262 Conn, Deutsch 12p 2row Female Plug 1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

215265 Conn, Deutsch Wedge Lock 12 Position 2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

215343 Seal, Plug Deutsch 12−16 Size 7. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

PLG5 113750 Conn, Rect Mini 045 4skt 2row Plug Cable Lkg 1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

217000 Cable, Lem 1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

215340 Conn, Rect Univ 039 2p/S 1row Rcpt Cable/Pnl Lkg S 1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

214933 Seal, Wire Univ 039 2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

PLG11 193183 Conn, Rect Cinch 18 Pin 1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

CB4, CB6 093996 Supplementary Pro, Man Reset 1p 20a 250vac Fric 2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

OM-4433 Page 70

214984 Harness, Rectifier Cc/Cv (Includes) 1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

207716 Conn, Faston Mini Polarized 2 Skt G1k1 6. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

207718 Conn, Faston Mini Polarized 2 Skt G2k2 3. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

217010 Harness, Receptacle Auxiliary Power (Includes) 1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Warranty Questions?

Call
1-800-4-A-MILLER
for your local
Miller distributor.

Your distributor also gives
you ...

Service

You always get the fast,
reliable response you
need. Most replacement
parts can be in your
hands in 24 hours.

Support

Need fast answers to the
tough welding questions?
Contact your distributor.
The expertise of the
distributor and Miller is
there to help you, every
step of the way.

Effective January 1, 2007

(Equipment with a serial number preface of “LH” or newer)

This limited warranty supersedes all previous Miller warranties and is exclusive with no other

LIMITED WARRANTY − Subject to the terms and conditions
below, Miller Electric Mfg. Co., Appleton, Wisconsin, warrants to
its original retail purchaser that new Miller equipment sold after
the effective date of this limited warranty is free of defects in
material and workmanship at the time it is shipped by Miller. THIS
WARRANTY IS EXPRESSLY IN LIEU OF ALL OTHER
WARRANTIES, EXPRESS OR IMPLIED, INCLUDING THE
WARRANTIES OF MERCHANTABILITY AND FITNESS.

Within the warranty periods listed below, Miller will repair or
replace any warranted parts or components that fail due to such
defects in material or workmanship. Miller must be notified in
writing within thirty (30) days of such defect or failure, at which
time Miller will provide instructions on the warranty claim
procedures to be followed.

Miller shall honor warranty claims on warranted equipment listed
below in the event of such a failure within the warranty time
periods. All warranty time periods start on the delivery date of the
equipment to the original end-user purchaser, and not to exceed
one year after the equipment is shipped to a North American
distributor or eighteen months after the equipment is shipped to
an International distributor.

1. 5 Years Parts — 3 Years Labor

* Original main power rectifiers

2. 3 Years — Parts and Labor

* Transformer/Rectifier Power Sources
* Plasma Arc Cutting Power Sources
* Process Controllers
* Semi-Automatic and Automatic Wire Feeders
* Inverter Power Sources (Unless Otherwise Stated)
* Water Coolant Systems (Integrated)
* Intellitig
* Engine Driven Welding Generators

(NOTE: Engines are warranted separately by the
engine manufacturer.)

3. 1 Year — Parts and Labor Unless Specified

* Motor Driven Guns (w/exception of Spoolmate

Spoolguns)
* Positioners and Controllers
* Automatic Motion Devices
* RFCS Foot Controls
* Induction Heating Power Sources, Coolers, and

Electronic

Controls/Recorders
* Water Coolant Systems (Non-Integrated)
* Flowgauge and Flowmeter Regulators (No Labor)
* HF Units
* Grids
* Spot Welders
* Load Banks
* Arc Stud Power Sources & Arc Stud Guns
* Racks
* Running Gear/Trailers
* Plasma Cutting Torches (except APT & SAF

Models)
* Field Options

(NOTE: Field options are covered under True Blue®

for the remaining warranty period of the product they

are installed in, or for a minimum of one year —

whichever is greater.)
* Bernard-Branded Mig Guns (No Labor)
* Weldcraft-Branded TIG Torches (No Labor)
* Subarc Wire Drive Assemblies

4. 6 Months — Batteries

5. 90 Days — Parts

* MIG Guns/TIG Torches and Subarc (SAW) Guns

guarantees or warranties expressed or implied.

* Induction Heating Coils and Blankets, Cables, and

Non-Electronic Controls
* APT & SAF Model Plasma Cutting Torches
* Remote Controls
* Accessory (Kits)
* Replacement Parts (No labor)
* Spoolmate Spoolguns
* Canvas Covers

Miller’s True Blue® Limited Warranty shall not apply to:

1. Consumable components; such as contact tips,

cutting nozzles, contactors, brushes, slip rings, relays
or parts that fail due to normal wear. (Exception:
brushes, slip rings, and relays are covered on Bobcat,
Trailblazer, and Legend models.)

2. Items furnished by Miller, but manufactured by others, such
as engines or trade accessories. These items are covered
by the manufacturer’s warranty, if any.

3. Equipment that has been modified by any party other than
Miller, or equipment that has been improperly installed,
improperly operated or misused based upon industry
standards, or equipment which has not had reasonable and
necessary maintenance, or equipment which has been
used for operation outside of the specifications for the
equipment.

MILLER PRODUCTS ARE INTENDED FOR PURCHASE AND
USE BY COMMERCIAL/INDUSTRIAL USERS AND PERSONS
TRAINED AND EXPERIENCED IN THE USE AND
MAINTENANCE OF WELDING EQUIPMENT.

In the event of a warranty claim covered by this warranty, the
exclusive remedies shall be, at Miller’s option: (1) repair; or (2)
replacement; or, where authorized in writing by Miller in
appropriate cases, (3) the reasonable cost of repair or
replacement at an authorized Miller service station; or (4)
payment of or credit for the purchase price (less reasonable
depreciation based upon actual use) upon return of the goods at
customer’s risk and expense. Miller’s option of repair or
replacement will be F.O.B., Factory at Appleton, Wisconsin, or
F.O.B. at a Miller authorized service facility as determined by
Miller. Therefore no compensation or reimbursement for
transportation costs of any kind will be allowed.

TO THE EXTENT PERMITTED BY LAW, THE REMEDIES
PROVIDED HEREIN ARE THE SOLE AND EXCLUSIVE
REMEDIES. IN NO EVENT SHALL MILLER BE LIABLE FOR
DIRECT, INDIRECT, SPECIAL, INCIDENTAL OR
CONSEQUENTIAL DAMAGES (INCLUDING LOSS OF
PROFIT), WHETHER BASED ON CONTRACT, TORT OR ANY
OTHER LEGAL THEORY.

ANY EXPRESS WARRANTY NOT PROVIDED HEREIN AND
ANY IMPLIED WARRANTY, GUARANTY OR
REPRESENTATION AS TO PERFORMANCE, AND ANY
REMEDY FOR BREACH OF CONTRACT TORT OR ANY
OTHER LEGAL THEORY WHICH, BUT FOR THIS
PROVISION, MIGHT ARISE BY IMPLICATION, OPERATION
OF LAW, CUSTOM OF TRADE OR COURSE OF DEALING,
INCLUDING ANY IMPLIED WARRANTY OF
MERCHANTABILITY OR FITNESS FOR PARTICULAR
PURPOSE, WITH RESPECT TO ANY AND ALL EQUIPMENT
FURNISHED BY MILLER IS EXCLUDED AND DISCLAIMED
BY MILLER.

Some states in the U.S.A. do not allow limitations of how long an
implied warranty lasts, or the exclusion of incidental, indirect,
special or consequential damages, so the above limitation or
exclusion may not apply to you. This warranty provides specific
legal rights, and other rights may be available, but may vary from
state to state.

In Canada, legislation in some provinces provides for certain
additional warranties or remedies other than as stated herein,
and to the extent that they may not be waived, the limitations and
exclusions set out above may not apply. This Limited Warranty
provides specific legal rights, and other rights may be available,
but may vary from province to province.

miller_warr 2007−01

Owner’s Record

Please complete and retain with your personal records.

Model Name Serial/Style Number

Purchase Date (Date which equipment was delivered to original customer.)

Distributor

Address

City

State Zip

For Service

Contact a DISTRIBUTOR or SERVICE AGENCY near you.

Always provide Model Name and Serial/Style Number.

Contact your Distributor for:

Welding Supplies and Consumables
Options and Accessories
Personal Safety Equipment
Service and Repair
Replacement Parts
Training (Schools, Videos, Books)
Technical Manuals (Servicing Information

and Parts)
Circuit Diagrams
Welding Process Handbooks

To locate a Distributor or Service Agency visit
www.millerwelds.com or call 1-800-4-A-Miller

Miller Electric Mfg. Co.

An Illinois Tool Works Company
1635 West Spencer Street
Appleton, WI 54914 USA

International Headquarters−USA

USA Phone: [phone] Auto-Attended
USA & Canada FAX: [phone]
International FAX: [phone]

European Headquarters −
United Kingdom

Phone: [phone]
FAX: [phone]

www.MillerWelds.com

Contact the Delivering Carrier to:

File a claim for loss or damage during
shipment.

For assistance in filing or settling claims, contact
your distributor and/or equipment manufacturer’s
Transportation Department.

PRINTED IN USA © 2007 Miller Electric Mfg. Co.2007−01
