Milesight Network Camera v3.2 Quick Start Manual

www.milesight.com 1

Milesight Technology Co., Lt d

Table of Contents

1. Package contents ............................................................................................................... 2

2. Cautions ............................................................................................................................ 2

3. System Requirments .......................................................................................................... 2

4. Hardware Overview ........................................................................................................... 3

4.1 Box Camera .................................................................................................................. 3

4.2 IR Bullet Camera .......................................................................................................... 4

4.3 Dome Camera .............................................................................................................. 5

4.4 Mini Dome Camera ...................................................................................................... 6

5. Hardware Installation ........................................................................................................ 6

5.1 General Connection ..................................................................................................... 6

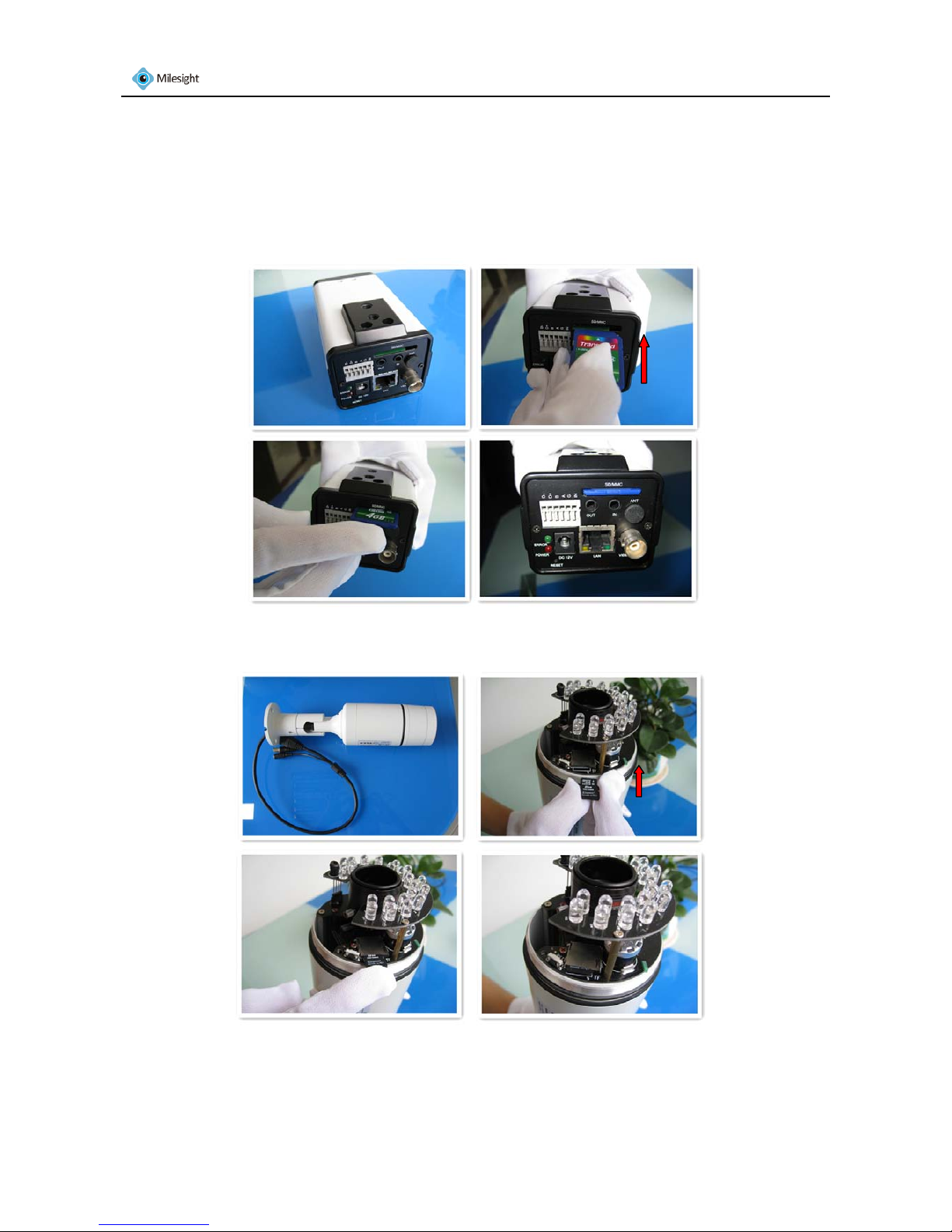

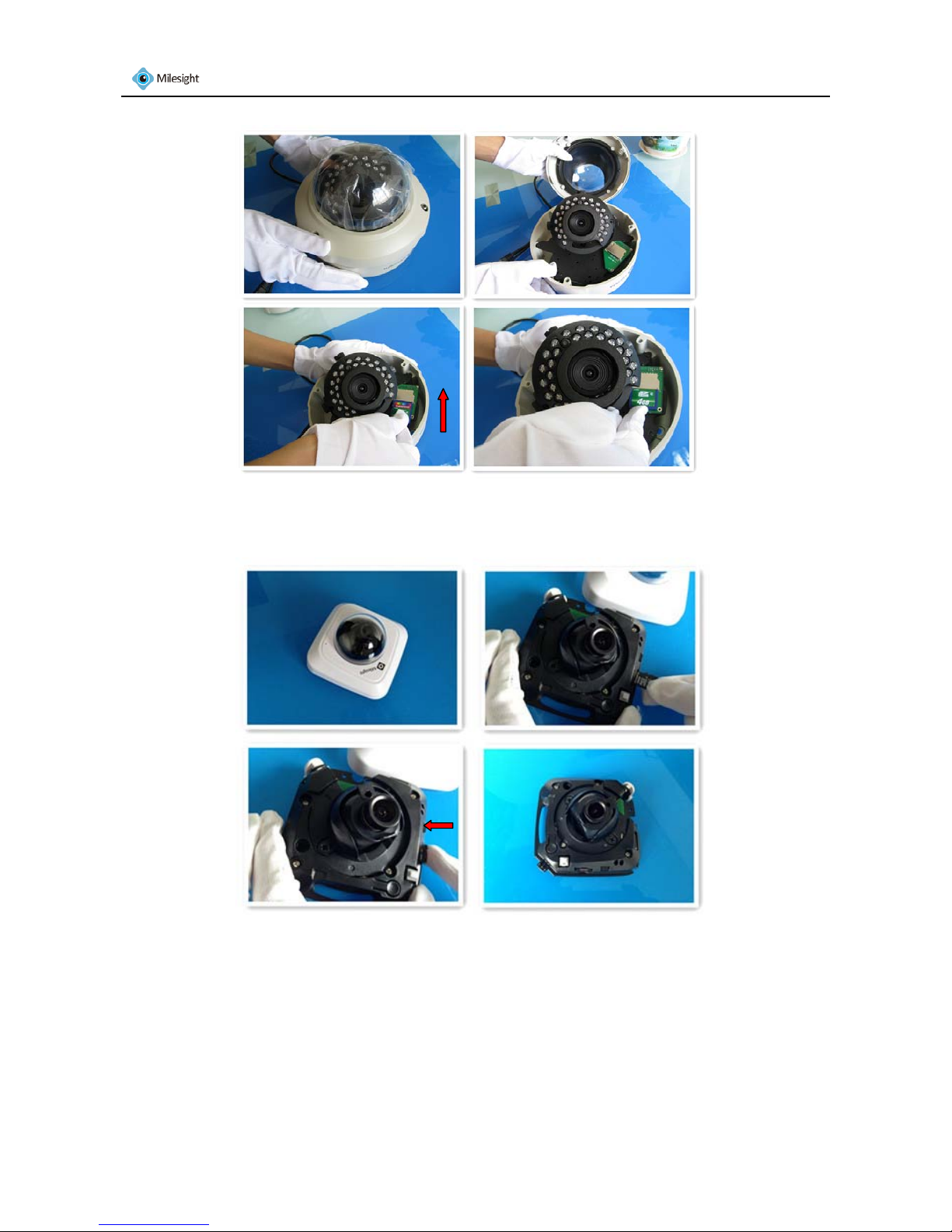

5.2 Insert the SD card ........................................................................................................ 9

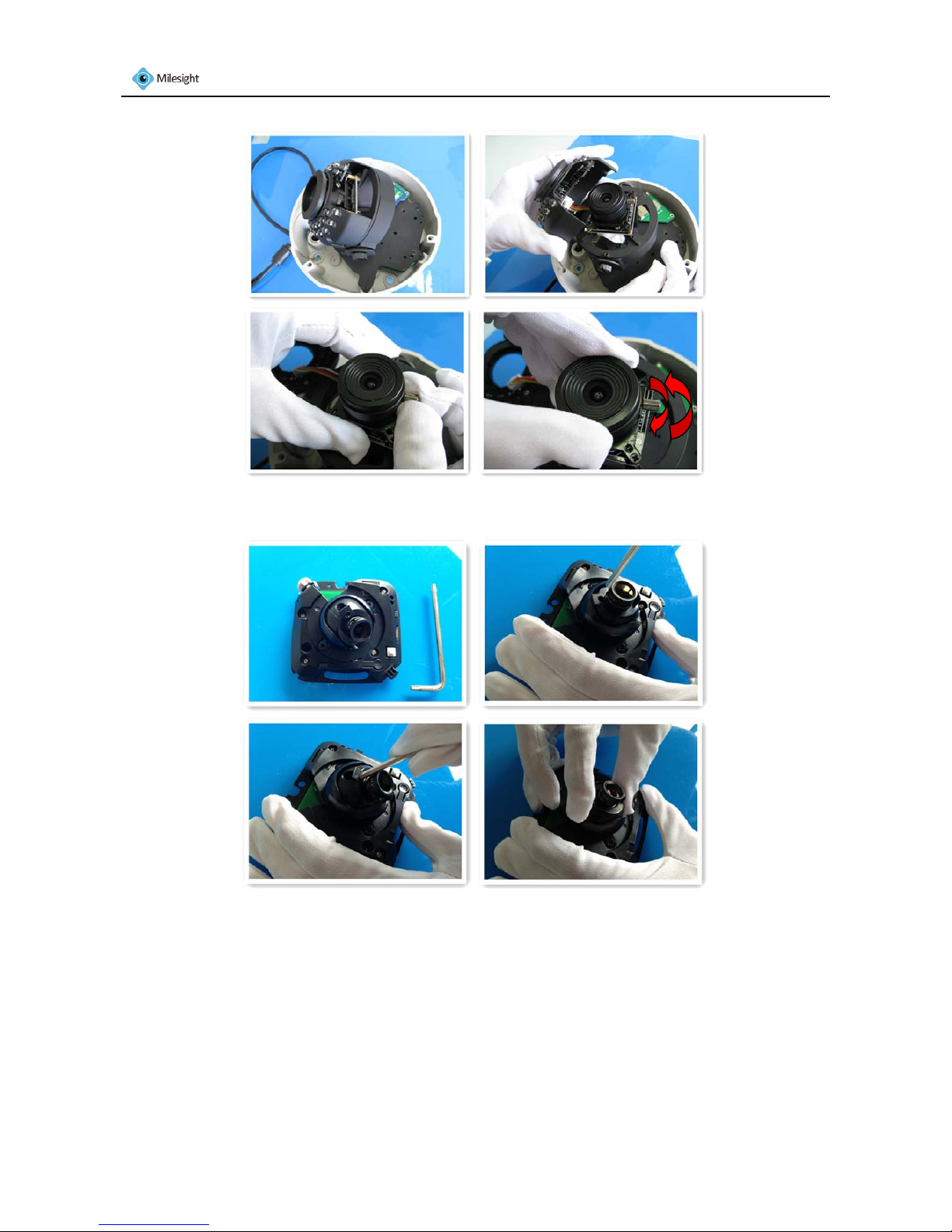

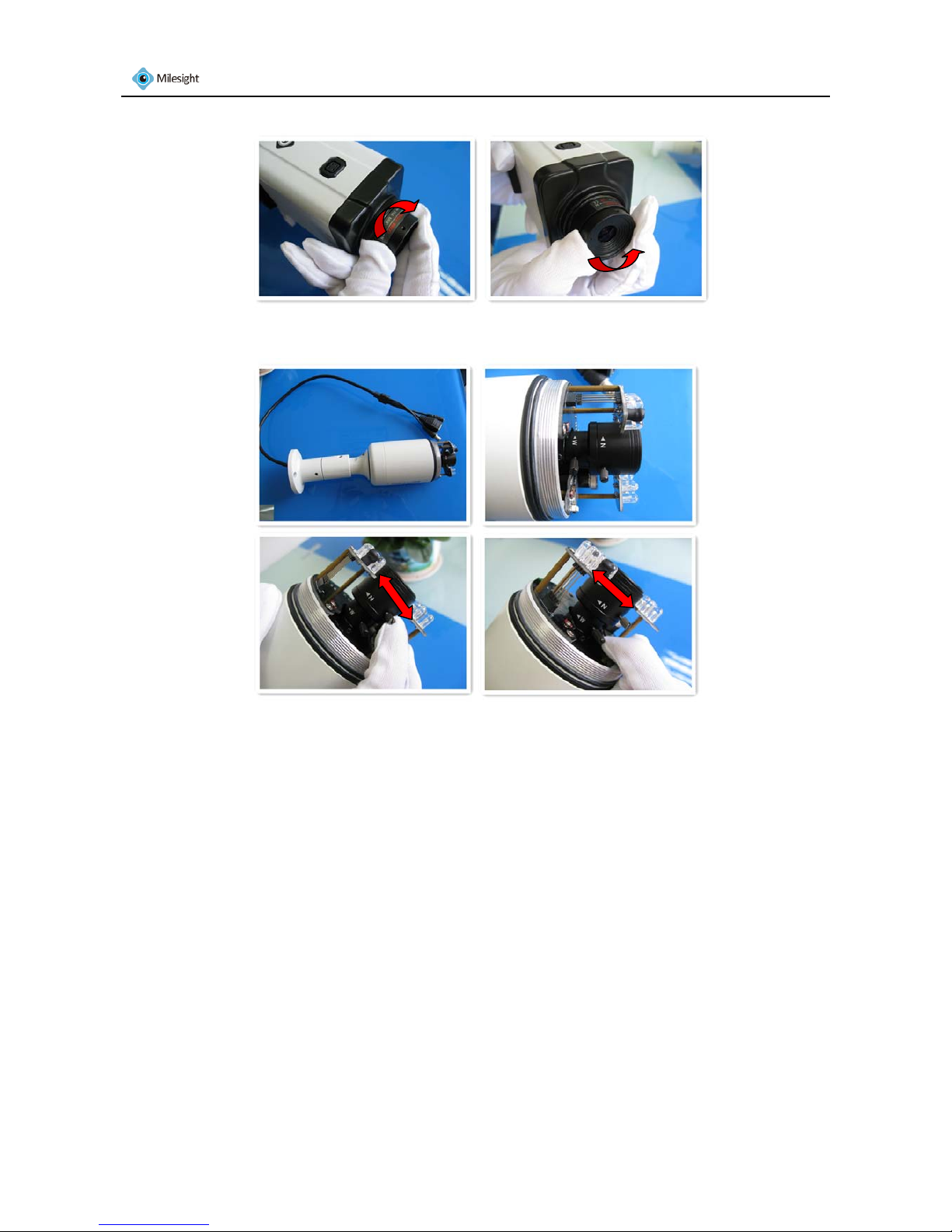

5.3 Lens Adjustment ........................................................................................................ 10

6. Accessing the Camera ...................................................................................................... 12

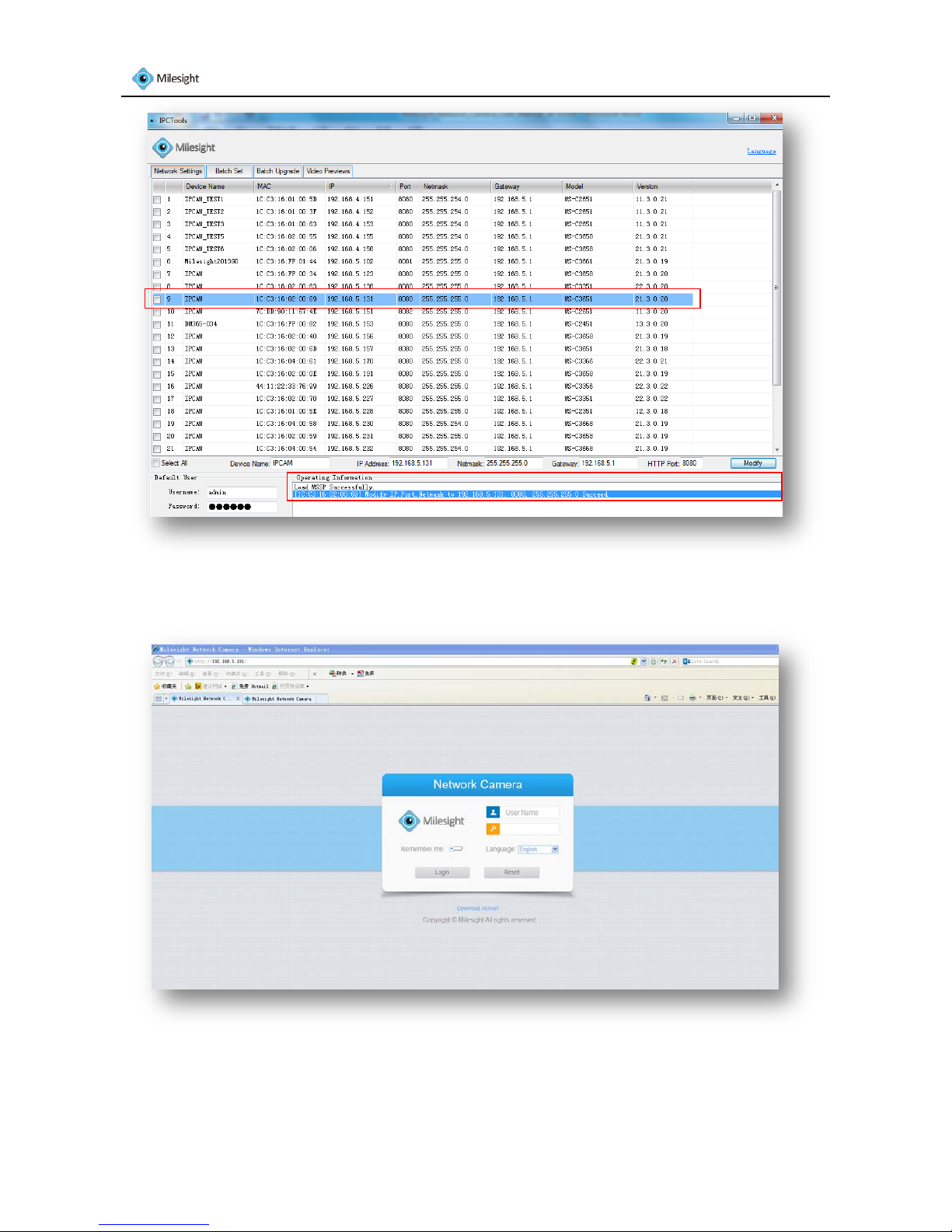

6.1 Assigning an IP Address .............................................................................................. 13

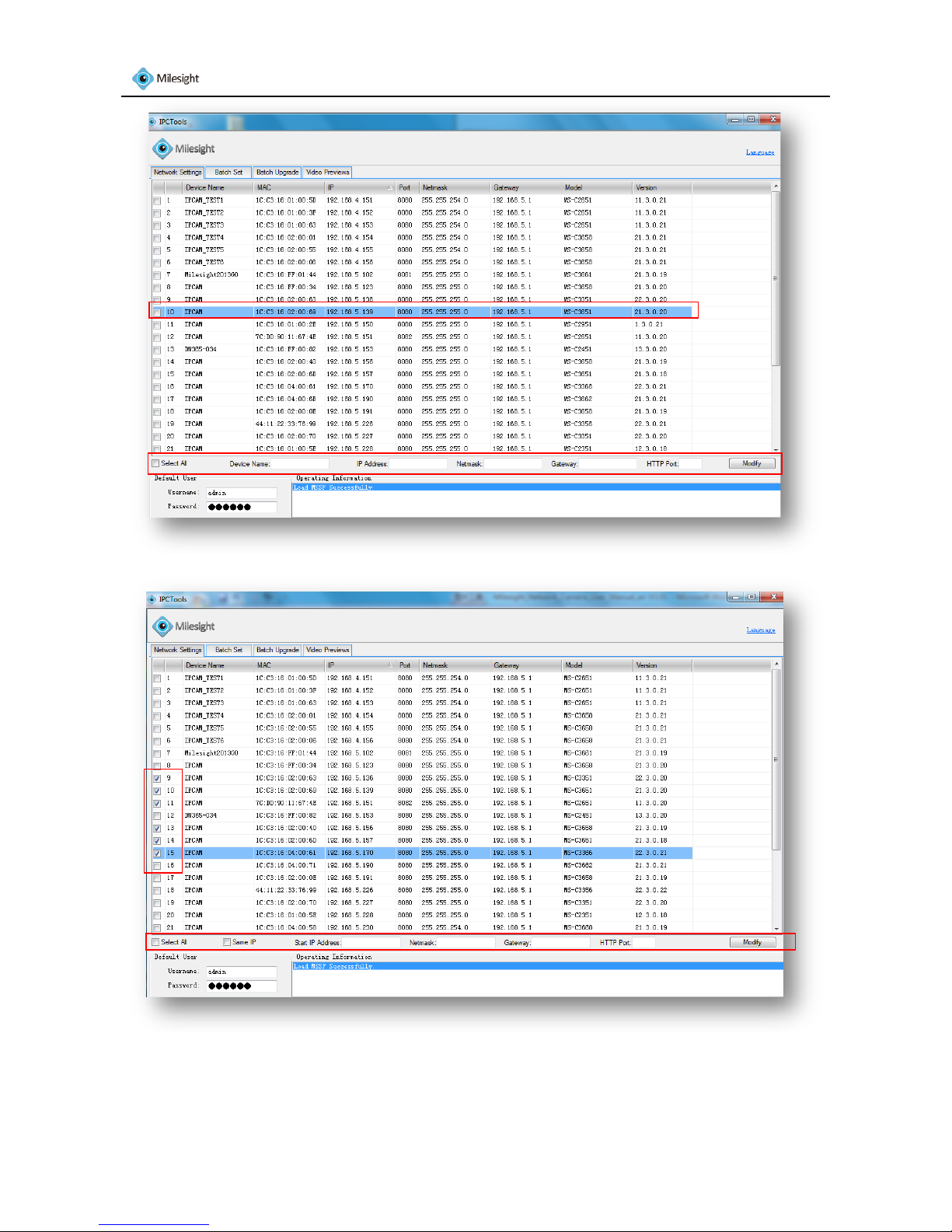

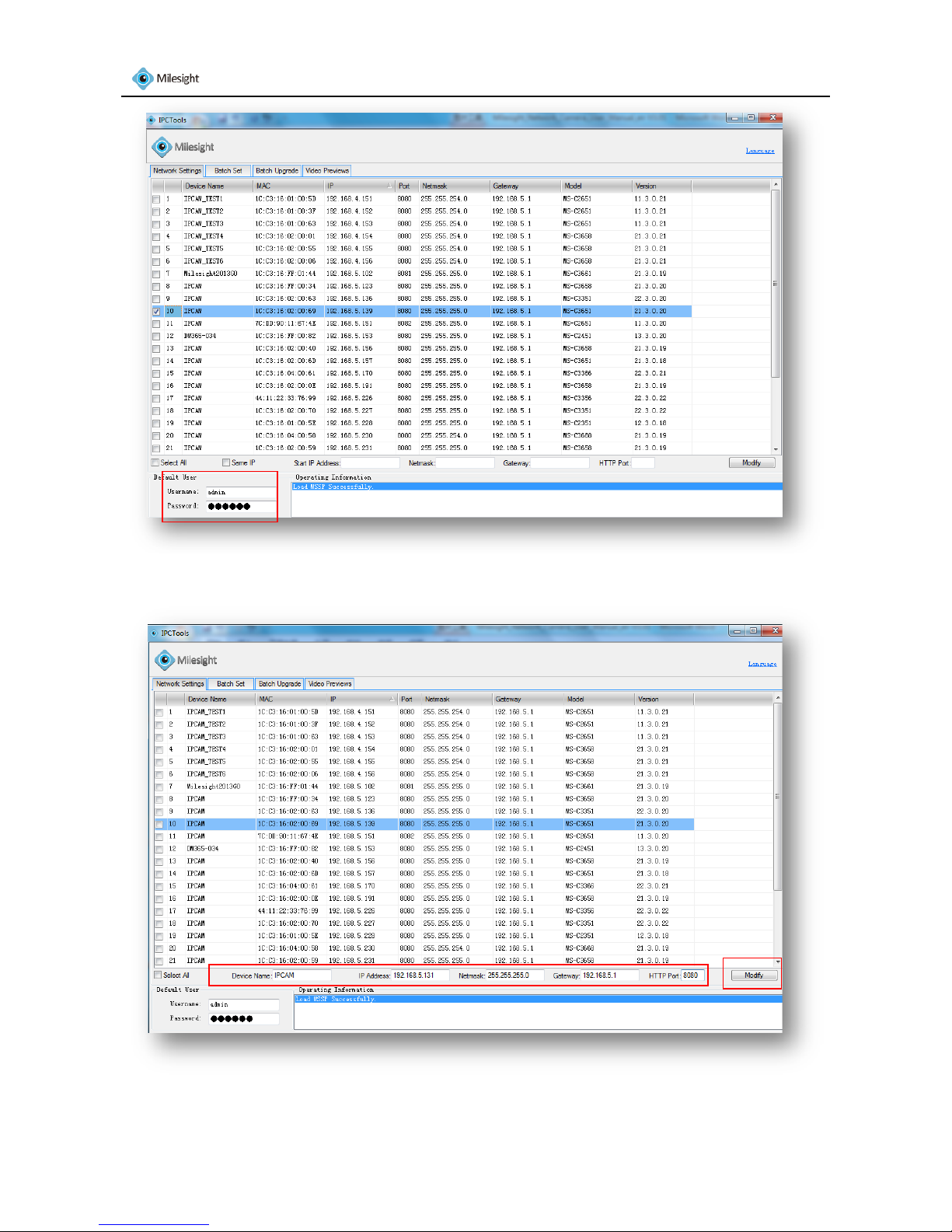

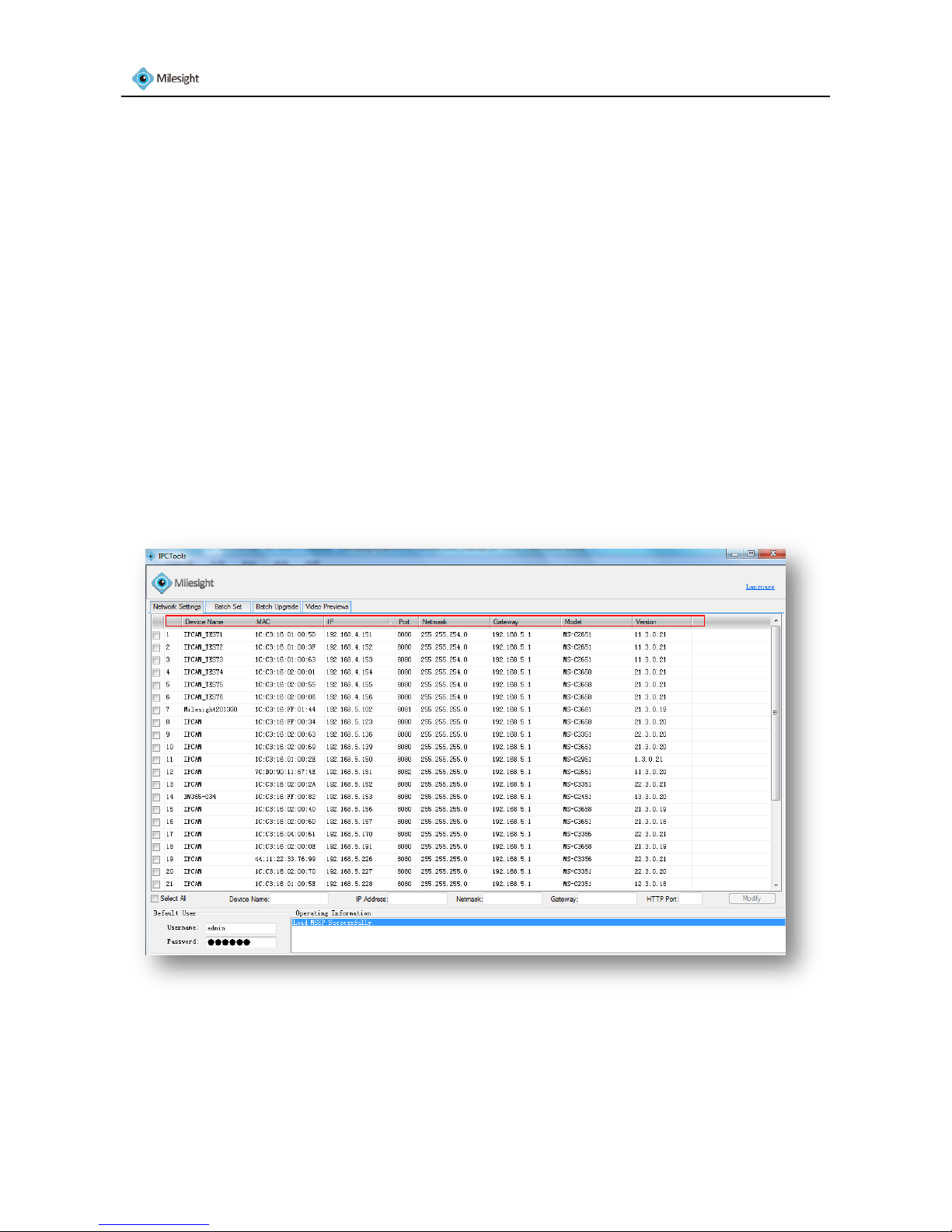

6.1.1 Assigning an IP Address Using IPCTools .................................................................................. 13

6.2 Accessing from the Web Browser ............................................................................... 17

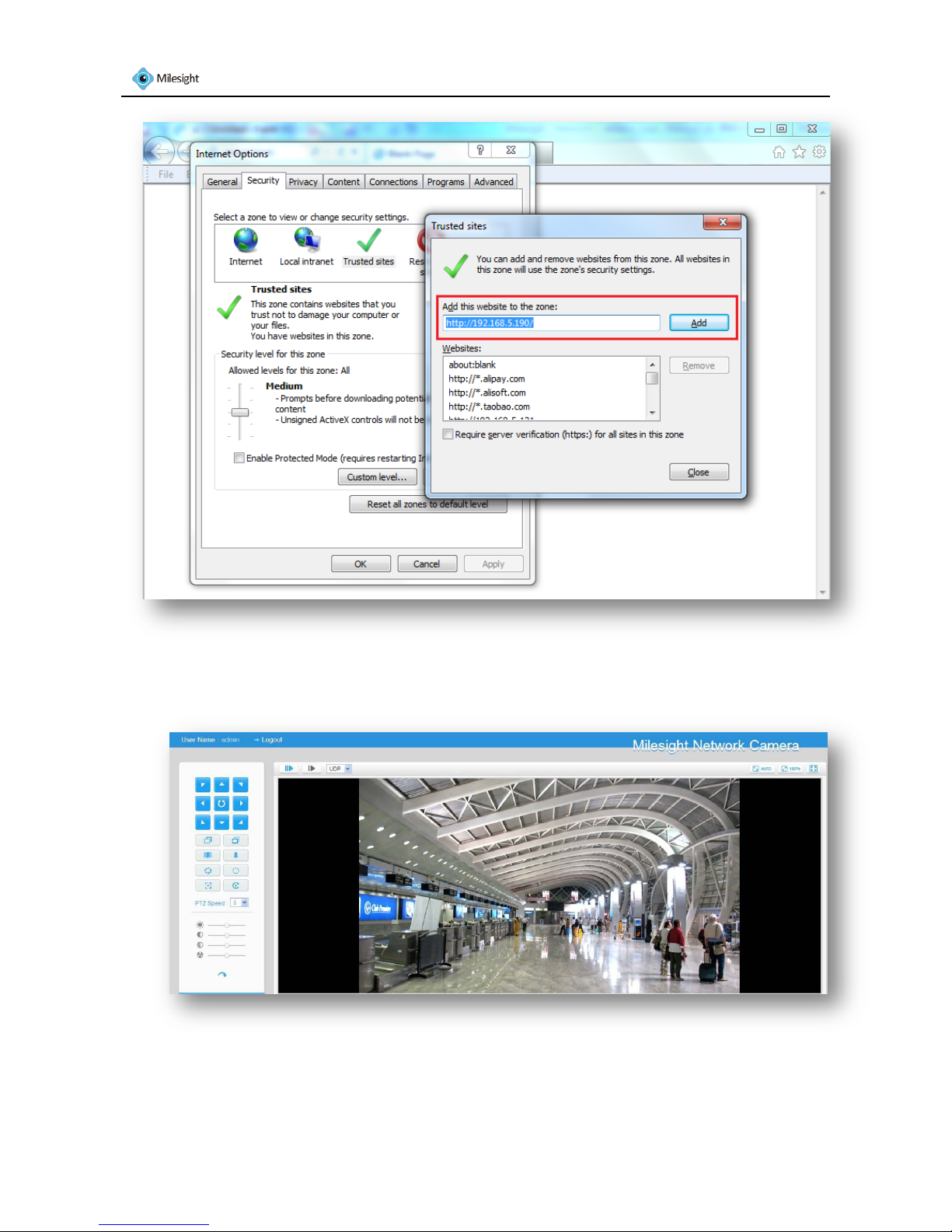

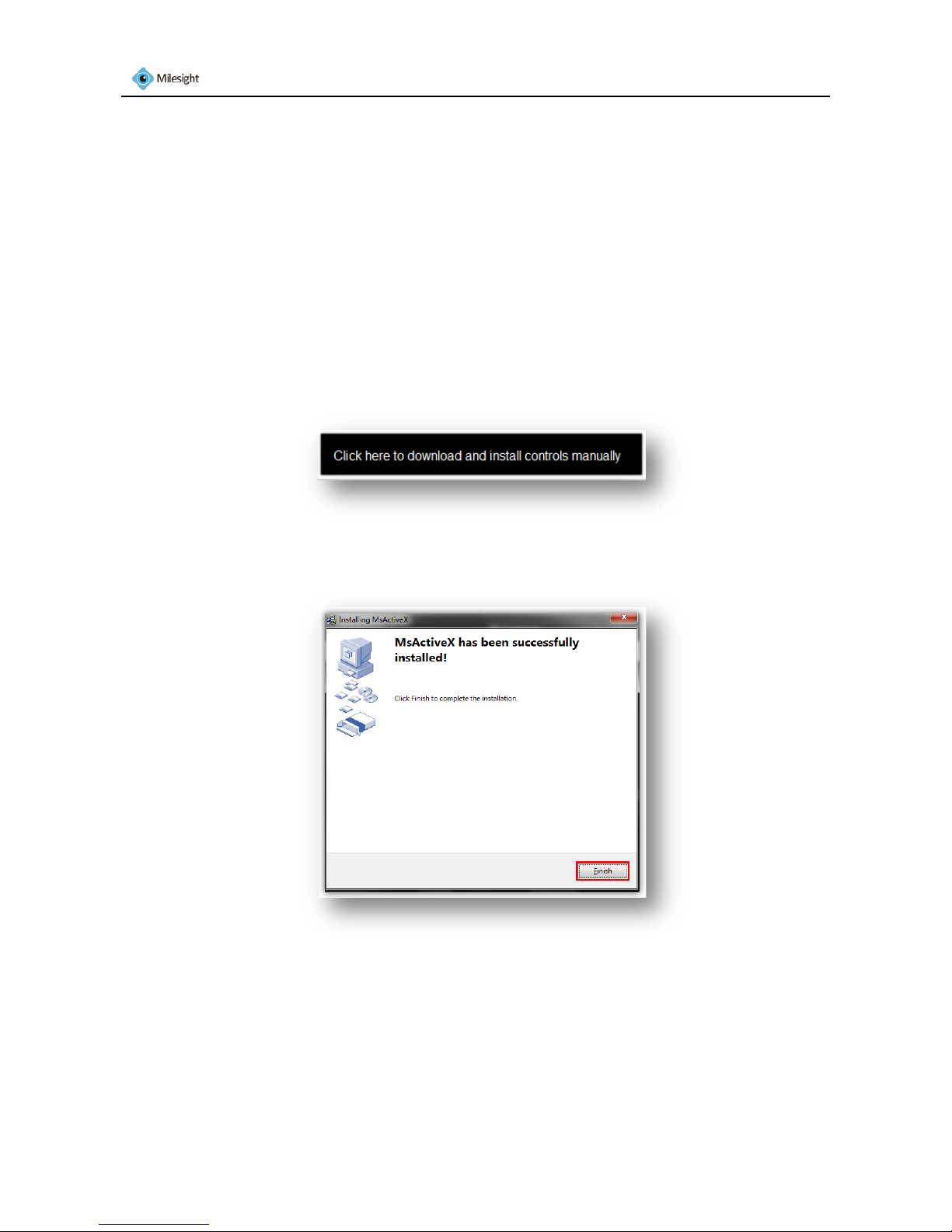

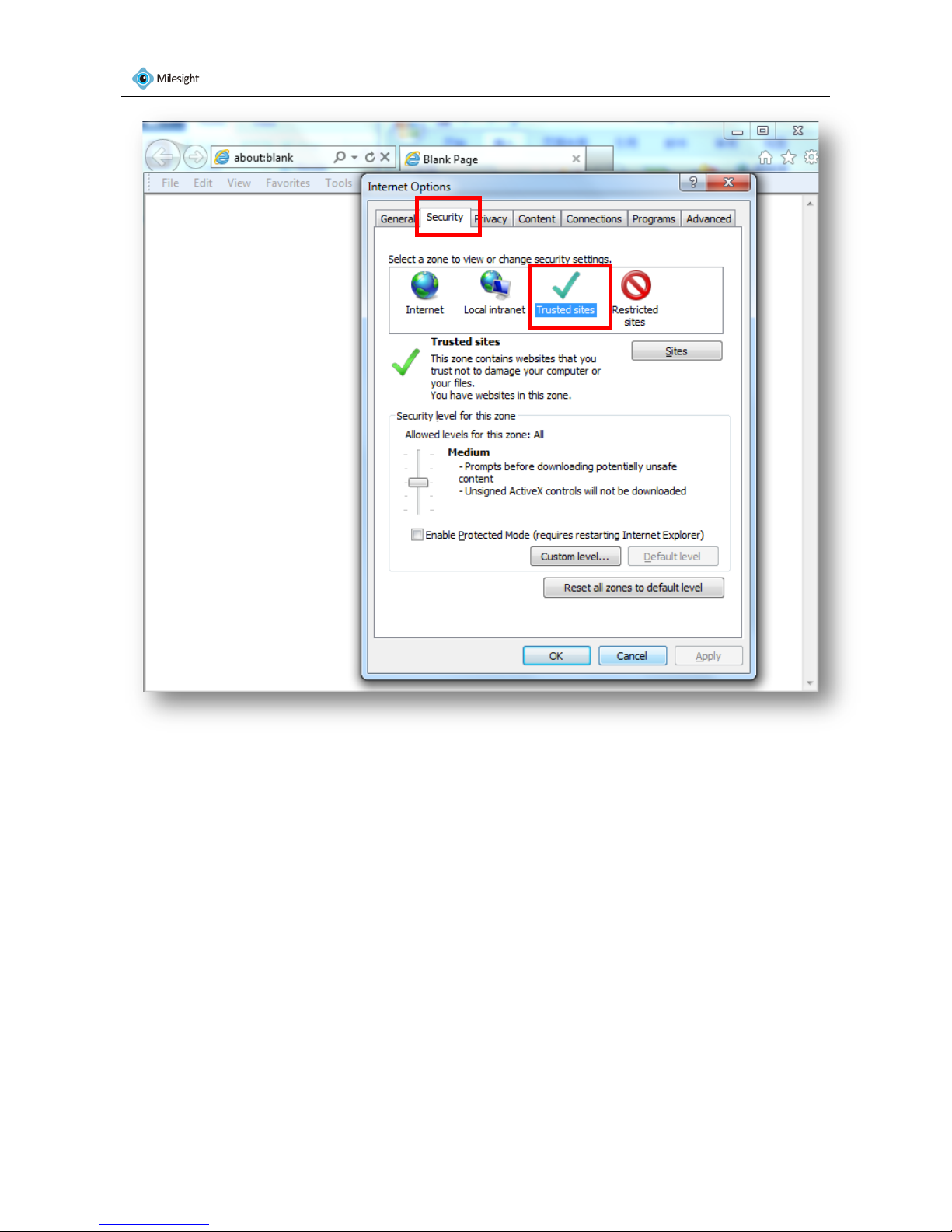

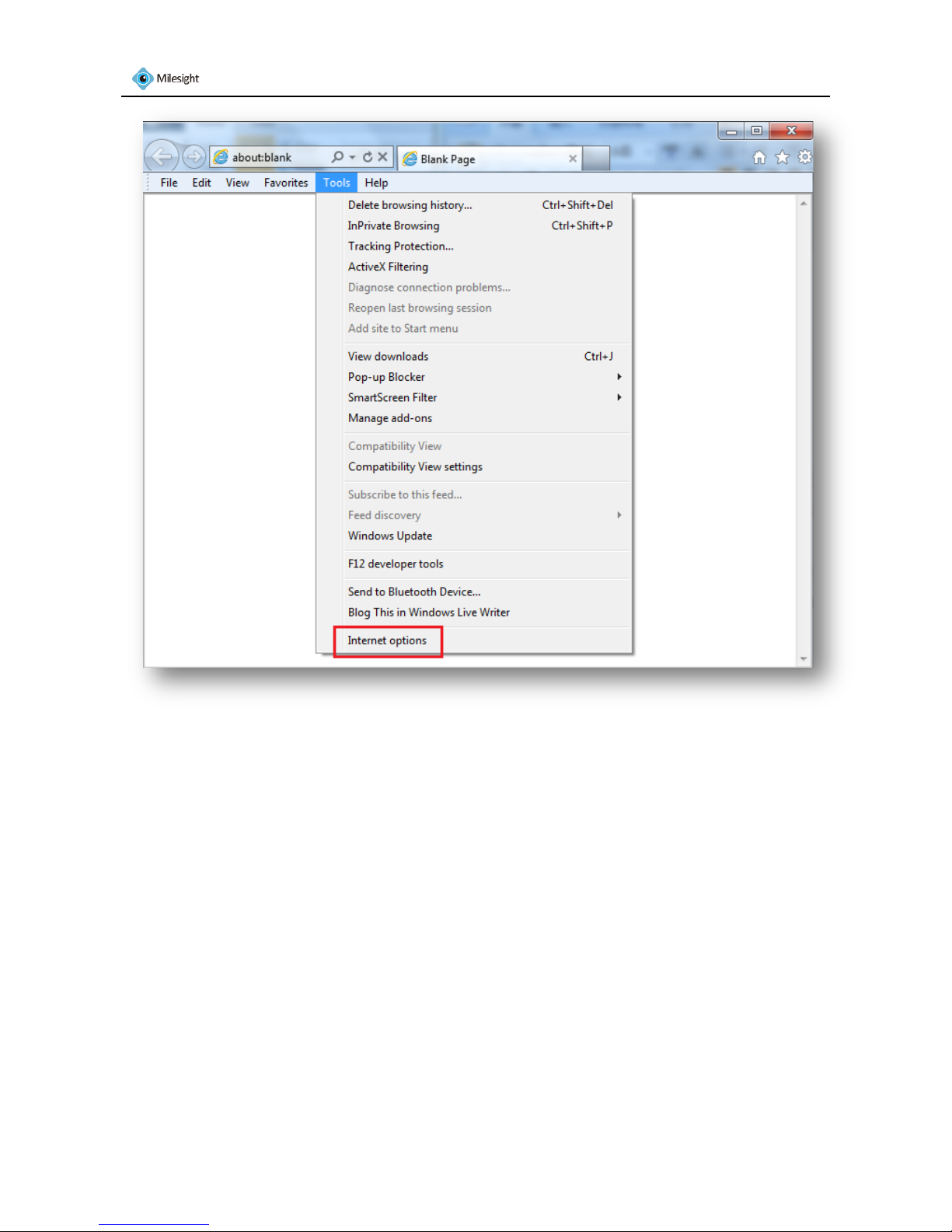

6.2.1 Access over IE Browser ........................................................................................................... 17

www.milesight.com 2

Milesight Technology Co., Lt d

Thank you for purchasing Milesight IP camera. This Guide provides basic instructions on installing
and accessing Milesight network camera. For more details, please refer to the User Manual.

1. Package contents

Before installation, please verify that all the necessary items are supplied in the gift box as the
package contents listed below. If any items are missing or damaged, please contact the shipper
and your Milesight sales representative.

Items Quantity Description

Default Milesight Network

Camera

1 PC The purchased model

Power Adapter 1 PC DC12V, 1.5A MAX
CD 1 PC The CD includes the Datasheet, Quick Start Guide and

User Manual of Milesight network cameras, software

and User Manual of Milesight VMS and IPCTools.
Quick Start Guide 1 PC Printed material
Warranty Card 1 PC Printed material

Optional Lens If purchased

Bracket& Screw
Pack

If purchased

WIFI Antenna For box cameras with WIFI function only

Sheet 1-1

2. Cautions

 Do not expose the product to rain or moisture.
 Make sure the device is firmly fixed when mounting them on the wall or ceiling.
 Make sure that the power supply voltage is correct before using the camera.
 Do not use a third party power adapter.
 Never attempt to disassemble or modify the camera.

3. System Requirements

OS: Windows XP/7/Vista/Server 2000/Server 2008(Please use IE browser to operate)
CPU: 1.66GHZ or higher
Memory: 1GMB or more
Graphic memory: 128MB or more
Internet protocol: TCP/IP (IPv4)

www.milesight.com 3

Milesight Technology Co., Lt d

4. Hardware Overview

4.1 Box Camera

Figure 4-1

*Note:

1) Error LED: Error LED is on when the device starts up or runs error.

2) Reset Button: Press ‘Reset’ button for 5 seconds, the device will be restored to factory default.

*Error LED

Power LED

*Reset Button

Ethernet Port

BNC Video Out

Power Connector (DC12V)

Alarm Output

RS-485 PTZ control

Alarm Input

Antenna for WIFI (Optional)

Audio Input

SD/SDHC Card Slot

Audio Output

www.milesight.com 4

Milesight Technology Co., Lt d

4.2 IR Bullet Camera

Figure 4-2

Power Connector (DC 12V)

Alarm Input/ Output

RS-485 PTZ control

Ethernet Port

Lens

Video Output

Light Sensor

IR LED

Audio Input

Audio Output

www.milesight.com 5

Milesight Technology Co., Lt d

4.3 Dome Camera

Figure 4-3

Video Output

Power Connector (DC 12V)

Audio Output
Audio Input

RS-485 PTZ control

Alarm Input/ Output

Ethernet Port

www.milesight.com 6

Milesight Technology Co., Lt d

4.4 Mini Dome Camera

Figure 4-4

5. Hardware Installation

5.1GeneralConnection

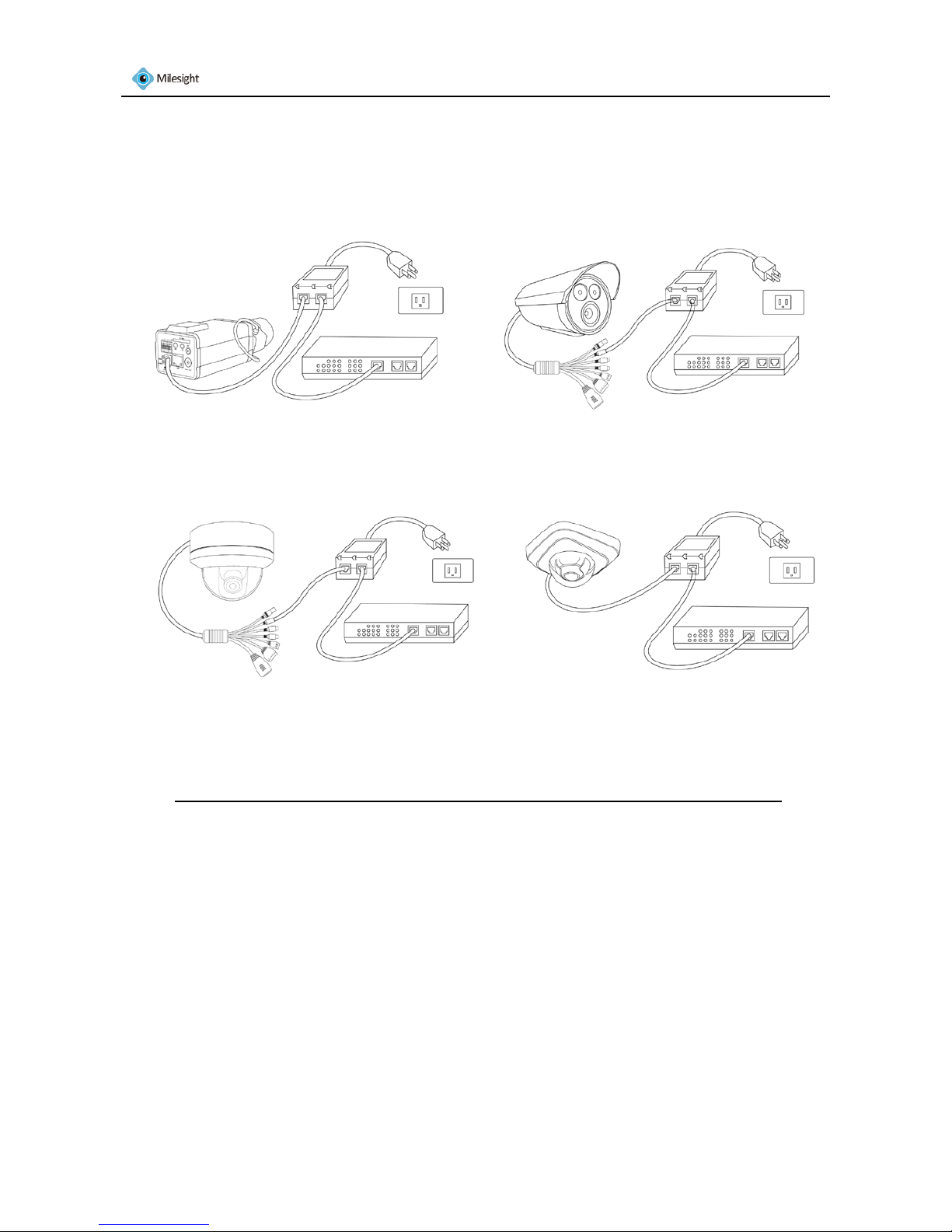

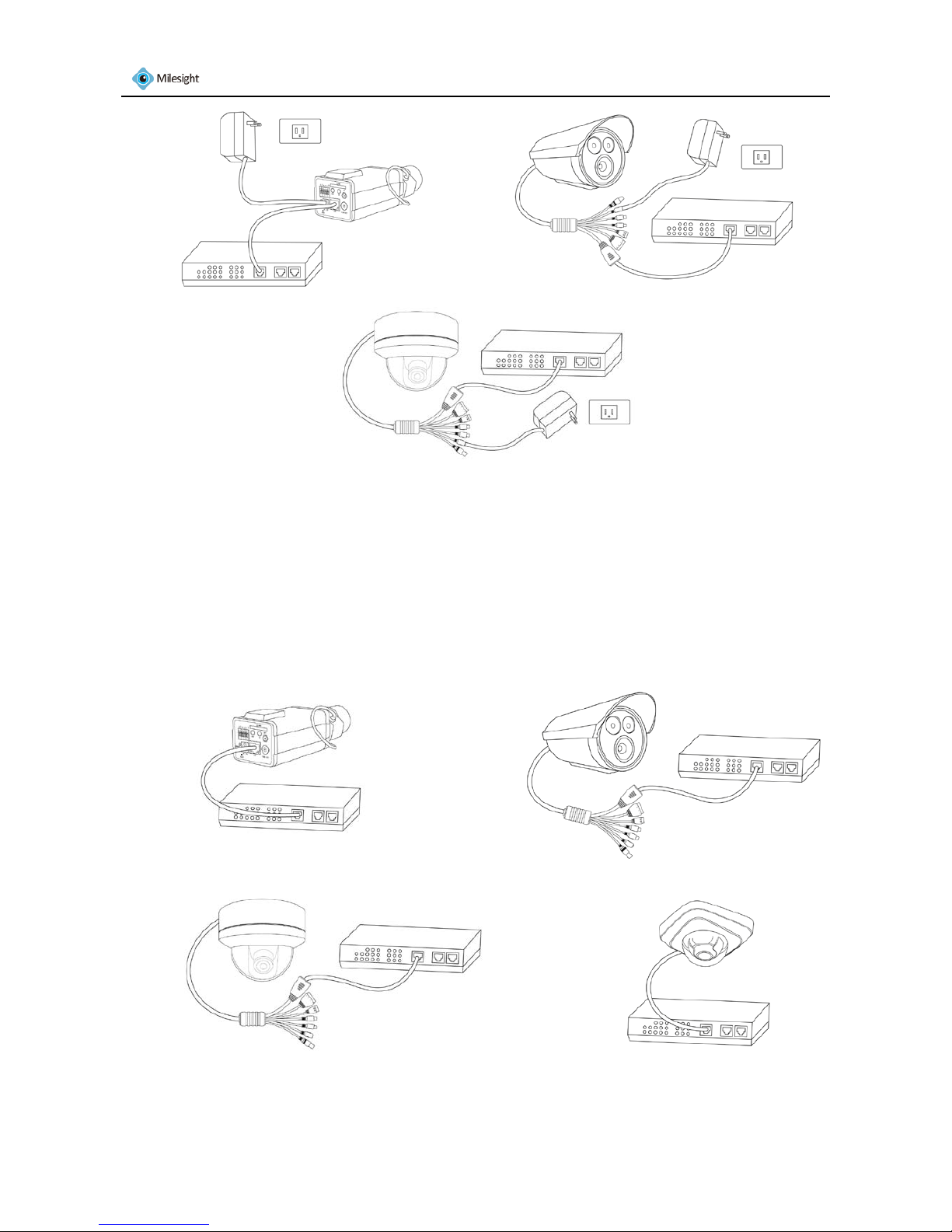

1. Connect the camera to the network and power using one of the methods listed below:

1) Basic connection (without PoE):

Step 1: connect the DC 12V end of the power adapter to the power port of the camera and
connect the other end to a wall outlet;
Step 2: connect the camera to a switch using an Ethernet cable.

Ethernet Port (PoE)

Micro SD/SDHC Card Slot
