UG63 Datasheet
Lo RaWAN
®
Gateway

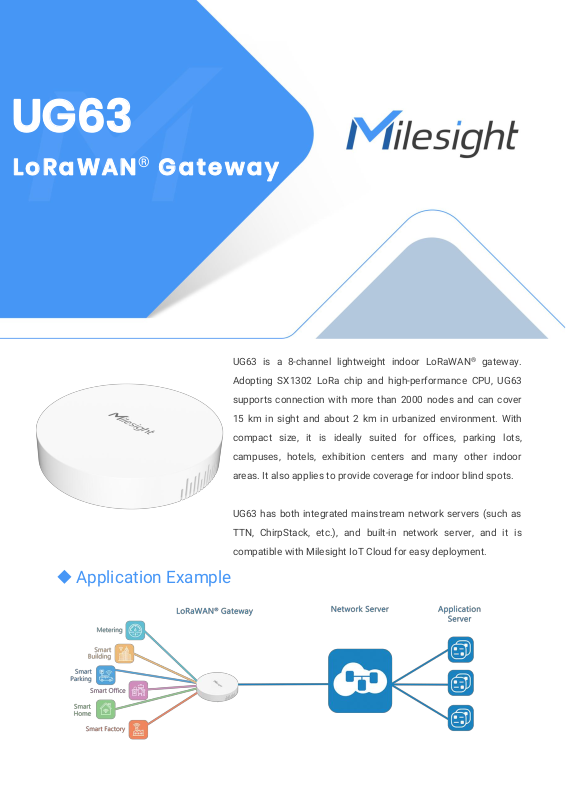

UG63 is a 8-channel lightweight indoor LoRaWAN®gateway.
Adopting SX1302 LoRa chip and high-performance CPU, UG63
supports connection with more than 2000 nodes and can cover
15 km in sight and about 2 km in urbanized environment. With
compact size, it is ideally suited for offices, parking lots,
campuses, hotels, exhibition centers and many other indoor
areas. It also applies to provide coverage for indoor blind spots.
UG63 has both integrated mainstream network servers (such as
TTN, ChirpStack, etc.), and built-in network server, and it is
compatible with Milesight IoT Cloud for easy deployment.
Application Example
Page 2
Features
High performance NXP industrial processor
with big memory
Equip with SX1302 chip, handling a higher
amount of traffic with lower consumption
8 half/full-duplex channels
Support worldwide LoRaWAN®frequency
range from 470 MHz to 928 MHz
Support Listen Before Talk (LBT) for downlink
Desktop, wall or ceiling mounting support
DeviceHub and Milesight IoT Cloud provide easy
and centralized management of remote devices
Enable security communication with multiple
VPNs like IPsec/OpenVPN/L2TP/PPTP/DMVPN
Compatible with mainstream network servers like
The Things Industries, ChirpStack, etc.
Detect and analyze the noise level and provide
intuitive diagram for deployment
Built-in network server and MQTT/HTTP/HTTPS
API for easily integration
Hardware System
CPU
528 MHz, ARM Cortex-A7
Memory
256 MB DDR4 RAM
Flash
4 GB eMMC
LoRaWAN
Antenna
2 × Internal Antennas
Channel
8 (Half/Full-duplex)
Frequency Band
CN470/IN865/EU868/RU864/US915/AU915/KR920/AS923-1&2&3&4
Sensitivity
-140dBm Sensitivity @292bps
Output Power
27dBm Max
Protocol
V1.0 Class A/Class B/Class C and V1.0.2 Class A/Class B/Class C
LBT
Support
Ethernet Interface
Port
1 × RJ45 (PoE PD supported)
Physical Layer
10/100 Base-T (IEEE 802.3)
Data Rate
10/100 Mbps (Auto-Sensing)
Interface
Auto MDI/MDIX
Mode
Full or Half Duplex (Auto-Sensing)
Others
Reset Button
1 × RST
UG63 Datasheet
Specifications
Page 3
UG63 Datasheet
Console Port
1 × Type-C
LED Indicators
1 × SYS, 1 × LoRa
Built-in
Watchdog, RTC, Timer
Software
Network Protocols
PPPoE, SNMP v1/v2c/v3, TCP, UDP, DHCP, DDNS, HTTP, HTTPS, DNS,
ARP, SNTP, Telnet, SSH, MQTT, etc.
VPN Tunnel
OpenVPN/IPsec/PPTP/L2TP/GRE/DMVPN
Management
Web, CLI, DeviceHub, Milesight IoT Cloud
Power Supply
Power Input
1. 1 × 802.3af standard PoE input
2. 5V by Type-C Port
Physical Characteristics
Ingress Protection
IP30
Dimensions
Ф 115 x 21 mm (Ф 4.52 x 0.83 in)
Color & Material
White, PC + ABS
Installation
Desktop, Wall or Ceiling Mounting
Environmental
Operating
Temperature
-20°C to +50°C (-4℉ to +122℉)
Storage Temperature
-40°C to +85°C (-40℉ to +185℉)
Ethernet Isolation
1.5 kV RMS
Relative Humidity
0% to 95% (non-condensing) at 25°C/77℉
