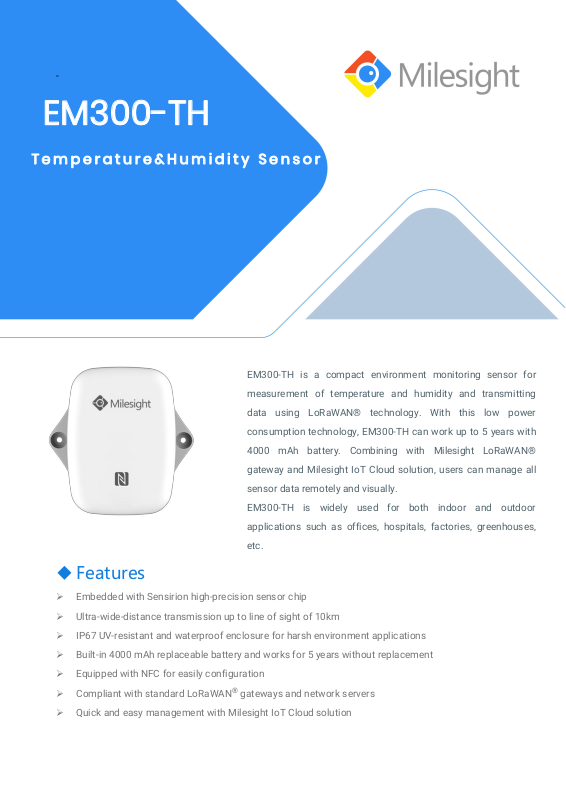

MILESIGHT MIL EM300-TH Datasheet

EM300-TH Datasheet

EM300-TH

T e m p e r a t u r e & H u m i d i t y S e n s o r

EM300-TH is a compact environment monitoring sensor for

measurement of temperature and humidity and transmitting

data using LoRaWAN® technology. With this low power

consumption technology, EM300-TH can work up to 5 years with

4000 mAh battery. Combining with Milesight LoRaWAN®

gateway and Milesight IoT Cloud solution, users can manage all

sensor data remotely and visually.

EM300-TH is widely used for both indoor and outdoor

applications such as offices, hospitals, factories, greenhouses,

etc.

-

Features



 Embedded with Sensirion high-precision sensor chip

Ultra-wide-distance transmission up to line of sight of 10km



IP67 UV-resistant and waterproof enclosure for harsh environment applications



Built-in 4000 mAh replaceable battery and works for 5 years without replacement



Equipped with NFC for easily configuration



Compliant with standard LoRaWAN®gateways and network servers



Quick and easy management with Milesight IoT Cloud solution



 Specifications

Wireless Transmission

Technology

LoRaWAN

®

Frequency

CN470/IN865/RU864/EU868/US915/AU915/KR920/AS923

Tx Power

16dBm(868)/20dBm(915)/19dBm(470)

Sensitivity

-147dBm @300bps

Mode

OTAA/ABP Class A

Measurement

Temperature

Range

-30°C to + 70°C

Accuracy

0°C to + 70°C (+/- 0.3°C), -30°C to 0°C (+/- 0.6°C)

Resolution

0.1°C

Humidity

Range

0% to 100% RH

Accuracy

10% to 90% RH (+/- 3%), below 10% and above 90% RH (+/- 5%)

Resolution

0.5% RH

Operation

Power On & Off

NFC, power button (Internal)

Configuration

Mobile APP(via NFC) or PC software(via USB Type-C)

Physical Characteristics

Power Supply

1 × 4000 mAh ER18505 Li-SOCL2battery (extendable to 2 batteries)

Battery Life*

>5 years (10 min interval, SF10)

Operating Temperature

-30°C to +70°C

Relative Humidity

0% to 100% (non-condensing)

Ingress Protection

IP67

Dimension

88.5 × 85.3 × 27 mm (3.48 × 3.36 × 1.06 in)

Installation

Wall Mounting

EM300-TH Datasheet

* Tested under laboratory conditions and for guideline purposes only.
