Installation and Operator’s Manual:
Project ES Winch System:




Page 2
Table of Contents:
Safety Warnings & Precautions..........................3
inching Tips & Techniques...............................6
W
Getting Started:
Unpacking Your Winch............................8
Winch Mounting.....................................8
Clocking Instructions.........................................9
Control Box Installation....................................10
inch Operation..............................................14
W
Maintenance...................................................15
Troubleshooting...............................................15
Features.........................................................16
Parts Lists.....................................................19
Warranty........................................................25
Page 3
Safety Warnings
When using this winch, safety precautions should always be followed to reduce the risk of personal injury and damage to the winch.
1) LEARN TO USE YOUR MILE MARKER WINCH: a. After winch has been installed, take some time and practice using it so you will be familiar with ALL OPERA­TIONS. Periodically check the winch installation to ensure that all bolts are tight. b. To ensure proper operation, carefully inspect for any damaged parts before operating the winch.
2) KEEP WINCHING AREA CLEAR: Do not allow people to remain in the area during winching operations. Do not step over a taut wire rope or allow anyone else to do so. Due to the possibility of cable failure, direct all personnel to stand clear of any possible pathway. A snapped cable could cause winch failure, injury or death. Keep proper footing and balance at all times. Do not reach over or across the winch and/or pulling cable while the winch is in opera­tion.
3) INSPECT WIRE ROPE AND EQUIPMENT FRE­QUENTLY: The wire rope should be inspected for damage that could reduce it’s breaking strength. A frayed rope with broken strands should be replaced immediately. Always replace the rope with a rope that is rated to sustain any load that the winch is capable of pulling. Any substitute must be IDENTI­CAL in strength, quality, lay and stranding to the Mile Marker cable originally supplied.
4) WORKING AREA CONDITIONS: Keep the working area well lit. Do not use this winch in the presence of flammable gases or liquids.
5) KEEP CHILDREN AWAY: Keep children away from working area. Never let children operate the winch.
6) DRESS PROPERLY: Do not wear loose clothing or jewelry as they can be caught in moving parts. Protective, electrically non-conductive clothes and non-skid footwear is the only type of clothing you should be using when operating the winch. Wear restrictive hair covering to contain long hair.
7) USE LEATHER GLOVES: When handling or rewinding wire rope always use hand pro­tection to eliminate the possibility of cuts caused by burrs & slivers from broken strands.
8) DRUM ROPE: Always make sure that there are at least 5 complete turns of rope left on the drum before winching.
9) KEEP HANDS AND FINGERS CLEAR OF WIRE ROPE AND HOOK WHEN OPERATING WINCH: Never put your finger through the hook when reeling in the last few feet. If your finger should become trapped in the hook or rope, you could lose your finger. Never guide a wire rope under tension onto the drum with your hand.
10) NEVER HOOK THE ROPE BACK ONTO ITSELF: Hooking the rope back onto itself creates an excessive strain that could break individual strands; this, in effect, weakens the entire wire rope.
11) KEEP PULLING DURATIONS AS SHORT AS POS­SIBLE: The winch is designed for intermittent use and cannot be used in constant duty applications. Do not pull more than one minute at or near rated load. If the motor becomes too hot to touch, stop and let it cool off for a few minutes. If the motor stalls, cut off the power immediately.
Page 4
Safety Warnings-Cont’d
When using this winch, safety precautions should always be followed to reduce the risk of personal injury and damage to the winch.
12) DO NOT OVERLOAD: For your safety and efficient performance, always use this winch at or under its rated capacity for your safety and for better performance. Do not use inappropriate attachments in an attempt to exceed its rated capacity.
13) AVOID CONTINUOUS PULLS FROM EXTREME ANGLES: This will cause the rope to pile up at one end of the drum. When possible, please get the rope as straight as possible to the direction of the object.
14) NEVER OPERATE THE WINCH WITHOUT THE ROPE FAIRLEAD FITTED: Operator injury or winch damage can result if a fairlead is not installed.
15) STAY ALERT: Watch what you are doing. Use your common sense. Do not use this winch when you are tired, stressed or WHEN UNDER THE INFLUENCE OF DRUGS, ALCOHOL OR MEDI­CATION.
16) DISCONNECT REMOTE CONTROL: Unplug the winch’s remote control when not in use.
17) REPLACEMENT PARTS & ACCESSORIES: When servicing, use only identical replacement parts. Usage of any other parts will void the warranty. Approved accessories are available from your local distributor.
Page 5
Precautions
When using this winch, safety precautions should always be followed to reduce the risk of personal injury and damage to the winch.
1) Keeps hands and body away from Fairlead (cable intake slot) when operating.
2) Secure vehicle in position before using winch.
3) Do not exceed winch load weight capacity (see Winch Specifications).
4) Be certain winch is properly bolted to a structure (or vehicle) that can hold the winch load.
5) Always use proper couplings when connecting winch cable hook to load.
6) Do not lift items vertically. The winch was designed for horizontal use only.
7) Do not overload the winch (see Model Specifica­tions). It will do the job better at the load it was intended.
8) Do not use inappropriate attachments to extend the length of the winch cable.
11) Do not apply load to winch when cable is fully extended. Keep AT LEAST 5 FULL TURNS of cable on the drum.
12) After moving an item with the winch, secure the item. Do not rely on the winch to hold it for an extended pe­riod.
13) Examine winch before using. Components may be affected by exposure to everyday weathering, chemicals, salts, and rust.
14) When loading a boat into a trailer without reel or side hull rollers, make sure the trailer is submerged in the water when the boat is loaded by the winch. Attempting to drag the boat on to the trailer while on land can cause winch failure and possible injury.
15) Never operate winch if cable shows any signs of weakening, is knotted or kinked.
16) Do not cross over or under the cable while it is in process of loading.
9) NEVER LIFT PEOPLE OR HOIST LOADS OVER PEOPLE.
10) Never come in between the winch and the load when operating.
17) Do not move vehicle with cable extended and at­tached to load to pull it. The cable could snap.
18) Apply blocks (such as a wheel choke) to vehicle when parked on an incline.
19) Re-spool cable properly.
Page 6
Winching Tips & Techniques
WINCHING TIPS AND USE OF A SNATCH BLOCK
•Use OEM tow hooks, recovery eyes or a clevis mount for attach­ment of a tow strap or winch cable. Warning: Never use a ball and /or ball mount as an anchor point for tow strap or winch cable. Severe personal injury or death could occur.
•Always heed all winch manufacturer’s recommendations, cau­tions, and warnings.
•Attach return cable to tow hook or recovery eye when using a
snatch block. Always use a clevis to secure snatch block to strap, or severe damage could occur to persons and vehicle. (See Figure Below). Caution: Never attach return cable to winch mount. This
may overload winch mount and/or front receiver.
RATING
For maximum line pull rating, winch cable direction must not exceed:
1. 15º angle up or down from horizontal (See Figure Below).
2. 45º angle left or right from straight ahead (See Figure Below). Caution: Exceeding the maximum line pull rating may overload winch, winch mount, and/or front mounted receiver.
SAFETY TIPS
NEVER DISENGAGE CLUTCH LEVER WHEN THERE IS A LOAD ON THE WINCH. Mile Marker electric winches utilize an automatic load holding brake, therefore no adjustment to clutch is needed to maintain load.
•Store the remote control cord in a safe place when not in use
to prevent use by children or other unauthorized persons who could injure themselves or others or damage the controls.
•Do not operate winch inder the influence of drugs, alcohol,
or medications.
•Isolate winch before putting hands in or around the fairlead
or wire rope drum (The Danger Zone).
•DO NOT OVERLOAD YOUR WINCH. Do not maintain power to
the winch if the drum stops. Overloads can damage the vehicle, winch or winch rope and create unstable operating conditions.
•It is recommended to lay a heavy blanket or jacket over the
rope about halfway along to the hook attachment. If a rope fail­ure should occur, the weight of the cloth will act as a damper and help prevent the broken rope from whipping (See Figure Below). Remember to move the blanket or jacket as winching proceeds, but halt winching when doing so. Partially raising the hood of the vehicle will also give a measure of protection to its occupants from broken rope or cable, consistent with suf­ficient forward visibility for the operator.
Page 7
Winching Tips & Techniques
SELF-RECOVERY
1. Always attempt to get the cable as straight as possible to the direc­tion of the vehicle. It is acceptable to start a pull at an angle if it is obvious that the vehicle will turn towards the hook anchoring point. Turning the steering wheel will assist the process. It is recommended that the driver is in the vehicle.
2. Make sure hand brake and foot brake are free and that the trans­mission is in neutral.
3. When the driver’s attempt to regain vehicle traction is successful, he or she should be careful not to overrun the cable and risk the pos­sibility of it being trapped under the vehicle.
4. DO NOT move your vehicle in reverse to assist the winch. The com­bination of the winch and vehicle pulling together could overload the
cable and winch itself.
USE OF A PULLEY BLOCK OR SNATCH BLOCK
Vehicle self-recovery using the pulley block attached to the anchor point for direct pull. In this instance the vehicle becomes the “load” and the actual pulling power on the vehicle will be double at half winch rope speed. Never connect wire rope or hook back to winch mount!
Below: Indirect pull necessitated by obstructions or soft ground. Pulley block attached to load using a suitable anchor point. Note the angled direction taken by the load and subse­quent angle of rope feed-back on the winch drum (extreme example shown). There may be unavoidable circumstances requiring this mode, though in general it is not recommend­ed unless applied in stages by moving the anchor point or vehicle to avoid the sharp angled rewind on the winch drum. The actual load pulling power and rope speed will depreciate with any increased angle between the ropes.
The anchor point, when used must be secure, using a tree, another vehicle or any firm structure to which a pulley block can be used to your advantage.
Below: Direct pull on load using the winch vehicles as the anchor with pulley block attached to the load.
The most important aid to successful winching (after the winch) is the pulley block, which can be used to increase the pulling power of the winch of for indirect pulls. Pulley blocks can be used in two modes. First mode is attached to the load and second is secured to an anchor point.
USE OF A NYLON SLING AND SHACKLE
•A shackle should always be used when attaching winch
hooks to nylon slings. NOTE: The shackle must pass through both eyes of the sling. The safe working load of the nylon sling is based on the use of both eye ends. Never use the cable or hook to connect directly to the nylon sling.
USE OF GLOVES
•When handling or rewinding the cable always use gloves
to eliminate the possibility of cuts caused by burrs and bro­ken strands. Inspect cable and equipment frequently. The cable should be replaced immediately if any sign of burrs or broken strands are evident. A frayed cable with broken strands should be replaced immediately. Always replace the cable with a Mile Marker recommended replacement part. Any substitution must be IDENTICAL in strength, quality, lay and stranding. Never hook the cable back onto itself. Hook­ing the cable back onto itself creates an unacceptable strain, breaking individual strands which in turn weakens the en­tire cable. Use a sling. Avoid continuous pulls from extreme angles as this causes cable to pile up at one end of the drum.
Page 8
Getting Started
Unpacking Your Winch
•Unpack your new Mile Marker winch and ensure that all the parts are included by referring to parts list and exploded view
drawings provided in this manual.
NOTE: If you find any missing or broken parts, please call Mile Marker as soon as possible at the number present on the cover
page of this manual.
Winch Mounting
NOTE: Mile Marker recommends the use of its mounting systems for proper winch installation and optimum winch perfor-
mance. However, when not using Mile Marker Mounting System, ensure that the mounting platform is strong enough to meet the maximum rated load of the winch in use. Mile Marker recommends steel plates with thickness of at least 0.25”.
Your Winch should be aligned and secured to a solid part of the vehicle (front or rear) where the full rated load will be evenly distributed.
CAUTION: It is essential that the mounting surface be flat and the winch is mounted such that the three major sections (Gear
housing end, drum and motor end) are in proper alignment.
1. Drill four mounting holes (10mm in Dia.), if necessary, according to the bolt pattern mentioned in the winch specifications.
2. Fasten the winch body to the mounting platform using the four Capscrews (M10 X 34mm) and Nuts (M10) provided.
3. Torque the Capscrews to about 35 ft-lb (47.5 N-m).
4. All Mile Marker Mounting Systems come predrilled with fairlead holes. If you are using any other mounting platforms, drill two holes for the roller fairlead installation. Position the holes such that the fairlead opening hole stretches from the circumfer­ence of the drum to the end of the maximum permissible layers on the drum in the direction cable is being rolled.
CAUTION: When replacing the capscrews or when longer bolts are required, make sure that you use bolts of Grade 5 or greater.
Page 9
Clocking Instructions
Clocking Instructions
Winch gear housing can be clocked in 8 positions enabling the user to position the clutch lever at 8 equidistant locations (0°, 45°, 90°….360°).
1. Remove Gear Housing from Tie Bars (Fig. 1-2).
2. Remove the 8 bolts in the Gear Housing Leg (Fig. 1-3).
3. Separate Leg and Gear Housing. A slight tap with a hammer might be needed (Fig. 1-4).
4. Place Gear Housing Leg in the angle desired and screw in bolts (Fig. 1-5). Torque to spec. M4 X 12 (Item #2*): 2 ft-lb M8 X 25 (Item #6*): 18 ft-lb M6 X 12 (Item #40*): 7.5 ft-lb M5 X 16 (Item #41*): 4.5 ft-lb
5. Properly slide Drive Shaft in the Gear Housing and line Drum into Drive Gear (Fig. 1-6).
6. Re-attach Tie Bars to Gear Housing Leg by using the same process as step 1, in reverse order (Fig. 1-2).
* Item numbers reference the parts breakdown pages.
1-3: Remove the 8 bolts in the Gear Housing Leg.
1-1: Clocking Positions: 0° and 45°
1-4: Separate Leg and Gear Housing.
1-5: Place Gear Housing Leg in the angle desired, and screw in bolts.
1-2: Unscrew and remove Gear Housing from Tie Bars.
1-6: Slide Drive Shaft in the Gear Housing and line Drum into Drive Gear.
Page 10
Control Box Installation
NOTE: Your Mile Marker Control Box can either be mounted
to the winch or in a remote location. However, Mile Marker recommends you to mount it to the winch following the in­structions below. If you choose to mount it in a remote loca­tion, please ensure that: (a) the location does not interfere with any vehicle’s moving/functioning parts, and (b) you use electrical cables with similar or better specifications as that provided by Mile Marker.
SEC Series Control Box Installation
You will need a 14mm wrench, 10mm wrench, a metric Allen wrench set and a pair of snips. Also you will need general hand tools for mounting the winch. Your Project ES control box can be mounted over the winch motor, or over the tie bars. This decision is usually based on mounting constraints, and personal prefer­ence.
Figure 2-1 shows the control box and mounting hardware includ­ed in your new winch box.

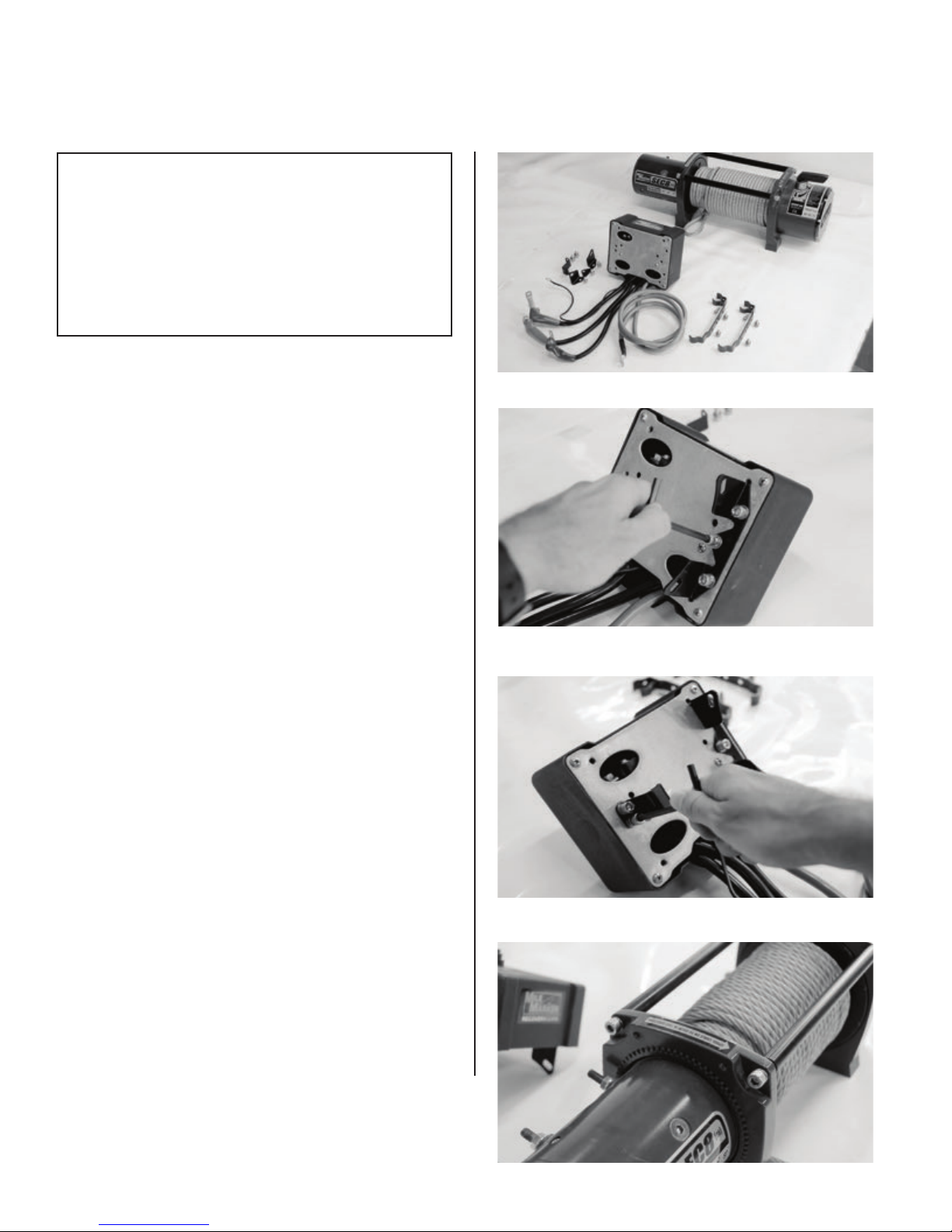

Mounting Control Box on Motor
If you choose to mount your control box on the winch motor, please follow the following steps.
1. Mount the control box to mounting brackets using 10 mm wrench (Fig 2-2 & 2-3).
2. With mouting bracket attached to control box, locate the mounting points on the side of the motor die casting (Fig. 2-4).
3. With the control box placed on the motor, screw in the bolts to the mounting points (Fig. 2-5).
4. Attach the Tie Wrap around the small bracket to hold it down and clip the excess length (Fig. 2-6 & 2-7).
2-1: Control Box and Tolls Needed: 14mm & 10mm Wrench, Metric Allen Wrench Set
2-2: Install the mounting bracket to the bottom of the control box with a 10mm wrench.
10
2-3: Install the smaller mounting bracket on the other side.
2-4: These are the mounting points where the bracket will be screwed in.
Page 11
Control Box Installation Cont’d
Mounting Control Box on Motor Cont’d
2-5: Screw bolts with control box in the mounting points.
2-6: Attach Tie Wrap
 
2-7: Clip Excess Length
11
Page 12
Control Box Installation Cont’d

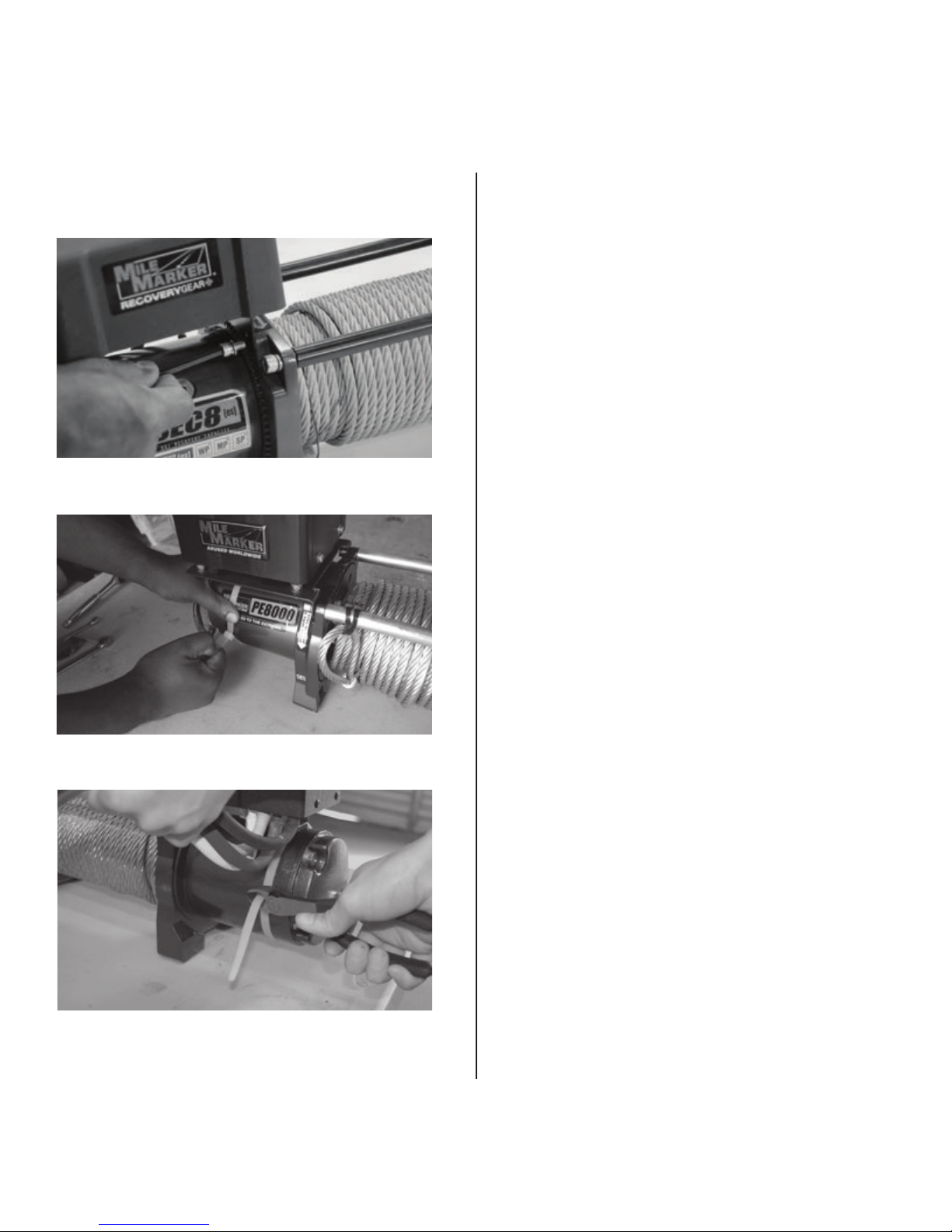

Mounting Control Box on Tiebars
1. Mount the control box to mounting brackets using 10 mm wrench (Fig 2-8).
2. Mount control box on the tie bars by attaching front end first and pushing down to snap in the back end (Fig. 2-9).
3. Locate the two extra pieces for the tie bars mounting brackets (Fig. 2-10).
4. Screw in these pieces to the rear side of the tie bar bracket using a Philips Head Screw Driver (Fig. 2-11).
2-10: Locate the extra pieces for the Tie Bar Mountin Brackets.
2-8: Install the mounting bracket to the bottom of the control box with a 10mm
wrench.
2-9: Mount Control Box on the Tie Bars.
2-11: Screw in pieces to the rear of the Brackets.
12
Page 13
Control Box Installation Cont’d
Wiring the Control Box
1. Slips the boots onto pertinent cables and make electrical connection in accordance with the schematic on following page. Slide the boots onto all the electrical connections made (figs. 2-12 through 2-14).
2. Run battery power cables carefully under hood of vehicle, avoiding interference with moving parts and abrasion points which could potentially cause electrical short.
3. Attach Black Cable to Negative Battery Terminal (-), fol­lowed by Red Cable to Positive Battery Terminal (+) (fig. 2-14). Refer to Winch Operation Section of this manual for proper functioning; if drum rotates in the incorrect direction when “IN” button is pressed, green and yellow motor cables need to be switched.
CAUTION: Do Not Connect Cables to Battery until unit is completely wired to control box and installed on ve­hicle. Reserve for last step of installation.
2-12: Complete Wiring Schematic: SEC8
CAUTION: Make sure that all exposed electrical connections
are covered with insulation boots to avoid electrical short. Battery cables should not be drawn taut; leave some slack for cable movement. Also, ensure that they are routed properly with out any interference with the vehicular components that could potentially damage the cable or cause electrical short. Long battery cable runs may have significant voltage drops that may cause the winch motor controller to not operate.
2-13: Black Cables (ground): Remove bolt, Attach both large and small cables,
and return bolt to motor.
2-14: Complete Wiring to Battery
CAUTION: Do Not Connect Cables to Battery until unit is completely wired to control box and installed on ve­hicle. Reserve for last step of installation.
13
Page 14
Winch Operation:
NOTE: For optimal winch performance, it is recommended that you use a fully charged 12V battery with at least 650 Cold
Cranking Amperes. Further, it is advised to keep the engine running during the winch operation, so that the battery is being charged continuously. All Mile Marker winches are equipped with a Clutch Lever that engages / disengages the clutch. Clutch, when engaged, will couple the gear train with winch drum; this is also known as Locking of the winch. The Clutch, when disengaged, de-couples the gear train from the winch drum enabling the drum to rotate independently; this is also called Freespooling the winch.
CAUTION: Before you start using your new Mile Marker winch, you will have to re-wind the entire cable on the drum under a
load of at least 500 lbs (227 Kg) starting with at least 5 wraps on the initial layer. Failure to do so will result in the outer wraps pressing against the inner wraps resulting in the damage of the cable. Always have at least 5 wraps of cable on the winch drum before winching. Always ensure that the clutch is fully engaged or fully disengaged to avoid any injuries and damages. All electric winches are for intermittent use only. Never run the winch for more than 1 min at maximum rated load. Wait until the motor cools down before resuming winching operation. Usage of a snatch block is recommended to reduce the load on the winch motor. All Mile Marker Electric Winches feature an Automatic Load Holding brake; so never run the winch against the brake (OUT on the hand control) for more than 10 seconds. Failure to do so might result in damage to the brake and motor. Always stay clear of the loaded winch cable.
DISENGAGEDENGAGED
LINE OUT
(FOR INTERMITTENT USE ONLY)
LINE IN
(SPOOL CABLE BACK ON DRUM)
3-1: Clutch Engagement: SEC (ES) Models
3-4: Remote Control Function Diagram
Operational Instructions
1. Disengage the clutch by moving the Clutch Lever to Disengage Position (or Freespool mode) (Fig. 3-1).
2. Free Spool the cable and connect to the desired anchor point (self recovery) or vehicle being recovered.
3. Fully Engage the clutch by moving the Clutch Lever to Engage Position (Fig. 3-1).
4. Lift the protective boot covering the hand control plug-in. Insert the hand control plug.
5. Rotate the red Kill Switch from the “OFF” position, to the “ON” position. (Figs. 3-2 & 3-3).
6. Start winching IN (Figs. 3-4) to remove the slack on the cable, ensuring that the cable is winding onto the drum properly (with out any overlapping or gaps). Never disengage the clutch while the cable is under load!
7. When finished winching, let off the load by winching OUT. With adequate slack created, unhook the cable and re-wind the cable onto the drum.
8. Turn Red Kill Switch back to the “OFF’ position. Unplug the hand control and push the protective boot cover back on to the Plug-in.
14
Page 15
Winch Maintenance
•All moving parts within the Electric Winch have been lubricated using high temperature lithium grease at the factory. No further
internal lubrication is required for the life of the winch.
•Lubricate the cable periodically using light penetrating oil.
•Electrical connections may corrode over a period of time due to environmental changes. This may result in reduced performance
of the winch or even possible electrical shorting. Hence, always clean the electrical connections before and after using the winch.
•After every use of the winch, inspect the cable for damages such as kinks, broken strands etc. When damaged, replace the cable
immediately!
CAUTION: It is recommended that you replace the cable with superior Mile Marker cables. If replacing from other sources, care-
fully compare for the maximum load capacity of the cable with that mentioned in the Specifications Section of this manual.
Troubleshooting
SYMPTOM POSSIBLE CAUSE SUGGESTED REMEDY
Safety switch is OFF
Switch Assy not connected properly
Motor does
not turn on
Motor runs too hot Long period of operation Let winch cool down periodically. Motor runs slowly
or without normal
power
Motor runs but
cable drum does not
Loose battery cable
Solenoid malfunctioning
Defective Switch Assembly
Defective motor
Water has entered motor
Battery runs down
Insufficient current or voltage
Clutch not engaged Ensure lever is completely in “engaged” position. If that does not work,
Check for voltage at armature port with switch pressed. If voltage is present,
Drain and dry. Run in short bursts without load until completely dry.
Turn safety switch to ON position.
Insert Switch Assy firmly to the connector.
Tighten nuts on cable connectors
Tap solenoid to free contact, applying
12 volts to coil terminal directly.
Makes an audible clicking when activating.
Replace Switch Assy.
replace motor.
Recharge battery by running vehicle’s engine.
Clean, tighten or replace the connector.
contact qualified technician to check and repair.
turn
Motor runs in one
direction only
Defective or stuck solenoid
Defective Switch Assy
Tap solenoid to free contacts. Repair or replace solenoid.
Replace Switch Assy
15
Page 16

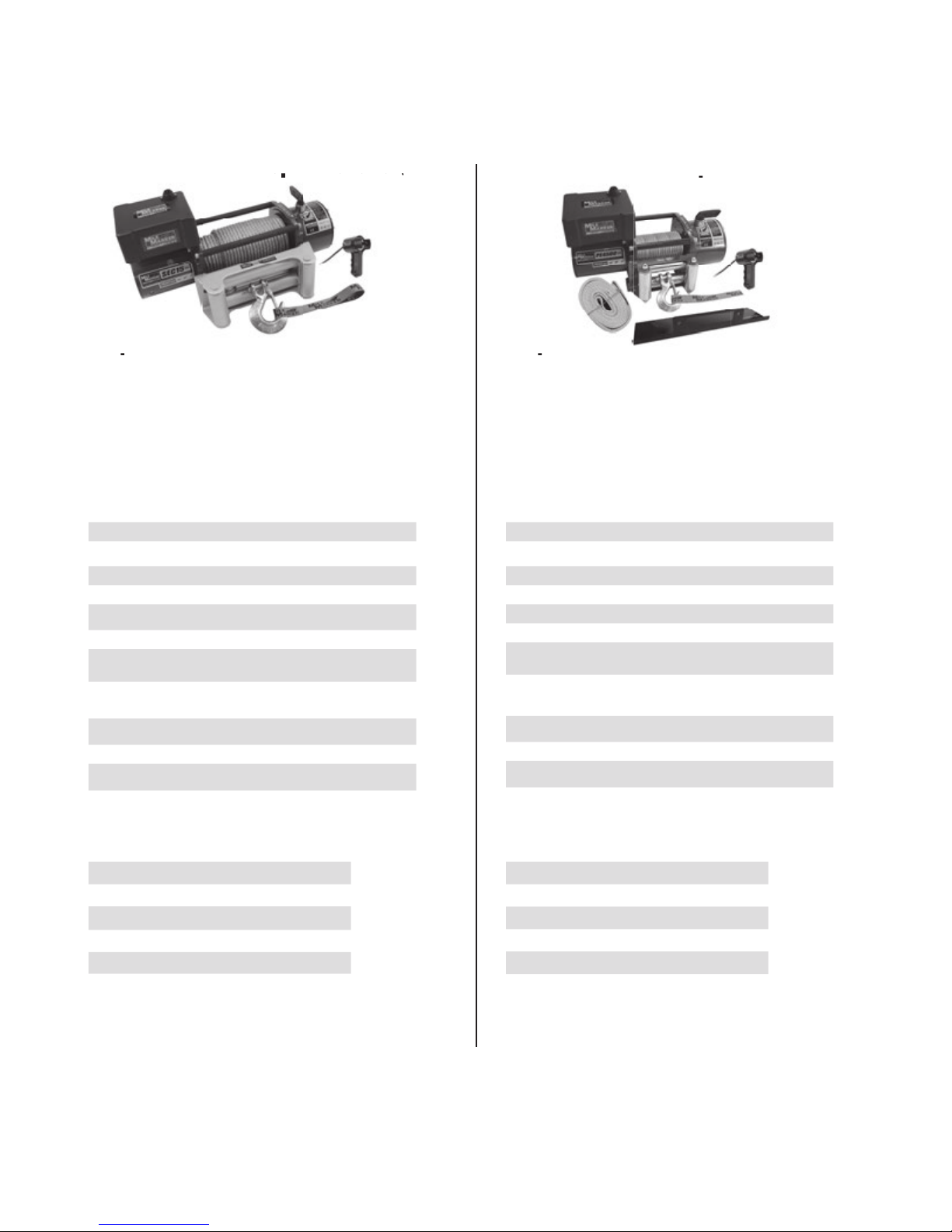

Winch Features and Specs: SEC8 (ES) Winch Features and Specs: SEC8 (ES)
Features: Clockable Clutch, Planetary Gear System,
Automatic Load Holding Brake, Free Spooling, Power In & Power Out, Low Electric Current, Galvanized Roller Fairlead, Series Wound Motor
Features: Clockable Clutch, Planetary Gear System,
Automatic Load Holding Brake, Free Spooling, Power In & Power Out, Low Electric Current, Synthetic Rope with Heat
Sheath, Anodized Hawse Fairlead, Series Wound Motor
Specifications: Specifications:
Part Number 77-50141W Rated line pull (single line) Gear Train 3 Stage Planetary
Gear Ratio 152:1
Motor 4.8 HP Series Wound (3.6 KW) 12V DC
Control Pendant
Dimensions (LxWxH)
Cable
Drum Size: Diameter/Length Net weight 81 lbs. (37 kg)
Bolt Pattern
8,000 LBS (3629 kg)
Power In, Power Out Remote, 12’ (3.7 m)
21.5” X 6.25” X 8.0”
(546.1 MM X 158.8 MM X 203.2 MM)
5/16” x 100’(9,800 nominal)
(7.94 MM X 30.5M)
2.5” (6.4 cm)/9” (23cm)
10” x 4.5” (4 bolts, 3/8”)
(254MM X 114MM)
Part Number 77-53141W Rated line pull (single line) Gear Train 3 Stage Planetary
Gear Ratio 152:1
Motor 4.8 HP Series Wound (3.6 KW) 12V DC
Control Pendant
Dimensions (LxWxH)
Synthetic Rope
Drum Size: Diameter/Length Net weight 81 lbs. (37 kg)
Bolt Pattern
8,000 LBS (3629 kg)
Power In, Power Out Remote, 12’ (3.7 m)
21.5” X 6.25” X 8.0”
(546.1 MM X 158.8 MM X 203.2 MM)
5/16” x 100’(13,700 nominal)
(7.94 MM X 30.5M)
2.5” (6.4 cm)/9” (23cm)
10” x 4.5” (4 bolts, 3/8”)
(254MM X 114MM)
Performance: Performance:
Line Pull Line Speed Motor Line Pull Line Speed Motor
lbs. kgs. fpm mpm amps@12v
0 0 26 7. 9 95
2000 907 20 6 175
4000 1814 14 4.3 240
6000 2722 12 3.8 295
8000 3629 10.8 3.3 370
lbs. kgs. fpm mpm amps@12v
0 0 26 7. 9 95
2000 907 20 6 175
4000 1814 14 4.3 240
6000 2722 12 3.8 295
8000 3629 10.8 3.3 370
16
Page 17
Winch Features and Specs: SEC95 (ES)
Winch Features and Specs: SEC12 (ES)
Features: Clockable Clutch, Planetary Gear System,
Automatic Load Holding Brake, Free Spooling, Power In & Power Out, Low Electric Current, Galvanized Roller Fairlead, Series Wound Motor
Specifications:
Part Number 76-50246BW Rated line pull (single line) Gear Train 3 Stage Planetary
Gear Ratio 212:1
Motor Series Wound, 4.8 HP (3.6 KW), 12 / 24 V
Control Pendant
Dimensions (LxWxH)
Cable
Drum Size: Diameter/Length Net weight 92 lbs. (42 kg)
Bolt Pattern
9,500 LBS (4309 kg)
Power In, Power Out Remote, 12’ (3.7 m)
22.5” X 6.25” X 8.0”
(565.2 mm X 158.8 mm X 203.2 mm)
3/8” x 100’(nominal 14,400 lbs, 6531 kg)
(9.53 mm X 30.5 m)
2.5” X 9” (63.5 mm X 228.6 mm)
4 Bolt Pattern, 4.5” X 10”,
(114.3 mm X 254 mm)
Features: Clockable Clutch, Planetary Gear System,
Automatic Load Holding Brake, Free Spooling, Power In & Power Out, Low Electric Current, Galvanized Roller Fairlead, Series Wound Motor
Specifications:
Part Number 76-50251BW Rated line pull (single line) Gear Train 3 Stage Planetary
Gear Ratio 296:1
Motor Series Wound, 4.8 HP (3.6 KW), 12 / 24 V
Control Pendant
Dimensions (LxWxH)
Cable
Drum Size: Diameter/Length Net weight 92 lbs. (42 kg)
Bolt Pattern
12,000 LBS (5443 kg)
Power In, Power Out Remote, 12’ (3.7 m)
22.5” X 6.25” X 8.0”
(565.2 mm X 158.8 mm X 203.2 mm)
3/8” x 100’(nominal 14,400 lbs, 6531 kg)
(9.53 mm X 30.5 m)
2.5” X 9” (63.5 mm X 228.6 mm)
4 Bolt Pattern, 4.5” X 10”,
(114.3 mm X 254 mm)
Performance:
Line Pull Line Speed Motor
lbs. kgs. fpm mpm amps@12v
0 0 25.7 7. 8 85
2000 907 15.1 4.6 150
4000 1814 10.5 3.2 210
6000 2722 7. 9 2.4 270
8000 3629 5.9 1.8 320
9500 4309 4.3 1.3 375
Performance:
Line Pull Line Speed Motor
lbs. kgs. fpm mpm amps@12v
0 0 23 7 90
2000 907 12.8 3.9 145
4000 1814 9.7 3.0 185
6000 2722 7. 9 2.4 230
8000 3629 7.1 2.2 270
10000 4536 5 .1 1.6 315
12000 5443 4.5 1.4 370
17
Page 18
Winch Features and Specs: SEC15 (ES)
Winch Features and Specs: PE4500 (ES)
Features: Clockable Clutch, Planetary Gear System,
Automatic Load Holding Brake, Free Spooling, Power In & Power Out, Low Electric Current, Galvanized Roller Fairlead, Series Wound Motor
Specifications:
Part Number 76-50260W Rated line pull (single line) Gear Train 3 Stage Planetary
Gear Ratio 295.75:1
Motor
Control Pendant
Dimensions (LxWxH)
Cable
Drum Size: Diameter/Length Net weight 101 lbs. (46 kg)
Bolt Pattern
15,000 LBS (6803 kg)
Series Wound,
24 Volt available
Power In, Power Out Remote, 12’ (3.7 m)
22.4” X 6.29” X 11.0”
(570 mm X 160 mm X 280 mm)
(Aircraft Cable) 0.39” X 78.7”
(10 mm X 24 m)
2.9” X 8.9” (75 mm X 228 mm)
4 Bolt Pattern, 4.5” X 10”,
(114.3 mm X 254 mm)
7.3 HP (5.5 KW), 12 Volt,
Features: Clockable Clutch, Planetary Gear System,
Automatic Load Holding Brake, Free Spooling, Power In & Power Out, Low Electric Current, Galvanized Roller Fairlead, Series Wound Motor
Specifications:
Part Number 76-50115BW Rated line pull (single line) Gear Train 3 Stage Planetary
Gear Ratio 294:1
Motor 1.9 HP Permanent Magnet (1.4 KW) 12V
Control Pendant
Dimensions (LxWxH)
Cable
Drum Size: Diameter/Length Net weight 51 lbs. (23 kg)
Bolt Pattern
4,500 LBS (2041 kg)
Power In, Power Out Remote, 12’ (3.7 m)
17.2” X 6.2” X 7.3”
(436 MM X 152 MM X 185 MM)
1/4” x 80’(nominal 7,000 lbs, 3175 kg)
(5.45 MM X 25.9M)
2.5” X 5.5” (63.5 mm X 140 mm)
6.535” x 4.5” (165.9 mm X 114.3 mm)
(4 bolts),
Performance:
Line Pull Line Speed Motor
lbs. kgs. fpm mpm amps@12v
0 0 15.8 4.8 74
5000 2270 7.6 2.3 202
9000 4086 5.9 1.8 290
12000 5448 4.6 1.4 335
15000 6 810 3.3 1 420
Performance:
Line Pull Line Speed Motor
lbs. kgs. fpm mpm amps@12v
0 0 14 4.3 35
1500 380 6.6 2 80
2200 998 5.2 1.6 100
3000 1361 4.6 1.4 145
4500 2041 3.3 1 170
18
Page 19
Parts Breakdown & Assembly - SEC8 (ES)
Win ch Assy Dr wg & Pa rts L ist for M ode l SEC8ES & SEC9.5ES &SEC12ES & SEC15ES
Item
1 2 3 4 5 6 7 8
9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25
Item
26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51
Qty
1 16 16 1 4 4 2 1 1 1 1 1 1 1 1 1 1 1 1 2 2 2 1 1 1
Qty
1 1 1 2 1 1 1 1 2 2 5 5 5 2 2 2 2 2 1 1 4 4 4 1 1 1
De s c r i pt io n De s c r i pt io n
Dry Bearing Screw M4×12 Spring Washer M4 End Bearing Spring Washer M8 Screw M8×25 Gasket Clutch Handle Seal Spring Washer Gear Ring Retaining Screw Gear Ring-input/intermediate Gear Carrier Assy-output Gear Carrier Assy-intermediate Gear Carrier Assy-input Gear-input sun Gear Bushing Gear Box Cover Spacer Ring Seal R
ing Drum Assy Screw Cable Anchor
Screw Cable Brake/Shaft Assy Tie Bar Motor End Solenoid Assy Solenoid Bracket 1 Solenoid Bracket 2 Solenoid Bracket 3 Solenoid Bracket 4 Washer M6 Spring Washer M6 Screw M6×16 Washer M6 Spring Washer M6 Screw M6×12 Screw M5×16 Spring Washer M5 Mount Channel (Optional) Roller Farilead Washer Spring Washer Screw Safety Hook Switch Assy Hand Strap
Item Quantity Part Number Description
1 1 77-50141W-01 Dry Bearing 2 16 77-50141W-02 Screw M4×12 3 16 77-50141W-03 Spring Washer M4 4 1 77-50141W-04 End Bearing 5 4 77-50141W-05 Spring Washer M8 6 4 77-50141W-06 Screw M8×25 7 2 77-50141W-07 Gasket 8 1 77-50141W-08 Clutch Handle
9 1 77-50141W-09 Seal 10 1 77-50141W-10 Spring Washer 11 1 77-50141W-11 Gear Ring 12 1 77-50141W-12 Retaining Screw 13 1 77-50141W-13 Gear Ring-input/intermediate 14 1 77-50141W-14 15 1 77-50141W-15 Gear Carrier Assy-intermediate 16 1 77-50141W-16 Gear Carrier Assy-input 17 1 77-50141W-17 Gear-input sun 18 1 77-50141W-18 Gear Bushing 19 1 77-50141W-19 Gear Box Cover 20 2 77-50141W-20 Spacer 21 2 77-50141W-21 Ring 22 2 77-50141W-22 23 1 77-50141W-23 Drum Assy 24 1 77-50141W-24 Screw 25 1 77-50141W-25 Cable Anchor
30 29
22
21
20
49
Gear Carrier Assy-output
28
Seal Ring
21
26
3
4
5
7
25
24
Item Quantity Part Number Description
26 1 77-50141W-26 Screw 27 1 77-50141W-27 Cable 28 1 77-50141W-28 Brake/Shaft Assy
2
29
77-50141W-29 Tie Bar 30 1 77-50141W-30 Motor End 31 1 77-50141W-31 Solenoid Assy 32 1 77-50141W-32 Solenoid Bracket 1 33 1 77-50141W-33 Solenoid Bracket 2 34 2 77-50141W-34 Solenoid Bracket 3 35 2 77-50141W-35 Solenoid Bracket 4 36 5 77-50141W-36 Washer M6 37 5 77-50141W-37 Spring Washer M6 38 5 77-50141W-38 Screw M6×16 39 2 77-50141W-39 Washer M6 40 2 77-50141W-40 Spring Washer M6 41 2 77-50141W-41 Screw M6×12 42 2 77-50141W-42 Screw M5×16 43 2 77-50141W-43 Spring Washer M5 44 1 77-50141W-44 Mount Channel (Optional) 45 1 77-50141W-45 Roller Farilead 46 4 77-50141W-46 Washer 47 4 77-50141W-47 Spring Washer 48 4 77-50141W-48 Screw 49 1 77-50141W-49 Safety Hook 50 1 77-50141W-50 Switch Assy 51 1 77-50141W-51 Hand Strap
31
41
8
6
40
39
32
9
10
11
12
33
13
36 37
43
38
42
14
15
16
17
18
7
19
34
35
36
37
38
3
2
27
50
23
22
21
20
51
46 47 48
45
44
19
Page 20
Parts Breakdown & Assembly - SEC8 Scout (ES)
Item Quantity Part Number Description
1 1 77-50141W-01 Dry Bearing 2 16 77-50141W-02 Screw M4×12 3 16 77-50141W-03 Spring Washer M4 4 1 77-50141W-04 End Bearing 5 4 77-50141W-05 Spring Washer M8 6 4 77-50141W-06 Screw M8×25 7 2 77-50141W-07 Gasket 8 1 77-50141W-08 Clutch Handle
9 1 77-50141W-09 Seal 10 1 77-50141W-10 Spring Washer 11 1 77-50141W-11 Gear Ring 12 1 77-50141W-12 Retaining Screw 13 1 77-50141W-13 Gear Ring-input/intermediate 14 1 77-50141W-14 15 1 77-50141W-15 Gear Carrier Assy-intermediate 16 1 77-50141W-16 Gear Carrier Assy-input 17 1 77-50141W-17 Gear-input sun 18 1 77-50141W-18 Gear Bushing 19 1 77-50141W-19 Gear Box Cover 20 2 77-50141W-20 Spacer 21 2 77-50141W-21 Ring 22 2 77-50141W-22 23 1 77-50141W-23 Drum Assy 24 1 77-50141W-24 Screw 25 1 77-50141W-25 Cable Anchor
Gear Carrier Assy-output
Seal Ring
Item Quantity Part Number Description
26 1 77-50141W-26 Screw 27 1 19-52132-96 Synthetic Rope 28 1 77-50141W-28 Brake/Shaft Assy
2
29 30 1 77-50141W-30 Motor End 31 1 77-50141W-31 Solenoid Assy 32 1 77-50141W-32 Solenoid Bracket 1 33 1 77-50141W-33 Solenoid Bracket 2 34 2 77-50141W-34 Solenoid Bracket 3 35 2 77-50141W-35 Solenoid Bracket 4 36 5 77-50141W-36 Washer M6 37 5 77-50141W-37 Spring Washer M6 38 5 77-50141W-38 Screw M6×16 39 2 77-50141W-39 Washer M6 40 2 77-50141W-40 Spring Washer M6 41 2 77-50141W-41 Screw M6×12 42 2 77-50141W-42 Screw M5×16 43 2 77-50141W-43 Spring Washer M5 44 1 77-50141W-44 Mount Channel (Optional) 45 1 19-52002 Aluminum Hause Fairlead 46 4 77-50141W-46 Washer 47 4 77-50141W-47 Spring Washer 48 4 77-50141W-48 Screw 49 1 77-50141W-49 Safety Hook 50 1 77-50141W-50 Switch Assy 51 1 77-50141W-51 Hand Strap
77-50141W-29 Tie Bar
20
Page 21
Win ch Assy Dr wg & Pa rts L ist for M ode l SEC8ES & SEC9.5ES &SEC12ES & SEC15ES
Item
1 2 3 4 5 6 7 8
9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25
Item
26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51
Qty
1 16 16 1 4 4 2 1 1 1 1 1 1 1 1 1 1 1 1 2 2 2 1 1 1
Qty
1 1 1 2 1 1 1 1 2 2 5 5 5 2 2 2 2 2 1 1 4 4 4 1 1 1
De s c r i pt io n De s c r i pt io n
Dry Bearing Screw M4×12 Spring Washer M4 End Bearing Spring Washer M8 Screw M8×25 Gasket Clutch Handle Seal Spring Washer Gear Ring Retaining Screw Gear Ring-input/intermediate Gear Carrier Assy-output Gear Carrier Assy-intermediate Gear Carrier Assy-input Gear-input sun Gear Bushing Gear Box Cover Spacer Ring Seal R
ing Drum Assy Screw Cable Anchor
Screw Cable Brake/Shaft Assy Tie Bar Motor End Solenoid Assy Solenoid Bracket 1 Solenoid Bracket 2 Solenoid Bracket 3 Solenoid Bracket 4 Washer M6 Spring Washer M6 Screw M6×16 Washer M6 Spring Washer M6 Screw M6×12 Screw M5×16 Spring Washer M5 Mount Channel (Optional) Roller Farilead Washer Spring Washer Screw Safety Hook Switch Assy Hand Strap
Parts Breakdown & Assembly - SEC95 (ES)
Item Quantity Part Number Description
1 1 77-50141W-01 Dry Bearing 2 16 77-50141W-02 Screw M4×12 3 16 77-50141W-03 Spring Washer M4 4 1 77-50141W-04 End Bearing 5 4 77-50141W-05 Spring Washer M8 6 4 77-50141W-06 Screw M8×25 7 2 77-50141W-07 Gasket 8 1 77-50141W-08 Clutch Handle
9 1 77-50141W-09 Seal 10 1 77-50141W-10 Spring Washer 11 1 77-50141W-11 Gear Ring 12 1 77-50141W-12 Retaining Screw 13 1 77-50141W-13 Gear Ring-input/intermediate 14 1 77-50141W-14 15 1 77-50141W-15 Gear Carrier Assy-intermediate 16 1 76-50256BW-16 Gear Carrier Assy-input 17 1 76-50256BW-17 Gear-input sun 18 1 77-50141W-18 Gear Bushing 19 1 77-50141W-19 Gear Box Cover 20 2 77-50141W-20 Spacer 21 2 77-50141W-21 Ring 22 2 77-50141W-22 23 1 77-50141W-23 Drum Assy 24 1 77-50141W-24 Screw 25 1 77-50141W-25 Cable Anchor
30 29
22
21
20
49
Gear Carrier Assy-output
28
Seal Ring
21
26
3
4
5
7
25
24
Item Quantity Part Number Description
26 1 77-50141W-26 Screw 27 1 76-50256BW-27 Cable 28 1 77-50141W-28 Brake/Shaft Assy
2
29
77-50141W-29 Tie Bar 30 1 77-50141W-30 Motor End 31 1 77-50141W-31 Solenoid Assy 32 1 77-50141W-32 Solenoid Bracket 1 33 1 77-50141W-33 Solenoid Bracket 2 34 2 77-50141W-34 Solenoid Bracket 3 35 2 77-50141W-35 Solenoid Bracket 4 36 5 77-50141W-36 Washer M6 37 5 77-50141W-37 Spring Washer M6 38 5 77-50141W-38 Screw M6×16 39 2 77-50141W-39 Washer M6 40 2 77-50141W-40 Spring Washer M6 41 2 77-50141W-41 Screw M6×12 42 2 77-50141W-42 Screw M5×16 43 2 77-50141W-43 Spring Washer M5 44 1 77-50141W-44 Mount Channel (Optional) 45 1 77-50141W-45 Roller Farilead 46 4 77-50141W-46 Washer 47 4 77-50141W-47 Spring Washer 48 4 77-50141W-48 Screw 49 1 76-50256BW-49 Safety Hook 50 1 77-50141W-50 Switch Assy 51 1 77-50141W-51 Hand Strap
31
41
8
6
40
39
32
9
10
11
12
33
13
36 37
43
38
42
14
15
16
17
18
7
19
34
35
36
37
38
3
2
27
50
23
22
21
20
51
46 47 48
45
44
21
Page 22
Win ch Assy Dr wg & Pa rts L ist for M ode l SEC8ES & SEC9.5ES &SEC12ES & SEC15ES
Item
1 2 3 4 5 6 7 8
9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25
Item
26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51
Qty
1 16 16 1 4 4 2 1 1 1 1 1 1 1 1 1 1 1 1 2 2 2 1 1 1
Qty
1 1 1 2 1 1 1 1 2 2 5 5 5 2 2 2 2 2 1 1 4 4 4 1 1 1
De s c r i pt io n De s c r i pt io n
Dry Bearing Screw M4×12 Spring Washer M4 End Bearing Spring Washer M8 Screw M8×25 Gasket Clutch Handle Seal Spring Washer Gear Ring Retaining Screw Gear Ring-input/intermediate Gear Carrier Assy-output Gear Carrier Assy-intermediate Gear Carrier Assy-input Gear-input sun Gear Bushing Gear Box Cover Spacer Ring Seal R
ing Drum Assy Screw Cable Anchor
Screw Cable Brake/Shaft Assy Tie Bar Motor End Solenoid Assy Solenoid Bracket 1 Solenoid Bracket 2 Solenoid Bracket 3 Solenoid Bracket 4 Washer M6 Spring Washer M6 Screw M6×16 Washer M6 Spring Washer M6 Screw M6×12 Screw M5×16 Spring Washer M5 Mount Channel (Optional) Roller Farilead Washer Spring Washer Screw Safety Hook Switch Assy Hand Strap
Parts Breakdown & Assembly - SEC12 (ES)
Item Quantity Part Number Description
1 1 77-50141W-01 Dry Bearing 2 16 77-50141W-02 Screw M4×12 3 16 77-50141W-03 Spring Washer M4 4 1 77-50141W-04 End Bearing 5 4 77-50141W-05 Spring Washer M8 6 4 77-50141W-06 Screw M8×25 7 2 77-50141W-07 Gasket 8 1 77-50141W-08 Clutch Handle
9 1 77-50141W-09 Seal 10 1 77-50141W-10 Spring Washer 11 1 77-50141W-11 Gear Ring 12 1 77-50141W-12 Retaining Screw 13 1 77-50141W-13 Gear Ring-input/intermediate 14 1 77-50141W-14 15 1 76-50251BW-15 Gear Carrier Assy-intermediate 16 1 76-50251BW-16 Gear Carrier Assy-input 17 1 76-50251BW-17 Gear-input sun 18 1 77-50141W-18 Gear Bushing 19 1 77-50141W-19 Gear Box Cover 20 2 77-50141W-20 Spacer 21 2 77-50141W-21 Ring 22 2 77-50141W-22 23 1 77-50141W-23 Drum Assy 24 1 77-50141W-24 Screw 25 1 77-50141W-25 Cable Anchor
30 29
22
21
20
49
Gear Carrier Assy-output
28
Seal Ring
21
26
3
4
5
7
25
24
Item Quantity Part Number Description
26 1 77-50141W-26 Screw 27 1 76-50251BW-27 Cable 28 1 77-50141W-28 Brake/Shaft Assy
2
29
77-50141W-29 Tie Bar 30 1 77-50141W-30 Motor End 31 1 77-50141W-31 Solenoid Assy 32 1 77-50141W-32 Solenoid Bracket 1 33 1 77-50141W-33 Solenoid Bracket 2 34 2 77-50141W-34 Solenoid Bracket 3 35 2 77-50141W-35 Solenoid Bracket 4 36 5 77-50141W-36 Washer M6 37 5 77-50141W-37 Spring Washer M6 38 5 77-50141W-38 Screw M6×16 39 2 77-50141W-39 Washer M6 40 2 77-50141W-40 Spring Washer M6 41 2 77-50141W-41 Screw M6×12 42 2 77-50141W-42 Screw M5×16 43 2 77-50141W-43 Spring Washer M5 44 1 77-50141W-44 Mount Channel (Optional) 45 1 77-50141W-45 Roller Farilead 46 4 77-50141W-46 Washer 47 4 77-50141W-47 Spring Washer 48 4 77-50141W-48 Screw 49 1 76-50251BW-49 Safety Hook 50 1 77-50141W-50 Switch Assy 51 1 77-50141W-51 Hand Strap
31
41
8
6
40
39
32
9
10
11
12
33
13
36 37
43
38
42
14
15
16
17
18
7
19
34
35
36
37
38
3
2
27
50
23
22
21
20
51
46 47 48
45
44
22
Page 23
Win ch Assy Dr wg & Pa rts L ist for M ode l SEC8ES & SEC9.5ES &SEC12ES & SEC15ES
Item
1 2 3 4 5 6 7 8
9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25
Item
26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51
Qty
1 16 16 1 4 4 2 1 1 1 1 1 1 1 1 1 1 1 1 2 2 2 1 1 1
Qty
1 1 1 2 1 1 1 1 2 2 5 5 5 2 2 2 2 2 1 1 4 4 4 1 1 1
De s c r i pt io n De s c r i pt io n
Dry Bearing Screw M4×12 Spring Washer M4 End Bearing Spring Washer M8 Screw M8×25 Gasket Clutch Handle Seal Spring Washer Gear Ring Retaining Screw Gear Ring-input/intermediate Gear Carrier Assy-output Gear Carrier Assy-intermediate Gear Carrier Assy-input Gear-input sun Gear Bushing Gear Box Cover Spacer Ring Seal R
ing Drum Assy Screw Cable Anchor
Screw Cable Brake/Shaft Assy Tie Bar Motor End Solenoid Assy Solenoid Bracket 1 Solenoid Bracket 2 Solenoid Bracket 3 Solenoid Bracket 4 Washer M6 Spring Washer M6 Screw M6×16 Washer M6 Spring Washer M6 Screw M6×12 Screw M5×16 Spring Washer M5 Mount Channel (Optional) Roller Farilead Washer Spring Washer Screw Safety Hook Switch Assy Hand Strap
Parts Breakdown & Assembly - SEC15 (ES)
Item Quantity Part Number Description
1 1 77-50141W-01 Dry Bearing 2 16 77-50141W-02 Screw M4×12 3 16 77-50141W-03 Spring Washer M4 4 1 77-50141W-04 End Bearing 5 4 77-50141W-05 Spring Washer M8 6 4 77-50141W-06 Screw M8×25 7 2 77-50141W-07 Gasket 8 1 77-50141W-08 Clutch Handle
9 1 77-50141W-09 Seal 10 1 77-50141W-10 Spring Washer 11 1 77-50141W-11 Gear Ring 12 1 77-50141W-12 Retaining Screw 13 1 77-50141W-13 Gear Ring-input/intermediate 14 1 77-50141W-14 15 1 76-50260W-15 Gear Carrier Assy-intermediate 16 1 76-50260W-16 Gear Carrier Assy-input 17 1 76-50260W-17 Gear-input sun 18 1 77-50141W-18 Gear Bushing 19 1 77-50141W-19 Gear Box Cover 20 2 77-50141W-20 Spacer 21 2 77-50141W-21 Ring 22 2 77-50141W-22 23 1 76-50260W-23 Drum Assy 24 1 77-50141W-24 Screw 25 1 77-50141W-25 Cable Anchor
30 29
22
21
20
49
Gear Carrier Assy-output
28
Seal Ring
21
26
3
4
5
7
25
24
Item Quantity Part Number Description
26 1 77-50141W-26 Screw 27 1 76-50260W-27 Cable 28 1 76-50260W-28 Brake/Shaft Assy
2
29
77-50141W-29 Tie Bar 30 1 76-50260W-30 Motor End 31 1 76-50260W-31 Solenoid Assy 32 1 77-50141W-32 Solenoid Bracket 1 33 1 77-50141W-33 Solenoid Bracket 2 34 2 77-50141W-34 Solenoid Bracket 3 35 2 77-50141W-35 Solenoid Bracket 4 36 5 77-50141W-36 Washer M6 37 5 77-50141W-37 Spring Washer M6 38 5 77-50141W-38 Screw M6×16 39 2 77-50141W-39 Washer M6 40 2 77-50141W-40 Spring Washer M6 41 2 77-50141W-41 Screw M6×12 42 2 77-50141W-42 Screw M5×16 43 2 77-50141W-43 Spring Washer M5 44 1 77-50141W-44 Mount Channel (Optional) 45 1 77-50141W-45 Roller Farilead 46 4 77-50141W-46 Washer 47 4 77-50141W-47 Spring Washer 48 4 77-50141W-48 Screw 49 1 76-50260W-49 Safety Hook 50 1 77-50141W-50 Switch Assy 51 1 77-50141W-51 Hand Strap
31
41
8
6
40
39
32
9
10
11
12
33
13
36 37
43
38
42
14
15
16
17
18
7
19
34
35
36
37
38
3
2
27
50
23
22
21
20
51
46 47 48
45
44
23
Page 24
Win ch Assy Dr wg & Pa rts L ist for M ode l PE4500ES
Item
1 2 3 4 5 6 7 8
9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28
Item
29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56
Qty
1 16 16 1 4 4 2 1 1 1 1 1 1 1 1 1 1 1 1 2 2 2 1 1 1 1 1 1
Qty
2 1 1 1 1 2 2 5 5 5 2 2 2 2 2 2 1 4 2 2 1 2 1 2 1 1 1 1
De s c r ip ti on De s c r ip ti on
Dry Bearing Screw M4×12 Spring Washer M4 End Bearing Spring Washer M8 Screw M8×25 Gasket Clutch Handle Seal Washer 5 Gear Ring Retaining Screw Gear Ring-input/intermediate Gear Carrier Assy-output Gear Carrier Assy-intermediate Gear Carrier Assy-input Gear-input sun Ge
ar Bushing Gear Box Cover Spacer Ring Seal Ring Drum Assy Screw Cable Anchor Screw Cable Brake/Shaft Assy
Tie Bar Motor End Solenoid Assy Solenoid Bracket 1 Solenoid Bracket 2 Solenoid Bracket 3 Solenoid Bracket 4 Washer M6 Spring W
asher M6 Screw M6×16 Washer M6 Spring Washer M6 Screw M6×12 Screw M5×16 Spring Washer M5 Plate (Optional) Mount Channel (Optional) Screw Nut M10 Nut M12 Farilead Mount Plate Screw Roller Farilead Screw Safety Hook Switch Assy 1" x 8ft ATV Straps (Optional) Hand Strap
Parts Breakdown & Assembly - PE4500 (ES)
Item Quantity Par
t Number Description
1 1 77-50141W-01 Dry Bearing 2 16 77-50141W-02 Screw M4×12 3 16 77-50141W-03 Spring Washer M4 4 1 77-50141W-04 End Bearing 5 4 77-50141W-05 Spring Washer M8 6 4 77-50141W-06 Screw M8×25 7 2 77-50141W-07 Gasket 8 1 77-50141W-08 Clutch Handle 9 1 77-50141W-09 Seal
10 1 77-50141W-10 Spring Washer 11 1 77-50141W-11 Gear Ring 12 1 77-50141W-12 Retaining Screw 13 1 77-50141W-13 Gear Ring-input/intermediate 14 1 77-50141W-14
Gear Carrier Assy-output
15 1 77-50141W-15 Gear Carrier Assy-intermediate 16 1 77-50141W-16 Gear Carrier Assy-input 17 1 77-50141W-17 Gear-input sun 18 19 1 77-50141W-19 Gear Box Cover 20 2 77-50141W-20 Spacer 21 2 77-50141W-21 Ring 22 2 77-50141W-22 23 1 76-50115BW-23 24 1 77-50141W-24 Screw 25 1 77-50141W-25 Cable Anchor 26 1 77-50141W-26 Screw 27 1 76-50115BW-27 Cable 28 1 76-50115BW-28 Brake/Shaft Assy
1 77-50141W-18 Gear Bushing
30 29
53
21
22
54
20
28
27
55
Seal Ring
Drum Assy
21
3
7
26
23
8
4
5
6
9
25
24
22
21
Item Quantity Par
29
2
t Number Description
76-50115BW-29 Tie Bar 30 1 77-50141W-30 Motor End 31 1 77-50141W-31 Solenoid Assy 32 1 77-50141W-32 Solenoid Bracket 1 33 1 77-50141W-33 Solenoid Bracket 2 34 2 77-50141W-34 Solenoid Bracket 3 35 2 77-50141W-35 Solenoid Bracket 4 36 5 77-50141W-36 Washer M6 37 5 77-50141W-37 Spring Washer M6 38 5 77-50141W-38 Screw M6×16 39 2 77-50141W-39 Washer M6 40 2 77-50141W-40 Spring Washer M6 41 2 77-50141W-41 Screw M6×12 42 2 77-50141W-42 Screw M5×16 43 2 77-50141W-43 Spring Washer M5 44 2 76-50115BW-44 Risers 45 1 76-50115BW-45 Mount Channel 46 4 77-50141W-48 Screw 47 2 76-50115BW-47 Nut M10 48 2 76-50115BW-48 Nut M12 49 1 76-50115BW-49 Farilead Mount Plate 50 2 76-50115BW-50 Screw 51 1 WH4 Roller Farilead 52 2 76-50115BW-52 Screw 53 1 76-50115BW-53 Safety Hook 54 1 77-50141W-50 Switch Assy 55 1 19108 1" x 8ft ATV Straps (Optional) 56 1 77-50141W-51 Hand Strap
31
41
40
39
32
10
11
12
20
33
13
36 37
43
38
42
14
15
16
17
18
7
19
45
47
48
34
35
36
37
38
44
3
2
49
50
51
52
56
24
46
Loading...
