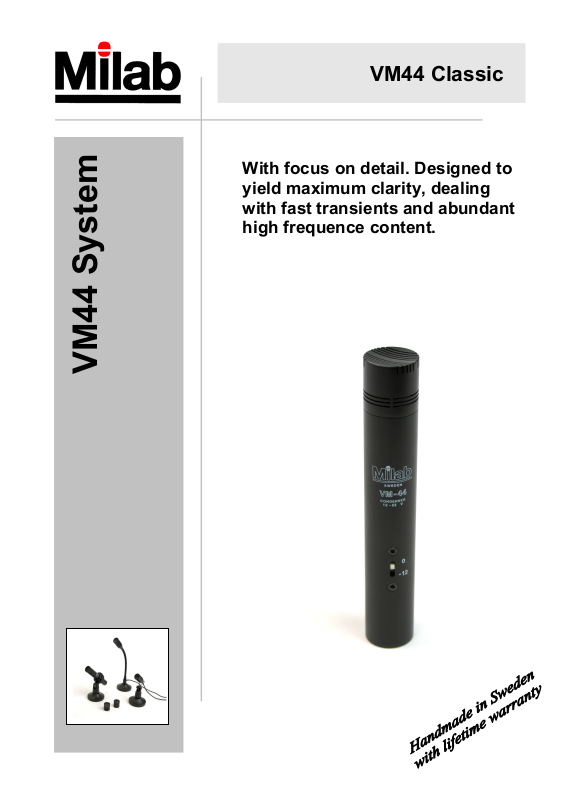

Milab VM44-CLASSIC User Manual

V

M44 Classic

With focus on detail. Designed to
yield maximum clarity, dealing
with fast transients and abundant
high frequence content.

VM44 System

www.milabmic.com

VM-44 CLASSIC Condenser Microphone Art.No 1118

With focus on detail. Designed to yield maximum clarity, when dealing with fast transients
and abundant high frequence content.

• Cardioid (std)

• Interchangeable capsules

• Transformerless

• - 12 dB pre-attenuation

• 12 - 52 V phantom

Frequency response ( see graph ) 20 - 20 000 Hz
Polar pattern Cardioid
Pre-attenuation ( switchable ) -12 dB
Max. SPL ( 1% THD at 1 kHz) 128 / 140 dB
Sensitivity at 1kHz 14,5 mV / Pa ± 1 dB
A-weighted noise level 21 dB
Power supply ( DIN 45 596 ) 12 - 52 V
Current consumption 4 mA
Output impedance < 200 Ω
Minimum load impedance 1 kΩ
Connection 3-pin XLR
pin 1: earth ( Shield )
pin 2: plus ( Hot )
pin 3: minus ( Cold )
Net weight 130 g
Length 1260 mm
Diameter 21 mm

Frequency response

The frequency response may vary within ± 2,5 dB of the published graph.
Before delivery, each microphone is measured and accompanied with it’s own graph.

(at 1m distance) Polar diagram

Milab Microphones AB

Mailing address Office address Phone Fax E-mail

P. O. Box 1342 Norra Strandgatan 4 [phone] [phone] [e-mail]
S-251 13 HELSINGBORG Interne t
SWEDEN www.milabmic.com
