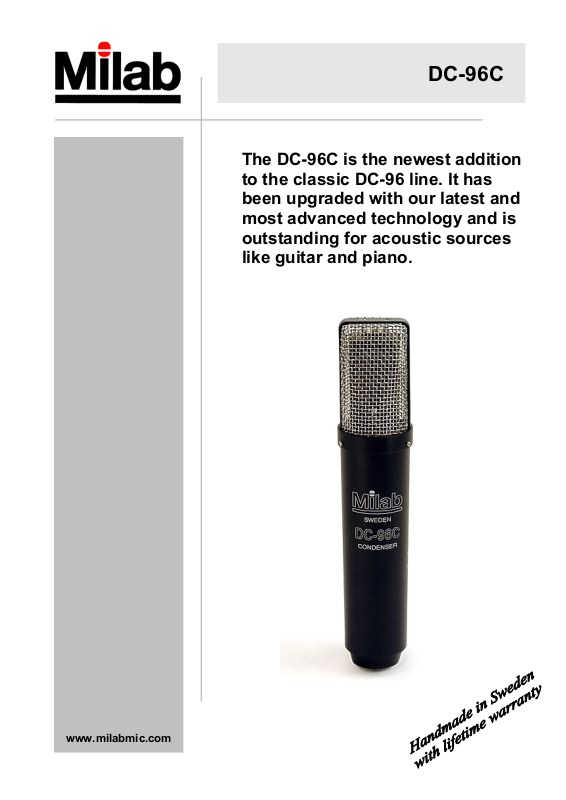

Page 1
DC-96C
The DC-96C is the newest addition
to the classic DC-96 line. It has
been upgraded with our latest and
most advanced technology and is
outstanding for acoustic sources
like guitar and piano.
www.milabmic.com
Page 2
DC-96C Condenser Microphone Art.No 1138
The DC-96C is the newest addition to the classic DC-96 line. It has been upgraded with our latest and
most advanced technology and is outstanding for acoustic sources like guitar and piano.
• Cardioid
• Transformerless
• Rectangular large dual membrane capsule
• Shock absorbing rubber fitted capsule
• 12 dB attenuation pad
• 48 V phantom
Frequency response ( see graph ) 20 - 20 000 Hz
Polar pattern Cardioid
Max. SPL (1% THD at 1 kHz) 132 dB
Max. SPL with 12dB attenuation pad 144 dB
Sensitivity at 1kHz 21.5 mV / Pa (± 1dB)
A-weighted noise level (IEC 179-A) 12 dB
Power supply 48 V ± 4 V phantom
Current consumption 4.2 mA
Output impedance < 200 Ω
Minimum load impedance 1 kΩ
Connection 3-pin XLR
Pin 1: earth (Shield)
Pin 2: plus (Hot)
Pin 3: minus (Cold)
Net weight 220 g
Length 145 mm
Diameter 27 mm
Frequency response
The frequency response may vary within ± 2.5 dB of the published graph.
Each microphone is measured and delivered with its own frequency chart.
(at 1m) Polar diagram
Milab Microphones AB
Mailing address Office address Phone Fax E-mail
P. O. Box 1342 Norra Strandgatan 4 +46 42 381620 +46 42 136350 [email protected]
S-251 13 HELSINGBORG Internet
SWEDEN www.milabmic.com
