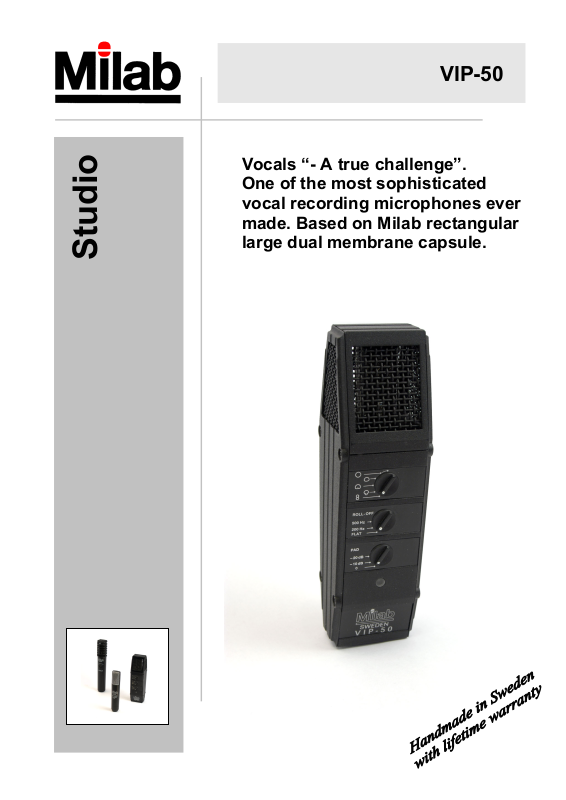

Milab VIP50 User Manual

Studio

VIP-50

Vocals “- A true challenge”.
One of the most sophisticated
vocal recording microphones ever
made. Based on Milab rectangular
large dual membrane capsule.

www.milabmic.com

VIP-50 Condenser Microphone Art.No 1111

Vocals - a true challenge. One of the most sophisticated vocal recording microphones ever made.

• Transformerless

• Variable pattern

• 200/500 Hz high pass filters

• -10/-20 dB pre-attenuation

• Rectangular large dual membrane capsule

• Shock absorbing rubber fitted capsule

Frequency response 20-20 000 Hz ( See graph )
Polar patterns ( switchable ) Cardioid, Wide Cardioid, Hyper Cardioid
Figure - 8, Omni
Filters (switchable ) 200 Hz high pass
500 Hz high pass
Pre-attenuation ( switchable ) -10 dB

-20 dB
Maximum SPL ( 1 % THD at 1 kHz) 112 dB
with 10 dB pad 122 dB
with 20 dB pad 132 dB
Sensitivity at 1 kHz 14 mV/Pa ± 1 dB
A-weighted noise level ( IEC 179-A ) ≤ 19 dB
Power supply 48 ± 4 V phantom
Current consumption 3,5 mA
Output impedance < 200 Ω
Minimum load impedance 1 kΩ
Connection 3-pin XLR
pin 1: earth ( Shield )
pin 2: plus ( Hot )
pin 3: minus ( Cold )
Net weight 400 g
Length 170 mm
With 47 mm
Thickness (max) 50 mm

Frequency response (at 1m distance) Polar diagram

The frequency response may vary within ± 2,5 dB of the published graph.
Before delivery, each microphone is measured and accompanied with it’s own graph
for the cardioid position.
