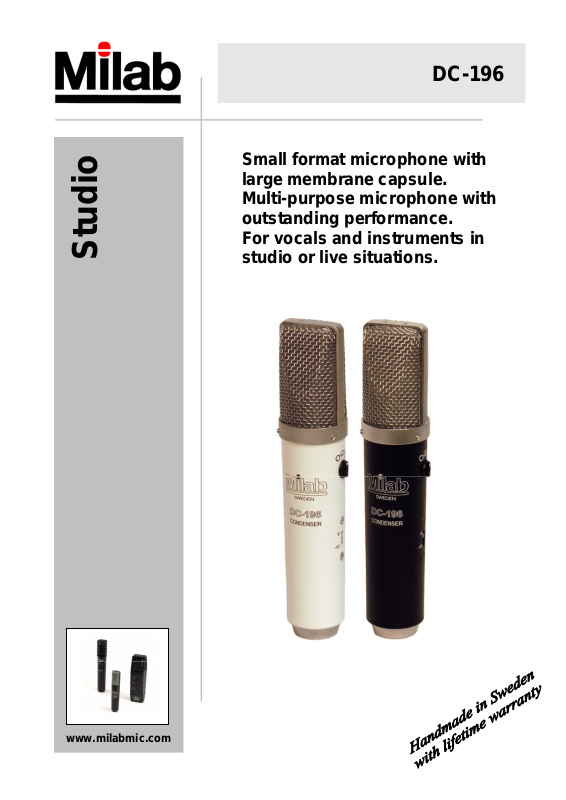

Milab DC-196 User Manual
DC-196
Small format microphone with
large membrane capsule.
Multi-purpose microphone with
outstanding performance.
For vocals and instruments in
Studio
studio or live situations.
www.milabmic.com
DC-196 Condenser Microphone Art.No 1133 & 1133B
• Variable pattern
• Rectangular large dual membrane capsule
• Built-in pop protection
• - 12 dB pre-attenuation
• Shock absorbing rubber fitted capsule
Frequency response ( see graph ) 20 - 20 000 Hz
Polar pattern Cardioid, omni and figure-of-eight
Pre-attenuation ( switchable ) -12 dB
Max. SPL ( 1 % THD at 1 kHz) 132/144 dB
Sensitivity at 1kHz 21,5 mV / Pa ± 1 dB
A-weighted noise level ( IEC 179-A) 12 dB
Power supply 48 V ± 4 V phantom
Current consumption 4,2 mA
Output impedance < 200 Ω
Minimum load impedance 1 kΩ
Connection 3-pin XLR
pin 1: earth ( Shield )
pin 2: plus ( Hot )
pin 3: minus ( Cold )
Net weight 230 g
Length 145 mm
Diameter 27 mm
Frequency response
The frequency response may vary within ± 2,5 dB of the published graph. Cardioid
Before delivery, each microphone is measured and accompanied with it’s own graph.
(at 1m distance) Polar diagram
Milab Microphones AB
Mailing address Office address Phone Fax E-mail
P. O. Box 1342 Norra Strandgatan 4 +46 42 381620 +46 42 136350 milab@milabmic.com
S-251 13 HELSINGBORG Internet
SWEDEN www.milabmic.com
